Computer architecture

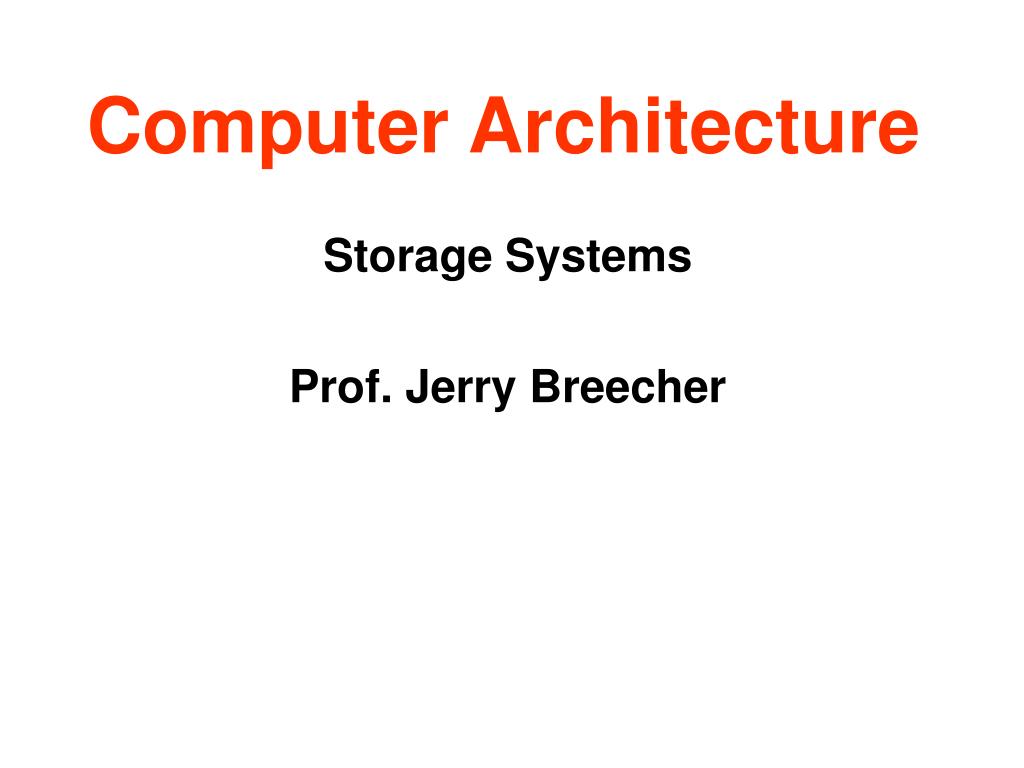

Computer Architecture

Storage Systems

Prof. Jerry Breecher


Chapter overview

Chapter Overview

6.1 Introduction

6.2 Types of Storage Devices

6.3 Busses - Connecting IO Devices to CPU/Memory. Interrupts etc. How is data transferred.

6.5 Reliability, Availability and RAID

Chap. 6 - Storage


Introduction

The Big Picture: Where are We Now?

Introduction

6.1 Introduction

6.2 Types of Storage Devices

6.3 Busses - Connecting IO Devices to CPU/Memory.

Interrupts etc. How is data transferred.

6.5 Reliability, Availability and RAID

We will look at how devices (especially disks) are put together.

We’ll look at how to connect IO devices to the CPU.

And then we’ll look at RAID, the brainchild of Patterson and his buddies.

Chap. 6 - Storage

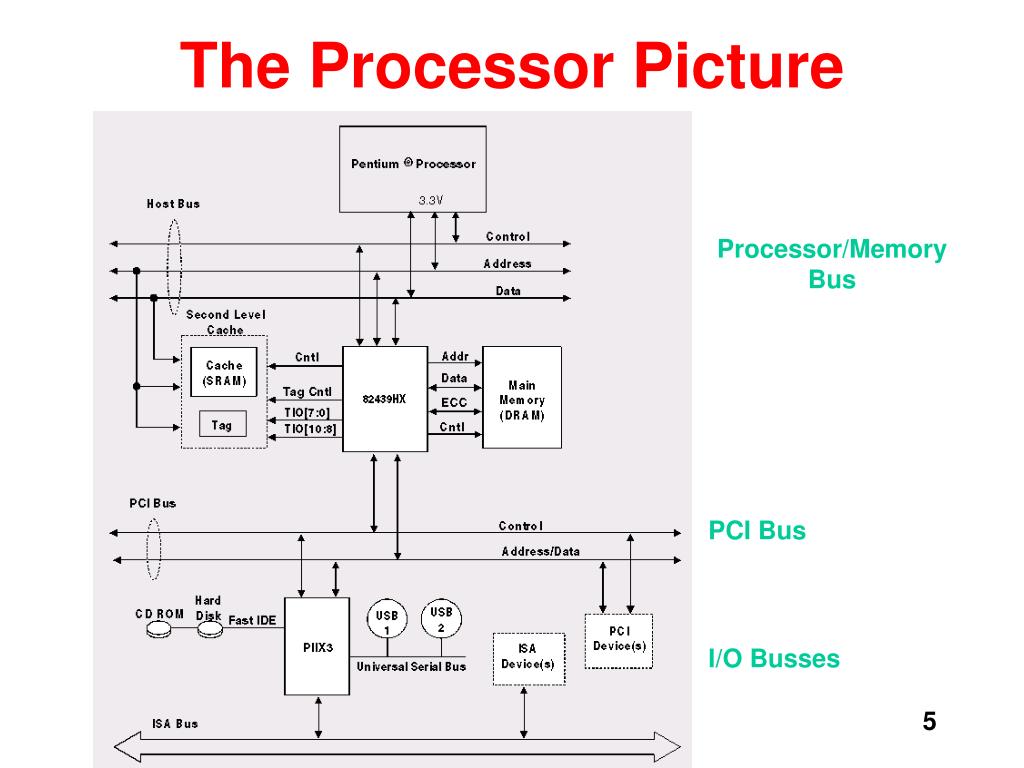

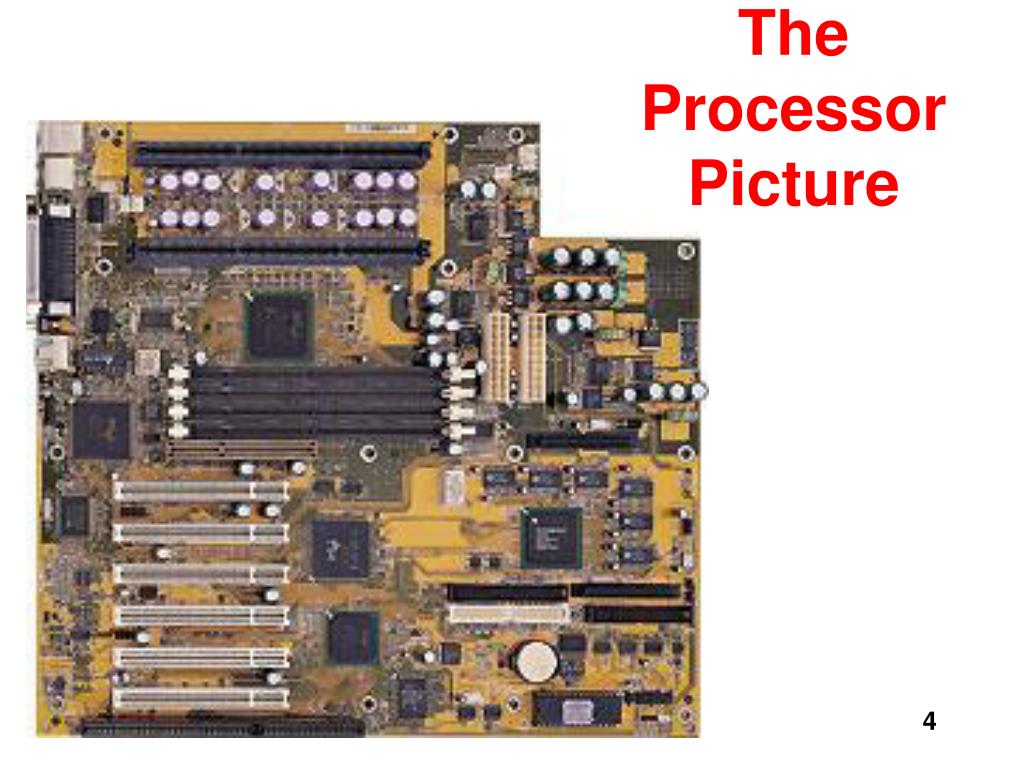

The processor picture

The Processor Picture

Chap. 6 - Storage


The processor picture1

The Processor Picture

Processor/Memory

Bus

PCI Bus

I/O Busses

Chap. 6 - Storage


The processor picture2

Processor

Processor

Processor

Processor

Registers

Registers

Registers

Registers

Cache

Cache

Cache

Cache

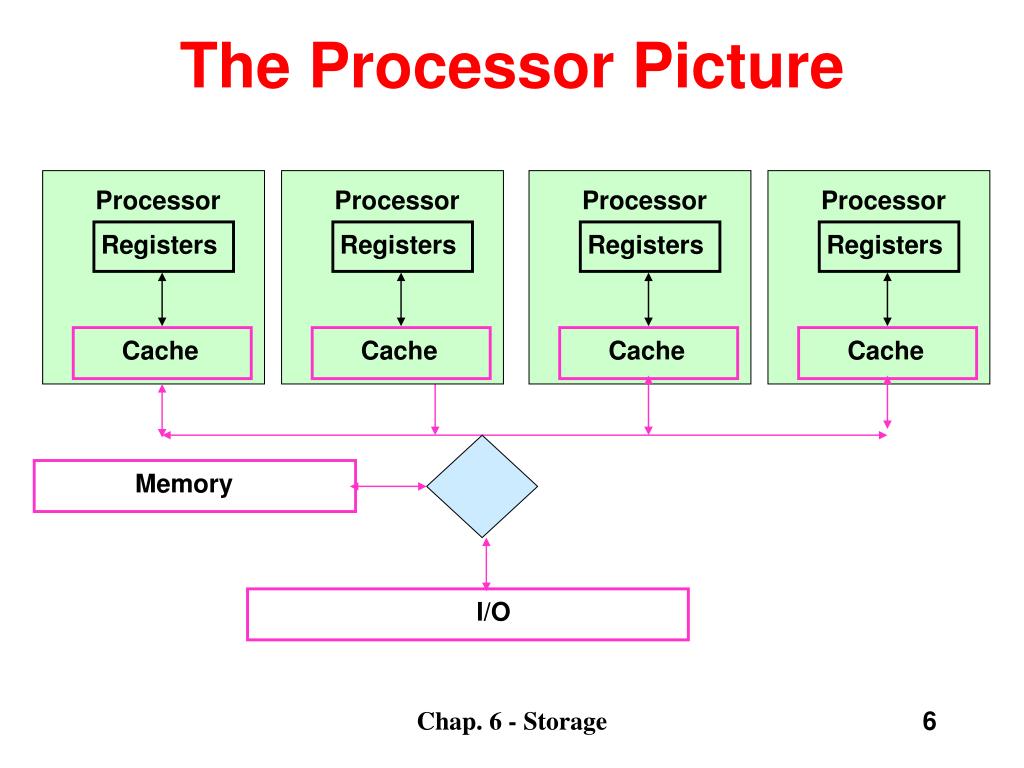

The Processor Picture

Memory

I/O

Chap. 6 - Storage


Types of storage devices

Types of Storage Devices

In this section we will:

Take a quick look at how disks work. This is only one example of IO, but we will save networks, tapes, etc. for another course.

6.1 Introduction

6.2 Types of Storage Devices

6.3 Busses - Connecting IO Devices to CPU/Memory.

Interrupts etc. How is data transferred.

6.5 Reliability, Availability and RAID

Chap. 6 - Storage


Disk device terminology

Types of Storage Devices

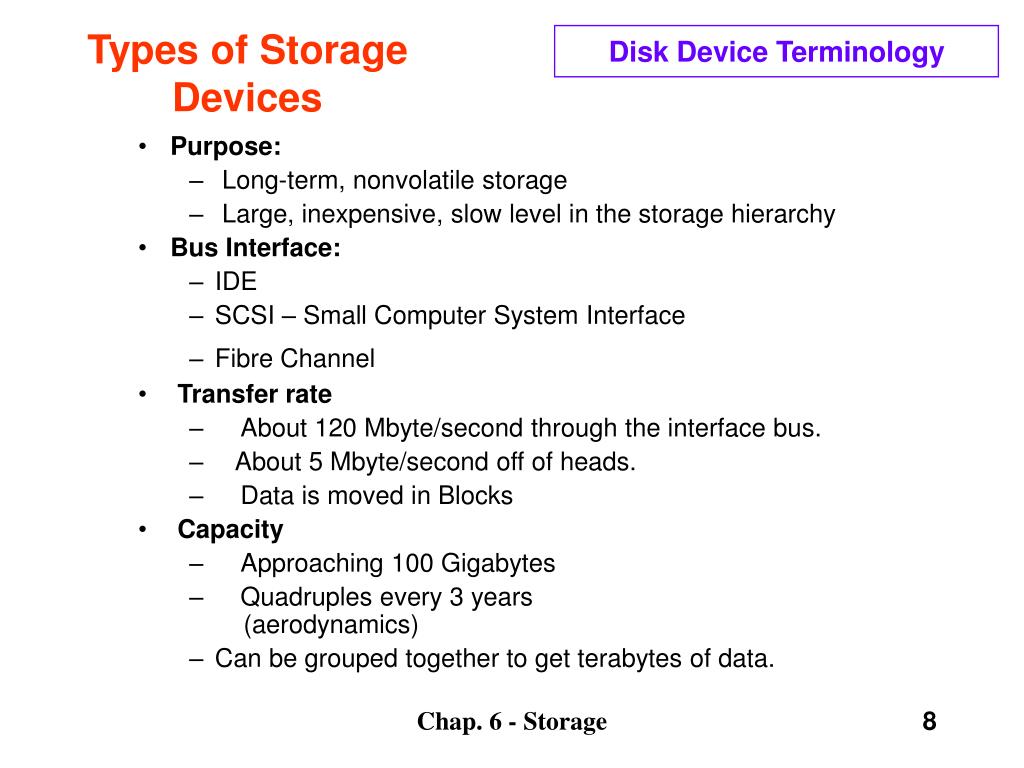

Disk Device Terminology

  • Purpose:

    • Long-term, nonvolatile storage

    • Large, inexpensive, slow level in the storage hierarchy

  • Bus Interface:

    • IDE

    • SCSI – Small Computer System Interface

    • Fibre Channel

  • Transfer rate

    • About 120 Mbyte/second through the interface bus.

    • About 5 Mbyte/second off of heads.

    • Data is moved in Blocks

  • Capacity

    • Approaching 100 Gigabytes

    • Quadruples every 3 years (aerodynamics)

    • Can be grouped together to get terabytes of data.

Chap. 6 - Storage


Disk device terminology1

Types of Storage Devices

Disk Device Terminology

Example: Seagate Cheetah ST336752LC

36 Gigabytes

15,000 RPM

3.6 ms avg seek time.

$699.00

4 disks, 8 heads (so 8 tracks)

71,000,000 Total Sectors

18,000 cylinders

Average of 4,000 sectors/cylinder or 500 sectors / track (but different amounts on each track.)

MTBF = 1,200,000 hours

http://www.seagate.com/cda/products/discsales/marketing/detail/0,1121,355,00.html

Chap. 6 - Storage


Performance of magnetic disks

Response time

= Queue + Controller + Seek + Rot + Xfer

Service time

Types of Storage Devices

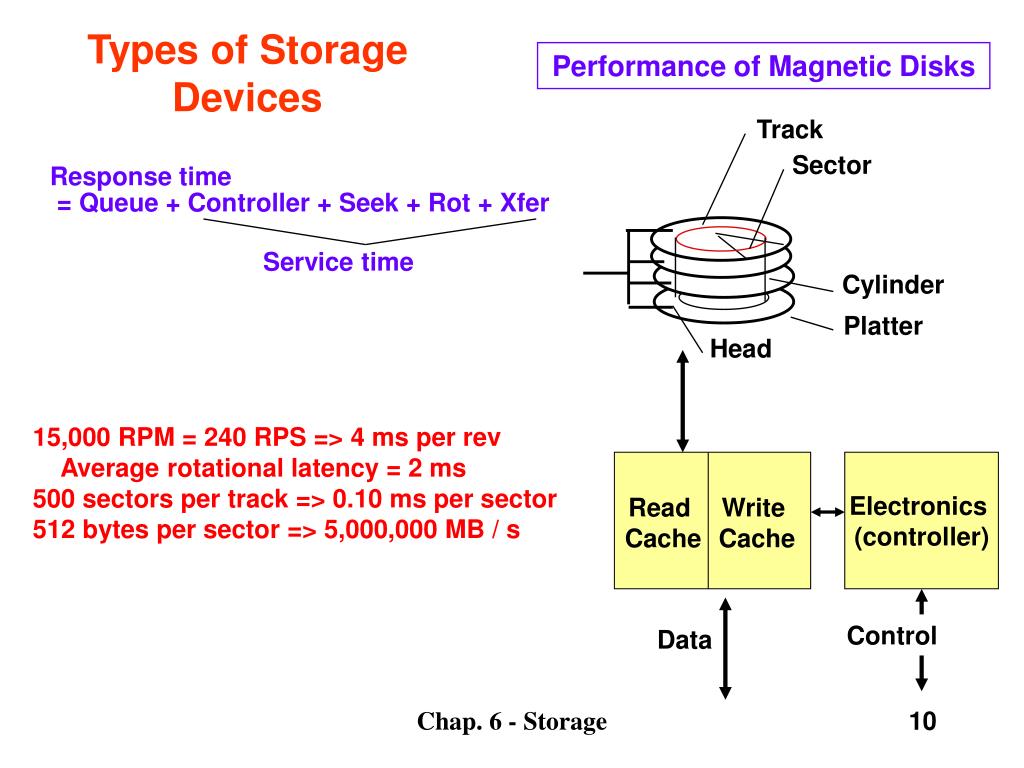

Performance of Magnetic Disks

Track

Sector

Cylinder

Platter

Head

15,000 RPM = 240 RPS => 4 ms per rev

Average rotational latency = 2 ms

500 sectors per track => 0.10 ms per sector

512 bytes per sector => 5,000,000 MB / s

Electronics

(controller)

Read

Cache

Write

Cache

Control

Data

Chap. 6 - Storage


Busses

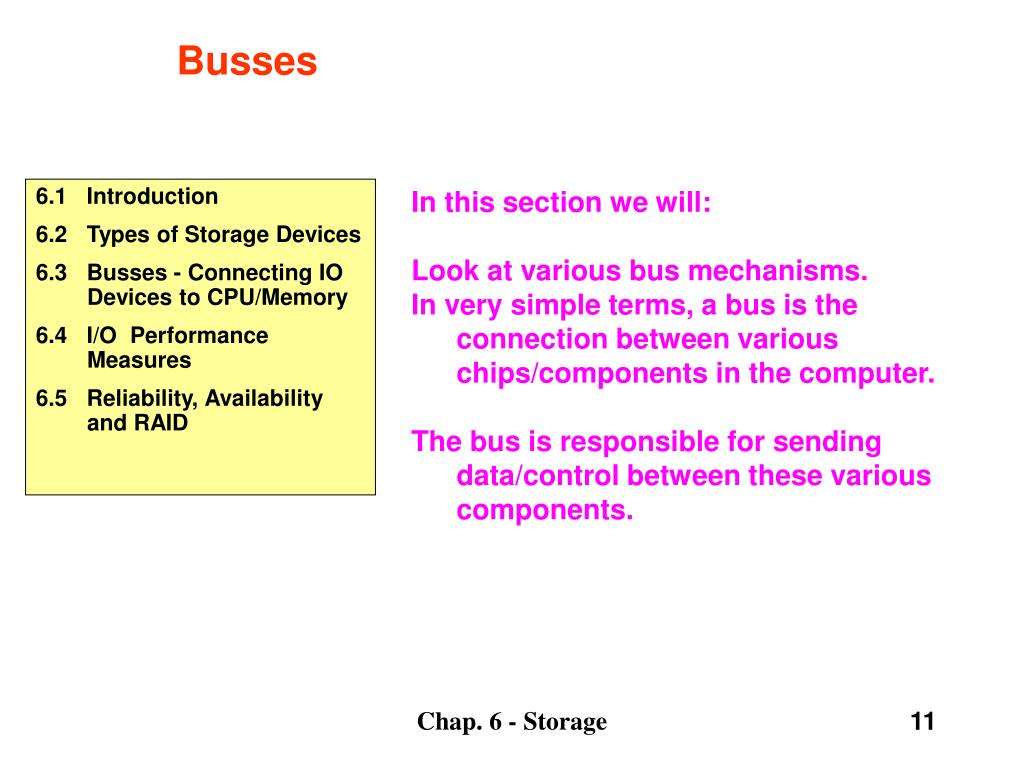

Busses

In this section we will:

Look at various bus mechanisms.

In very simple terms, a bus is the connection between various chips/components in the computer.

The bus is responsible for sending data/control between these various components.

6.1 Introduction

6.2 Types of Storage Devices

6.3 Busses - Connecting IO Devices to CPU/Memory

6.4 I/O Performance Measures

6.5 Reliability, Availability and RAID

Chap. 6 - Storage


Interconnect trends

Busses

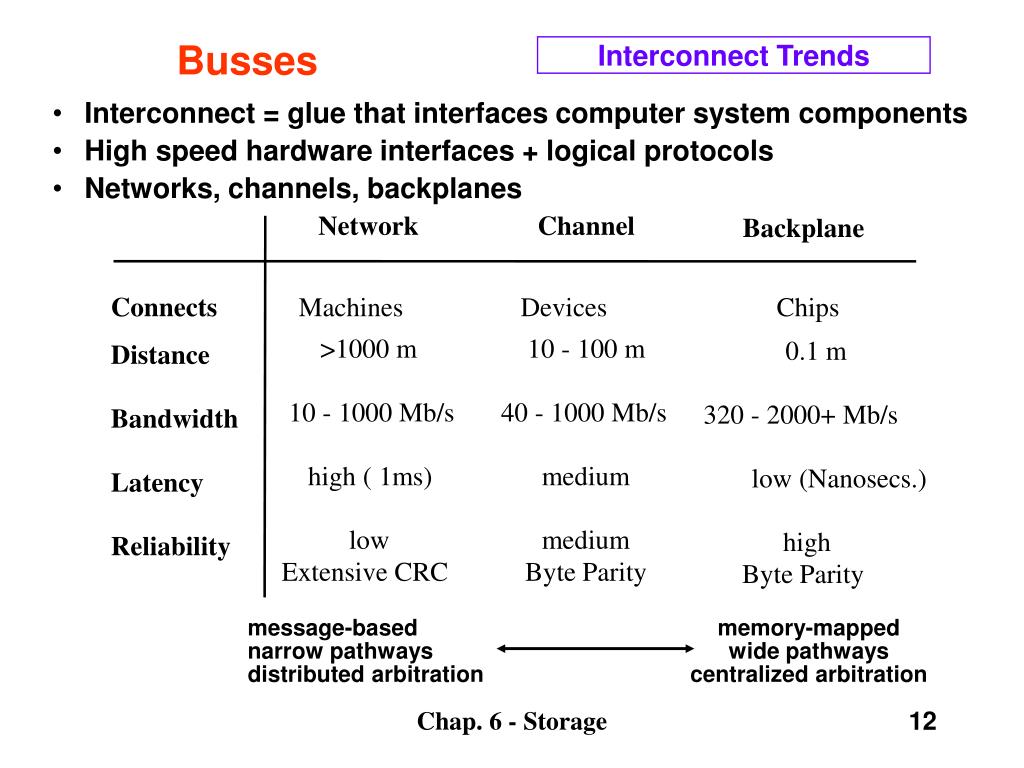

Interconnect Trends

Network

Channel

Backplane

  • Interconnect = glue that interfaces computer system components

  • High speed hardware interfaces + logical protocols

  • Networks, channels, backplanes

Connects

Machines

Devices

Chips

>1000 m

10 - 100 m

0.1 m

Distance

10 - 1000 Mb/s

40 - 1000 Mb/s

320 - 2000+ Mb/s

Bandwidth

high ( 1ms)

medium

low (Nanosecs.)

Latency

low

medium

high

Reliability

Extensive CRC

Byte Parity

Byte Parity

message-based

narrow pathways

distributed arbitration

memory-mapped

wide pathways

centralized arbitration

Chap. 6 - Storage


A computer system with one bus backplane bus

Busses

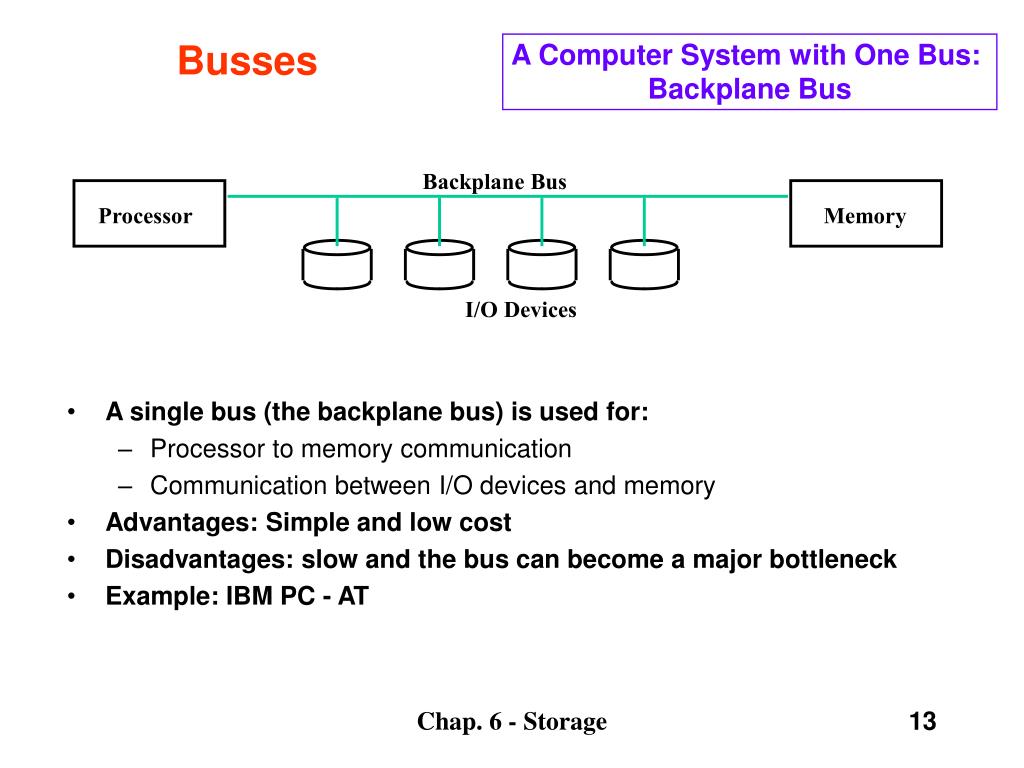

A Computer System with One Bus: Backplane Bus

Backplane Bus

Processor

Memory

  • A single bus (the backplane bus) is used for:

    • Processor to memory communication

    • Communication between I/O devices and memory

  • Advantages: Simple and low cost

  • Disadvantages: slow and the bus can become a major bottleneck

  • Example: IBM PC - AT

I/O Devices

Chap. 6 - Storage

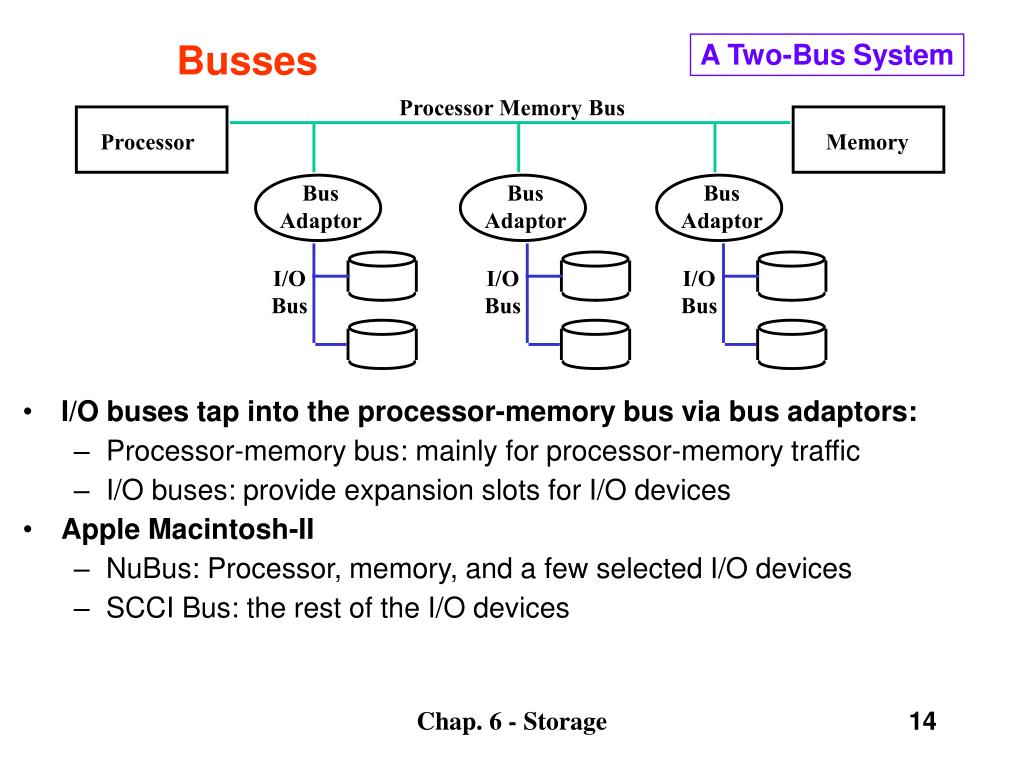

A two bus system

Processor Memory Bus

Processor

Memory

Bus

Adaptor

Bus

Adaptor

Bus

Adaptor

I/O

Bus

I/O

Bus

I/O

Bus

Busses

A Two-Bus System

  • I/O buses tap into the processor-memory bus via bus adaptors:

    • Processor-memory bus: mainly for processor-memory traffic

    • I/O buses: provide expansion slots for I/O devices

  • Apple Macintosh-II

    • NuBus: Processor, memory, and a few selected I/O devices

    • SCCI Bus: the rest of the I/O devices

Chap. 6 - Storage


A three bus system

Processor Memory Bus

Processor

Memory

Bus

Adaptor

Bus

Adaptor

I/O Bus

Backplane Bus

Bus

Adaptor

I/O Bus

Busses

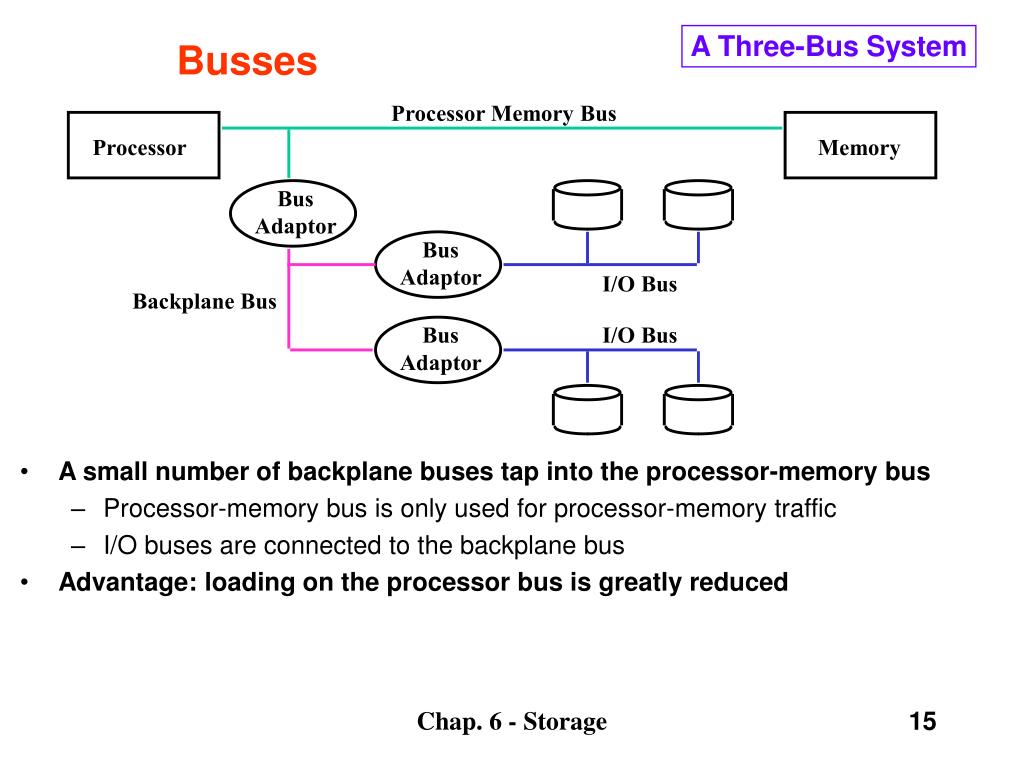

A Three-Bus System

  • A small number of backplane buses tap into the processor-memory bus

    • Processor-memory bus is only used for processor-memory traffic

    • I/O buses are connected to the backplane bus

  • Advantage: loading on the processor bus is greatly reduced

Chap. 6 - Storage


North south bridge architectures separate busses

Busses

Processor

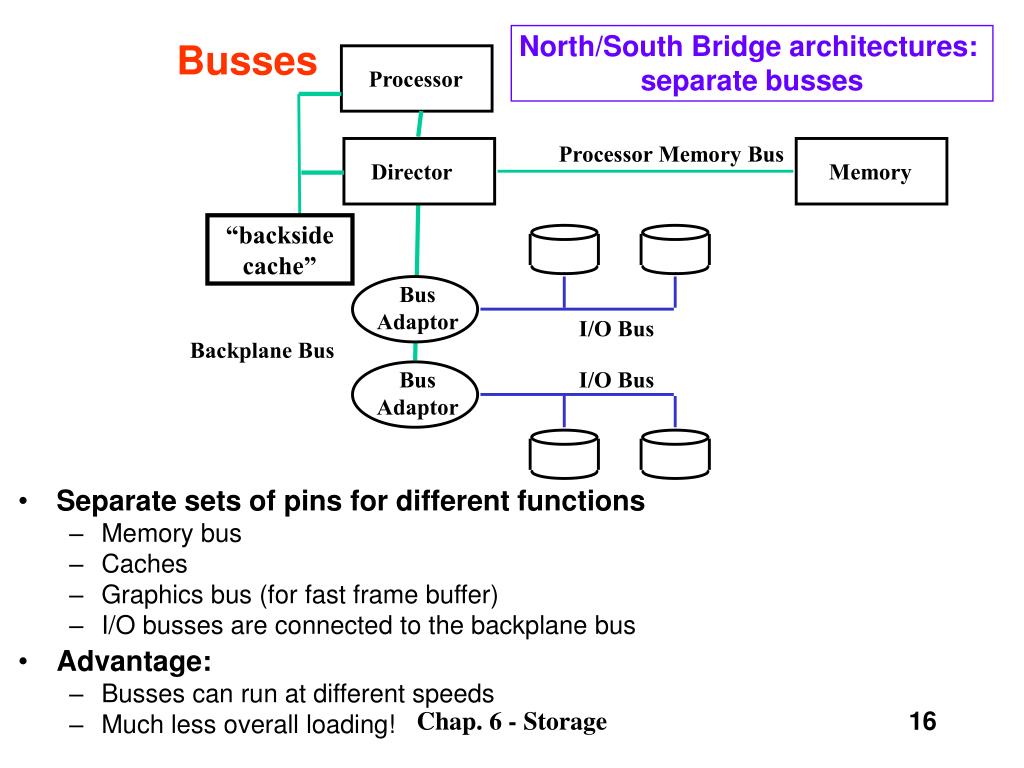

North/South Bridge architectures: separate busses

Processor Memory Bus

Director

Memory

“backside

cache”

  • Separate sets of pins for different functions

    • Memory bus

    • Caches

    • Graphics bus (for fast frame buffer)

    • I/O busses are connected to the backplane bus

  • Advantage:

    • Busses can run at different speeds

    • Much less overall loading!

Bus

Adaptor

I/O Bus

Backplane Bus

Bus

Adaptor

I/O Bus

Chap. 6 - Storage


What defines a bus

Busses

What defines a bus?

Transaction Protocol

Timing and Signaling Specification

Bunch of Wires

Electrical Specification

Physical / Mechanical Characteristics

– the connectors

Chap. 6 - Storage


Synchronous and asynchronous bus

Busses

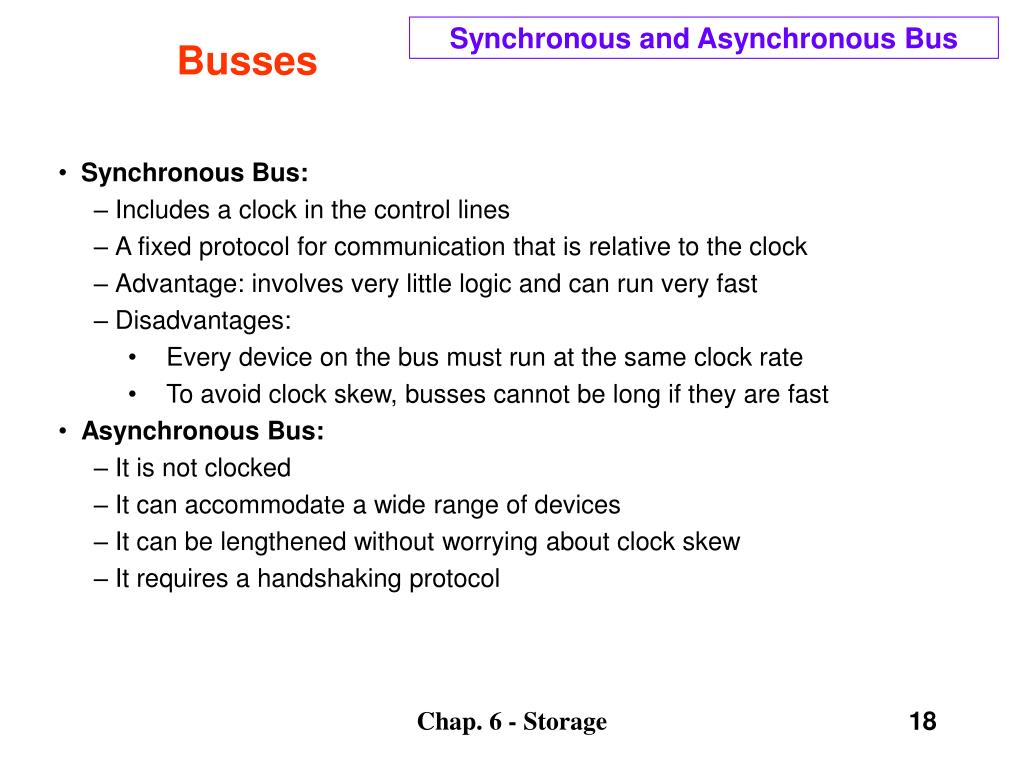

Synchronous and Asynchronous Bus

  • Synchronous Bus:

    • Includes a clock in the control lines

    • A fixed protocol for communication that is relative to the clock

    • Advantage: involves very little logic and can run very fast

    • Disadvantages:

      • Every device on the bus must run at the same clock rate

      • To avoid clock skew, busses cannot be long if they are fast

  • Asynchronous Bus:

    • It is not clocked

    • It can accommodate a wide range of devices

    • It can be lengthened without worrying about clock skew

    • It requires a handshaking protocol

Chap. 6 - Storage


Busses so far

Busses

Busses So Far

Master

Slave

° ° °

Control Lines

Bus Master: has ability to control the bus, initiates transaction

Bus Slave: module activated by the transaction

Bus Communication Protocol: specification of sequence of events and timing requirements in transferring information.

Asynchronous Bus Transfers: control lines (req, ack) serve to orchestrate sequencing.

Synchronous Bus Transfers: sequence relative to common clock.

Address Lines

Data Lines

Chap. 6 - Storage


Arbitration obtaining access to the bus

Busses

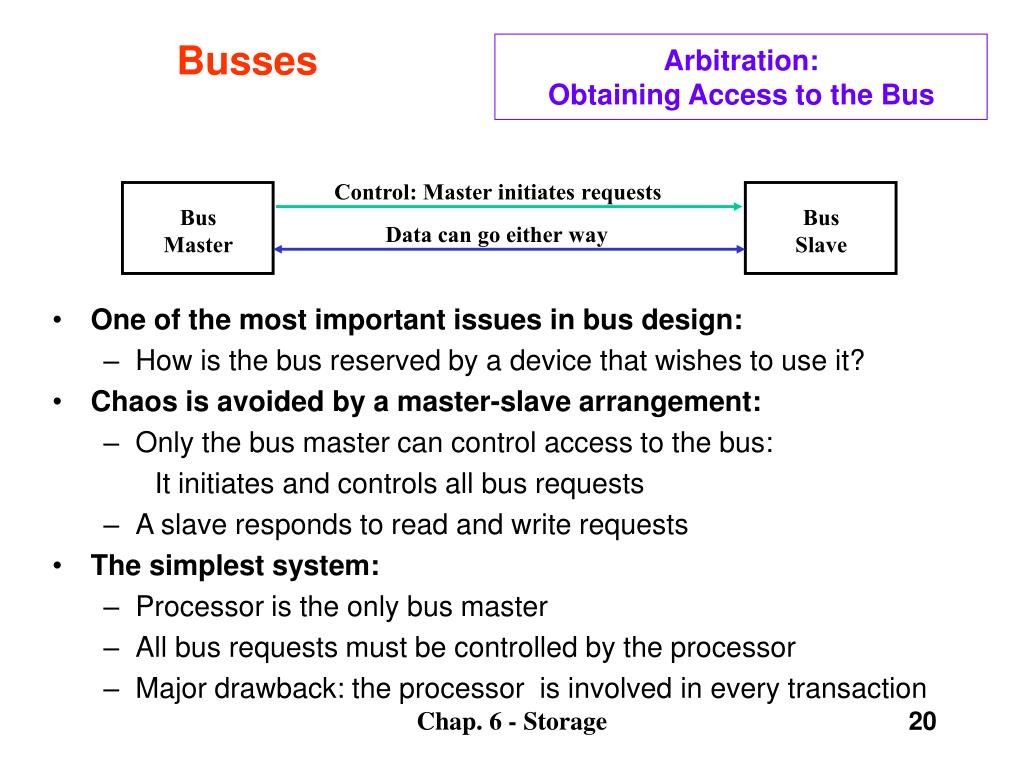

Arbitration: Obtaining Access to the Bus

Control: Master initiates requests

Bus

Master

Bus

Slave

Data can go either way

  • One of the most important issues in bus design:

    • How is the bus reserved by a device that wishes to use it?

  • Chaos is avoided by a master-slave arrangement:

    • Only the bus master can control access to the bus:

      It initiates and controls all bus requests

    • A slave responds to read and write requests

  • The simplest system:

    • Processor is the only bus master

    • All bus requests must be controlled by the processor

    • Major drawback: the processor is involved in every transaction

Chap. 6 - Storage


The daisy chain bus arbitrations scheme

Busses

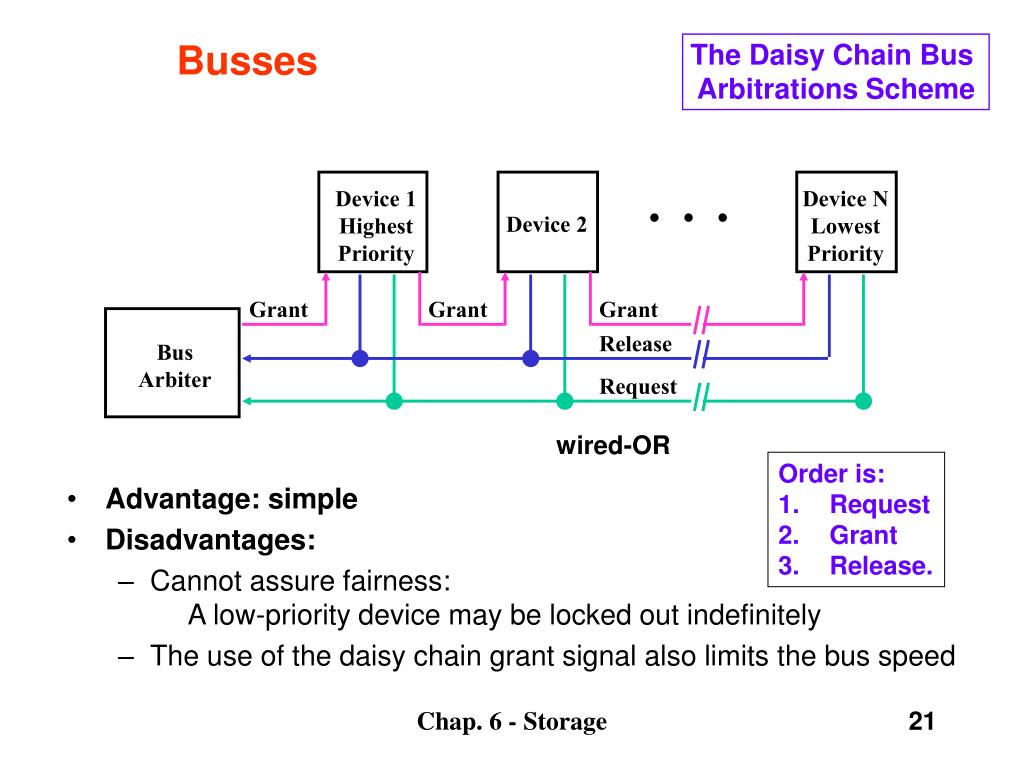

The Daisy Chain Bus Arbitrations Scheme

Device 1

Highest

Priority

Device N

Lowest

Priority

Device 2

  • Advantage: simple

  • Disadvantages:

    • Cannot assure fairness: A low-priority device may be locked out indefinitely

    • The use of the daisy chain grant signal also limits the bus speed

Grant

Grant

Grant

Release

Bus

Arbiter

Request

wired-OR

  • Order is:

  • Request

  • Grant

  • Release.

Chap. 6 - Storage


Simple synchronous protocol

Busses

Simple Synchronous Protocol

Clock

Bus

Request

  • Even memory busses are more complex than this

    • memory (slave) may take time to respond

    • it may need to control data rate

Bus Grant

R/W

Address

Cmd+Addr

Data1

Data2

Data

Chap. 6 - Storage

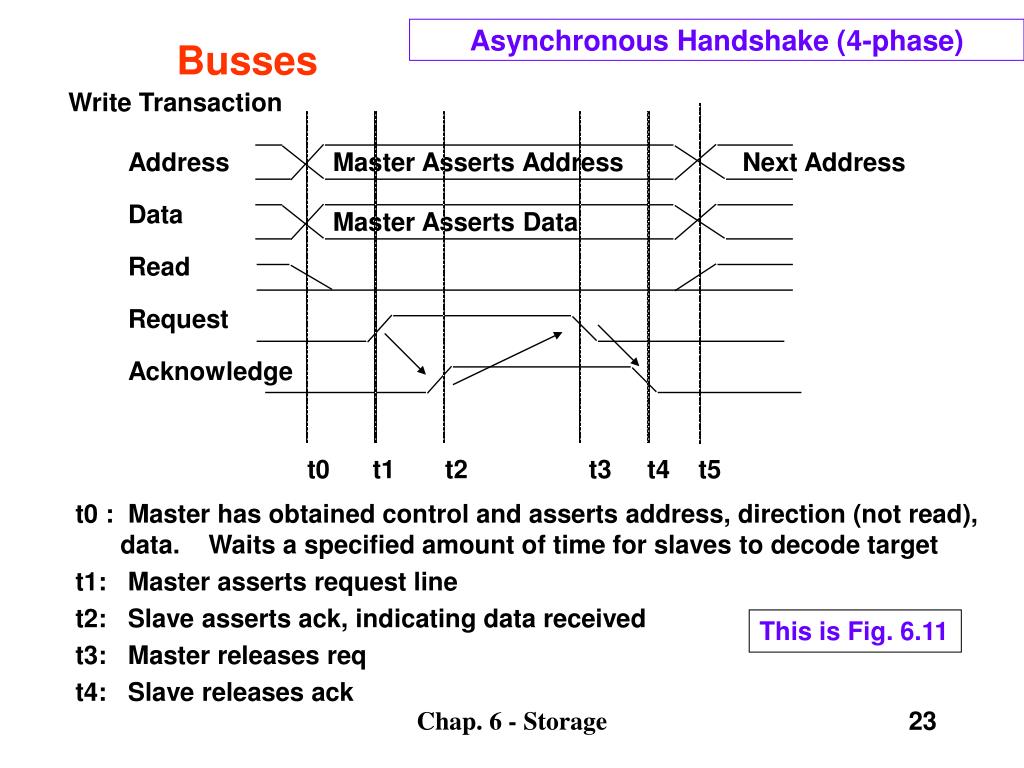

Asynchronous handshake 4 phase

Busses

Asynchronous Handshake (4-phase)

Write Transaction

Address

Data

Read

Request

Acknowledge

Master Asserts Address

Next Address

Master Asserts Data

t0 : Master has obtained control and asserts address, direction (not read), data. Waits a specified amount of time for slaves to decode target

t1: Master asserts request line

t2: Slave asserts ack, indicating data received

t3: Master releases req

t4: Slave releases ack

t0 t1 t2 t3 t4 t5

This is Fig. 6.11

Chap. 6 - Storage

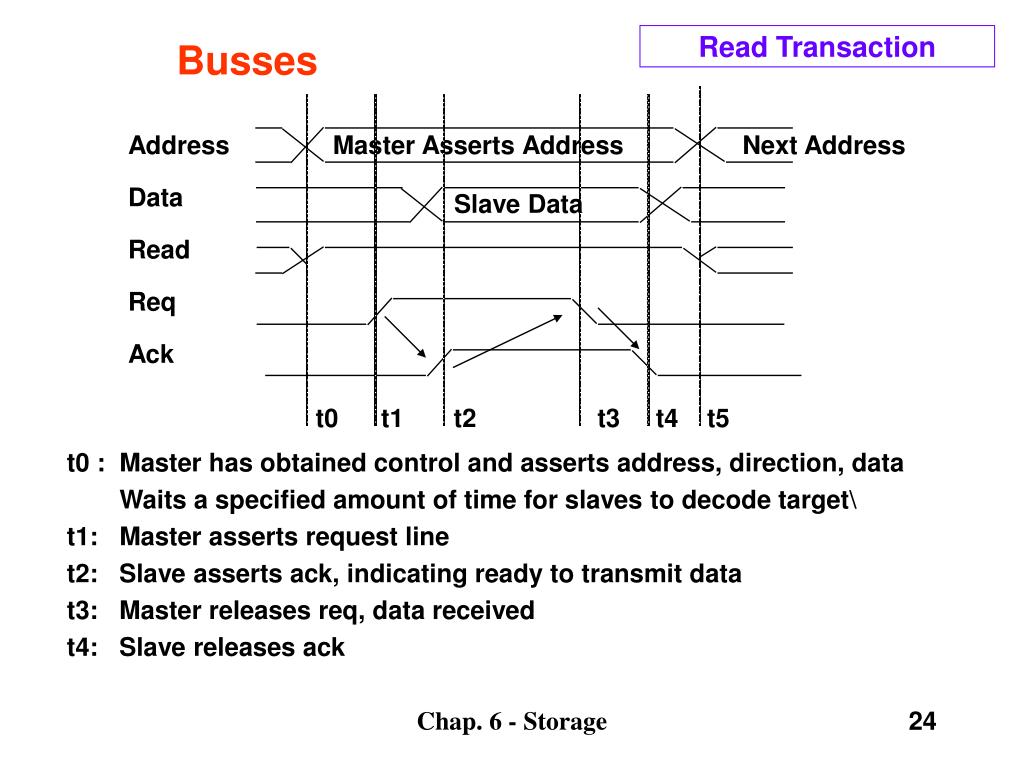

Read transaction

Busses

Read Transaction

Address

Data

Read

Req

Ack

Master Asserts Address

Next Address

Slave Data

t0 : Master has obtained control and asserts address, direction, data

Waits a specified amount of time for slaves to decode target\

t1: Master asserts request line

t2: Slave asserts ack, indicating ready to transmit data

t3: Master releases req, data received

t4: Slave releases ack

t0 t1 t2 t3 t4 t5

Chap. 6 - Storage


Example pci read write transactions

Busses

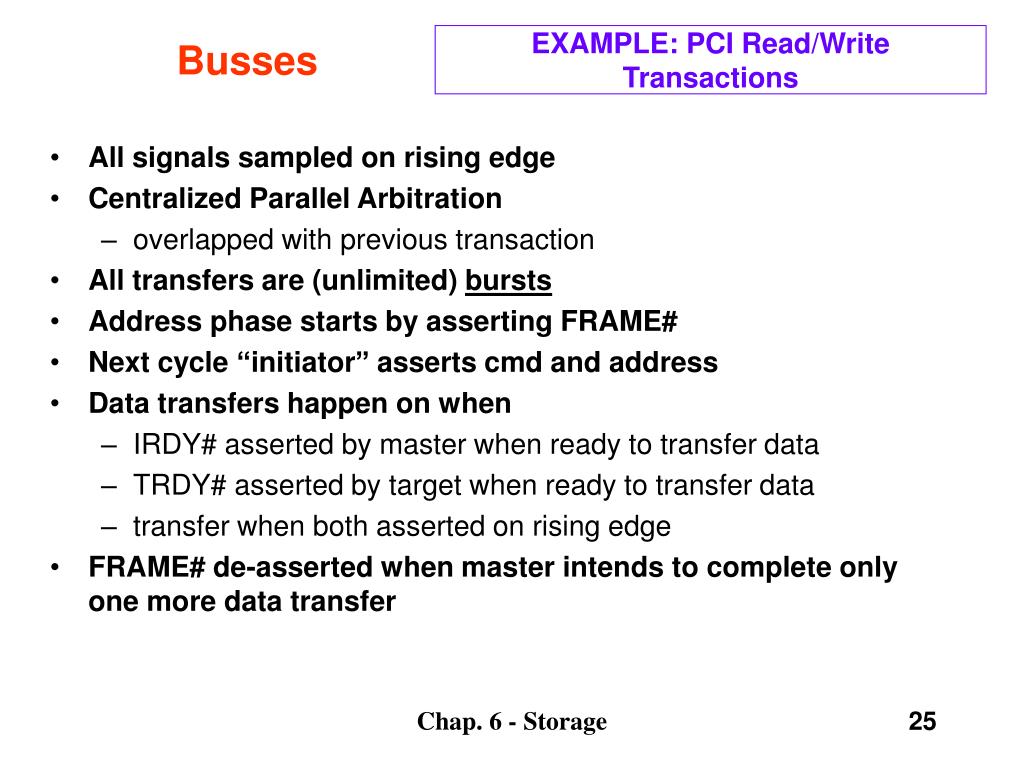

EXAMPLE: PCI Read/Write Transactions

  • All signals sampled on rising edge

  • Centralized Parallel Arbitration

    • overlapped with previous transaction

  • All transfers are (unlimited) bursts

  • Address phase starts by asserting FRAME#

  • Next cycle “initiator” asserts cmd and address

  • Data transfers happen on when

    • IRDY# asserted by master when ready to transfer data

    • TRDY# asserted by target when ready to transfer data

    • transfer when both asserted on rising edge

  • FRAME# de-asserted when master intends to complete only one more data transfer

Chap. 6 - Storage


Example pci read transaction

Busses

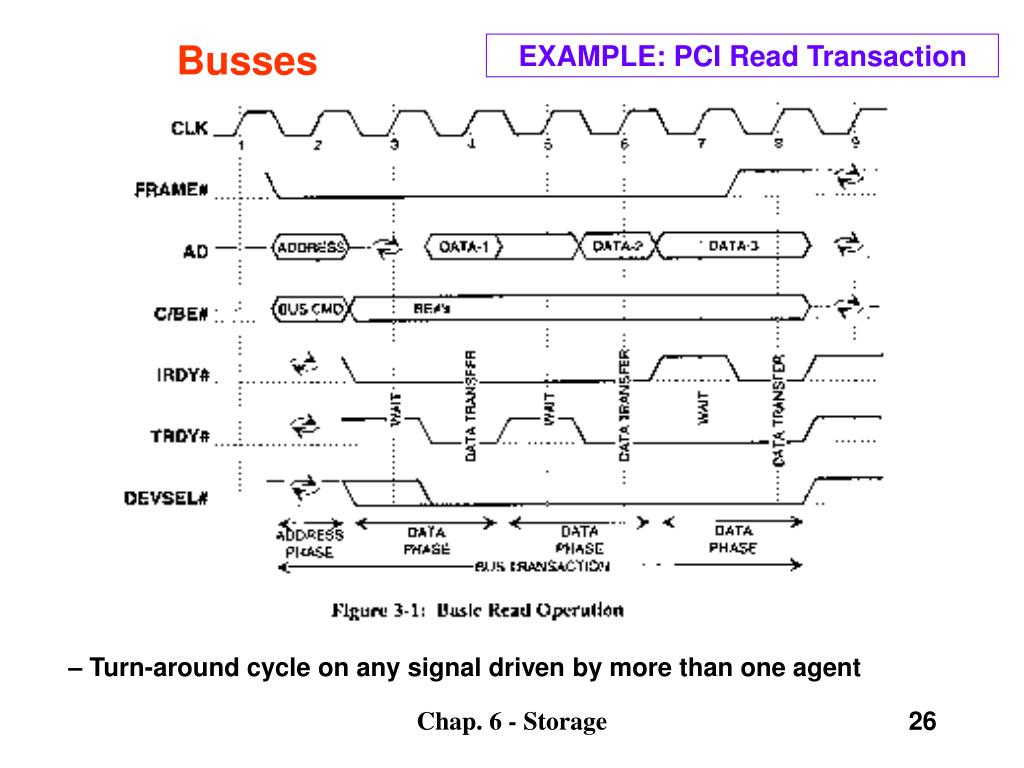

EXAMPLE: PCI Read Transaction

– Turn-around cycle on any signal driven by more than one agent

Chap. 6 - Storage


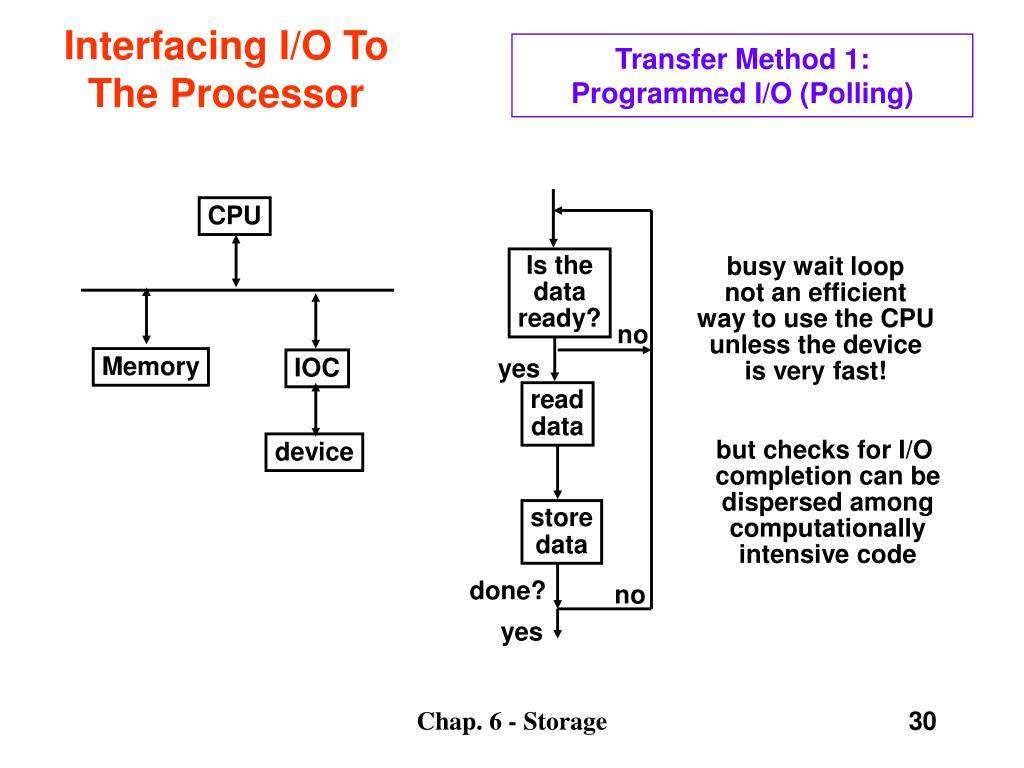

How the cpu talks to the io

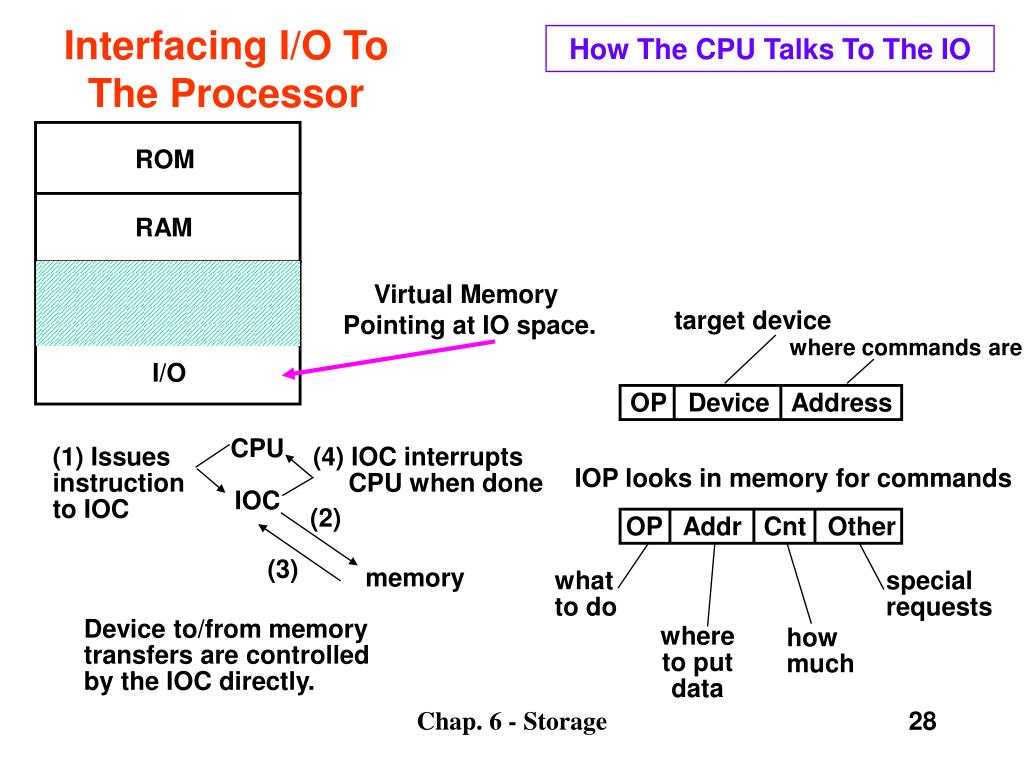

Interfacing I/O To The Processor

How The CPU Talks To The IO

  • The interface consists of setting up the device with what operation is to be performed-

  • Read or Write

  • Size of transfer

  • Location on device

  • Location in memory

  • Then triggering the device to start the operation

  • When operation complete, the device will interrupt.

I/O instructions (in,out) unique from memory access instructions.

LDDR0,D,P <-- Load R0 with the contents found at device D, port P.

Device registers are mapped to look like regular memory:

LDR0,Mem1 <-- Load R0 with the contents found at device D, port P.

This works because an initialization has correlated the device characteristics with location Mem1.

Chap. 6 - Storage


How the cpu talks to the io1

Interfacing I/O To The Processor

How The CPU Talks To The IO

ROM

RAM

Virtual Memory

Pointing at IO space.

target device

where commands are

I/O

OP Device Address

CPU

IOC

(1) Issues

instruction

to IOC

(4) IOC interrupts

CPU when done

IOP looks in memory for commands

(2)

OP Addr Cnt Other

(3)

memory

what

to do

special

requests

Device to/from memory

transfers are controlled

by the IOC directly.

where

to put

data

how

much

Chap. 6 - Storage

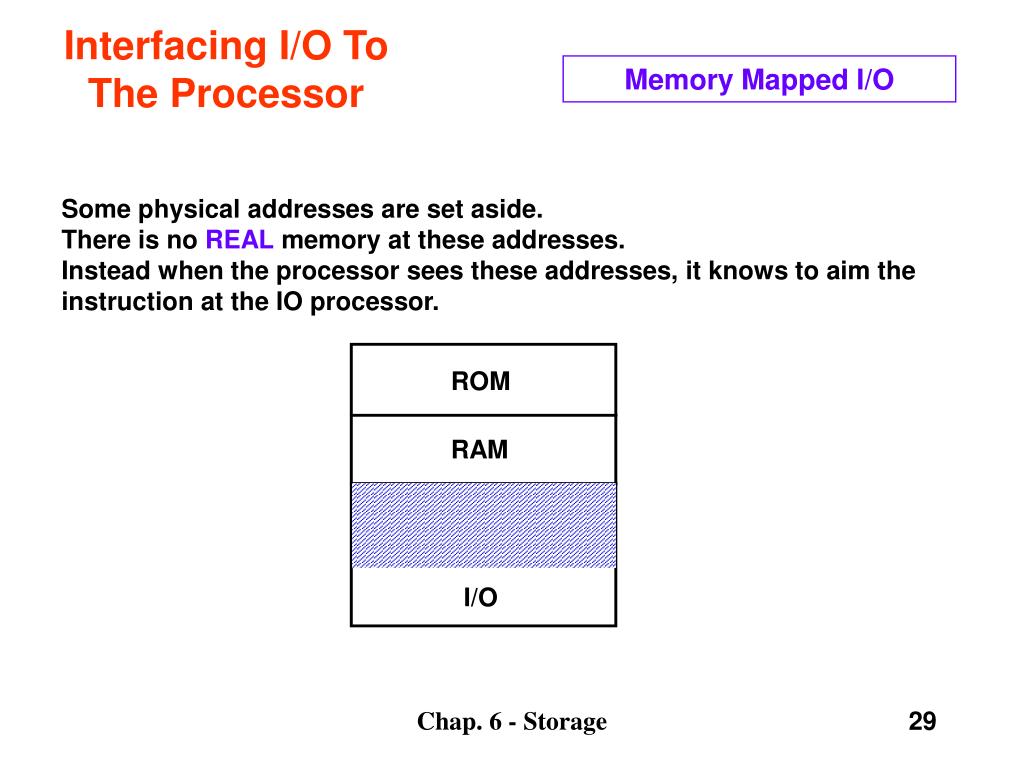

Memory mapped i o

Interfacing I/O To The Processor

Memory Mapped I/O

Some physical addresses are set aside.

There is no REAL memory at these addresses.

Instead when the processor sees these addresses, it knows to aim the instruction at the IO processor.

ROM

RAM

I/O

Chap. 6 - Storage


Transfer method 1 programmed i o polling

Interfacing I/O To The Processor

Transfer Method 1:Programmed I/O (Polling)

CPU

Is the

data

ready?

busy wait loop

not an efficient

way to use the CPU

unless the device

is very fast!

no

Memory

IOC

yes

read

data

device

but checks for I/O

completion can be

dispersed among

computationally

intensive code

store

data

done?

no

yes

Chap. 6 - Storage


Device interrupts

Interfacing I/O To The Processor

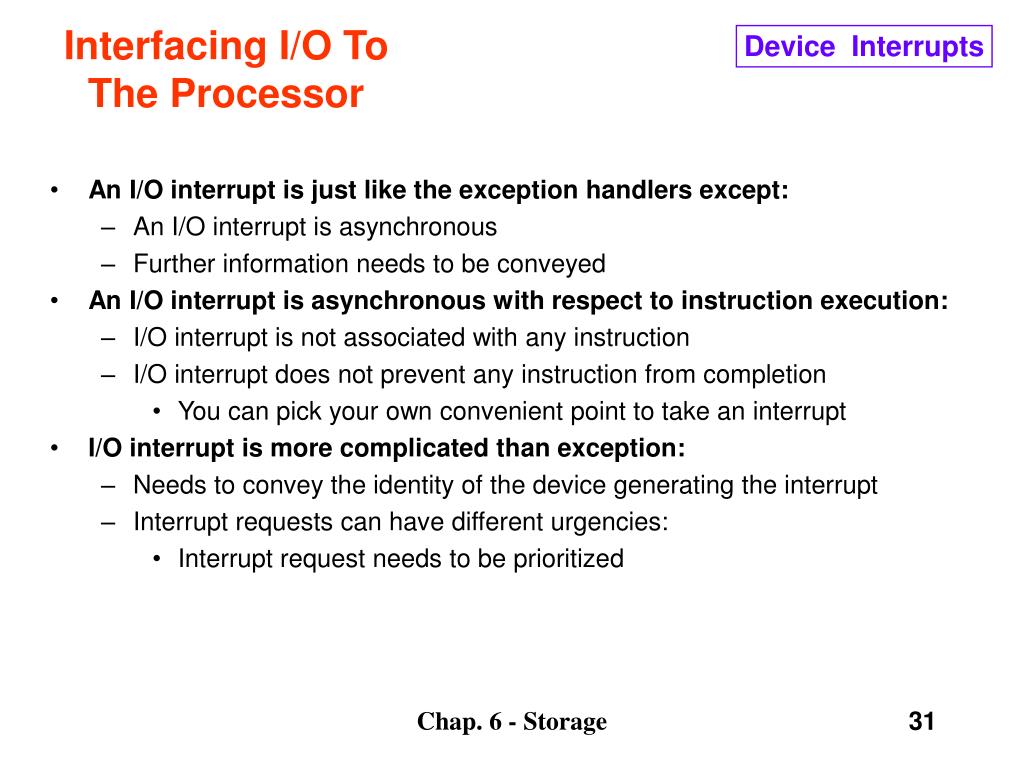

Device Interrupts

  • An I/O interrupt is just like the exception handlers except:

    • An I/O interrupt is asynchronous

    • Further information needs to be conveyed

  • An I/O interrupt is asynchronous with respect to instruction execution:

    • I/O interrupt is not associated with any instruction

    • I/O interrupt does not prevent any instruction from completion

      • You can pick your own convenient point to take an interrupt

  • I/O interrupt is more complicated than exception:

    • Needs to convey the identity of the device generating the interrupt

    • Interrupt requests can have different urgencies:

      • Interrupt request needs to be prioritized

Chap. 6 - Storage

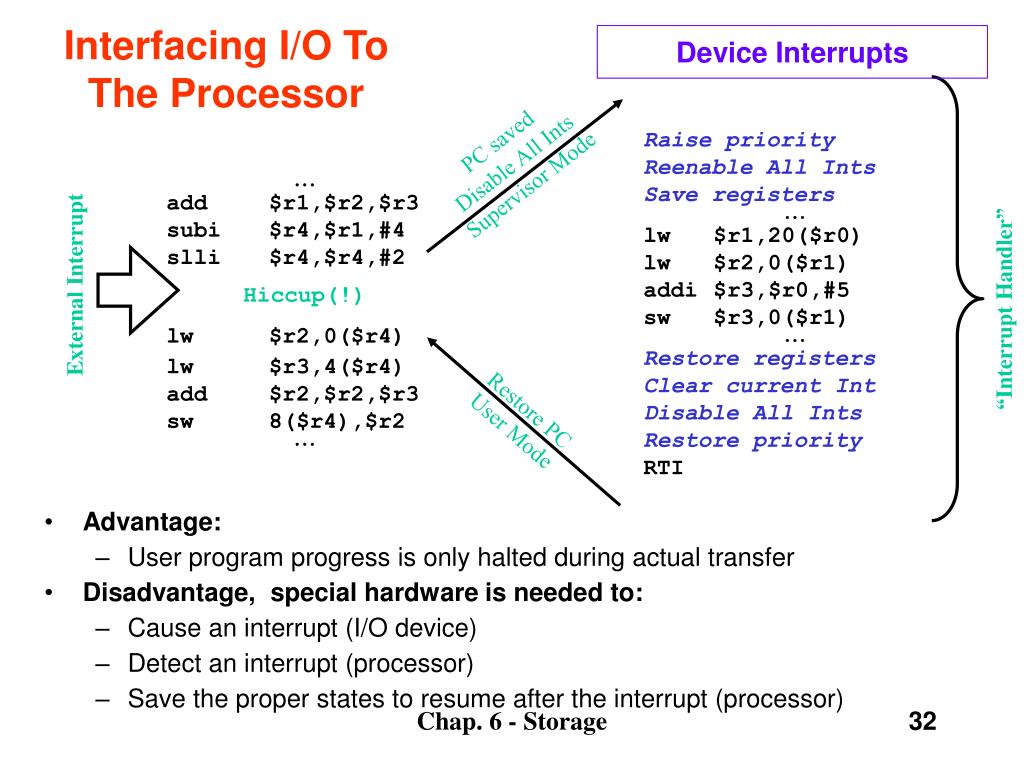

Device interrupts1

PC saved

Disable All Ints

Supervisor Mode

Raise priority

Reenable All Ints

Save registers

lw$r1,20($r0)

lw$r2,0($r1)

addi$r3,$r0,#5

sw $r3,0($r1)

Restore registers

Clear current Int

Disable All Ints

Restore priority

RTI

add $r1,$r2,$r3

subi $r4,$r1,#4

slli $r4,$r4,#2

Hiccup(!)

lw$r2,0($r4)

lw$r3,4($r4)

add$r2,$r2,$r3

sw8($r4),$r2

External Interrupt

“Interrupt Handler”

Restore PC

User Mode

Interfacing I/O To The Processor

Device Interrupts

  • Advantage:

    • User program progress is only halted during actual transfer

  • Disadvantage, special hardware is needed to:

    • Cause an interrupt (I/O device)

    • Detect an interrupt (processor)

    • Save the proper states to resume after the interrupt (processor)

Chap. 6 - Storage


Transfer method 2 interrupt driven data transfer

Interfacing I/O To The Processor

Transfer Method 2:Interrupt Driven Data Transfer

add

sub

and

or

nop

CPU

user

program

(1) I/O

interrupt

(2) save PC

Memory

IOC

(3) interrupt

service addr

device

read

store

...

rti

interrupt

service

routine

User program progress only halted during

actual transfer. Interrupt handler code

does the transfer.

1000 transfers at 1000 bytes each:

1000 interrupts @ 2 µsec per interrupt

1000 interrupt service @ 98 µsec each = 0.1 CPU seconds

(4)

memory

Device xfer rate = 10 MBytes/sec => 0 .1 x 10-6 sec/byte => 0.1 µsec/byte

=> 1000 bytes = 100 µsec

1000 transfers x 100 µsecs = 100 ms = 0.1 CPU seconds

Still far from device transfer rate! 1/2 in interrupt overhead

Chap. 6 - Storage


Delegating i o responsibility from the cpu dma

Interfacing I/O To The Processor

Delegating I/O Responsibility from the CPU: DMA

CPU sends a starting address,

direction, and length count

to IOC. Then issues "start".

  • Direct Memory Access (DMA):

    • External to the CPU

    • Act as a master on the bus

    • Transfers blocks of data to or from memory without CPU intervention

CPU

Memory

IOC

device

IOC provides handshake

signals for Peripheral

Controller, and Memory

Addresses and handshake

signals for Memory.

Chap. 6 - Storage

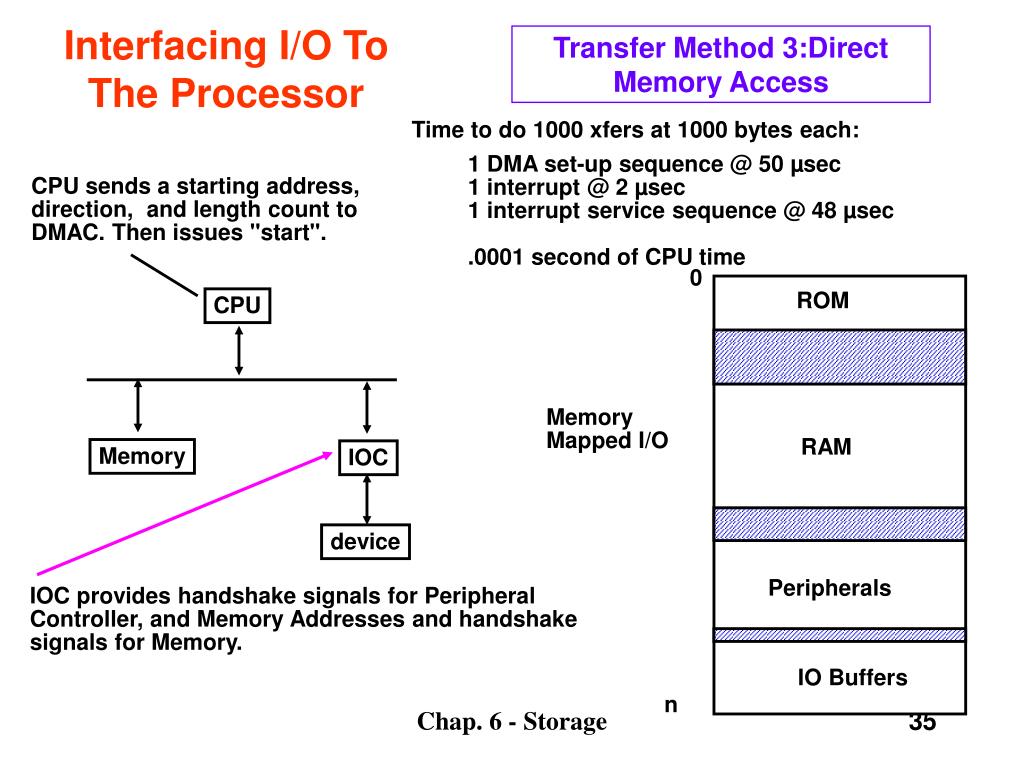

Transfer method 3 direct memory access

Interfacing I/O To The Processor

Transfer Method 3:Direct Memory Access

Time to do 1000 xfers at 1000 bytes each:

1 DMA set-up sequence @ 50 µsec

1 interrupt @ 2 µsec

1 interrupt service sequence @ 48 µsec

.0001 second of CPU time

CPU sends a starting address,

direction, and length count to

DMAC. Then issues "start".

0

ROM

CPU

Memory

Mapped I/O

RAM

Memory

IOC

device

Peripherals

IOC provides handshake signals for Peripheral

Controller, and Memory Addresses and handshake

signals for Memory.

IO Buffers

n

Chap. 6 - Storage


Computer architecture

RAID

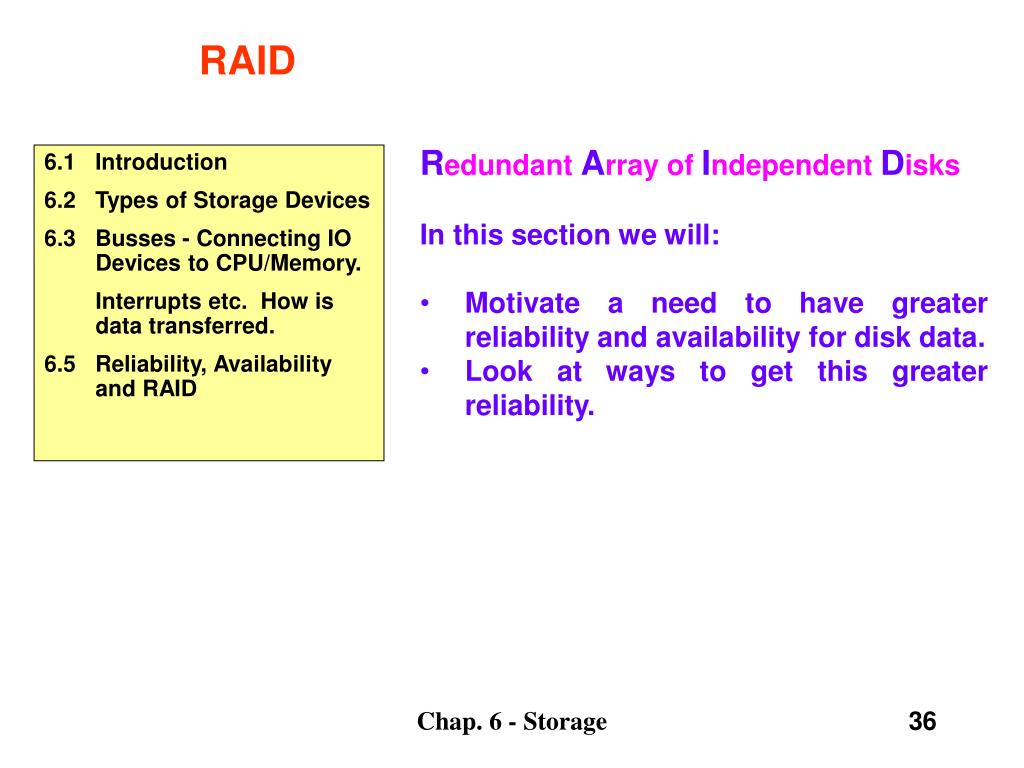

  • Redundant Array of Independent Disks

  • In this section we will:

  • Motivate a need to have greater reliability and availability for disk data.

  • Look at ways to get this greater reliability.

6.1 Introduction

6.2 Types of Storage Devices

6.3 Busses - Connecting IO Devices to CPU/Memory.

Interrupts etc. How is data transferred.

6.5 Reliability, Availability and RAID

Chap. 6 - Storage

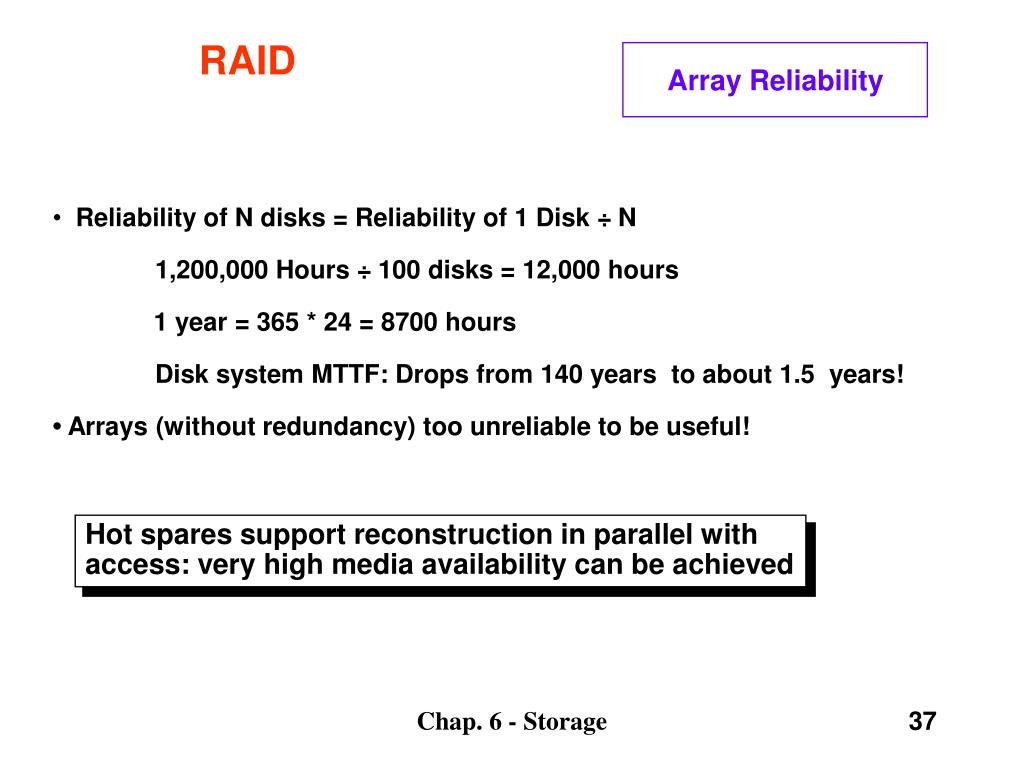

Array reliability

RAID

Array Reliability

  • Reliability of N disks = Reliability of 1 Disk ÷ N

    • 1,200,000 Hours ÷ 100 disks = 12,000 hours

    • 1 year = 365 * 24 = 8700 hours

  • Disk system MTTF: Drops from 140 years to about 1.5 years!

  • • Arrays (without redundancy) too unreliable to be useful!

Hot spares support reconstruction in parallel with

access: very high media availability can be achieved

Chap. 6 - Storage


Redundant arrays of disks

RAID

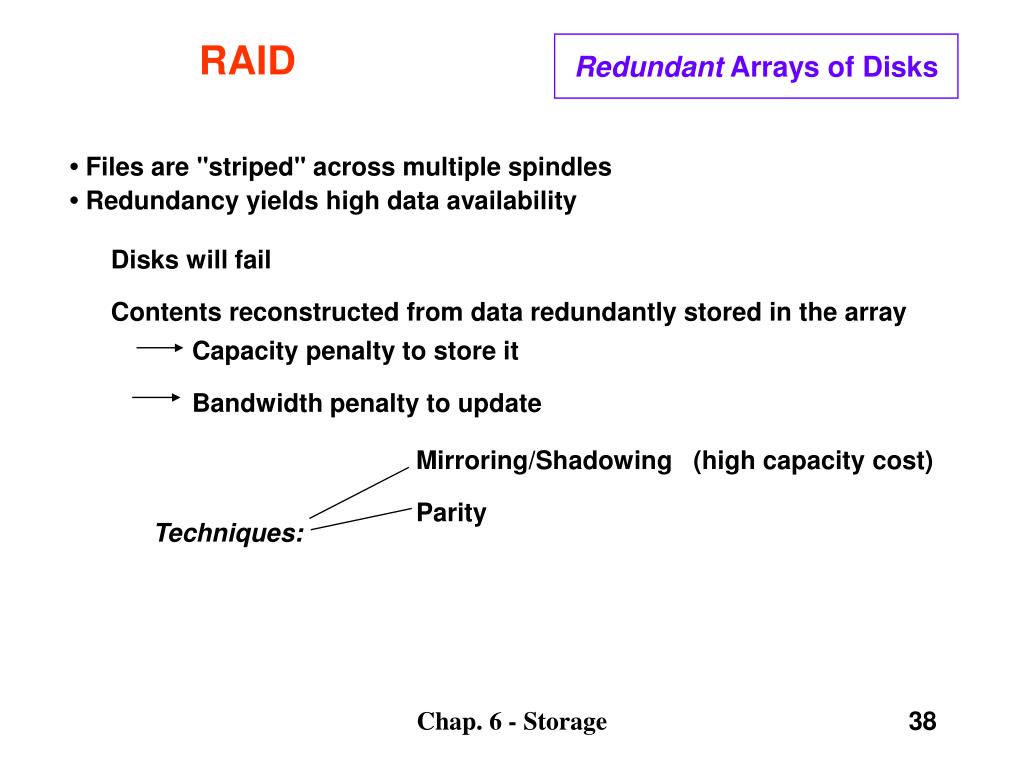

Redundant Arrays of Disks

• Files are "striped" across multiple spindles

• Redundancy yields high data availability

Disks will fail

Contents reconstructed from data redundantly stored in the array

Capacity penalty to store it

Bandwidth penalty to update

Mirroring/Shadowing (high capacity cost)

Parity

Techniques:

Chap. 6 - Storage

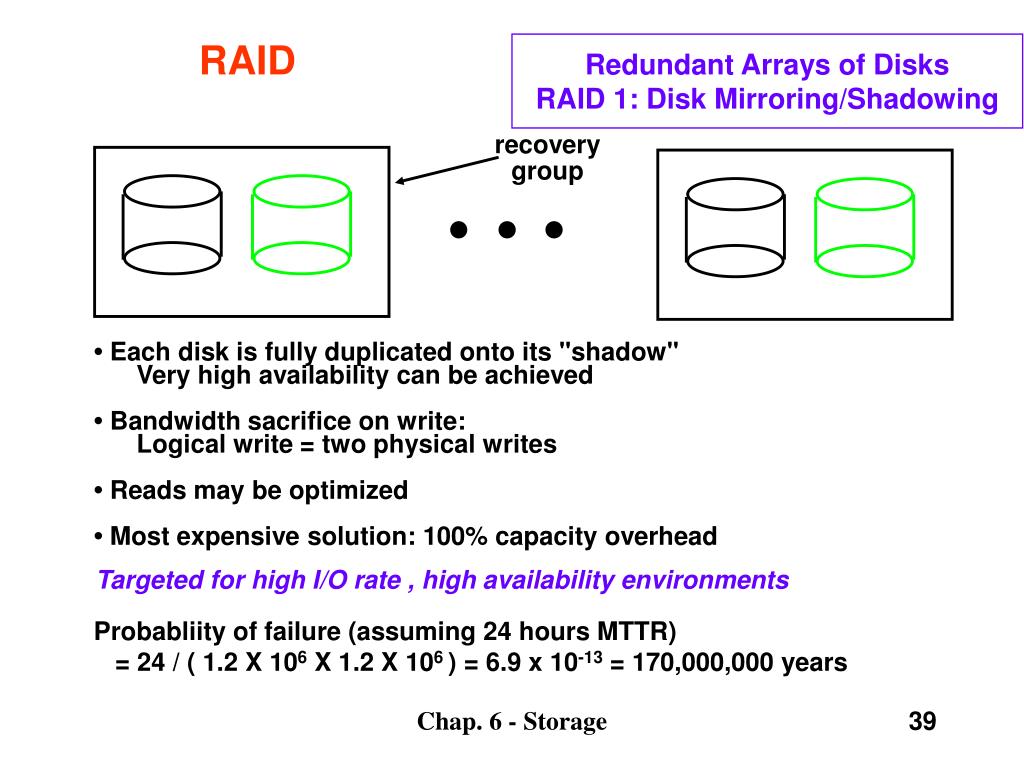

Redundant arrays of disks raid 1 disk mirroring shadowing

RAID

Redundant Arrays of DisksRAID 1: Disk Mirroring/Shadowing

recovery

group

• Each disk is fully duplicated onto its "shadow"

Very high availability can be achieved

• Bandwidth sacrifice on write:

Logical write = two physical writes

• Reads may be optimized

• Most expensive solution: 100% capacity overhead

Targeted for high I/O rate , high availability environments

Probabliity of failure (assuming 24 hours MTTR)

= 24 / ( 1.2 X 106 X 1.2 X 106 ) = 6.9 x 10-13 = 170,000,000 years

Chap. 6 - Storage


Redundant arrays of disks raid 3 parity disk

RAID

Redundant Arrays of Disks RAID 3: Parity Disk

10010011

11001101

10010011

. . .

P

logical record

1

0

0

1

0

0

1

1

1

1

0

0

1

1

0

1

1

0

0

1

0

0

1

1

0

0

1

1

0

0

0

0

Striped physical

records

• Parity computed across recovery group to protect against hard disk failures

33% capacity cost for parity in this configuration

wider arrays reduce capacity costs, decrease expected availability,

increase reconstruction time

• Arms logically synchronized, spindles rotationally synchronized

logically a single high capacity, high transfer rate disk

Targeted for high bandwidth applications: Scientific, Image Processing

Chap. 6 - Storage


Redundant arrays of disks raid 5 high i o rate parity

RAID

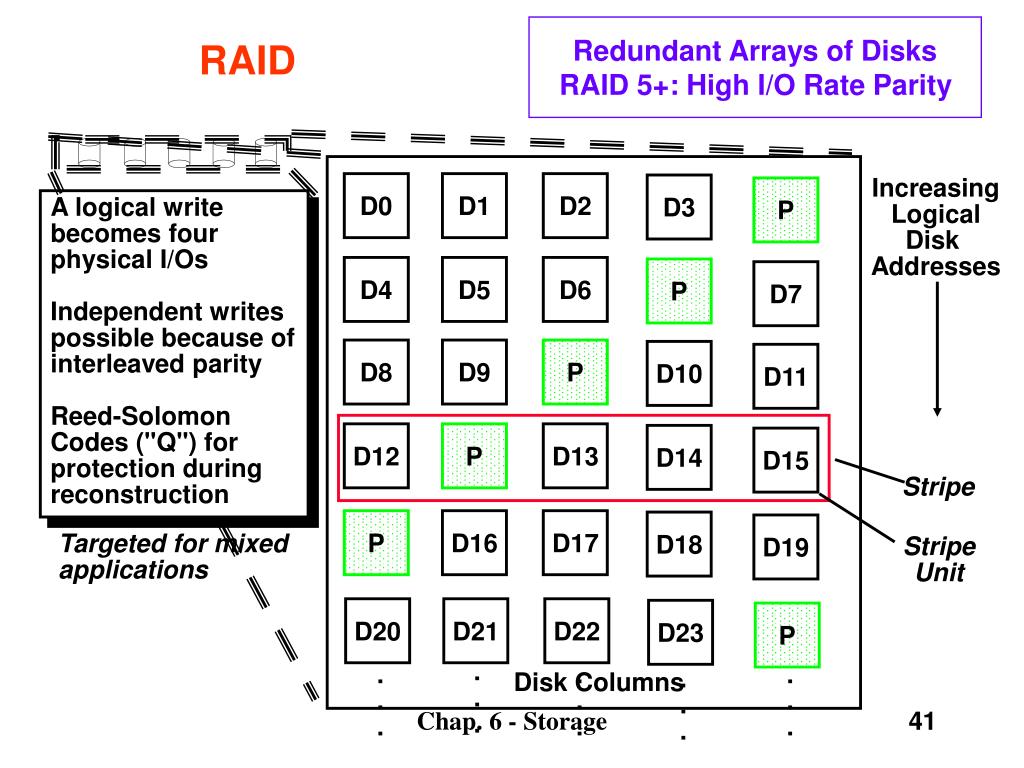

Redundant Arrays of Disks RAID 5+: High I/O Rate Parity

Increasing

Logical

Disk

Addresses

D0

D1

D2

D3

P

A logical write

becomes four

physical I/Os

Independent writes

possible because of

interleaved parity

Reed-Solomon

Codes ("Q") for

protection during

reconstruction

D4

D5

D6

P

D7

D8

D9

P

D10

D11

D12

P

D13

D14

D15

Stripe

P

D16

D17

D18

D19

Targeted for mixed

applications

Stripe

Unit

D20

D21

D22

D23

P

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

Disk Columns

Chap. 6 - Storage

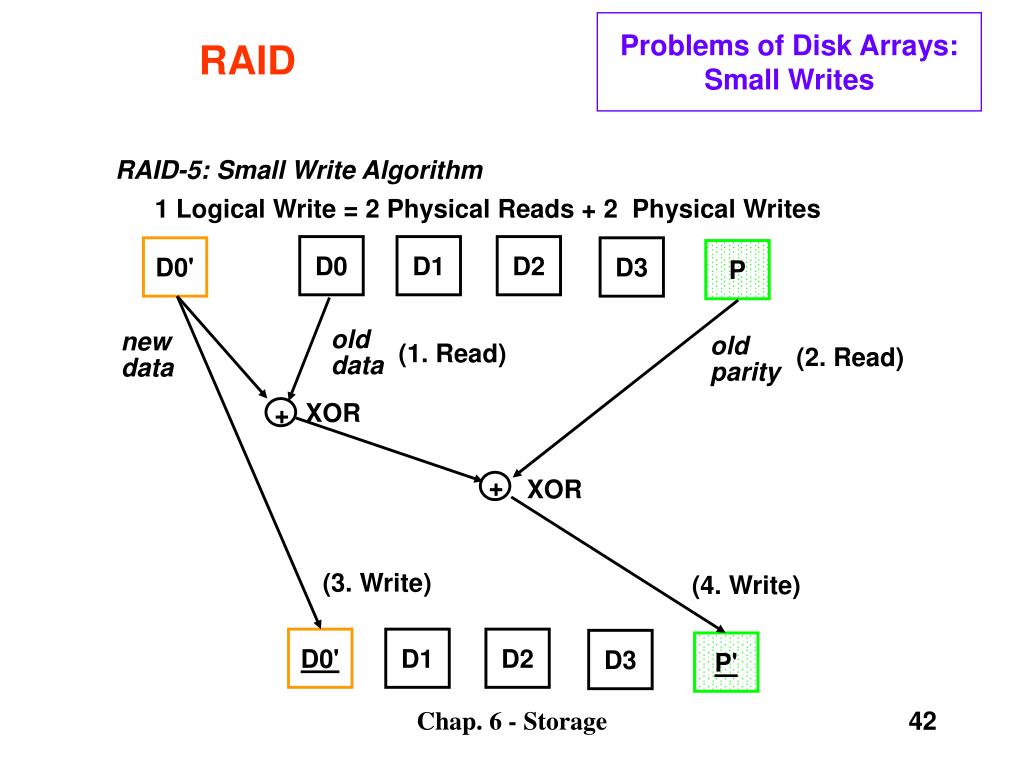

Problems of disk arrays small writes

RAID-5: Small Write Algorithm

1 Logical Write = 2 Physical Reads + 2 Physical Writes

D0

D1

D2

D0'

D3

P

old

data

new

data

old

parity

(1. Read)

(2. Read)

XOR

+

+

XOR

(3. Write)

(4. Write)

D0'

D1

D2

D3

P'

RAID

Problems of Disk Arrays: Small Writes

Chap. 6 - Storage


Subsystem organization

RAID

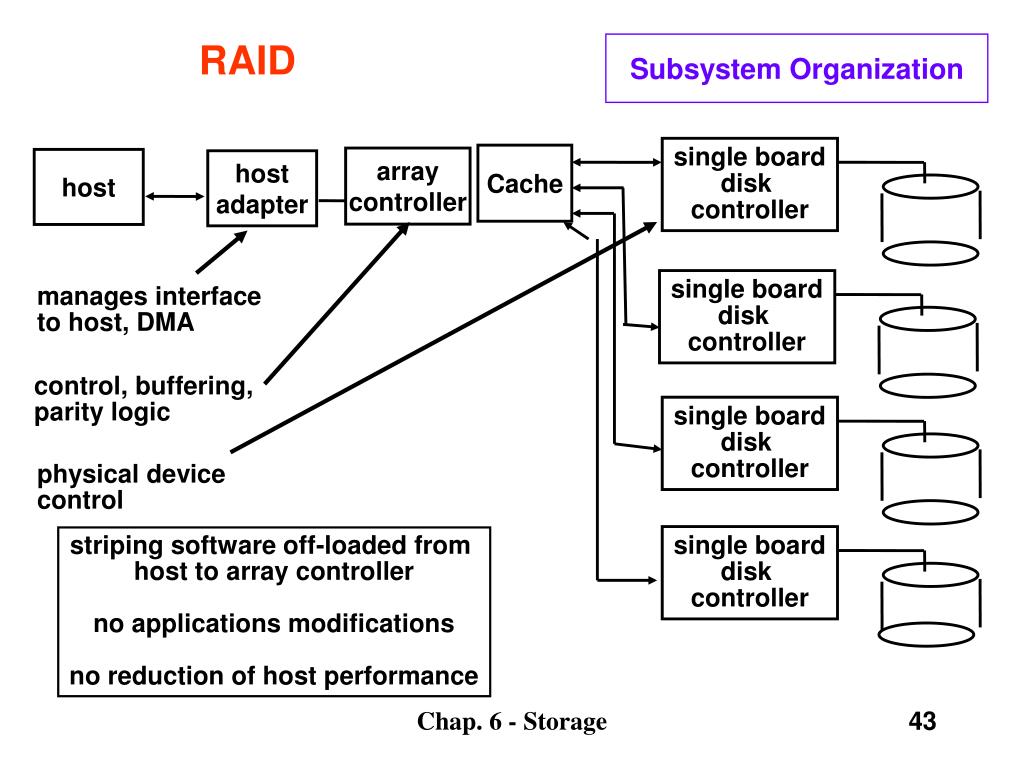

Subsystem Organization

single board

disk

controller

Cache

array

controller

host

host

adapter

single board

disk

controller

manages interface

to host, DMA

control, buffering,

parity logic

single board

disk

controller

physical device

control

single board

disk

controller

striping software off-loaded from

host to array controller

no applications modifications

no reduction of host performance

Chap. 6 - Storage


System availability orthogonal raids

Array

Controller

String

Controller

. . .

String

Controller

. . .

String

Controller

. . .

String

Controller

. . .

String

Controller

. . .

String

Controller

. . .

RAID

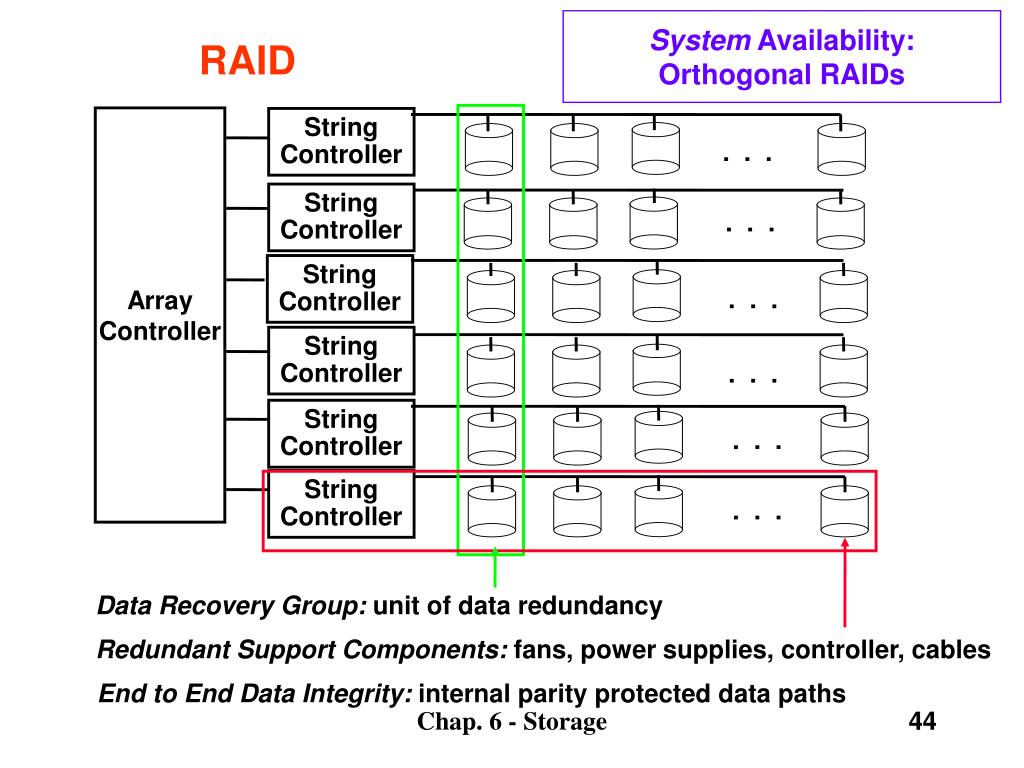

System Availability: Orthogonal RAIDs

Data Recovery Group: unit of data redundancy

Redundant Support Components: fans, power supplies, controller, cables

End to End Data Integrity: internal parity protected data paths

Chap. 6 - Storage


System level availability

RAID

System-Level Availability

host

host

Fully dual redundant

I/O Controller

I/O Controller

Cache &

Array Controller

Cache &

Array Controller

. . .

. . .

. . .

Goal: No Single

Points of

Failure

. . .

. . .

.

.

.

with duplicated paths, higher performance can be

obtained when there are no failures

Recovery

Group

Chap. 6 - Storage


Summary

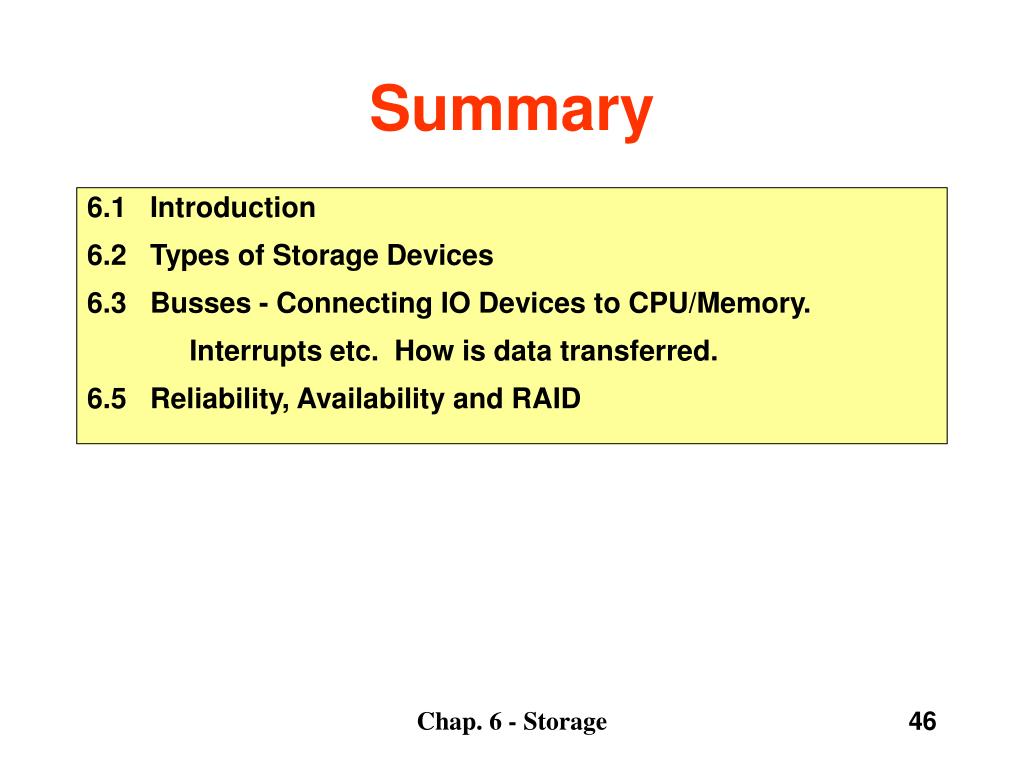

Summary

6.1 Introduction

6.2 Types of Storage Devices

6.3 Busses - Connecting IO Devices to CPU/Memory.

Interrupts etc. How is data transferred.

6.5 Reliability, Availability and RAID

Chap. 6 - Storage

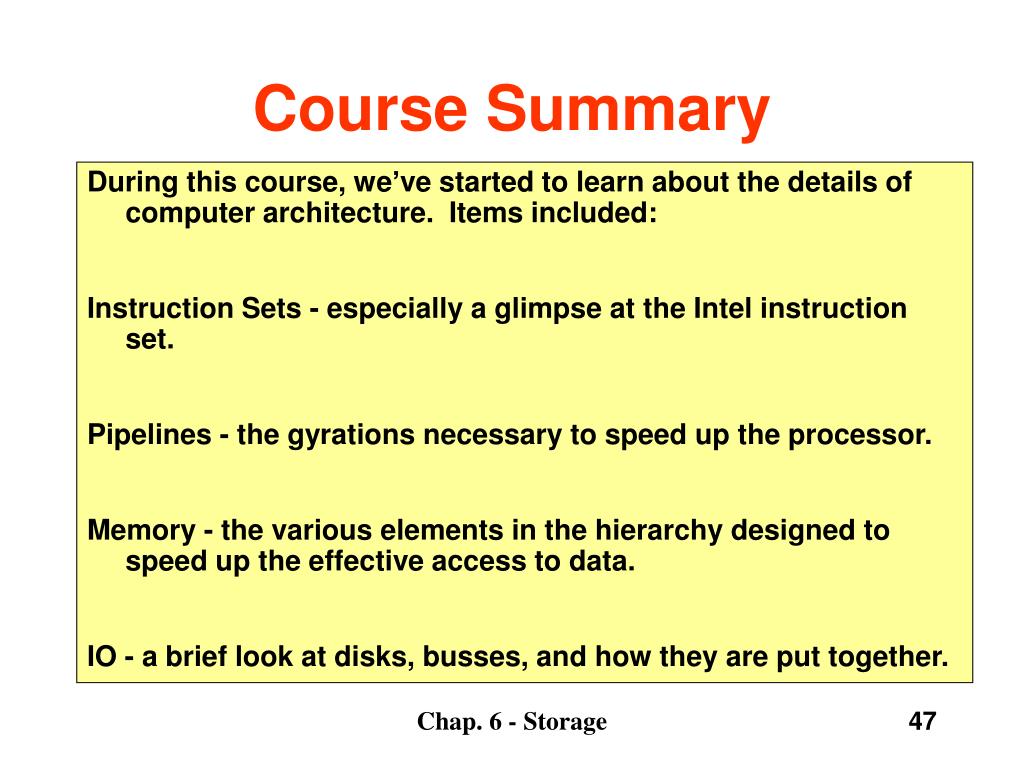

Course summary

Course Summary

During this course, we’ve started to learn about the details of computer architecture. Items included:

Instruction Sets - especially a glimpse at the Intel instruction set.

Pipelines - the gyrations necessary to speed up the processor.

Memory - the various elements in the hierarchy designed to speed up the effective access to data.

IO - a brief look at disks, busses, and how they are put together.

Chap. 6 - Storage


  • Login
