Presentation Transcript
bilgaon micro hydel project
Bilgaon Micro-Hydel Project

AID Austin Project Proposal

By Gagan Bhalla

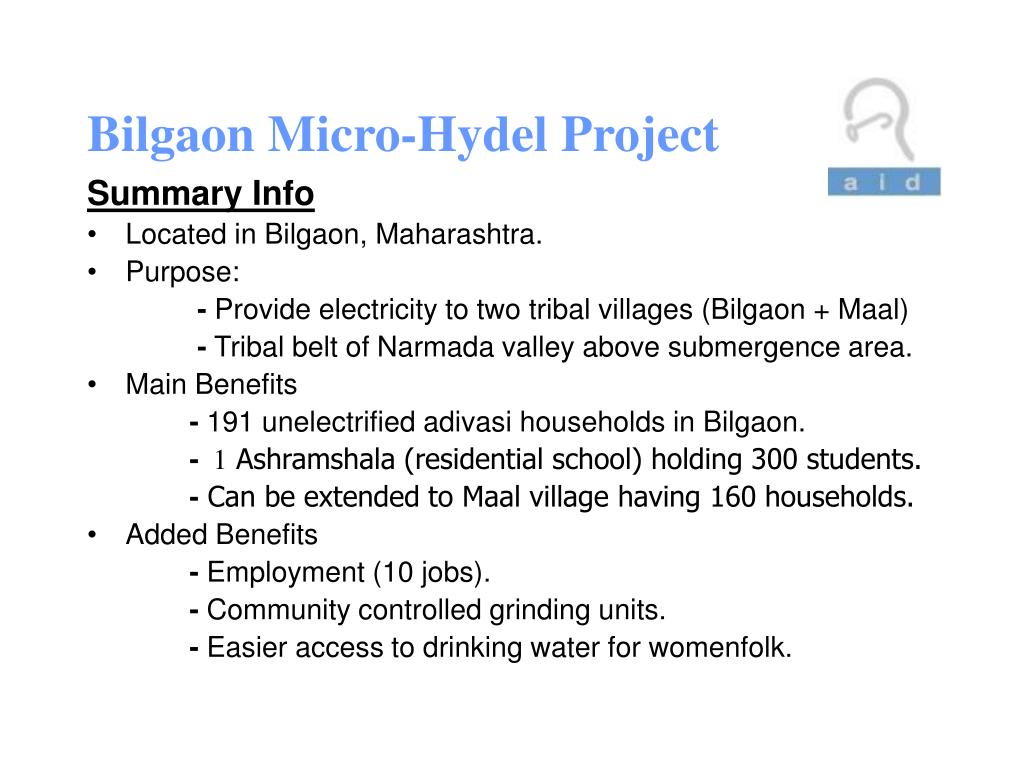

bilgaon micro hydel project1
Bilgaon Micro-Hydel Project

Summary Info

  • Located in Bilgaon, Maharashtra.
  • Purpose:

- Provide electricity to two tribal villages (Bilgaon + Maal)

- Tribal belt of Narmada valley above submergence area.

  • Main Benefits

- 191 unelectrified adivasi households in Bilgaon.

- 1 Ashramshala (residential school) holding 300 students.

- Can be extended to Maal village having 160 households.

  • Added Benefits

- Employment (10 jobs).

- Community controlled grinding units.

- Easier access to drinking water for womenfolk.

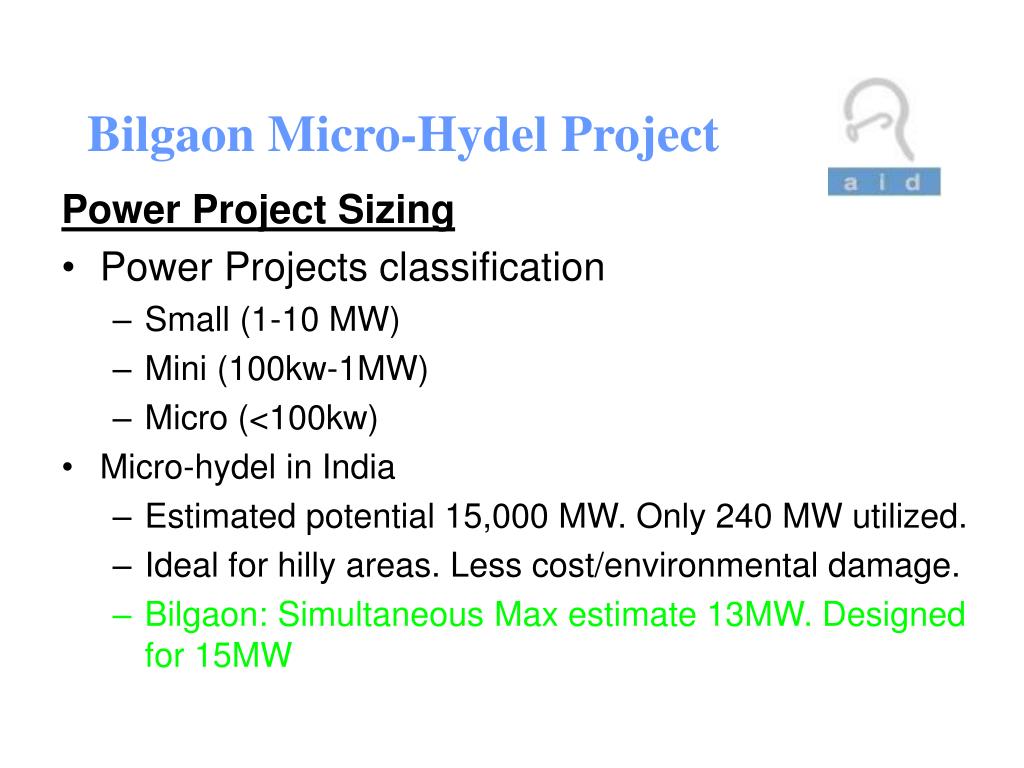

bilgaon micro hydel project2
Bilgaon Micro-Hydel Project

Power Project Sizing

  • Power Projects classification
    • Small (1-10 MW)
    • Mini (100kw-1MW)
    • Micro (<100kw)
  • Micro-hydel in India
    • Estimated potential 15,000 MW. Only 240 MW utilized.
    • Ideal for hilly areas. Less cost/environmental damage.
    • Bilgaon: Simultaneous Max estimate 13MW. Designed for 15MW

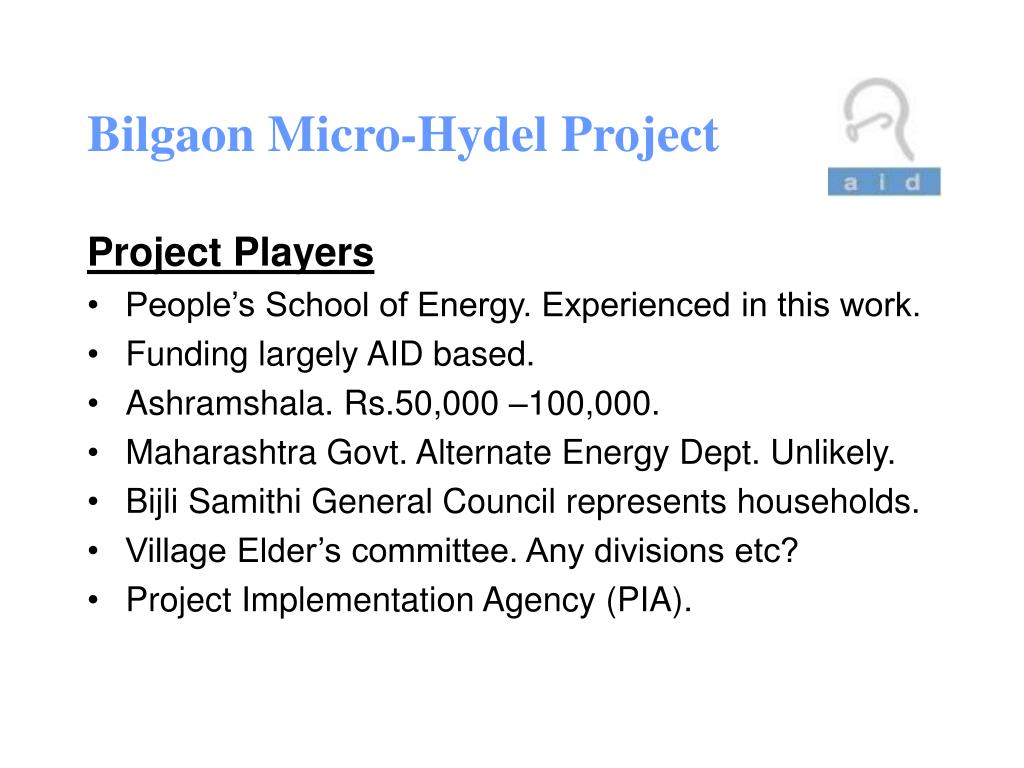

bilgaon micro hydel project3
Bilgaon Micro-Hydel Project

Project Players

  • People’s School of Energy. Experienced in this work.
  • Funding largely AID based.
  • Ashramshala. Rs.50,000 –100,000.
  • Maharashtra Govt. Alternate Energy Dept. Unlikely.
  • Bijli Samithi General Council represents households.
  • Village Elder’s committee. Any divisions etc?
  • Project Implementation Agency (PIA).

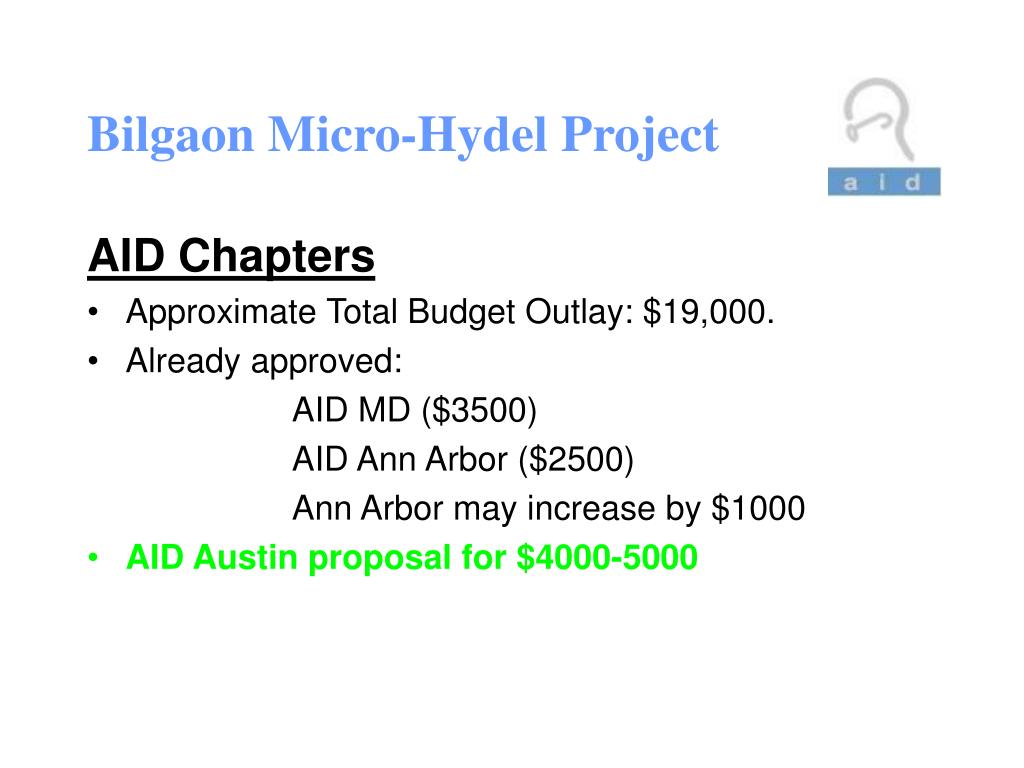

bilgaon micro hydel project4
Bilgaon Micro-Hydel Project

AID Chapters

  • Approximate Total Budget Outlay: $19,000.
  • Already approved:

AID MD ($3500)

AID Ann Arbor ($2500)

Ann Arbor may increase by $1000

  • AID Austin proposal for $4000-5000

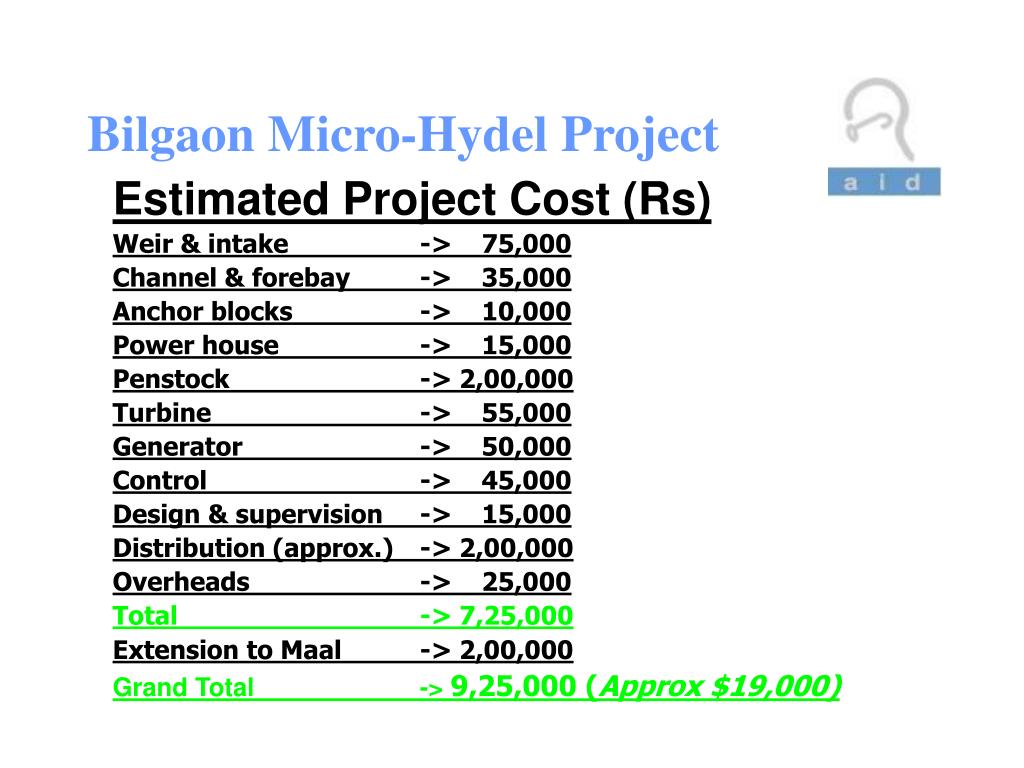

bilgaon micro hydel project5
Bilgaon Micro-Hydel Project

Estimated Project Cost (Rs)

Weir & intake -> 75,000

Channel & forebay -> 35,000

Anchor blocks -> 10,000

Power house -> 15,000

Penstock -> 2,00,000

Turbine -> 55,000

Generator -> 50,000

Control -> 45,000

Design & supervision -> 15,000

Distribution (approx.) -> 2,00,000

Overheads -> 25,000

Total -> 7,25,000

Extension to Maal -> 2,00,000

Grand Total -> 9,25,000 (Approx $19,000)

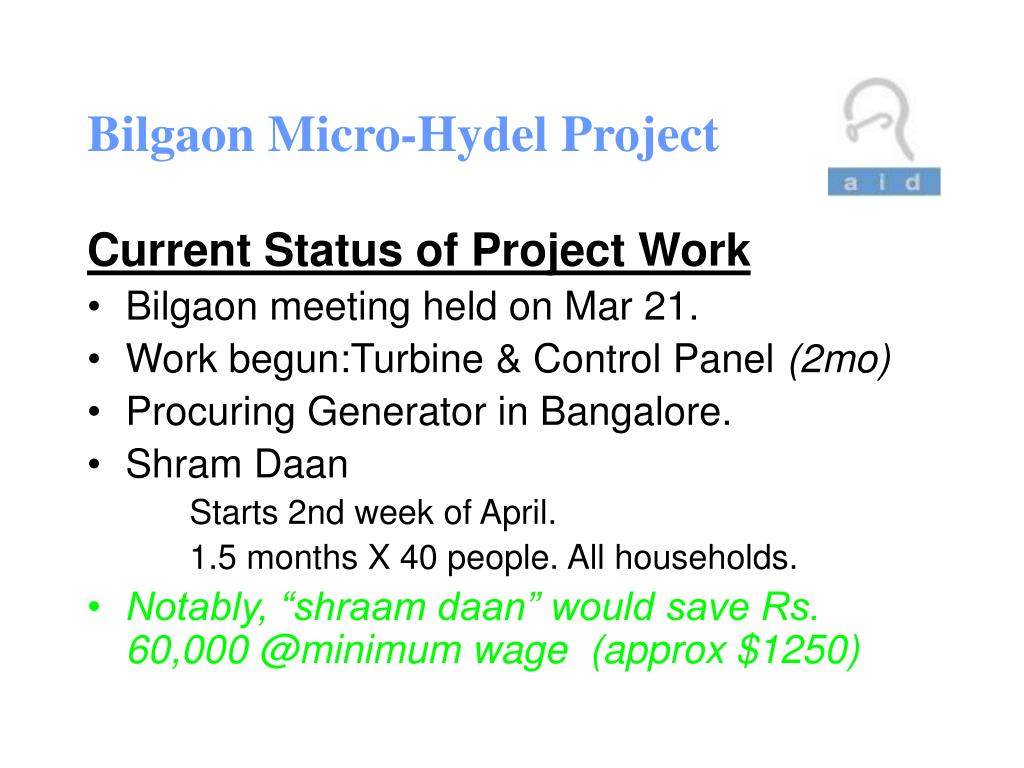

bilgaon micro hydel project6
Bilgaon Micro-Hydel Project

Current Status of Project Work

  • Bilgaon meeting held on Mar 21.
  • Work begun:Turbine & Control Panel (2mo)
  • Procuring Generator in Bangalore.
  • Shram Daan

Starts 2nd week of April.

1.5 months X 40 people. All households.

  • Notably, “shraam daan” would save Rs. 60,000 @minimum wage (approx $1250)
bilgaon micro hydel project7
Bilgaon Micro-Hydel Project

Perspectives……

  • Mature Players in PIA and PSE.
  • Already on. 2 chapter already approved.
  • Innovative and best suited initiative.
  • AID learning and evolution:
    • From pedal power to lighting first full village….
    • Very solid and exciting achievement…..

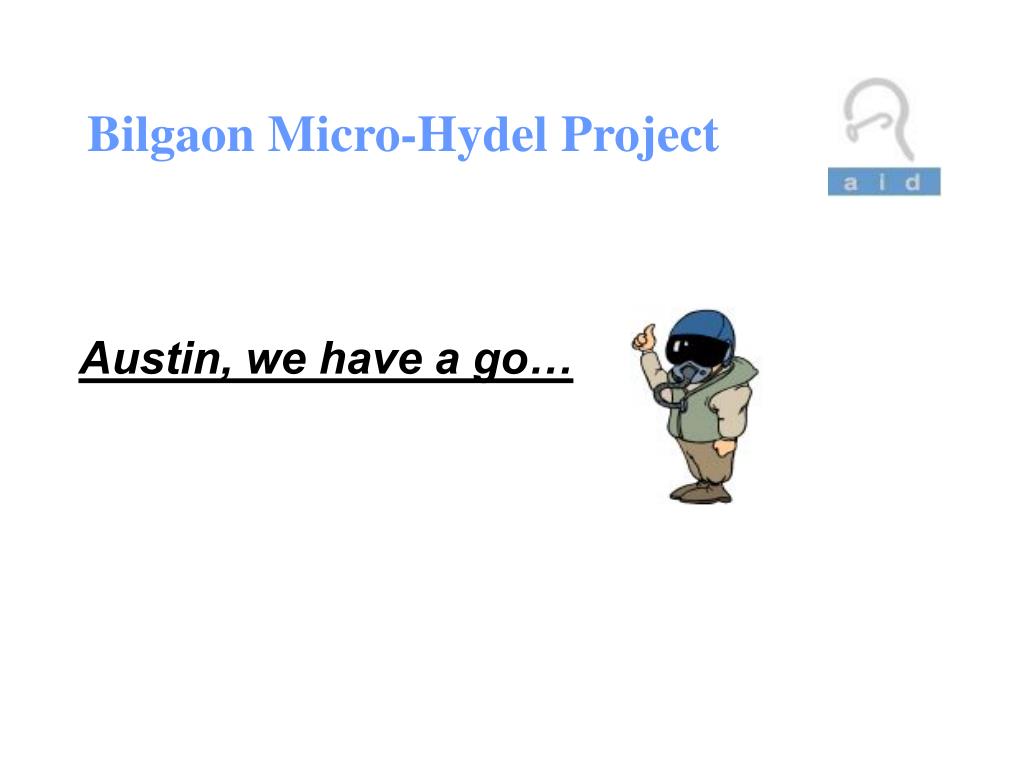

bilgaon micro hydel project8
Bilgaon Micro-Hydel Project

Austin, we have a go…
