Presentation Transcript
Chapter 11 designing forms and reports l.jpg

Chapter 11 Designing Forms and Reports


Objectives l.jpg
Objectives:

  • Explain the process of form and report design.

  • Apply general guidelines for formatting forms and reports.

  • Use color and know when color improves the usability of information.

  • Format text, tables, and lists effectively.

  • Explain how to assess usability and describe factors affecting usability.


Forms vs reports l.jpg
Forms vs. Reports

  • Form

    • A business document that contains some predefined data and may include some areas where additional data are to be filled in.

    • An instance of a form is typically based on one database record.

  • Report

    • A business document that contains only predefined data.

    • A passive document for reading or viewing data.

    • Typically contains data from many database records or transactions.


Forms vs reports5 l.jpg
Forms vs. Reports

  • System inputs and outputs were identified during Requirements Structuring

  • Every input form will be associated with a data flow entering a process on a DFD

  • Every output form or report will be a data flow produced by a process on a DFD

  • Data on forms and reports must consist of data elements in data stores and on the E-R data model or must be calculated from these

  • Will uncover flaws in DFDs and E-R diagrams


Common types of reports l.jpg
Common Types of Reports

  • Scheduled: produced at predefined time intervals for routine information needs

  • Key-indicator: provide summary of critical information on regular basis

  • Exception: highlights data outside of normal operating ranges

  • Drill-down: provide details behind summary of key-indicator or exception reports

  • Ad-hoc: respond to unplanned requests for non-routine information needs


The process of designing forms and reports l.jpg
The Process of Designing Forms and Reports

  • User-focused activity

  • Follows a prototyping approach

  • Requirements determination:

    • Who will use the form or report?

    • What is the purpose of the form or report?

    • When is the report needed or used?

    • Where does the form or report need to be delivered and used?

    • How many people need to use or view the form or report?


The process of designing forms and reports8 l.jpg
The Process of Designing Forms and Reports

  • Prototyping

    • Initial prototype is designed from requirements

      • If possible, use standard development tools used with your company

      • Mock screens – word processor, etc. can be used

    • Users review prototype design and either accept the design or request changes

    • If changes are requested, the construction-evaluation-refinement cycle is repeated until the design is accepted


Slide9 l.jpg

Visual Basic and other development tools provide computer aided GUI form and report generation.


Form report design specification l.jpg
Form/Report Design Specification aided GUI form and report generation.

  • The major deliverable of interface design

  • Involves three parts (reference figure 11-4):

    • Narrative overview: characterizes users, tasks, system, and environmental factors

      • Used primarily to highlight some exception that must be considered during implementation

    • Sample design: image of the form (from coding sheet or form building development tool)

    • Assessment: measuring test/usability results (consistency, sufficiency, accuracy, etc.)

      • If required


Guidelines for form and report design l.jpg
Guidelines for Form and Report Design aided GUI form and report generation.

  • Meaningful titles: clear, specific, version information, current date

  • Meaningful information: include only necessary information, with no need to modify

  • Balanced layout: adequate spacing, margins, and clear labels

  • Easy navigation system: show how to move forward and backward, and where you are currently


Slide12 l.jpg

A poor form design aided GUI form and report generation.


Slide13 l.jpg

A better form design aided GUI form and report generation.

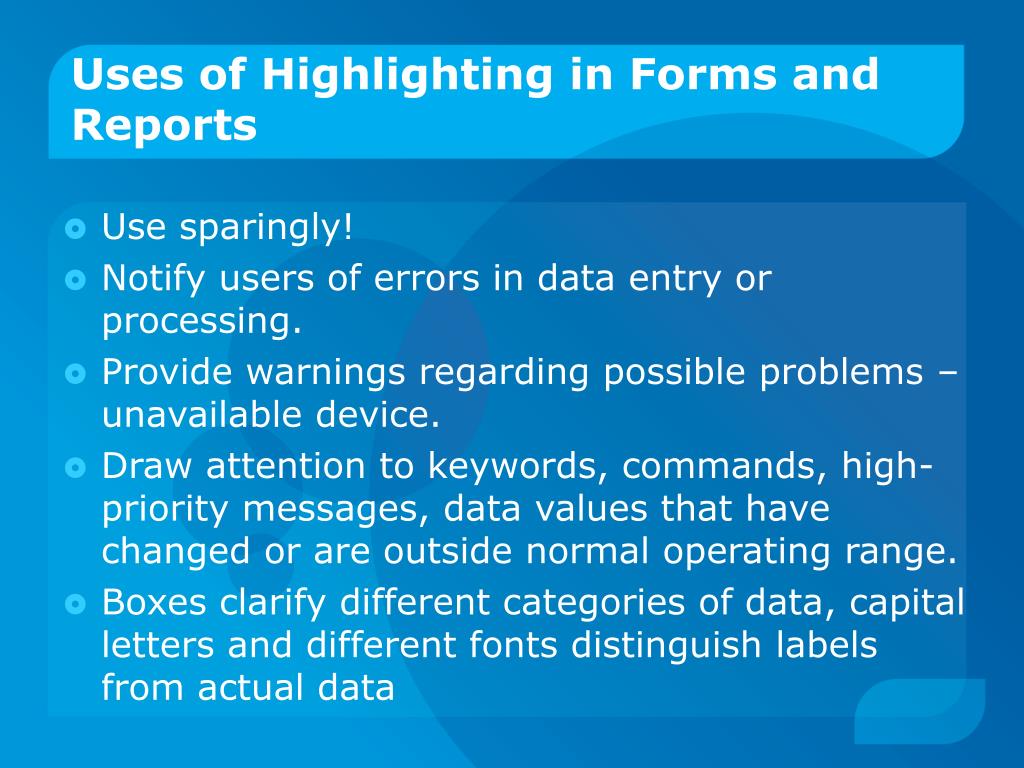

Uses of highlighting in forms and reports l.jpg
Uses of Highlighting in Forms and Reports aided GUI form and report generation.

  • Use sparingly!

  • Notify users of errors in data entry or processing.

  • Provide warnings regarding possible problems – unavailable device.

  • Draw attention to keywords, commands, high-priority messages, data values that have changed or are outside normal operating range.

  • Boxes clarify different categories of data, capital letters and different fonts distinguish labels from actual data


Methods for highlighting l.jpg
Methods for Highlighting aided GUI form and report generation.

  • Reverse video

  • Boxing

  • Underlining

  • All capital letters

  • Offset positions of nonstandard information

  • Use consistently!

  • Think of output device

  • Blinking

  • Audible tones

  • Intensity differences

  • Size differences

  • Font differences

  • Blinking, audible-critical, turn off as soon as correction made


Slide16 l.jpg

Highlighting can include use of upper case, font size differences, bold, italics, underline, boxing, and other approaches.


Color vs no color l.jpg
Color vs. No Color differences, bold, italics, underline, boxing, and other approaches.

  • Benefits from Using Color

    • Soothes or strikes the eye

    • Accents an uninteresting display

    • Facilitates subtle discriminations in complex displays

    • Emphasizes the logical organization of information

    • Draws attention to warnings

    • Evokes more emotional reactions


Color vs no color18 l.jpg
Color vs. No Color differences, bold, italics, underline, boxing, and other approaches.

  • Problems from Using Color

    • Color pairings may wash out or cause problems for some users

    • Resolution may degrade with different displays

    • Color fidelity may degrade on different displays

    • Printing or conversion to other media may not easily translate

    • Color has little effect if presentation format is inappropriate


Guidelines for displaying text l.jpg
Guidelines for Displaying Text differences, bold, italics, underline, boxing, and other approaches.

  • Case: mixed upper and lower case, use conventional punctuation

  • Spacing: double spacing if possible, otherwise blank lines between paragraphs

  • Justification: left justify text, ragged right margins

  • Hyphenation: no hyphenated words between lines

  • Abbreviations: only when widely understood and significantly shorter than full text


Slide20 l.jpg

A poor help screen design differences, bold, italics, underline, boxing, and other approaches.


Slide21 l.jpg

A better help screen design differences, bold, italics, underline, boxing, and other approaches.


Guidelines for tables and lists l.jpg
Guidelines for Tables and Lists differences, bold, italics, underline, boxing, and other approaches.

  • Labels

    • All columns and rows should have meaningful labels.

    • Labels should be separated from other information by using highlighting.

    • Redisplay labels when the data extend beyond a single screen or page.


Guidelines for tables and lists23 l.jpg
Guidelines for Tables and Lists differences, bold, italics, underline, boxing, and other approaches.

  • Formatting columns, rows and text:

    • Sort in a meaningful order.

    • Place a blank line between every five rows in long columns.

    • Similar information displayed in multiple columns should be sorted vertically.

    • Columns should have at least two spaces between them.

    • Allow white space on printed reports for user to write notes.

    • Use a single typeface, except for emphasis.

    • Use same family of typefaces within and across displays and reports.

    • Avoid overly fancy fonts.


Guidelines for tables and lists24 l.jpg
Guidelines for Tables and Lists differences, bold, italics, underline, boxing, and other approaches.

  • Formatting numeric, textual and alphanumeric data:

    • Right justify numeric data and align columns by decimal points or other delimiter.

    • Left justify textual data. Use short line length, usually 30 to 40 characters per line.

    • Break long sequences of alphanumeric data into small groups of three to four characters each.


Slide25 l.jpg

A poor table design differences, bold, italics, underline, boxing, and other approaches.


Slide26 l.jpg

A better table design: row and column spacing, differences, bold, italics, underline, boxing, and other approaches.

soritng


Tables vs graphs l.jpg
Tables vs. Graphs differences, bold, italics, underline, boxing, and other approaches.

  • Use tables for reading individual data values

  • Use graphs for:

    • Providing quick summary

    • Displaying trends over time

    • Comparing points and patterns of variables

    • Forecasting activity

    • Simple reporting of vast quantities of information



Assessing usability l.jpg
Assessing Usability can enhance reports and forms.

  • Overall evaluation of how a system performs in supporting a particular user for a particular task

  • There are three characteristics

    • Speed

    • Accuracy

    • Satisfaction


Guidelines for maximizing usability l.jpg
Guidelines for Maximizing Usability can enhance reports and forms.

  • Consistency: of terminology, formatting, titles, navigation, response time

  • Efficiency: minimize required user actions; align for efficient navigation and entry; avoid data entry where possible

  • Ease: self-explanatory outputs and labels

  • Format: appropriate display of data and symbols

  • Flexibility: maximize user options for data input according to preference


Characteristics for consideration when designing forms reports l.jpg
Characteristics for Consideration When Designing Forms/Reports

  • User: experience, skills, motivation, education, personality

  • Task: account for time pressure, cost of errors, work durations (fatigue) that the task demands from the user

  • System: platform will influence interaction style and devices

  • Environment: social (user’s role) and physical issues (may need to change physical work space)


Methods for assessing usability l.jpg
Methods for Assessing Usability Forms/Reports

  • Time to learn – placement of most commonly used functions

  • Speed of performance

  • Rate of errors

  • Retention over time

  • Subjective satisfaction

  • Collect by observation, interviews, keystroke capturing, etc.

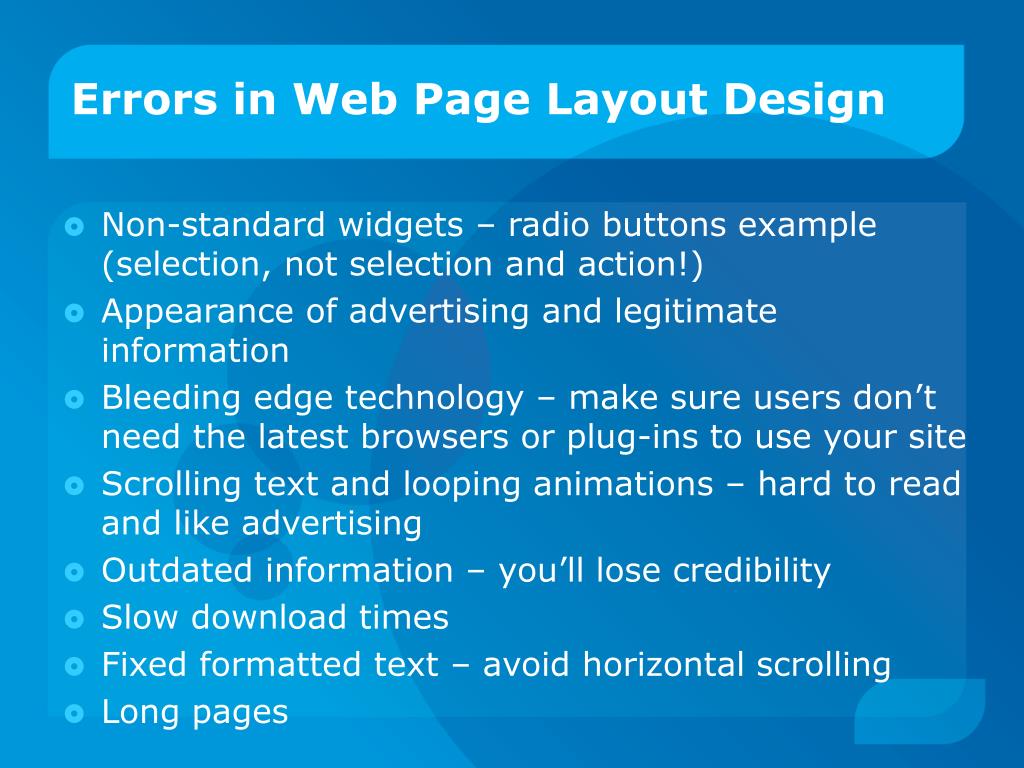

Errors in web page layout design l.jpg
Errors in Web Page Layout Design Forms/Reports

  • Non-standard widgets – radio buttons example (selection, not selection and action!)

  • Appearance of advertising and legitimate information

  • Bleeding edge technology – make sure users don’t need the latest browsers or plug-ins to use your site

  • Scrolling text and looping animations – hard to read and like advertising

  • Outdated information – you’ll lose credibility

  • Slow download times

  • Fixed formatted text – avoid horizontal scrolling

  • Long pages


Good web design practices l.jpg
Good Web Design Practices Forms/Reports

  • Lightweight Graphics: small images to quick image download

  • Forms and Data Integrity:

    • Forms should be clearly labeled

    • Enough room for input

    • Example of input format

    • Fields: designate optional, required, range of values


Good web design practices36 l.jpg
Good Web Design Practices Forms/Reports

  • Template-based HTML

    • Templates to display and process common attributes of higher-level, more abstract items

      • Have a few templates that can be used to display the entire product line

      • “display all finishes” can be built using a template and then applied to all furniture requiring a finish

    • Creates an interface that is very easy to maintain
