HAEMOGLOBIN ESTIMATION

HAEMOGLOBIN ESTIMATION. Sahli’s method. Aim. To estimate the Haemoglobin levels in mg/dl using Sahli’s method. Equipment. Sahli’s haemoglobinometer with tube, pipette, colour comparator and stirrer Hydrochloric acid, 0.1N Distilled water Blood sample. SAHLI’S HAEMOGLOBINOMETER.

ayita
Download Presentation

HAEMOGLOBIN ESTIMATION

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. HAEMOGLOBIN ESTIMATION Sahli’s method

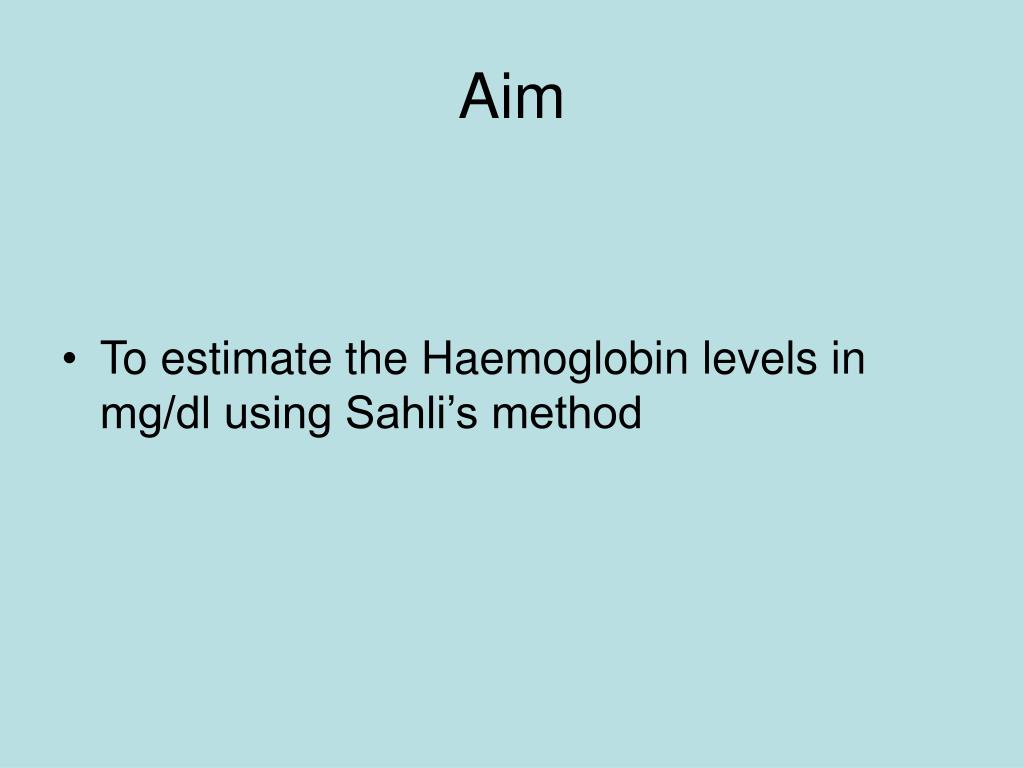

  2. Aim • To estimate the Haemoglobin levels in mg/dl using Sahli’s method

  3. Equipment • Sahli’s haemoglobinometer with tube, pipette, colour comparator and stirrer • Hydrochloric acid, 0.1N • Distilled water • Blood sample

  4. SAHLI’S HAEMOGLOBINOMETER Haemoglobinometer tube 20 μl mark Mark 2 Stirrer Comparator Haemoglobinometer pipette

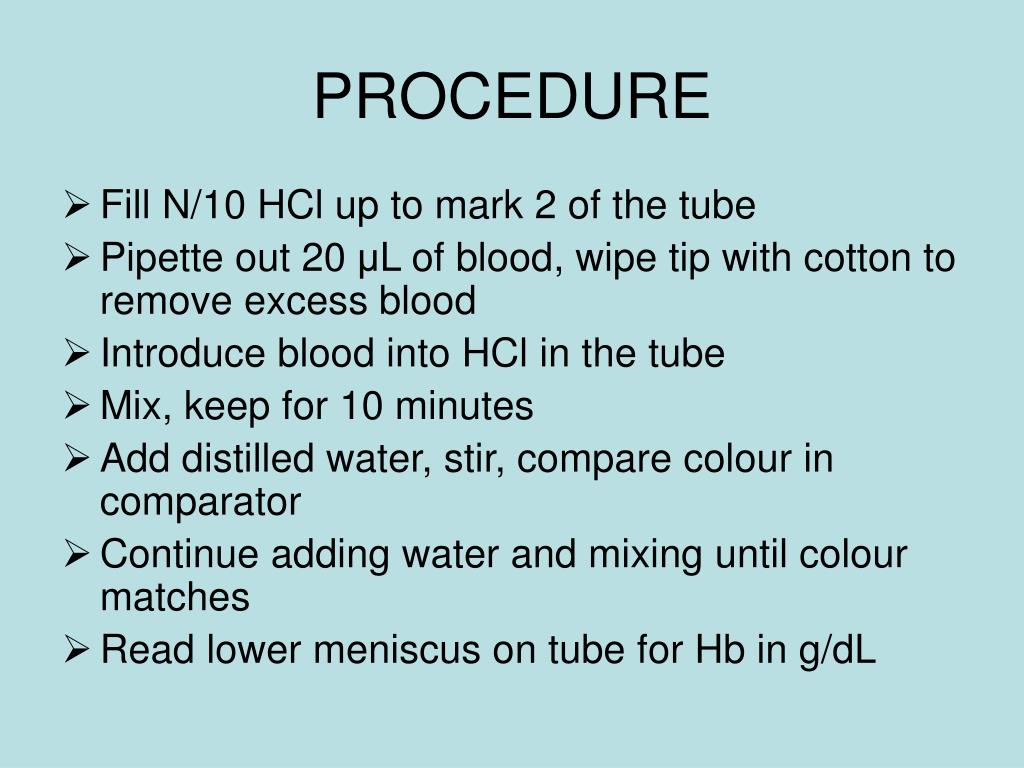

  5. PROCEDURE • Fill N/10 HCl up to mark 2 of the tube • Pipette out 20 μL of blood, wipe tip with cotton to remove excess blood • Introduce blood into HCl in the tube • Mix, keep for 10 minutes • Add distilled water, stir, compare colour in comparator • Continue adding water and mixing until colour matches • Read lower meniscus on tube for Hb in g/dL

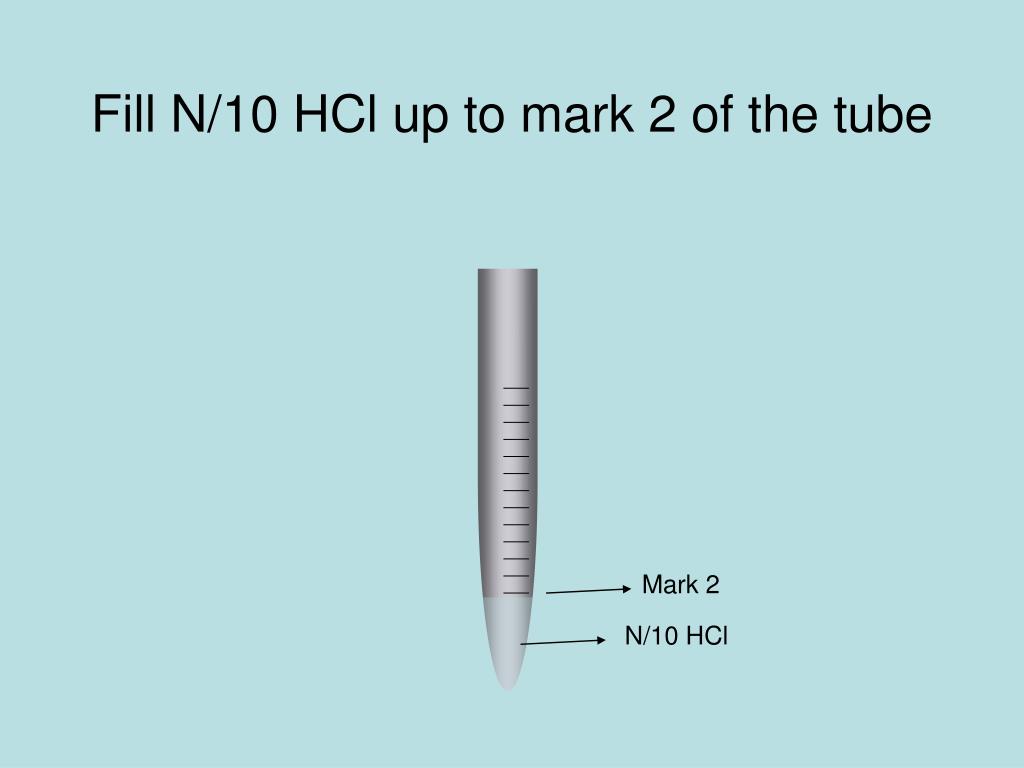

  6. Fill N/10 HCl up to mark 2 of the tube Mark 2 N/10 HCl

  7. Pipette out 20 μL of blood 20 μL mark Blood sample Wipe excess blood around tip with cotton

  8. Introduce blood into tube N/10 HCl

  9. Mix, keep for 10 minutes

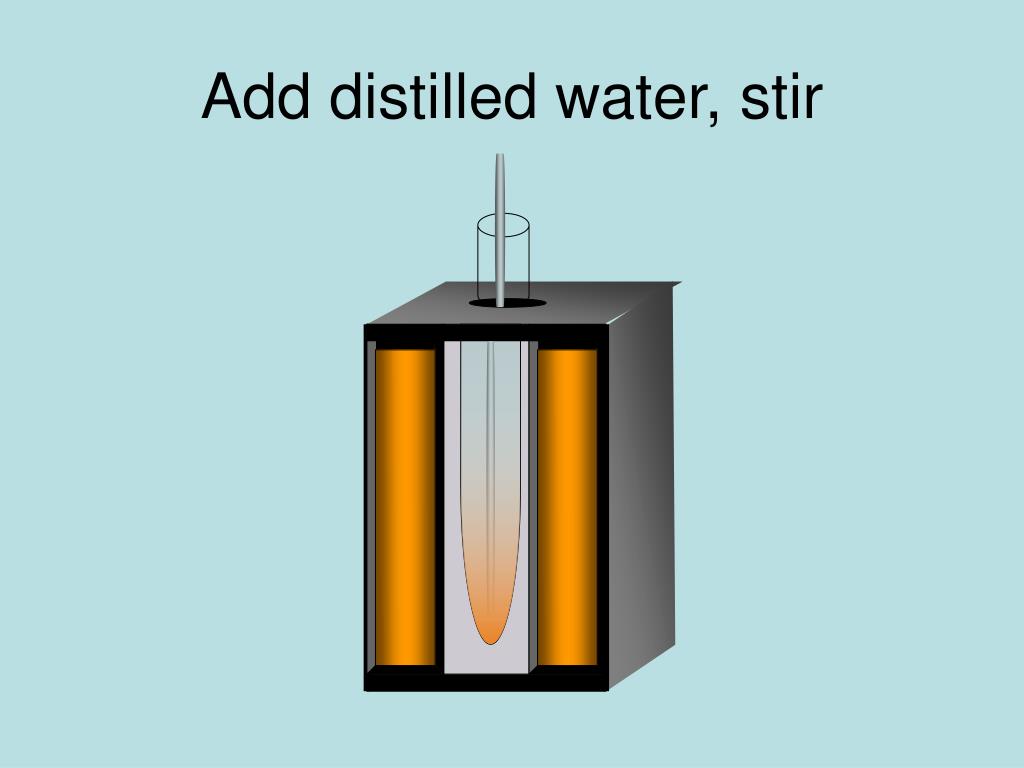

  10. Add distilled water, stir

  11. Continue adding, stirring until colour matches with standard

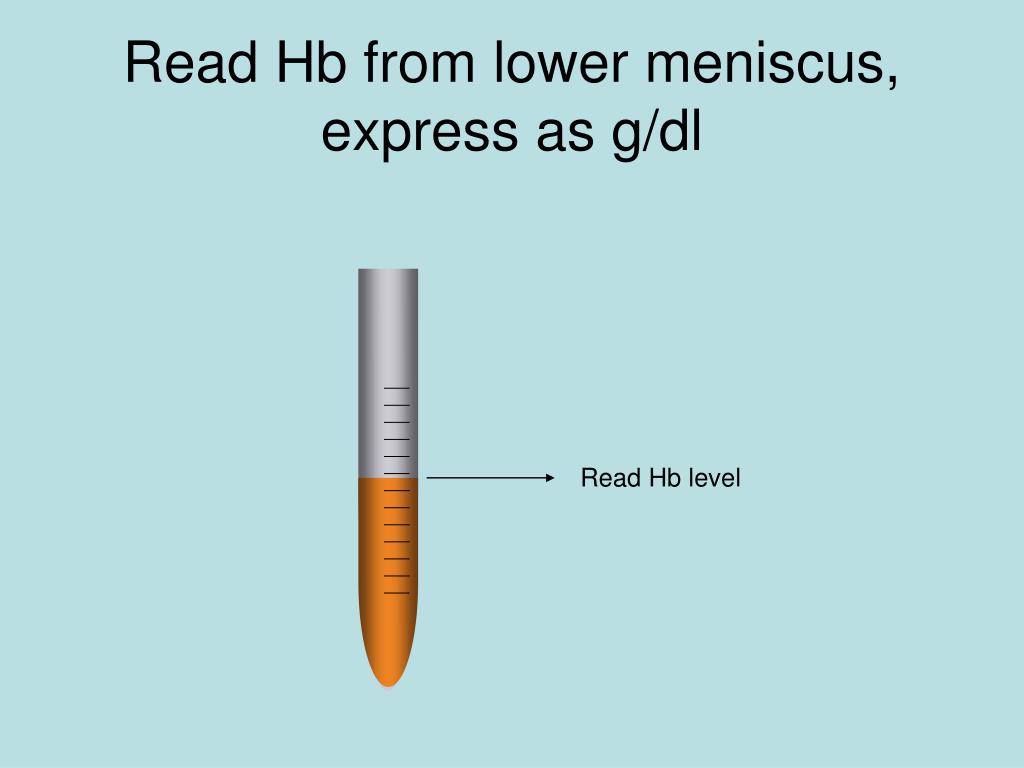

  12. Read Hb from lower meniscus, express as g/dl Read Hb level

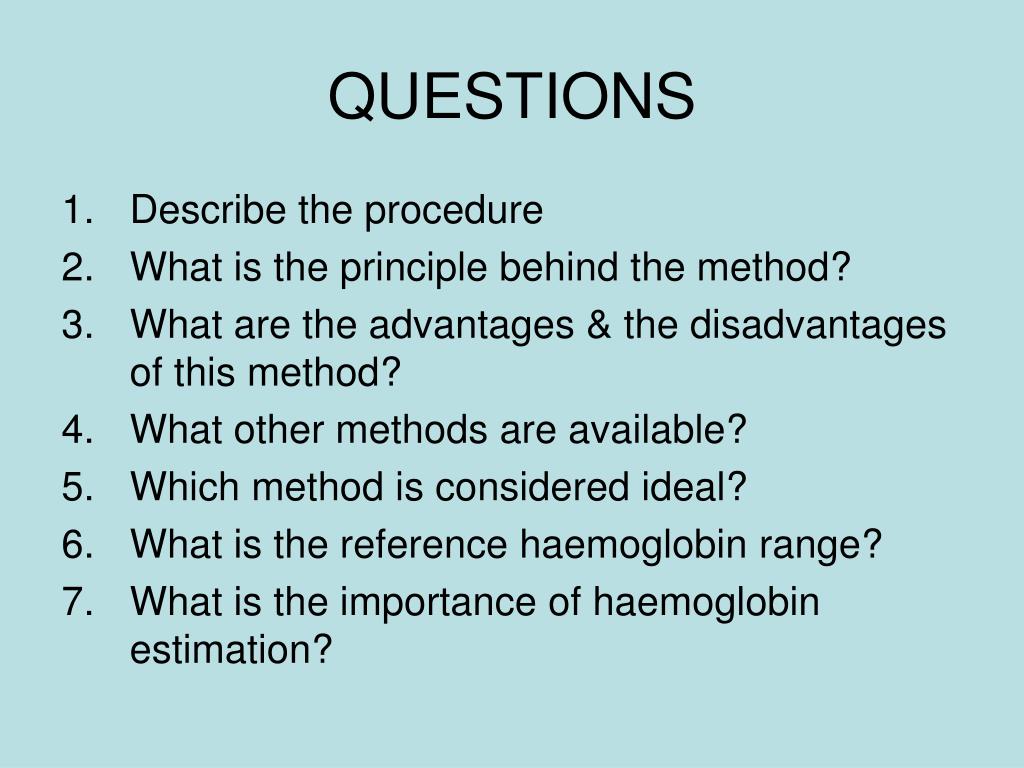

  13. QUESTIONS • Describe the procedure • What is the principle behind the method? • What are the advantages & the disadvantages of this method? • What other methods are available? • Which method is considered ideal? • What is the reference haemoglobin range? • What is the importance of haemoglobin estimation?

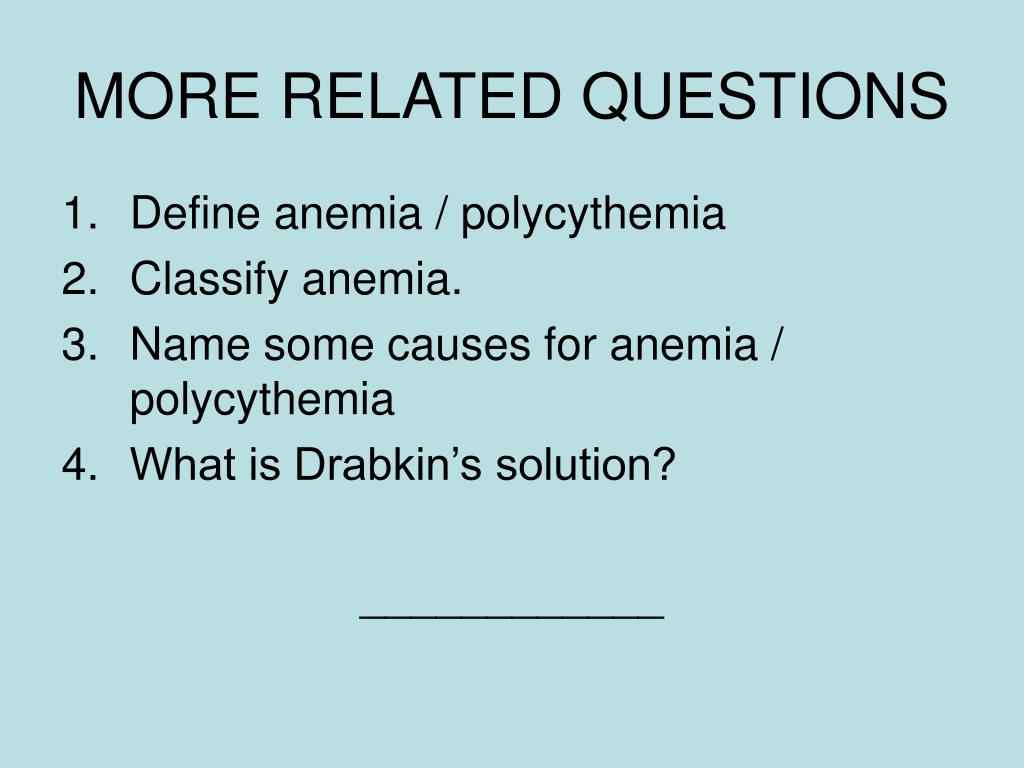

  14. MORE RELATED QUESTIONS • Define anemia / polycythemia • Classify anemia. • Name some causes for anemia / polycythemia • What is Drabkin’s solution? ____________
