Ground controller project

Sponsor & Organization:

Professor Larry Bernstein

SSW 540 Fundamentals of Software Engineering

Stevens Institute of Technology

School of Systems Engineering & Engineering Management

Castle Point on Hudson

Hoboken, NJ 07030

Ground Controller Project


Overview

Overview

Project Value

  • The Ground Controller will identify, track, and predict the impact location of a Space Capsule during its re-entry process to ensure prompt recovery.

    Project Description

  • The Ground Controller operates as a tracking computer for the re-entry of a Space Capsule.

  • It consists of one ground-based radar unit for surveillance and capsule detection, tracking, and impact projection.

  • It also has a Communications Relay Group for communications support to other systems that need capsule location and impact prediction.

  • An Information Coordination Center controls the Ground Controller and coordinates its operation with other controllers and higher level Space Command Authorities.

  • The Ground Controller has a Control Computer, which is responsible for performing the tracking, impact projection, as well as other of the system’s major command and control functions.

  • The Ground Controller will execute impact predictions when the Space Capsule descends from 400,000 feet to 100,000 feet, and a new projection will be computed every ten (10) seconds.

  • Recovery ships are deployed based on the Ground Controller’s predictions and they will use their splash detection radar systems to confirm impact.


Overview cont

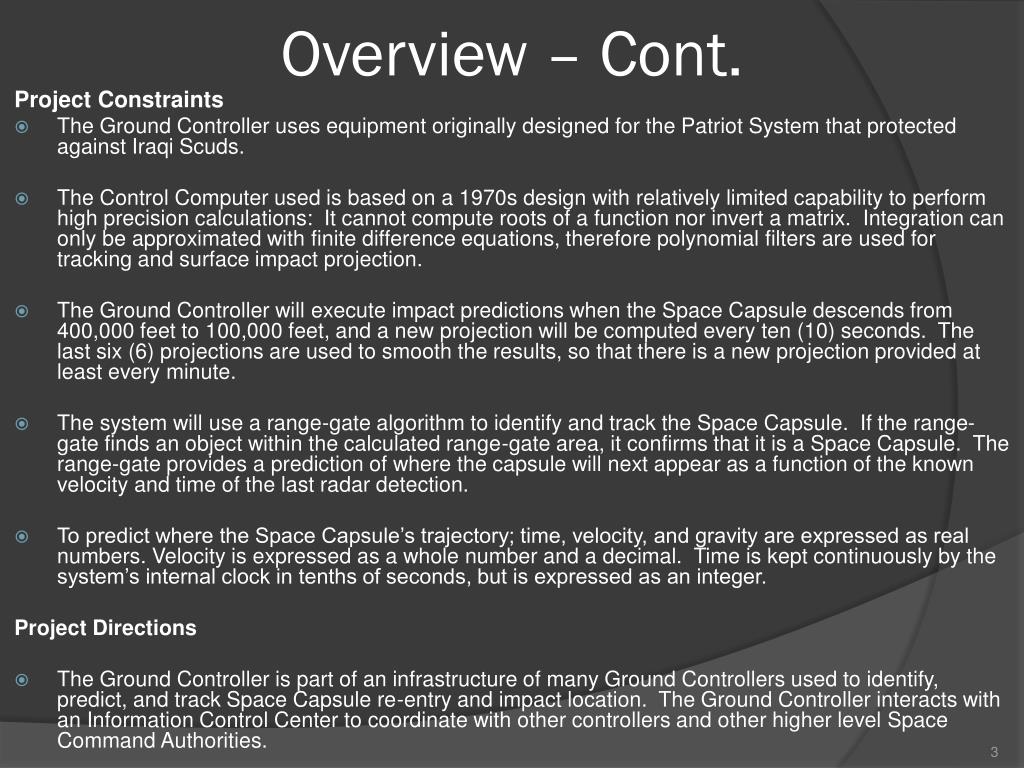

Overview – Cont.

Project Constraints

  • The Ground Controller uses equipment originally designed for the Patriot System that protected against Iraqi Scuds.

  • The Control Computer used is based on a 1970s design with relatively limited capability to perform high precision calculations: It cannot compute roots of a function nor invert a matrix. Integration can only be approximated with finite difference equations, therefore polynomial filters are used for tracking and surface impact projection.

  • The Ground Controller will execute impact predictions when the Space Capsule descends from 400,000 feet to 100,000 feet, and a new projection will be computed every ten (10) seconds. The last six (6) projections are used to smooth the results, so that there is a new projection provided at least every minute.

  • The system will use a range-gate algorithm to identify and track the Space Capsule. If the range-gate finds an object within the calculated range-gate area, it confirms that it is a Space Capsule. The range-gate provides a prediction of where the capsule will next appear as a function of the known velocity and time of the last radar detection.

  • To predict where the Space Capsule’s trajectory; time, velocity, and gravity are expressed as real numbers. Velocity is expressed as a whole number and a decimal. Time is kept continuously by the system’s internal clock in tenths of seconds, but is expressed as an integer.

    Project Directions

  • The Ground Controller is part of an infrastructure of many Ground Controllers used to identify, predict, and track Space Capsule re-entry and impact location. The Ground Controller interacts with an Information Control Center to coordinate with other controllers and other higher level Space Command Authorities.


Measurable operational value mov

Measurable Operational Value (MOV)

  • The Ground Controller will improve Space Capsule impact location predictions by 90% and increase recovery time by 50%.

  • The Ground Controller is designed to be a stand-alone unit.

  • For the intended purpose, it is mounted to a ship, although it is quite versatile and may be mounted on any sort of platform.

  • It has a well designed interface and allows for optimal interaction from a human operator.

  • The Ground Controller interacts with an Information Control Center, which also communicates with network of Ground Controllers and other higher level Space Command Authorities. This ensures prompt deployment of recovery ships to the projected Space Capsule impact location.

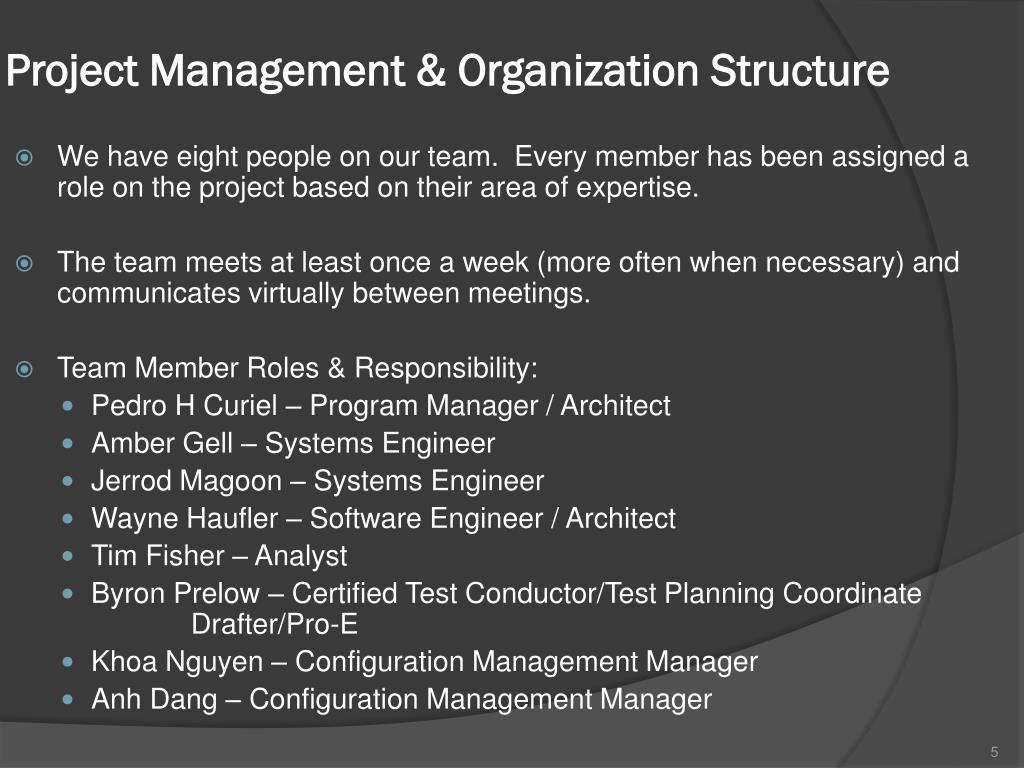

Project management organization structure

Project Management & Organization Structure

  • We have eight people on our team. Every member has been assigned a role on the project based on their area of expertise.

  • The team meets at least once a week (more often when necessary) and communicates virtually between meetings.

  • Team Member Roles & Responsibility:

    • Pedro H Curiel – Program Manager / Architect

    • Amber Gell – Systems Engineer

    • Jerrod Magoon – Systems Engineer

    • Wayne Haufler – Software Engineer / Architect

    • Tim Fisher – Analyst

    • Byron Prelow – Certified Test Conductor/Test Planning Coordinate Drafter/Pro-E

    • Khoa Nguyen – Configuration Management Manager

    • Anh Dang – Configuration Management Manager

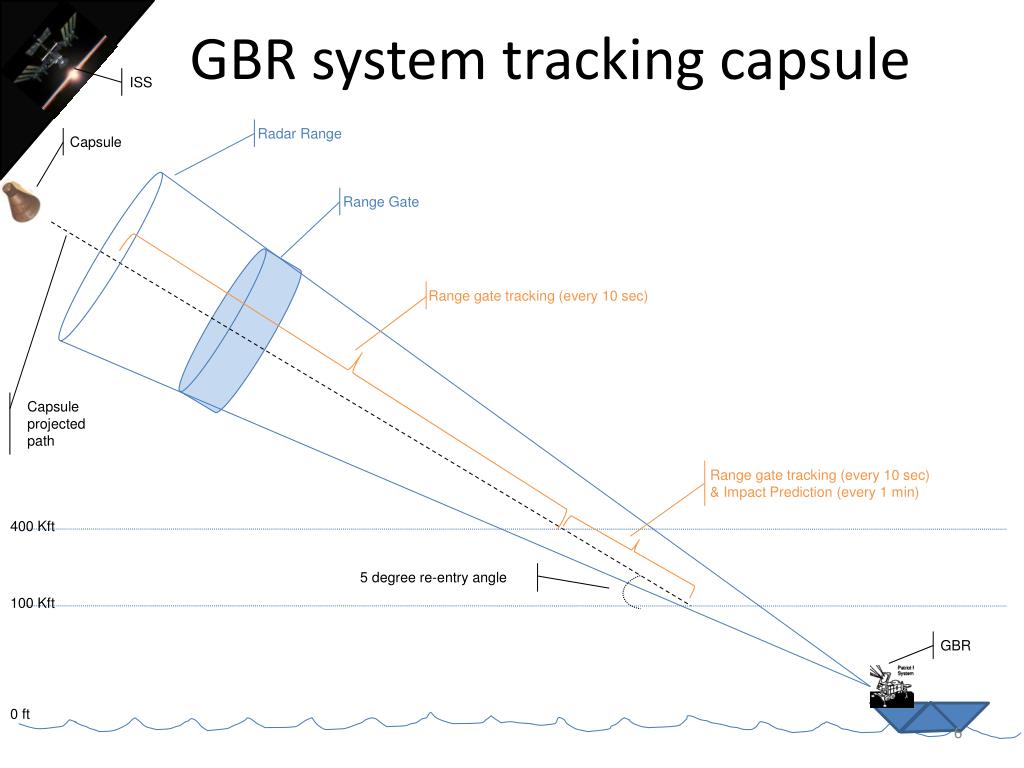

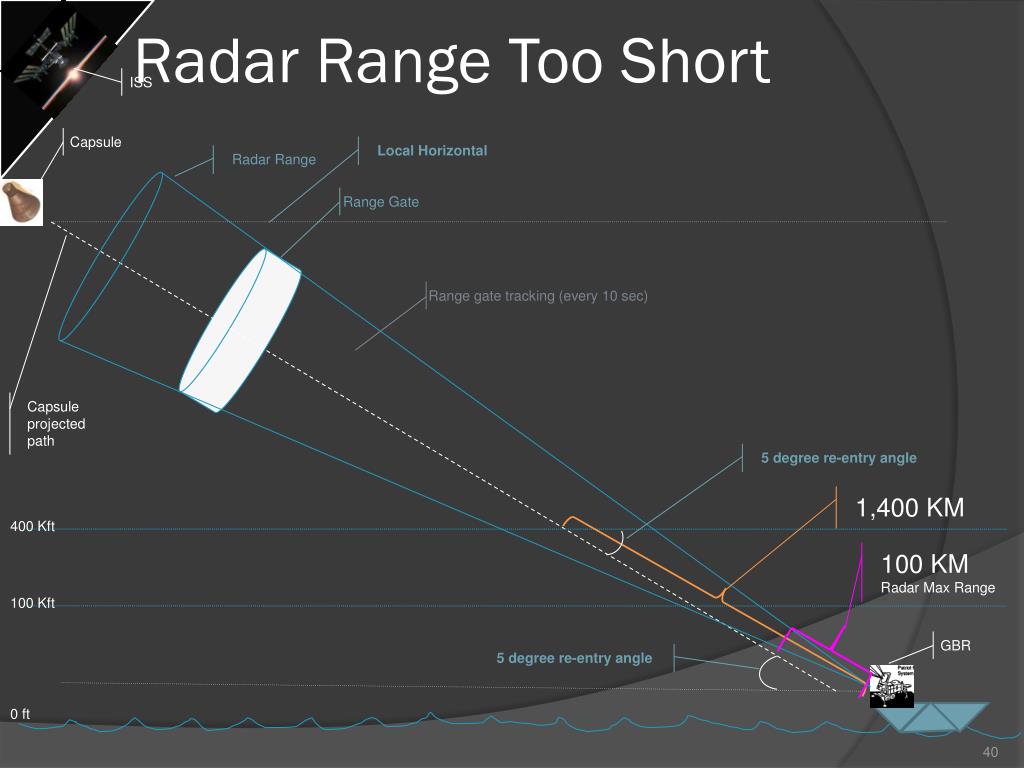

Gbr system tracking capsule

GBR system tracking capsule

ISS

Radar Range

Capsule

Range Gate

Range gate tracking (every 10 sec)

Capsule projected path

Range gate tracking (every 10 sec)

& Impact Prediction (every 1 min)

400 Kft

5 degree re-entry angle

100 Kft

GBR

0 ft


Use case scenarios

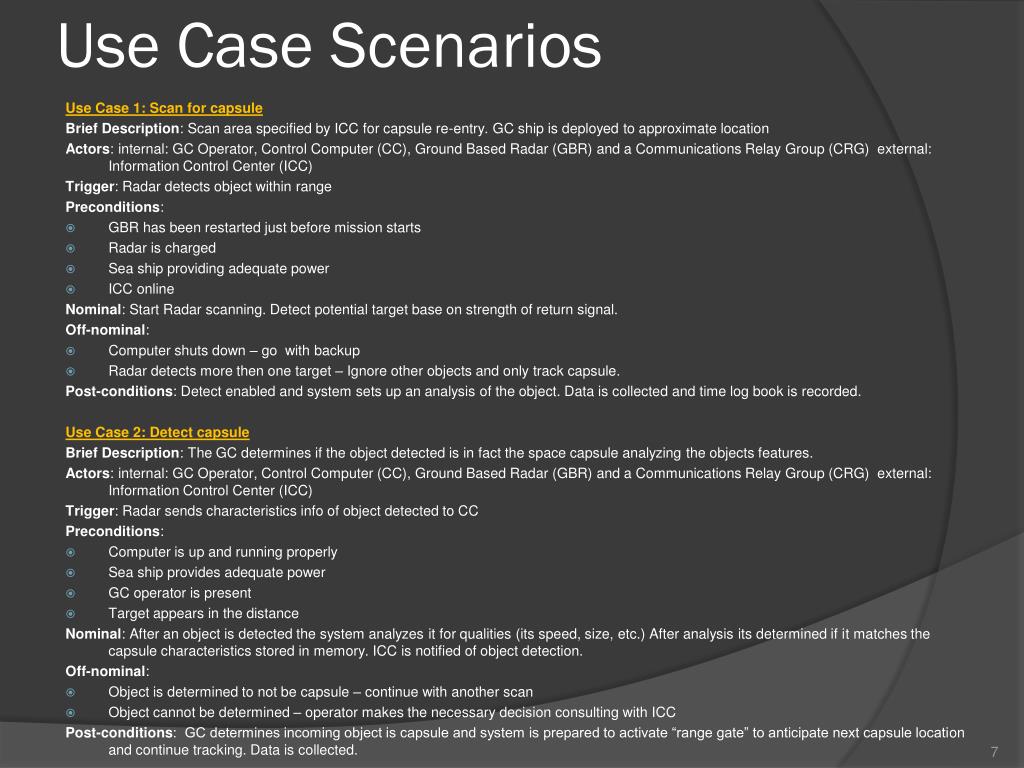

Use Case Scenarios

Use Case 1: Scan for capsule

Brief Description: Scan area specified by ICC for capsule re-entry. GC ship is deployed to approximate location

Actors: internal: GC Operator, Control Computer (CC), Ground Based Radar (GBR) and a Communications Relay Group (CRG) external: Information Control Center (ICC)

Trigger: Radar detects object within range

Preconditions:

  • GBR has been restarted just before mission starts

  • Radar is charged

  • Sea ship providing adequate power

  • ICC online

    Nominal: Start Radar scanning. Detect potential target base on strength of return signal.

    Off-nominal:

  • Computer shuts down – go with backup

  • Radar detects more then one target – Ignore other objects and only track capsule.

    Post-conditions: Detect enabled and system sets up an analysis of the object. Data is collected and time log book is recorded.

    Use Case 2: Detect capsule

    Brief Description: The GC determines if the object detected is in fact the space capsule analyzing the objects features.

    Actors: internal: GC Operator, Control Computer (CC), Ground Based Radar (GBR) and a Communications Relay Group (CRG) external: Information Control Center (ICC)

    Trigger: Radar sends characteristics info of object detected to CC

    Preconditions:

  • Computer is up and running properly

  • Sea ship provides adequate power

  • GC operator is present

  • Target appears in the distance

    Nominal: After an object is detected the system analyzes it for qualities (its speed, size, etc.) After analysis its determined if it matches the capsule characteristics stored in memory. ICC is notified of object detection.

    Off-nominal:

  • Object is determined to not be capsule – continue with another scan

  • Object cannot be determined – operator makes the necessary decision consulting with ICC

    Post-conditions: GC determines incoming object is capsule and system is prepared to activate “range gate” to anticipate next capsule location and continue tracking. Data is collected.


Ground controller project

Use Case 3: Track capsule location

Brief Description: By using the “range gate “within the GC radar an area in the air space is calculated on where the system should look next for the capsule. By analyzing the capsule known velocity and time the range gate predict where the capsule will appear next.

Actors: internal: GC Operator, Control Computer (CC), Ground Based Radar (GBR) and a Communications Relay Group (CRG) external: Information Control Center (ICC), space capsule

Trigger: Incoming object is verified as capsule

Preconditions:

  • Computer is up and running properly

  • Sea ship providing adequate power

  • Operator is present

  • Target is identified as capsule

    Nominal: Computer analyzes incoming capsule and determines its velocity and the time of last radar detection. Both time and velocity are expressed as real number. The range gate filters out info about airborne objects outside its calculated area and only process the information needed to track capsule. The range gate area is predicted to continue tracking and logging data.

    Off-nominal:

  • System failure – velocity and time cannot be calculated

  • The predicted location is clearly off - operator makes necessary adjustments

    Post-conditions: Range gate performs calculation and anticipates location every 10 seconds. Data is collected

    Use Case 4: Calculate capsule impact location

    Brief Description: After the range gate has been logging position data since detection and capsule has reached descent range between 400 to 100 kft computer will start calculating impact locations once every minute with the last 6 range gate location predictions.

    Actors: internal: GC Operator, Control Computer (CC), Ground Based Radar (GBR) and a Communications Relay Group (CRG) external: Information Control Center (ICC), space capsule

    Trigger: Range gate has confirmed capsule location within 400 to 100 kft of surface

    Preconditions:

  • ICC communications online

  • GC Operator is present

  • Access to past range gate calculations

    Nominal: Impact locations are calculated once every minute by using the last 6 location points. Impact location calculation is communicated to ICC

    Off-nominal:

  • System failure – go with backup

  • Tracking is off - the operator makes the necessary adjustments

  • Last minute confirmation of object being tracked is not capsule – communicate with ICC

    Post-conditions: Capsule impact location is adequately predicted and communicated to ICC every minute when capsule is between 400 to 100 kft of landing. ICC deploys recovery ship and confirms capsule location. Data is collected.


Ground controller project

Use Case 5: Collect data for post mission analysis

Brief Description: After the process is complete all the data is collected for the mission. It is analyzed for any problems or concerns. Any changes are made and the operator and engineer are informed of them. A time log is kept for every step of the mission.

Actors: internal: GC Operator, Control Computer (CC), Ground Based Radar (GBR) and a Communications Relay Group (CRG) external: Information Control Center (ICC),

Trigger: Capsule has been recovered

Preconditions:

  • A time log has been completed every step of the mission

  • A large amount of data has been collect to be analyzed

  • Computer system ready for analysis is up and running

    Nominal: After the mission is complete the analyst obtains all the necessary data to do is analysis of the mission. The operator informs the analyst of any problems to look for and any changes that may have to be made. The analyst looks at the data to develop an analysis report. Any problems or discrepancies are reported to the operator and engineer to make the necessary changes on the GC.

    Off-nominal:

  • Not all times are recorded for the mission – estimates are made and fault is corrected

  • System failure – go to backup

    Post-conditions: Any problems are reported and necessary changes are made to the GC after the analysis. Also, accuracy of the impact location is recorded. System is shut down.


Process view

Process View

Scan (GBR)

- Radar pulses to locate capsule

Detection & Identify

- Reflected pulse is compared to make sure its capsule

Tracking & Verify

(Range gate)

- calculation for next position prediction and verify its capsule

  • Communication (CRG)

  • Let know ICC latest impact prediction

Projection

- Use last 6 tracking points for an impact prediction every minute

Database

- To save impactpredictions 1 per minute

ROM

- Characteristics of space capsule

Database

- To save once every 10 second sampling

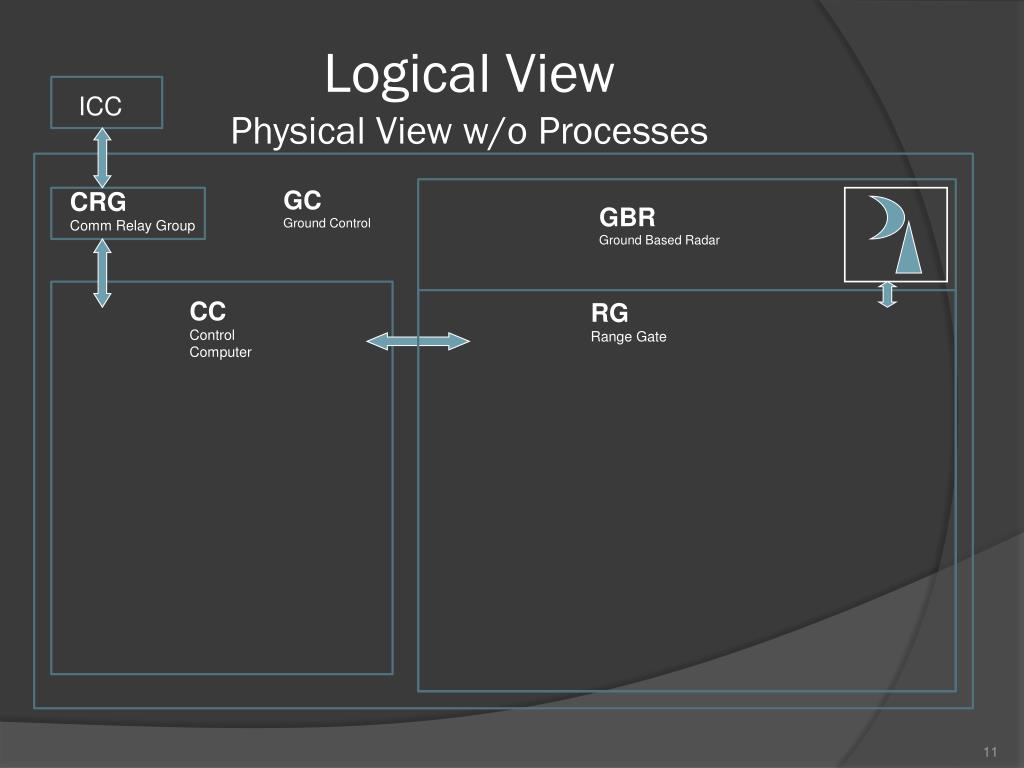

Logical view physical view w o processes

Logical ViewPhysical View w/o Processes

ICC

GCGround Control

CRGComm Relay Group

GBRGround Based Radar

CCControl Computer

RGRange Gate

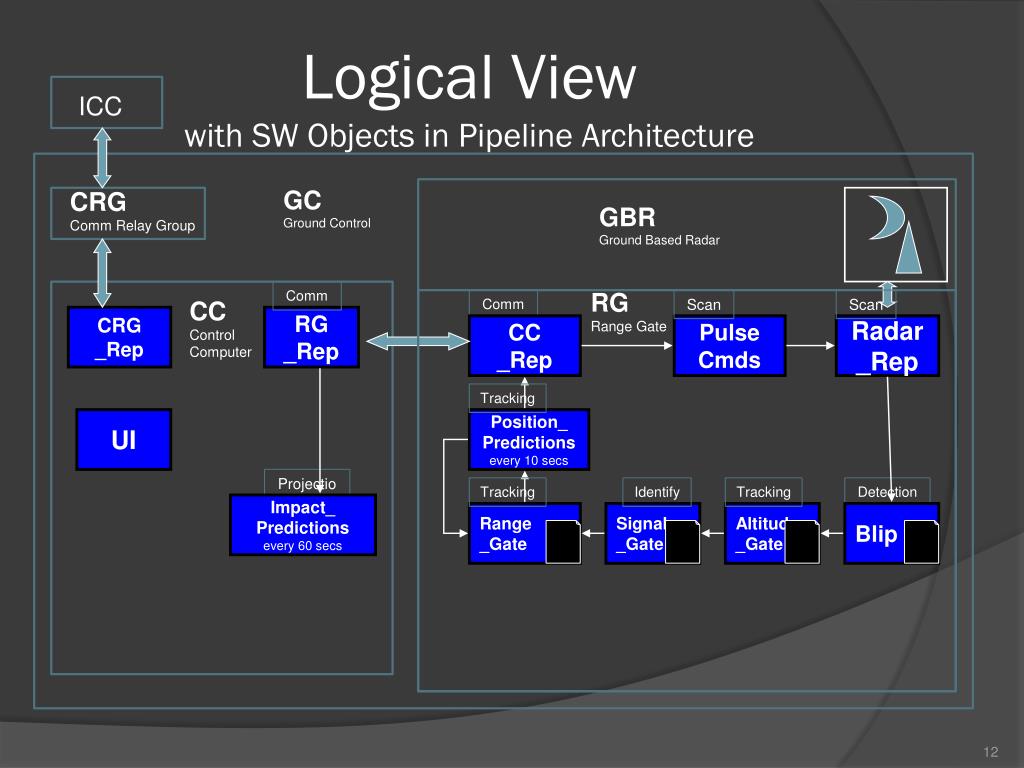

Logical view with sw objects in pipeline architecture

Logical Viewwith SW Objects in Pipeline Architecture

ICC

GCGround Control

CRGComm Relay Group

GBRGround Based Radar

Comm

RGRange Gate

CCControl Computer

Comm

Scan

Scan

CRG_Rep

RG_Rep

CC_Rep

PulseCmds

Radar_Rep

Tracking

UI

Position_Predictionsevery 10 secs

Projection

Tracking

Identify

Tracking

Detection

Impact_Predictions

every 60 secs

Range

_Gate

Signal

_Gate

Altitude

_Gate

Blip


Logical view with stored arrays

Logical Viewwith Stored Arrays

ICC

GCGround Control

CRGComm Relay Group

GBRGround Based Radar

Comm

RGRange Gate

CCControl Computer

Comm

Scan

Scan

CRG_Rep

RG_Rep

CC_Rep

PulseCmds

Radar_Rep

Tracking

UI

Position_Predictions every 10 secs

Projection

Tracking

Identify

Tracking

Detection

Impact_Predictions

every 60 secs

Range

_Gate

Signal

_Gate

Altitude

_Gate

Blip

Range

_Gates

Reference_Signal

Blips

Last 6

Blips

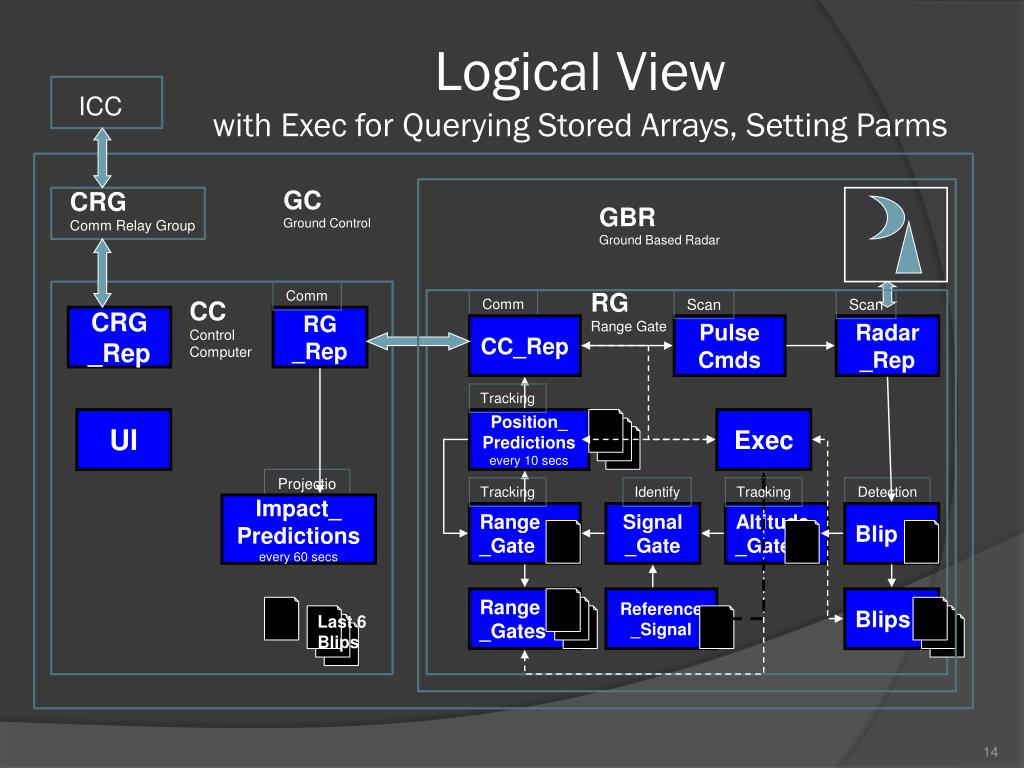

Logical view with exec for querying stored arrays setting parms

Logical View with Exec for Querying Stored Arrays, Setting Parms

ICC

GCGround Control

CRGComm Relay Group

GBRGround Based Radar

Comm

RGRange Gate

CCControl Computer

Comm

Scan

Scan

CRG_Rep

RG_Rep

CC_Rep

PulseCmds

Radar_Rep

Tracking

UI

Position_Predictionsevery 10 secs

Exec

Projection

Tracking

Identify

Tracking

Detection

Impact_Predictions

every 60 secs

Range

_Gate

Signal

_Gate

Altitude

_Gate

Blip

Range

_Gates

Reference_Signal

Blips

Last 6

Blips

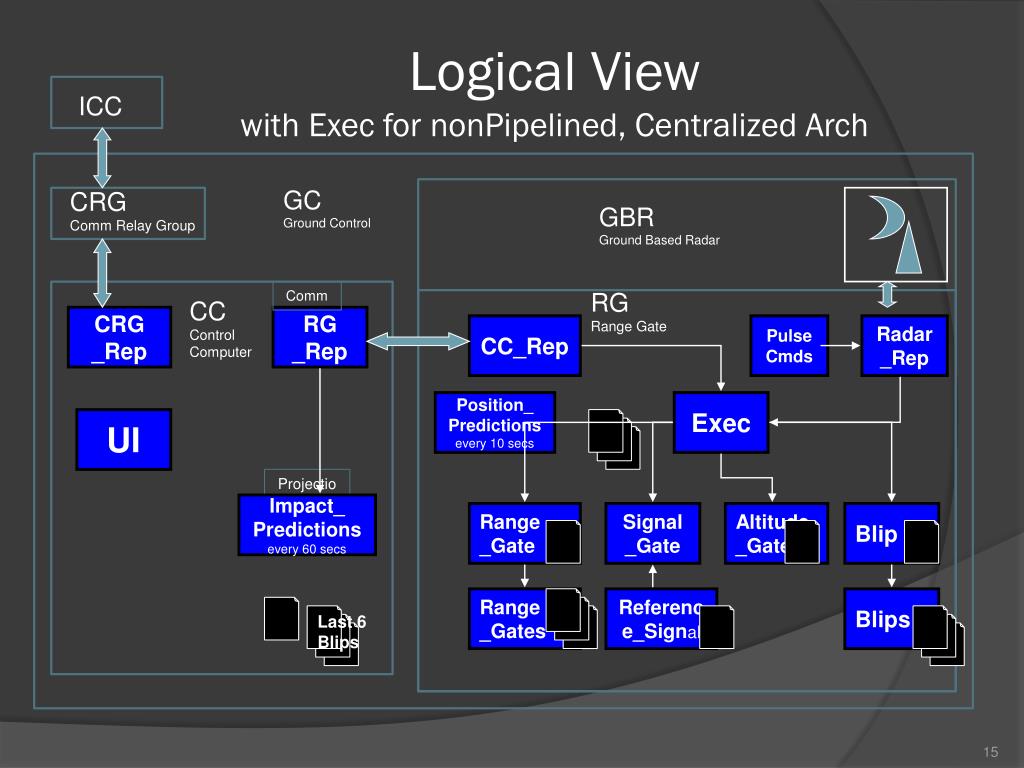

Logical view with exec for nonpipelined centralized arch

Logical View with Exec for nonPipelined, Centralized Arch

ICC

GCGround Control

CRGComm Relay Group

GBRGround Based Radar

Comm

RGRange Gate

CC Control Computer

CRG_Rep

RG_Rep

CC_Rep

PulseCmds

Radar_Rep

Position_Predictionsevery 10 secs

Exec

UI

Projection

Impact_Predictions

every 60 secs

Range

_Gate

Signal

_Gate

Altitude

_Gate

Blip

Range

_Gates

Reference_Signal

Blips

Last 6

Blips


Physical view

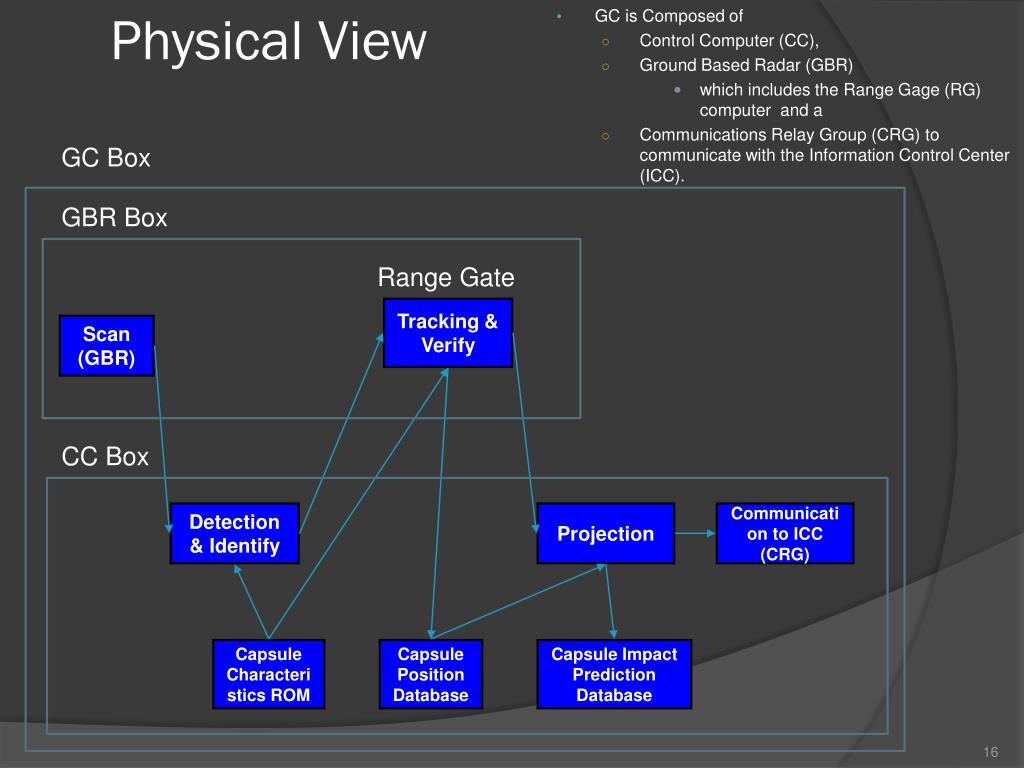

Physical View

GC Box

  • GC is Composed of

    • Control Computer (CC),

    • Ground Based Radar (GBR)

      • which includes the Range Gage (RG) computer and a

    • Communications Relay Group (CRG) to communicate with the Information Control Center (ICC).

GBR Box

Range Gate

Tracking & Verify

Scan (GBR)

CC Box

Detection & Identify

Projection

Communication to ICC (CRG)

Capsule Characteristics ROM

Capsule Position Database

Capsule Impact Prediction Database


Statement of software requirements

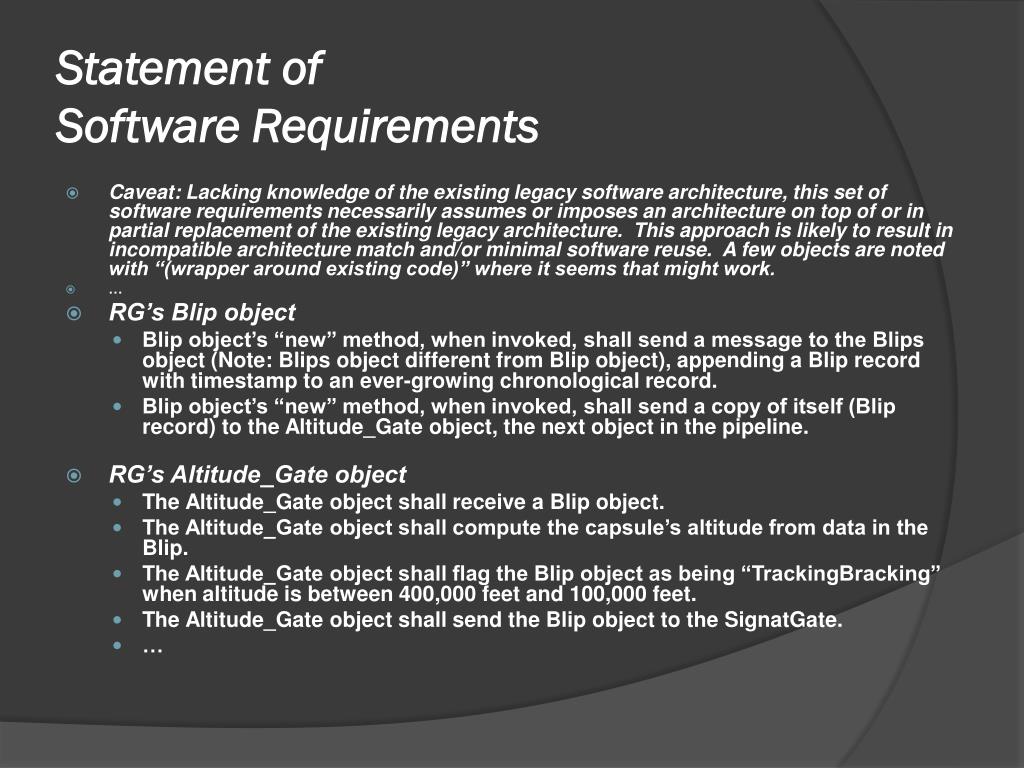

Statement of Software Requirements

  • Caveat: Lacking knowledge of the existing legacy software architecture, this set of software requirements necessarily assumes or imposes an architecture on top of or in partial replacement of the existing legacy architecture. This approach is likely to result in incompatible architecture match and/or minimal software reuse. A few objects are noted with “(wrapper around existing code)” where it seems that might work.

  • RG’s Blip object

    • Blip object’s “new” method, when invoked, shall send a message to the Blips object (Note: Blips object different from Blip object), appending a Blip record with timestamp to an ever-growing chronological record.

    • Blip object’s “new” method, when invoked, shall send a copy of itself (Blip record) to the Altitude_Gate object, the next object in the pipeline.

  • RG’s Altitude_Gate object

    • The Altitude_Gate object shall receive a Blip object.

    • The Altitude_Gate object shall compute the capsule’s altitude from data in the Blip.

    • The Altitude_Gate object shall flag the Blip object as being “TrackingBracking” when altitude is between 400,000 feet and 100,000 feet.

    • The Altitude_Gate object shall send the Blip object to the SignatGate.


Statement of software requirements1

Statement of Software Requirements

  • WARNING: If each arrow is implemented by invoking (calling) the destination object’s method by the source object, then the circuit path of arrows within RG would result in something like a “Circular Call Reference Error”. These should be implemented with a nonblocking message passing mechanism.…

  • RG’s Blip object

  • In Blip object’s “new” method,

    • Call Blips object’s Store method (Note: Blips object different from Blip object),

      • which pushes the Blip record with timestamp to a limited stack data structure, an ever-growing chronological record.

    • Call Altitude_Gate’s Check method with a copy of the Blip record

  • RG’s Altitude_Gate object

  • In Altitude_Gate object’s Check method,

    • Receive Blip data record

    • Check inputted Blip data for validity

    • if Valid_data is True

    • Call computeAltitude to do that from data in the Blip.

      • sin A = a / c = Alt/Range; Alt = Range * sin 5 degrees

      • Blip.Tracking = False

    • if Alt <= 400,000 ft AND Alt >= 100,000 ft

      • Blip.Tracking = True

    • (where Blip.Tracking is a boolean field called Tracking in the Blip record)

    • Call Signal_Gate’s Check method with the Blip data record.

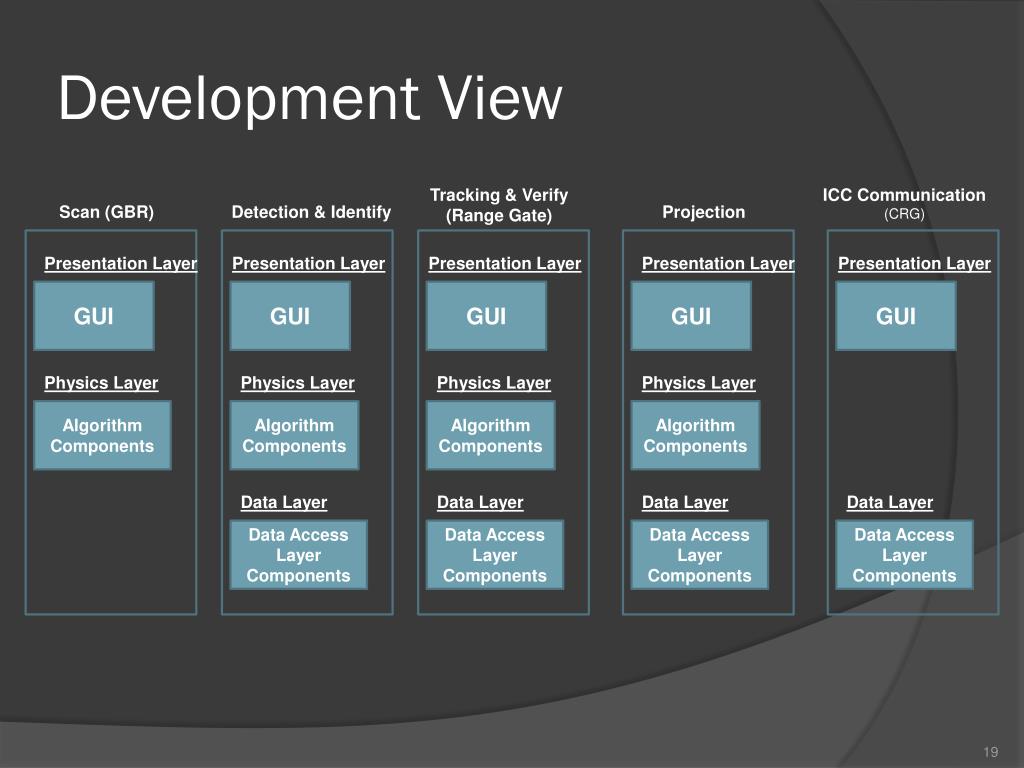

Development view

Development View

Tracking & Verify (Range Gate)

ICC Communication (CRG)

Scan (GBR)

Detection & Identify

Projection

Presentation Layer

Presentation Layer

Presentation Layer

Presentation Layer

Presentation Layer

GUI

GUI

GUI

GUI

GUI

Physics Layer

Physics Layer

Physics Layer

Physics Layer

Algorithm Components

Algorithm Components

Algorithm Components

Algorithm Components

Data Layer

Data Layer

Data Layer

Data Layer

Data Access Layer Components

Data Access Layer Components

Data Access Layer Components

Data Access Layer Components

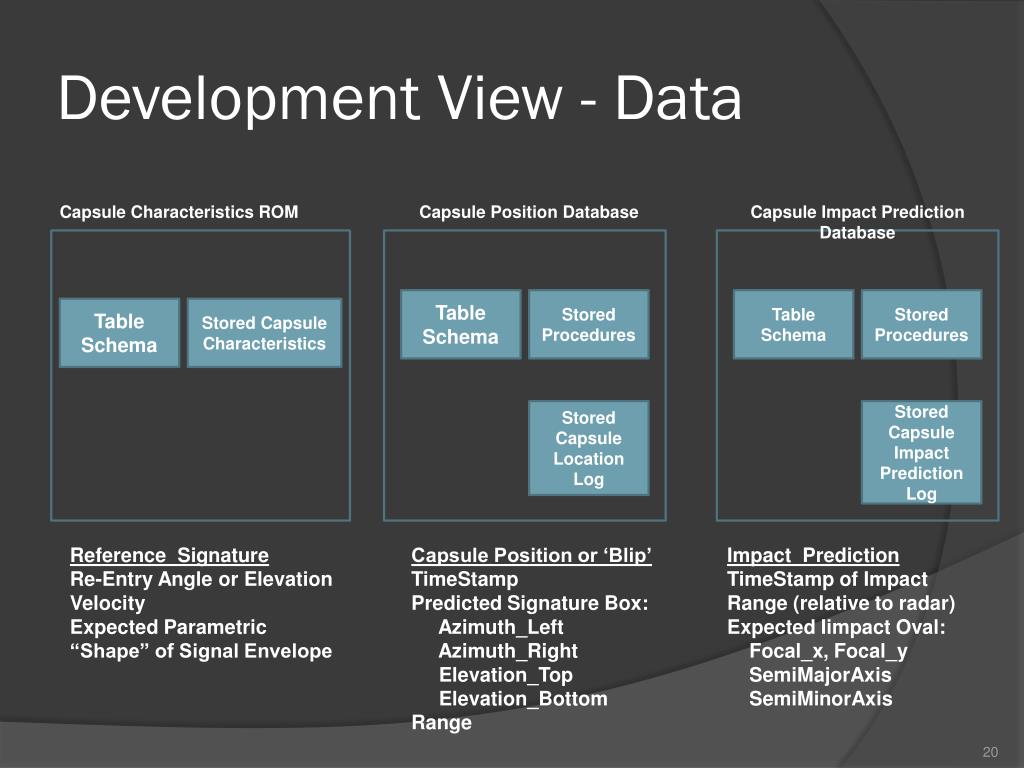

Development view data

Development View - Data

Capsule Characteristics ROM

Capsule Position Database

Capsule Impact Prediction Database

Table Schema

Stored Procedures

Table Schema

Stored Procedures

Table Schema

Stored Capsule Characteristics

Stored Capsule Location Log

Stored Capsule Impact Prediction Log

Reference_Signature

Re-Entry Angle or Elevation

Velocity

Expected Parametric “Shape” of Signal Envelope

Capsule Position or ‘Blip’

TimeStamp

Predicted Signature Box:

Azimuth_Left

Azimuth_Right

Elevation_Top

Elevation_Bottom

Range

Impact_Prediction

TimeStamp of Impact

Range (relative to radar)

Expected Iimpact Oval:

Focal_x, Focal_y

SemiMajorAxis

SemiMinorAxis


Function points

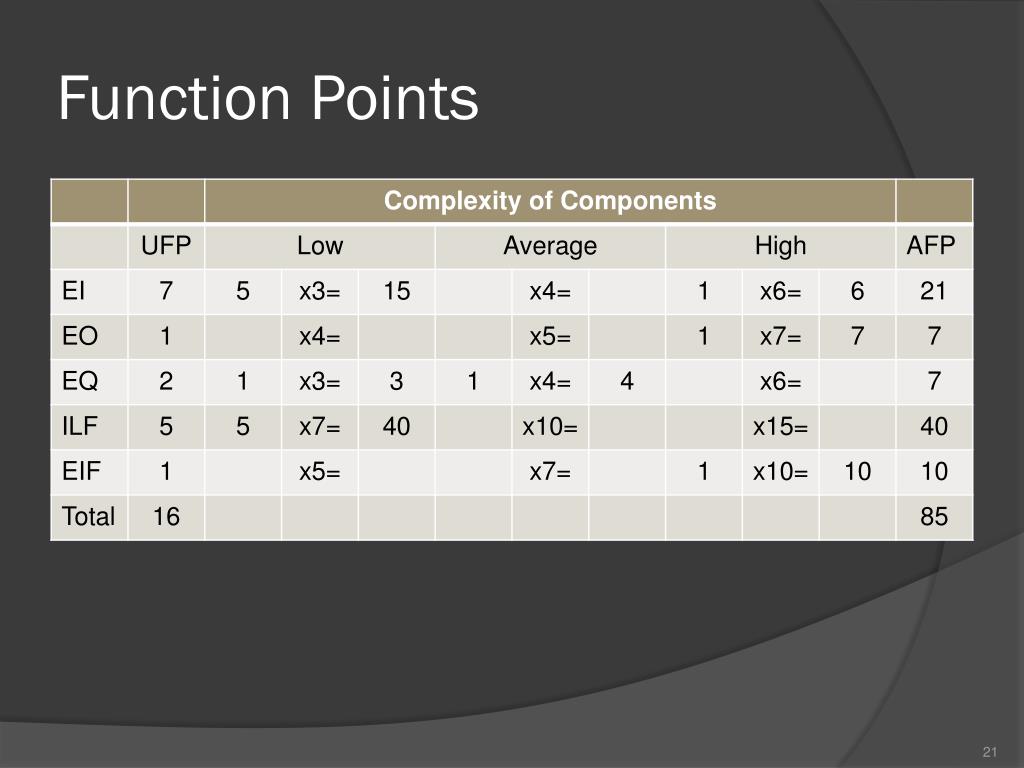

Function Points


Iced t metrics

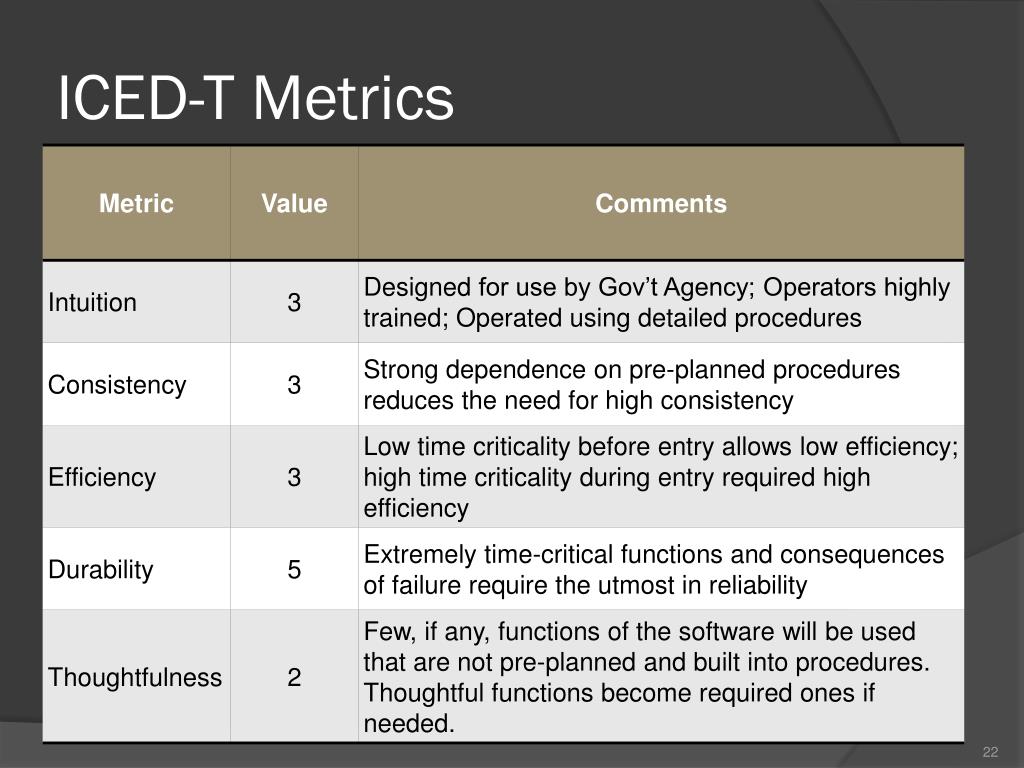

ICED-T Metrics


Development schedule and gantt chart

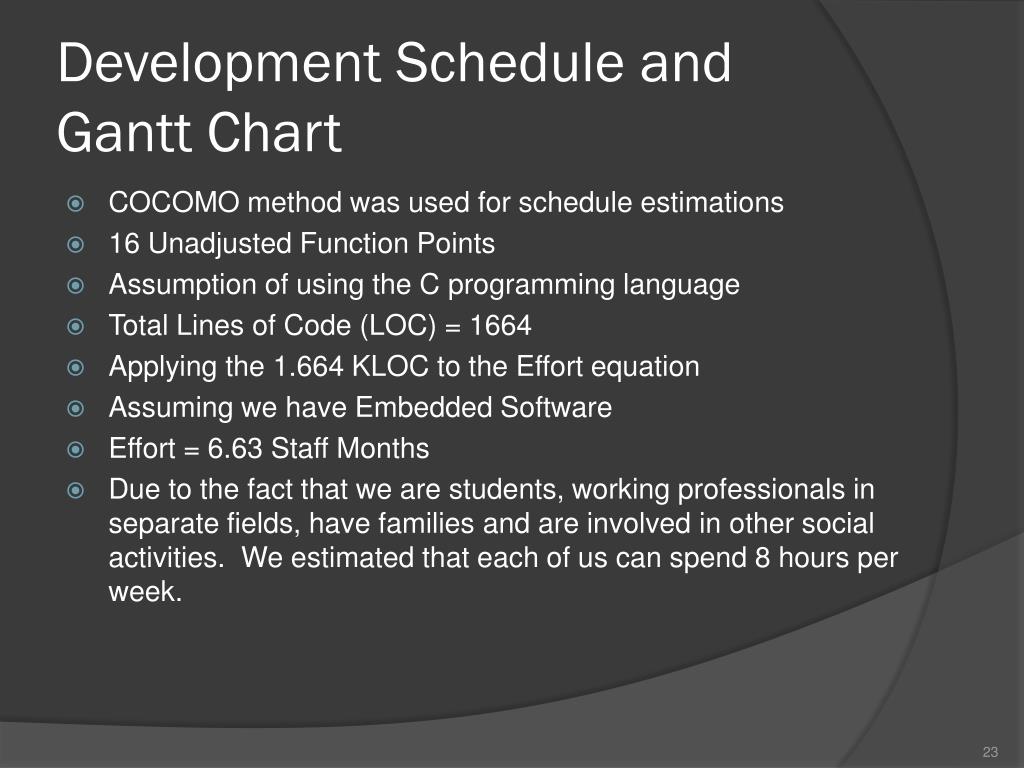

Development Schedule and Gantt Chart

  • COCOMO method was used for schedule estimations

  • 16 Unadjusted Function Points

  • Assumption of using the C programming language

  • Total Lines of Code (LOC) = 1664

  • Applying the 1.664 KLOC to the Effort equation

  • Assuming we have Embedded Software

  • Effort = 6.63 Staff Months

  • Due to the fact that we are students, working professionals in separate fields, have families and are involved in other social activities. We estimated that each of us can spend 8 hours per week.


Ground controller project

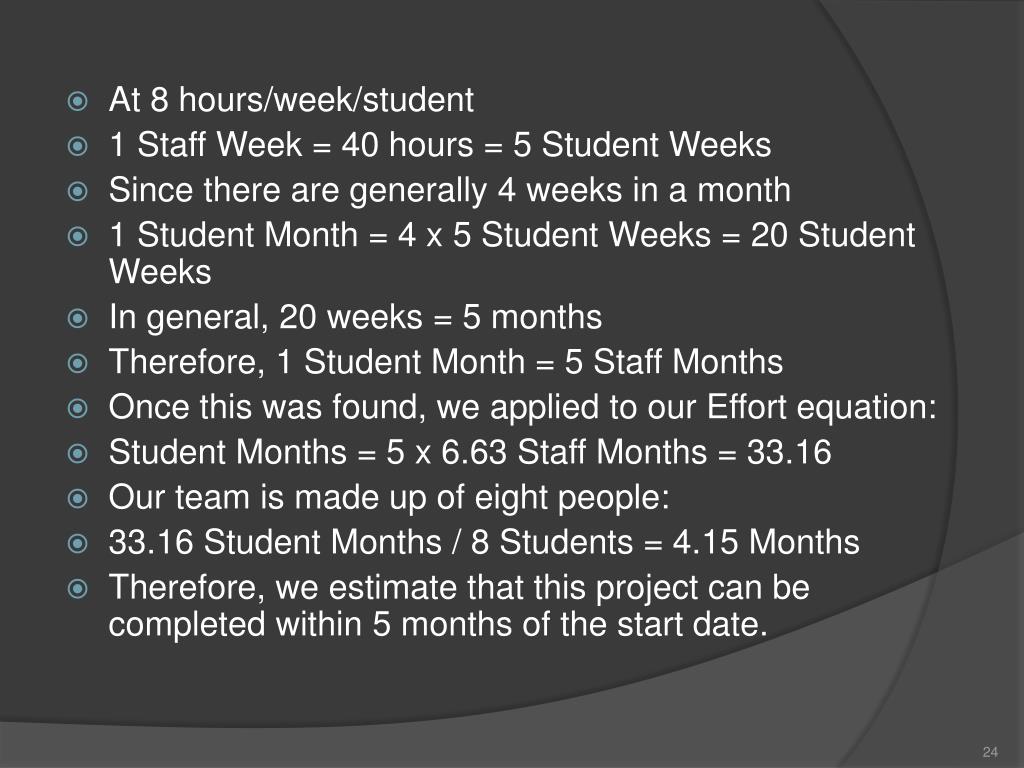

  • At 8 hours/week/student

  • 1 Staff Week = 40 hours = 5 Student Weeks

  • Since there are generally 4 weeks in a month

  • 1 Student Month = 4 x 5 Student Weeks = 20 Student Weeks

  • In general, 20 weeks = 5 months

  • Therefore, 1 Student Month = 5 Staff Months

  • Once this was found, we applied to our Effort equation:

  • Student Months = 5 x 6.63 Staff Months = 33.16

  • Our team is made up of eight people:

  • 33.16 Student Months / 8 Students = 4.15 Months

  • Therefore, we estimate that this project can be completed within 5 months of the start date.


Gantt chart

Gantt Chart


Test plan

Test Plan

Cooperative Testing

  • Chosen as first test to be performed by our team.

    • Fosters cooperation amongst subsystem designers.

    • Use of test beds which were provided by the original system testers.

    • Helps to eliminate problems before software is seen by external test team.

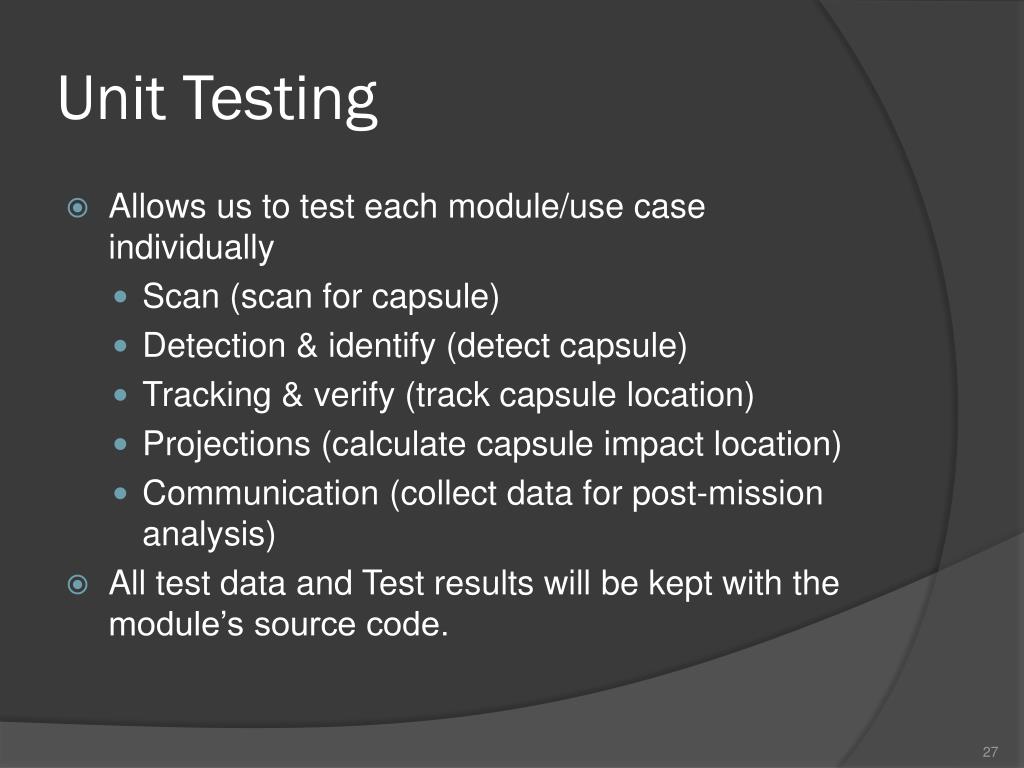

Unit testing

Unit Testing

  • Allows us to test each module/use case individually

    • Scan (scan for capsule)

    • Detection & identify (detect capsule)

    • Tracking & verify (track capsule location)

    • Projections (calculate capsule impact location)

    • Communication (collect data for post-mission analysis)

  • All test data and Test results will be kept with the module’s source code.


Stress regression testing

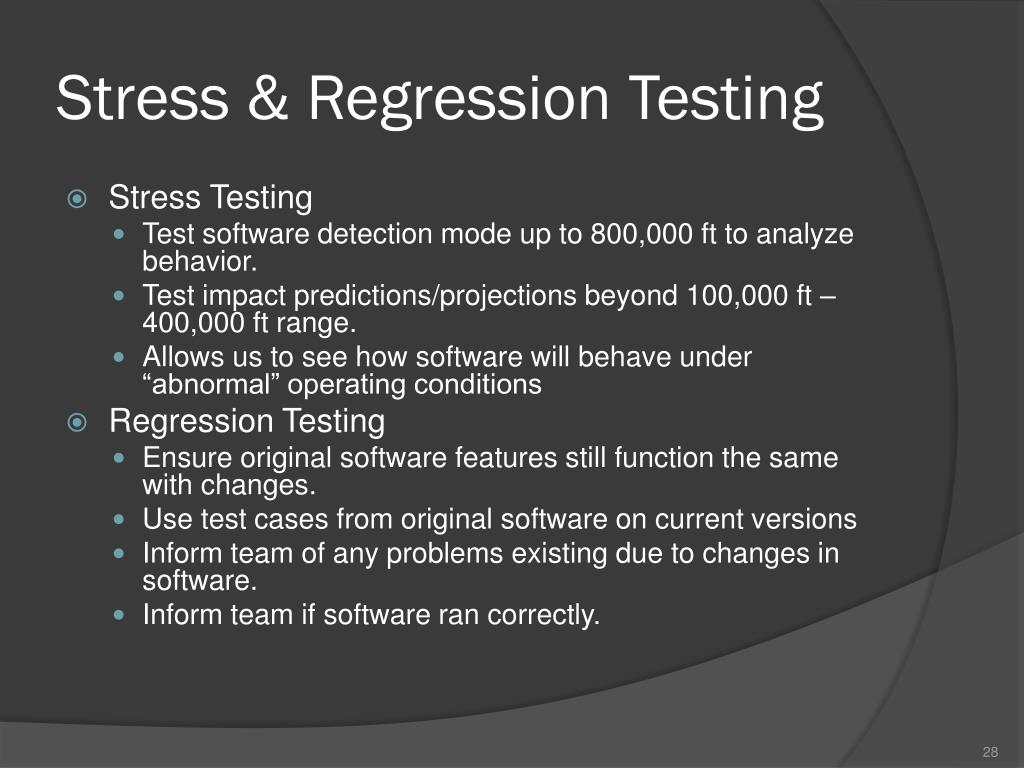

Stress & Regression Testing

  • Stress Testing

    • Test software detection mode up to 800,000 ft to analyze behavior.

    • Test impact predictions/projections beyond 100,000 ft – 400,000 ft range.

    • Allows us to see how software will behave under “abnormal” operating conditions

  • Regression Testing

    • Ensure original software features still function the same with changes.

    • Use test cases from original software on current versions

    • Inform team of any problems existing due to changes in software.

    • Inform team if software ran correctly.


System integration testing

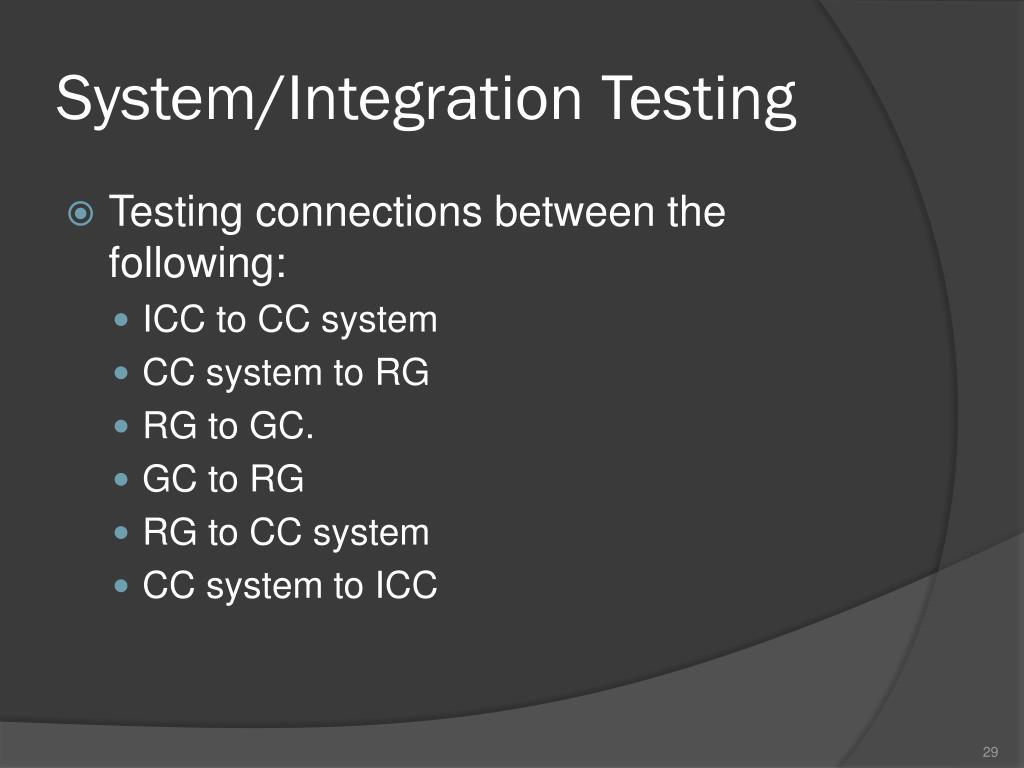

System/Integration Testing

  • Testing connections between the following:

    • ICC to CC system

    • CC system to RG

    • RG to GC.

    • GC to RG

    • RG to CC system

    • CC system to ICC


Configuration management deliverable items

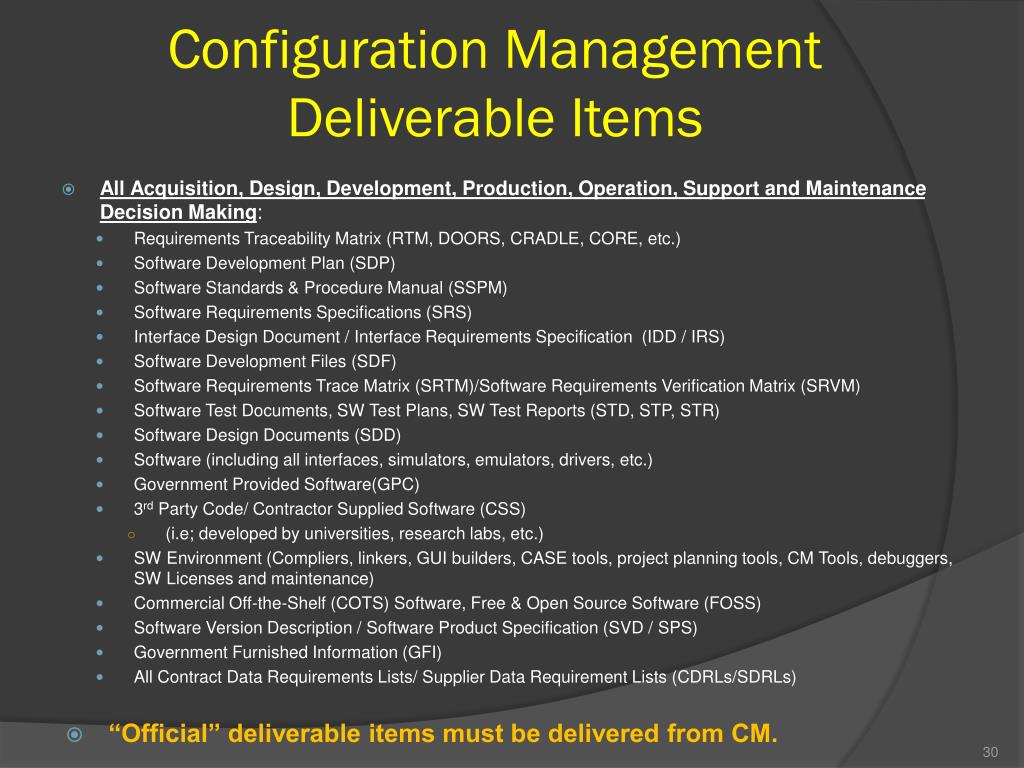

Configuration Management Deliverable Items

  • All Acquisition, Design, Development, Production, Operation, Support and Maintenance Decision Making:

    • Requirements Traceability Matrix (RTM, DOORS, CRADLE, CORE, etc.)

    • Software Development Plan (SDP)

    • Software Standards & Procedure Manual (SSPM)

    • Software Requirements Specifications (SRS)

    • Interface Design Document / Interface Requirements Specification (IDD / IRS)

    • Software Development Files (SDF)

    • Software Requirements Trace Matrix (SRTM)/Software Requirements Verification Matrix (SRVM)

    • Software Test Documents, SW Test Plans, SW Test Reports (STD, STP, STR)

    • Software Design Documents (SDD)

    • Software (including all interfaces, simulators, emulators, drivers, etc.)

    • Government Provided Software(GPC)

    • 3rd Party Code/ Contractor Supplied Software (CSS)

      • (i.e; developed by universities, research labs, etc.)

    • SW Environment (Compliers, linkers, GUI builders, CASE tools, project planning tools, CM Tools, debuggers, SW Licenses and maintenance)

    • Commercial Off-the-Shelf (COTS) Software, Free & Open Source Software (FOSS)

    • Software Version Description / Software Product Specification (SVD / SPS)

    • Government Furnished Information (GFI)

    • All Contract Data Requirements Lists/ Supplier Data Requirement Lists (CDRLs/SDRLs)

  • “Official” deliverable items must be delivered from CM.


Ground controller project

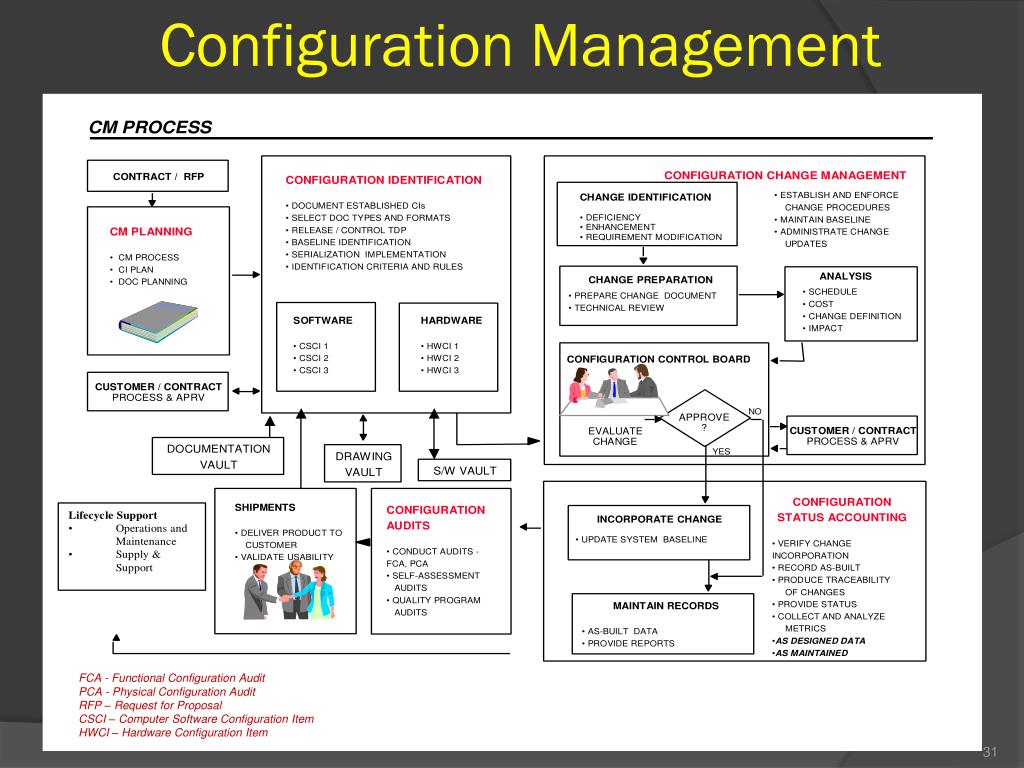

Configuration Management

FCA - Functional Configuration Audit

PCA - Physical Configuration Audit

RFP – Request for Proposal

CSCI – Computer Software Configuration Item

HWCI – Hardware Configuration Item


Major elements of cm

Major Elements of CM


Ground controller project

Coding Standard

  • NASA SOFTWARE CODING STANDARD GUIDES:

  • To assure high quality, reliability and safety, the following NASA Software Coding Standard will be used as guide for coding practices:

  • NASA- JSC27209: C Coding Standard for the Orbiter Interface Unit (OIU) Project.

  • NASA-JSC ISS SIGI Attitude Processor: C Coding Style Guide

  • NASA-JSC C Coding Standard for the X-38/V201 GN&C Flight Software

  • Dynamic memory allocation (e.g., use of functions calloc() and malloc()) shall[42] not be used, in order to reduce the risk of memory leaks and promote a fixed memory model.

  • Module execution rate shall[72] not be assumed to be a constant unless it is running in a deterministic, real-time system.

  • Header files shall[81] not be nested

  • Concurrent programming shall[83] not be used


Ground controller project

NASA Standards & Processes

The software development life cycles shall compliance with the following Standards and Processes:

NASA-STD-0005 NASA Configuration Management (CM) Standard

NPD 2820.1 NASA Software Policies

NPR 1441.1 NASA Records Retention Schedules

NPR 7120.5 NASA Program and Project Management Processes and Requirements

NPR 7150.2 NASA Software Engineering Requirements

NASA-STD-8719.13 Software Safety Standard

NASA-STD-2202-93 Software Formal Inspections Standard

NASA-GB-8719.13 NASA Software Safety Guidebook

NASA-GB-A201 Software Assurance Guidebook, September 1989

NASA-GB-A301 Software Quality Assurance Audits Guidebook, December 1990

NASA-GB-A302 Software Formal Inspections Guidebook, August 1993

IEEE 730-2002 IEEE Standard for Software Quality Assurance Plans

ISO/IEC 12207:1995 Software life cycle processes

ISO 90003:2000 Quality Management And Quality Assurance Standards –

Part 3: Guidelines For The Application of ANSI/ISO/ASQC 9001:1994

To The Development, Supply, Installation And Maintenance Of Computer Software

ISO 10007:2003 Quality management systems - Guidelines for configuration management

IEEE 982.1-1988 IEEE Standard Dictionary of Measures to Produce Reliable Software

IEEE 1012-1998 IEEE Standard for Software Verification and Validation

IEEE Std. 1028-1997 IEEE Standard for Software Reviews

IEEE Std. 828-1998 IEEE Standard for Software Configuration Management Plans

ANSI/EIA-649-1998 National Consensus Standard for Configuration Management

EIA-649-A 2004 National Consensus Standard for Configuration Management

GEIA Standard 836-2002 Configuration Management Data Exchange and Interoperability


Ground controller project

Build Plan

Experience indicates that a typical thread requires about three months completely integrating and testing.


Ground controller project

Back up


Physics related questions

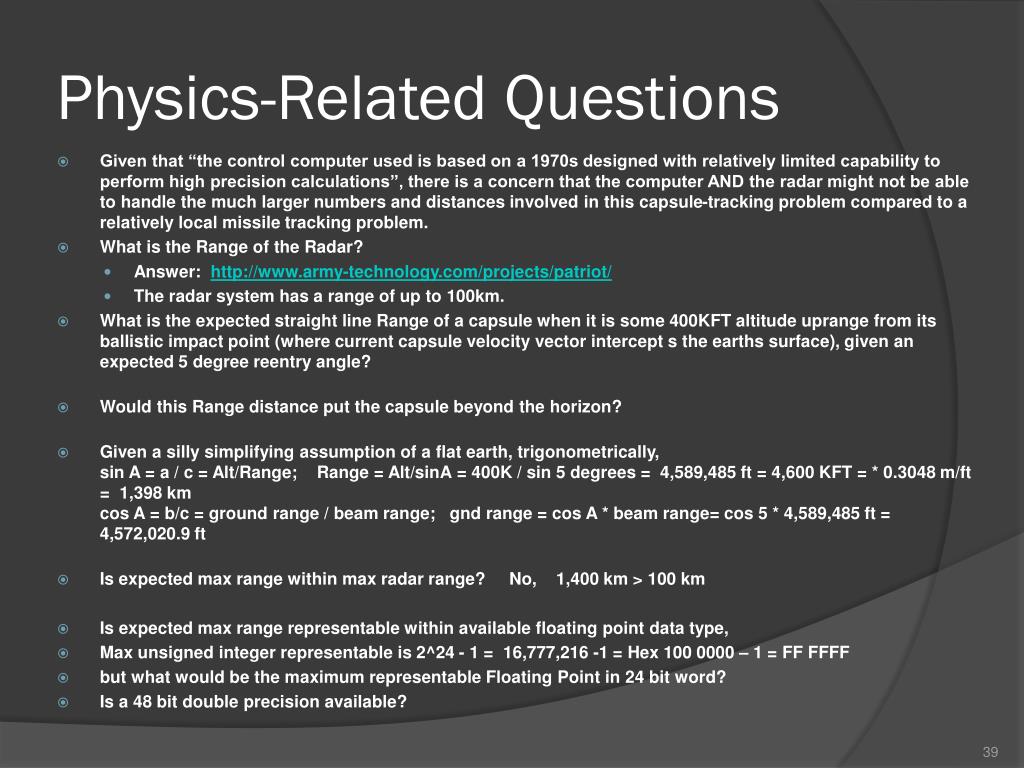

Physics-Related Questions

  • Given that “the control computer used is based on a 1970s designed with relatively limited capability to perform high precision calculations”, there is a concern that the computer AND the radar might not be able to handle the much larger numbers and distances involved in this capsule-tracking problem compared to a relatively local missile tracking problem.

  • What is the Range of the Radar?

    • Answer: http://www.army-technology.com/projects/patriot/

    • The radar system has a range of up to 100km.

  • What is the expected straight line Range of a capsule when it is some 400KFT altitude uprange from its ballistic impact point (where current capsule velocity vector intercept s the earths surface), given an expected 5 degree reentry angle?

  • Would this Range distance put the capsule beyond the horizon?

  • Given a silly simplifying assumption of a flat earth, trigonometrically, sin A = a / c = Alt/Range; Range = Alt/sinA = 400K / sin 5 degrees = 4,589,485 ft = 4,600 KFT = * 0.3048 m/ft = 1,398 km cos A = b/c = ground range / beam range; gnd range = cos A * beam range= cos 5 * 4,589,485 ft = 4,572,020.9 ft

  • Is expected max range within max radar range? No, 1,400 km > 100 km

  • Is expected max range representable within available floating point data type,

  • Max unsigned integer representable is 2^24 - 1 = 16,777,216 -1 = Hex 100 0000 – 1 = FF FFFF

  • but what would be the maximum representable Floating Point in 24 bit word?

  • Is a 48 bit double precision available?


Radar range too short

Radar Range Too Short

ISS

Capsule

Local Horizontal

Radar Range

Range Gate

Range gate tracking (every 10 sec)

Capsule projected path

5 degree re-entry angle

1,400 KM

400 Kft

100 KM

Radar Max Range

100 Kft

GBR

5 degree re-entry angle

0 ft


Systems software vs hardware cm

HW CM

SW CM

SW & HW CM

  • Technical Drawings & Data Package

  • As-Built Configuration List

  • Software Product Spec (SPS)

  • Software Version Description (SVD)

  • COTS Software Inventory

  • CM Plan

  • ECPs, SCNs, NORs

  • Status Accounting

  • FCA/PCA Agenda/Reports

  • Baselines

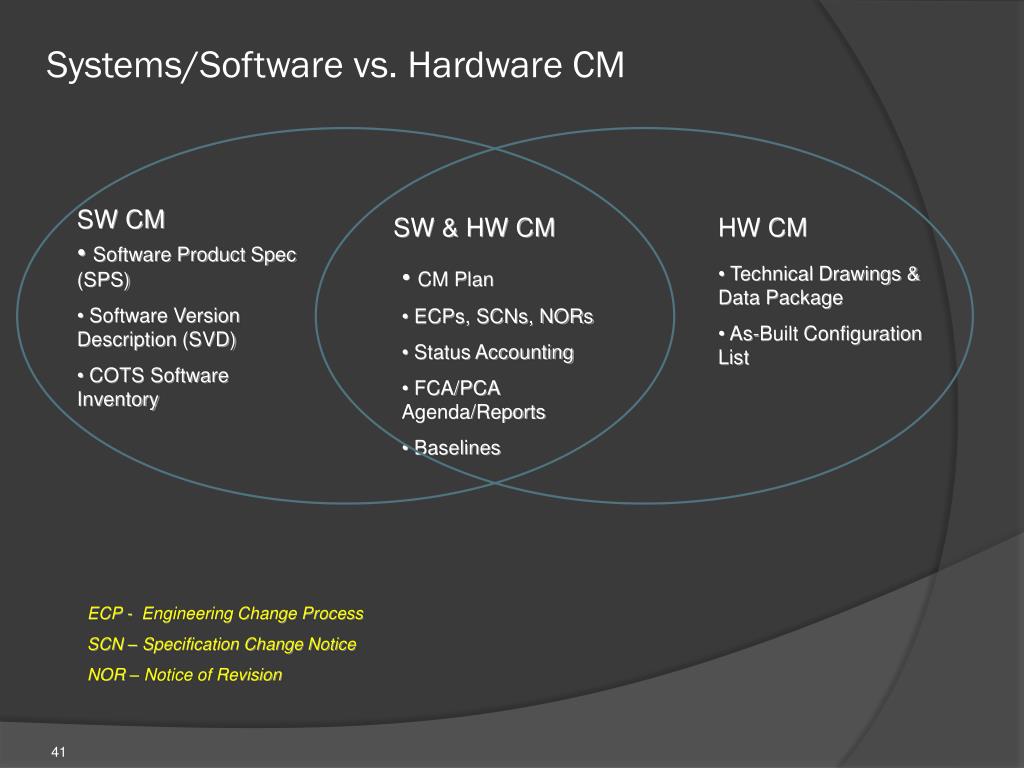

Systems/Software vs. Hardware CM

ECP - Engineering Change Process

SCN – Specification Change Notice

NOR – Notice of Revision

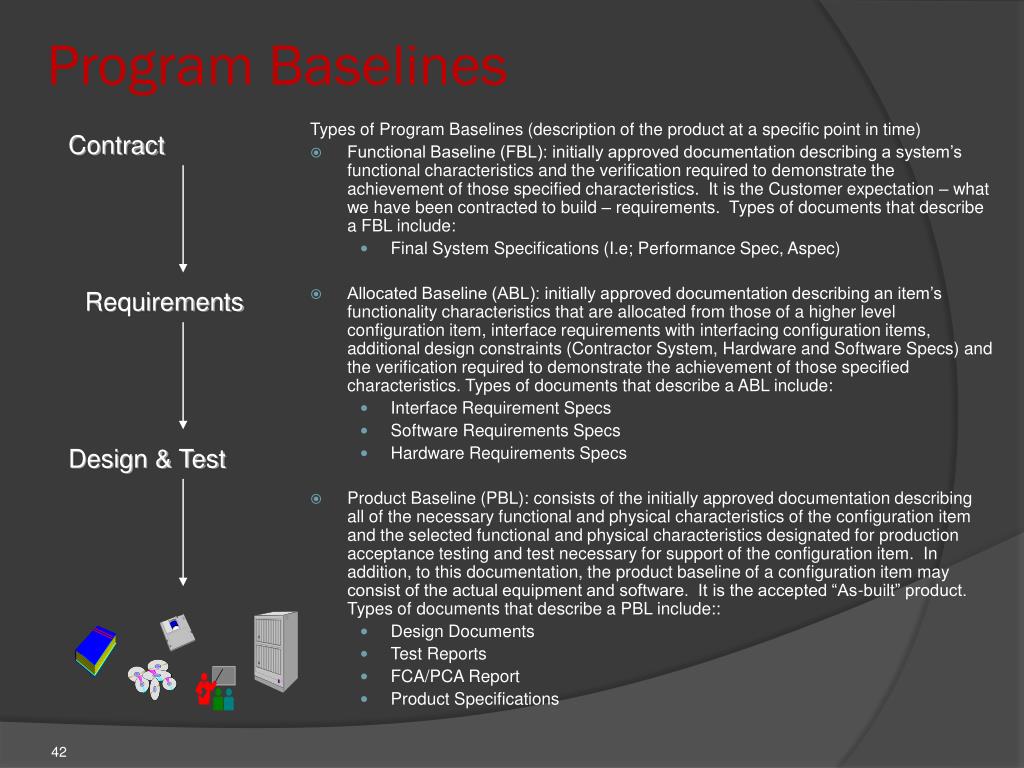

Program baselines

Program Baselines

Contract

Types of Program Baselines (description of the product at a specific point in time)

  • Functional Baseline (FBL): initially approved documentation describing a system’s functional characteristics and the verification required to demonstrate the achievement of those specified characteristics. It is the Customer expectation – what we have been contracted to build – requirements. Types of documents that describe a FBL include:

    • Final System Specifications (I.e; Performance Spec, Aspec)

  • Allocated Baseline (ABL): initially approved documentation describing an item’s functionality characteristics that are allocated from those of a higher level configuration item, interface requirements with interfacing configuration items, additional design constraints (Contractor System, Hardware and Software Specs) and the verification required to demonstrate the achievement of those specified characteristics. Types of documents that describe a ABL include:

    • Interface Requirement Specs

    • Software Requirements Specs

    • Hardware Requirements Specs

  • Product Baseline (PBL): consists of the initially approved documentation describing all of the necessary functional and physical characteristics of the configuration item and the selected functional and physical characteristics designated for production acceptance testing and test necessary for support of the configuration item. In addition, to this documentation, the product baseline of a configuration item may consist of the actual equipment and software. It is the accepted “As-built” product. Types of documents that describe a PBL include::

    • Design Documents

    • Test Reports

    • FCA/PCA Report

    • Product Specifications

Requirements

Design & Test


  • Login
