Chapter 22 Heat Transfer

Conceptual Physics Chapter 22


Heat transfer l.jpg

Heat Transfer

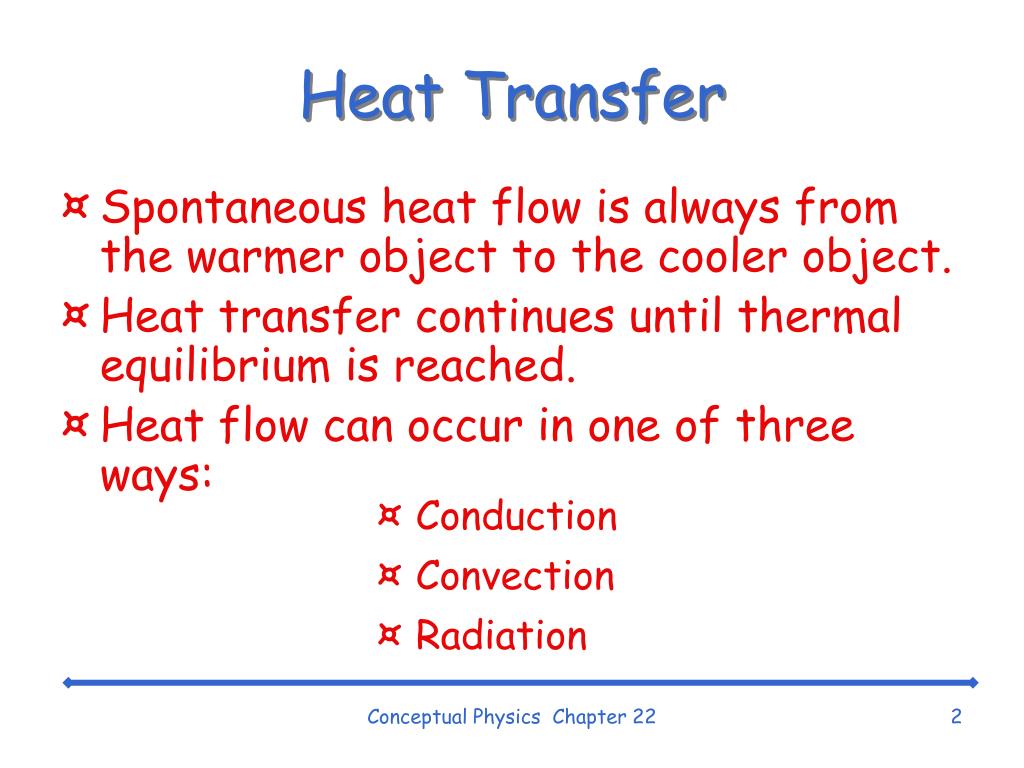

  • Spontaneous heat flow is always from the warmer object to the cooler object.

  • Heat transfer continues until thermal equilibrium is reached.

  • Heat flow can occur in one of three ways:

  • Conduction

  • Convection

  • Radiation

Conceptual Physics Chapter 22


Question l.jpg

Question

Why does a tile floor feel colder on your bare feet than a carpeted floor?

Conceptual Physics Chapter 22


Conduction l.jpg

Conduction

  • Conduction results from atoms transferring thermal energy from one atom to the next during collisions.

  • Examples:

    • Food coloring in hot water

    • Stirring a pot of soup

    • Tile floor

Conceptual Physics Chapter 22


Thermal conductors l.jpg

Thermal Conductors

  • Good conductors are made of atoms with valence electrons that are only loosely bound to the nucleus.

  • When a conductor is heated, the loosely bound electrons are caused to vibrate more rapidly and through larger amplitudes.

  • This makes collisions between neighboring atoms more likely.

Conceptual Physics Chapter 22


Thermal insulators l.jpg

Thermal Insulators

  • Insulators have valence electrons which are tightly bound to a specific nucleus.

  • The valence electrons in insulators do not have the same freedom of movement as those in conductors.

  • Collisions between neighboring atoms occur far less frequently and heat transfer is localized.

Conceptual Physics Chapter 22


Conductors insulators l.jpg

Conductors & Insulators

  • There are no perfect conductors nor are there perfect insulators.

  • Metals, as a group, are thought of as being good conductors.

  • Wood, plastic, styrofoam, paper and air are thought of as good insulators.

  • A good conductor is a poor insulator.

Conceptual Physics Chapter 22


Insulating properties of air l.jpg

Insulating Properties of Air

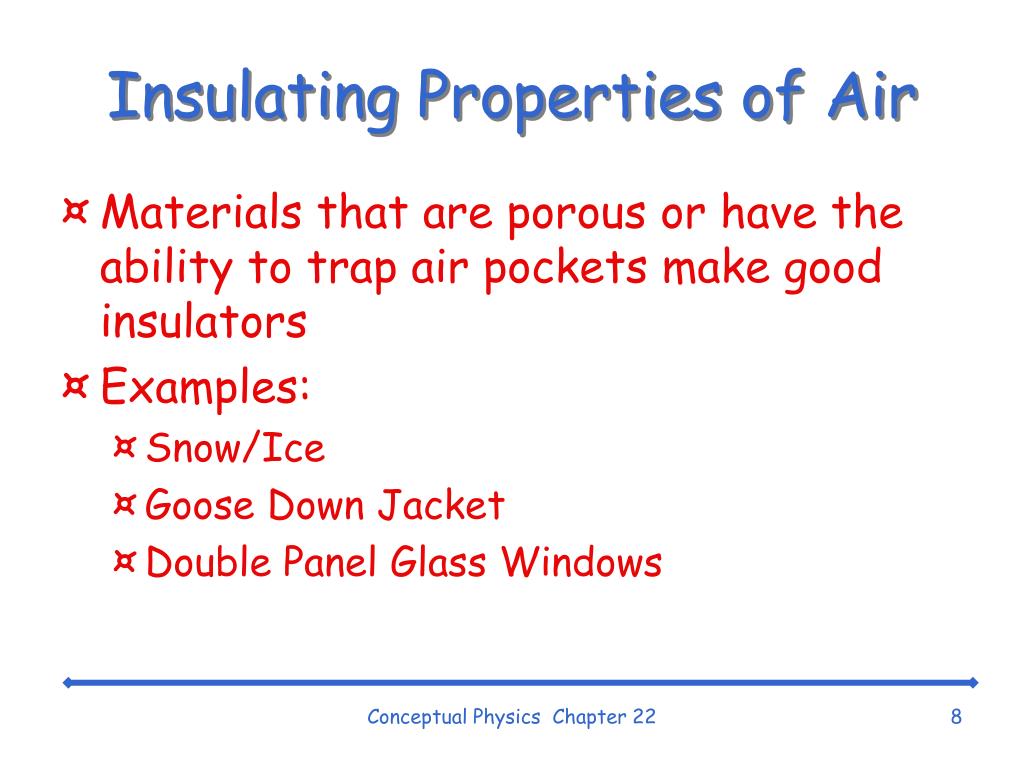

  • Materials that are porous or have the ability to trap air pockets make good insulators

  • Examples:

    • Snow/Ice

    • Goose Down Jacket

    • Double Panel Glass Windows

Conceptual Physics Chapter 22


Convection l.jpg

Convection

Convection occurs in fluids (liquids and gases) as a result of a net movement of a mass of the fluid in response to density differences.

When a fluid is heated, it expands, becomes less dense, and rises above the more dense fluid surrounding it.

Conceptual Physics Chapter 22


Convection10 l.jpg

Convection

Water at the top of the test tube comes to a boil and remains at the surface above the more dense water below it.

Any heat that reaches the ice stuck at the bottom of the test tube must do so by conduction.

Since water is a poor conductor, the ice remains unmelted!

Conceptual Physics Chapter 22


Convection11 l.jpg

Convection

When the water at the bottom of the pan is heated, it expands, rises to the top and creates a convection current that causes the heating to occur more efficiently.

The radiator forces hot air out near the floor where it rises toward the ceiling and sets up a natural circulation to heat the room more efficiently.

Conceptual Physics Chapter 22


Convection12 l.jpg

Convection

During the day, the land heats up more readily than the water. The hot air above the shore rises and is replaced by cooler air from above the ocean resulting in an onshore breeze.

During the night, the land cools more readily than the water. The warmer air above the water rises and is replaced by cooler air from above the shore resulting in an offshore breeze.

Conceptual Physics Chapter 22


Convection13 l.jpg

Convection

  • Rising warm air will expand because at higher altitudes less atmospheric pressure will squeeze on it.

  • As the rising air expands, it cools—this is why many mountain tops will stay cold enough to remain covered with snow.

Conceptual Physics Chapter 22


Convection14 l.jpg

Convection

  • Molecules in a region of expanding air collide more often with receding molecules than with approaching ones.

  • When a molecule collides with a molecule that is receding, its rebound speed after the collision is less than before the collision. Reduced kinetic energy means reduced temperature!

Conceptual Physics Chapter 22


Convection15 l.jpg

Convection

  • Convection occurs readily in gases and liquids, but does not occur at all in solid substances.

Conceptual Physics Chapter 22


Radiation l.jpg

Radiation

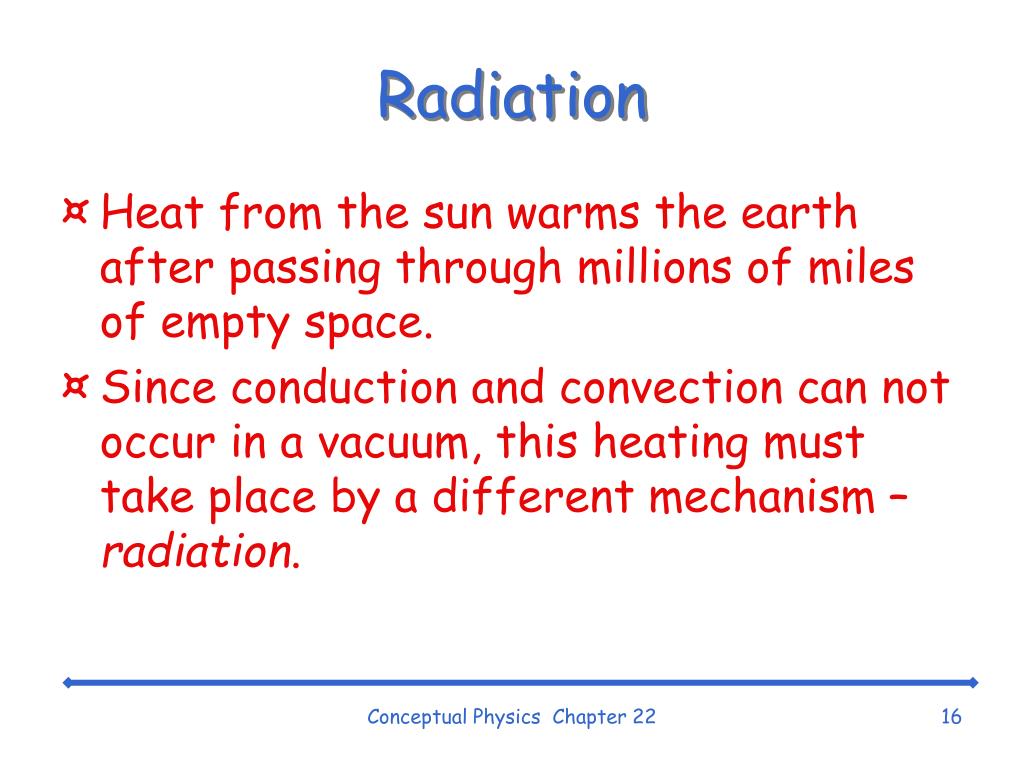

  • Heat from the sun warms the earth after passing through millions of miles of empty space.

  • Since conduction and convection can not occur in a vacuum, this heating must take place by a different mechanism – radiation.

Conceptual Physics Chapter 22


Radiation17 l.jpg

Radiation

  • Radiant energy is transmitted via electromagnetic waves.

  • These waves are capable of traveling through a vacuum – they do not rely in any way on a material medium in order to propagate.

  • Radio waves, infrared waves, light waves, microwaves and X-rays are all forms of radiation.

Conceptual Physics Chapter 22


Radiation18 l.jpg

Radiation

  • All objects emit radiant energy in a variety of wavelengths.

  • The sun and other extremely hot objects emit short wavelength radiation, in the range of visible light.

  • Objects at lower temperatures emit radiation of longer wavelength typically in the infrared range.

Conceptual Physics Chapter 22


Radiation19 l.jpg

Radiation

Short-wavelength infrared waves are absorbed by our skin, producing the sensation of heat.

Conceptual Physics Chapter 22

19


Radiation20 l.jpg

Radiation

An infrared thermometer measures the infrared radiant energy that is continuously emitted by all bodies in our environment and converts it to a temperature.

The average frequency f of radiant energy is directly proportional to the Kelvin temperature T of the emitter.

Conceptual Physics Chapter 22

20


Radiation21 l.jpg

Radiation

  • The slower moving molecules associated with a cooler body will emit lower frequency, longer wavelength radiation.

Conceptual Physics Chapter 22


Absorption and emission l.jpg

Absorption and Emission

If everything in the world around us is constantly radiating energy, why don’t all objects eventually run out of energy?

Conceptual Physics Chapter 22


Absorption and emission23 l.jpg

Absorption and Emission

  • A good absorber of radiation is also a good emitter of radiation.

  • If a good absorber of radiation were not a good emitter, it would experience a net gain in thermal energy and never reach thermal equilibrium with its surroundings.

Conceptual Physics Chapter 22


Absorption and reflection l.jpg

Absorption and Reflection

  • Absorption and reflection are opposite processes.

  • A good absorber of radiation is a poor reflector.

  • A good absorber therefore appears dark.

  • A perfect absorber reflects no radiant energy and appears perfectly black.

Conceptual Physics Chapter 22


Absorption and reflection25 l.jpg

Absorption and Reflection

  • Openings (such as doorways of distant houses) appear black because the radiant energy that enters is reflected from the inside walls many times.

  • It is partly absorbed at each reflection until very little or none remains to come back out.

Conceptual Physics Chapter 22


Absorption and reflection26 l.jpg

Absorption and Reflection

  • Even though the interior of the box has been painted white, the hole looks black.

Conceptual Physics Chapter 22


Absorption and reflection27 l.jpg

Absorption and Reflection

  • Light-colored, highly polished surfaces make good reflectors of radiation.

  • Dark-colored, dull or flat surfaces make good absorbers of radiation.

  • A white or light-colored t-shirt will keep you much cooler during a hot summer day than a dark-colored shirt.

Conceptual Physics Chapter 22


Absorption and reflection28 l.jpg

Absorption and Reflection

  • The silvered lining in a thermos reflects most of the radiant energy that reaches it.

Conceptual Physics Chapter 22


Absorption and reflection29 l.jpg

Absorption and Reflection

Which of the two pitchers will keep iced tea colder longer?

Which of the two pitchers will keep hot coffee hotter longer?

Conceptual Physics Chapter 22


Newton s law of cooling l.jpg

Newton’s Law of Cooling

  • The rate of cooling of an object (whether by conduction, convection or radiation) depends on how much hotter the object is in comparison to its surroundings.

rate of cooling ~ ΔT

  • Newton’s law of cooling also applies to objects which are being heated.

Conceptual Physics Chapter 22


Question31 l.jpg

Question

Since a hot cup of tea loses heat more rapidly than a lukewarm cup of tea, would it be correct to say that a hot cup of tea will cool to room temperature before a lukewarm cup of tea will?

Conceptual Physics Chapter 22


The greenhouse effect l.jpg

The Greenhouse Effect

  • The greenhouse effect is a natural warming of the earth that takes place when solar radiation is trapped inside the earth’s atmosphere.

  • Greenhouse gases – carbon dioxide, methane and water vapor – are transparent to the short wavelength visible radiation that reaches the earth from the sun, allowing this radiant energy to penetrate the atmosphere and be absorbed by the earth.

Conceptual Physics Chapter 22


The greenhouse effect33 l.jpg

The Greenhouse Effect

  • The earth emits terrestrial radiation of a longer wavelength (because the earth is cooler than the sun). This radiation is primarily in the infrared region of the electromagnetic spectrum.

Conceptual Physics Chapter 22


The greenhouse effect34 l.jpg

The Greenhouse Effect

  • Some of this terrestrial radiation passes through the atmosphere and escapes back into space. The remainder is blocked by the atmosphere and warms the earth.

  • If the atmosphere were not opaque to this terrestrial radiation, the average global temperature would be approximately -18°C!

Conceptual Physics Chapter 22


The greenhouse effect35 l.jpg

The Greenhouse Effect

  • This same effect occurs on a much smaller scale in an automobile left parked in the sun and in a florist’s greenhouse (although a florist’s greenhouse also restricts any heat transfer by convection).

Conceptual Physics Chapter 22
