Alternative drainage techniques infiltration

Alternative Drainage Techniques : Infiltration

Team 3

Ariel Marcelo Ravelli (Argentina)

Lina Mabel (Chile)

Vinícius de Mello Moutinho (Brasil)


Alternative drainage techniques infiltration

  • Theme Presentation

  • Case of Study

  • Rain and Modeling

  • Adopted Solution

  • Results


Alternative drainage techniques infiltration

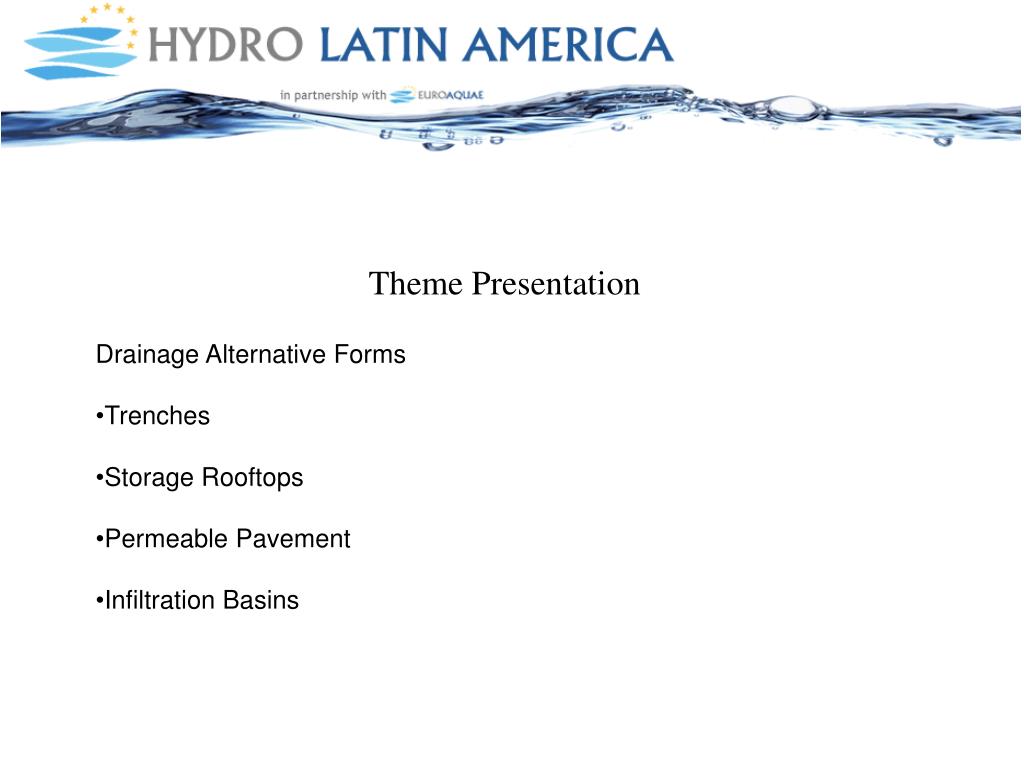

Theme Presentation

  • Drainage Alternative Forms

  • Trenches

  • Storage Rooftops

  • Permeable Pavement

  • Infiltration Basins


Alternative drainage techniques infiltration

Case of Study

La Riereta basin, Saint Boi Llobregat

Basin 100% impermeable

1% to 7% average slopes

Area of 18 ha

Unitary Drainage System


Alternative drainage techniques infiltration

[1] These subcatchments had it´s width calculated as symmetrical, W= 2*L, while the others were calculated as asymmetrical, W=(2 - Sk) x L, Sk= (A2 – A1)/ A

Subcatchments Features


Alternative drainage techniques infiltration

Rain and Modeling


Alternative drainage techniques infiltration

Rain and Modeling

3 Rains: Jordi, Fidel and Martina


Alternative drainage techniques infiltration

Rain and Modeling

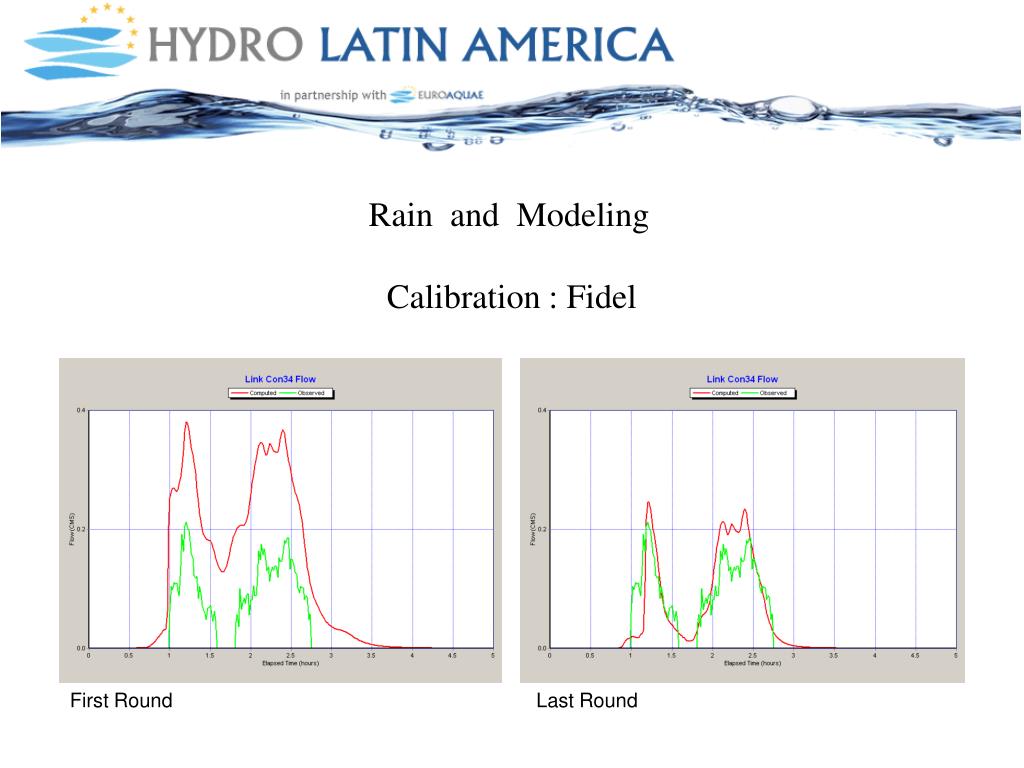

Calibration : Fidel

First Round

Last Round


Alternative drainage techniques infiltration

Rain and Modeling

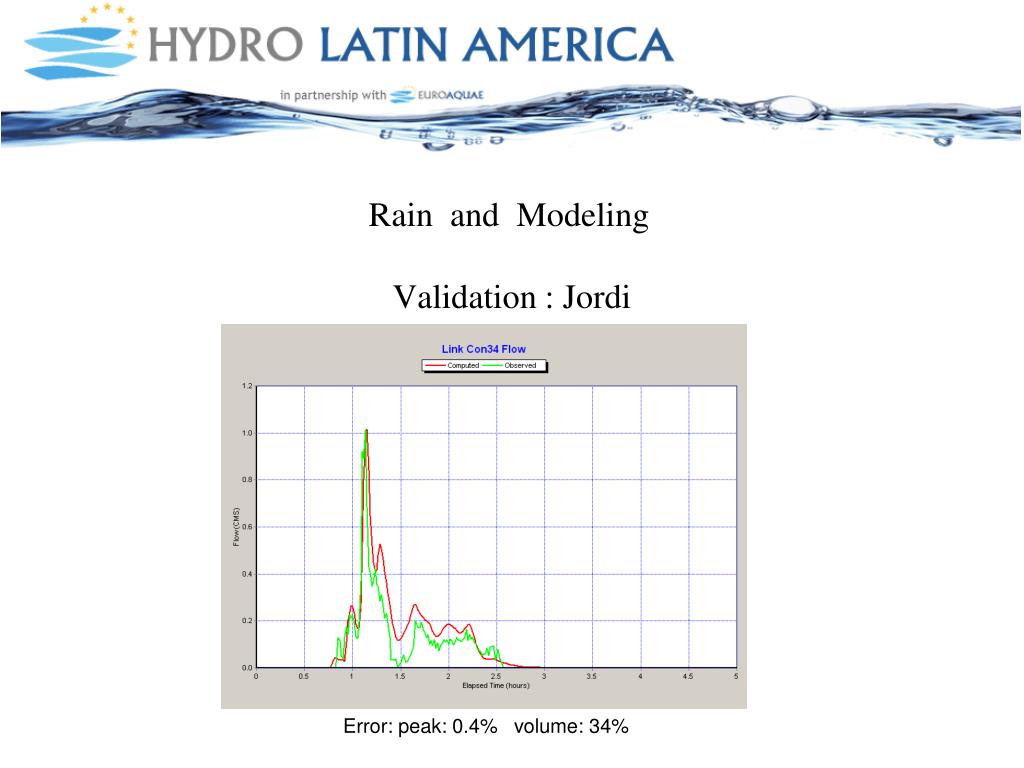

Validation : Jordi

Error: peak: 0.4% volume: 34%


Alternative drainage techniques infiltration

Project Rain


Alternative drainage techniques infiltration

Project Rain

Full Rain

Reduced Rain


Alternative drainage techniques infiltration

Local Problem


Alternative drainage techniques infiltration

Solutions

  • Reduce Impermeable Area

  • Combined Solution


Alternative drainage techniques infiltration

Solutions

  • Reduce Impermeable Area from 100% to 0%


Alternative drainage techniques infiltration

Solutions

  • Combined Solution

  • Imper. Area – 60%

  • CN – 60

  • Infiltration Basin

  • Shallow Trenches


Alternative drainage techniques infiltration

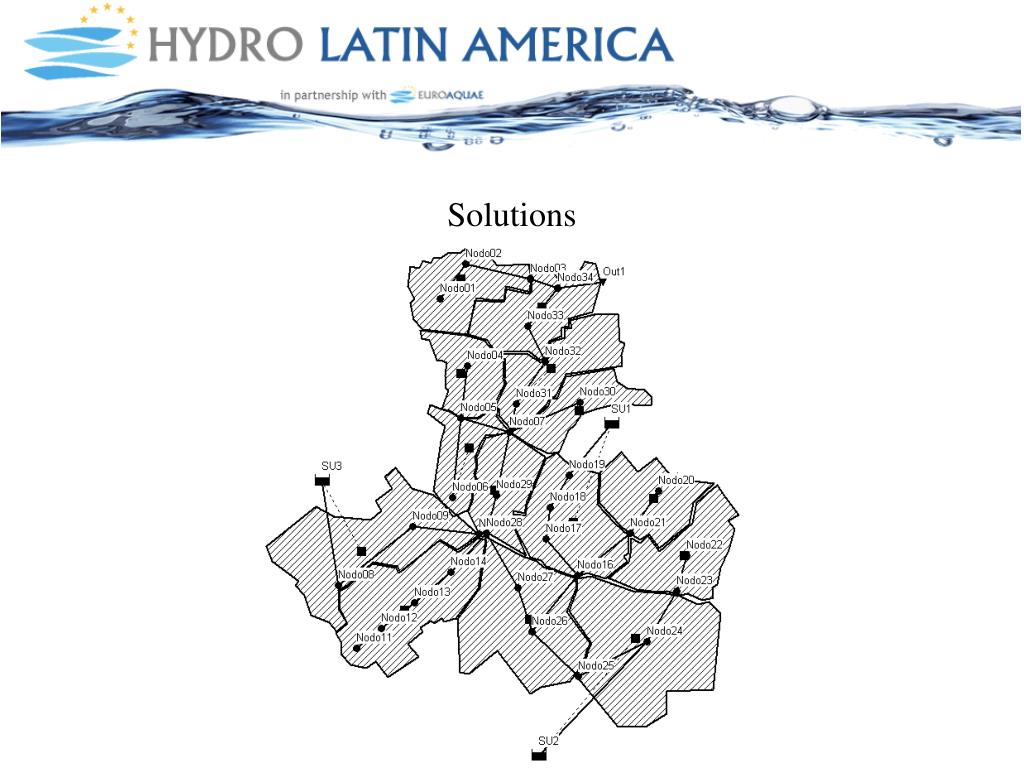

Solutions


Alternative drainage techniques infiltration

Solutions

Total Volume Reduction : 88%


Alternative drainage techniques infiltration

Conclusions

100% to 0% we still had a flood, an amount of 0.46% of the inicial flood.

Combined solution, we were able to reduce the soil impermeability from 100% to 60%, and using the infiltration basin and the trenches, we reduced the total flood from 1.896 x 106 to only 0.230 x 106 ltrs, a total reduce of 88%


Alternative drainage techniques infiltration

Problems

Good Management Required
