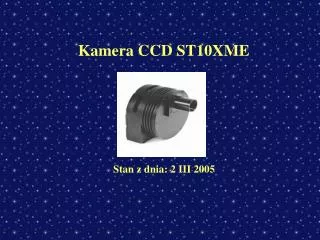

Kamera CCD ST10XME

Kamera CCD ST10XME. Stan z dnia: 2 III 2005. Dane techniczne podawane przez producenta:. SBIG ST10XME KODAK KAF-3200ME chip front illuminated chip size 2184x1472 [14.9mm x 10mm] pixel size 6.7 μ m field of view 6'50” x 4'35” (60cm Suhora)

ayala
Download Presentation

Kamera CCD ST10XME

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Kamera CCD ST10XME Stan z dnia: 2 III 2005

  2. Dane techniczne podawane przez producenta: SBIG ST10XME KODAK KAF-3200ME chip front illuminated chip size 2184x1472 [14.9mm x 10mm] pixel size 6.7 μm field of view 6'50” x 4'35” (60cm Suhora) dark current 0.9 [e-/px/s] at 0C & 0.03 [e-/px/s] at -30C reading format 16 [bits/px] (max. 65536) readout noise 9 [e-] full-well capacity 77000 [e-] gain 1.5 [e-/ADU] readout time 8.7s (full frame) pre-binning 1x1, 2x2, 3x3, 9x9, 1xN, 2xN

  3. warstwa mikrosoczewek zwiększająca czulość chipu • chlodzenie ukladem Peltiera o 30C ponizej temp. otoczenia • wbudowany dodatkowy chip do autoguidingu • autofocus • minimalna expozycja = 0.11s, migawka boczna, rotująca • nie posiada antybloomingu • możliwość zasilania z baterii • możliwość zdalnego sterowania kamerą poprzez internet

  4. Zasięg widoczności jasność gwiazda tlo Filtr U 9.00m 9200 30 exp=30s 9.35m 4500 30 12m 10.6m 600 30 11.5m 400 30 Filtr B 9.00m 33800 60 exp=20s 10.6m 3100 60 13m 11.5m 2000 60 Filtr V 10.6m 3300 60 exp=10s 11.5m 1700 60 13.5m dla 15s 11.7m 1300 60 13.0m 300 60 Filtr R 10.6m 7200 80 exp=10s 11.5m 3300 80 14.5m 13.0m 900 80 Filtr I 10.6m 5500 50 exp=10s 11.5m 2700 50 15m 13.0m 1200 50

  5. V R B U I

  6. BIAS (2003) 1x1 2x2 3x3 temp bias sigma bias sigma bias sigma -10104.0 7.861116.7 8.857123.2 9.476 -15103.7 8.011115.7 8.975 121.3 9.542 -20103.2 8.171114.0 9.097118.7 9.632 -25102.9 8.267112.5 9.234116.9 9.725 -30102.8 8.351112.0 9.345116.3 9.847 100 sztuk przy wydajności chlodzenia 70%-80%

  7. DARK (2003) 1x1 2x2 3x3 temp dark sigma dark sigma dark sigma -10 0.070 0.028 0.215 0.0710.421 0.125 -150.040 0.0270.145 0.0680.285 0.130 -20 0.015 0.0260.095 0.0620.196 0.115 -25 -0.001 0.0220.057 0.0650.128 0.106 -30 -0.011 0.0220.029 0.0590.082 0.110 exptime=180s 50 sztuk przy wydajności chlodzenia 70%-80%

  8. temp t_exp_max -5 25 sec -10 35 sec -15 50 sec -20 70 sec -25 90 sec -30 120 sec -35 170 sec -40 200 sec 2 gorące piksele: 449,168 604,167

  9. ± ± σ²=D/k+r²N/k² [ADU] r-readout noise

  10. 6'50” 4'35” Pole widzenia calej matrycy: Pole widzenia pojedynczego pixela: 1x1 2x2 3x3 0.187” 0.374” 0.561”

  11. BIAS T=-40C

  12. Flat field w filtrze U

  13. Flat field w filtrze B

  14. Flat field w filtrze V

  15. Flat field w filtrze R

  16. Flat field w filtrze I

  17. Autoguider 2x2 matryca rozmiar pixela rozmiar fizyczny pole widzenia TC-237 CCD 657 x 495 7.4 x 7.4 μm 4.9 x 3.7 mm 2'15” x 1'42”
