Elements of a Circuit

Elements of a Circuit. Learning Goals:. Describe how to create a circuit. Understand the role voltage and current play in a circuit. Requirements of a Circuit. Closed conducting loop (ex: usually wire) Power or energy source, also called an emf (ex: batteries, generators, power outlet)

axelle
Download Presentation

Elements of a Circuit

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Elements of a Circuit

  2. Learning Goals: Describe how to create a circuit. Understand the role voltage and current play in a circuit.

  3. Requirements of a Circuit • Closed conducting loop (ex: usually wire) • Power or energy source, also called an emf (ex: batteries, generators, power outlet) • A load, something that uses energy (ex: light bulb, resistors, any electrical appliance) http://phet.colorado.edu/en/simulation/circuit-construction-kit-dc

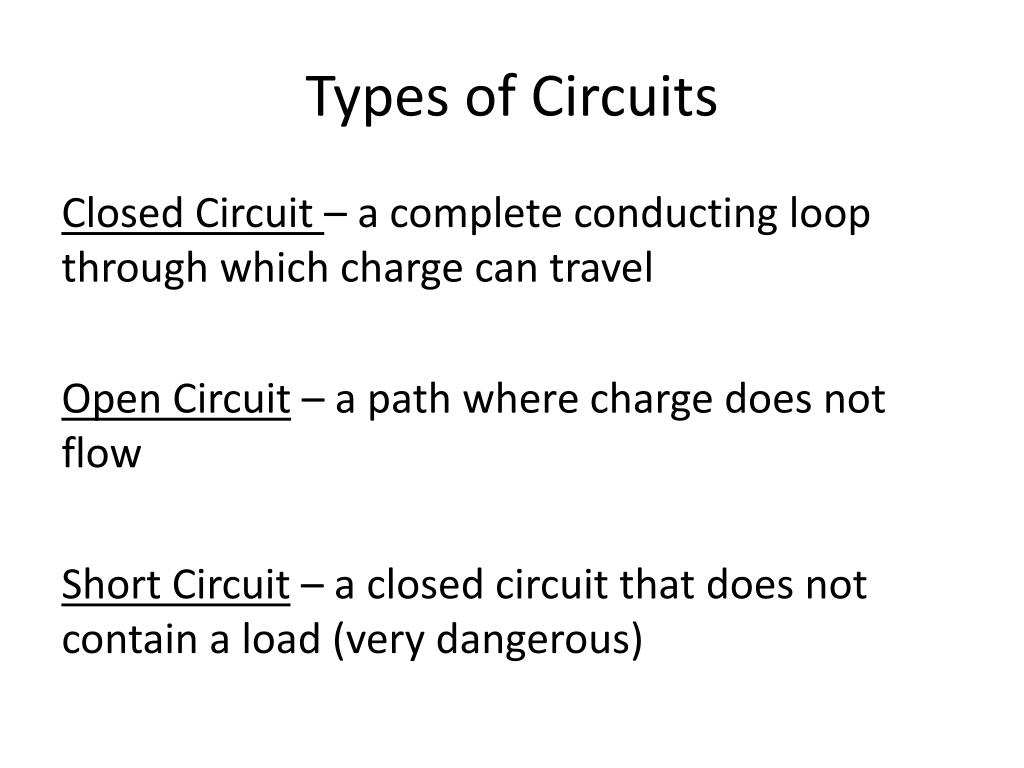

  4. Types of Circuits Closed Circuit – a complete conducting loop through which charge can travel Open Circuit – a path where charge does not flow Short Circuit – a closed circuit that does not contain a load (very dangerous)

  5. As work is done against gravity the barbell gains potential energy. Work Gravitational Force

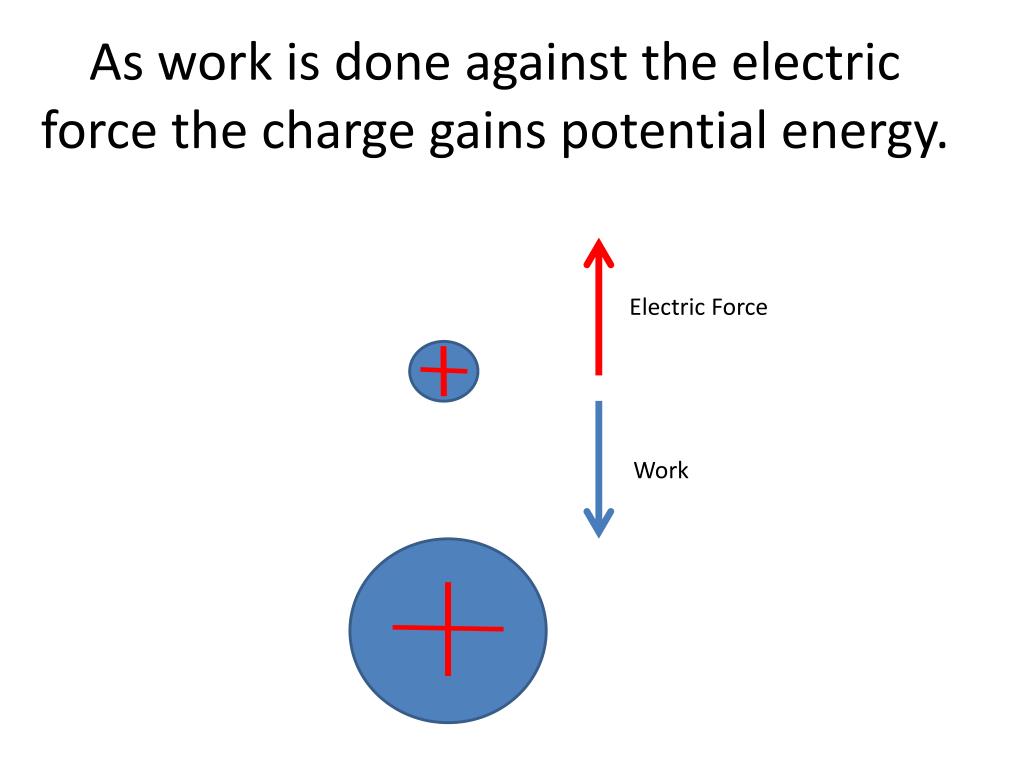

  6. As work is done against the electric force the charge gains potential energy. Electric Force Work

  7. Voltage = ΔPE q
