Presentation Transcript

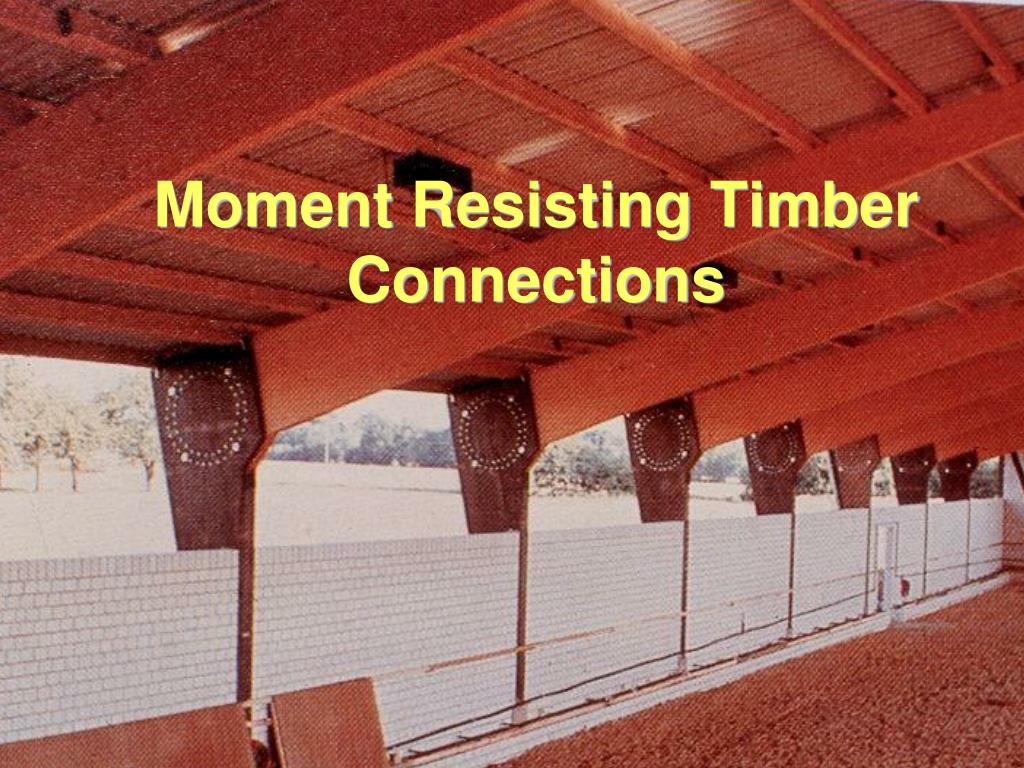

Moment resisting timber connections

Moment Resisting Timber Connections


Moment connection types

Moment connection types

Beam splice

Beam to column connection

Corner connection


A few principles of connection design

A few principles of connection design

  • Keep the load path as direct as possible

  • Connect the loaded fibres

  • Avoid tension perpendicular to grain stresses

  • Make use of compression load transfer as much as possible

  • Use steel elements when tension load transfer is necessary

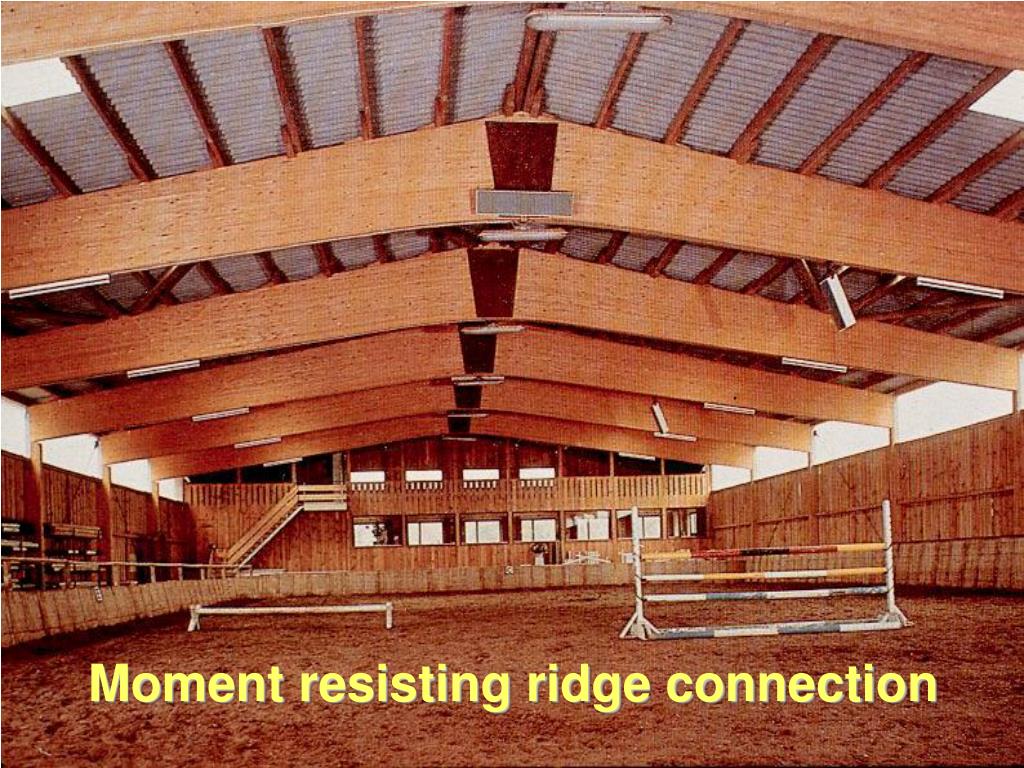

Moment resisting ridge connection

Moment resisting ridge connection


Beam splice

Beam splice

C

C

T

T

compression plate

tension plate


Moment splices

Moment splices

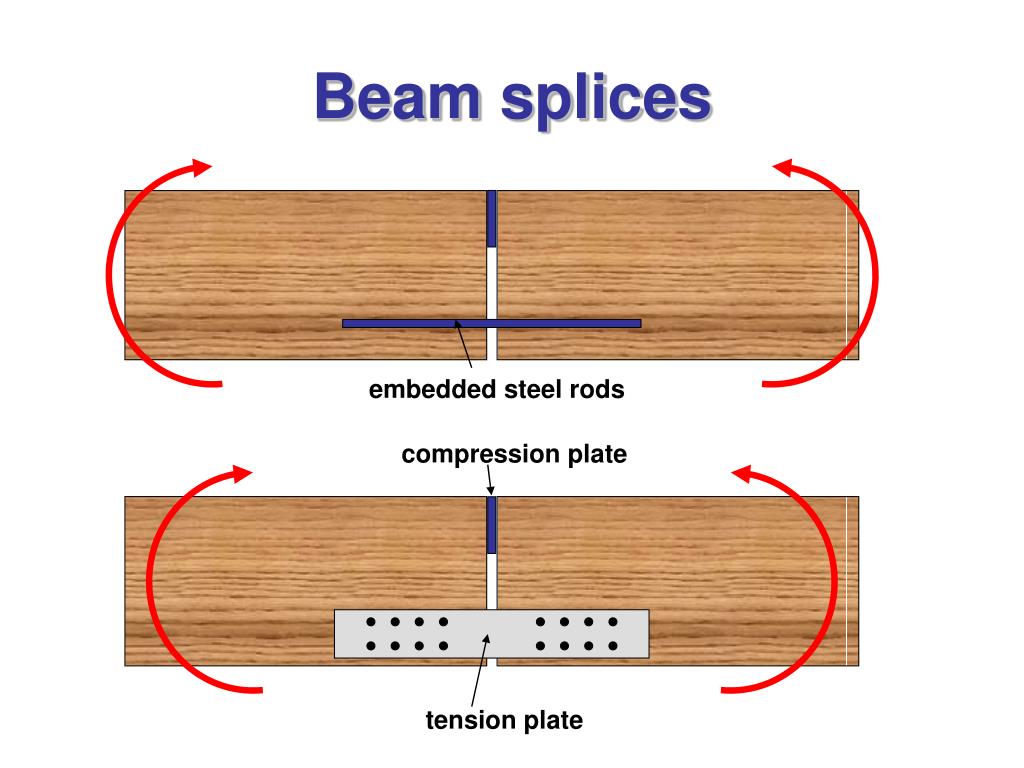

Beam splices

Beam splices

embedded steel rods

compression plate

tension plate


Beam splice with shear plates

Beam splice with shear plates


Moment splice with embedded rods

Moment splice with embedded rods


Corner connection

Corner connection

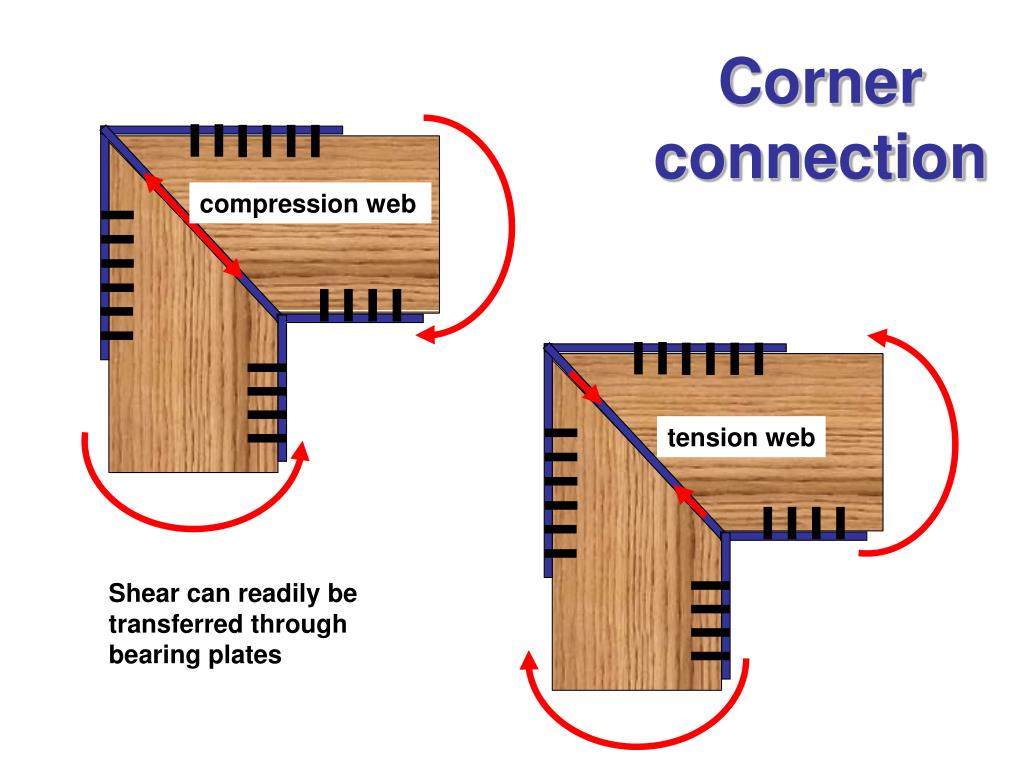

Corner connection1

Corner connection

compression web

tension web

Shear can readily be transferred through bearing plates

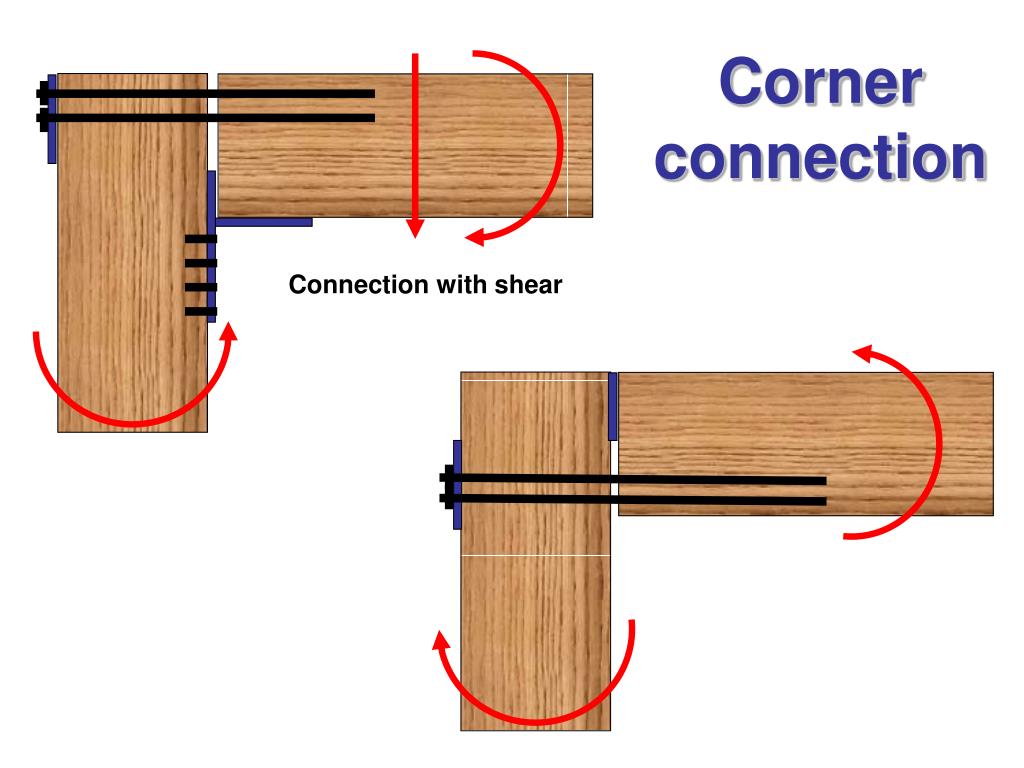

Corner connection2

Corner connection

Connection with shear

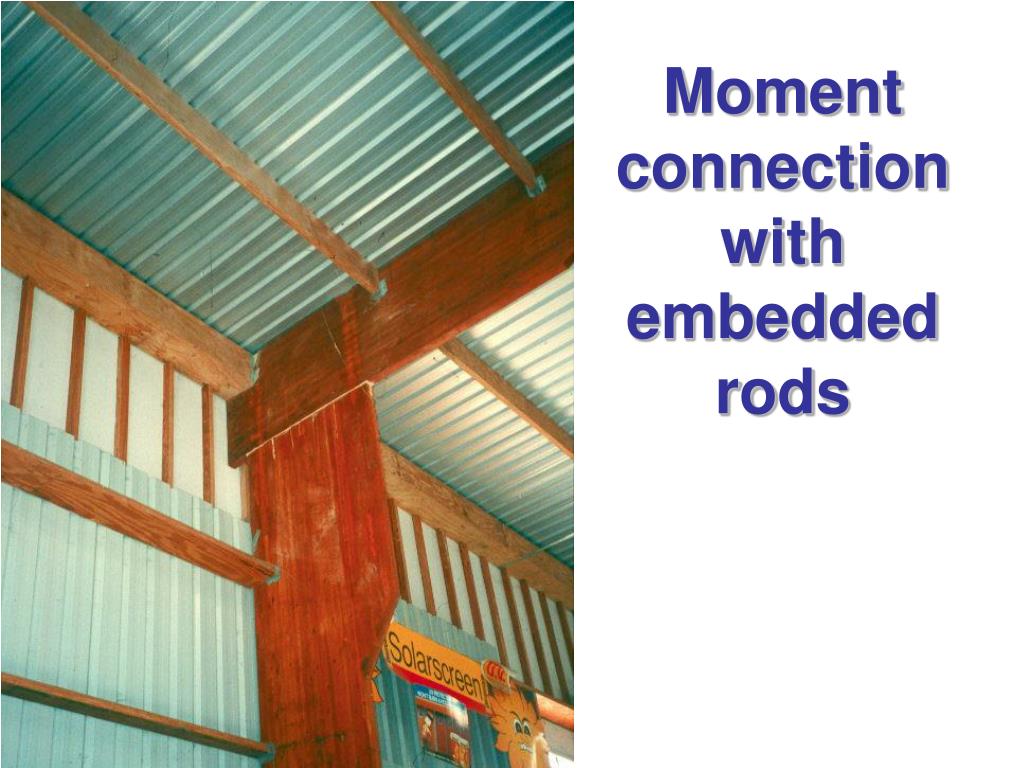

Moment connection with embedded rods

Moment connection with embedded rods


Corner connection3

Corner connection

Large moments

Connection with shear

Embedded rods


Moment resisting timber connections

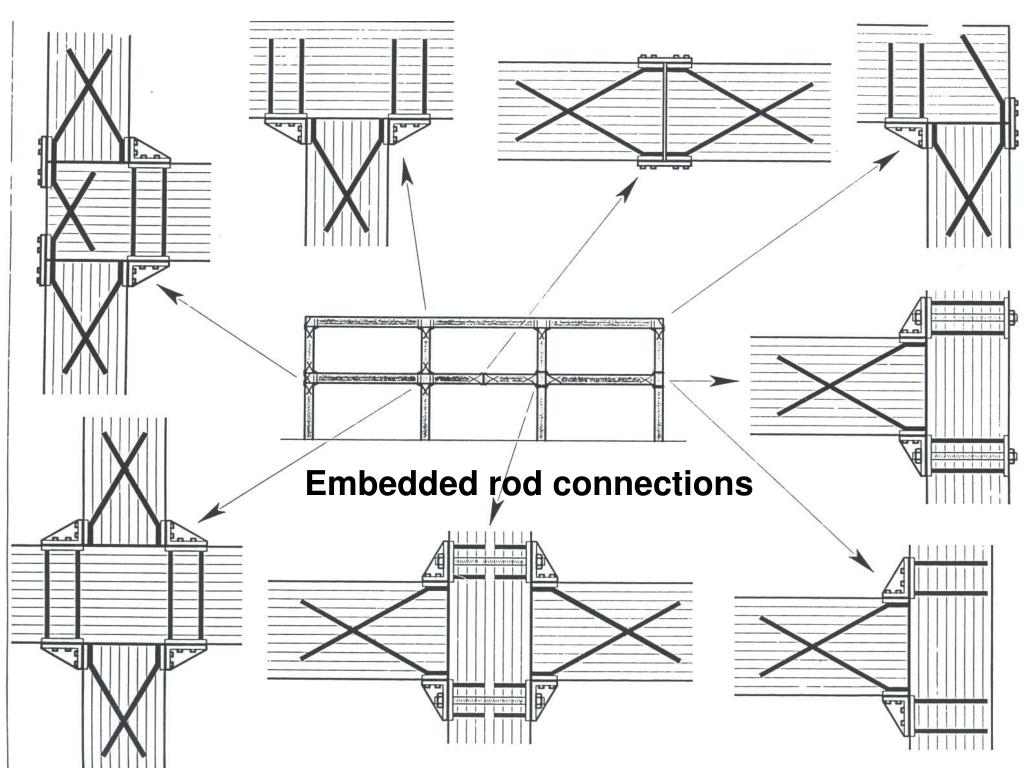

Embedded rod connections


Moment connections with embedded rods

Moment connections with embedded rods


Corner connection4

Corner connection

  • A less desirable connection

  • Causes tension perpendicular to grain

  • Two connections with eccentricity

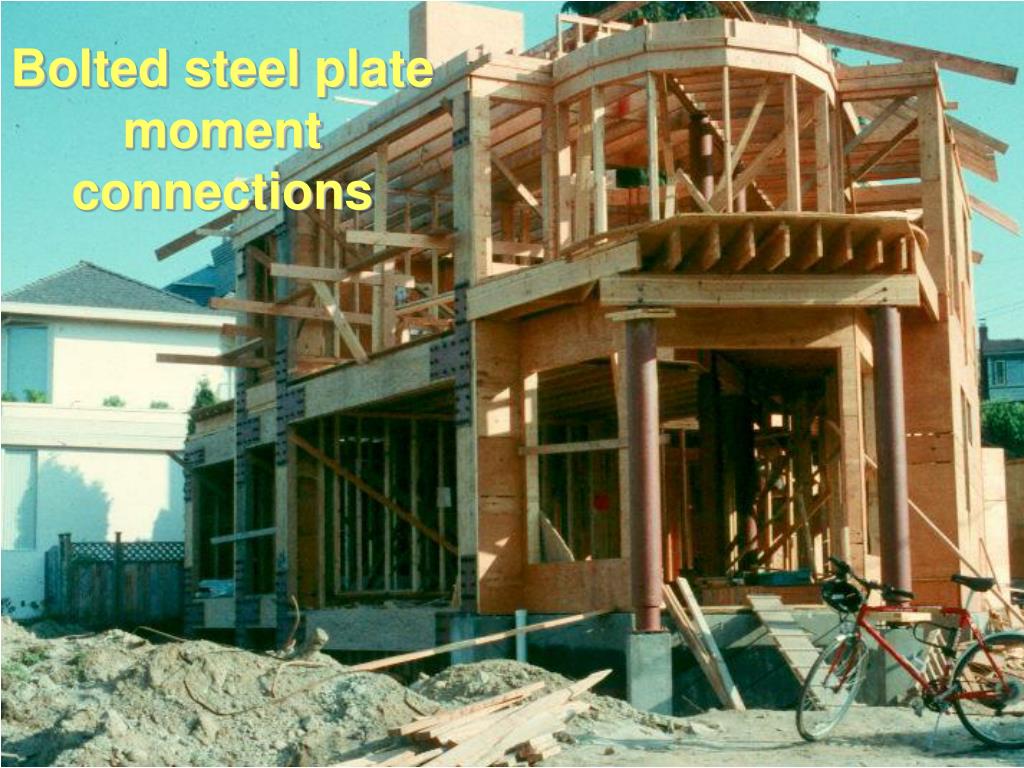

Bolted steel plate moment connections

Bolted steel plate moment connections


Sandwiched corner connection

Sandwiched corner connection

  • A less desirable connection

  • Causes tension perpendicular to grain

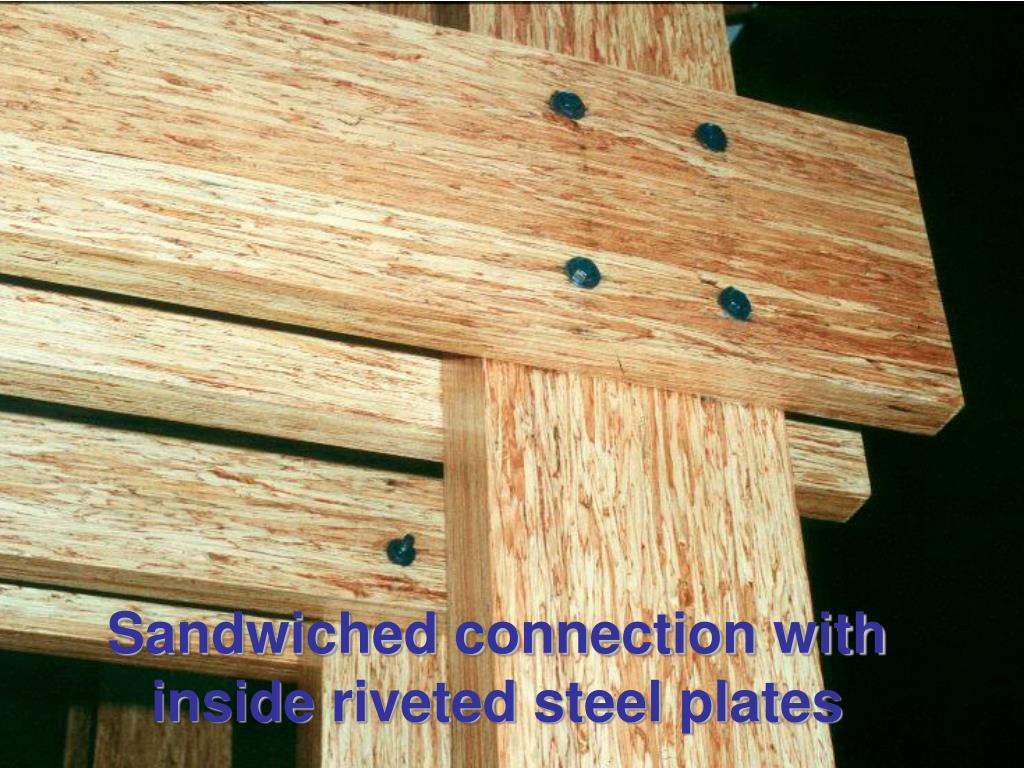

Sandwiched connection with inside riveted steel plates

Sandwiched connection with inside riveted steel plates


Embedded steel plate connection with dowels

Embedded steel plate connection with dowels

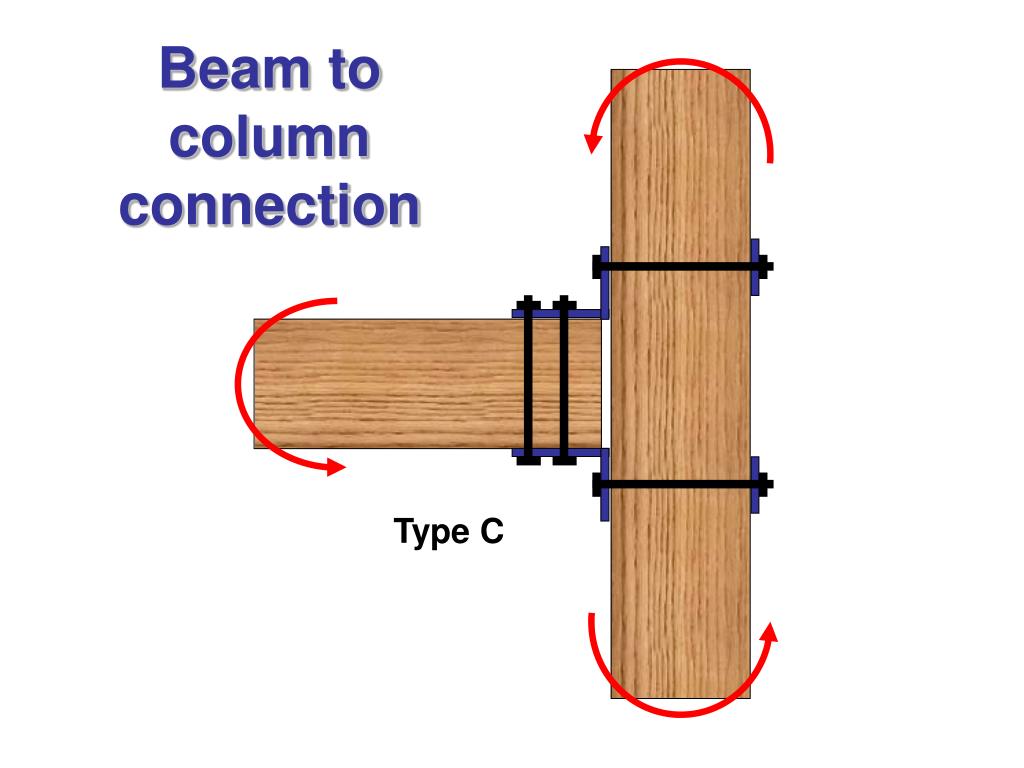

Beam to column connection

Type C

Beam to column connection


Moment resisting timber connections

A series of complex moment connections


Moment resistant mortise and tenon connection

Moment resistant mortise and tenon connection


Load transfer through mortise and tenon connection

Load transfer through mortise and tenon connection

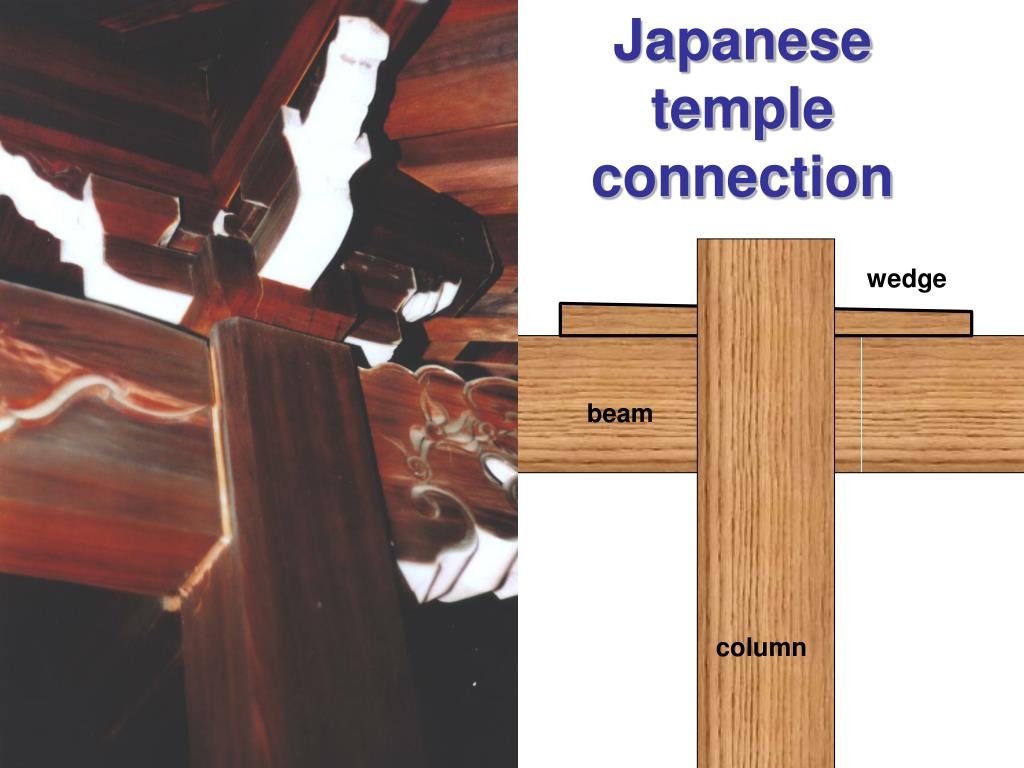

Japanese temple connection

Japanese temple connection

wedge

beam

column


Moment resisting timber connections

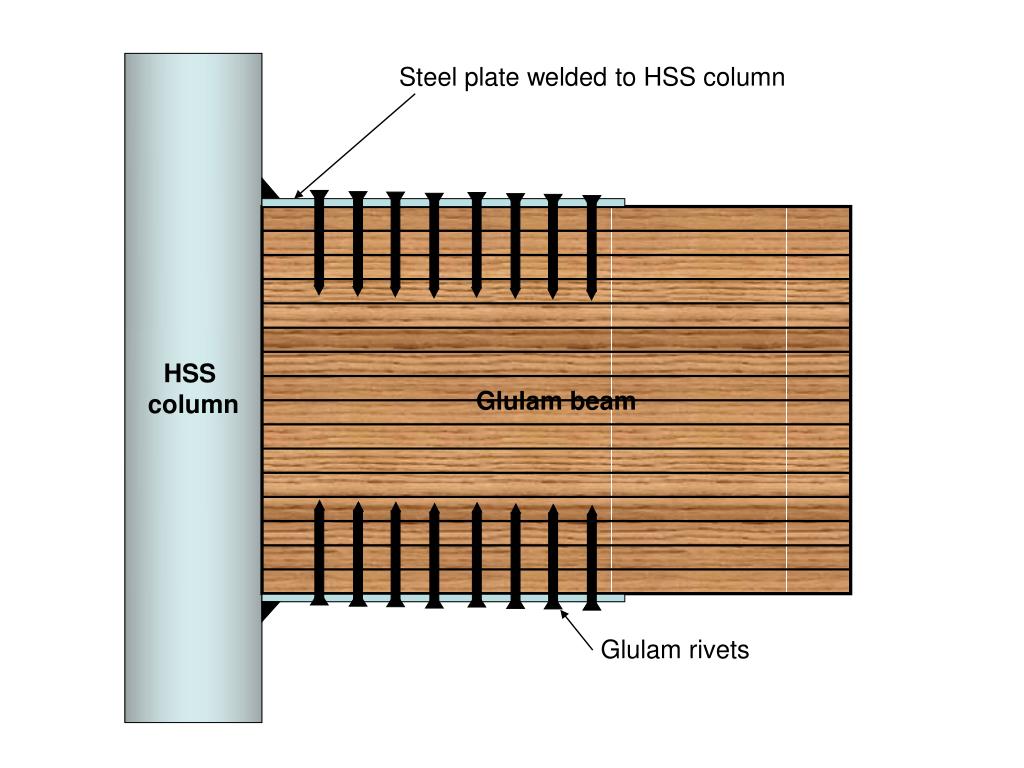

HSS

column

Steel plate welded to HSS column

Glulam beam

Glulam rivets
