EECS 470 Virtual Memory Lecture 15

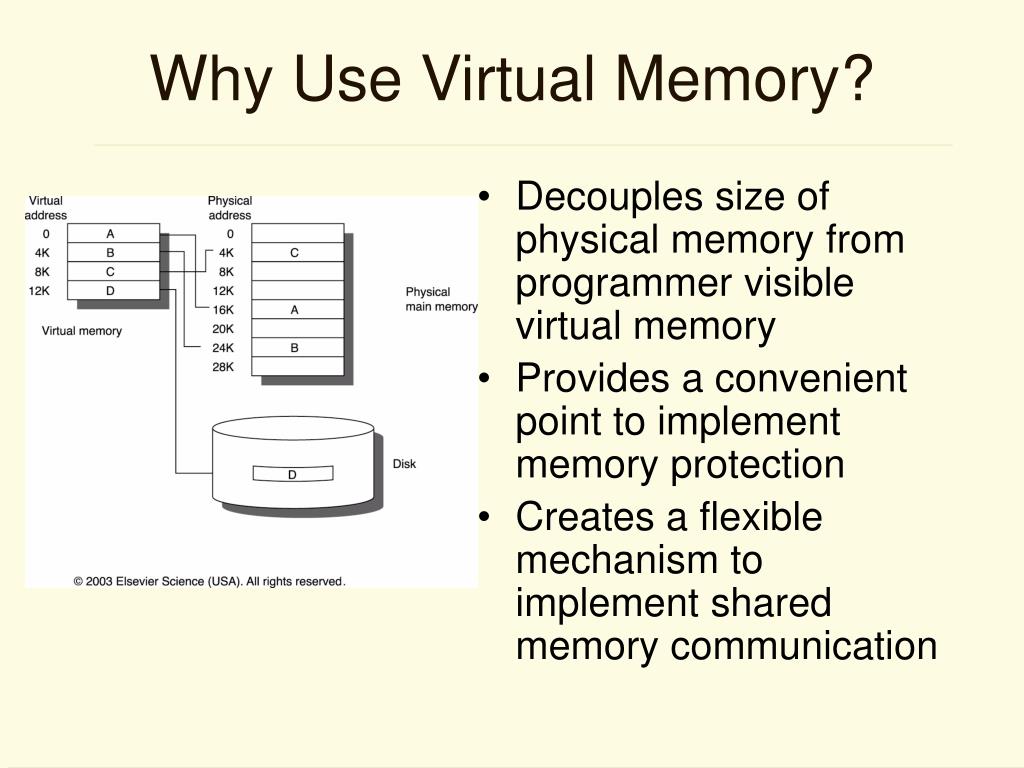

Why Use Virtual Memory? • Decouples size of physical memory from programmer visible virtual memory • Provides a convenient point to implement memory protection • Creates a flexible mechanism to implement shared memory communication

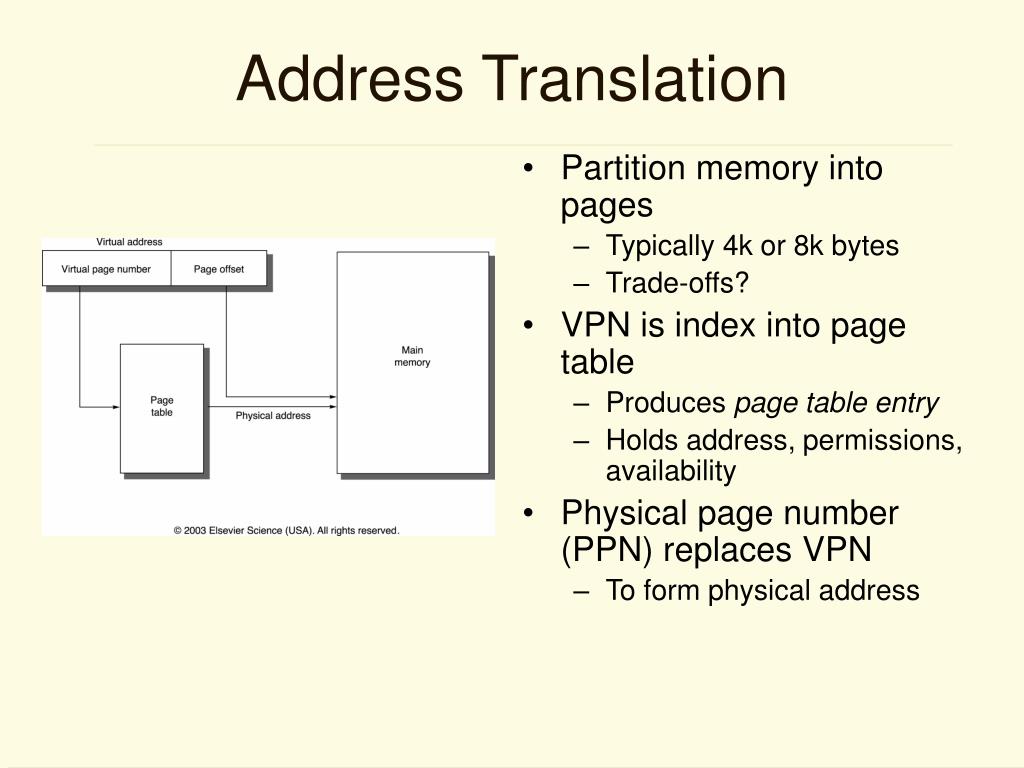

Address Translation • Partition memory into pages • Typically 4k or 8k bytes • Trade-offs? • VPN is index into page table • Produces page table entry • Holds address, permissions, availability • Physical page number (PPN) replaces VPN • To form physical address

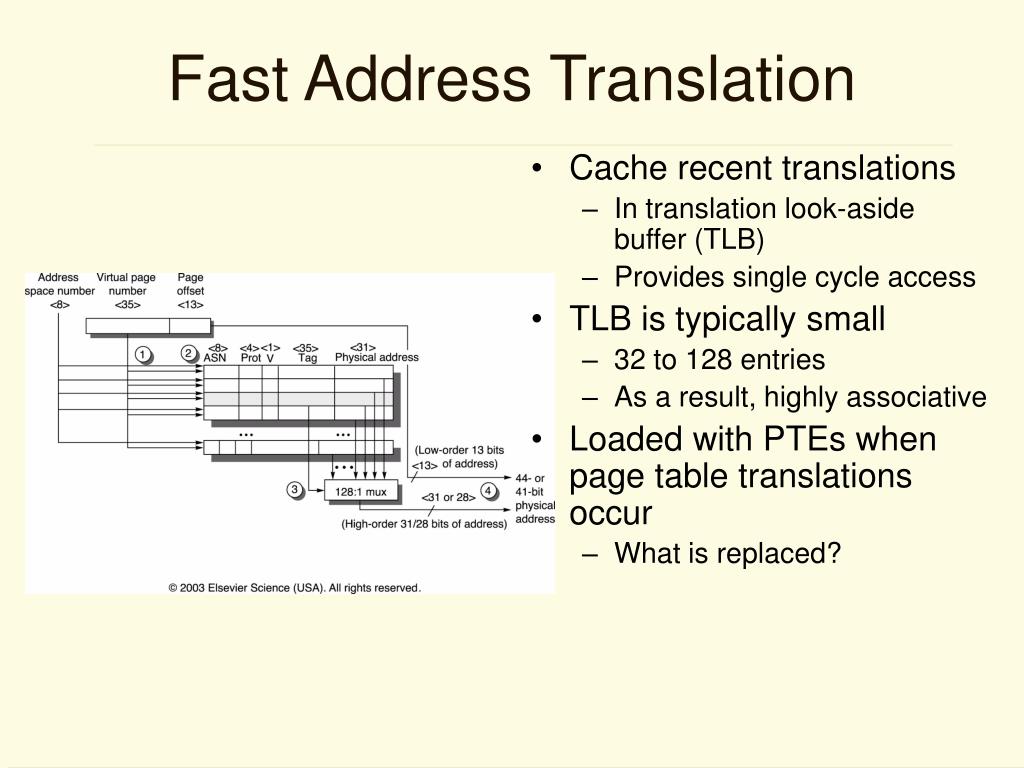

Fast Address Translation • Cache recent translations • In translation look-aside buffer (TLB) • Provides single cycle access • TLB is typically small • 32 to 128 entries • As a result, highly associative • Loaded with PTEs when page table translations occur • What is replaced?

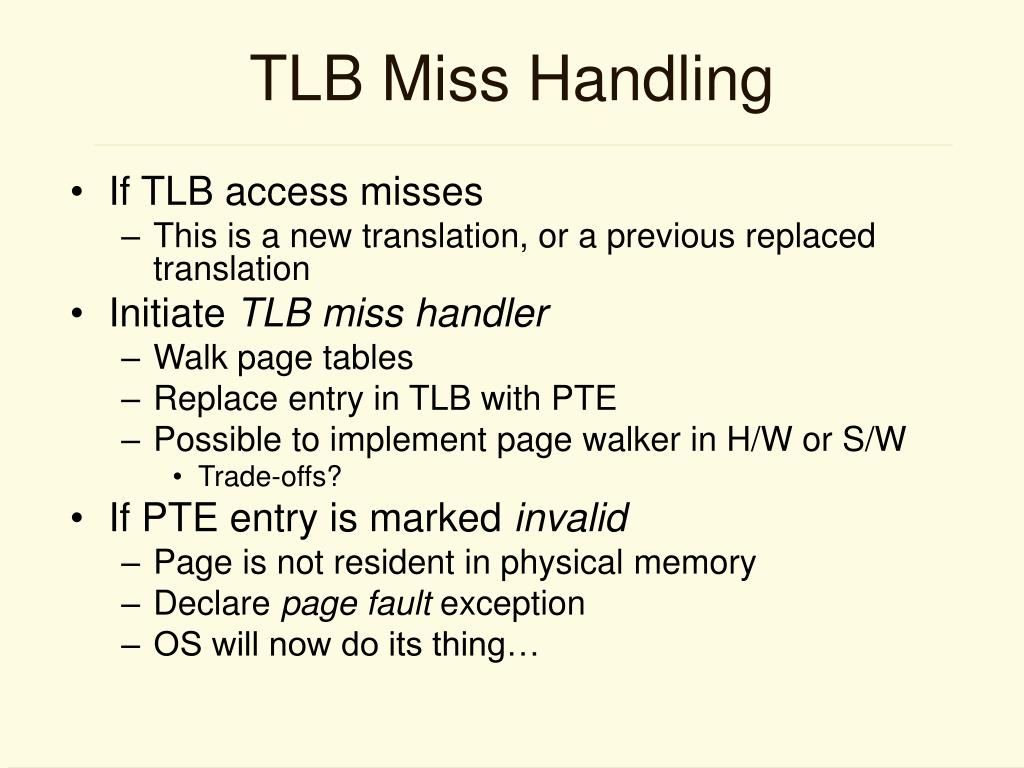

TLB Miss Handling • If TLB access misses • This is a new translation, or a previous replaced translation • Initiate TLB miss handler • Walk page tables • Replace entry in TLB with PTE • Possible to implement page walker in H/W or S/W • Trade-offs? • If PTE entry is marked invalid • Page is not resident in physical memory • Declare page fault exception • OS will now do its thing…
Maintaining a Coherent TLB • TLB must reflect changes to address mapping • Physical page replacement [use TLB entry invalidation] • Physical page allocation [use TLB entry initialization] • Context switches • Essentially replaces every entry in the TLB • How does the hardware recognize a context switch? • Naïve approaches can lead to expensive context switches • Due to many accompanying TLB misses • Optimization context switches with address space IDs • Processor control state records current process ASID, updated by OS at context switches • ASID fields included TLB entries, only match TLB entries that share the same ASID as the current process ASID

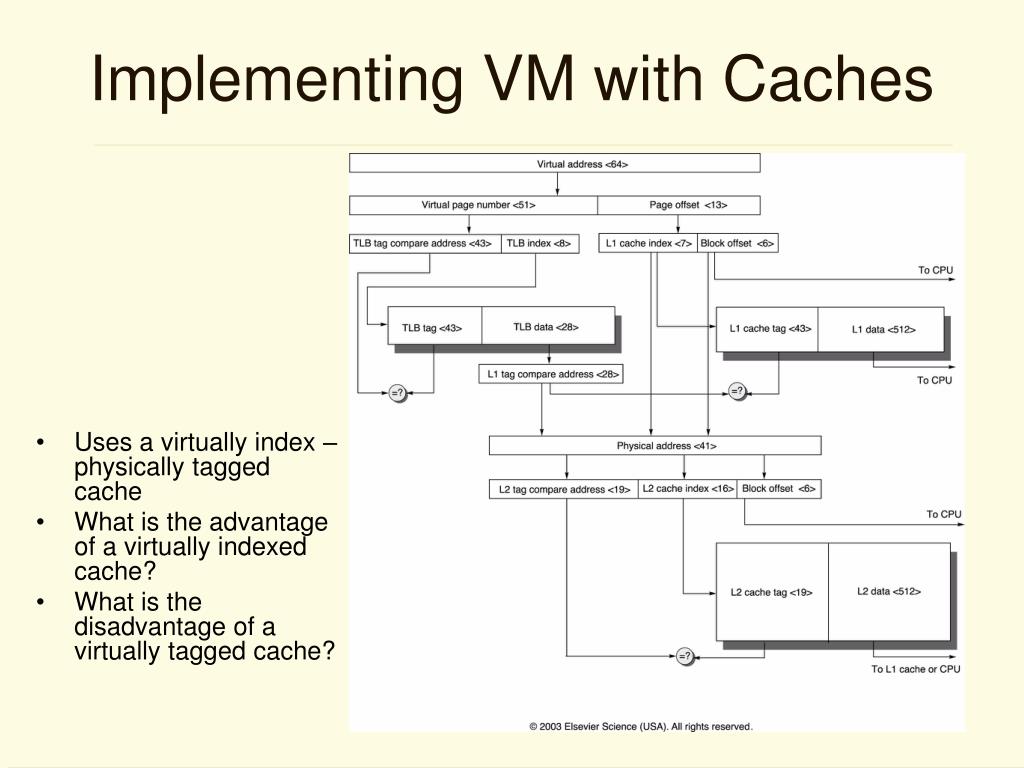

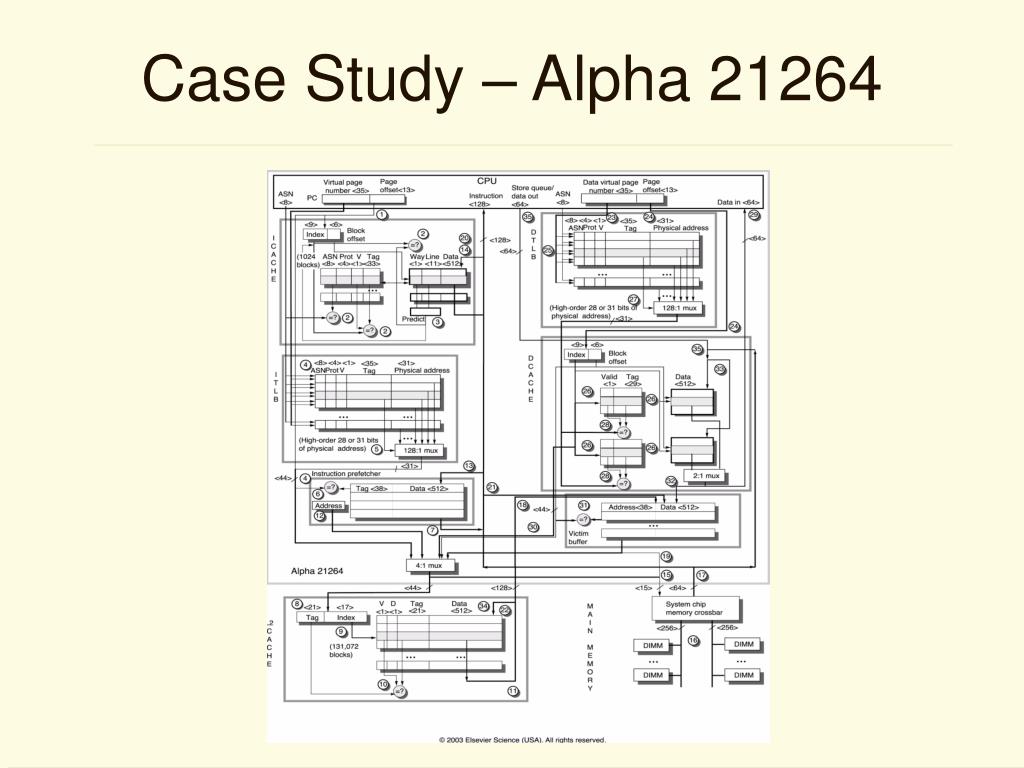

Implementing VM with Caches • Uses a virtually index – physically tagged cache • What is the advantage of a virtually indexed cache? • What is the disadvantage of a virtually tagged cache?

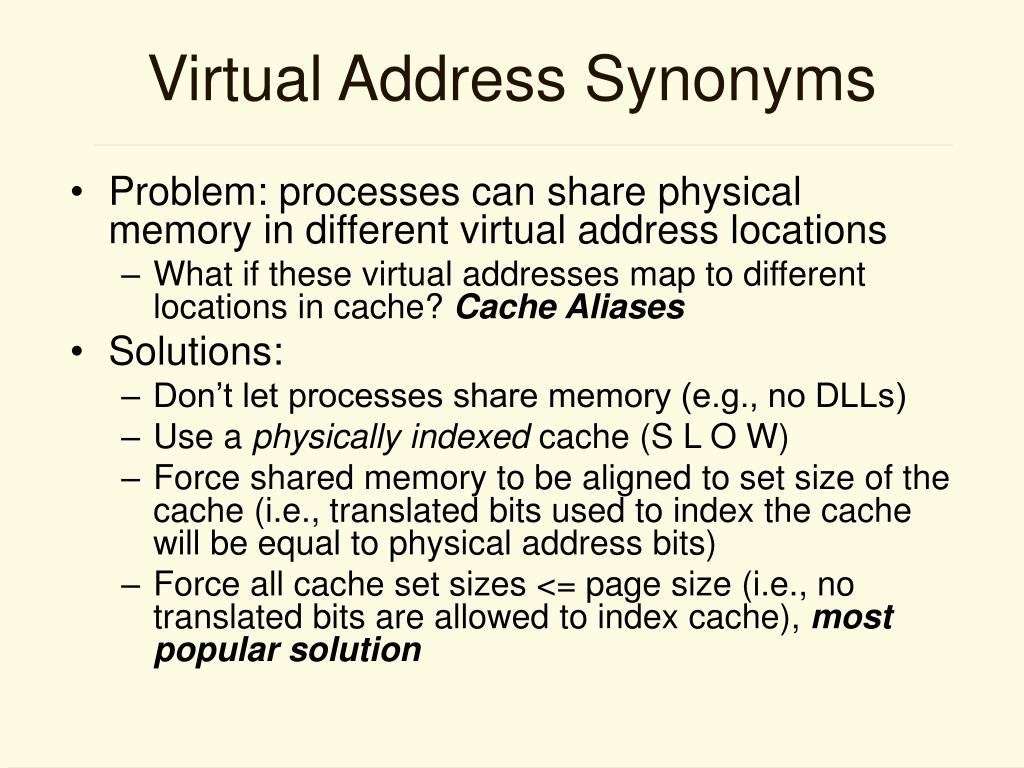

Virtual Address Synonyms • Problem: processes can share physical memory in different virtual address locations • What if these virtual addresses map to different locations in cache? Cache Aliases • Solutions: • Don’t let processes share memory (e.g., no DLLs) • Use a physically indexed cache (S L O W) • Force shared memory to be aligned to set size of the cache (i.e., translated bits used to index the cache will be equal to physical address bits) • Force all cache set sizes <= page size (i.e., no translated bits are allowed to index cache), most popular solution

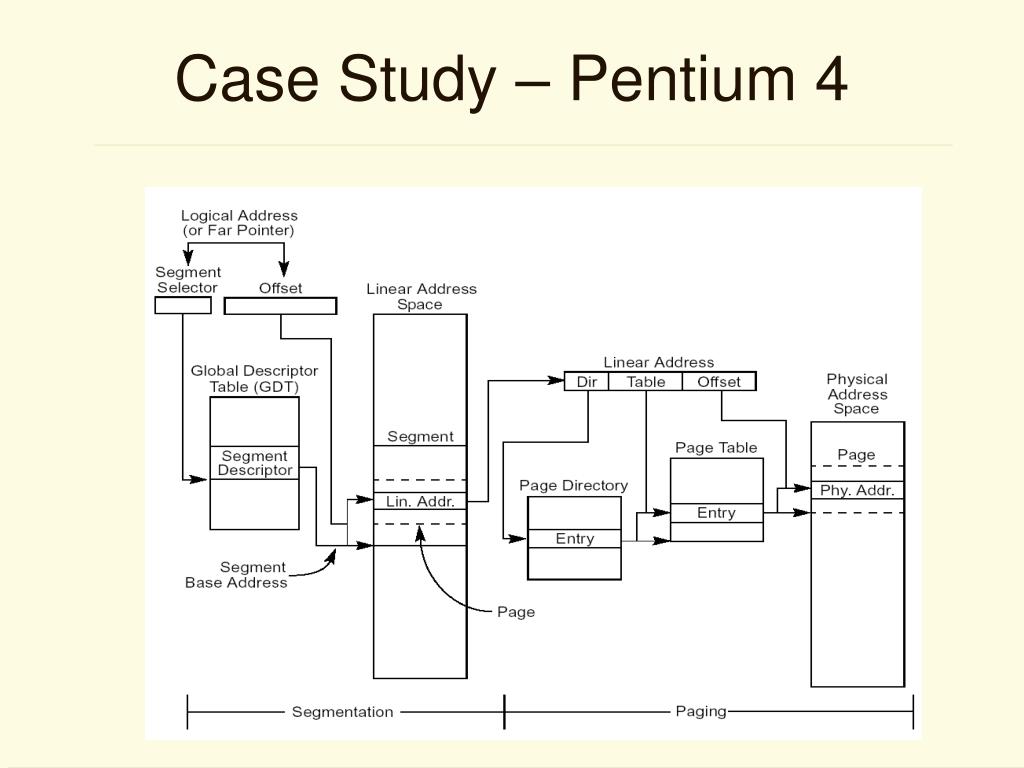

Pentium 4 Page Directory/Table Entries • Global pages are not flushed from TLB • Reduces impact of context switches • Accessed bit used by OS to implement clock algorithm • Cache disabled bit used to specify memory-mapped I/O • Present bit used to implement swapping • Dirty bit tracks writes to page • U/S and R/W implement page permissions
Application Specific Super-page Entries • Used to map large objects treated as a single unit • Operating system code • Video frame buffer • Super-page works just like a normal pages, but maps a larger space • Reduces “pressure” on TLB • Implications on TLB design?
