Presentation Transcript
Slide1 l.jpg

Dr. Rainer v. Ammon

Managing Director

CENTRUM FÜR INFORMATIONS-TECHNOLOGIE-TRANSFER (CITT) GmbH

KONRAD-ADENAUERALLE 30

D-93051 REGENSBURG

+49 171 756 4557

[email protected]

WWW.CITT-ONLINE.COM

Florian SpringerBusiness IT Consultant

SENACOR TECHNOLOGIES AGVORDERE CRAMERGASSE 11D-90478 NÜRNBERG

[email protected]


Event driven busines process management taking the example of dhl l.jpg

Event-Driven Busines Process Management taking the example of DHL

R. v. Ammon, C. Emmersberger, F. Springer, C. Wolff

Vienna 08/09/28


Slide3 l.jpg

Agenda of DHL

  • Introduction into Complex Event Processing (CEP)

  • A master course „Event Driven Business Process Management“

  • DHL Use Case - First experiences from the DHL-Project


Slide4 l.jpg

Big Picture: Monitoring Business Proceses and Activities of DHL

event cloud with thousands of events per sec…

event patterns and complex event processing…

account login

withdrawal

new auto pay

deposit

transfer

logout

enquiry

deposit

activity history

Sensor

account login

account balance

logout

enquiry

passwdchange

passwdchange

account login

new auto pay

enquiry

account login

withdrawal

new auto pay

deposit

account login

transfer

logout

enquiry

Sensor

deposit

activity history

logout

…e.g. above a bank

The important steps: 1. Redesign the business processes for SOA and BPM 2. Make a SOA, identify services, build WSDL-interfaces…3. Precise description of patterns of events

4. Detecting patterns in the event cloud

5. Abstraction of complex event pattern instances to higher level events


Slide5 l.jpg

The Pain Point: The Event Cloud, todays IT-Blindness and the „Event Tornado“

startedService_6

startedService_4

startedService_7

exitService_4

startedService_5

exitService_5

exitService_6

startedService_8

exitService_8

startedService_1

exitService_7

Low level events without semantics

exitService_1

startedService_2

exitService_2

Business Process 1

startedService_3

exitService_3

Visualization of the processed/correlated events via Business Activity Monitoring

Business Process n

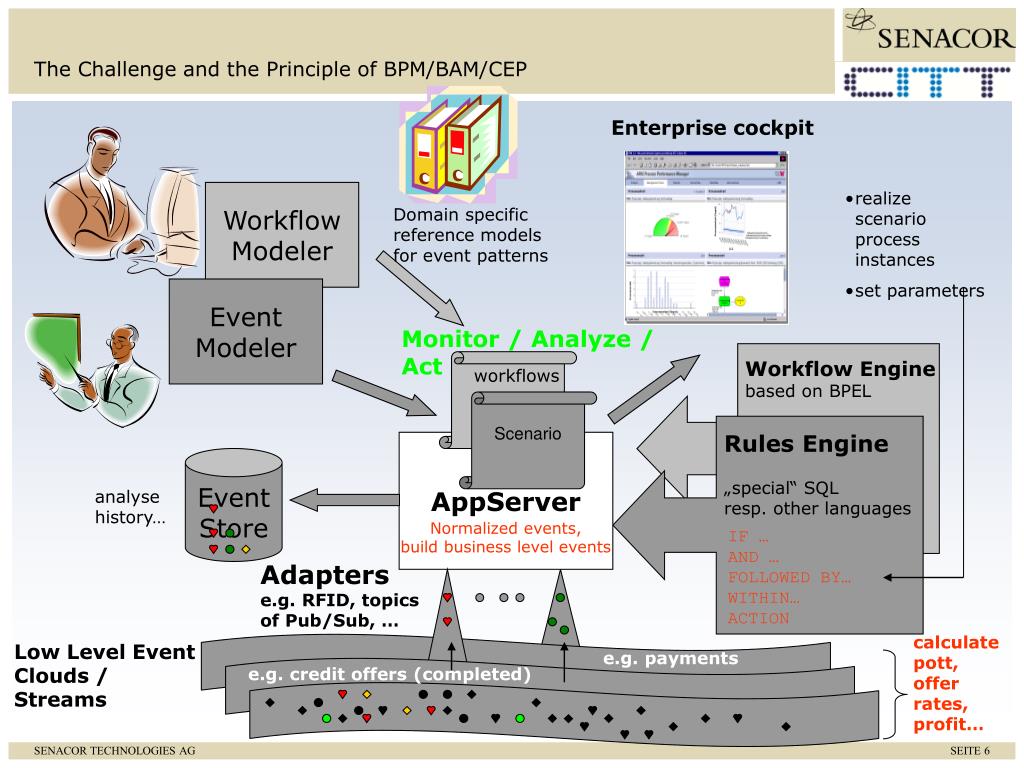

The challenge and the principle of bpm bam cep l.jpg
The Challenge and the Principle of BPM/BAM/CEP the „Event Tornado“

Enterprise cockpit

Workflow

Modeler

  • realize scenarioprocess instances

  • set parameters

Domain specific reference models for event patterns

Event

Modeler

Monitor / Analyze / Act

Workflow Engine

based on BPEL

workflows

Scenario

Rules Engine„special“ SQLresp. other languages

AppServer

Event

Store

analysehistory…

Normalized events,build business level events

IF …AND …FOLLOWED BY…WITHIN…ACTION

Adapterse.g. RFID, topics of Pub/Sub, …

calculate pott, offer rates, profit…

Low Level Event Clouds / Streams

e.g. payments

e.g. credit offers (completed)


Slide7 l.jpg

Forcast of ED-BPM for the next decades the „Event Tornado“

Forecast of Prof. David Luckham:

  • we need skilled people at least up to 2050…

  • we are only at the end of the period of Simple CEP


Slide8 l.jpg

The forecast of ED-BPM for the next decades the „Event Tornado“

The warning of Roy Schulte (VP of Gartner) since 2006…

…we won‘t have enough skilled people who would be able to do all the jobs and projects

The statement of Prof. Mani Chandy (California Techical University) at the Gartner Event Processing Summit 2007…

…The work of IT during the next twenty years will be to complete the evolution of business processes from sequences of slow-moving, disjointed applications to more responsive end-to-end, event-based straight-through flows of action.

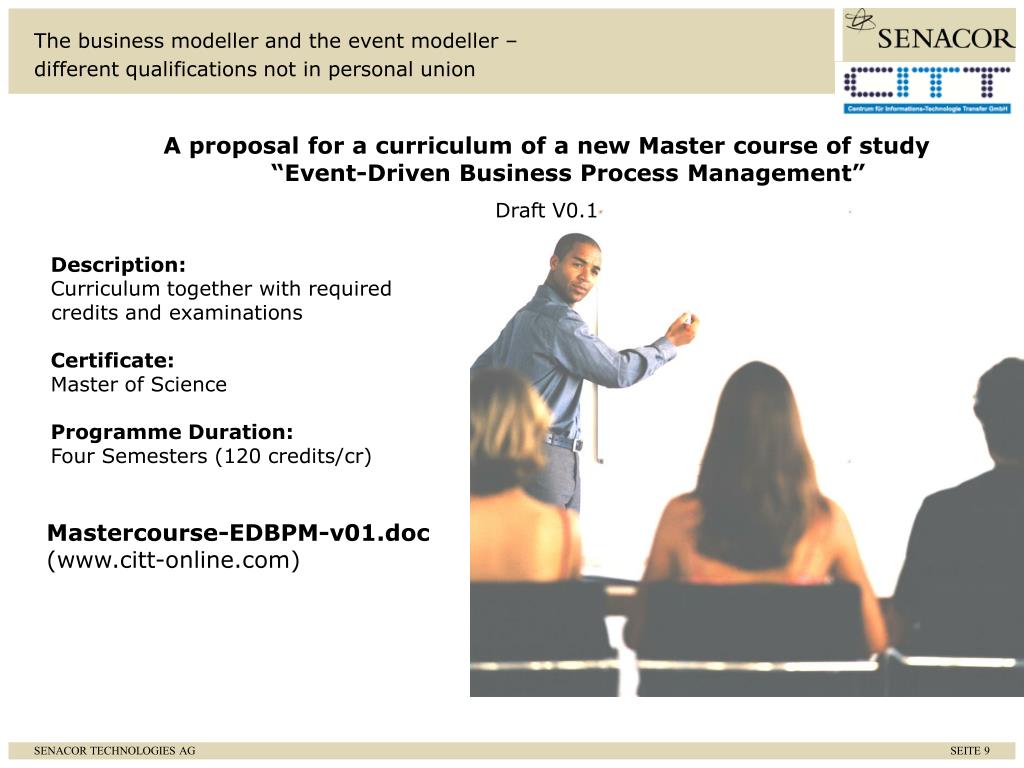

Slide9 l.jpg

A proposal for a curriculum of a new Master course of study the „Event Tornado““Event-Driven Business Process Management”

Draft V0.1

The business modeller and the event modeller – different qualifications not in personal union

Description:

Curriculum together with required credits and examinations

Certificate:

Master of Science

Programme Duration:

Four Semesters (120 credits/cr)

Mastercourse-EDBPM-v01.doc(www.citt-online.com)


Slide10 l.jpg

The business modeller and the event modeller – the „Event Tornado“different qualifications not in personal union

Concept:

The course consists of the fields of study Business Process Management, Complex Event Processing, Business Activity Montoring included Business Intelligence and Data Warehousing, Computer Networks, Messaging as well as several application disciplines like Algorithmic Trading, Supply Chain Management in the retail domain, fraud detection in the banking and insurance domain etc.

All courses are completed with course-related tests and Credits (cr) according to European Credit Transfer System (ECTS) are awarded. All courses are given in English and are designed as distance learning/eLearning courses.


Current research work and projects in ed bpm l.jpg
Current research work and projects in ED-BPM the „Event Tornado“

Previous Work

Several Proof of Concept (PoC) Implementations

  • PoC in the logistics domain in cooperation with Deutsche Post AG and Oracle

    Event Driven Business Process Management taking the Example of Deutsche Post AG, An evaluation of the Approach of Oracle and the SOPERA Open Source SOA Framework(C. Emmersberger, F. Springer; September 07 – March 08)

  • PoC in the finance domain in cooperation with TeambankApplication for monitoring the credit application easyCredit of Team Bank and the evaluation of several CEP approaches(H.-M. Brands, D. Guschakowski; 2007)


Dhl use case a logistics use case for edbpm l.jpg
DHL Use Case – A Logistics Use Case for EDBPM the „Event Tornado“

EDBPM Background and Definition

Event-Driven Business Process Management (EDBPM) is a combination of two different disciplines:

  • Business Process Management (BPM): Deals with the management of business processes with the approach to increase the efficiency, flexibility and technology integration of the business.Business Processes describe the unique way of doing business. Today they are seen as the most valuable asset of a corporation.

  • Complex Event Processing (CEP): A concept that deals with handling multiple events within an event cloud to identify meaningful event patterns. It is an emerging technology for obtaining relevant situation knowledge from distributed systems in realtime (= event time + processing time) to monitor or react on emerging errors.

=>EDBPM could improve the business


Dhl use case a logistics use case for edbpm13 l.jpg
DHL Use Case – A Logistics Use Case for EDBPM the „Event Tornado“

Logistics Use Case for EDBPM

  • PoC investigates the feasibility of combining Oracles tools for BPEL, CEP and BAM with the latest Sopera Enterprise Service Bus (ESB)

  • Use case serves a PoC implementation for a solution combing the goals of service-oriented architecture (SOA) with the advantages of CEP

  • Use case contains a typical business process at Deutsche Post addressing “shipping”, “monitoring/investigation” and “claim”

  • Sopera services are orchestrated through Oracle’s BPEL engine and implement the process functionalities. They are capable to send events.

  • Oracle’s CEP Engine queries the events and sends results to the BAM application for displaying and alerting purpose

Example:

extract of shipment process

C. Emmersberger, F. Springer: Event Driven Business Process Management taking the Example of Deutsche Post AG, An evaluation of the Approach of Oracle and the SOPERA Open Source SOA Framework


Dhl use case a logistics use case for edbpm14 l.jpg
DHL Use Case – A Logistics Use Case for EDBPM the „Event Tornado“

Simplified Illustration of Logistics Use Case for EDBPM

Shipment

Investigation

Claim


Dhl use case a logistics use case for edbpm15 l.jpg
DHL Use Case – A Logistics Use Case for EDBPM the „Event Tornado“

Simplified Illustration of Components and Interaction

Development:

  • Service development in SOPERA

  • Service orchestration in Oracle BPEL

  • Setup events, which should be sent from the Notification Receiver (event service). Settings are defined as SOPERA policies in XML

  • Development of CEP patterns in Oracle CEP with CQL

  • Design of reports for the BAM dashboard in Oracle BAM

External events (e.g. traffic)

Runtime:

  • Execution of a business process in the BPEL Engine

  • Notification Receiver deals as event service. Creates and sends business and technical events to a specified endpoint (BAM, CEP)

  • Complex Event Processing in Oracle CEP

  • Process reporting in Oracle BAM


Dhl use case a logistics use case for edbpm16 l.jpg
DHL Use Case – A Logistics Use Case for EDBPM the „Event Tornado“

Hurdle: Merging Event Information of Oracle and SOPERA

Hurdle:

  • Oracle BPEL Engine and SOPERA are running isolated from each other

  • The SOPERA Web service has no information about the process which has executed the service

  • CEP has no chance to connect events coming from Oracle BPEL with SOPERA Service events

    Task:

  • Connect the independent events

    Solution:

  • Enhancing the message payload with BPEL process information.

  • BPELContent includes the filed “ProcessID” as an unique identifier for an executed process

  • BPELContent is sent every time when a service is called during process execution. This mechanism closes the gap between Oracle and SOPERA

BPELContent

BPEL event

Service event


Dhl use case a logistics use case for edbpm17 l.jpg

Intrusive generated events: the „Event Tornado“

Service has to implement code for event generation

Disadvantage:

Existing code has to be changed (e.g. a bank would not allow to change existing code)

Business functionality and monitoring have to work independent. Service should provide only business functionality.

Advantage:

Information which is not part of the payload can be used

Non-intrusive generated events:

Information is extracted out of the payload and the service with adapters and sensors. The extracted information has to be merged to an event.

Disadvantage:

Only payload and public service information can be part of an event

Advantage:

Service Code has not to be changed

Service has not to deal with monitoring functionality

DHL Use Case – A Logistics Use Case for EDBPM

Differences in Event Generation

SOPERA

SOPERA


Dhl use case a logistics use case for edbpm18 l.jpg
DHL Use Case – A Logistics Use Case for EDBPM the „Event Tornado“

Aggregation and correlation to business level complex events

Several event types influence the business process:

  • Process events: happening during process execution and

    • Business events: providing business content, e. g. parcel allocated to truck

    • Technical events: providing technical content, e. g. service not available

  • External events: events occur outside the business process, but also influencing the process, e. g. weather, traffic


Conclusion l.jpg

First link between BPM and CEP the „Event Tornado“

Main concepts of both technologies in a general reference model for EDBPM

CONCLUSION

The Paper Provides:

Summary:

  • EDBPM is able to detect possible errors within a business process using CEP technology and alert responsible persons using BAM

  • Added business value compared to pure BPM solutions, but currently hard to implement

Perspective:

  • Automatic reaction on errors has to be implemented in future solutions, e.g. conditional decision and reaction logic

  • Additional use cases can be defined for various domains and first projects on the basis of such “Event Driven BPM” platforms start in 2008

  • Research projects for a faster set-up of EDBPM are currently under preparation

Detailed Information:

  • Further information about the PoC can be seen on www.citt-online.com in a video presentation hold on the 6th CEP/BAM expert meeting in Regensburg


Current research work and projects in ed bpm20 l.jpg
Current research work and projects in ED-BPM the „Event Tornado“

Tasks for the future

Analyzing different domains and provide CEP patterns and

best practices for each domain

Current PhD thesis:

  • Domain Specific Reference Models for Complex Event Processing Patterns in the domain of Finance/Banking (F. Springer)

  • Domain Specific Reference Models for Complex Event Processing Patterns in the Automotive Domain (C. Emmersberger)

  • Domain Specific Reference Models for Complex Event Processing Patterns in the Retail Domain (T. Paulus)


Slide21 l.jpg

Thanks for your attention. the „Event Tornado“

Dr. Rainer v. Ammon

Managing Director

CENTRUM FÜR INFORMATIONS-TECHNOLOGIE-TRANSFER (CITT) GmbH

KONRAD-ADENAUERALLE 30

D-93051 REGENSBURG

+49 171 756 4557

[email protected]

WWW.CITT-ONLINE.COM

Florian SpringerBusiness IT Consultant

SENACOR TECHNOLOGIES AGVORDERE CRAMERGASSE 11D-90478 NÜRNBERG

[email protected]
