  1. final project [bar rendering] [william m. trotty | arch 5347 | hill fa2011]

  2. final project [bar rendering]_PROPOSAL interior: using the materials of a bar found online, a similar bar will be created. materials: laminated red panels, steel beams, laminated ceiling panel, leather seats, glassware, chrome. glass shelf, metal clips, steel cable.

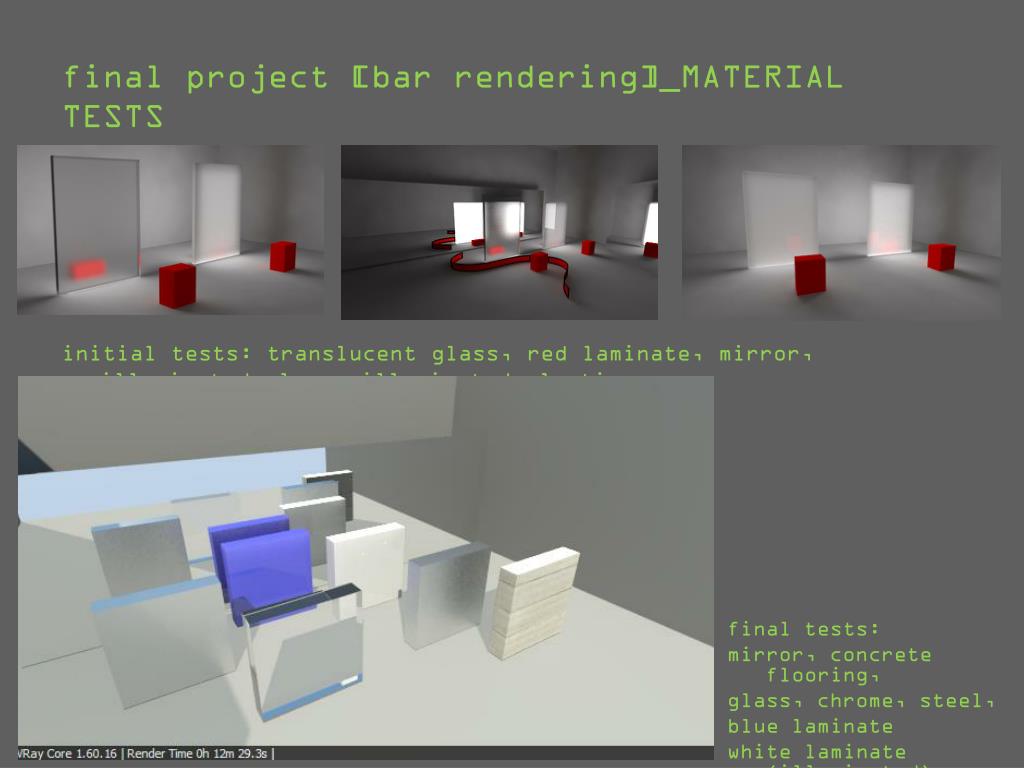

  3. final project [bar rendering]_MATERIAL TESTS initial tests: translucent glass, red laminate, mirror, illuminated glass, illuminated plastic final tests: mirror, concrete flooring, glass, chrome, steel, blue laminate white laminate (illuminated)

  4. final project [bar rendering]_MATERIALS USED matte black [cap] reflective chrome [shelf cables] glass [windows, bottles]

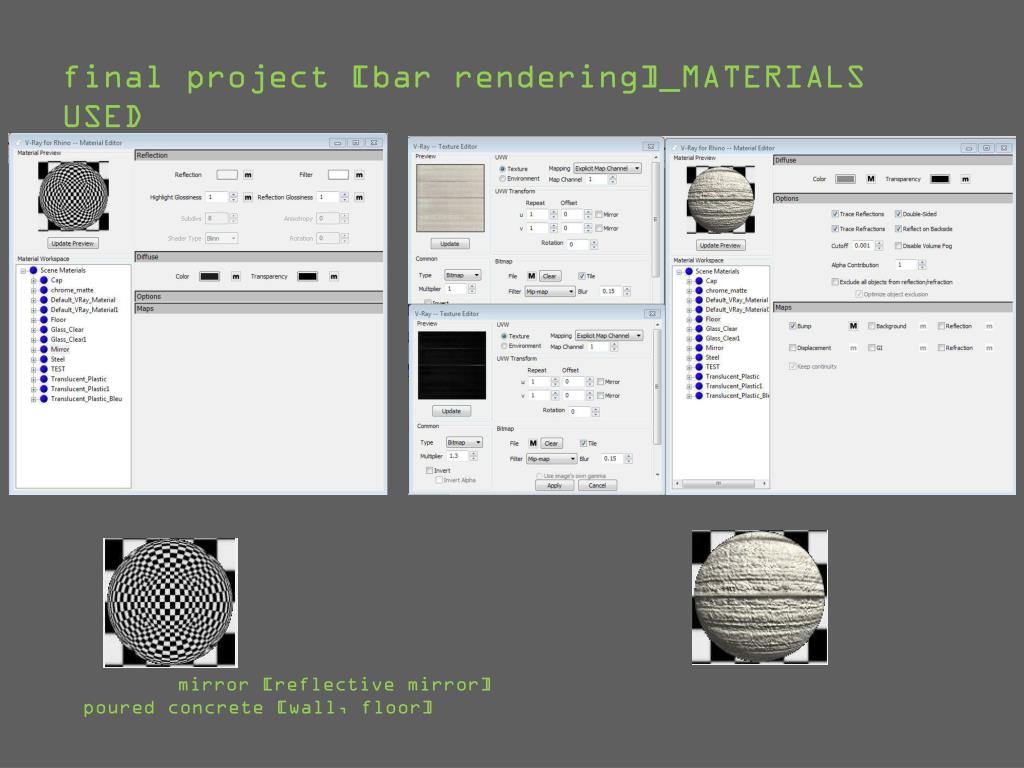

  5. final project [bar rendering]_MATERIALS USED mirror [reflective mirror] poured concrete [wall, floor]

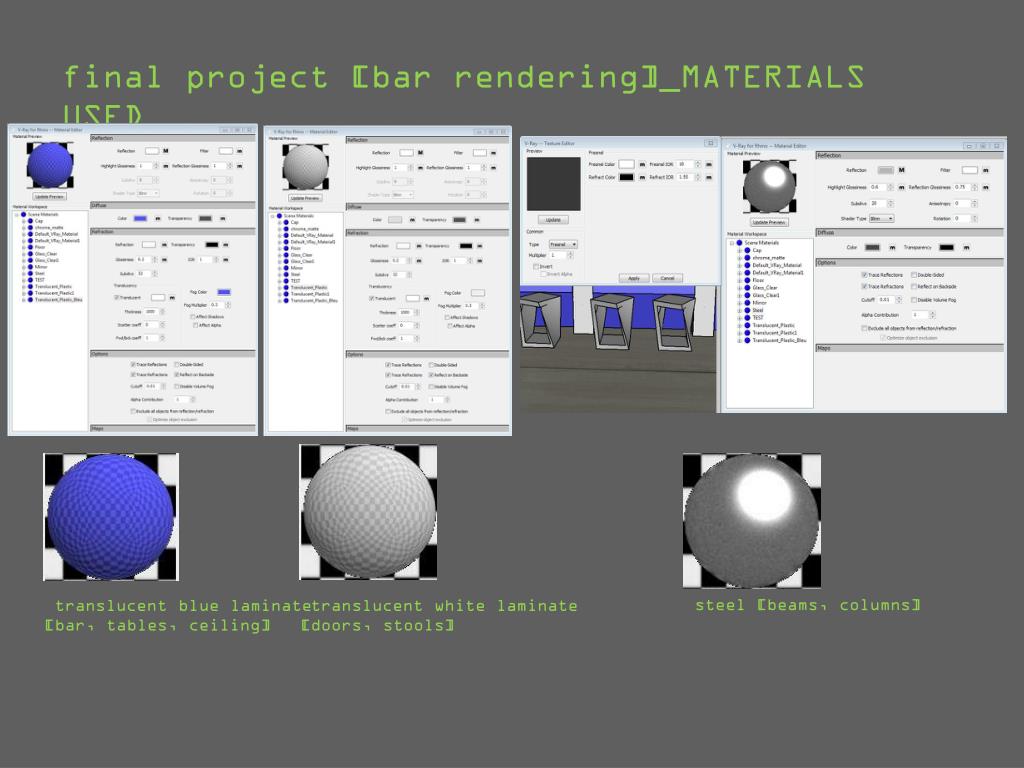

  6. final project [bar rendering]_MATERIALS USED translucent blue laminate [bar, tables, ceiling] translucent white laminate [doors, stools] steel [beams, columns]

  7. final project [bar rendering]_RHINO MODEL images [from top left]: modeled bottles [using revolve], sampled images, rendered bottles blue laminate drop ceiling, concrete floor [www.cgtextures.com] lofted stool [white laminate]

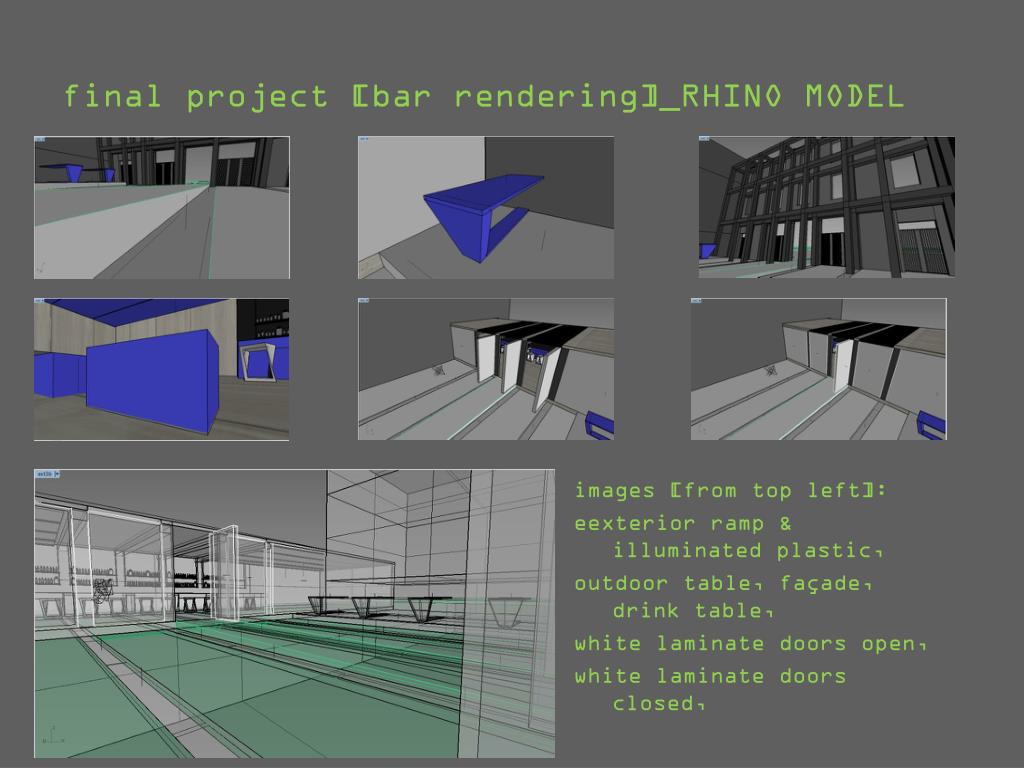

  8. final project [bar rendering]_RHINO MODEL images [from top left]: eexterior ramp & illuminated plastic, outdoor table, façade, drink table, white laminate doors open, • white laminate doors closed,

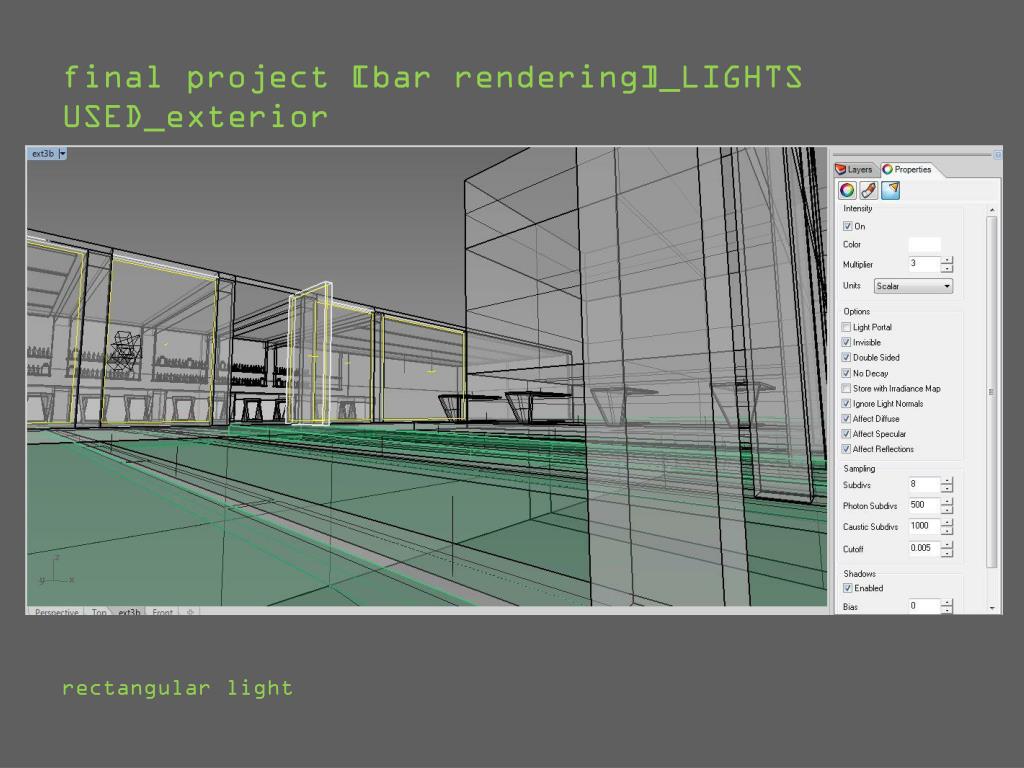

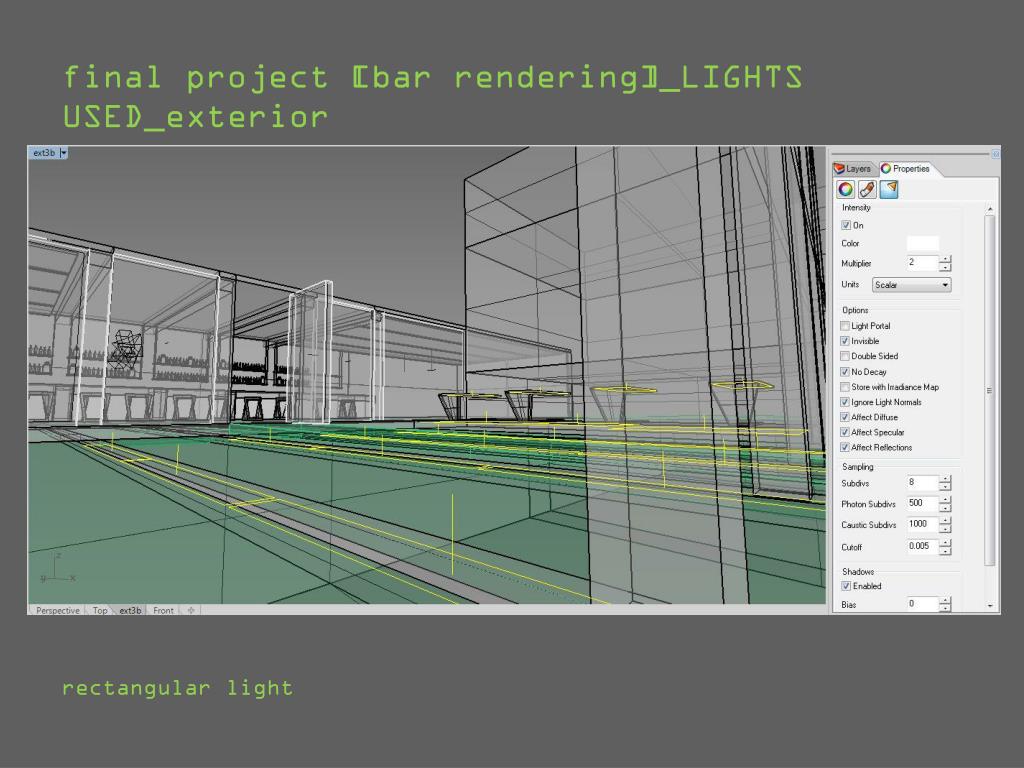

  9. final project [bar rendering]_LIGHTS USED_exterior rectangular light

  10. final project [bar rendering]_LIGHTS USED_exterior rectangular light

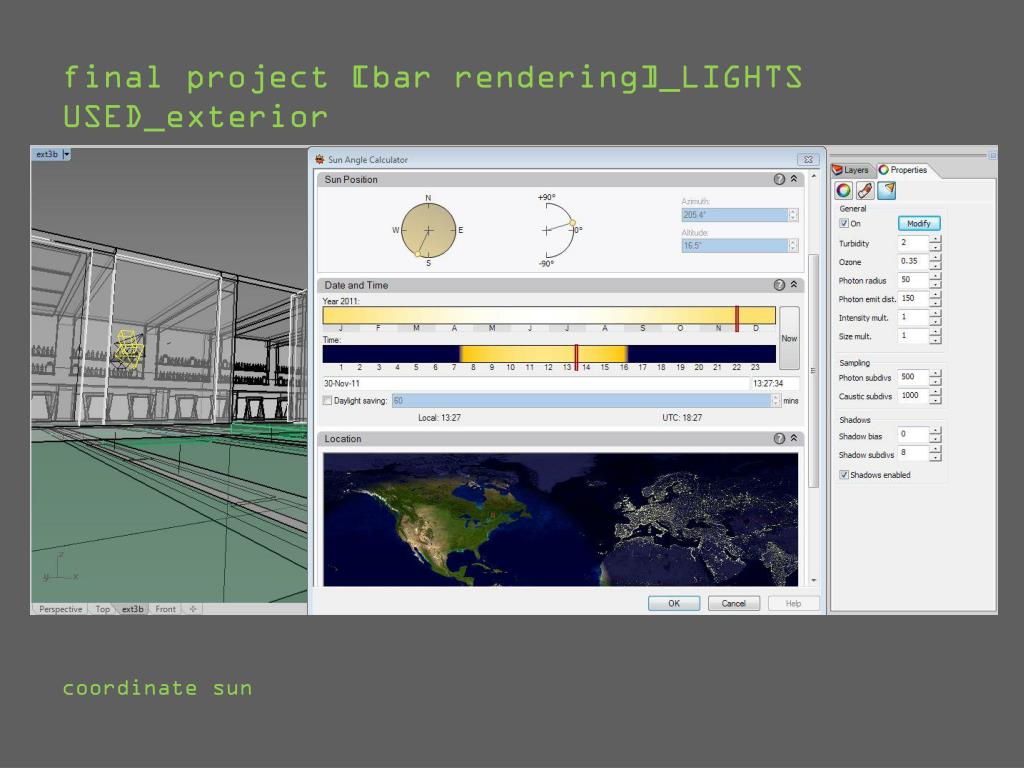

  11. final project [bar rendering]_LIGHTS USED_exterior • coordinate sun

  12. final project [bar rendering]_LIGHTS USED_exterior coordinate sun

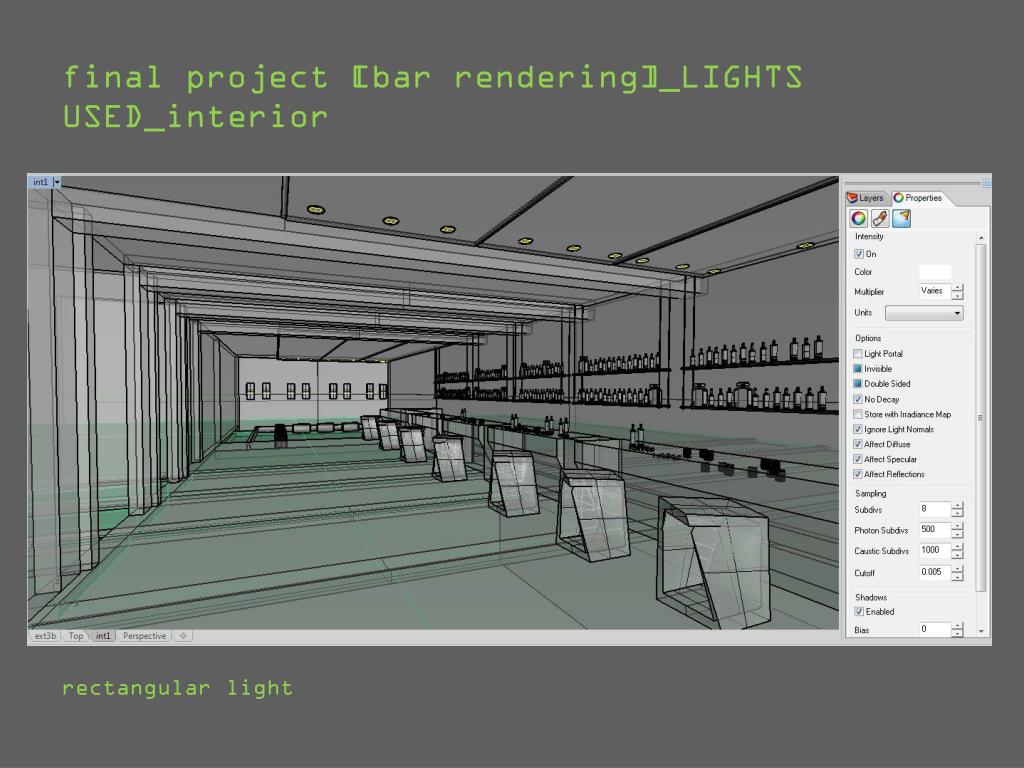

  13. final project [bar rendering]_LIGHTS USED_interior rectangular light

  14. final project [bar rendering]_LIGHTS USED_interior rectangular light

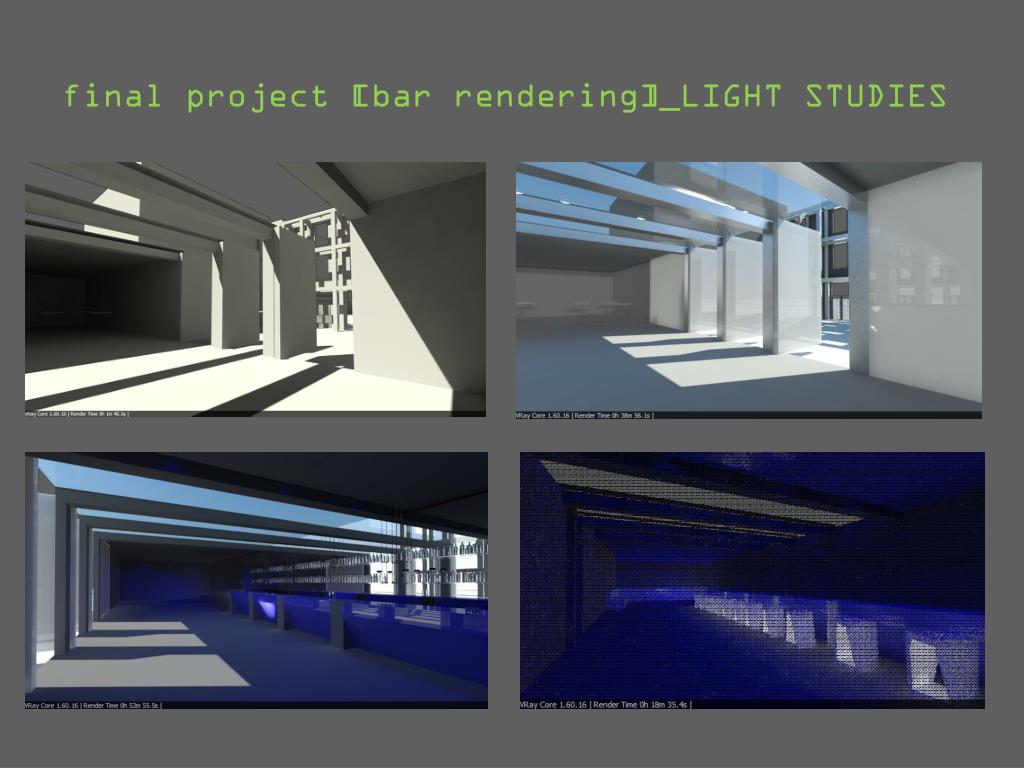

  15. final project [bar rendering]_LIGHT STUDIES

  16. final project [bar rendering]_FINAL_EXTERIOR_DAY

  17. final project [bar rendering]_FINAL_EXTERIOR_NIGHT

  18. final project [bar rendering]_FINAL_INTERIOR_DAY

  19. final project [bar rendering]_FINAL_INTERIOR_NIGHT
