The c implementation of the gat oo specification

The C Implementation of the GAT OO Specification

Hartmut Kaiser

[email protected]

MPI for Gravitational Physics, Albert-Einstein-Institut, Golm


Outline

Outline

  • Design Principles

    • Object orientation

      • Derivation, Interfaces, Genericity

    • Memory Management

      • Object lifetime, Instance tracking, Allocation responsibilities

    • Const Correctness

    • Error Handling

    • Portability

    • Open Source

  • Open problems

Workshop on Grid Application Programming


Object orientation

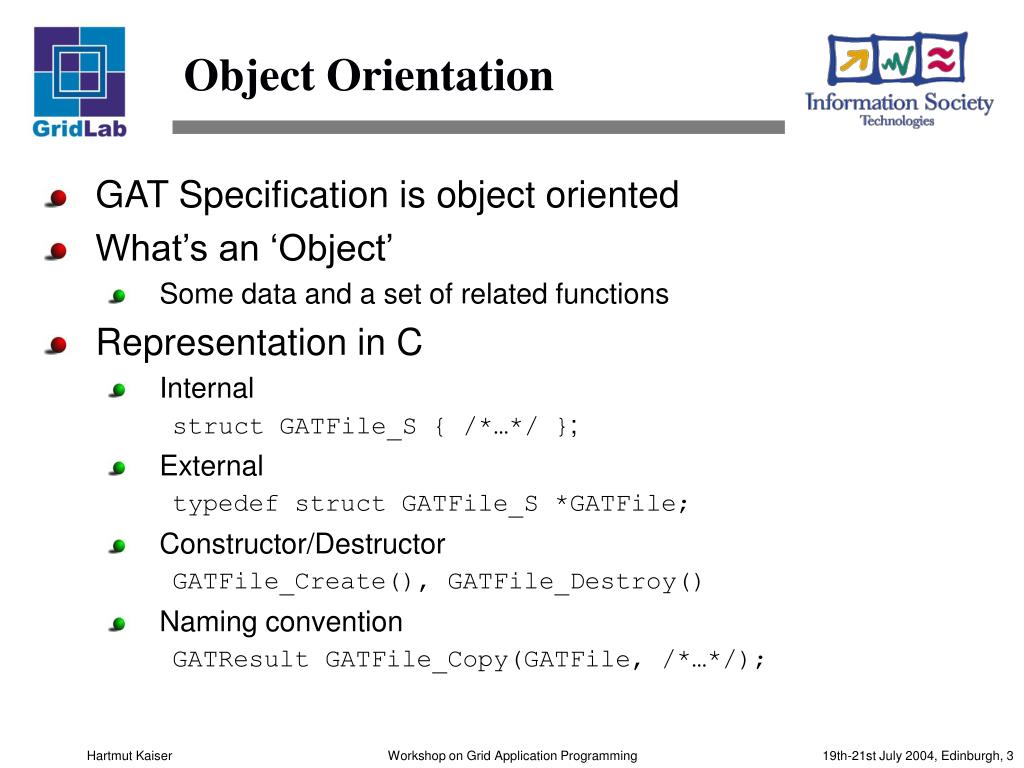

Object Orientation

  • GAT Specification is object oriented

  • What’s an ‘Object’

    • Some data and a set of related functions

  • Representation in C

    • Internal

      struct GATFile_S { /*…*/ };

    • External

      typedef struct GATFile_S *GATFile;

    • Constructor/Destructor

      GATFile_Create(), GATFile_Destroy()

    • Naming convention

      GATResult GATFile_Copy(GATFile, /*…*/);

Workshop on Grid Application Programming


Derivation

Derivation

  • Every GAT object type has to be derived from the GATObject

  • What’s ‘Derivation’

    • Reuse of common functionality

    • Conversion from and to GATObject should be possible

  • Representation in C

    • Every GAT object type has a common set of functions with an identical signature

      GATType GATFile_GetType(GATFile_const);

      GATResult GATFile_Destroy(GATFile *);

      GATResult GATFile_Clone(GATFile_const, GATFile *);

      GATResult GATFile_GetInterface(GATFile_const, void **);

      GATResult GATFile_Equals(GATFile_const, GATFile_const, GATBool *);

Workshop on Grid Application Programming


Derivation1

Derivation

  • Conversion from any GAT type to GATObject should be possible, since all these ‘derived’ from GATObject.

  • Conversion from GATObject to the corresponding GAT type should be possible as well.

  • Representation in C

    • For every GAT type the following functions exist:

      • Succeeds always:

        GATObject GATFile_ToGATObject(GATFile);

        GATObject_constGATFile_ToGATObject_const(GATFile_const);

      • Succeeds only, if type matches:

        GATFile GATObject_ToGATFile(GATObject);

        GATFile_const GATObject_ToGATFile_const(GATObject_const);

Workshop on Grid Application Programming


Interfaces

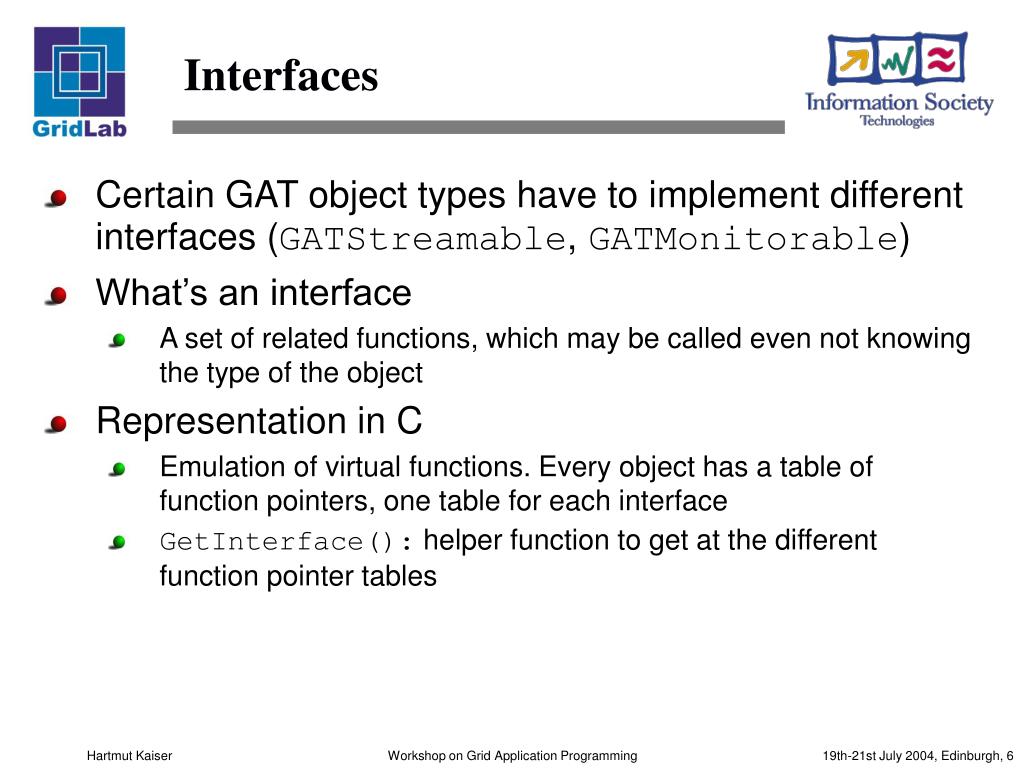

Interfaces

  • Certain GAT object types have to implement different interfaces (GATStreamable, GATMonitorable)

  • What’s an interface

    • A set of related functions, which may be called even not knowing the type of the object

  • Representation in C

    • Emulation of virtual functions. Every object has a table of function pointers, one table for each interface

    • GetInterface(): helper function to get at the different function pointer tables

Workshop on Grid Application Programming


Gatfile memory layout

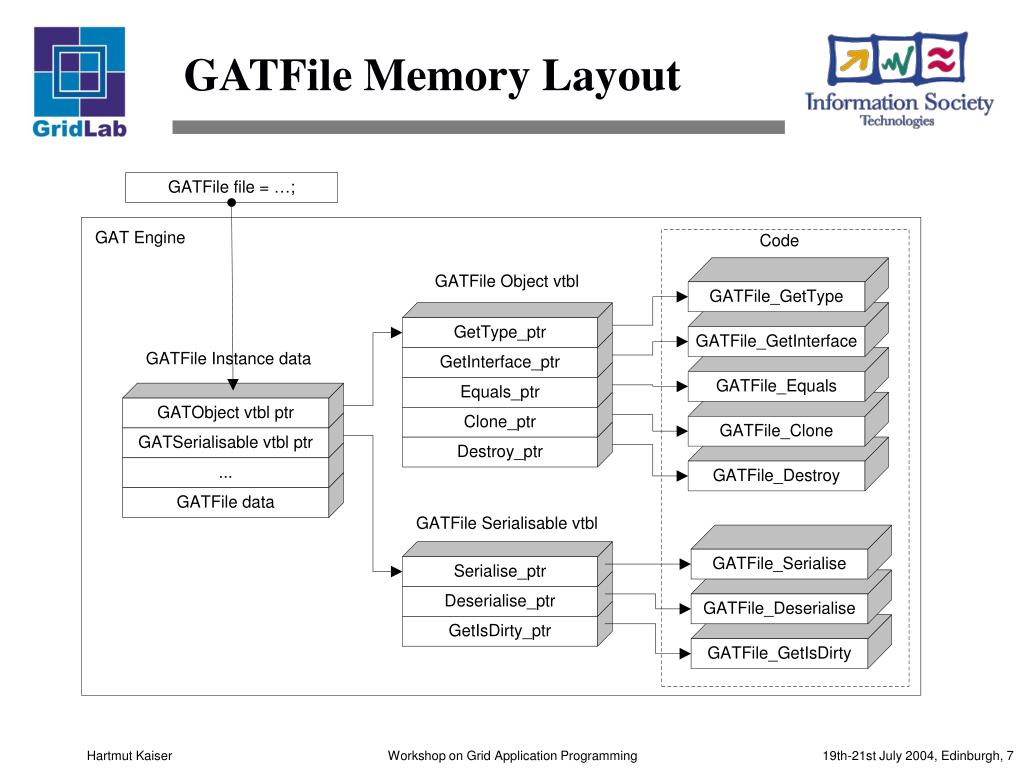

GATFile Memory Layout

Workshop on Grid Application Programming


Genericity

Genericity

  • Possibility to call a function for an arbitrary GAT type not knowing the concrete type

  • Representation in C

    • For every interface function exist

      • Concrete function implementation for every GAT type, which realises this interface

        GATResult

        GATFile_Serialise(GATFile file, GATObject stream, GATBool cleardirty);

      • Generic function allowing to call the type specific function

        GATResult

        GATSerialisable_Serialise(GATObject object, GATObject stream, GATBool cleardirty);

Workshop on Grid Application Programming


Memory management

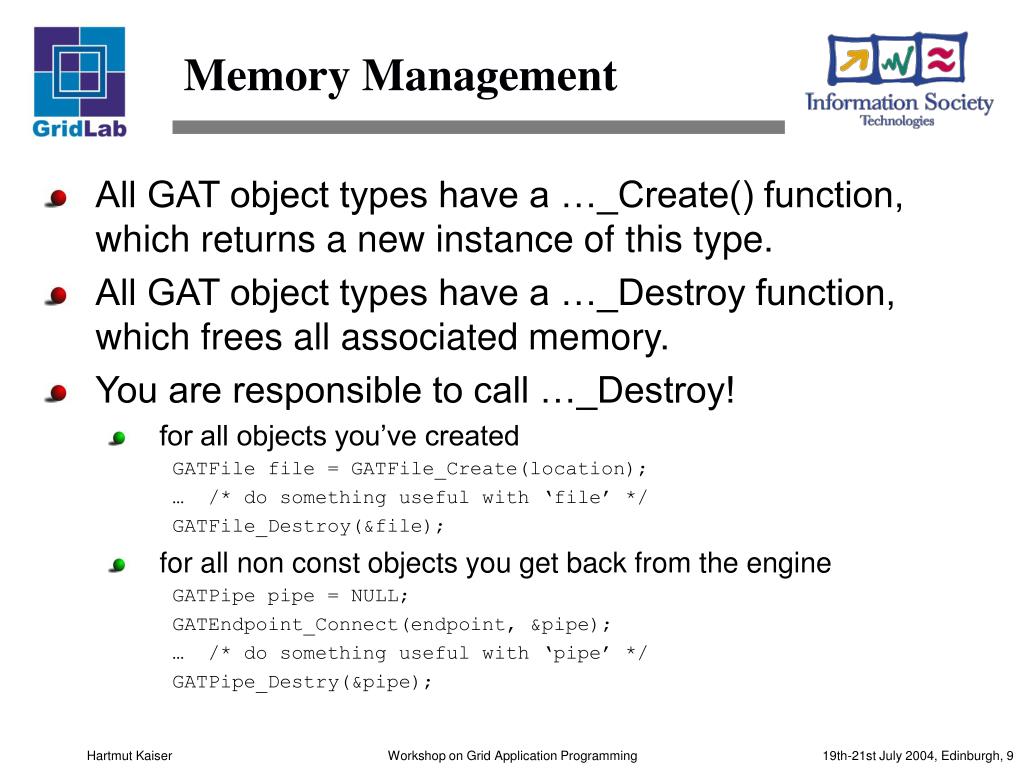

Memory Management

  • All GAT object types have a …_Create() function, which returns a new instance of this type.

  • All GAT object types have a …_Destroy function, which frees all associated memory.

  • You are responsible to call …_Destroy!

    • for all objects you’ve created

      GATFile file = GATFile_Create(location);

      … /* do something useful with ‘file’ */

      GATFile_Destroy(&file);

    • for all non const objects you get back from the engine

      GATPipe pipe = NULL;

      GATEndpoint_Connect(endpoint, &pipe);

      … /* do something useful with ‘pipe’ */

      GATPipe_Destry(&pipe);

Workshop on Grid Application Programming


Memory management1

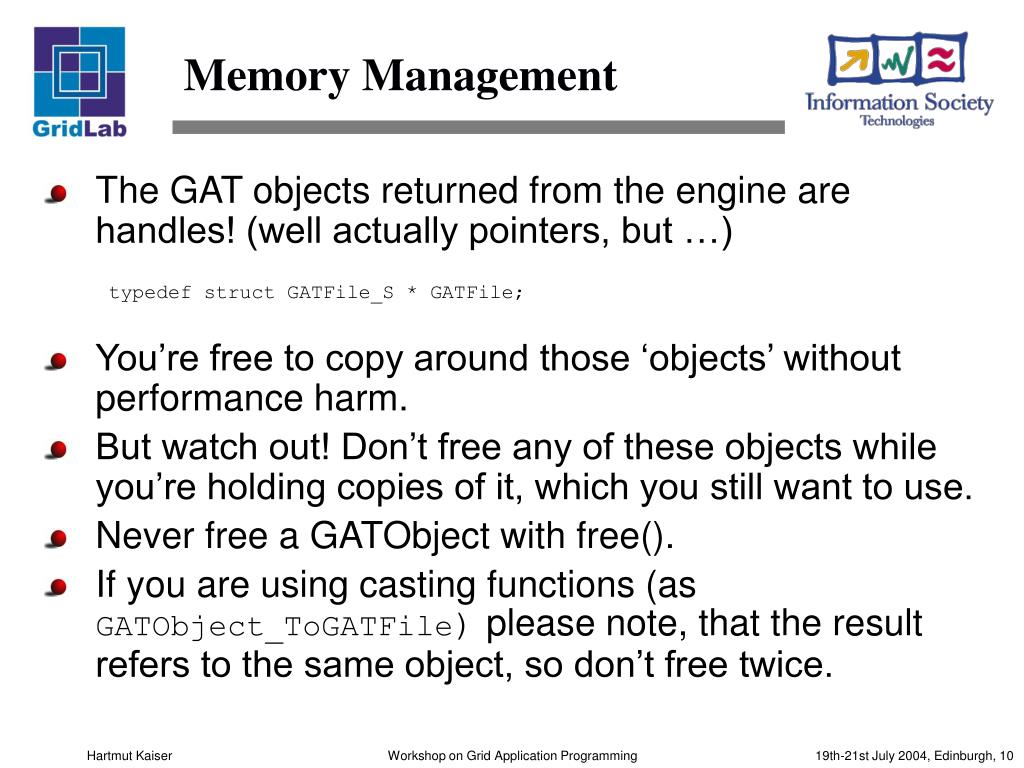

Memory Management

  • The GAT objects returned from the engine are handles! (well actually pointers, but …)

    typedef struct GATFile_S * GATFile;

  • You’re free to copy around those ‘objects’ without performance harm.

  • But watch out! Don’t free any of these objects while you’re holding copies of it, which you still want to use.

  • Never free a GATObject with free().

  • If you are using casting functions (as GATObject_ToGATFile) please note, that the result refers to the same object, so don’t free twice.

Workshop on Grid Application Programming


Const correctness

Const correctness

  • Const correctness introduced wherever possible

  • Helps to enforce semantics, especially for memory management

    • You’ll have to free by yourself all objects and memory blocks given back from the engine, which are not const

    • Objects and memory blocks which are const are controlled by the GAT engine, you don’t want to free these

  • Representation in C

    • First temptation to have: GATFile and GATFile const but this doesn’t give, what we want

    • As a result we’ve got:

      typedef struct GATFile_S * GATFile;

      typedef struct GATFile_S const *GATFile_const;

Workshop on Grid Application Programming


Error handling

Error Handling

  • Every method (except constructor, destructor and certain simple accessors) return a GATResult value

    • Is a structured 32 bit unsigned int:

  • Every CPI based object has additional error tracking inside the associated GATContext:

    • Allows to print an error traceback of the full error history

      GATContext_GetCurrentStatus(context, &status);

      GATStatus_ErrorTrace(status);

Workshop on Grid Application Programming


Error handling explicit

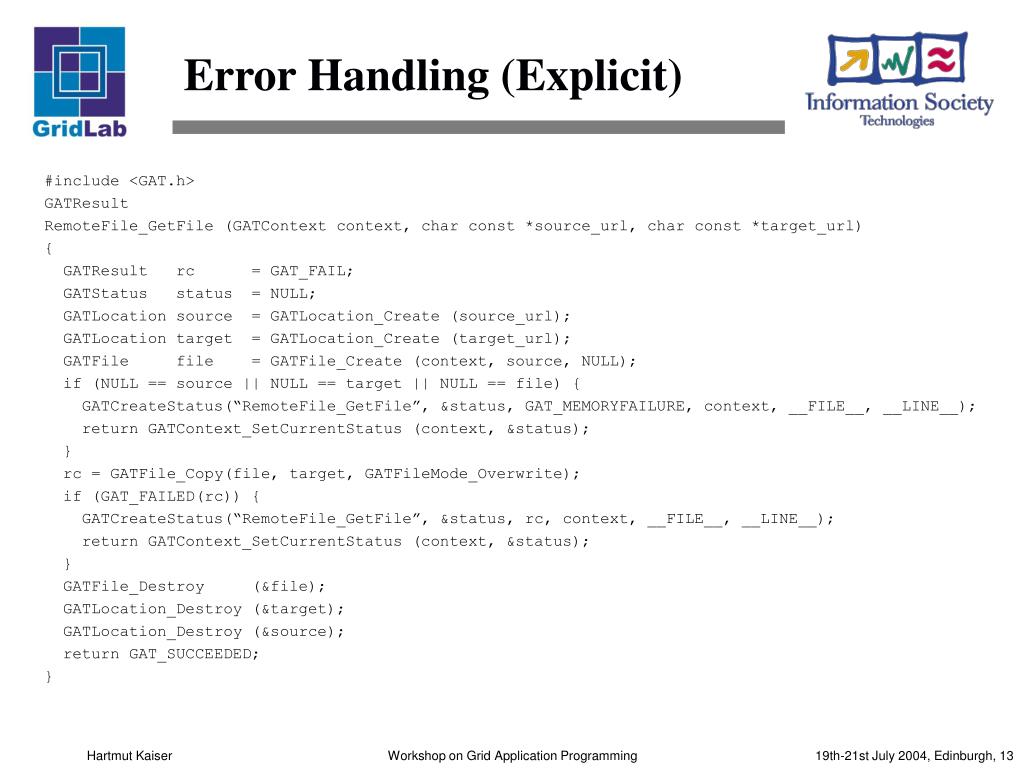

Error Handling (Explicit)

#include <GAT.h>

GATResult

RemoteFile_GetFile (GATContext context, char const *source_url, char const *target_url)

{

GATResult rc = GAT_FAIL;

GATStatus status = NULL;

GATLocation source = GATLocation_Create (source_url);

GATLocation target = GATLocation_Create (target_url);

GATFile file = GATFile_Create (context, source, NULL);

if (NULL == source || NULL == target || NULL == file) {

GATCreateStatus(“RemoteFile_GetFile”, &status, GAT_MEMORYFAILURE, context, __FILE__, __LINE__);

return GATContext_SetCurrentStatus (context, &status);

}

rc = GATFile_Copy(file, target, GATFileMode_Overwrite);

if (GAT_FAILED(rc)) {

GATCreateStatus(“RemoteFile_GetFile”, &status, rc, context, __FILE__, __LINE__);

return GATContext_SetCurrentStatus (context, &status);

}

GATFile_Destroy (&file);

GATLocation_Destroy (&target);

GATLocation_Destroy (&source);

return GAT_SUCCEEDED;

}

Workshop on Grid Application Programming


Error handling macros

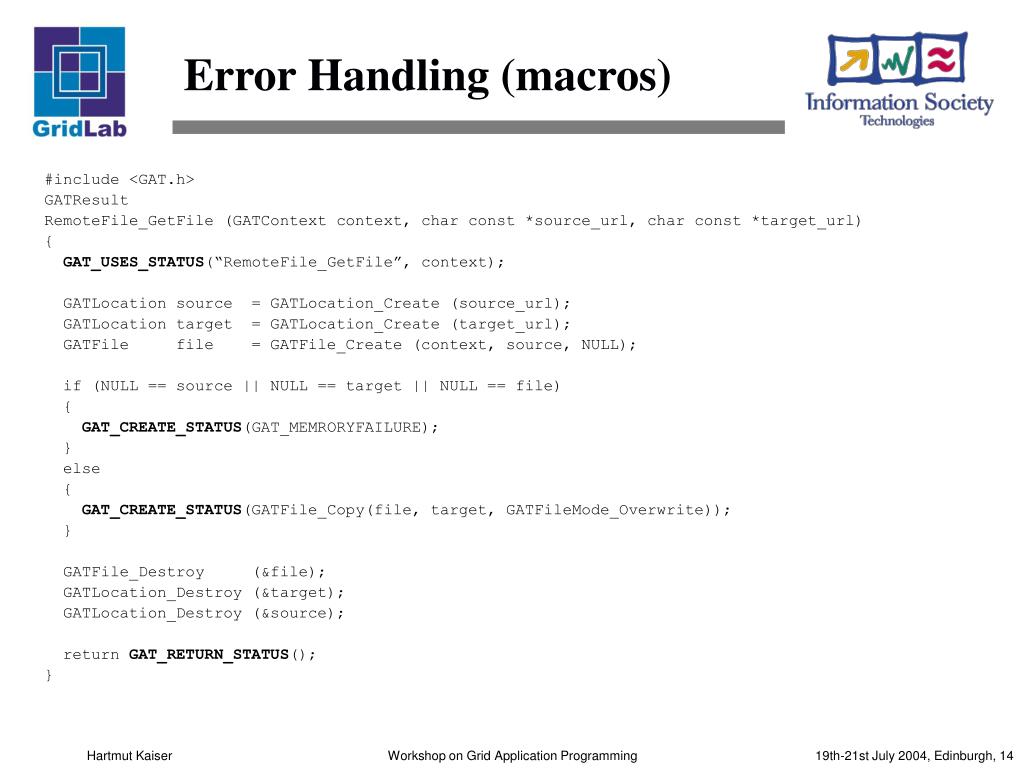

Error Handling (macros)

#include <GAT.h>

GATResult

RemoteFile_GetFile (GATContext context, char const *source_url, char const *target_url)

{

GAT_USES_STATUS(“RemoteFile_GetFile”, context);

GATLocation source = GATLocation_Create (source_url);

GATLocation target = GATLocation_Create (target_url);

GATFile file = GATFile_Create (context, source, NULL);

if (NULL == source || NULL == target || NULL == file)

{

GAT_CREATE_STATUS(GAT_MEMRORYFAILURE);

}

else

{

GAT_CREATE_STATUS(GATFile_Copy(file, target, GATFileMode_Overwrite));

}

GATFile_Destroy (&file);

GATLocation_Destroy (&target);

GATLocation_Destroy (&source);

return GAT_RETURN_STATUS();

}

Workshop on Grid Application Programming


Portability

Portability

  • All you need is a C compiler and a POSIX conformant library.

  • Dynamic (shared) library support is helpful

  • GAT was compiled on a wide variety of systems

    • Linux, IRIX etc.

    • Windows (Cygwin and native)

    • Macintosh

Workshop on Grid Application Programming


Open source

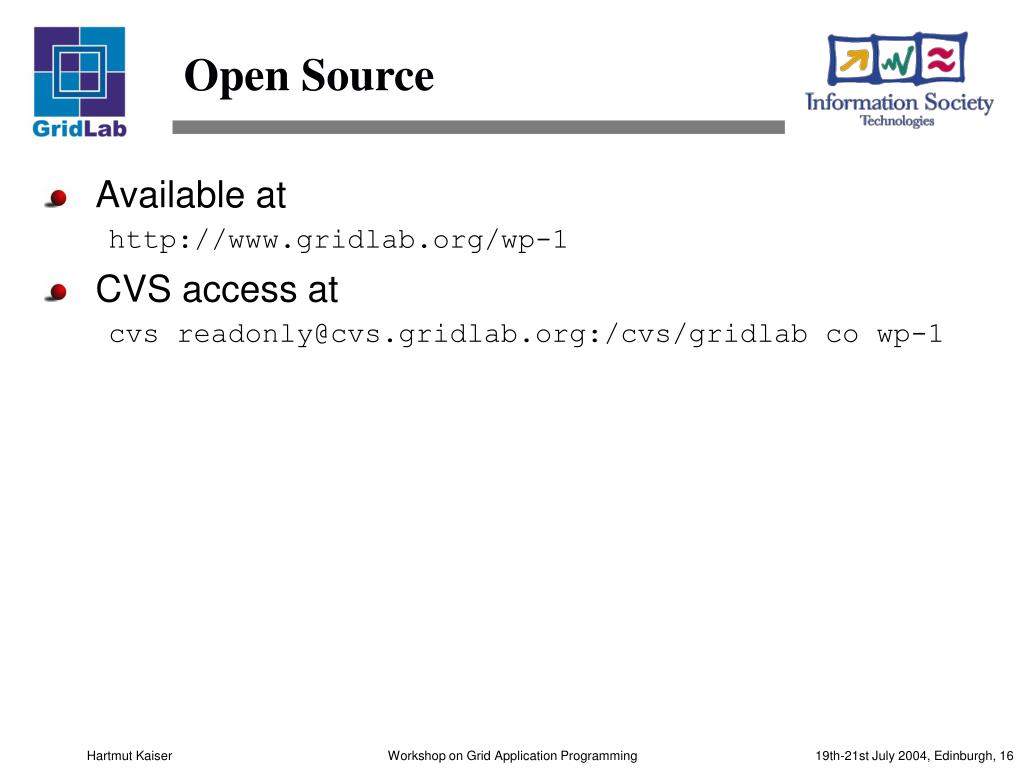

Open Source

  • Available at

    http://www.gridlab.org/wp-1

  • CVS access at

    [email protected]:/cvs/gridlab co wp-1

Workshop on Grid Application Programming


Open problems

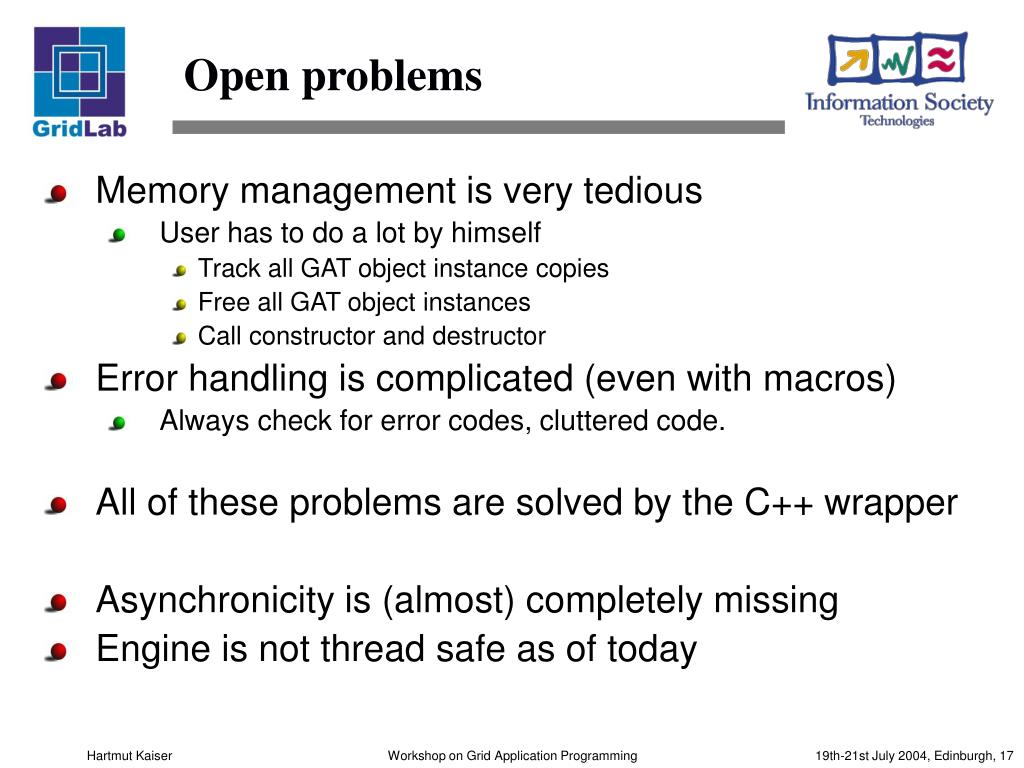

Open problems

  • Memory management is very tedious

    • User has to do a lot by himself

      • Track all GAT object instance copies

      • Free all GAT object instances

      • Call constructor and destructor

  • Error handling is complicated (even with macros)

    • Always check for error codes, cluttered code.

  • All of these problems are solved by the C++ wrapper

  • Asynchronicity is (almost) completely missing

  • Engine is not thread safe as of today

Workshop on Grid Application Programming
