  1. School of Computer Science CS 445 / 645 Internet Security Mon & Wed, 11:30 AM ~ 12:45 PM @ SEB 1240 Spring, 2012 Wednesday, Jan. 25, 2012 CS 445 – Internet Security

  2. Review CS 445 – Internet Security

  3. Types of keys – Symmetric Key • Same key for decryption and encryption • P = D(K, E (K, P)) • or conventional / private-key / single-key • sender and recipient share a common key • all classical encryption algorithms are private-key CS 445 – Internet Security

  4. Types of keys – Asymmetric Key • Solving the symmetric key problem • After a few thousand years of search, a solution was found in 1970’s • Different keys for encryption and decryption • Encryption key: KE • Decryption key: KD • P = D(KD, E (KE, P)) • Asymmetric key CS 445 – Internet Security

  5. Substitution Cipher - Caesar cipher • ci= E(pi) = pi + 3 TREATY IMPOSSIBLE Wuhdwb lpsrvvleoh • Can be broken easily by frequency analysis CS 445 – Internet Security

  6. Breaking Caesar Cipher frequency analysis p (c) Caesar’s cipher can be easily solved (i.e., finding i) by calculating (i) = 0 ≤ c ≤ 25f(c) p(c – i), where f(c) is the freq of cipher text letter CS 445 – Internet Security

  7. Another Substitution Cipher- One-Time Pad • One time pad = A large, nonrepeating set of keys • Encrytion and decryption • A section of the key is used once and destroyed • The receiver needs an identical pad to decrypt • It is a perfect cipher • Information-theoretically secure  IMPOSSIBLE to break • Data + Random = Random CS 445 – Internet Security

  8. One-time pad concept • Message: 1011 0010 . . . . . • Random number: 0110 1001 . . . . . • Encryption method: Exclusive OR • 0 0 = 0 • 0 1 = 1 • 1 0 = 1 • 1 1 = 0 • Encryption result 1011 0010 0110 1001 1101 1011 • Decryption result 1101 1011 0110 1001 1011 0010 CS 445 – Internet Security

  9. Columnar Transposition Example THIS IS A SAMPLE MESSAGE T H I S I S A S A M P L E M E S S A G E tsps hals isea samg imee tspsh alsis iasam gimee • Trivial to solve • You only need to know the number of columns CS 445 – Internet Security

  10. Breaking transposition cipher • Characteristic patterns of adjacent letters • Digram (pairs of letters) • Trigram (triples of letters) • Frequent occurrences • endings: -th, -ing, -ed, -ion, -ation, -tion,… • beginnings: im-, in-, re-, un-, en-, ... • patterns: -eek-, -oot-, -our-, … • words: of, end, to, with, are, is, … • Certain pairs of digrams and trigrams do not appear • E.g., -vk- and –qp- CS 445 – Internet Security

  11. Symmetric Key Encryption Algorithms DES

  12. Feistel Cipher • By Horst Feistel from IBM • Encryption and decryption operations are very similar. • First seen commercially in IBM’s Lucifer cipher • Partitions input block into two halves • multiple rounds which perform a substitution on left half • round function of right half & subkey • then have permutation swapping halves • Implements Shannon’s substitution-permutation network concept • Bit-shuffling (P-boxes) • Simple non-linear functions (S-boxes) • Linear mixing using XOR CS 445 – Internet Security

  13. IBM’s Lucifer • IBM was hired by Lloyds of London to arrange security for a cash dispensing network (early ATM machines.) • IBM developed Lucifer cipher • by team led by Feistel • used 64-bit data blocks with 128-bit key • Then redeveloped as a commercial cipher with input from NSA and others CS 445 – Internet Security

  14. Birth of DES (Data Encryption Standard) • In 1973 National Bureau of Standards (NBS) issued request for proposals for a “Data Encryption Standard” after consulting with the NSA • None met the criteria, second request issued in 1974 • IBM submits Lucifer to NBS • NBS submits Lucifer to NSA • NSA returns Lucifer with “tweaks” (was controversial) to S-boxes and 56-bit key • Strength of the cipher was reduced - Probably NSA did not want an encryption they could not break • This weakened version was officially adopted by NBS (now NIST) on Nov 23, 1976, and was called the Data Encryption Standard (DES), • NIST defined Triple DES (3DES) in 1999 CS 445 – Internet Security

  15. Controversy over DES • Lucifer was susceptible to differential cryptanalysis. • Differential Cryptanalysis (Chosen Plaintext attack) • Observes how differences in an input affects the output. • a set of techniques for tracing differences through the network of transformations, discovering where the cipher exhibits non-random behavior, and exploiting such properties to recover the secret key. • Published in late 1980’s • NSA couldn’t tell anybody! • Technique was secret until independently discovered by Adi Shamir • S-box changes by NSA made differential cryptanalysis useless against DES • IBM published a paper on this in the 90s. • DES is still not broken (except brute force attack) CS 445 – Internet Security

  16. Data Encryption Standard (DES) • Most widely used block cipher in the world • A Feistel Cipher • Block cipher with 16 iterations • Combination of substitution and transposition • Encrypts a 64-bit block of plain text using a 56-bit key • Three phases • Permute the 64 bits in the block • Apply a given operation 16 times on the 64 bits • Permute the 64 bits using the inverse of the original permutation 1st phase Round 1 . . . key 2nd phase Round 16 3rd phase CS 445 – Internet Security

  17. DES Algorithm 32-bit 32-bit 56-bit 48-bit 48-bit 32-bit 48-bit (different for each stage) 32-bit 48-bit 48-bit Cycles of Substitution and Permutation. 32-bit 32-bit CS 445 – Internet Security

  18. S-Box • Eight S-boxes which map 6 to 4 bits • Each 48-bit input is broken into 8 blocks, fed to each S-box • Each S-box is actually 4 little 4-bit boxes • outer bits 1 & 6 (row bits) select one rows • inner bits 2-5 (col bits) are substituted • result is 8 lots of 4 bits, or 32 bits • Example: 6×4-bit S-box (S5) • E.g., an input "011011" has outer bits "01" and inner bits "1101"; the corresponding output would be "1001". CS 445 – Internet Security

  19. Is the 56-bit key secure enough? • No • In 1997, using 3,500 machines in parallel, DES key is found in 4 months • In 1998, a DES-cracker machine ($100,000) found the key in 4 days • In 1999, less than 24 hours • Now? After 12 years…. • http://www.sciengines.com/copacobana/ or cloud • The short key was controversial from the moment it was introduced • How can we increase the key size? • Repeat DES multiple times • Double DES • Using two keys, encrypt twice, E(k2, E(k1, m)) • But wait! The security is not same as 112-bit key (Meet-in-the-middle attack) CS 445 – Internet Security

  20. Meet-in-the-middle attack • c= E(k2, E(k1, p)) • Assume attacker knows two pair of c and p • Attacker computes E(ki, p)) for all possible keys ki and stores them in a table • Memory space = 256 * p = 64,000,000,000,000,000 *p (64 peta entries) • Attacker then computes D(ki, c)) for each kiand compares the result with the table entries • Time complexity • 256 for E + 256 for D = 257 not 2112 ! Then sort by ciphertext CS 445 – Internet Security

  21. Triple DES • TDEA, or 3DES (in 1999) • E(k3, E(k2, E(k1, m))) • EEE • Key length = 168 bits, but the effective security is 112 bits due to meet-in-the middle attack • Best attack requires around 232 known plaintexts, 2113 steps, 290 single DES encryptions, and 288 memory (1998) • E(k3, D(k2, E(k1, m))) • EDE • Why? For backward compatibility with single-key DES (k1=k2) • Drawbacks • Relatively sluggish in software • Block size of 64-bit is too small CS 445 – Internet Security

  22. Symmetric Key Encryption Algorithms AES

  23. AES (Advanced Encryption Standard) • To replace DES, NIST issued a call in 1997 • The algorithms were all to be block ciphers, supporting a block size of 128 bits and key sizes of 128, 192, and 256 bits. • Such ciphers were rare at the time • Must not be patented and be public • NIST won praises from the cryptographic community for the openness in the standards process • Held 3 conferences AES1 (1998), AES2 (1999), AES3 (2000) • Candidates • First round (1998): 15 algorithms (CAST-256, CRYPTON, DEAL, DFC, E2, FROG, HPC, LOKI97, MAGENTA, MARS, RC6, Rijndael, SAFER+, Serpent, and Twofish) • Second round (1999): 5 algorithms (MARS, RC6, Rijndael, Serpent, and Twofish) CS 445 – Internet Security

  24. AES (Advanced Encryption Standard) • Rijndael was selected in Oct 2000 • Named after two inventors, Rijmen + Daemen, from Belgium • US picked a foreign-designed cipher as its standard! • Approved on November 2001 • AES = A Block cipher • Block size = 128 bits, Key size = 128, 192, 256 • Note: Original Rijndael allows key and block size in any multiple of 32 bits (128 ~256 bits) • Number of cycle is flexible = 10, 12, 14 • Not a Feistel network, but a S-P network • All S-boxes (8-bit) are identical • 6 times faster than DES CS 445 – Internet Security

  25. AES Operation • Data block of 4 columns of 4 bytes is state • Four different stages are used, one of permutation and three of substitution (except the last round) • byte substitution (1 S-box used on every byte) • shift rows (permute bytes between groups/columns) • mix columns (subs using matrix multiply of groups) • add round key (XOR state with key material) • Only the Add Round Key stage makes use of the key • Each stage is reversible • Add round key stage can be reversed with key • P  K K= P CS 445 – Internet Security

  26. AES Operation CS 445 – Internet Security

  27. AES • http://www.cs.bc.edu/~straubin/cs381-05/blockciphers/rijndael_ingles2004.swf CS 445 – Internet Security

  28. Security of AES • No attack has succeed yet, but still it need to stand “test of time” • Many attack attempts are being made • US government usage recommendation • Up to SECRET class: all key sizes • TOP SECRET: with 192 or 256 bit CS 445 – Internet Security

  29. Random Numbers

  30. Random Numbers • Many uses of random numbers in cryptography • nonces in authentication protocols to prevent replay • session keys • public key generation • keystream for a one-time pad • In all cases its critical that these values be • statistically random, uniform distribution, independent • Unpredictability of future values from previous values • True random numbers provide this • Care needed with generated random numbers CS 445 – Internet Security

  31. Netscape’s “secret” key in 1995 • Random number = strings of only 40 bits • hackers were able to break these codes, even with mid-1990s computer speeds, in about 30 hours. • Based on just three values —all predictable! • time of day • process identification number • parent-process identification number • This allowed the attackers to reduce the number of keys that they needed to try • http://spectrum.ieee.org/computing/hardware/behind-intels-new-randomnumber-generator (sep, 2011 IEEE Spectrum) CS 445 – Internet Security

  32. Pseudorandom Number Generators • Often use deterministic algorithmic techniques to create “random numbers” • Not truly random • But it can pass many tests of “randomness” • Known as “pseudorandom numbers” • Created by “Pseudorandom Number Generators (PRNGs)” CS 445 – Internet Security

  33. Random number generators • Seed: a fixed value • Context specific values: User ID, application ID CS 445 – Internet Security

  34. Getting True Random Numbers • Physical methods • Dice, coin flipping, roulette • Radioactive decay, thermal noise, clock drift • Hardware random number generator • SSL Accelerator card • Intel’s method • RdRand instruction from 2012 (Digital RNG) • Web service • www.random.org CS 445 – Internet Security

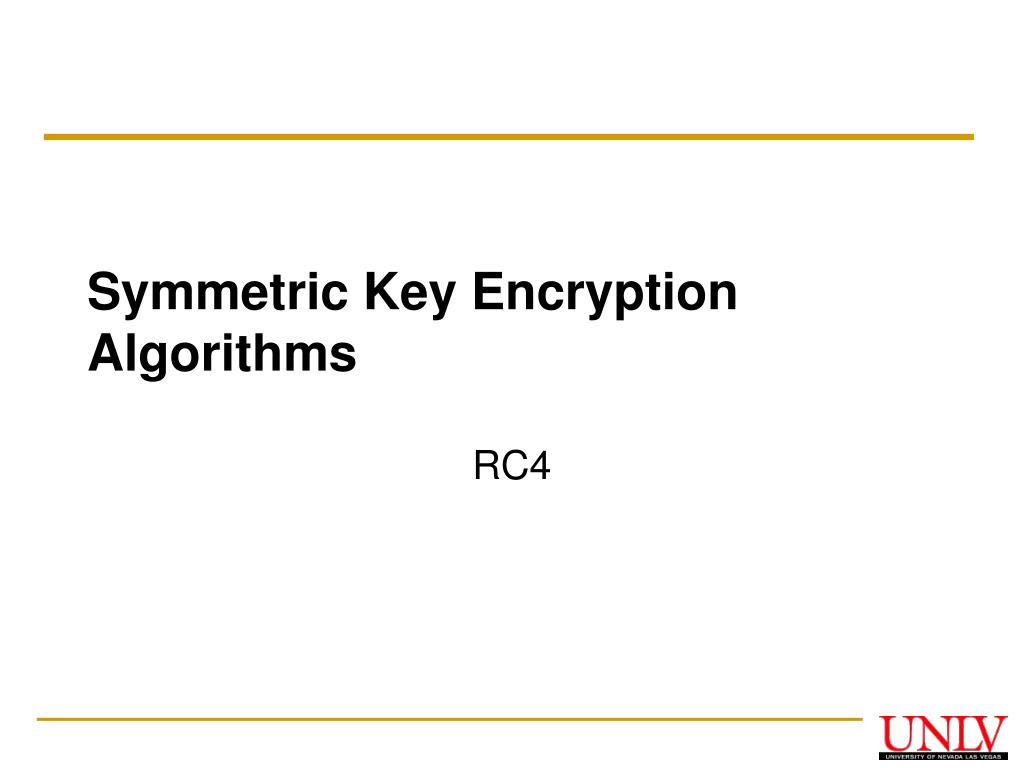

  35. Symmetric Key Encryption Algorithms RC4

  36. Stream Cipher • Pseudo one-time pad • Requirements • long period with no repetitions • statistically random • depends on large enough key • large linear complexity • properly designed, can be as secure as a block cipher with same size key • but usually simpler & faster CS 445 – Internet Security

  37. RC4 • Designed by Ron Rivest of RSA Security in 1987 (Rivest Cipher 4) • Stream cipher • Encrypt one bytes at a time • Almost random number: Period of cipher is greater than 10100 • You can use it as a random number generator • Very fast • 8-16 machine instructions per output byte • Popular method, including WEP, WPA and SSL. • thanks to its impressive speed and simplicity. CS 445 – Internet Security

  38. RC4 • RC4 generates a pseudorandom stream of bits (a "keystream") which, for encryption/decryption, is combined with the plaintext using XOR • Key size 40~256 bits (5 to 32 bytes) • Inputs: Key and Data • Output: Unique keystream of data (PRGA) equal to the length of input data • Example • Plaintext = 1010 • keystream = 0011  • Ciphertext = 1001 CS 445 – Internet Security

  39. How does it work? • Key scheduling algorithm (KSA) • A variable length key, between 40 and 256 bits, is used to initialize the 256-byte state vector (S) • Pseudo Random Generation Algorithm (PRGA) • To generate the keystream, the cipher makes use of a secret internal state which consists of two parts: • A permutation of all 256 possible bytes (S). • Two 8-bit index-pointers (denoted "i" and "j"). • A byte k is generated from S, and S is again permuted CS 445 – Internet Security

  40. Caution • Use unsigned char for data types • The output is probably unprintable character • Print the decimal values CS 445 – Internet Security

  41. 1. The key-scheduling algorithm (KSA) • Initializes the permutation in the array S. • keylen is defined as the number of bytes in the key and can be in the range 1 ≤ keylen ≤ 256, typically between 5 and 16. • First, the array "S" is initialized to index number. • S is then processed for 256 iterations • The only operation is swap, so original content is not changed for i from 0 to 255 S[i] := i; j := 0; for i from 0 to 255 { j := (j + S[i] + key[i mod keylen]) mod 256; swap(S[i], S[j]); } CS 445 – Internet Security

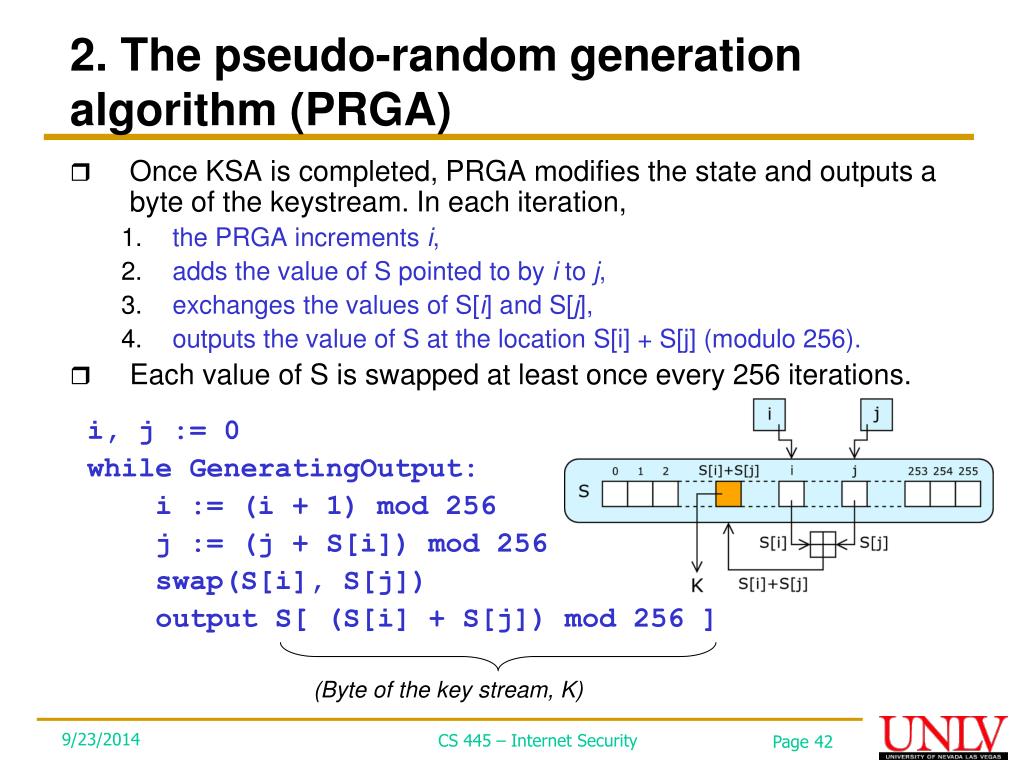

  42. 2. The pseudo-random generation algorithm (PRGA) • Once KSA is completed, PRGA modifies the state and outputs a byte of the keystream. In each iteration, • the PRGA increments i, • adds the value of S pointed to by i to j, • exchanges the values of S[i] and S[j], • outputs the value of S at the location S[i] + S[j] (modulo 256). • Each value of S is swapped at least once every 256 iterations. i, j := 0 while GeneratingOutput: i := (i + 1) mod 256 j := (j + S[i]) mod 256 swap(S[i], S[j]) output S[ (S[i] + S[j]) mod 256 ] (Byte of the key stream, K) CS 445 – Internet Security

  43. Security of RC4 • The keystream generated by RC4 is slightly biased in favor of certain sequences of bytes. • Attack by Fluhrer and McGrew. • RC4 does not take a nonce alongside the key. • Not recommended for use in new applications. • Fluhrer, Mantin and Shamir attack (2001) • The statistics for the first few bytes of output keystream are strongly non-random, leaking information about the key. • This and related effects were then used to break the WEP. • Can avoid by discarding the initial portion of the keystream (say the first 1024 bytes) CS 445 – Internet Security

  44. Speed comparison RSA Enc ~ 1024 bit/8 * 1000/0.18 = 711 KB/sec RSA Dec ~ 1024 bit/8 * 1000/4.77 = 27 KB/sec http://www.cryptopp.com/benchmarks.html CS 445 – Internet Security

  45. Next class • More on symmetric Key algorithms • Modes of operation • Other symmetric key algorithms • Public Key Algorithms • RSA • DH CS 445 – Internet Security
