Presentation Transcript


“the power system”


  • Nearly half our weight comes from muscle tissue.

  • There are 650 different muscles in the human body.

  • Muscles give us form and shape.

  • Muscles produce most of our body heat.

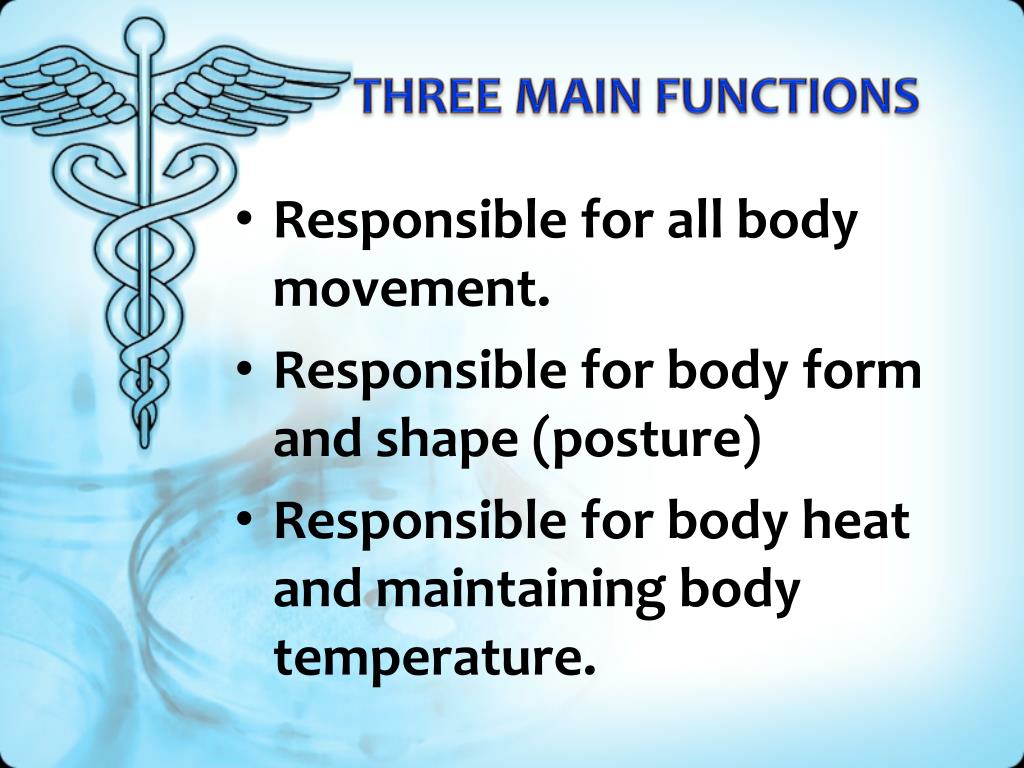

  • Responsible for all body movement.

  • Responsible for body form and shape (posture)

  • Responsible for body heat and maintaining body temperature.

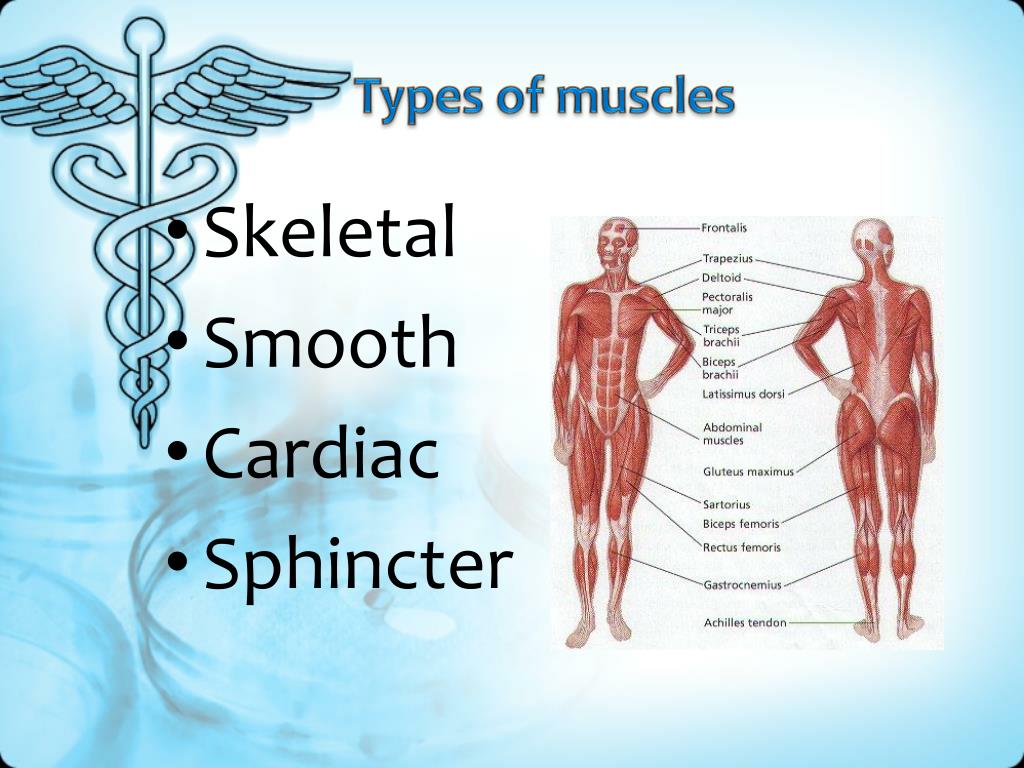

Types of muscles

  • Skeletal

  • Smooth

  • Cardiac

  • Sphincter

Skeletal Muscle

  • Attached to bone

  • Striated (striped) appearance


  • Contract quickly, fatigue easily, can’t maintain contraction for long period of time

Skeletal Muscles

  • Each skeletal muscle cell contains many nuclei

  • Muscle cells are known as muscle fibers

  • Cell membrane is call sarcolemma

  • Cytoplasm is called sarcoplasm

Smooth Muscle

  • Visceral (organ) muscle

  • Found in walls of digestive system, uterus and blood vessels

  • Cells small and spindle-shaped


  • Controlled by autonomic nervous system

  • Act slowly, do not tire easily, can remain contracted for long time

Cardiac Muscle

  • Found only in the heart

  • Striated and branched

  • Involuntary

  • Cells are fused – when one contracts, they all contract


  • special circular muscles in openings of esophagus and stomach, stomach and small intestine, anus, urethra and mouth.


  • CONTRACTIBILITY – the ability of a muscle to reduce the distance between the parts of its contents or the space it surrounds.

  • EXCITEABILITY (IRRITABILITY) – the ability to respond to certain stimuli by producing impulses.

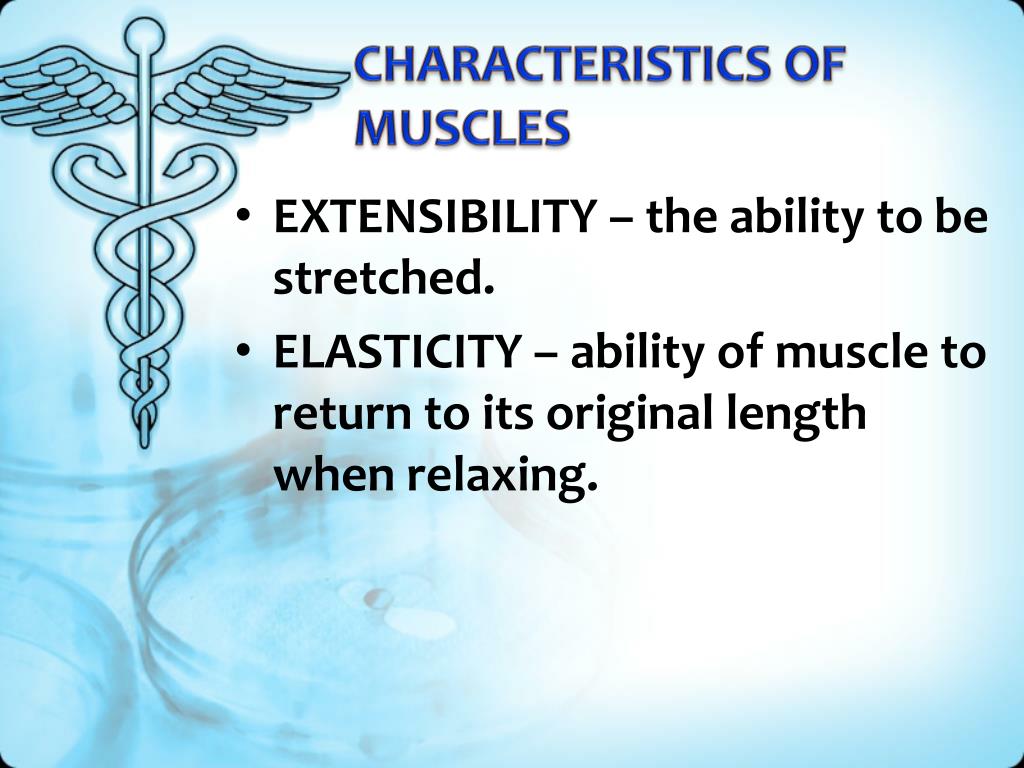

  • EXTENSIBILITY – the ability to be stretched.

  • ELASTICITY – ability of muscle to return to its original length when relaxing.

Naming Muscles

  • Location:

    • frontalis-forehead

  • Size:

    • gluteus maximus

  • Direction of fibers:

  • external abdominal oblique

  • Number of origins:

    • Biceps-two headed muscle in humerus

  • Location of origin and Insertion: sternocleidomastoid- origin in sternum

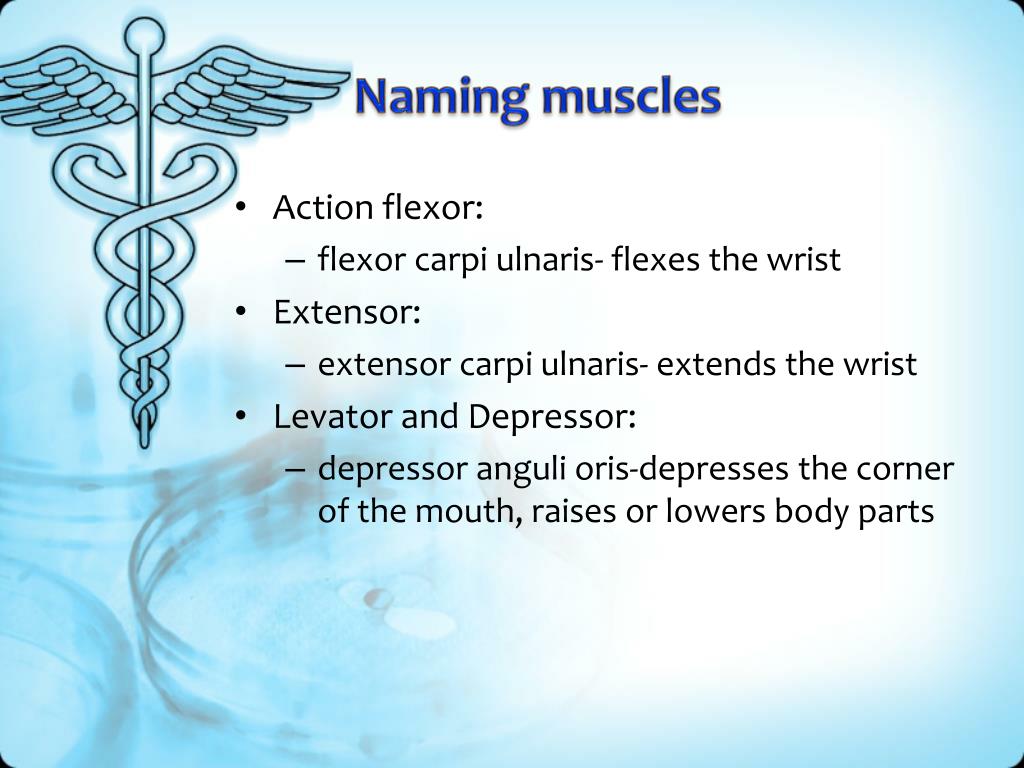

Naming muscles

  • Action flexor:

    • flexor carpiulnaris- flexes the wrist

  • Extensor:

    • extensor carpiulnaris- extends the wrist

  • Levator and Depressor:

    • depressor angulioris-depresses the corner of the mouth, raises or lowers body parts


  • Muscles move bones by pulling on them.

  •  As a muscle contracts, it pulls the insertion bone closer to the origin bone. Movement occurs at the joint between the origin and the insertion.

  • Rule: A muscle’s insertion bone moves toward its origin bone.

  • Groups of muscles usually contract to produce a single movement.

Muscle Contraction

  • Sarcolemma: muscle cell membrane

  • Synaptic Cleft: gap between the axon and the muscle cell.

Muscle Contraction

  • MOTOR UNIT – a motor neuron plus all the muscle fibers it stimulates.

  • NEUROMUSCULAR JUNCTION – the junction between the motor neuron’s fiber which transmits the impulse – and the muscle cell membrane.

  • ACETYLCHOLINE – chemical neurotransmitter, diffuses across the synaptic cleft (carries impulse across synaptic cleft)

  • MUSCLE FATIGUE – caused by the accumulation of lactic acid in the muscles.

  • OXYGEN DEBT – after exercise, the amount of oxygen needed by the muscle to change lactic acid back to glucose.

  • MUSCLE TONE - When muscles are slightly contracted and ready to pull.

Muscle Efficiency

  • Improves:

    -Coordination of all muscles involved

    -Respiratory and circulatory system to supply needs of active muscular system

    -Elimination of excess fat

    -Joint movement involved with that muscle activity

Muscle Strength

  • Strength (capacity to do work) is increased with training

  • Muscle size increase due to change in the sarcoplasm (cytoplasm found in the individual skeletal muscle fibers) Not the increase in the number of muscle fiber cells

Muscle Attachments

  • Tendons: non-elastic cords that attach muscles to bones

  • Bones are connected at joints


  • Dome-shaped muscle that separates the abdominal and thoracic cavities, aids in breathing

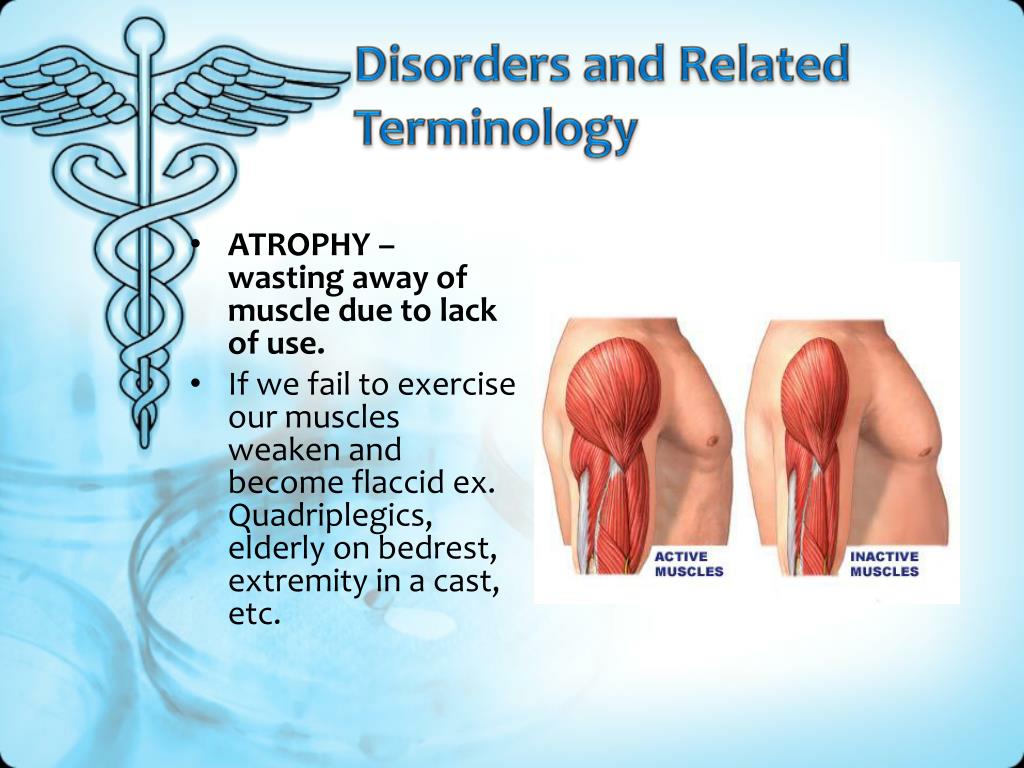

Disorders and Related Terminology

  • ATROPHY – wasting away of muscle due to lack of use.

  • If we fail to exercise our muscles weaken and become flaccid ex. Quadriplegics, elderly on bedrest, extremity in a cast, etc.

  • Massage of these muscles is essential in providing the proper physiotherapy or a general sense of comfort and well-being to a patient, also prevents atrophy in debilitated patients

  • HYPERTROPHY – an increase in the size of the muscle cell.

  • when over exercise the size of the muscle fibers increase due to a change in the sarcoplasm (not due to an increase in number of muscle fiber cells)

  • STRAIN – tear in the muscle resulting from excessive use. Bleeding inside the muscle can result in pain and swelling. Ice packs will help stop bleeding and reduce swelling.

    • RICE : rest, ice, compression, elevation

  • Rehabilitation: retaining of injured or unused muscles

  • MYALGIA – muscle pain

  • TENDONITIS – inflammation of a tendon

  • MUSCLE SPASM (cramp) – sustained contraction of the muscle, usually because of overuse.


  • Or wry neck, may be due to an inflammation of the trapezius and/or

  • Sternocleidomastoid muscle
