Liquid processor platform

Liquid Processor Platform

The goal of this project is to develop a soft core embedded processor system that can be programmed via a network connection.

This platform is to be used as the based system for a larger “Liquid Architecture” project that will make modifications to the Leon processor for experimental purposes.

Visit: http://www.arl.wustl.edu/arl/projects/fpx/reconfig.htm


Team members

Team Members

  • Phillip Jones (team leader)

    • High-level hardware architecture

  • Shobana Padmanabhan

    • Control Software development

  • John Maschmeyer

    • SDRAM controller interface

  • Daniel Rymarz

    • Cross-compiler, Executable -> IP packet formatting


Soc block diagram

SOC Block Diagram

Off-Chip

SRAM/SDRAM 1

SRAM/SDRAM 1

Controller

Leon Controller

Control Packet

Processor

(cpp)

(Modified MP3)

Alert Generator

(Modified MP3)

LEON

system

Layered Protocol Wrappers


Liquid processor platform

LEON system

LEON

Processor

ICACHE DCACHE

Data / Address

To Leon

Controller

Memory

Controller

UART

AHB

Serial port

APB

Adapter

Boot

Rom

LED Driver

LEDs

Key

Present

Modified


Motivation

Motivation

  • Soft-core embedded Processor:

    • Very flexible processor that would be useful for quickly prototyping systems with different parameters (e.g. pipe-line depth, cache size, hardware-accelerated instructions, etc.) to perform performance evaluations

  • Programmable / Configurable over a Network:

    • Motivated by the desire to integrate the soft-core processor into the FPX environment (FPX environment will provide an infrastructure for dynamic reconfiguration)


References related work

References & Related Work

  • The base Leon system used in this project can be downloaded from

    • http://www.gaisler.com/download.html

  • Other projects that have used the Leon system

    • http://www.gaisler.com/leon.html#leonlinks


Design approach

Design Approach

  • Start with Leon Processor base

    • Supplies many of the components that will be needed in the end system.

      • Soft-core processor

      • Memory controller

      • General I/O Drivers (for Liquid “Architecture Project”)

      • System/Processor Bus (AMBA)

  • Develop and Integrate new features

    • Control SW

    • Modify Boot ROM

    • AMBA to SDRAM Controller Adapter

    • Control Packet routing (MP3 cpp as base)

    • Validation Environment (MP3 Testbench as base)


Soc block diagram1

SOC Block Diagram

Off-Chip

SRAM/SDRAM 1

SRAM/SDRAM 1

Controller

Leon Controller

Control Packet

Processor

(cpp)

(Modified MP3)

Alert Generator

(Modified MP3)

LEON

system

Layered Protocol Wrappers


Design data

Design Data

  • New/Modified Entities

    • LEON Controller

      • Control LEON access to memory / Start of program execution

    • LEON Boot ROM

      • modified to poll a given memory address at boot up

    • LEON Memory Controller

      • modified to interface with FPX SDRAM

  • External Memory Interfaces

    • 1 SRAM/SDRAM Interface

  • Estimated Size

    • Number of LUTs: 12,277 (31%)

    • Number of Slices: 7900 (41%)

    • Number of BlockRAMs: 54 (33%)

    • Synthesis Frequence: 30 MHz


Tasks

Tasks

  • Config/Build/Validation Environment

    • Configuration of Leon system

      • Cache size, MMU, Memory access wait states …

    • Integration of Leon system into MP3 validation environment

  • Control Packet Process

    • Direct the appropriate Control packets to Leon Controller (Read/Write SRAM, Start program, …)

  • SDRAM Interface

    • Needed if larger applications such as Linux are to be run on the Liquid processor system


Tasks cont

Tasks (cont.)

  • Control SW

    • Automate tasks (e.g. Load Program, read/write RAM location “x”, Reset Processor, …)

    • Definition of control packets

  • Sparc Assembly programming & Cross-compiler code generation

    • Develop test programs for Leon to execute

      • conversion of executable into IP packet payload


Implementation testing

Implementation & Testing

  • Hardware

    • Leon Controller

    • Leon Processor

    • SDRAM interface

  • Software

    • Control software

    • Cross-compiler, executable conversion


Liquid processor platform

Leon Boot Check

Message to user

“LEON READY”

SRAM

data_in

data_out

Leon Boot

Monitor

‘Z’

SRAM_OE

CpuData

Leon Processor

CpuAddr


Liquid processor platform

Leon Control Hardware

Message to user

“LEON READY”

SRAM

data_in

data_out

Leon Control

State Machine

Check for

CpuAddr = CheckReady

‘0’

LeonGo

CpuAddr

LeonGo

UserAddr

‘Z’

LeonGo

UserStart

SRAM_OE

CpuData

UserData

Leon Processor

CpuAddr


Liquid processor platform

Simple “User” Emulation

Send result to user

(via IP packet)

SRAM

Leon Control

State Machine

&

User Emulation

data_in

data_out

‘0’

LeonGo

CpuAddr

LeonGo

‘Z’

LeonGo

UserAddr

SRAM_OE

CpuData

UserData

Leon Processor

CpuAddr


Liquid processor platform

Boot Rom Modifications

Set Config registers

Set Config registers

Set up dedicated SRAM space

Set up dedicated SRAM space

Wait for

UART Event

Wait for

Go Leon

flush

Load: ld reg value

CheckReady: ld reg ProgAddr

btst 1 reg

cmp 0 reg

be “Load”

be “CheckReady”

nop

jmp reg

Original Leon Boot code

Modified Leon Boot code


Motivation for sdram

Motivation for SDRAM

  • SRAM - 1 MB, SDRAM - 64 MB

    • Large Programs will need the extra memory space

  • SRAM solution uses existing LEON memory outputs

    • Easy to implement

    • Performance is limited

  • For Better Performance, connect directly to AMBA bus

    • Requires modifying LEON

    • More difficult to implement

    • Allows for performance enhancements


Sdram adapter overview

SDRAM Adapter: Overview

  • FPX SDRAM Controller

    • Arbitrated support for up to 3 modules

    • Support for Sequential Bursts of fixed length

    • 64-bit bus to SDRAM

  • AMBA AHB Bus

    • Support for sequential and non-sequential bursts of unspecified length

    • 32-bit wide data bus


Sdram adapter design

SDRAM Adapter: Design

  • Must handle protocols for both sides

    • Operate as an AMBA AHB slave

    • Handle Handshaking with SDRAM Controller

  • Difference in bus width causes some problems

    • Reads can simply return correct 32-bit segment

    • Writes must first read full 64-bits, then modify only correct segment


Sdram adapter support for bursts

SDRAM Adapter: Support for bursts

  • Controller cannot handle non-sequential bursts

    • Handshake required between each access

  • Sequential bursts are limited by unspecified burst length

    • Simulations seem to indicate that bursts tend to be no longer than 4 32-bit words

    • Solution: Design for bursts of 4 32-bit words

      • No real loss for shorter bursts

      • Longer bursts will require an additional handshake

    • Write bursts cannot occur


Control s w architecture

Control S/W Architecture

H/W

Internet

Java Emulator

of the H/W

(for debugging)

  • 1. Compile w/ GCC

  • 2. Assemble w/ GAS

  • 3. Link w/ LD

  • 4. Convert to bin w/ OBJCOPY

  • 5. Convert to IP w/ Forth program

1. Upload the IP from the prev step

2. Enter other UDP parameters

Java Servlet (running on Apache TomCat)

acting asUDP Client


Control s w web page

Control S/W web page

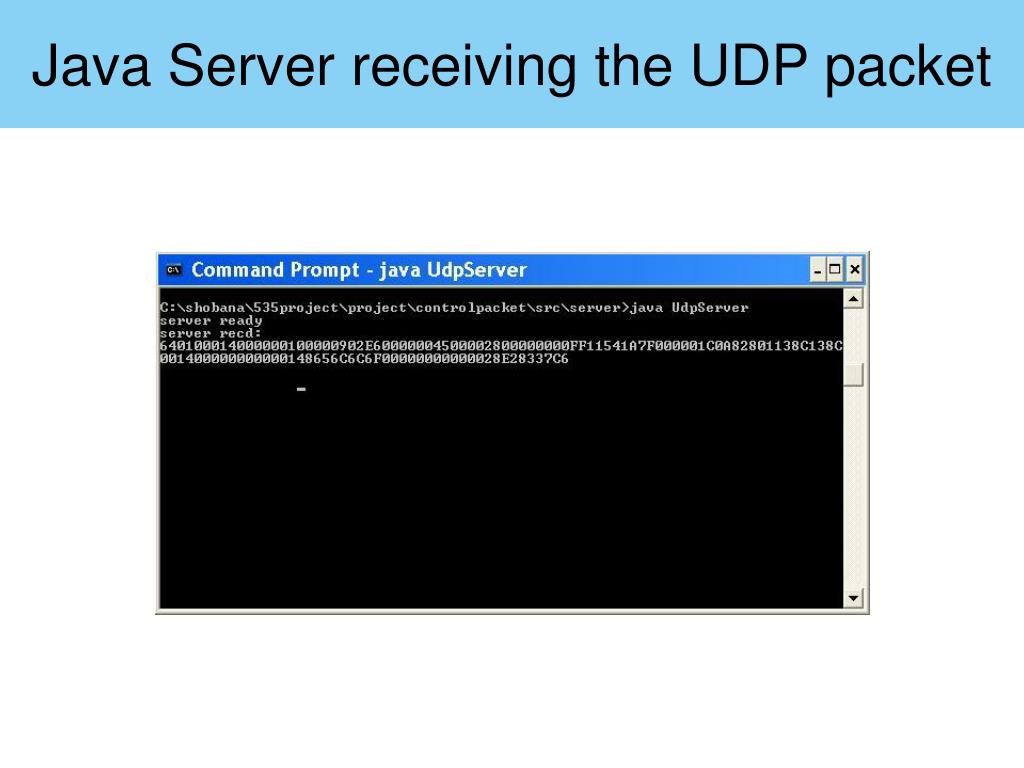

Java server receiving the udp packet

Java Server receiving the UDP packet


Control packet for write

Control packet for memory write = x64

Control packet for write

32 bits

Ver

IHL

Type of service

Total length

Identification

Flags

Fragment offset

TTL

Protocol

Header checksum

Source address

Destination address

Source port

Destination port

Length

Checksum

Opcode

String length

Packet sequence number

Memory address

Byte 3

Byte 2

Byte 1

Byte 4

Byte N - 3

Byte N - 2

Byte N - 1

Byte N


Liquid processor platform

Control packet for start = x50, halt = x54 CPU

32 bits

Ver

IHL

Type of service

Total length

Identification

Flags

Fragment offset

TTL

Protocol

Header checksum

Source address

Destination address

Source port

Destination port

Length

Checksum

Opcode


Liquid processor platform

Control packet for memory read = x60

32 bits

Ver

IHL

Type of service

Total length

Identification

Flags

Fragment offset

TTL

Protocol

Header checksum

Source address

Destination address

Source port

Destination port

Length

Checksum

Opcode

Memory address

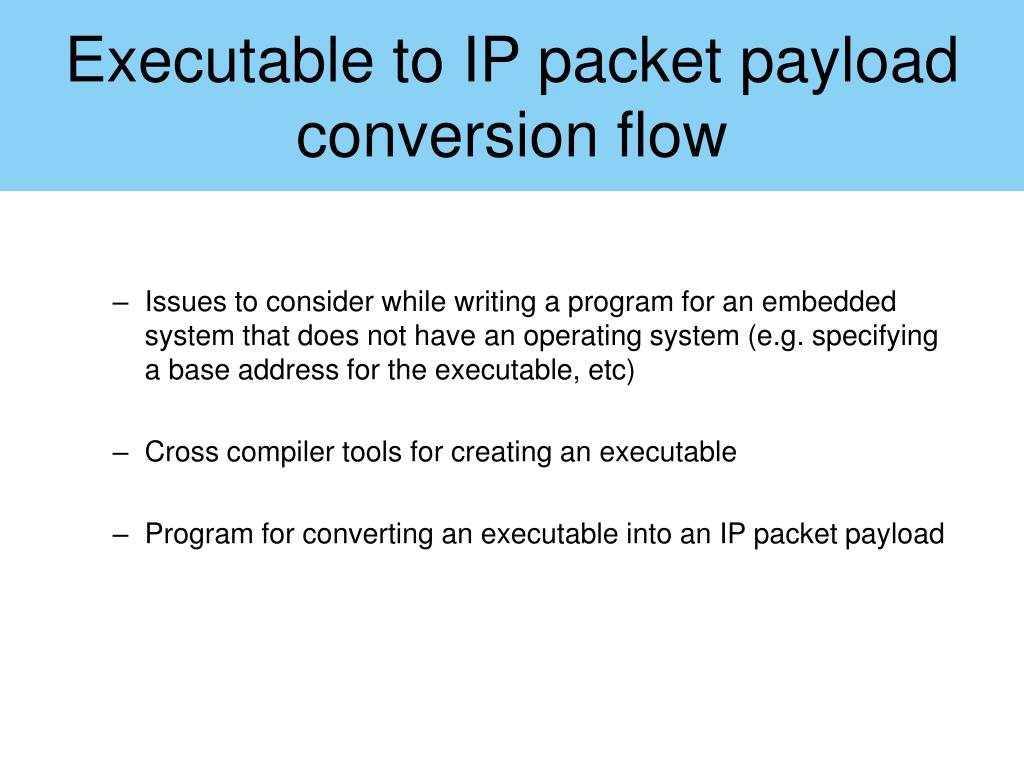

Executable to ip packet payload conversion flow

Executable to IP packet payload conversion flow

  • Issues to consider while writing a program for an embedded system that does not have an operating system (e.g. specifying a base address for the executable, etc)

  • Cross compiler tools for creating an executable

  • Program for converting an executable into an IP packet payload


Embedded compilation

Embedded Compilation

  • Link script must be written w/ memory map in mind

  • Currently the link information is done on the LD command line

  • In general a separate link script is used


S w compilation flow

S/W Compilation Flow

  • Uses LECCS Compiler System

    • GCC Based

  • Test PROMs used LEON compile scripts

  • General compile system developed uses DOS .bat compile script

    • Compile w/ GCC

    • Assemble w/ GAS

    • Link w/ LD

    • Convert to binary w/ OBJCOPY

    • Convert to IP w/ Forth program

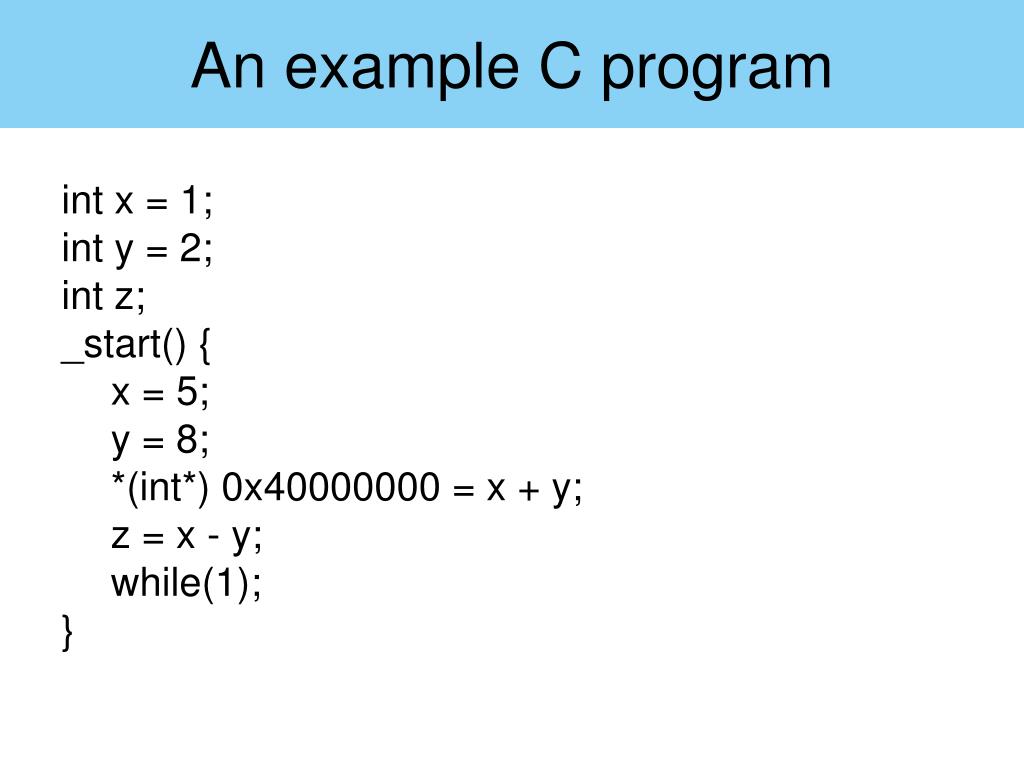

An example c program

An example C program

int x = 1;

int y = 2;

int z;

_start() {

x = 5;

y = 8;

*(int*) 0x40000000 = x + y;

z = x - y;

while(1);

}


Compile script

Compile script

sparc-rtems-gcc test.c -S

sparc-rtems-as test.s -o test.o

sparc-rtems-ld test.o -Ttext 0x0 -Tdata 0x1000 -Tbss 0x2000

sparc-rtems-objcopy a.out -O binary a.bin

\gforth0.6.2\gforth tobin.fs > \class\leon2\input_ip.dat


Conversion to ip

Conversion to IP

s" a.bin" r/o open-file throw value fp

fp file-size throw drop value fsize

fsize allocate throw value buf

buf fsize fp read-file throw

fp close-file throw

hex

( print 32 bit big-endian word on little-endian processor )

: .BE

dup 04 rshift 0f and 0 1 ud.r dup 00 rshift 0f and 0 1 ud.r

dup 0c rshift 0f and 0 1 ud.r dup 08 rshift 0f and 0 1 ud.r

dup 14 rshift 0f and 0 1 ud.r dup 10 rshift 0f and 0 1 ud.r

dup 1c rshift 0f and 0 1 ud.r 18 rshift 0f and 0 1 ud.r

;

( print 32 bit little-endian word on little-endian processor )

: .LE

dup 1c rshift 0f and 0 1 ud.r dup 18 rshift 0f and 0 1 ud.r

dup 14 rshift 0f and 0 1 ud.r dup 10 rshift 0f and 0 1 ud.r

dup 0c rshift 0f and 0 1 ud.r dup 08 rshift 0f and 0 1 ud.r

dup 04 rshift 0f and 0 1 ud.r 00 rshift 0f and 0 1 ud.r

;


Conversion to ip 2

Conversion to IP (2)

: dump-file

fsize 4 / 0 do

." IPpacket" cr

45000028 .LE cr

00000000 .LE cr

40110000 .LE cr

7f000001 .LE cr

807F0001 .LE cr

0000BEEF .LE cr

00140000 .LE cr

74090000 .LE cr

i cells .LE cr

buf i cells + @ .BE cr

." wait_100" cr

loop

." IPpacket" cr

45000028 .LE cr

00000000 .LE cr

40110000 .LE cr

7f000001 .LE cr

807F0001 .LE cr

0000BEEF .LE cr

00140000 .LE cr

74090000 .LE cr

00000006 .LE cr

00000000 .LE cr

." wait_100" cr

;


Conversion to ip 3

Conversion to IP (3)

dump-file

buf free throw

bye


Liquid processor platform

Interaction with LEON

  • Basic steps for “User” to interface with LEON/SRAM:

    • Wait for “READY” message

    • Load Program to SRAM

    • Send LEON “START” message

    • Wait for “DATA” message

    • Read results from SRAM


Liquid processor platform

Sample program & Screen Shot

Sample Program (pseudo code)

x = 5

y = 6

y = x + y

RAM[0x4000_0000] = y

jmp “wait for next start”


Questions

Questions?

Off-Chip

SRAM/SDRAM 1

SRAM/SDRAM 1

Controller

Leon Controller

Control Packet

Processor

(cpp)

(Modified MP3)

Alert Generator

(Modified MP3)

LEON

system

Layered Protocol Wrappers


Interface to sdram controller

Interface to SDRAM Controller

  • SDRAM must be accessed by User and Processor

  • FPX SDRAM Controller

    • Provides arbitrated access to SDRAM for up to three devices

    • Support for burst transfers up to 256 words


Interface to sdram controller1

Interface to SDRAM Controller

  • Connecting to LEON controller

    • Simple State Machine to Perform Handshaking

  • Connecting to LEON Core

    • Replace existing SDRAM Controller

    • Build adapter to bridge FPX SDRAM Controller to LEON memory controller

  • Other Key Issues

    • Support for additional memory types

    • Changing the LEON address space


  • Login
