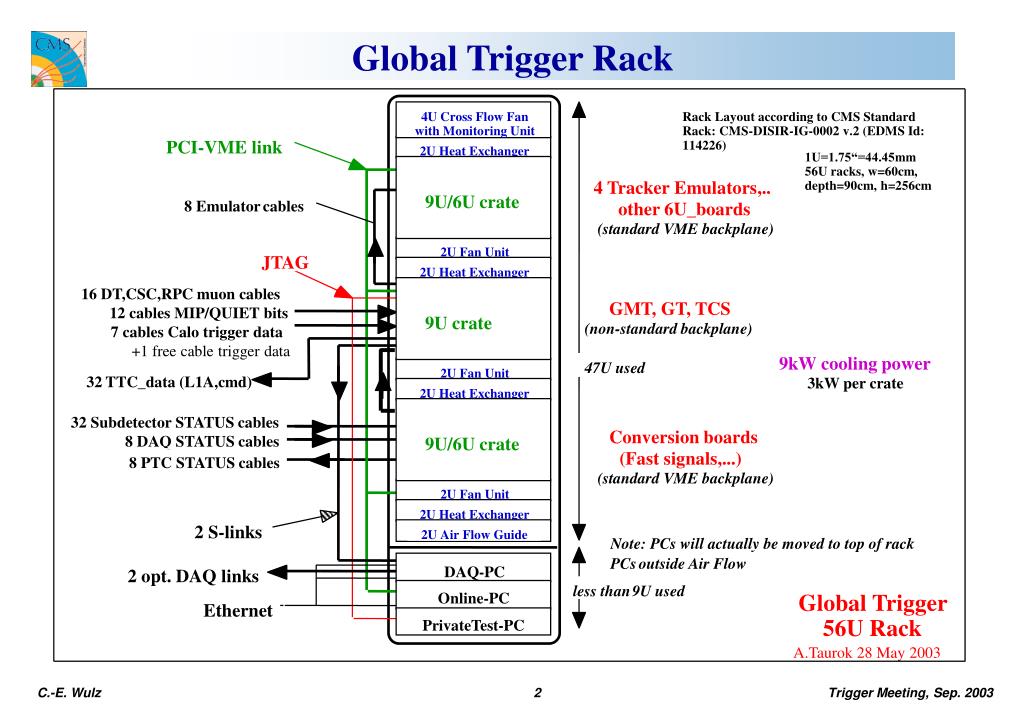

Global trigger rack

4

U Cross Flow Fan

Rack Layout according to CMS Standard

with Monitoring Unit

Rack: CMS-DISIR-IG-0002 v.2 (EDMS Id:

PCI-VME link

114226)

2

U Heat Exchanger

1U=1.75“=44.45mm

56U racks, w=60cm,

4 Tracker Emulators,..

depth=90cm, h=256cm

9U/6U crate

8 Emulator

cables

other 6U_boards

(standard VME backplane)

2

U Fan Unit

JTAG

2

U Heat Exchanger

16 DT,CSC,RPC muon cables

GMT, GT, TCS

12 cables MIP/QUIET bits

9U crate

(non-standard backplane)

7 cables

Calo trigger data

+1 free cable trigger data

9kW cooling power

47U used

2

U Fan Unit

32

TTC_data (L1A,cmd)

3kW per crate

2

U Heat Exchanger

32 Subdetector

STATUS cables

Conversion boards

8 DAQ STATUS cables

9U/6U crate

(Fast signals,...)

8 PTC STATUS cables

(standard VME backplane)

2

U Fan Unit

2

U Heat Exchanger

2 S-links

2

U Air Flow Guide

Note: PCs will actually be moved to top of rack

PCs

outside Air Flow

DAQ

-PC

2 opt. DAQ links

less than

9

U used

Online-PC

Global Trigger

Ethernet

56U Rack

PrivateTest-PC

A.Taurok 28 May 2003

Global Trigger Rack


Global trigger crate
Global Trigger Crate

All boards on front side.

Boards arranged for minimum cable length.

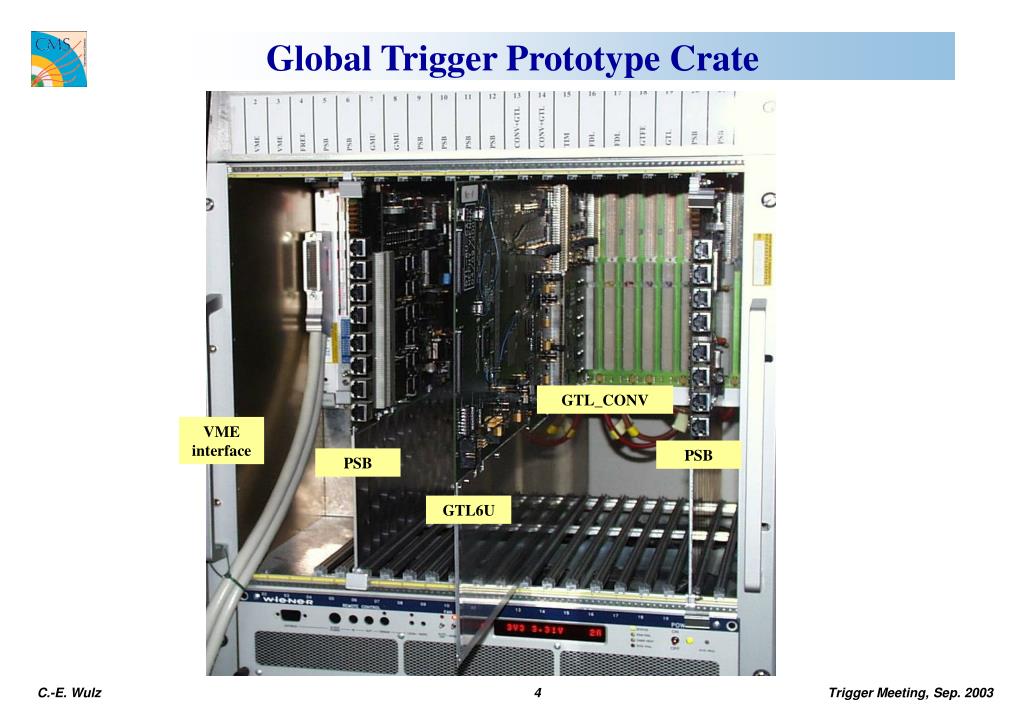

Global trigger prototype crate
Global Trigger Prototype Crate

GTL_CONV

VME

interface

PSB

PSB

GTL6U


Psb 6u prototype board
PSB-6U Prototype Board

Synchronisation and monitoring of trigger data

PSB6U only for the Prototype Crate

VME

interface

ROP for DAQ

Input module

SYNC

chips

MEMORY


Psb in80 for psb 6u

new

PSB_IN80 for PSB-6U

Registers for 40 80 MHz conversion

40, 80 MHz CLK drivers

DS92LV16 receivers

DS92LV16 transmitter for tests

Infiniband connectors

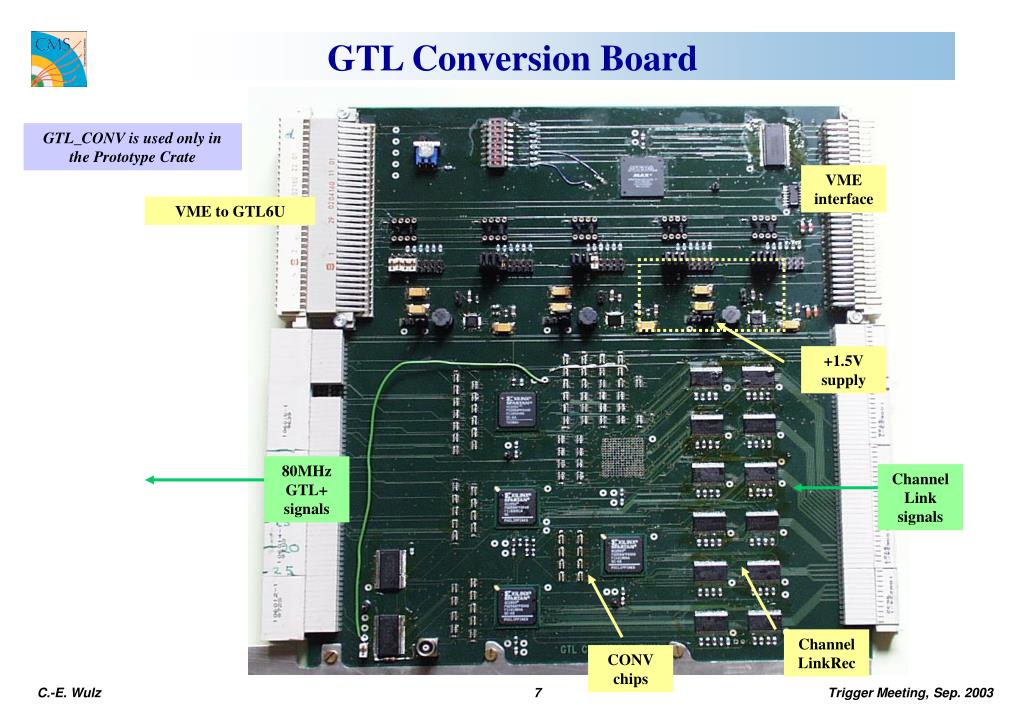

Gtl conversion board
GTL Conversion Board

GTL_CONV is used only in the Prototype Crate

VME

interface

VME to GTL6U

+1.5V supply

80MHz

GTL+

signals

Channel

Link

signals

ChannelLinkRec

CONV

chips


Gtl 6u logic board right side

VME

COND chips

4 muons

4x4 calo

objects

GTL+

signals

REC chips

GTL-6U Logic Board (right side)

GTL6U will be used in the prototype crate as well as in the final GT-crate

Calculates 64 trigger algorithms

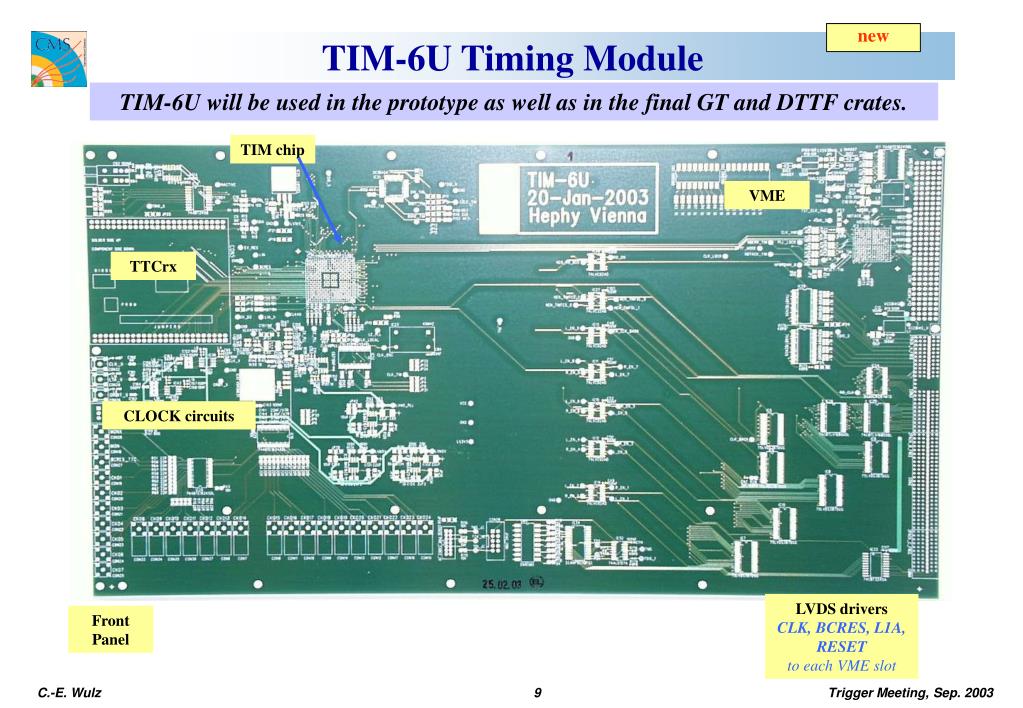

Tim 6u timing module

TIM chip

new

TIM-6U Timing Module

TIM-6U will be used in the prototype as well as in the final GT and DTTF crates.

VME

TTCrx

CLOCK circuits

LVDS drivers

CLK, BCRES, L1A, RESET

to each VME slot

Front Panel

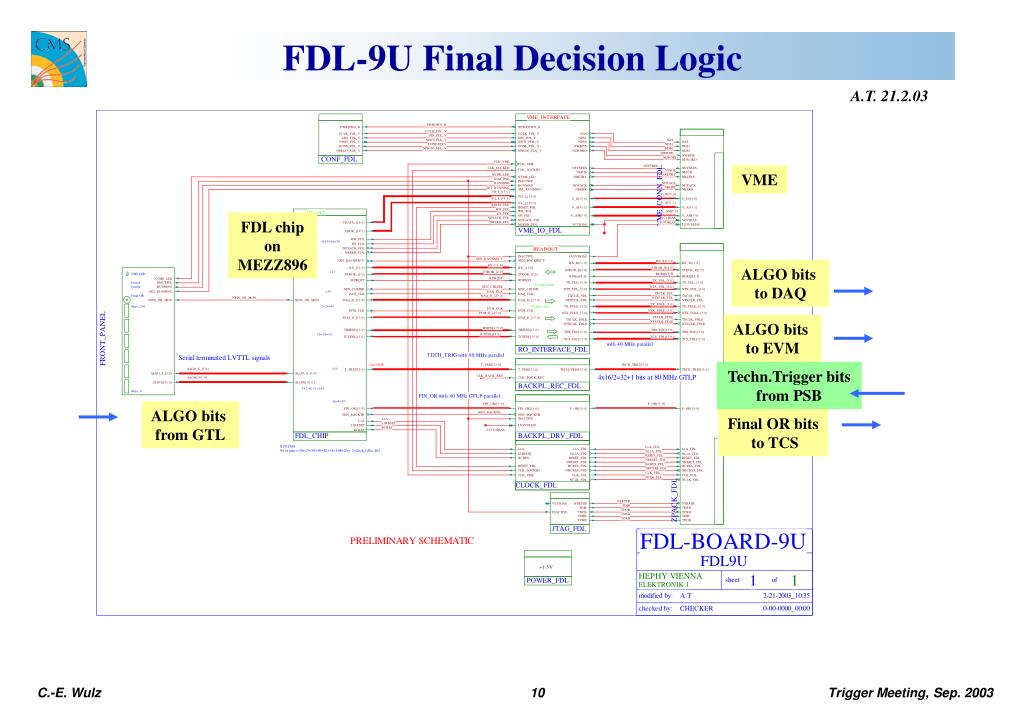

Fdl 9u final decision logic
FDL-9U Final Decision Logic

A.T. 21.2.03

VME

FDL chip

on

MEZZ896

ALGO bits

to DAQ

ALGO bits

to EVM

Techn.Trigger bits

from PSB

ALGO bits

from GTL

Final OR bits

to TCS

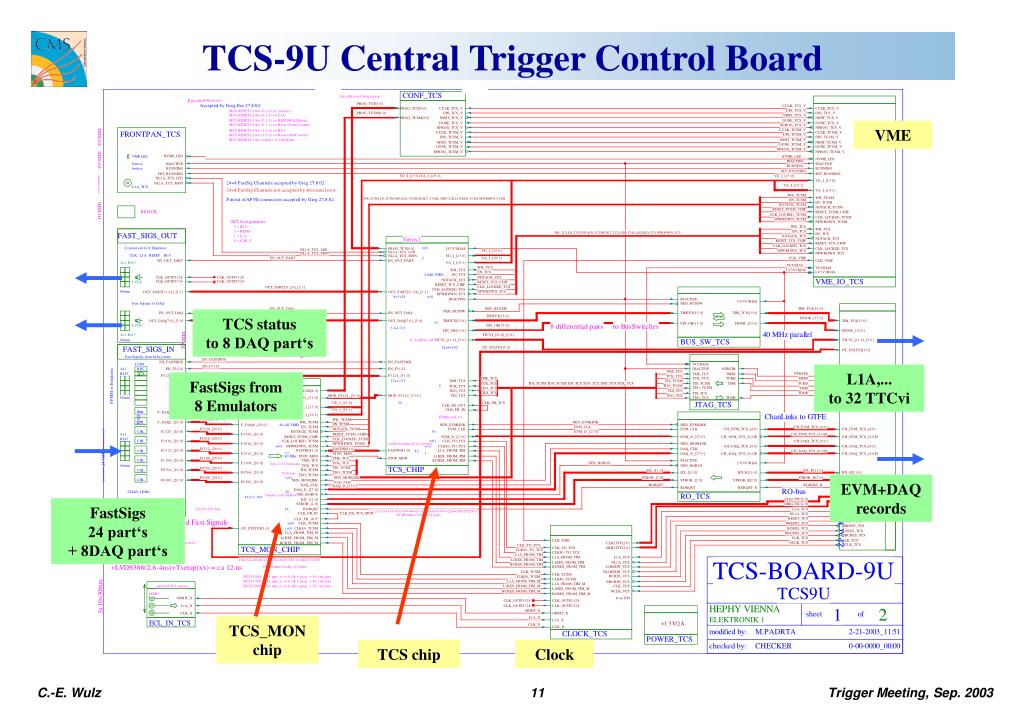

Tcs 9u central trigger control board
TCS-9U Central Trigger Control Board

VME

TCS status

to 8 DAQ part‘s

L1A,...

to 32 TTCvi

FastSigs from

8 Emulators

EVM+DAQ

records

FastSigs

24 part‘s

+ 8DAQ part‘s

TCS_MON chip

TCS chip

Clock


Mezzanine Board (MEZZ896)

XC2V2000-4FF896C

50 Ohm connectors

bottom side

top side

BGA: 1mm pitch, track width=83 mm

MEZZ896 will be used in TCS-9U and FDL-9U

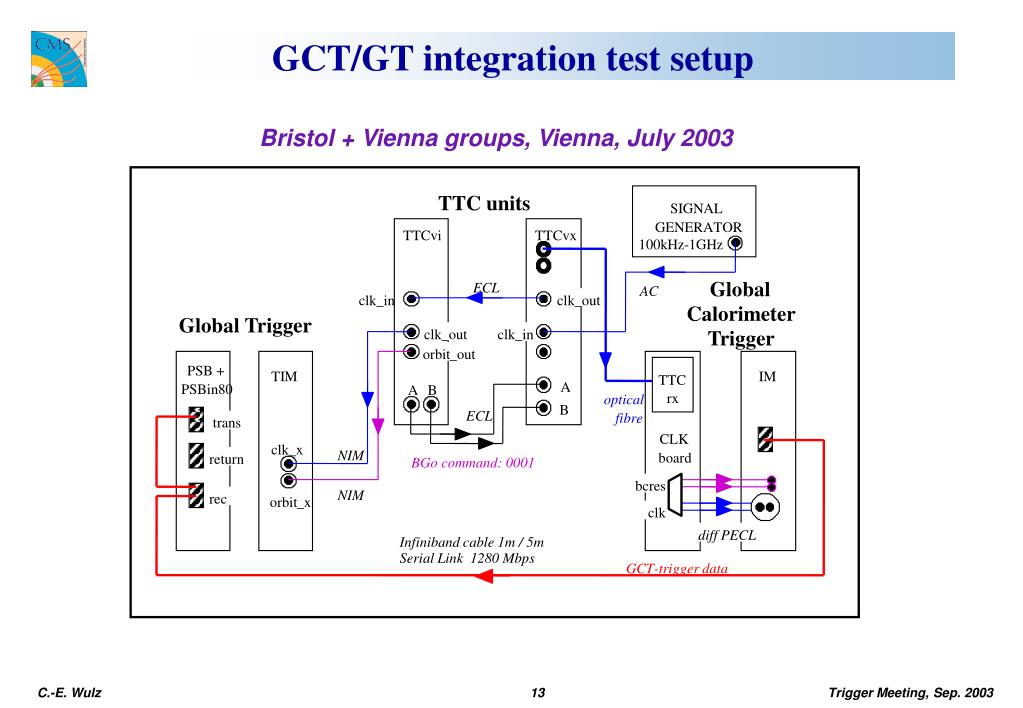

Gct gt integration test setup

TTC units

SIGNAL

GENERATOR

TTCvi

TTCvx

100kHz-1GHz

Global

ECL

AC

clk_in

clk_out

Calorimeter

Global Trigger

clk_out

clk_in

Trigger

orbit

_out

PSB +

TIM

IM

TTC

A

PSBin80

A

B

rx

optical

B

ECL

fibre

trans

CLK

clk_x

NIM

board

return

BGo command: 0001

bcres

NIM

rec

orbit

_x

clk

diff PECL

Infiniband cable 1m / 5m

Serial Link 1280 Mbps

GCT-trigger data

GCT/GT integration test setup

Bristol + Vienna groups, Vienna, July 2003

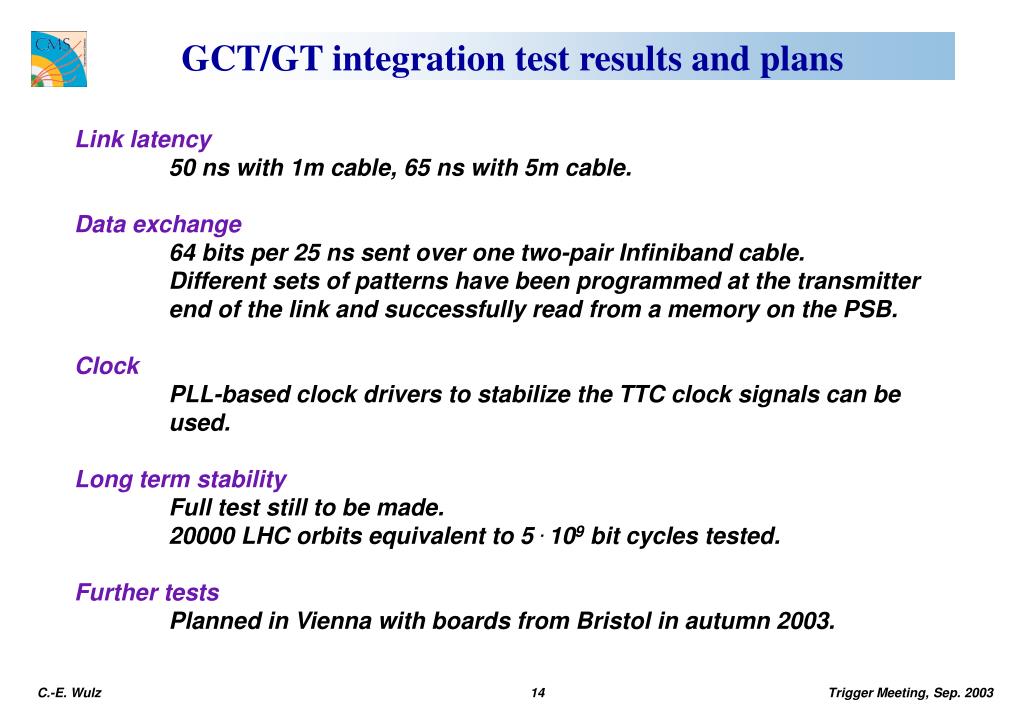

Gct gt integration test results and plans
GCT/GT integration test results and plans

Link latency

50 ns with 1m cable, 65 ns with 5m cable.

Data exchange

64 bits per 25 ns sent over one two-pair Infiniband cable.

Different sets of patterns have been programmed at the transmitter

end of the link and successfully read from a memory on the PSB.

Clock

PLL-based clock drivers to stabilize the TTC clock signals can be

used.

Long term stability

Full test still to be made.

20000 LHC orbits equivalent to 5 . 109 bit cycles tested.

Further tests

Planned in Vienna with boards from Bristol in autumn 2003.

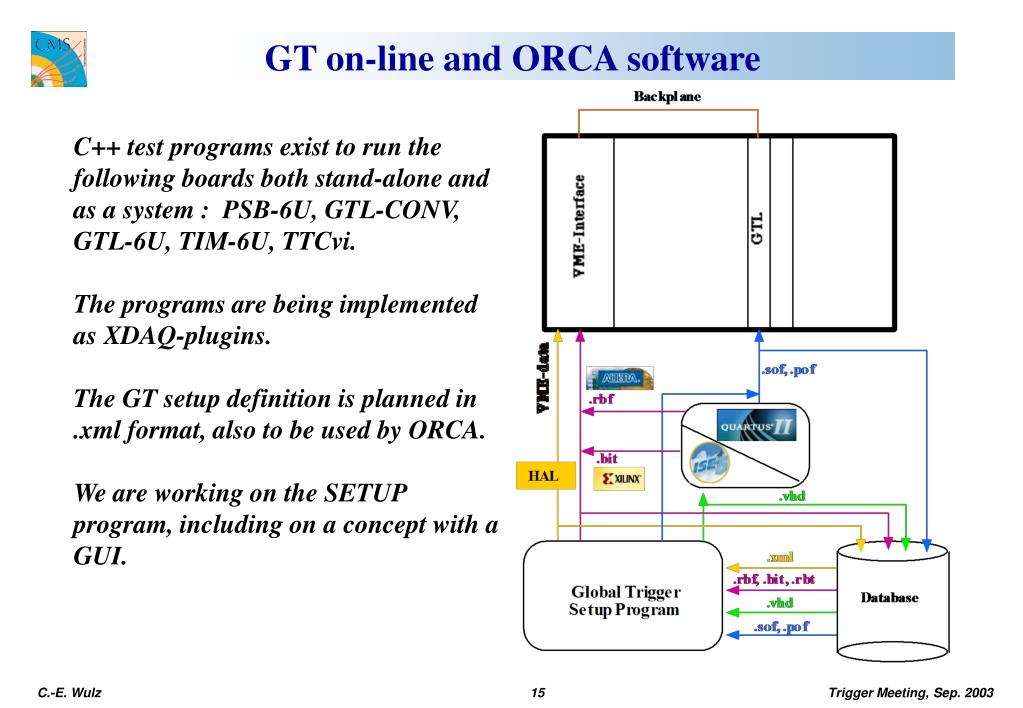

Gt on line and orca software
GT on-line and ORCA software

C++ test programs exist to run the following boards both stand-alone and as a system : PSB-6U, GTL-CONV, GTL-6U, TIM-6U, TTCvi.

The programs are being implemented as XDAQ-plugins.

The GT setup definition is planned in .xml format, also to be used by ORCA.

We are working on the SETUP program, including on a concept with a GUI.

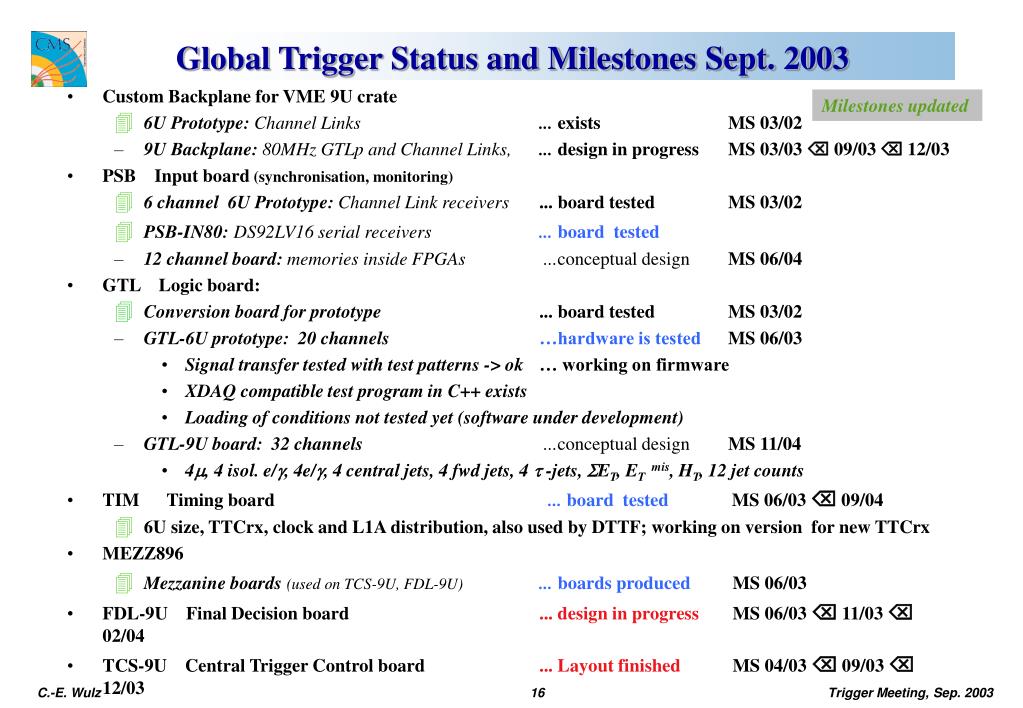

Global trigger status and milestones sept 2003
Global Trigger Status and Milestones Sept. 2003

  • Custom Backplane for VME 9U crate

    • 6U Prototype: Channel Links ... existsMS 03/02

    • 9U Backplane: 80MHz GTLp and Channel Links, ... design in progress MS 03/03 09/03 12/03

  • PSB Input board (synchronisation, monitoring)

    • 6 channel 6U Prototype: Channel Link receivers... board tested MS 03/02

    • PSB-IN80:DS92LV16serial receivers... board tested

    • 12 channel board: memories inside FPGAs ...conceptual designMS 06/04

  • GTL Logic board:

    • Conversion board for prototype ... board tested MS 03/02

    • GTL-6U prototype: 20 channels …hardware is testedMS 06/03

      • Signal transfer tested with test patterns -> ok … working on firmware

      • XDAQ compatible test program in C++ exists

      • Loading of conditions not tested yet (software under development)

    • GTL-9U board: 32 channels ...conceptual designMS 11/04

      • 4, 4 isol. e/, 4e/, 4 central jets, 4 fwd jets, 4 t-jets, SET, ET mis, HT, 12 jet counts

  • TIM Timing board ... board testedMS 06/03  09/04

    • 6U size, TTCrx, clock and L1A distribution, also used by DTTF; working on version for new TTCrx

  • MEZZ896

    • Mezzanine boards(used on TCS-9U, FDL-9U)... boards produced MS 06/03

  • FDL-9U Final Decision board... design in progress MS 06/03 11/03  02/04

  • TCS-9U Central Trigger Control board... Layout finished MS 04/03 09/03  12/03

  • GTFE-9U Readout board... conceptual design MS 12/03 03/04  02/05

Milestones updated

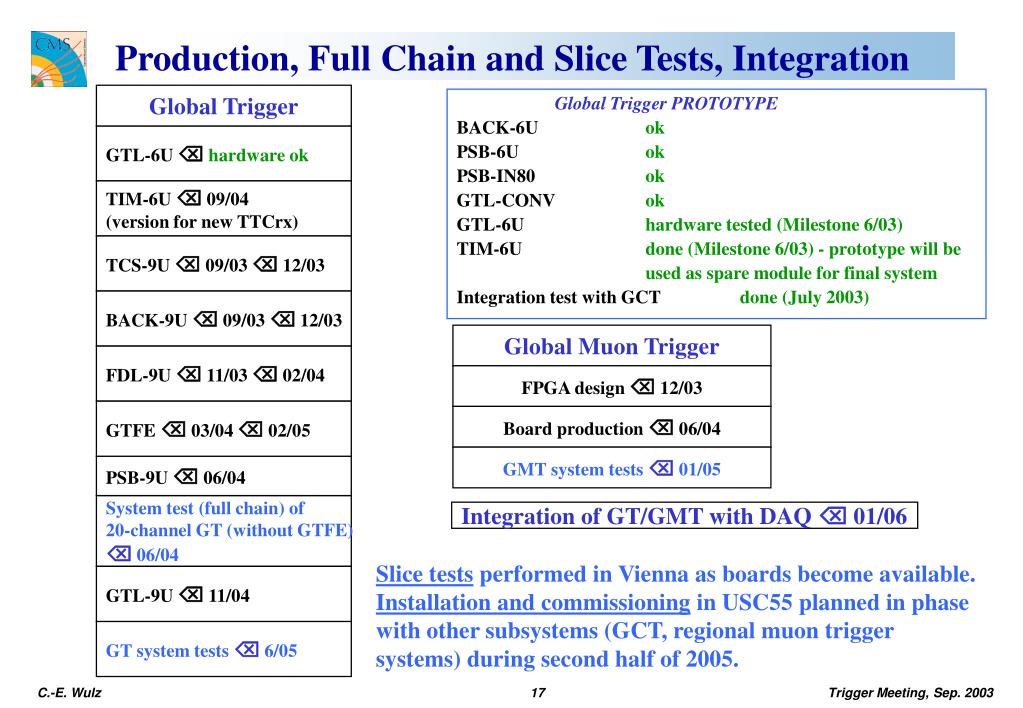

Production full chain and slice tests integration

Global Muon Trigger

FPGA design  12/03

Board production  06/04

GMT system tests  01/05

Production, Full Chain and Slice Tests, Integration

Global Trigger

Global Trigger PROTOTYPE

BACK-6U ok

PSB-6U ok

PSB-IN80 ok

GTL-CONV ok

GTL-6U hardware tested (Milestone 6/03)

TIM-6U done (Milestone 6/03) - prototype will be

used as spare module for final system

Integration test with GCT done (July 2003)

GTL-6U hardware ok

TIM-6U  09/04

(version for new TTCrx)

TCS-9U  09/03  12/03

BACK-9U  09/03  12/03

FDL-9U  11/03  02/04

GTFE  03/04  02/05

PSB-9U  06/04

System test (full chain) of

20-channel GT (without GTFE)

 06/04

Integration of GT/GMT with DAQ  01/06

Slice tests performed in Vienna as boards become available.

Installation and commissioning in USC55 planned in phase with other subsystems (GCT, regional muon trigger systems) during second half of 2005.

GTL-9U  11/04

GT system tests  6/05


Conclusions
Conclusions

  • GTL-6U Logic board produced and tested

  • TIM-6U Timing module produced and tested

  • TCS-9U Layout of TCS module finished

  • FDL-9U Final Decision Logic is in progress

    • PSB_IN80, GTL_CONV, MEZZ896 Auxiliary boards produced and tested

  • XDAQ compatible on-line software is under development

  • ORCA software is being updated
