Implementing soa using esb beyond hype

Implementing SOA using ESB: beyond hype

Abdelkarim Erradi

Trung Nguyen Kien

September 2004


Agenda

Agenda

  • Service Oriented Architecture (SOA)

  • Enterprise Service Bus (ESB)

  • ESB Architecture and Components

  • ESB design patterns

  • ESB case study


Agenda1

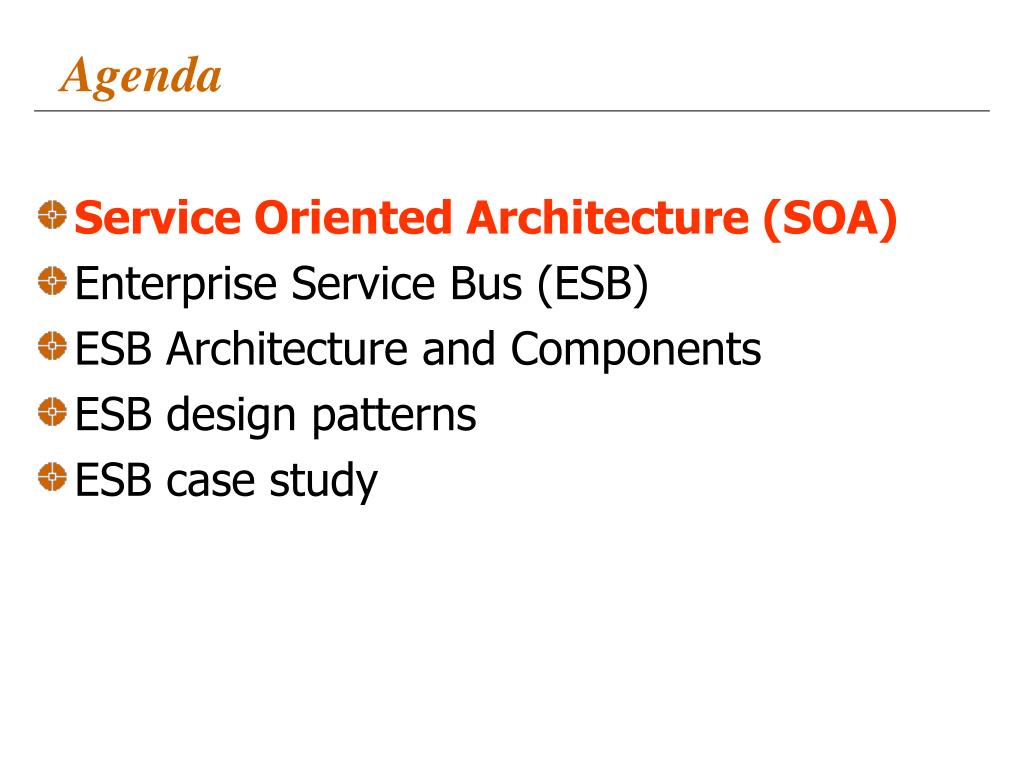

Agenda

  • Service Oriented Architecture (SOA)

  • Enterprise Service Bus (ESB)

  • ESB Architecture and Components

  • ESB design patterns

  • ESB case study

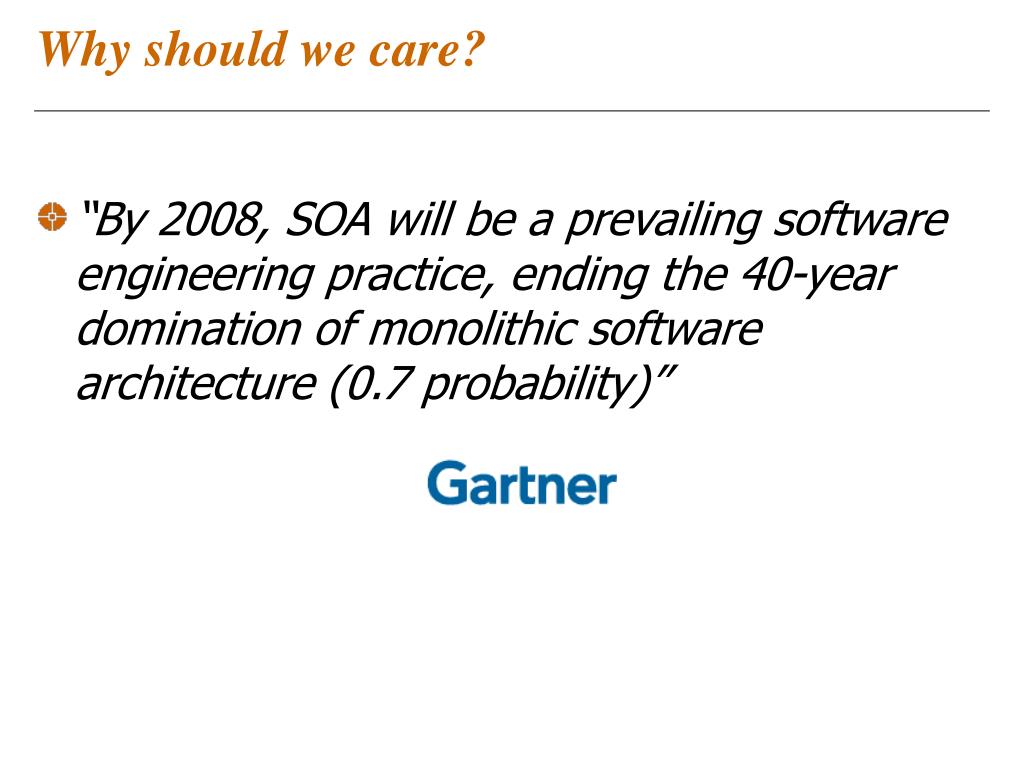

Why should we care

Why should we care?

  • “By 2008, SOA will be a prevailing software engineering practice, ending the 40-year domination of monolithic software architecture (0.7 probability)”

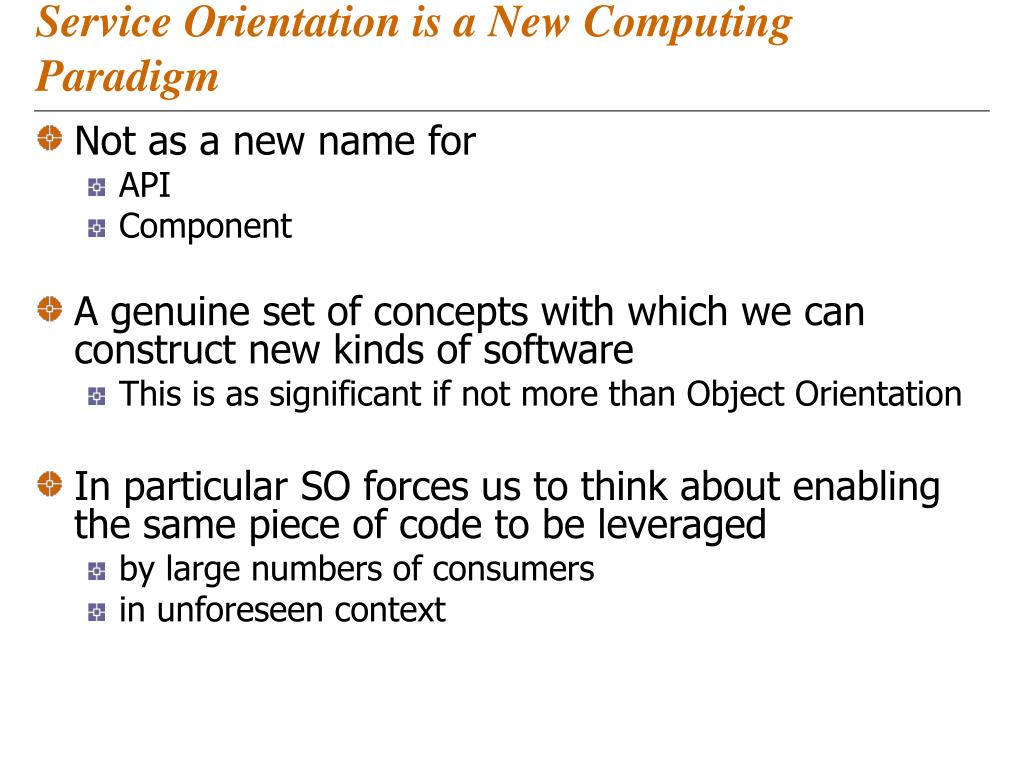

Service orientation is a new computing paradigm

Service Orientation is a New Computing Paradigm

  • Not as a new name for

    • API

    • Component

  • A genuine set of concepts with which we can construct new kinds of software

    • This is as significant if not more than Object Orientation

  • In particular SO forces us to think about enabling the same piece of code to be leveraged

    • by large numbers of consumers

    • in unforeseen context


So what is a service

So… what is a service?"

  • There really are just two types of servicesMessage Producers

    • Act and add stuff to messages

  • Message Consumers

    • Take stuff from messages and act on it

  • Messages flow through "pipelines"

    • Pipeline is a sequence of services

    • Messages grow and shrink on the way

  • Technology Agnostic Interaction

  • An approach to logic partitioning that maximizes the re-use of application-neutral services.


    Soa drivers

    SOA Drivers

    Desire for

    increased

    Reuse

    Business

    Process

    Automation

    B2B Integration

    Outsourcing

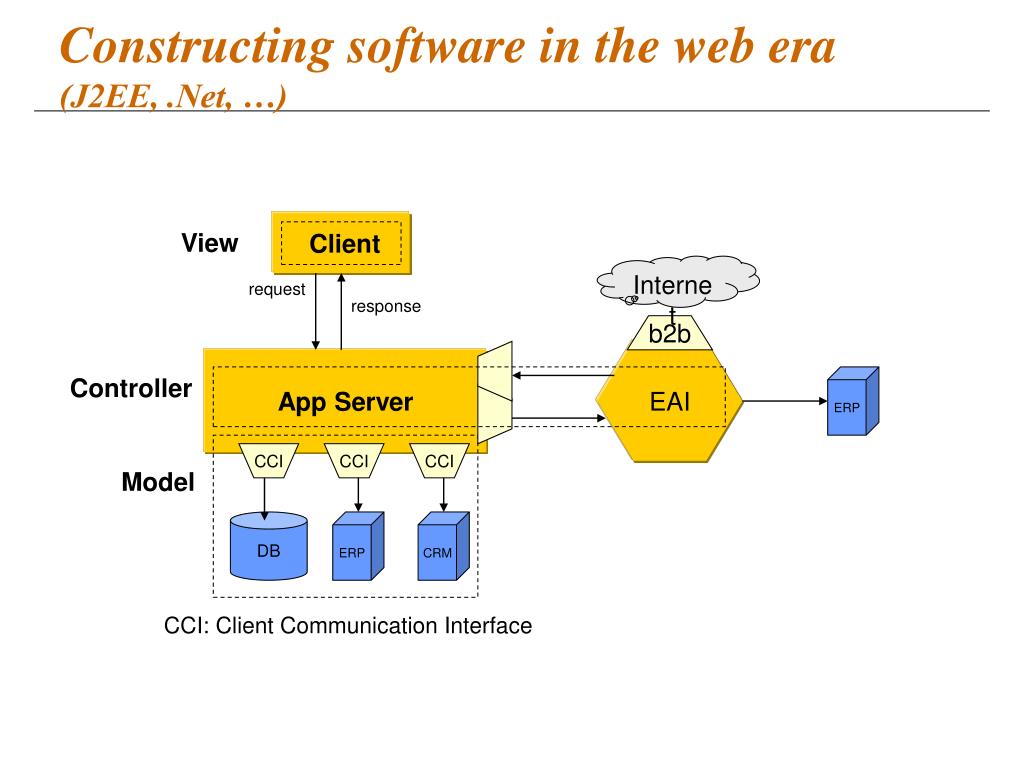

    Constructing software in the web era j2ee net

    Constructing software in the web era (J2EE, .Net, …)

    Client

    View

    Internet

    request

    response

    b2b

    EAI

    App Server

    Controller

    ERP

    CCI

    CCI

    CCI

    Model

    DB

    ERP

    CRM

    CCI: Client Communication Interface


    A component now becomes a service running outside the consumer boundaries

    A Component now Becomes a Service Running Outside the Consumer Boundaries

    Discover and/or Bind

    2

    3

    invoke

    Registry

    Policies

    XML

    XML

    XML

    1

    SOAP

    SOAP

    SOAP

    register

    CCI

    CCI

    CCI

    DB

    ERP

    CRM

    Service

    Service

    Service

    Consumer


    Soa is

    SOA is …

    Is

    • Set of

      • policies

      • practices

      • frameworks

      • architectural patterns

    • technology

    • product

    • protocol

    • standard

    Is not


    Soa is cont d

    SOA is … (Cont’d)

    • SOA enables application functionality to be provided and consumed as sets of services

    • Services can be invoked, published and discovered

    • are abstracted away from the implementation using a single, standards-based form of interface.

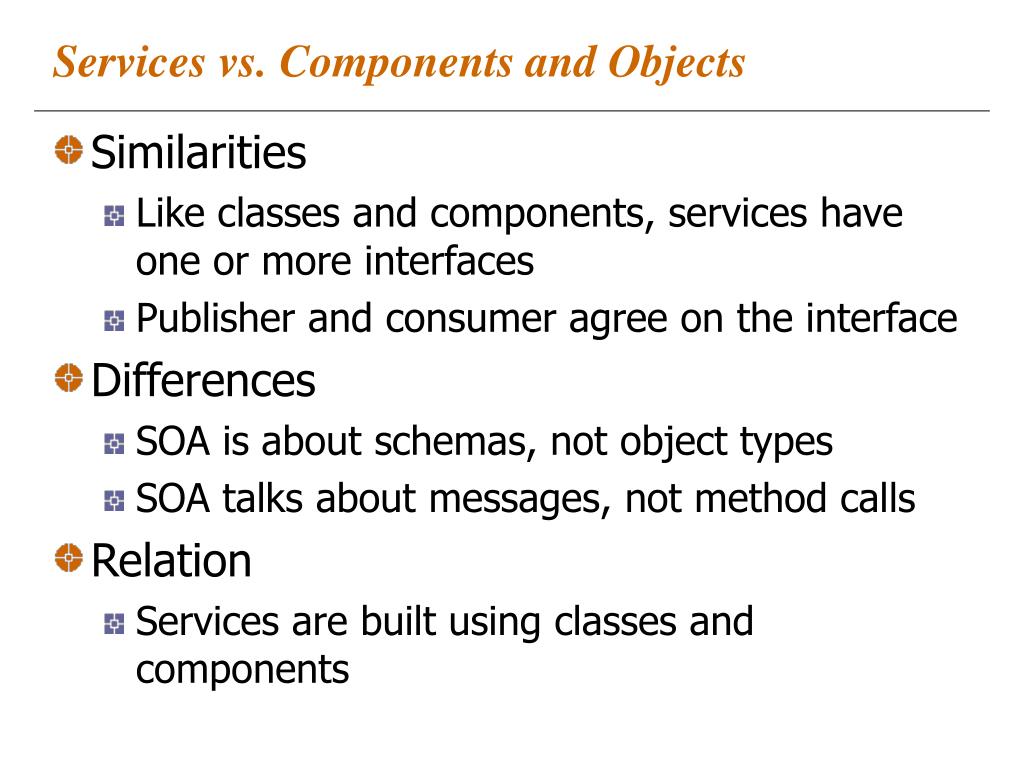

    Services vs components and objects

    Services vs. Components and Objects

    • Similarities

      • Like classes and components, services have one or more interfaces

      • Publisher and consumer agree on the interface

    • Differences

      • SOA is about schemas, not object types

      • SOA talks about messages, not method calls

    • Relation

      • Services are built using classes and components

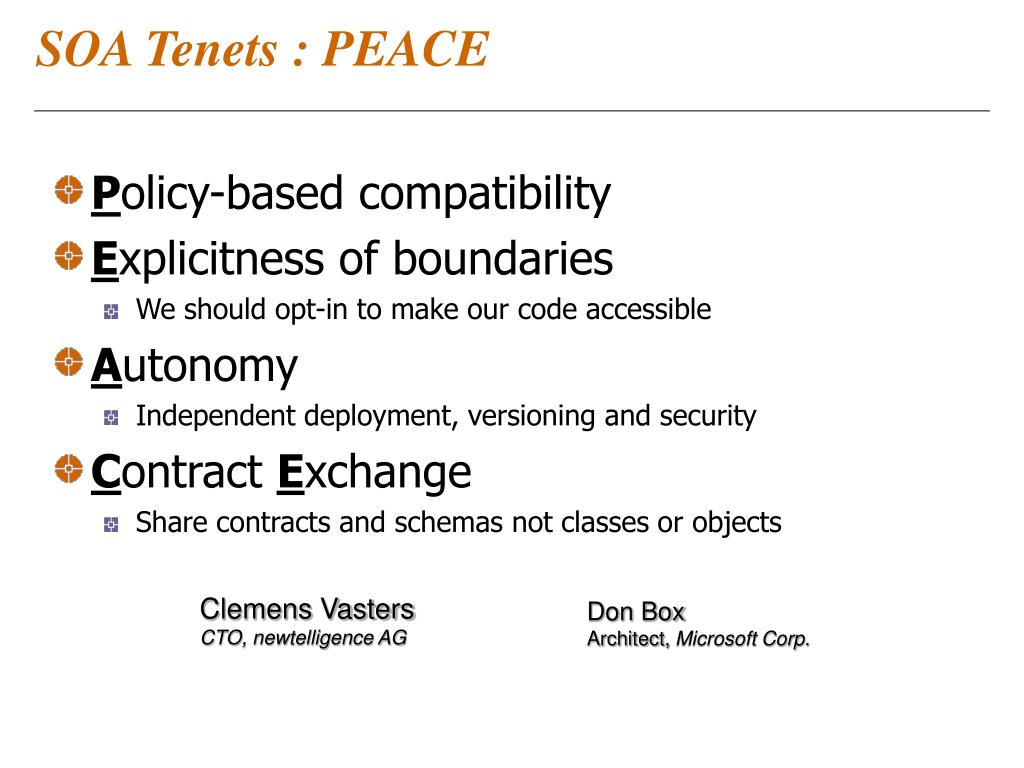

    Soa tenets peace

    SOA Tenets : PEACE

    • Policy-based compatibility

    • Explicitness of boundaries

      • We should opt-in to make our code accessible

    • Autonomy

      • Independent deployment, versioning and security

    • Contract Exchange

      • Share contracts and schemas not classes or objects

    Clemens VastersCTO, newtelligence AG

    Don BoxArchitect, Microsoft Corp.


    Applications as fiefdoms

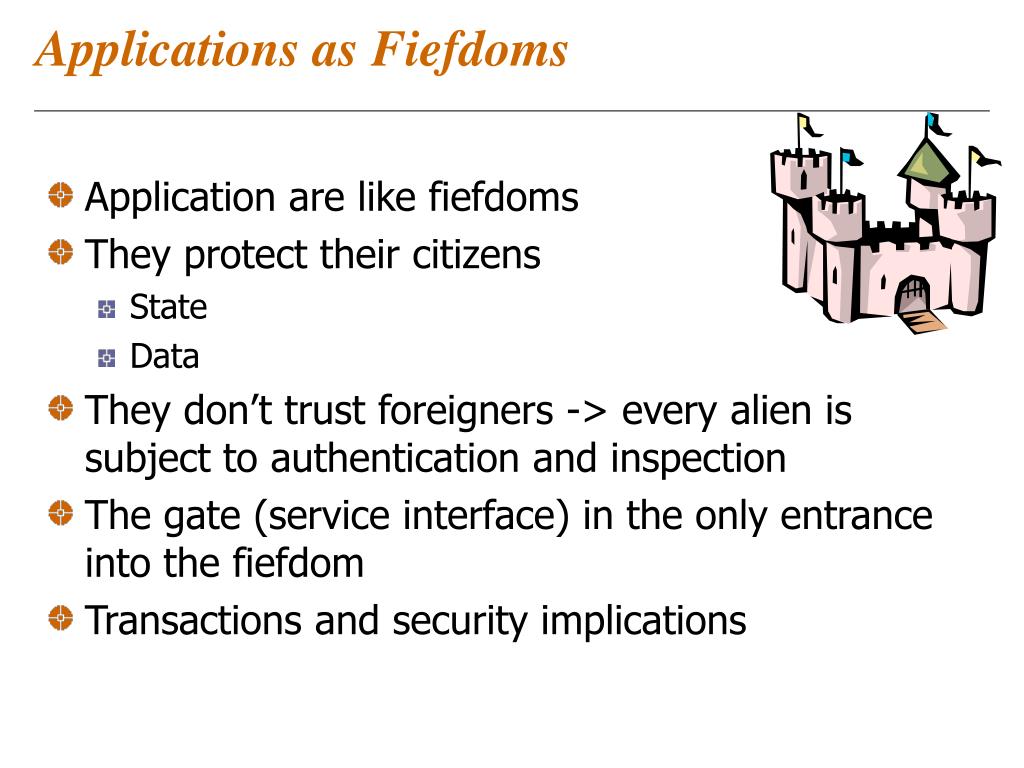

    Applications as Fiefdoms

    • Application are like fiefdoms

    • They protect their citizens

      • State

      • Data

    • They don’t trust foreigners -> every alien is subject to authentication and inspection

    • The gate (service interface) in the only entrance into the fiefdom

    • Transactions and security implications


    From components to web services

    Requires a client library

    Client / Server

    Extendable

    Stateless

    Fast

    Small to medium granularity

    Loose coupling via

    Message exchanges

    Policies

    Peer-to-peer

    Composable

    Context independent

    Some overhead

    Medium to coarse granularity

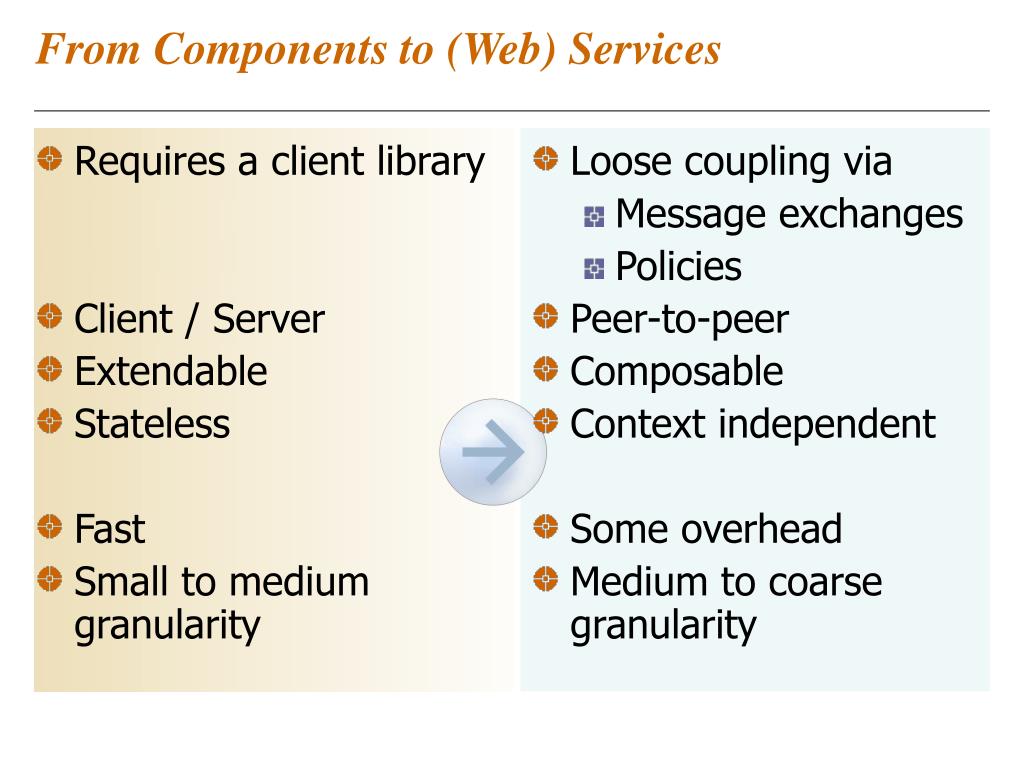

    From Components to (Web) Services

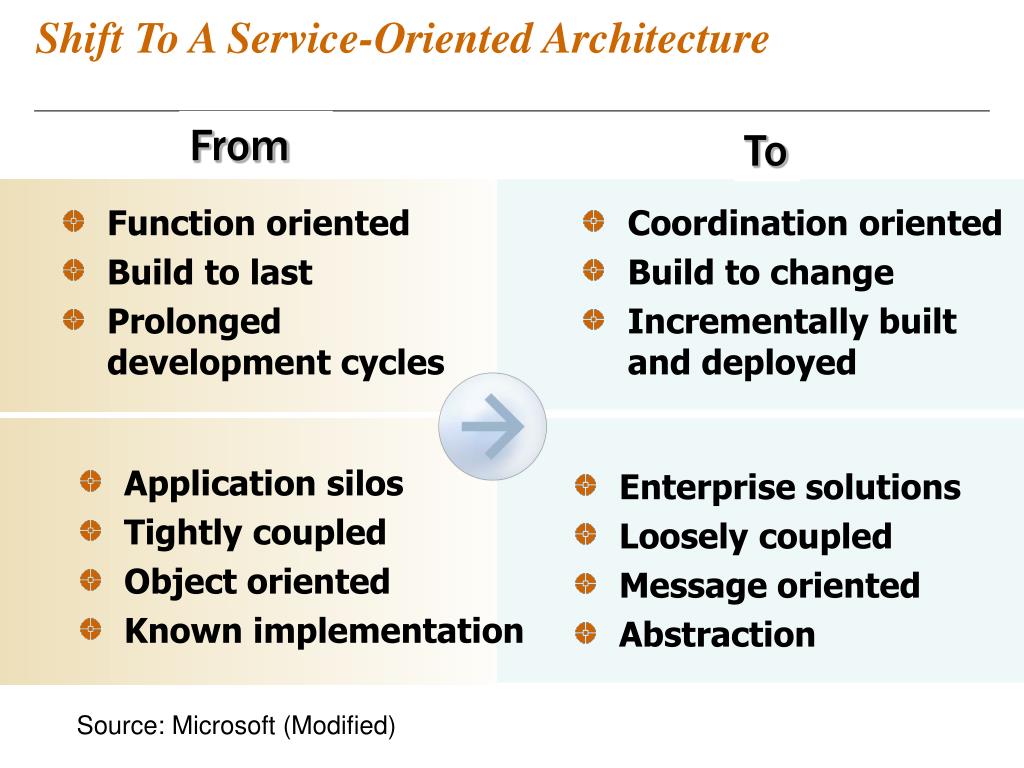

    Shift to a service oriented architecture

    Coordination oriented

    Build to change

    Incrementally built and deployed

    Shift To A Service-Oriented Architecture

    From

    To

    • Function oriented

    • Build to last

    • Prolonged development cycles

    • Application silos

    • Tightly coupled

    • Object oriented

    • Known implementation

    • Enterprise solutions

    • Loosely coupled

    • Message oriented

    • Abstraction

    Source: Microsoft (Modified)


    Achieving loose coupling

    Achieving Loose Coupling

    Requester Server

    Receiver Server

    ReceiverRuntime

    Receiver

    Requester

    Requester Runtime

    RequesterStore

    ReceiverStore

    • Loose coupling – reduction of dependencies between components that communicate with one another in order to allow them to operate and evolve independently

    • Requires:

      • Coarse-grained communication

      • Support for message evolution

      • Support for asynchronous messages

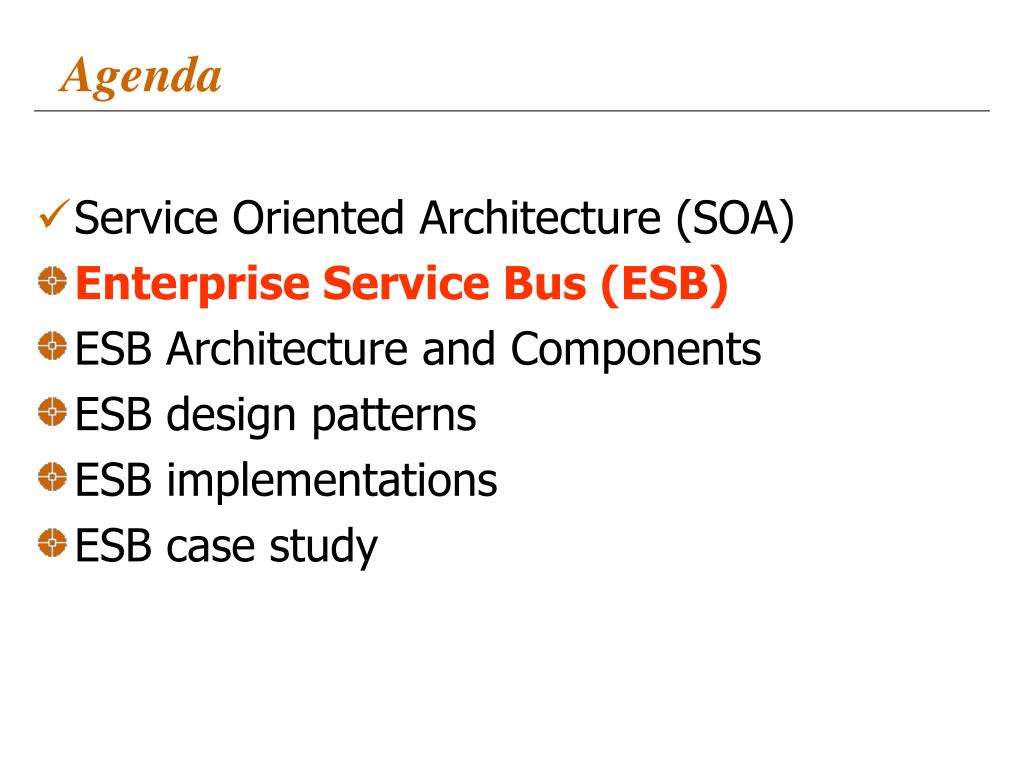

    Agenda2

    Agenda

    • Service Oriented Architecture (SOA)

    • Enterprise Service Bus (ESB)

    • ESB Architecture and Components

    • ESB design patterns

    • ESB implementations

    • ESB case study


    What esb

    What ESB?

    • ESB = MOM++

    • ESB – combines MOM, Web services, transformation and routing intelligence

    • Standards-based integration: all WS ‘standards’ work toward providing secure, reliable messaging workflows

    • 'Any to Any’ (A2A)

    • Facilitate large-scale implementation of the SOA principles with suitable service levels and manageability.

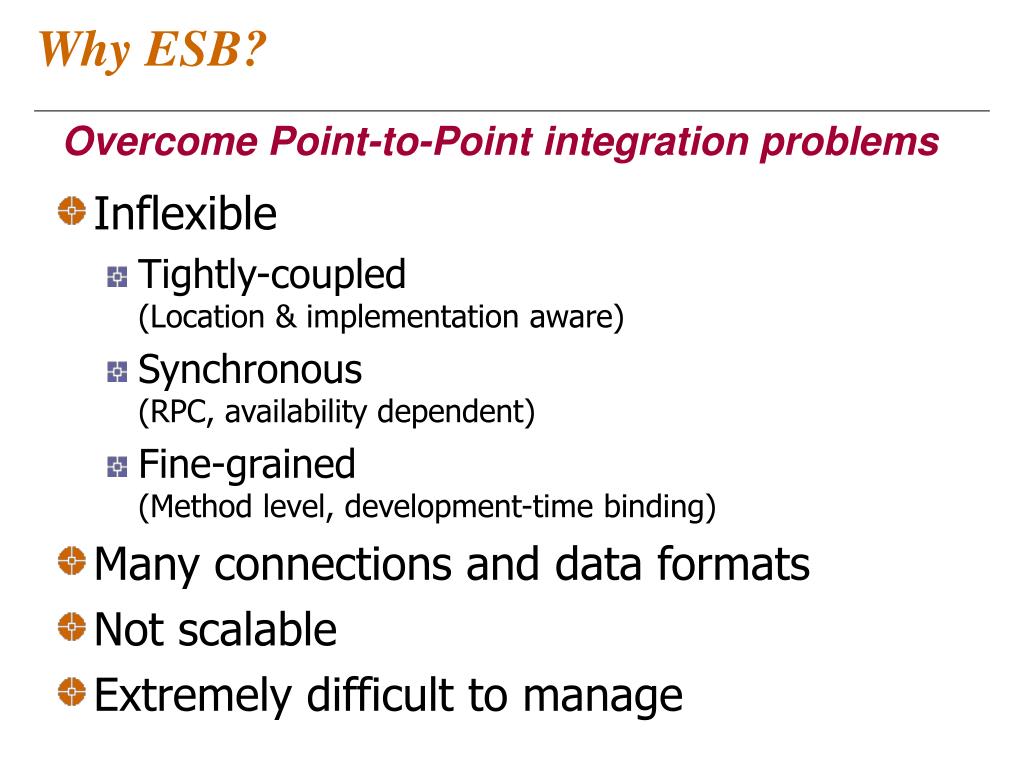

    Why esb

    Why ESB?

    Overcome Point-to-Point integration problems

    • Inflexible

      • Tightly-coupled(Location & implementation aware)

      • Synchronous (RPC, availability dependent)

      • Fine-grained (Method level, development-time binding)

    • Many connections and data formats

    • Not scalable

    • Extremely difficult to manage


    Hub and spoke pattern

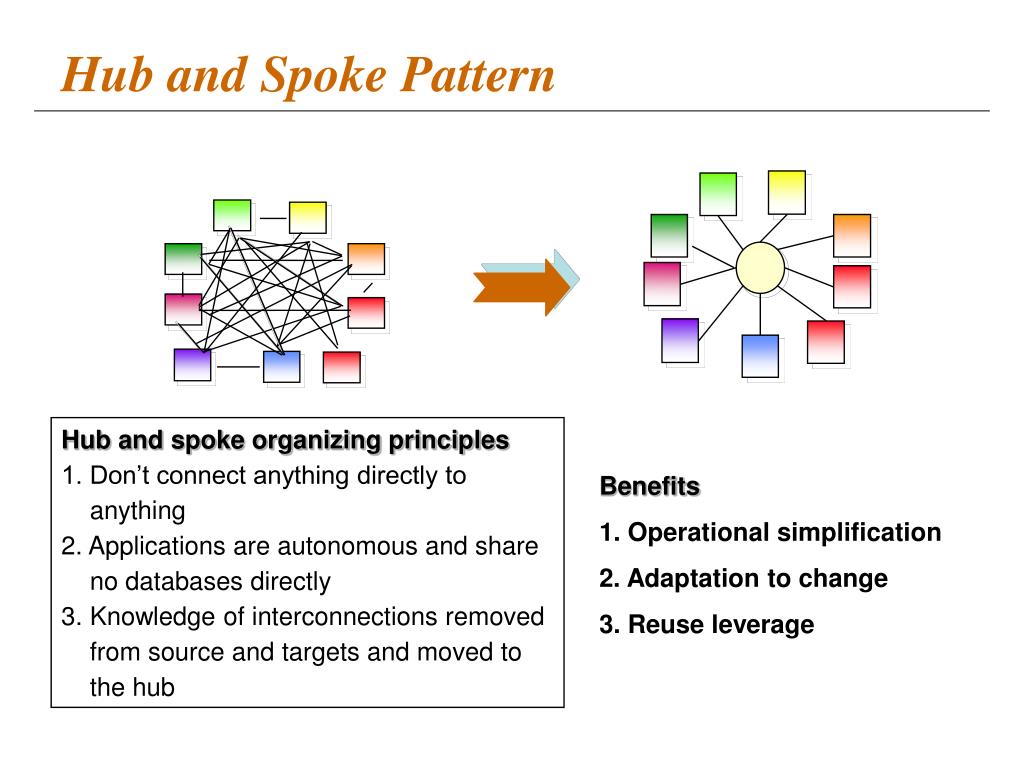

    Hub and Spoke Pattern

    Hub & Spoke

    Point to Point

    Hub and spoke organizing principles

    1. Don’t connect anything directly to

    anything

    2. Applications are autonomous and share

    no databases directly

    3. Knowledge of interconnections removed

    from source and targets and moved to

    the hub

    Benefits

    1. Operational simplification

    2. Adaptation to change

    3. Reuse leverage


    Enterprise service bus esb

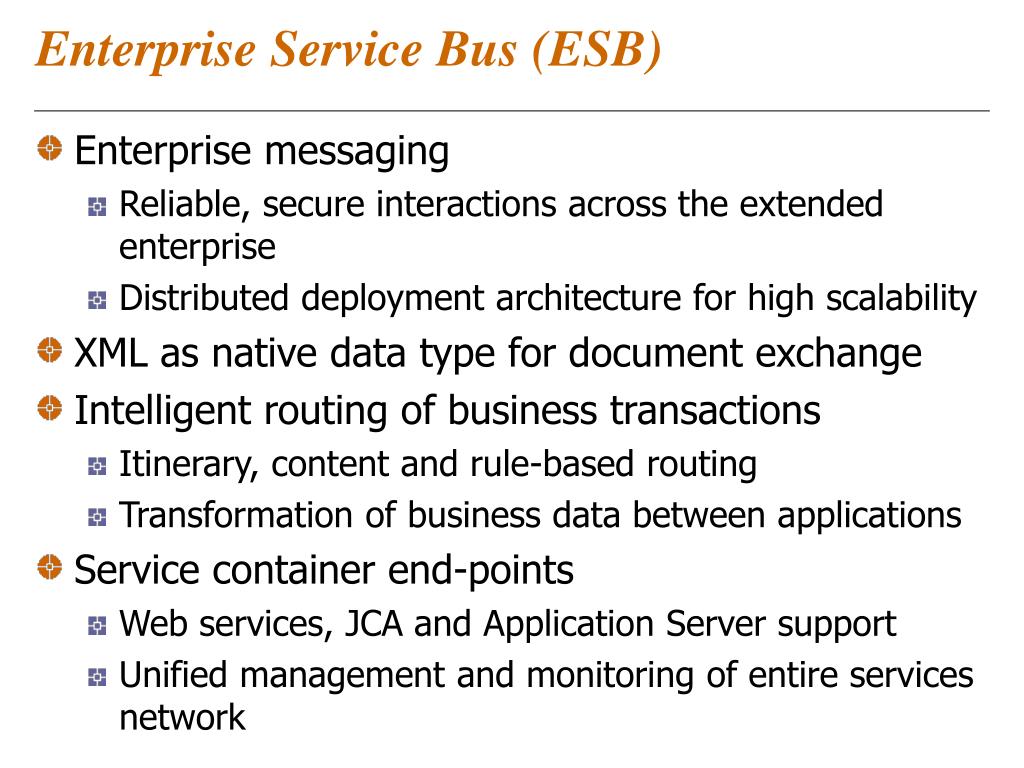

    Enterprise Service Bus (ESB)

    • Enterprise messaging

      • Reliable, secure interactions across the extended enterprise

      • Distributed deployment architecture for high scalability

    • XML as native data type for document exchange

    • Intelligent routing of business transactions

      • Itinerary, content and rule-based routing

      • Transformation of business data between applications

    • Service container end-points

      • Web services, JCA and Application Server support

      • Unified management and monitoring of entire services network


    Esb characteristics

    ESB Characteristics

    • XML oriented

      • Messaging

      • Transformation

      • Intelligent routing services

    • Basic connectivity (Web Services, JCA Adapters, JMS)

    • Service-oriented architecture

    • Support for highly distributed deployments

    • Manageability

    • Robustness

    • Scalability and Performance

    • Security

    • Breadth of connectivity

    • Development / Deployment toolset


    Esb mom

    ESB = MOM++

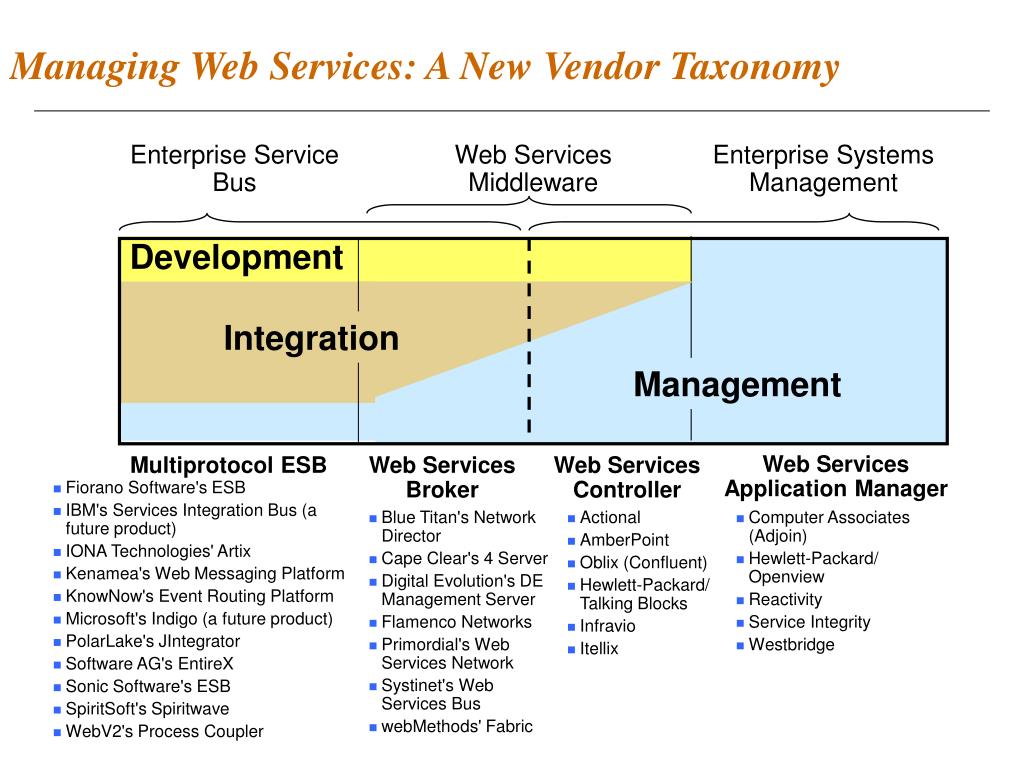

    Managing web services a new vendor taxonomy

    Managing Web Services: A New Vendor Taxonomy

    Enterprise Service Bus

    Web Services Middleware

    Enterprise Systems Management

    Development

    Integration

    Management

    Web Services Application Manager

    Multiprotocol ESB

    Web Services Broker

    Web Services Controller

    • Fiorano Software's ESB

    • IBM's Services Integration Bus (a future product)

    • IONA Technologies' Artix

    • Kenamea's Web Messaging Platform

    • KnowNow's Event Routing Platform

    • Microsoft's Indigo (a future product)

    • PolarLake's JIntegrator

    • Software AG's EntireX

    • Sonic Software's ESB

    • SpiritSoft's Spiritwave

    • WebV2's Process Coupler

    • Blue Titan's Network Director

    • Cape Clear's 4 Server

    • Digital Evolution's DE Management Server

    • Flamenco Networks

    • Primordial's Web Services Network

    • Systinet's Web Services Bus

    • webMethods' Fabric

    • Actional

    • AmberPoint

    • Oblix (Confluent)

    • Hewlett-Packard/ Talking Blocks

    • Infravio

    • Itellix

    • Computer Associates (Adjoin)

    • Hewlett-Packard/ Openview

    • Reactivity

    • Service Integrity

    • Westbridge


    Aspects of the enterprise service bus ibm

    Aspects of the Enterprise Service Bus - IBM

    Uncluttered Business logic

    Service

    Selection

    Data

    Logging

    Customized

    Routing

    Format

    Translation

    Mediations

    Queues

    Pub/Sub

    Req/Rep

    Assured

    Secure

    Available

    Comms patterns and QoS

    MQ

    SOAP/HTTP

    JMS

    WBI

    Adaptors

    CEI

    .NET

    Wide connectivity

    WSDL Described Services

    POLICY

    Enterprise Service Bus


    Ibm s business integration reference architecture

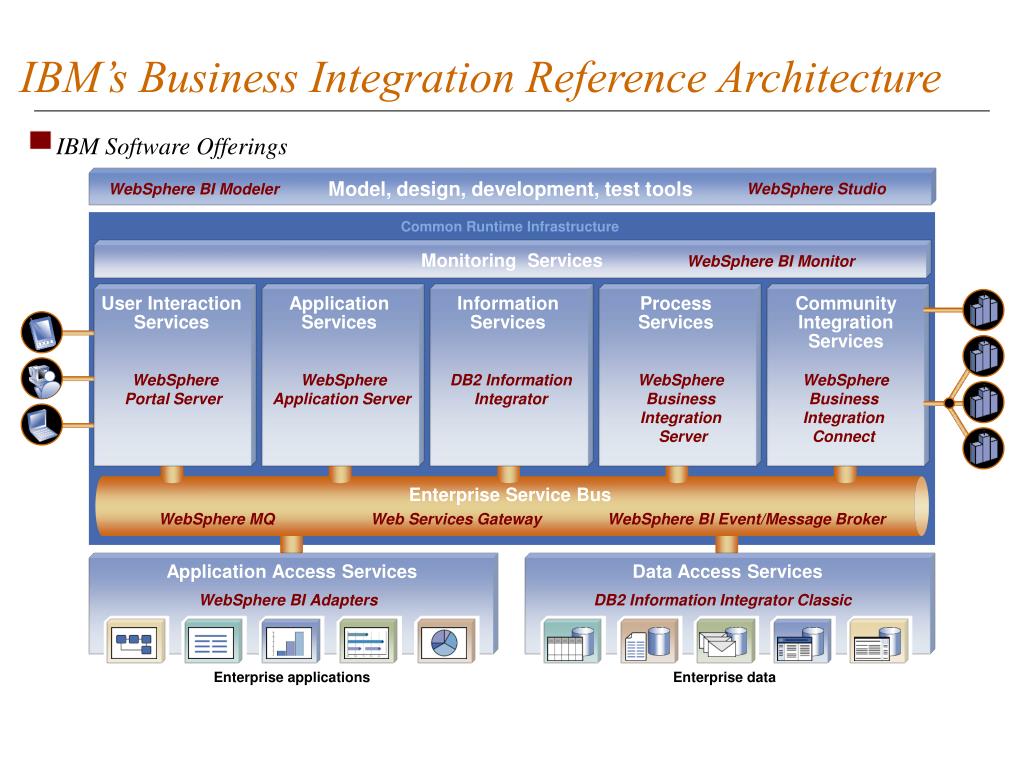

    IBM’s Business Integration Reference Architecture

    IBM Software Offerings

    Model, design, development, test tools

    WebSphere Studio

    WebSphere BI Modeler

    Common Runtime Infrastructure

    Monitoring Services

    WebSphere BI Monitor

    User Interaction Services

    Application Services

    Information Services

    ProcessServices

    Community Integration Services

    WebSphere Portal Server

    WebSphere Application Server

    DB2 Information Integrator

    WebSphere Business Integration Server

    WebSphere Business Integration Connect

    WebSphere MQ

    Web Services Gateway

    WebSphere BI Event/Message Broker

    Enterprise Service Bus

    WebSphere BI Adapters

    DB2 Information Integrator Classic

    Application Access Services

    Data Access Services

    Enterprise applications

    Enterprise data


    The sonicxq platform

    The SonicXQ Platform

    JCAAdapterToolkit

    WebServicesSupport

    Distributed Processing Framework

    Transformation

    Content-BasedRouting

    ItineraryMgmt

    Distributed Services Framework / API

    Distributed Management Framework

    Explorer (GUI Administration)

    Pub/Sub

    PointtoPoint

    Dynamic Routing Architecture (DRA)

    Bridges

    ParallelClustering

    ActiveRouting

    ConnectionMgmt

    End-to-End Security

    EJB/J2EE

    P4GL

    SonicXQ

    JDBC

    SOAP

    3rd-PartyJCAAdapters

    WSDL

    Java

    HTTP

    SonicMQ

    MQSeries

    HTTP-S

    TIBCO

    C/C++

    FTP/SMTP

    ActiveX

    JMS

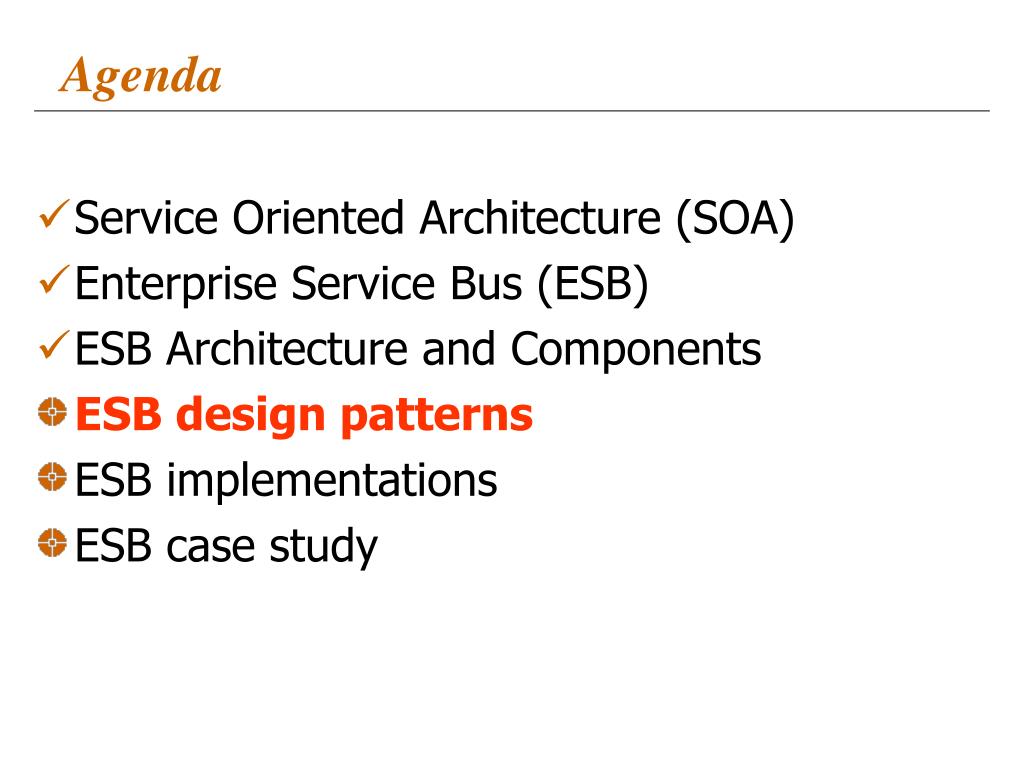

    Agenda3

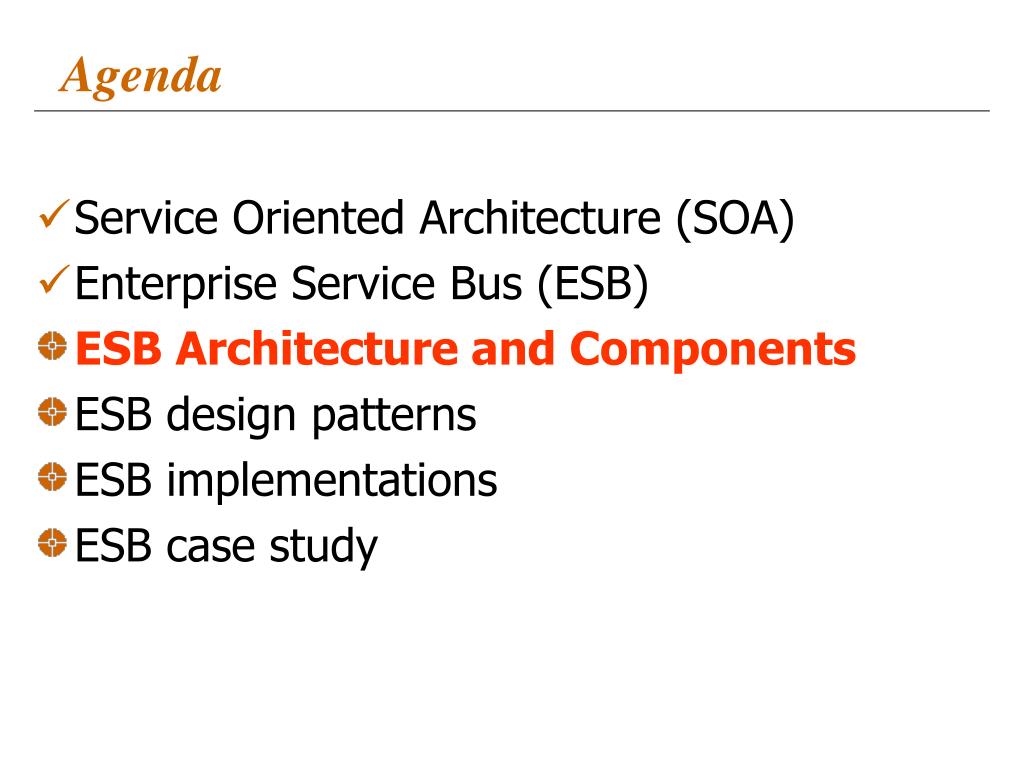

    Agenda

    • Service Oriented Architecture (SOA)

    • Enterprise Service Bus (ESB)

    • ESB Architecture and Components

    • ESB design patterns

    • ESB implementations

    • ESB case study


    Is there any concrete architecture

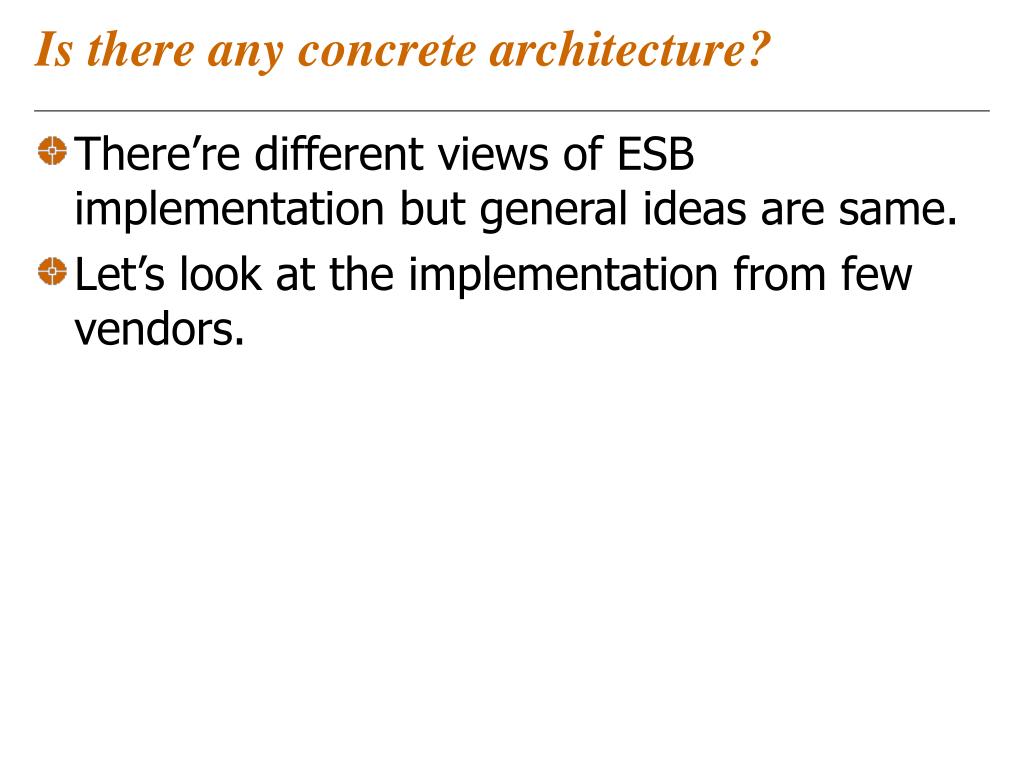

    Is there any concrete architecture?

    • There’re different views of ESB implementation but general ideas are same.

    • Let’s look at the implementation from few vendors.


    Cape clear

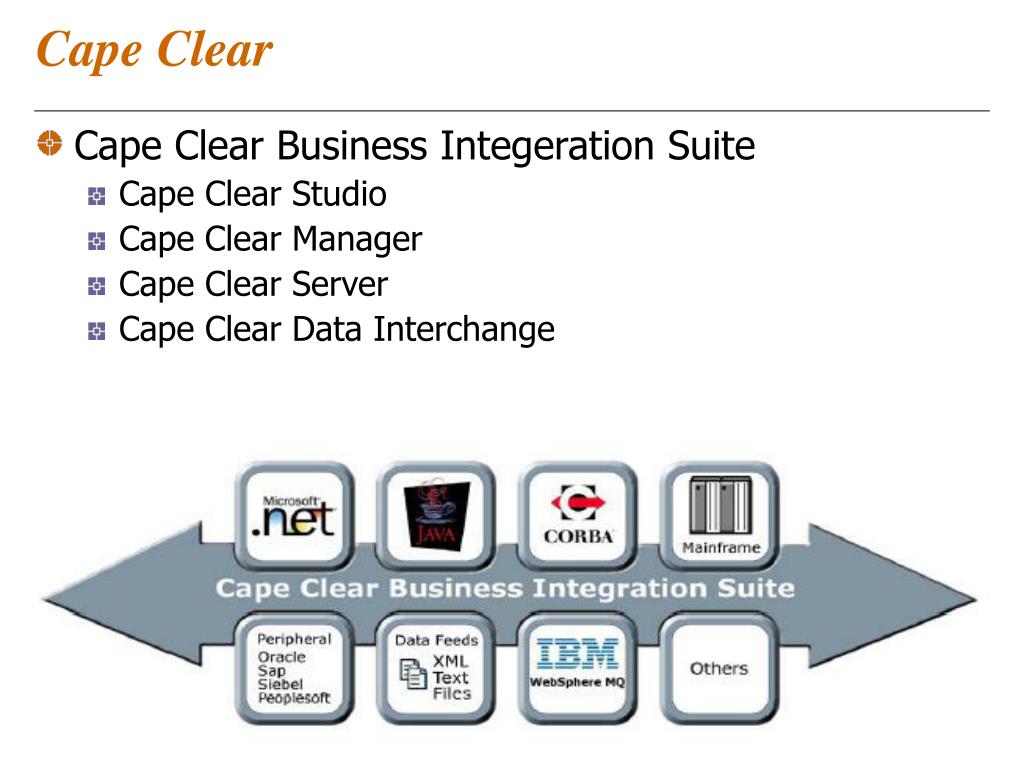

    Cape Clear

    • Cape Clear Business Integeration Suite

      • Cape Clear Studio

      • Cape Clear Manager

      • Cape Clear Server

      • Cape Clear Data Interchange


    Implementing soa using esb beyond hype

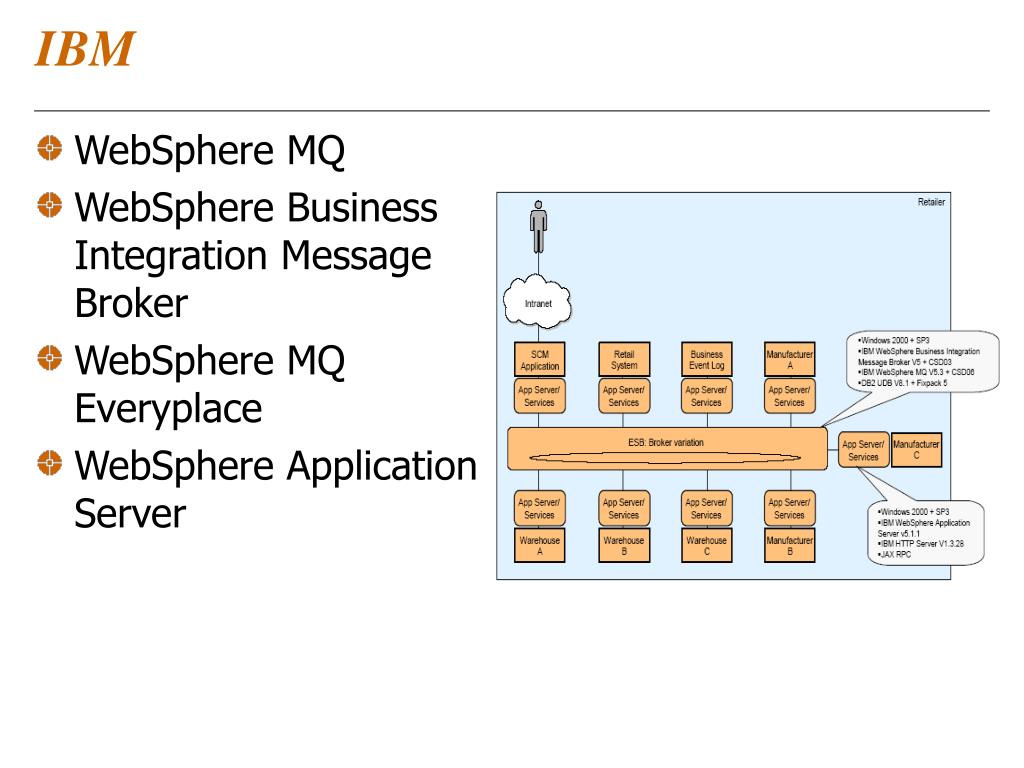

    IBM

    • WebSphere MQ

    • WebSphere Business Integration Message Broker

    • WebSphere MQ Everyplace

    • WebSphere Application Server


    Spiritsoft

    SpiritSoft

    • SpiritWare JMS Bus

    • SpiritWare Integration Server

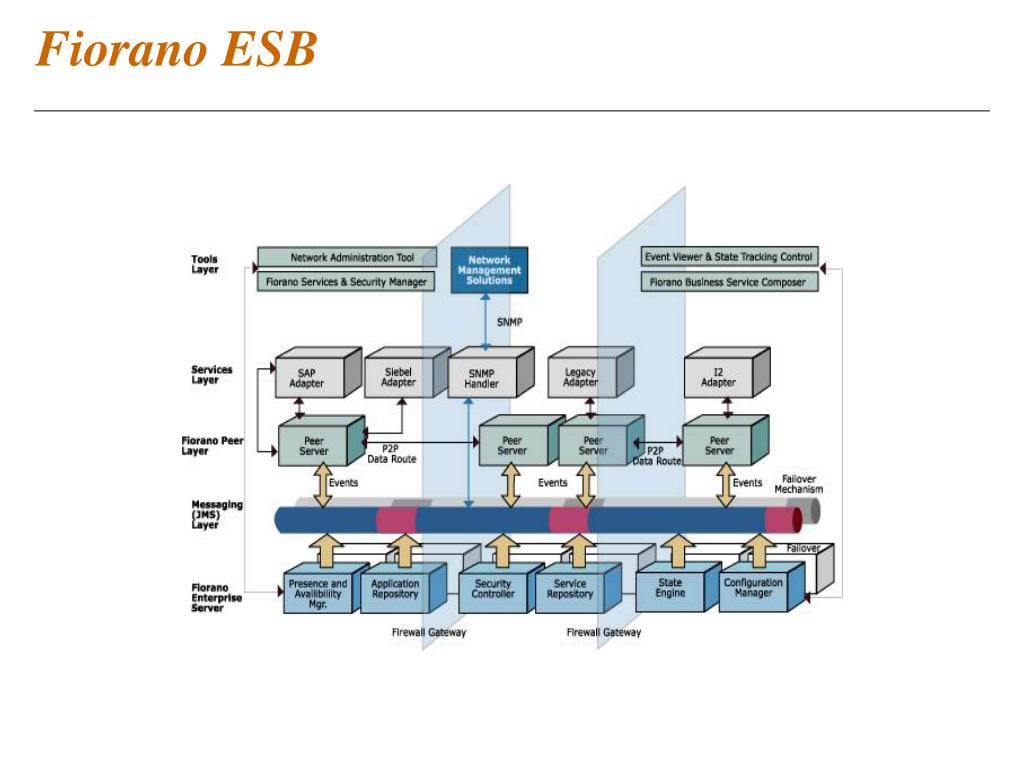

    Fiorano esb

    Fiorano ESB

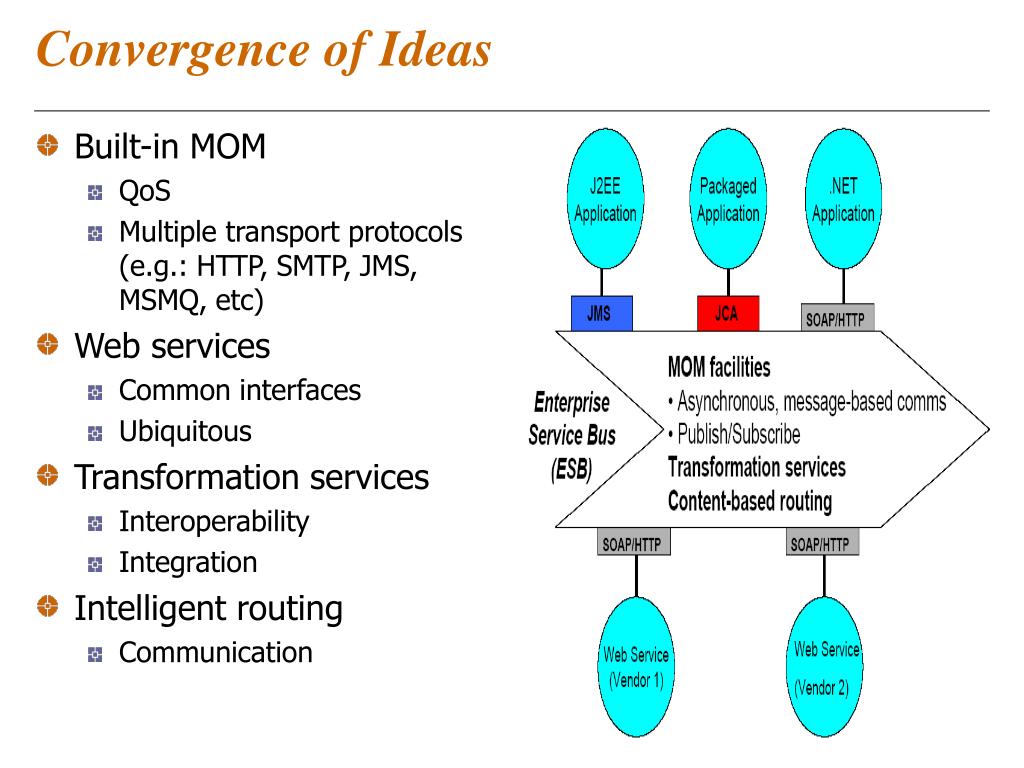

    Convergence of ideas

    Convergence of Ideas

    • Built-in MOM

      • QoS

      • Multiple transport protocols (e.g.: HTTP, SMTP, JMS, MSMQ, etc)

    • Web services

      • Common interfaces

      • Ubiquitous

    • Transformation services

      • Interoperability

      • Integration

    • Intelligent routing

      • Communication


    Agenda4

    Agenda

    • Service Oriented Architecture (SOA)

    • Enterprise Service Bus (ESB)

    • ESB Architecture and Components

    • ESB design patterns

    • ESB implementations

    • ESB case study

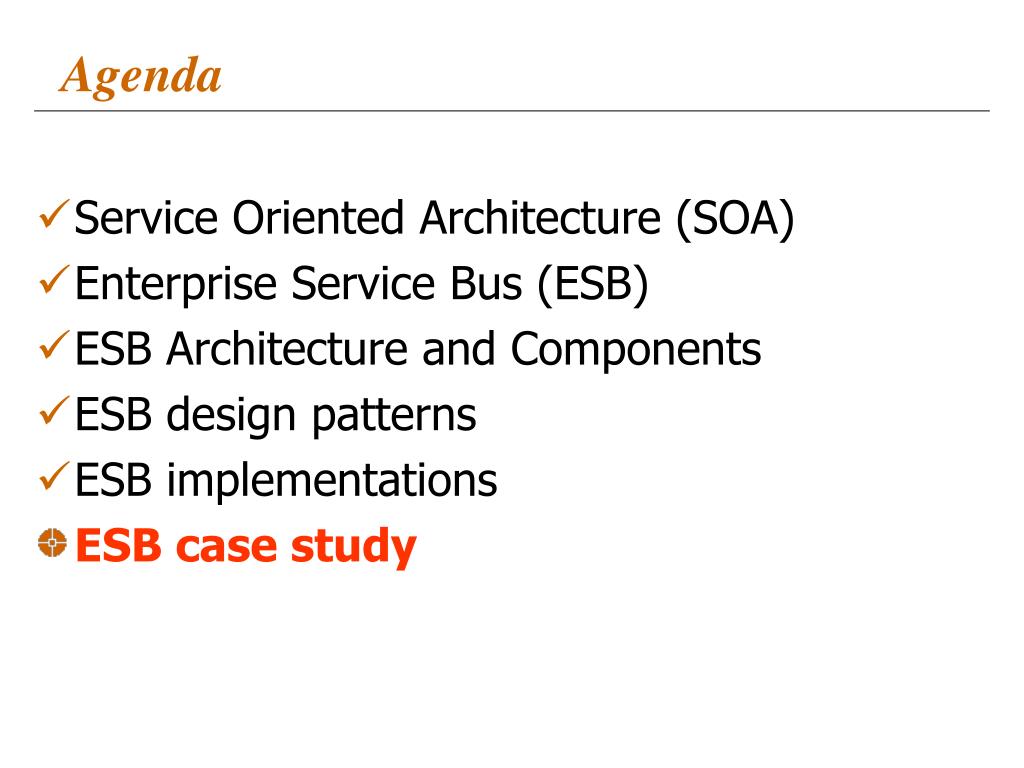

    Agenda5

    Agenda

    • Service Oriented Architecture (SOA)

    • Enterprise Service Bus (ESB)

    • ESB Architecture and Components

    • ESB design patterns

    • ESB implementations

    • ESB case study


    Case studies

    Case studies

    • Supply Chain Management (SCM)

    • International Investment Bank (IIB)


    Implementing soa using esb beyond hype

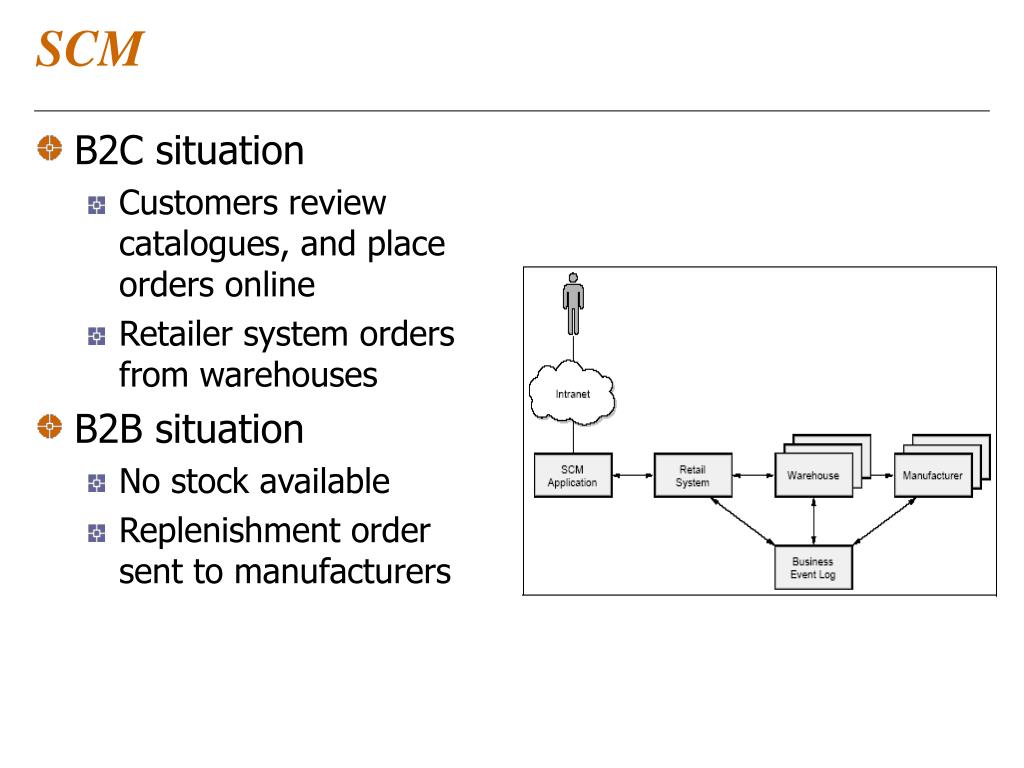

    SCM

    • B2C situation

      • Customers review catalogues, and place orders online

      • Retailer system orders from warehouses

    • B2B situation

      • No stock available

      • Replenishment order sent to manufacturers

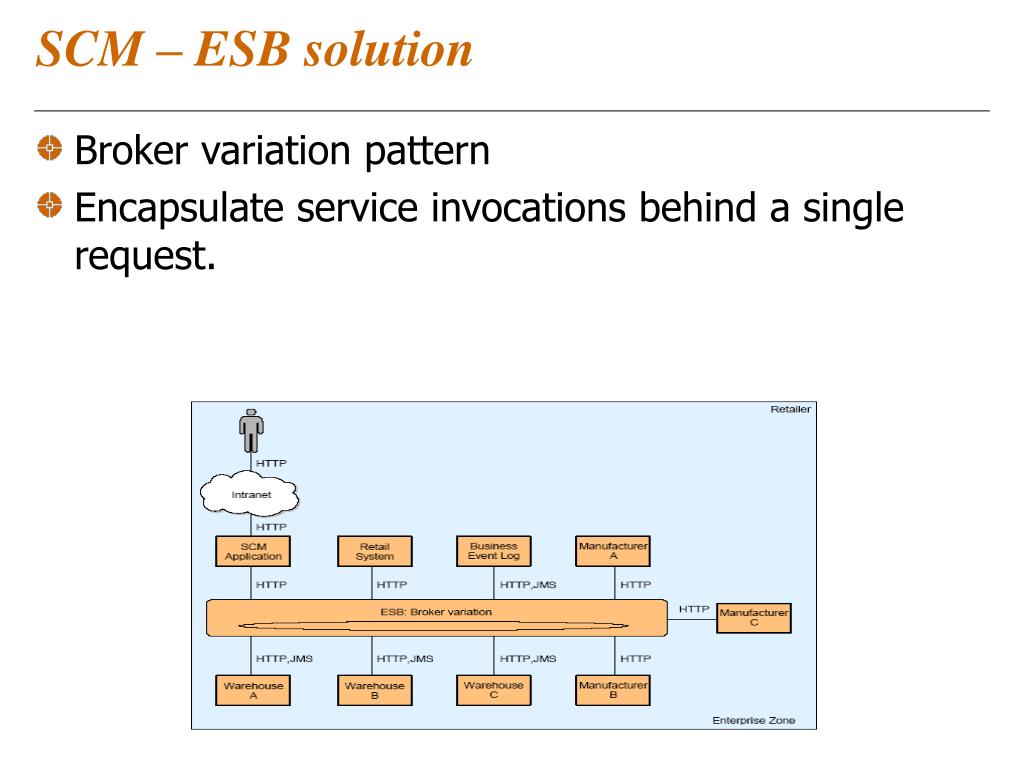

    Scm esb solution

    SCM – ESB solution

    • Broker variation pattern

    • Encapsulate service invocations behind a single request.

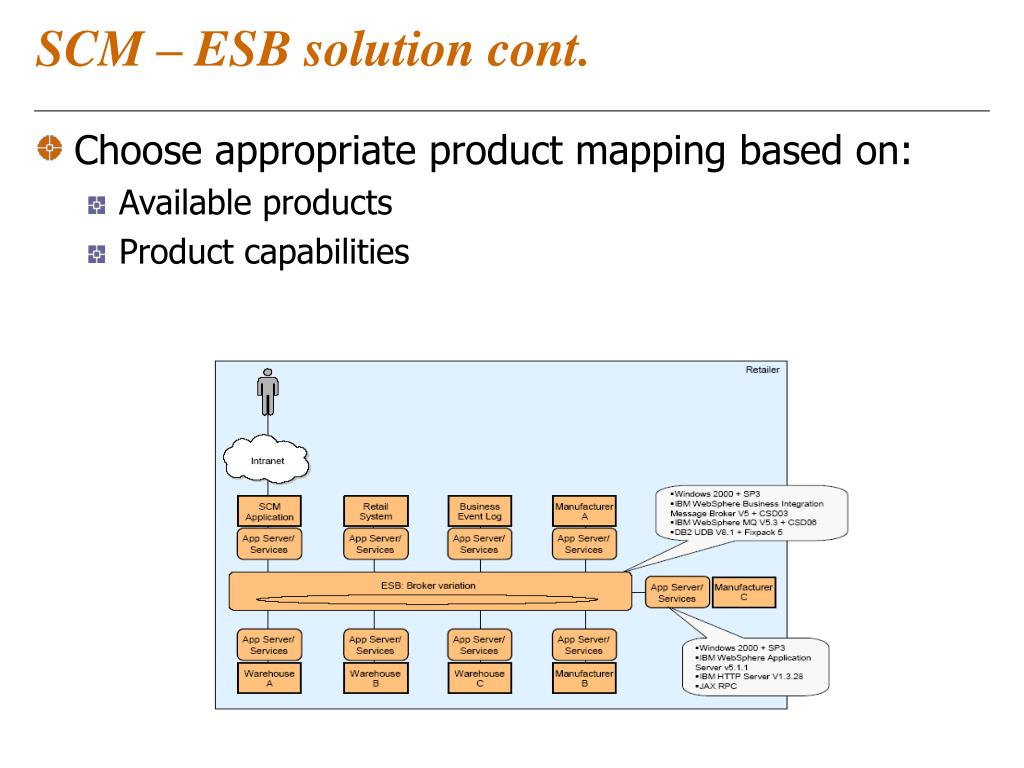

    Scm esb solution cont

    SCM – ESB solution cont.

    • Choose appropriate product mapping based on:

      • Available products

      • Product capabilities


    Implementing soa using esb beyond hype

    IIB

    • Typical bank architecture

    • Proprietary specific applications

    • Complex and expensive to maintain legacy solutions


    Iib esb solution

    IIB – ESB solution

    • ESB/JMS implementation

    • SpiritWave Integration Server bridging among ESBs


    Summary

    Summary

    • SOA is an evolutionary thing

      • No radically new thinking

      • Consolidates good things

    • The Message is the Message!

      • Think "message" instead of "call"

      • Asynchronous messaging

      • Loose coupling

    • ESB can help

      • Integration Hub

      • Service Invocation and Execution Framework

      • Service Locator

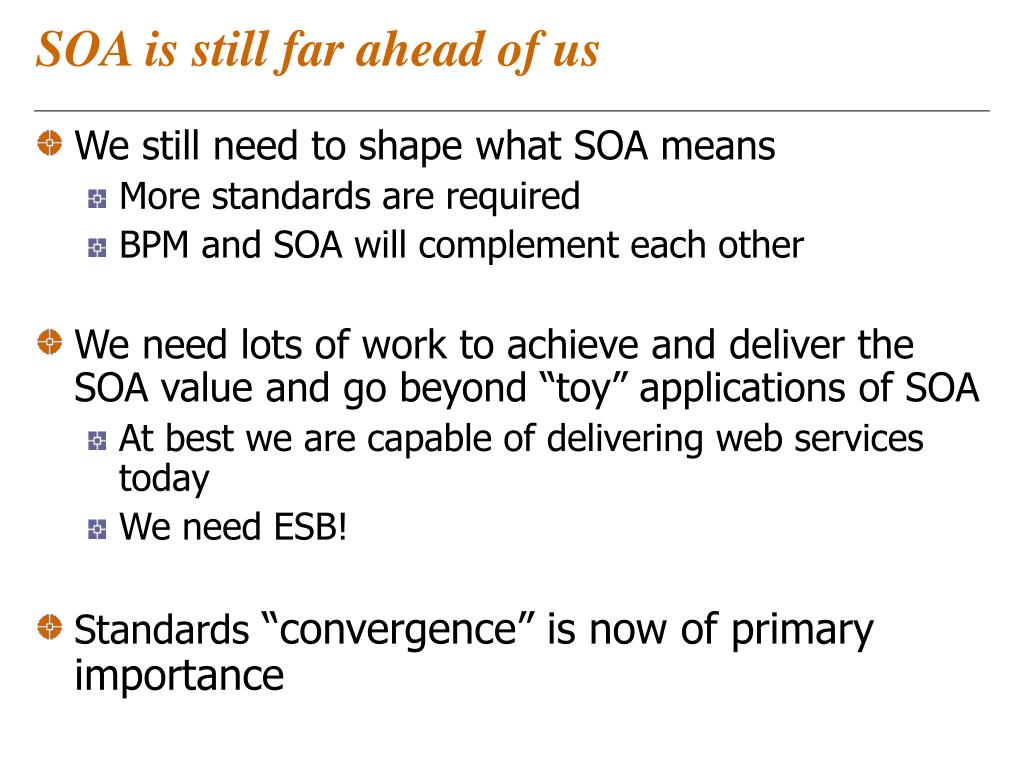

    Soa is still far ahead of us

    SOA is still far ahead of us

    • We still need to shape what SOA means

      • More standards are required

      • BPM and SOA will complement each other

    • We need lots of work to achieve and deliver the SOA value and go beyond “toy” applications of SOA

      • At best we are capable of delivering web services today

      • We need ESB!

    • Standards “convergence” is now of primary importance


    Recommendations

    Recommendations

    • Technology alone is not enough!

    • Design with loose coupling in mind

      • Decoupling is an investment in future change

    • The important issues for interoperability of autonomous computing system are around messaging and defining the interactions

    • Schema, protocol, meta-data, and versioning are essential to success


    Resources

    Resources

    • MSDN SOA Resources

      • http://msdn.microsoft.com/architecture/soa

    • Bishop, S., Hopkins, A., Milinski, S., Nott, C., Robinson, R., Adams, J., Verschueren, P. & Acharya, A. IBM Redbook 2004, Patterns: Implementing an SOA using an Enterprise Service Bus. Available: http://www.redbooks.ibm.com/redbooks/pdfs/sg246346.pdf

    • Craggs, S., 'Best-of-breeds ESBs: Identifying best-of-breed characteristics in Enterprise Services Buses (ESBs)', EAI Industry Consortium, June 2003

    • Sonic Software 2004, 'Distributed Service-Oriented Architecture: Delivering Standards-based Integration, the Advantages of an ESB'.


    Implementing soa using esb beyond hype

    Q & A ?


  • Login
