  1. File and Object Replication in Data Grids Chin-Yi Tsai

  2. Outline • Introduction • Background and Related Work • Globus Data Grid Tools • File Replication Tool : GDMP • Object Replication • Experimental Results with GridFTP • Conclusion

  3. File object object object object object object Introduction • Data replication is a key-issue in Data Grid • File and Object • Distributed analysis of experimental data • High Energy Physics Community (HEP) • CERN • ATLAS • CMS • The CMS experiment is a high energy physics experiment located at CERN, that will start data taking in the year 2006 • Computing, storage, network • There is a natural mapping to a Grid environment • GDMP architecture uses Globus Data Grid tools as middleware

  4. Grid site 1 (source) Grid site 2 (destination) application object copier tool File Replication and Object Replication Grid site 1 (source) Grid site 2 (destination) application Local storage

  5. Major focus of European DataGridProject on High Energy Physics • Object data stores used for next generation experiments • objects are important for data handling • Grid software mainly to deal with file replication issues • single file (about 1 or 2 GB in size; in total a few PB) • contains many objects • most objects are read-only

  6. Related Data Grid Projects • Earth Science Grid (ESG) • management of climate data • Particle Physics Data Grid (PPDG) • HEP applications • Grid Physics Network (GriPhyN) • Realizing the concept of Virtual Data

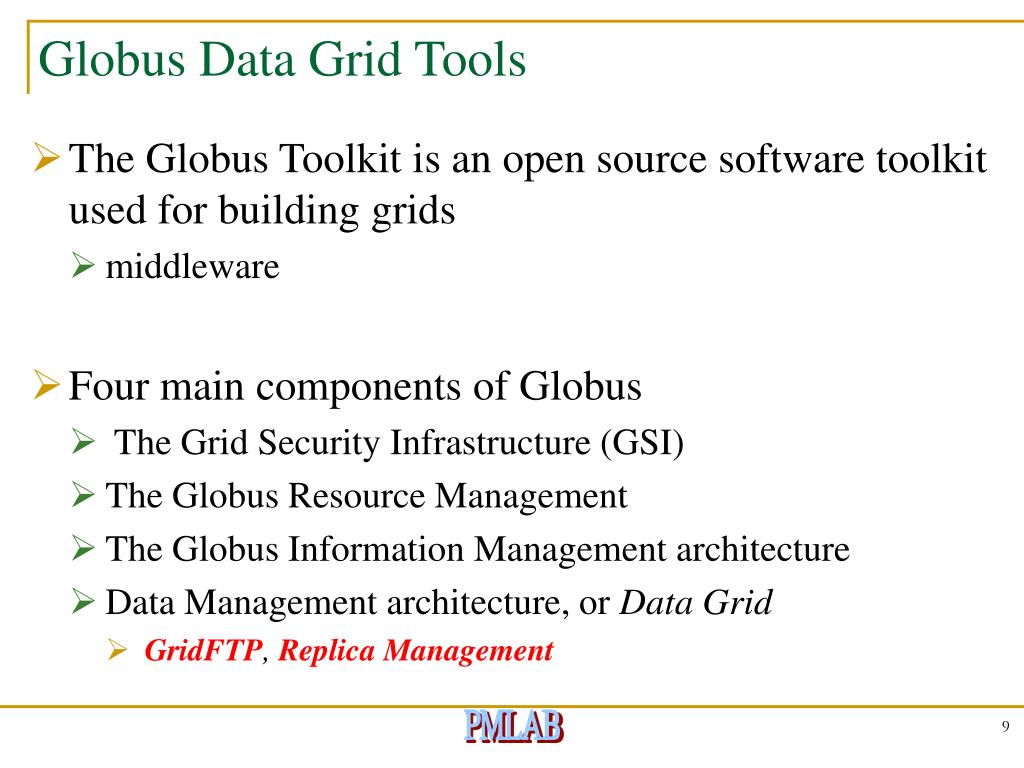

  7. Globus Data Grid Tools • The Globus Toolkit is an open source software toolkit used for building grids • middleware • Four main components of Globus • The Grid Security Infrastructure (GSI) • The Globus Resource Management • The Globus Information Management architecture • Data Management architecture, or Data Grid • GridFTP, Replica Management

  8. GridFTP uniform client interface HPSS SRB DPSS GridFTP DFS

  9. Site A …. user user user Local security infrastructure GSI GSI Local security infrastructure user user user Site B Features of GridFTP • GSI and Kerberos support • GSS API • Third-party control of data transfer • add GSS API • Parallel data transfer • Multiple TCP stream, single host • Striped data transfer • Multiple TCP stream, multiple host/server • Partial file transfer • Automatic negotiation of TCP buffer/window sizes • Support the reliable and restartable data transfer

  10. The GridFTP Protocol Implementation • The two main libraries • globus_ftp_control_library • globus_ftp_client_library

  11. Replica Catalog • Mapping between logical name for files or collections and one or more copies of the objects on physical storage systems • Three types of entries • logical collections • Location (physical) • logical files

  12. One Application Model Replica Catalog Logical Collection Weather measurement 2003 Logical Collection Weather measurement 2002 filename: Jan 2003 filename: Feb 2003 … filename: Dec 2003 Location cwb.gov.tw Location ntu.edu.tw Location fcu.edu.tw Logical File Parent filename: Jan 2003 filename: Feb 2003 Protocol: GridFTP Hostname: cwb.gov.tw Path: nfs/weather/ filename: Jan 2003 filename: Feb 2003 filename: Oct 2003 filename: Jan 2003 filename: Sep 2003 … Logical File Jan 2003 Logical File Jan 2003

  13. listCollectionNamesFile Site A File1 File2 File3 File4 File1 File2 File3 File4 File5 Site B File2 File3 File5 listANamesFile namesToSearchFile listBNamesFile filename:File1 filename:File2 filename:File3 filename:File4 filename:File4 filename:File5 filename:File2 filename:File3 filename:File5 An Example Replication Scenario File1: 100MB File2: 200MB File3: 300MB File4: 400MB File5: 500MB Location entry corresponding to site A uc : gridftp://Ahost.isi.edu:2222/nfs/path/on/A Location entry corresponding to site B uc : gridftp://Bhost.mcs.anl.gov:7777/nfs/path/on/B

  14. Implementation This Scenario with the Command Line Tool Registering the collection globus-replica-catalog –host <ldap url> -manager <ldap DN> -password <> -collection –create listCollectionNamesFile Registering the location A globus-replica-catalog –host < ldap url> -manager < ldap DN> -password <> -location locationA? –create gridftp://Ahost.isi.edu:2222/nfs/path/on/AlistANamesFile Registering the location B globus-replica-catalog –host < ldap url> -manager < ldap DN> -password <> -location locationB? –create gridftp://Bhost.mcs.anl.gov:7777/nfs/path/on/BlistBNamesFile

  15. Registering logical file File1, File2, File3, File4, File5 globus-replica-catalog –host < ldap url> -manager < ldap DN> -password <> -logicalfile File1 –create 104857600 Searching for the uc(URL constructor) attribute of all location that contain File4 and File5 globus-replica-catalog –host < ldap url> -manager < ldap DN> -password <> -collection –find-locations NamesToSearchFile –attributes uc List the value of the size attribute of the File2 globus-replica-catalog –host < ldap url> -manager < ldap DN> -password <> -logicalfile File2? –list-attributes size

  16. Request Manager Security Layer Replica Catalog Service Data Mover Service Storage Manager Service GDMP Architecture • The GDMP client-server software system is a generic file replication tool

  17. Application API Replica Catalog Service Globus Replica Catalog Replica Catalog Service • Maintain a global file name space of replicas • New file • logical file name • meta-information • physical location • Client sites query the Replica Catalog Service • Implementation • LDAP and Globus library (replica catalog) • High-level API

  18. Data Mover Service • Layered design • high-level API and low-level service • Data transfer • security, performance, robustness • To use GridFTP as GDMP’s underlying file transfer mechanism • Handle network failures and perform additional check for corruption

  19. Site B GDMP Site B disk pool GDMP disk pool Storage Management Service • Use external tools for staging (different for each MSS) • Assume that each site has a local disk pool = data transfer cache • GDMP triggers file staging to the disk pool • If a file is not located on the disk pool but requested by a remote site GDMP, initiates a disk-to-disk file transfer • GDMP has a plug-in for Hierarchical Storage Manager (HRM) APIs, which provide a common interface to be used to access different Mass Storage Systems. • The implementation is based on CORBA

  20. Grid site 1 (source) Grid site 2 (destination) application object copier tool Object Replication Motivation • File replication works well for many kinds of applications • however, too inefficient for physics analysis: • only a few objects of a file are requested • physicists want to have replicas on specific sites with sufficient CPU power • don’t want to have the entire file but only a few objects • file replication: overhead in terms of data to be transferred • use object copier to copy objects to a file and then replicate the “new” file • one object per file is inefficient since object size is between a 100bytes and 1 MB - too many files

  21. Object Replication Architecture Choices • large, world-wide distributed databases are not considered very attractive in HEP • significant parts of GDMP and Globus are used • Object replication cycle: • objects are identified by application • objects not present at the location are identified • “missing” objects are copied into new files and then transferred to the application • Copy and file transfer are pipelined to achieve a better response time • Index files used for locating objects

  22. Object Replication Prototyping Experience • Most of current next-generation experiments do not do analysis yet: • object replication is still a prototype • file replication based on GDMP is in production use • machine where object copier is running needs to be powerful (CPU and IO)

  23. Experimental Results with GridFTP • Main motivation • study the impact of TCP socket buffer size tuning on parallel datatransfers • understand the throughput that can be achieved in realistic settings • Get maximal throughput • it is critical to use optimal TCP send and receive socket buffer size (too small or to large) • Test server • WU-ftpd server 0.4b6 • Test program • extened_get • extended_put

  24. Experimental Results with GridFTP (cont’d)

  25. Experimental Results with GridFTP (cont’d) • Optimal TCP buffer size = RTT * (speed of bottleneck link) • RTT measured with Unix ping tool • bottleneck link speed: pipechar (new tool from LBNL) • Simple method to determine optimal number of parallel streams is not known yet • too many streams may overload the receiving host • usually, 4~8 parallel streams are optimal

  26. Conclusion • GDMP replication service has been enhanced with more advanced data management features • namespace • file catalog management • efficient file transfer (GridFTP) • Object-based replication • experimental analysis
