An overview of jpeg 2000

An Overview of JPEG-2000

Michael WMarcellin, Michael J Gormish +

, Ali Bilgin, Martin PBoliek +

University of Arizona, + Ricoh Silicon Valley

DCC 2000


Abstract

Abstract

  • A brief history of the JPEG-2000 standardization process

  • An overview of the standard

  • Some description of the capabilities provided by the standard

  • Part I of the JPEG-2000 standard specifies the mini mum compliant decoder

  • Part II describes optional, value-added extensions


1 introduction

1 Introduction

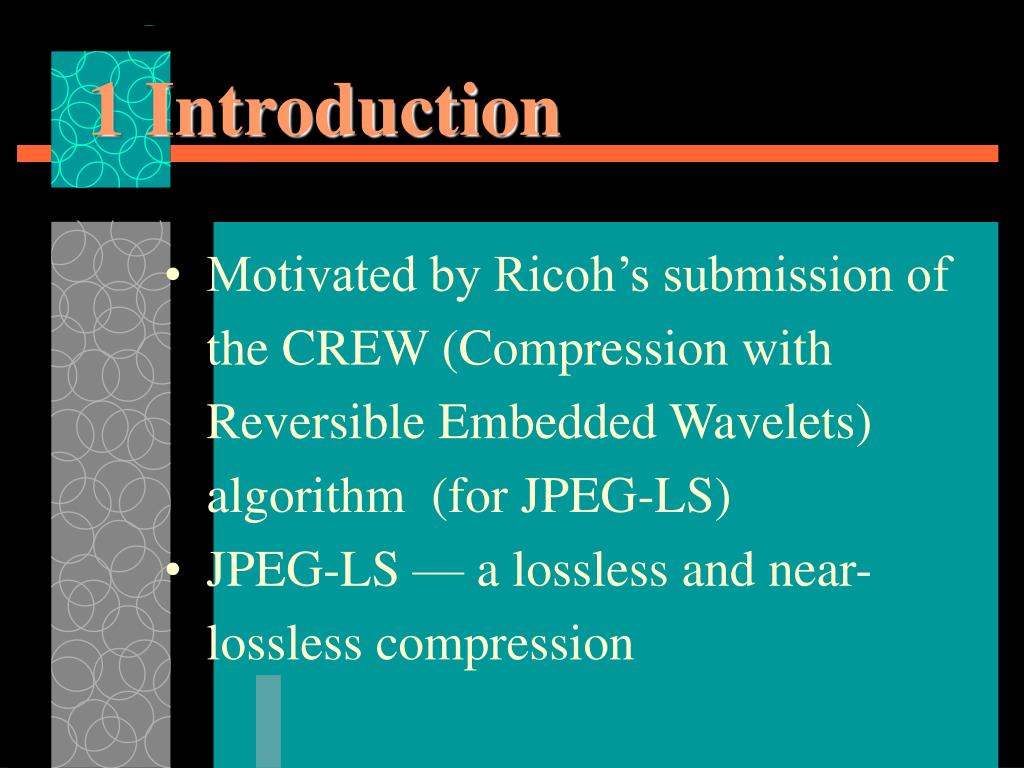

  • Motivated by Ricoh’s submission of the CREW (Compression with Reversible Embedded Wavelets) algorithm (for JPEG-LS)

  • JPEG-LS — a lossless and near-lossless compression


1 introduction1

1 Introduction

  • List of features:

    • State-of-the-art low bit-rate compression performance

    • Progressive transmission by quality resolution, component, or spatial locality

    • Lossy and lossless compression

    • Random (spatial) access to the bitstream

    • Pan and zoom

    • Compressed domain processing (eg, Rotation and cropping)

    • Region of interest coding by progression

    • Limited memory implementations


2 the jpeg 2000 development process

2 The JPEG-2000 Development Process

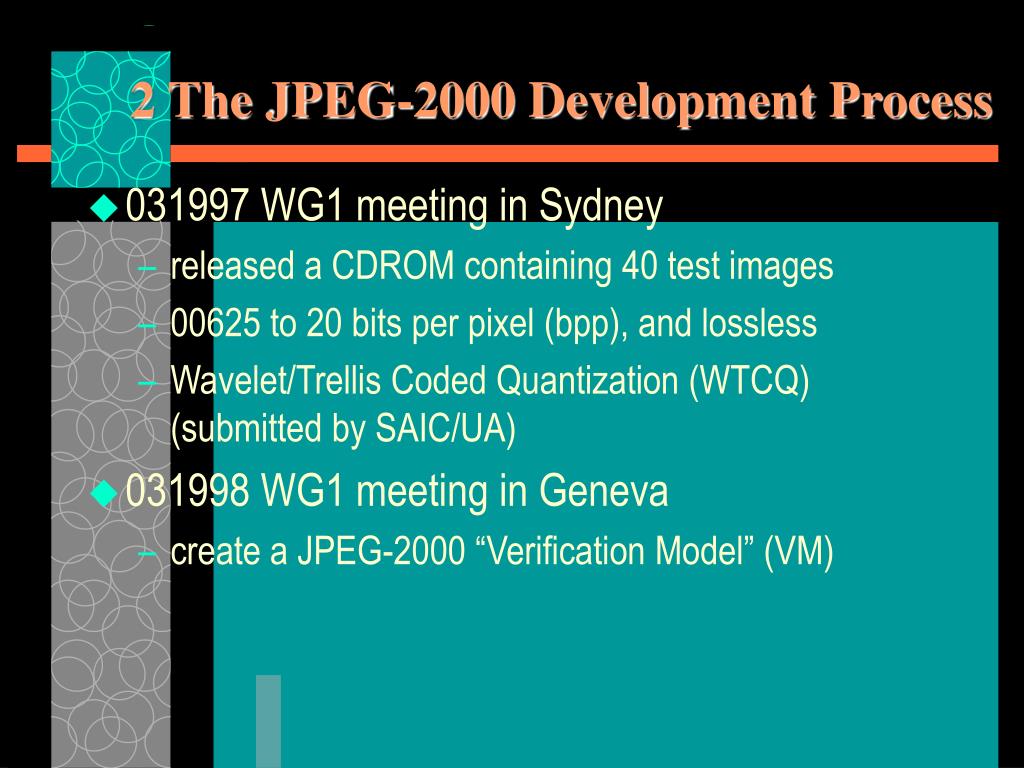

031997 WG1 meeting in Sydney

released a CDROM containing 40 test images

00625 to 20 bits per pixel (bpp), and lossless

Wavelet/Trellis Coded Quantization (WTCQ) (submitted by SAIC/UA)

031998 WG1 meeting in Geneva

create a JPEG-2000 “Verification Model” (VM)


2 the jpeg 2000 development process1

2 The JPEG-2000 Development Process

The WTCQ Algorithm

Basic ingredients:

The discrete wavelet transform, TCQ(Trellis Coded Quantization, Using step sizes chosen via a Lagrangian rate allocation procedure), and binary arithmetic bitplane coding

VM0 - VM2

VM3 - VM5


2 the jpeg 2000 development process2

2 The JPEG-2000 Development Process

VM0-VM2

Supported user specified floating point and integer transforms, as well as user specified decompositions(dyadic, uniform, etc)

A fixed quantization table(“Q-table”) alternative to the Langrangian rate allocation

scalar quantization was included in VM2

tiling, region of interest coding/decoding, error resilience, approximate wavelet transforms with limited spatial support


2 the jpeg 2000 development process3

2 The JPEG-2000 Development Process

VM0-VM2

De-interleaving of bitplanes

Significant, Refinement, Insignificant

for steepest rate-distortion slopes appear first in an embedded bitstream

no inter-subband dependencies (Parallelism)

change the type of progression without decoding

Improvements to the context modeling


2 the jpeg 2000 development process4

2 The JPEG-2000 Development Process

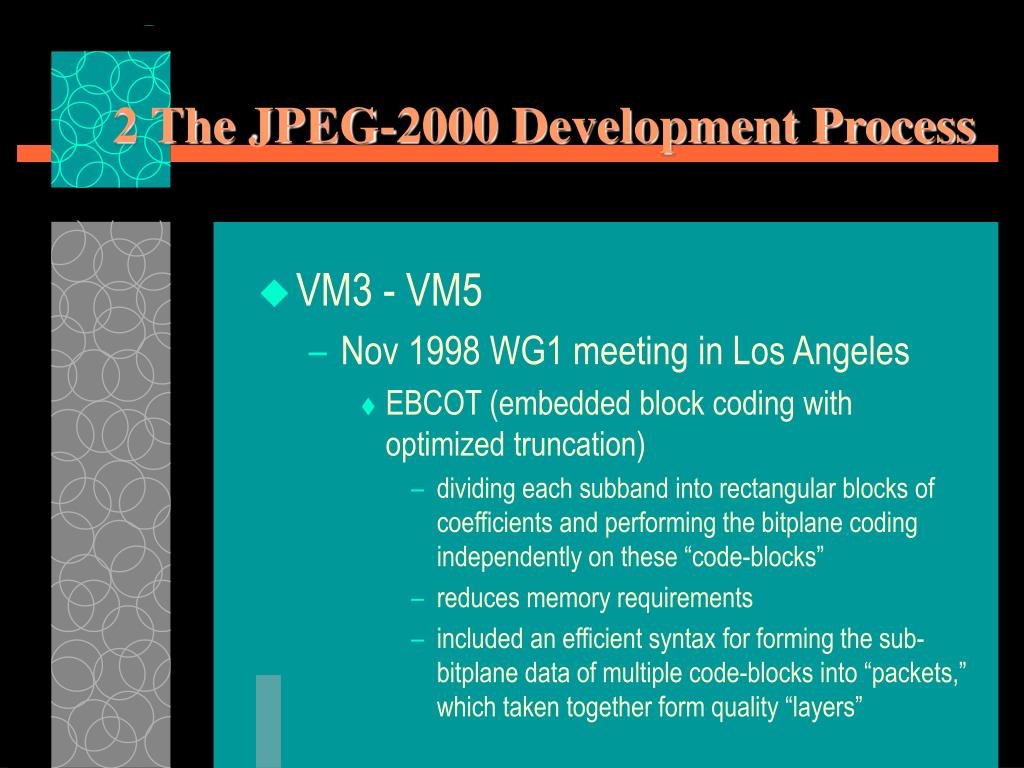

VM3 - VM5

Nov 1998 WG1 meeting in Los Angeles

EBCOT (embedded block coding with optimized truncation)

dividing each subband into rectangular blocks of coefficients and performing the bitplane coding independently on these “code-blocks”

reduces memory requirements

included an efficient syntax for forming the sub-bitplane data of multiple code-blocks into “packets,” which taken together form quality “layers”


2 the jpeg 2000 development process5

2 The JPEG-2000 Development Process

VM3 - VM5

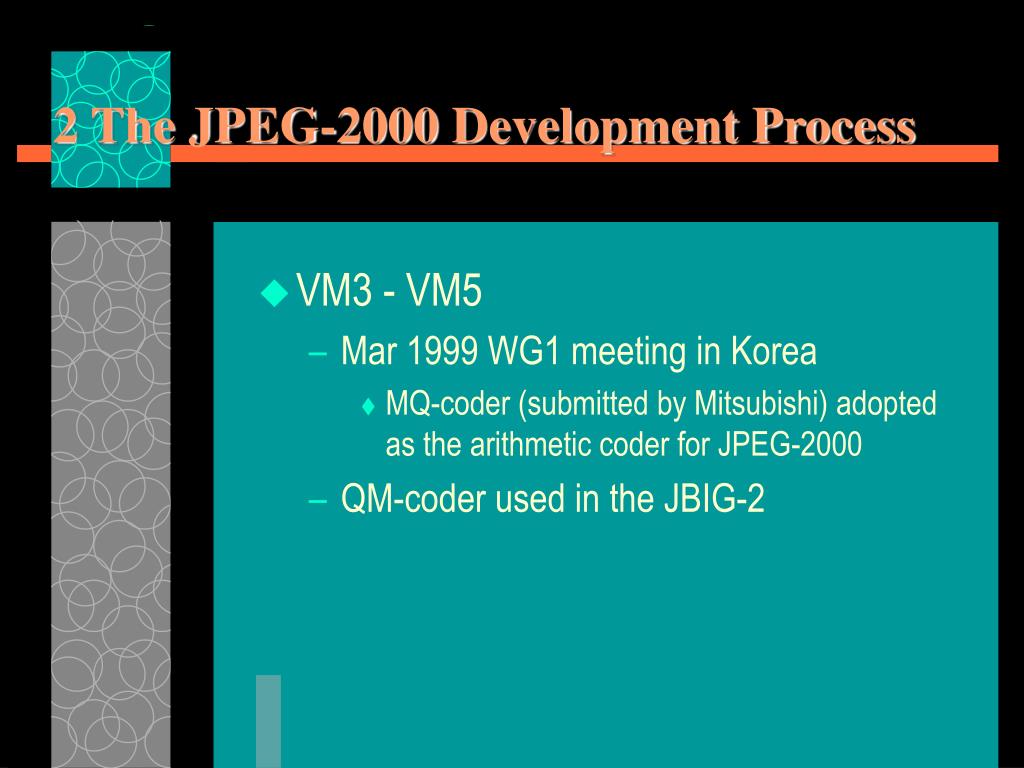

Mar 1999 WG1 meeting in Korea

MQ-coder (submitted by Mitsubishi) adopted as the arithmetic coder for JPEG-2000

QM-coder used in the JBIG-2


3 final standardization

3 Final Standardization

  • Schedule:

    • Dec 1999 “Committee Draft” (CD)

    • Apr 2000 “Final Committee Draft” (FCD)

    • Aug 2000 “Final Draft International Standard” (FDIS)

    • Dec 2000 “International Standard” (IS)

    • Jul 2001 PART II


3 final standardization1

3 Final Standardization

  • PART I “minimum decoder”

  • PART II “extensions” , “value added”

  • PART III “Motion JPEG-2000”

  • PART IV JPEG-2000 compliance tests

  • PART V development of free software

  • JJ2000 group (Cannon France, Ericsson, EPFL) => JAVA

  • UBC => C


Ricoh silicon valley

Ricoh Silicon Valley


An overview of jpeg 2000

SAIC


An overview of jpeg 2000

SAIC


4 jpeg 2000 coding engine

4 JPEG-2000 Coding Engine

Tiles and Component Transforms

Partitions, Transforms, and Quantization

Block Coding

Packets and Layers


41 tiles and component transforms

41 Tiles and Component Transforms

Divide the image into rectangular, non-overlapping tiles on a regular grid

Arbitrary tile sizes are allowed

Each tile of a component must be of the same size

YCbCr, Reversible Component Transform (RCT) (allow lossless reconstruction of all components)


42 partitions transforms and quantization

42 Partitions, Transforms, and Quantization

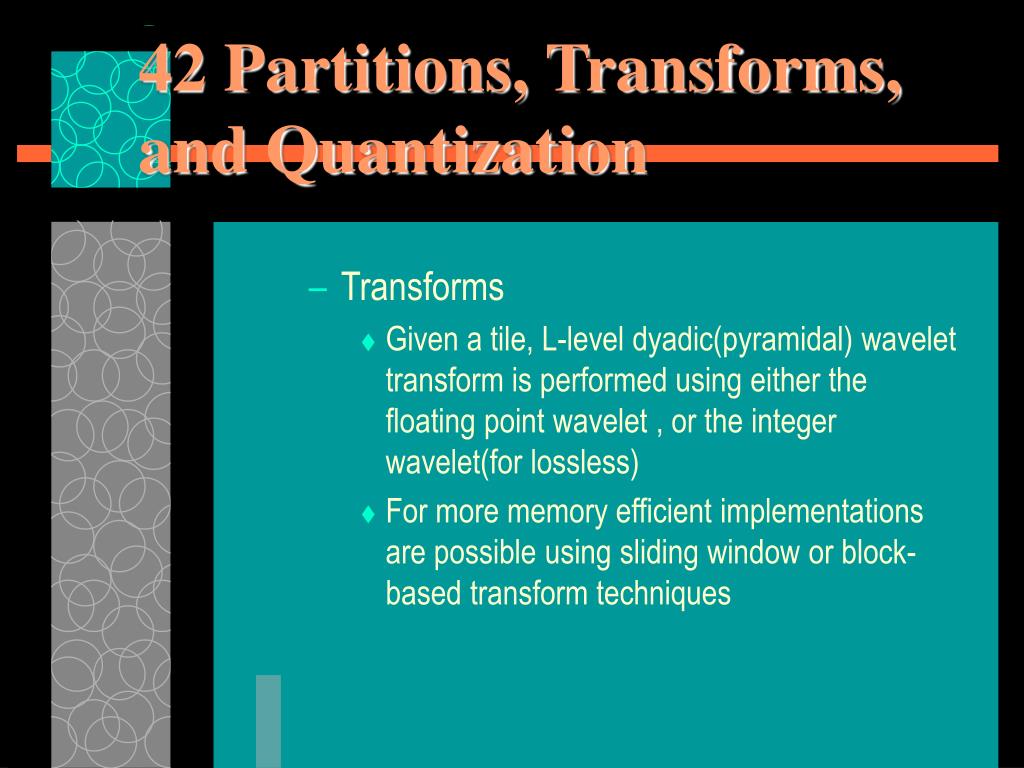

Transforms

Given a tile, L-level dyadic(pyramidal) wavelet transform is performed using either the floating point wavelet , or the integer wavelet(for lossless)

For more memory efficient implementations are possible using sliding window or block-based transform techniques


42 partitions transforms and quantization1

42 Partitions, Transforms, and Quantization

Transforms (L-level transform)

“L+1” different size or resolutions

lowest frequency subband(LFS) as resolution 0, also referred to as the resolution level 0 subband

j -> j+1 is referred to collectively as resolution-level j+1 subbands


42 partitions transforms and quantization2

42 Partitions, Transforms, and Quantization

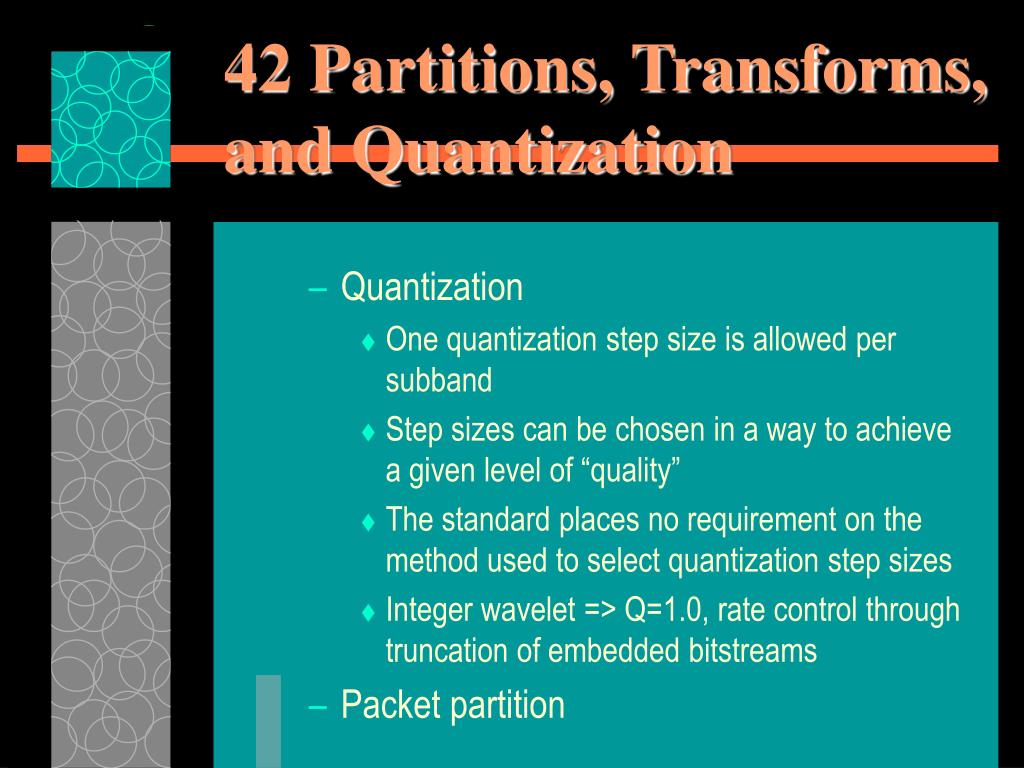

Quantization

One quantization step size is allowed per subband

Step sizes can be chosen in a way to achieve a given level of “quality”

The standard places no requirement on the method used to select quantization step sizes

Integer wavelet => Q=1.0, rate control through truncation of embedded bitstreams

Packet partition


42 partitions transforms and quantization3

42 Partitions, Transforms, and Quantization

Packet partition

Provided a medium-grain level of spatial locality in the bitstream, streaming, and (spatial) randomaccess to the bitstream

Code-blocks are obtained

by dividing each packet

partition location into regular

non-overlapping rectangles


Recap

an image is divided into tiles and each tile is transformed

The subbands are divided into packet partition locations

Each packet partition location is divided into code-blocks

Recap


Block coding

Bitplanes

Three pass

Significance

Refinement

Clean-up

All coding is done using context dependent binary arithmetic coding

Block Coding

1st MSB

2ed MSB

Least MSB


Block coding1

Block Coding

  • For brevity, JPEG-2000 uses no more than nine contexts to code any given type of bit (ie, significance, refinement, etc)


Packets and layers

Packets and Layers

  • A Packet can be interpreted as one quality increment for one resolution level at one spatial location

  • A Layer can be interpreted as one quality increment for the entire

  • image at full resolution

  • current VM supports approximately 50 layers


5 jpeg 2000 bitstream

5 JPEG-2000 Bitstream

Provides better rate-distortion performance, for any given rate, then the original JPEG

Progression can be changed, additional quantization can be done, or a server can respond only with the data desired by a client, all without decoding the bitstream


5 jpeg 2000 bitstream1

5 JPEG-2000 Bitstream

Progression

resolution, quality, spatial location, and component

Achieved by the ordering of packets within the bitstream

Progression type can be changed at various places within the bitstream

Allows an icon to be displayed first, then a screen resolution image


5 jpeg 2000 bitstream2

5 JPEG-2000 Bitstream

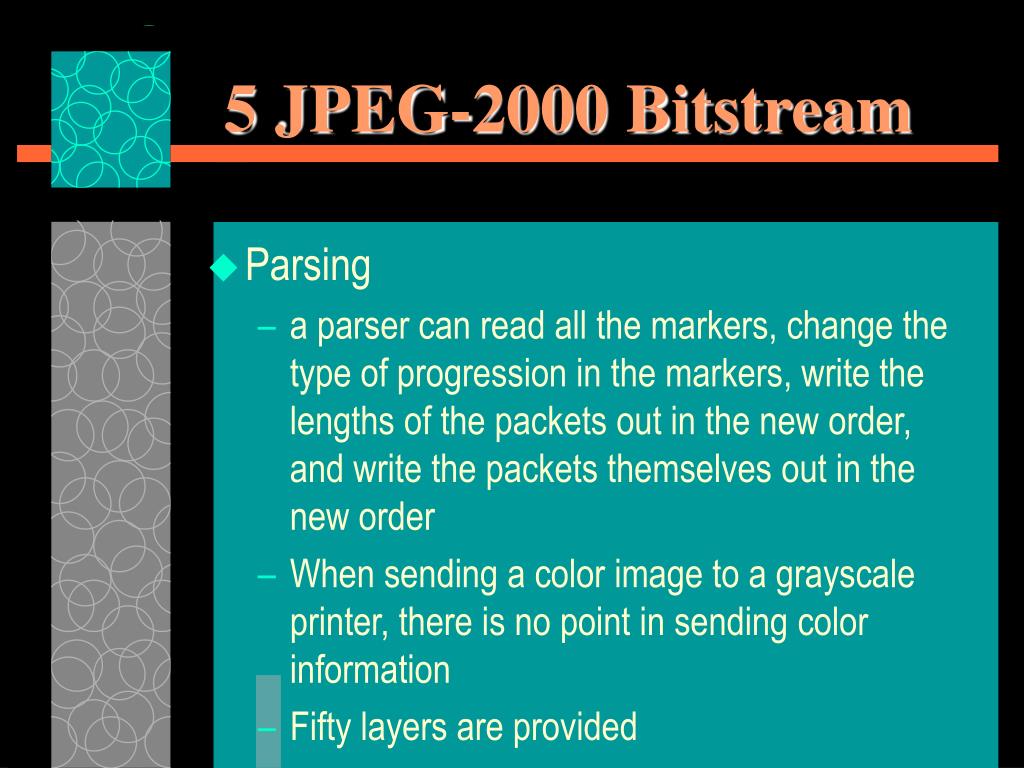

Parsing

a parser can read all the markers, change the type of progression in the markers, write the lengths of the packets out in the new order, and write the packets themselves out in the new order

When sending a color image to a grayscale printer, there is no point in sending color information

Fifty layers are provided


5 jpeg 2000 bitstream3

5 JPEG-2000 Bitstream

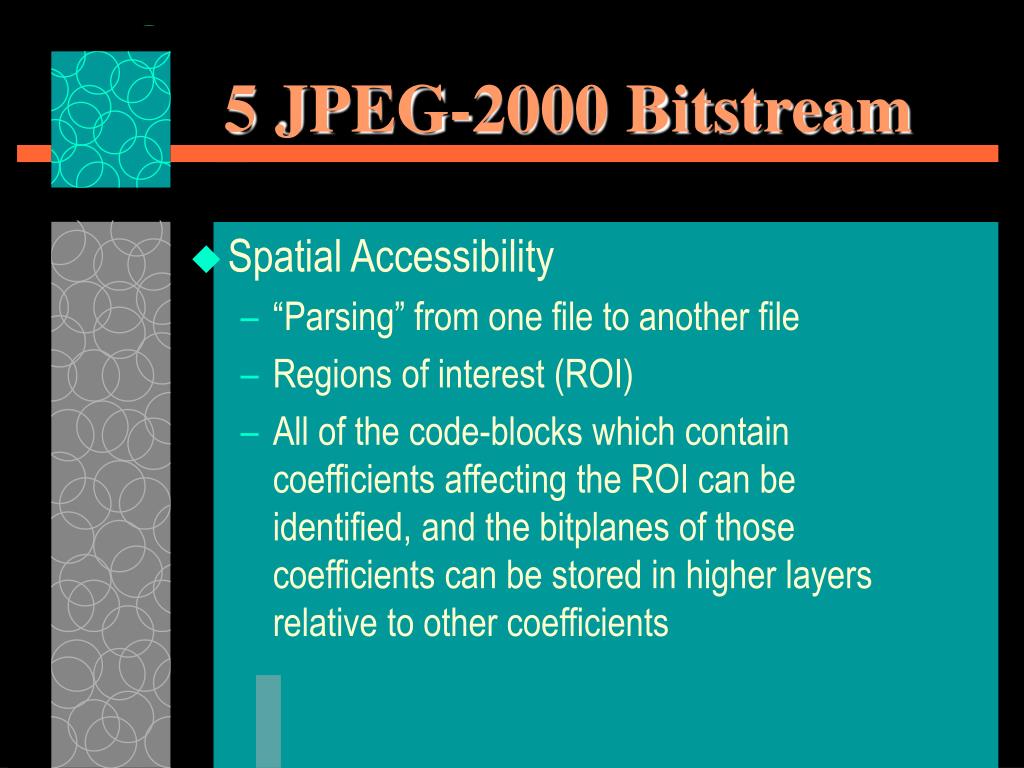

Spatial Accessibility

“Parsing” from one file to another file

Regions of interest (ROI)

All of the code-blocks which contain coefficients affecting the ROI can be identified, and the bitplanes of those coefficients can be stored in higher layers relative to other coefficients


5 jpeg 2000 bitstream4

5 JPEG-2000 Bitstream

Image Editing and Compression

Allow uncompressed tiled image formats allow regions of and image to be edited, and only those tiles affected need to be rewritten to disk

PART I allow 90,180, and 270 degree rotations, and horizontal and vertical flips of an image

PART II flagged in the bitstream, and left for the decoder to perform

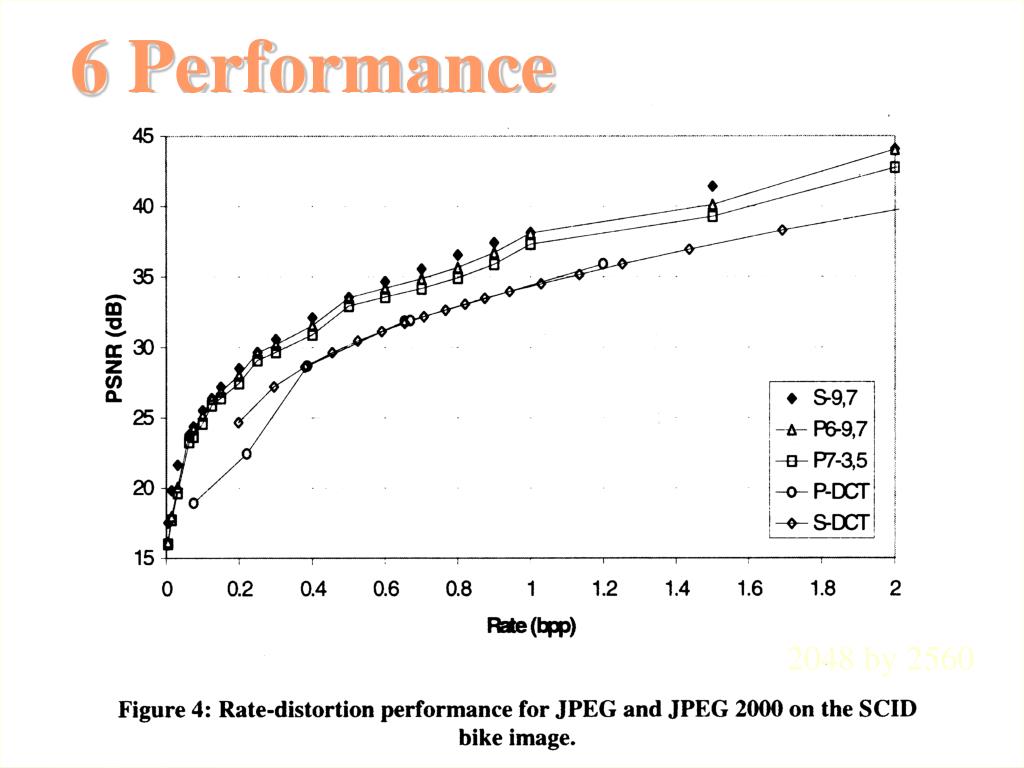

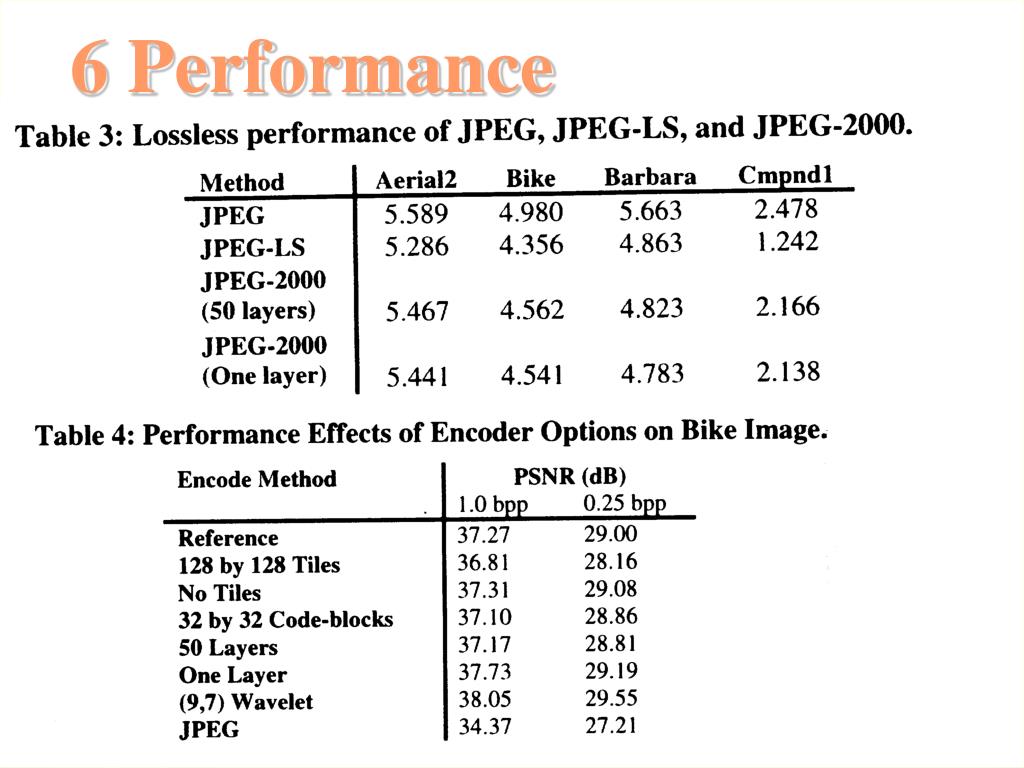

6 performance

6 Performance

2048 by 2560


6 performance1

6 Performance

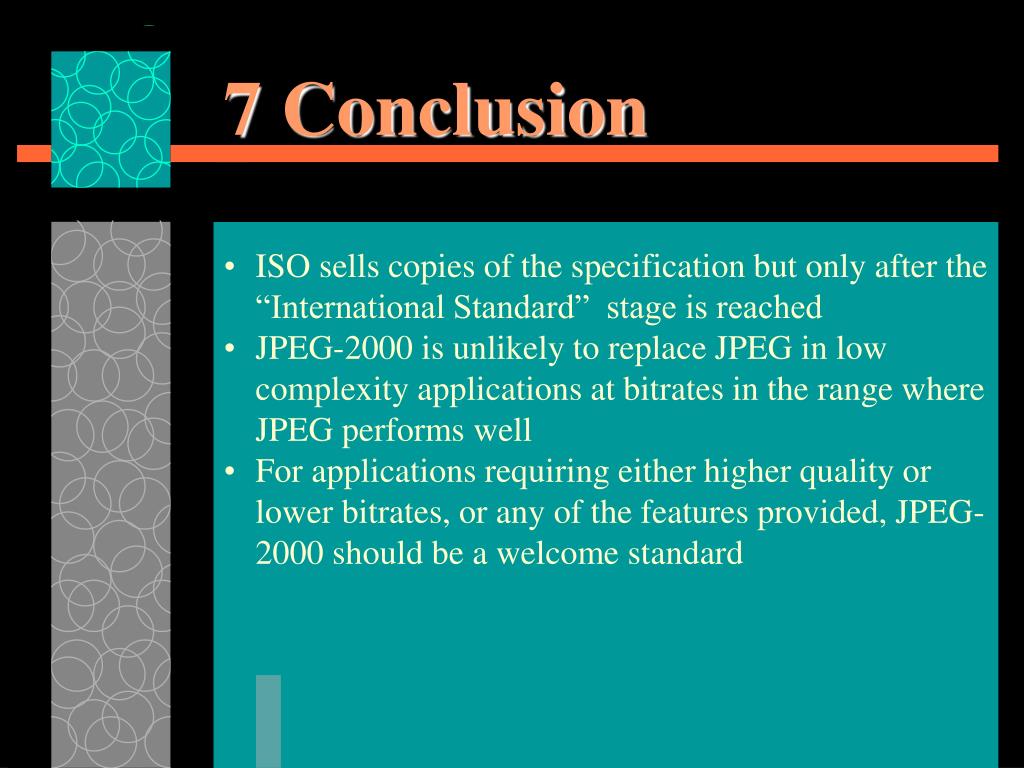

7 conclusion

7 Conclusion

  • ISO sells copies of the specification but only after the “International Standard” stage is reached

  • JPEG-2000 is unlikely to replace JPEG in low complexity applications at bitrates in the range where JPEG performs well

  • For applications requiring either higher quality or lower bitrates, or any of the features provided, JPEG-2000 should be a welcome standard


Coding principles

Coding principles

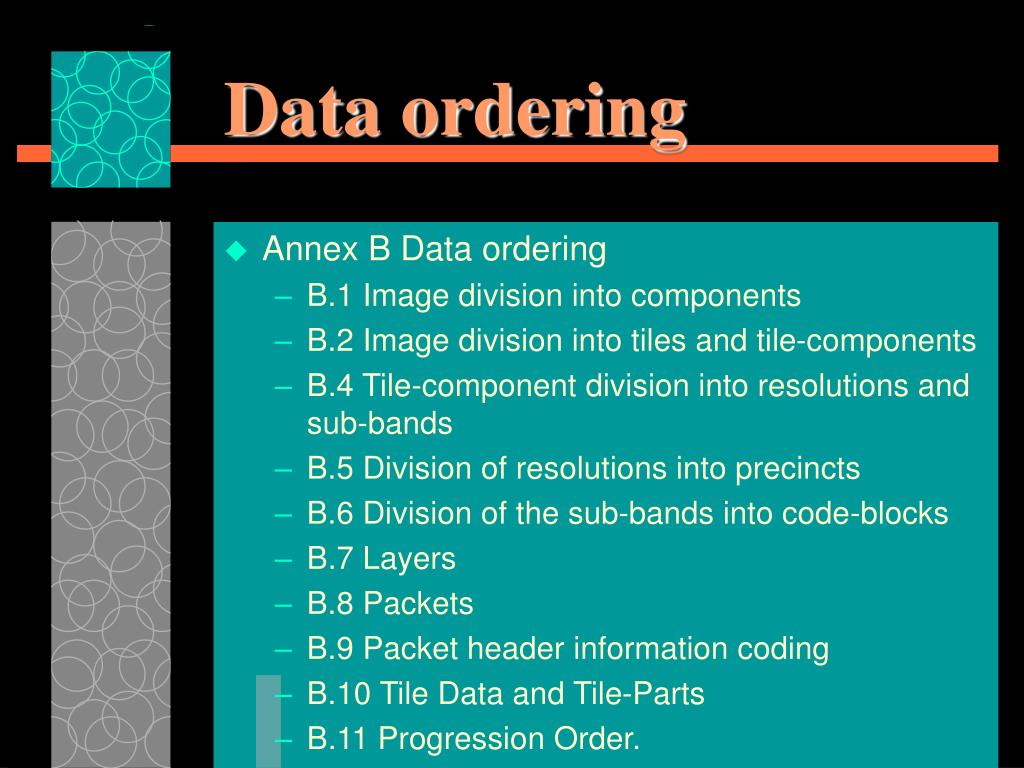

Data ordering

Data ordering

  • Annex B Data ordering

    • B.1 Image division into components

    • B.2 Image division into tiles and tile-components

    • B.4 Tile-component division into resolutions and sub-bands

    • B.5 Division of resolutions into precincts

    • B.6 Division of the sub-bands into code-blocks

    • B.7 Layers

    • B.8 Packets

    • B.9 Packet header information coding

    • B.10 Tile Data and Tile-Parts

    • B.11 Progression Order.


Image division into components

Image division into components


Image division into tiles and tile components

Image division into tiles and tile-components

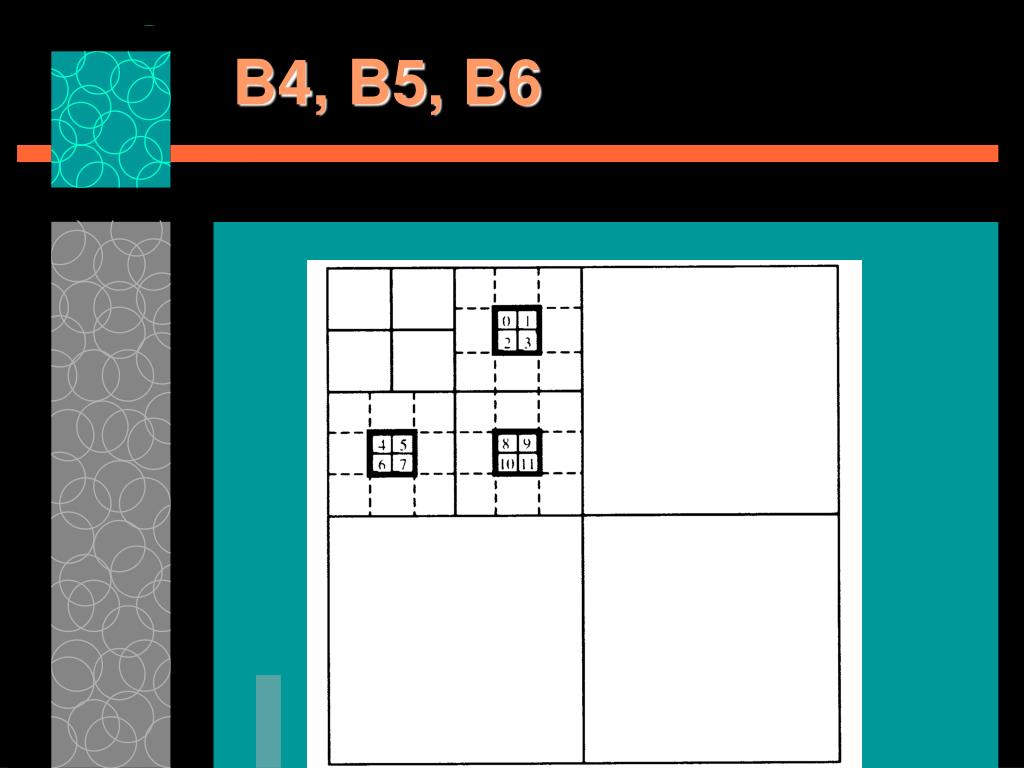

B4 b5 b6

B4, B5, B6


B7 b8 b9 b10

B7, B8, B9, B10

  • B7 Layers

  • B8 Packets

  • B9 Packet header information coding

  • B10 Tile Data and Tile-Parts


Progression order

Progression Order


Annex c arithmetic entropy coding

Annex C Arithmetic entropy coding

  • C.1 Binary encoding (informative)

  • C.2 Description of the arithmetic encoder (informative)

  • C.3 Arithmetic decoding procedure

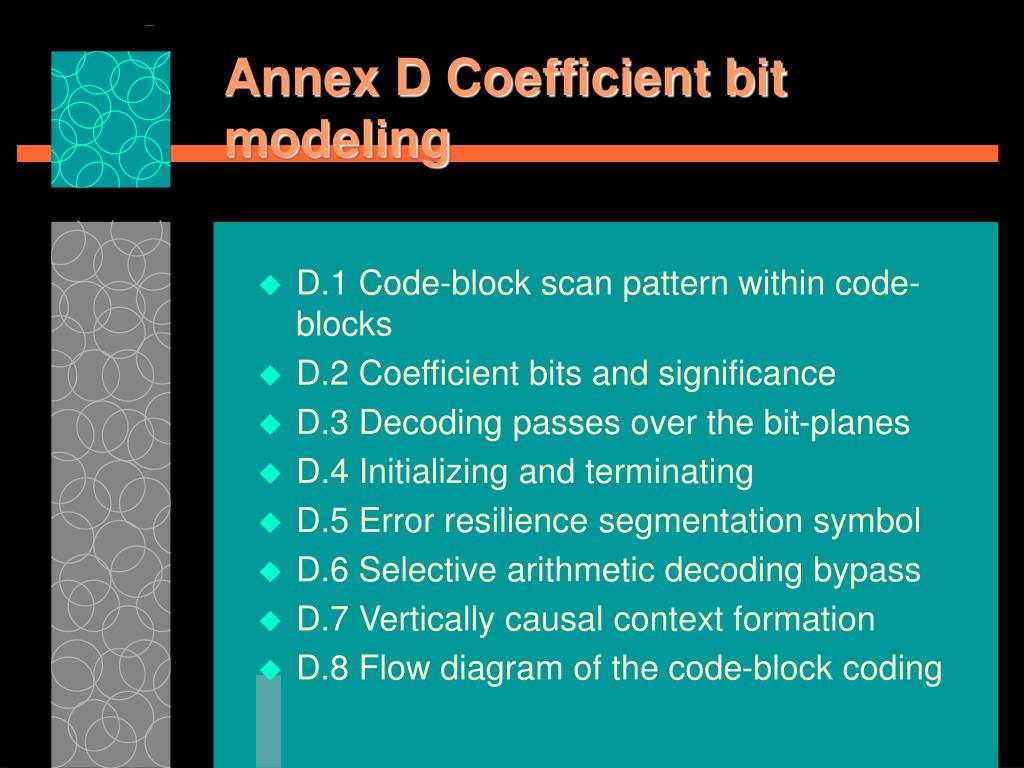

Annex d coefficient bit modeling

Annex D Coefficient bit modeling

  • D.1 Code-block scan pattern within code-blocks

  • D.2 Coefficient bits and significance

  • D.3 Decoding passes over the bit-planes

  • D.4 Initializing and terminating

  • D.5 Error resilience segmentation symbol

  • D.6 Selective arithmetic decoding bypass

  • D.7 Vertically causal context formation

  • D.8 Flow diagram of the code-block coding

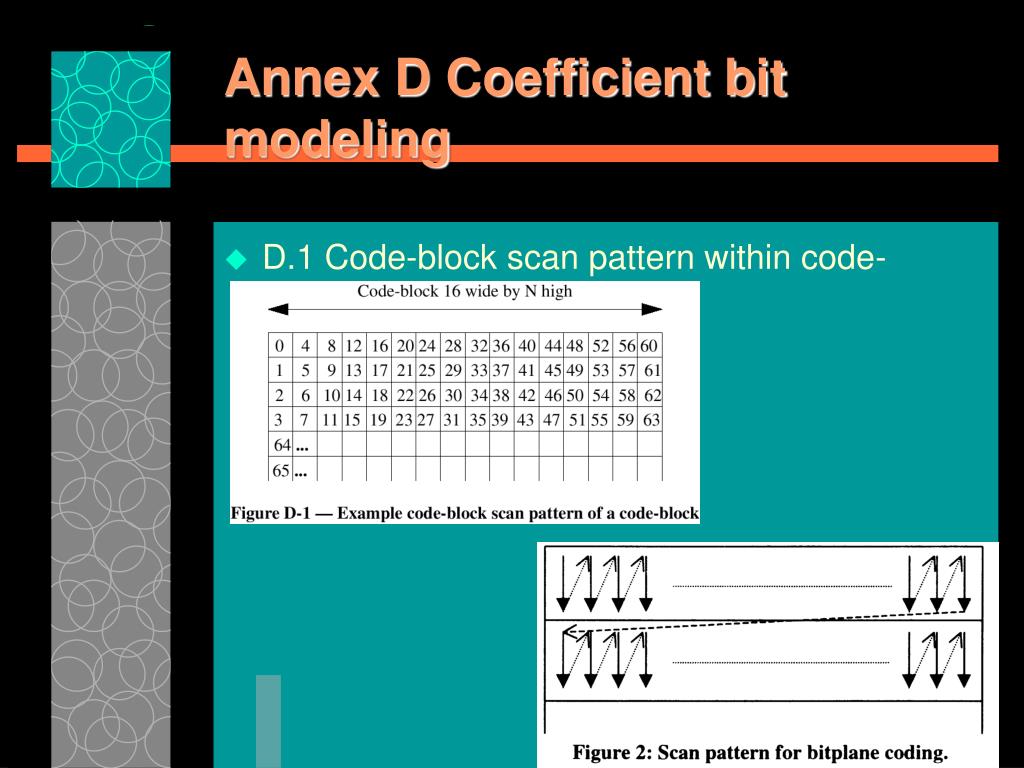

Annex d coefficient bit modeling1

Annex D Coefficient bit modeling

  • D.1 Code-block scan pattern within code-blocks


Annex d coefficient bit modeling2

Annex D Coefficient bit modeling

  • D.3 Decoding passes over the bit-planes

    • Significance propagation decoding pass

    • Magnitude refinement pass

    • Cleanup pass

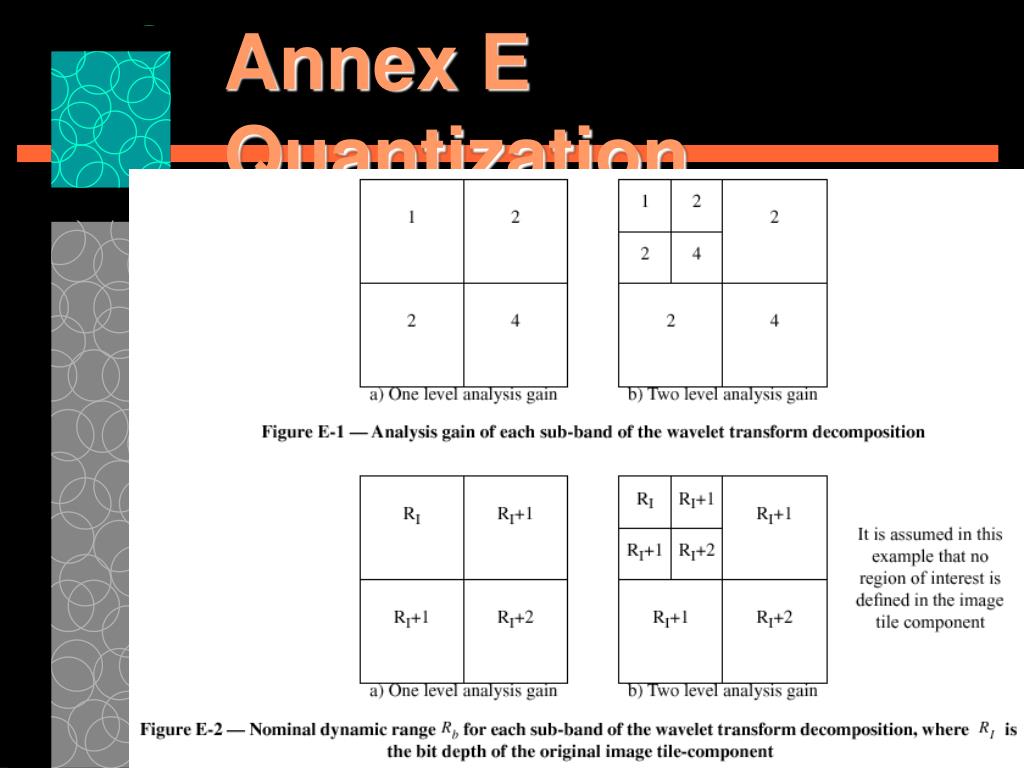

Annex e quantization

Annex E Quantization

  • E.1 Scalar coefficient dequantization (normative)

  • E.2 Scalar coefficient quantization (informative)


Annex e quantization1

Annex E Quantization

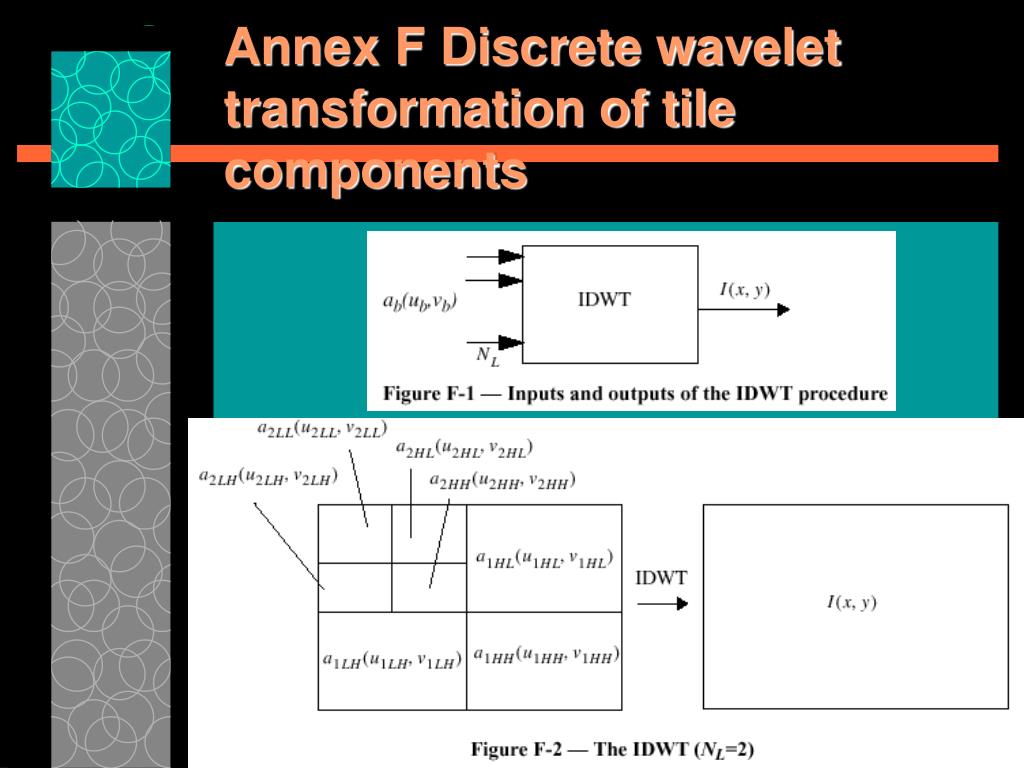

Annex f discrete wavelet transformation of tile components

Annex F Discrete wavelet transformation of tile components

  • F.1 Introduction and overview

  • F.2 The inverse discrete wavelet transformation (normative)

  • F.3 Forward Transformation (informative)


Annex f discrete wavelet transformation of tile components1

Annex F Discrete wavelet transformation of tile components


Annex f discrete wavelet transformation of tile components2

Annex F Discrete wavelet transformation of tile components


Annex g dc level shifting and component transformations

Annex G DC level shifting and component transformations

  • G.1 DC level shifting of tile components

  • G.2 Reversible component transformation (RCT)

  • G.3 Irreversible component transformation (ICT

  • G.4 Chrominance component sub-sampling and the image reference grid (informative)


Annex g dc level shifting and component transformations1

Annex G DC level shifting and component transformations


Annex h coding of images with regions of interest

Annex H Coding of images with Regions of Interest

  • An ROI is a part of an image that is coded earlier in the codestream than the rest of the image (the background).

  • The coding is also done in such a way that the information associated with the ROI precedes the information associated with the background.

  • The method used (and described in this annex) is the Maxshift method.


Annex h coding of images with regions of interest1

Annex H Coding of images with Regions of Interest

  • H.1 Description of the Maxshift method

  • H.2 Region of interest mask generation

  • H.3 Remarks on Region of Interest codingH.4 An example of the interpretation of the Maxshift method (Informative)


Annex h coding of images with regions of interest2

Annex H Coding of images with Regions of Interest

  • H.1 Description of the Maxshift method

    • Generate ROI mask, M(x,y) (Annex H.2).

    • Find the scaling value, s (Annex H.1.2).

    • Scale down all background coefficients given by M(x,y) using the scaling value, s (Annex H.2).

    • Write the scaling value, s, into codestream using the RGN marker (Annex A.6.3).


Annex

其他的 Annex

  • Annex A Codestream syntax

  • Annex I JP2 file format syntax

  • Annex J Examples and Guidelines

  • Annex K Bibliography

  • Annex L Patent Statement


Demo gray level

DEMO - Gray level

bike-d_0.25 512x512 0.25


Demo gray level1

DEMO - Gray level

bike-d_0.5 512x512 0.5


Demo gray level2

DEMO - Gray level

bike-d_1 512x512 1.0


Demo color

DEMO - Color

bike-d-c_0.25 512x512 0.25


Demo color1

DEMO - Color

bike-d-c_0.5 512x512 0.5


Demo color2

DEMO - Color

bike-d-c_1 512x512 1.0


  • Login
