  1. TVK Plc. Processoverview Polymerunitsinthefocus presentedby Zoltán Székvölgyi, Sándor Tóth Tiszaújváros, 08/11/2013

  2. Agenda: Basic informationaboutTVK Quick reviewonthe olefin process Informationaboutpolymerunits of TVK ProcessControl - Optimization

  3. Geographical Position

  4. Key Units and Product Flow Map *: shut down in 2009

  5. TVK site and theProductionUnits

  6. Quick reviewonthe olefin process „…itlooksdifficult, …and really, this is difficult…„

  7. LPG • Chemical naphtha, • Atmospheric gasoil Olefin production The main products of SC-1 and SC-2 are the low carbon chain olefins (2 and 3 carbon atoms) Input (raw materials): Chemical conversion These are mixture of different length and properties molecules

  8. Olefin production PYROLYSIS (Furnaces) Hydrocarbon mixture with high short-chain olefin content SEPARATION (with rectification columns and separator tanks) Treatment of some by-products in chemical reactors

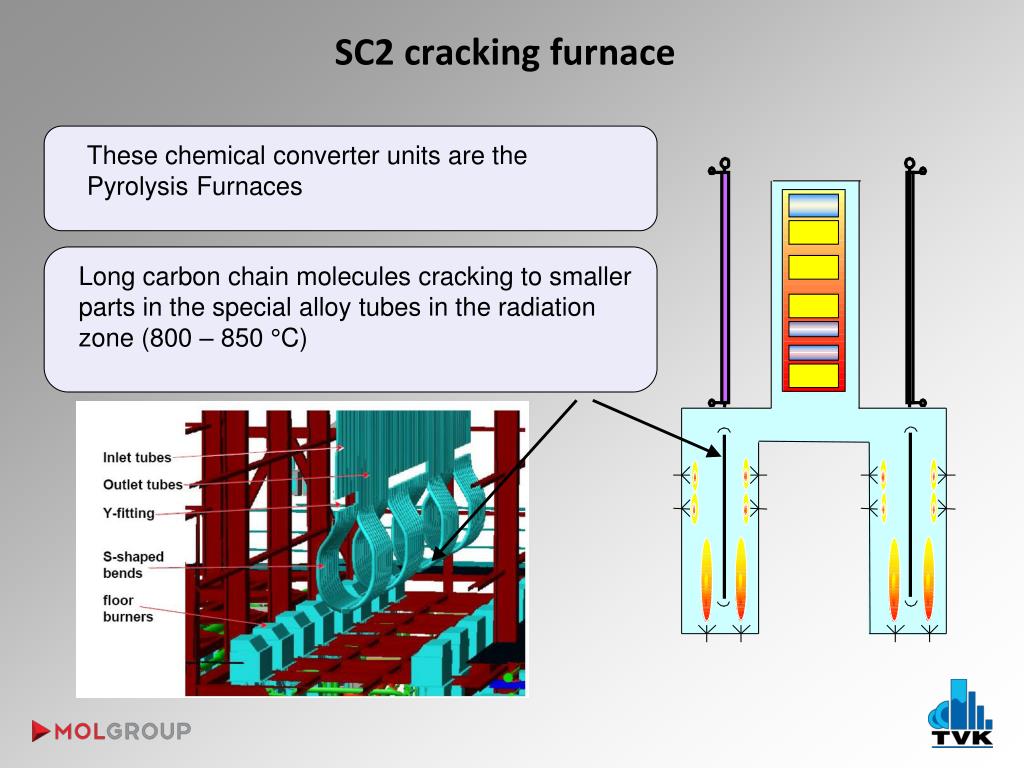

  9. SC2 cracking furnace These chemical converter units are the Pyrolysis Furnaces Long carbon chain molecules cracking to smaller parts in the special alloy tubes in the radiation zone (800 – 850 °C)

  10. SC-1 block diagram
