MATLAB Programming

1. MATLAB Programming

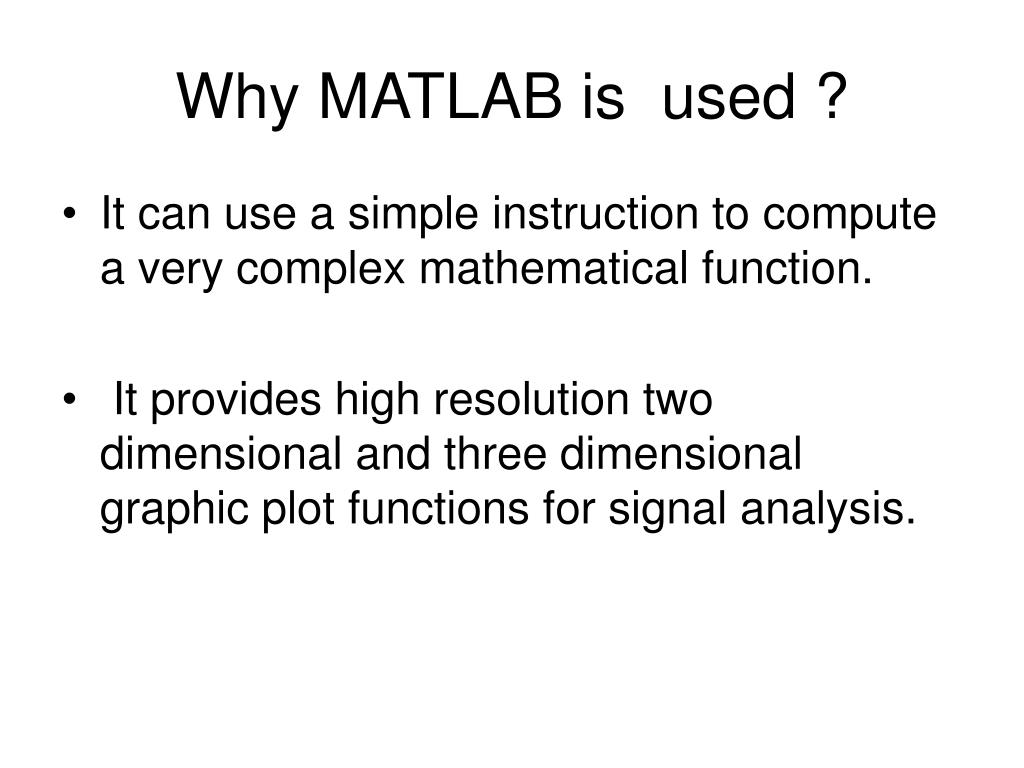

2. Why MATLAB is used ? • It can use a simple instruction to compute a very complex mathematical function. • It provides high resolution two dimensional and three dimensional graphic plot functions for signal analysis.

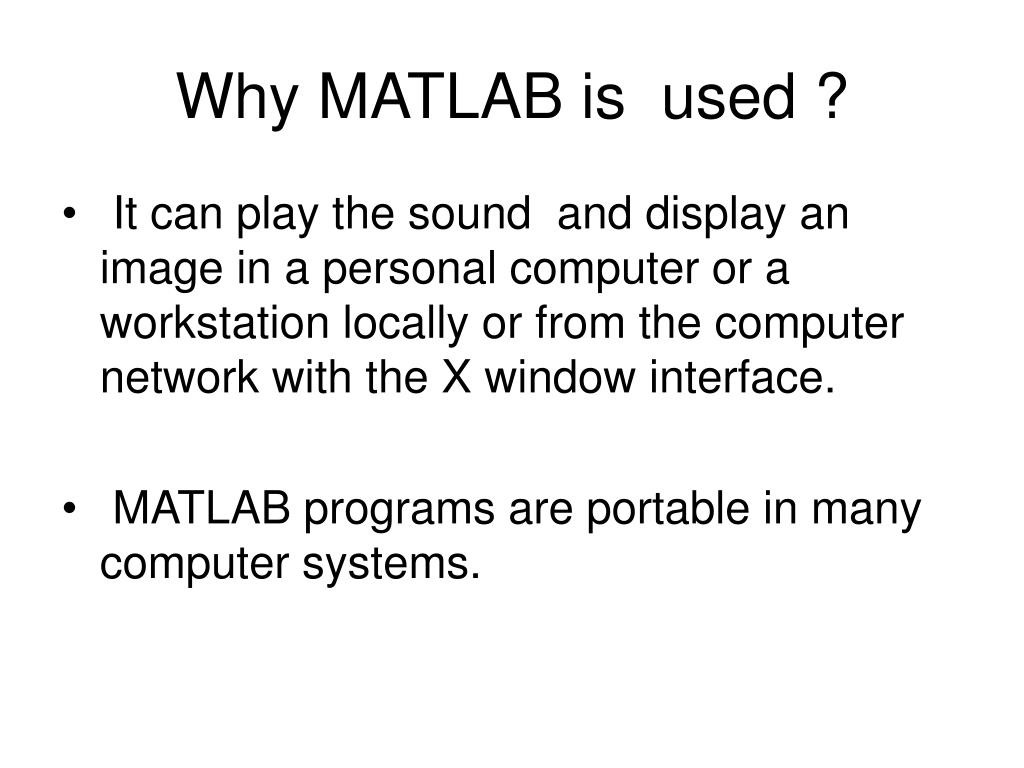

3. Why MATLAB is used ? • It can play the sound and display an image in a personal computer or a workstation locally or from the computer network with the X window interface. • MATLAB programs are portable in many computer systems.

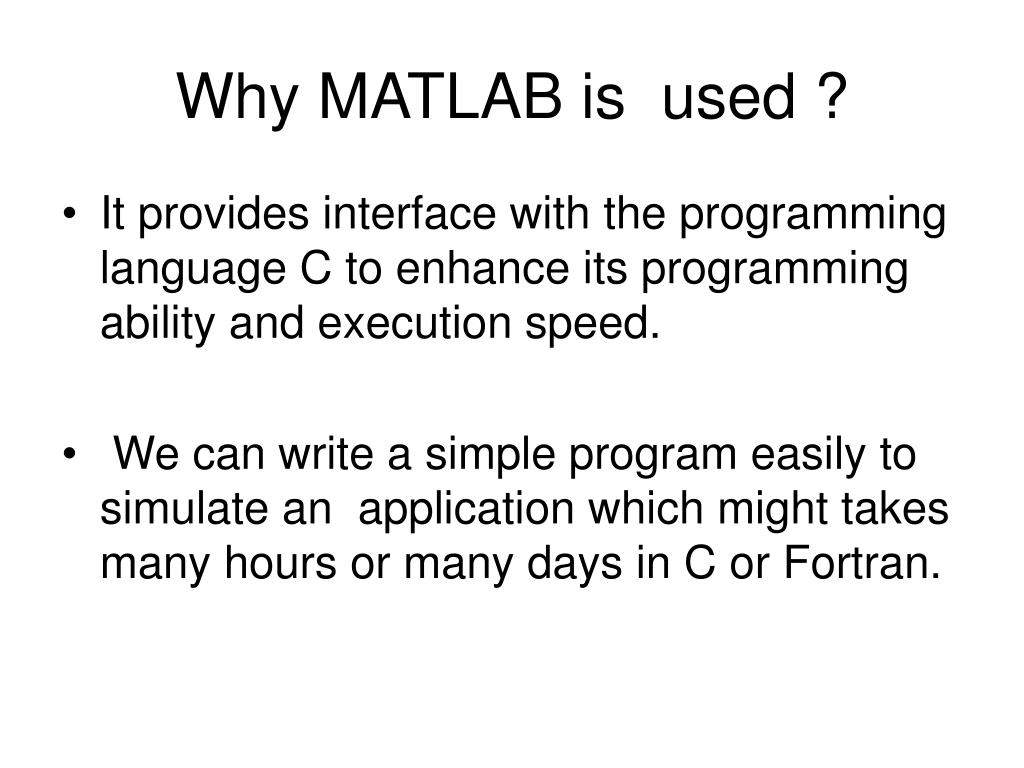

4. Why MATLAB is used ? • It provides interface with the programming language C to enhance its programming ability and execution speed. • We can write a simple program easily to simulate an application which might takes many hours or many days in C or Fortran.

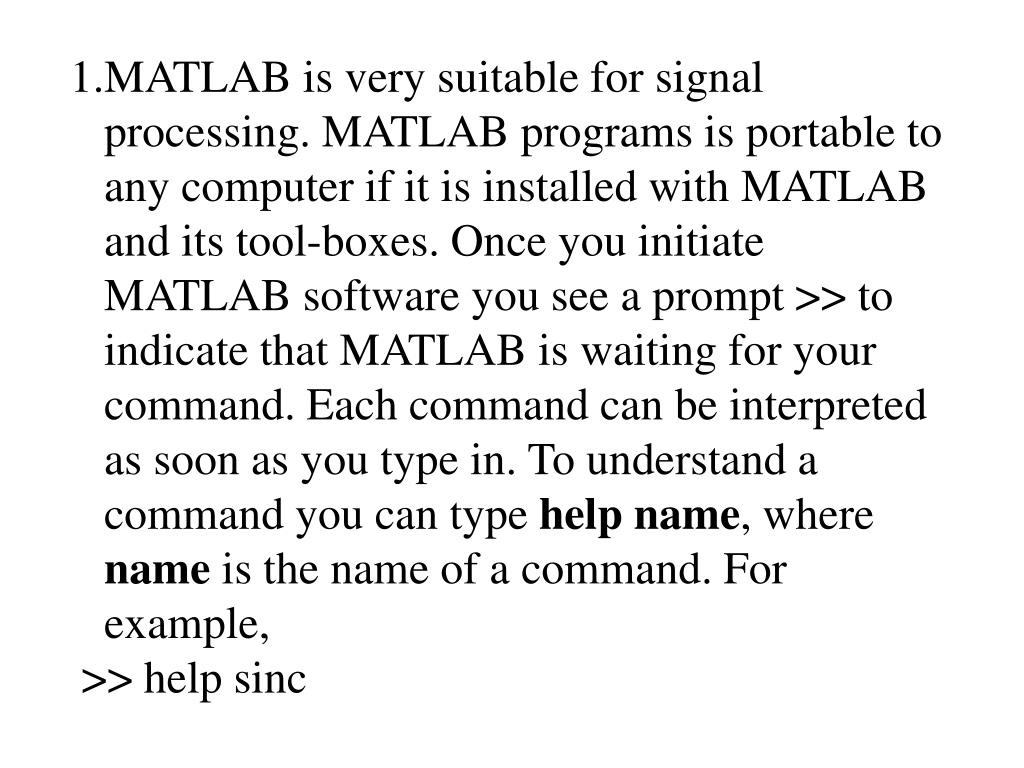

5. 1.MATLAB is very suitable for signal processing. MATLAB programs is portable to any computer if it is installed with MATLAB and its tool-boxes. Once you initiate MATLAB software you see a prompt >> to indicate that MATLAB is waiting for your command. Each command can be interpreted as soon as you type in. To understand a command you can type help name, where name is the name of a command. For example, >> help sinc

6. MATLAB will output the information about • the sinc function. • A variable in MATLAB • can be a scalar, a vector or a matrix; For • example, • >> x = 3 • x = • 3 • >> y = 1:5 • y = • 1 2 3 4 5

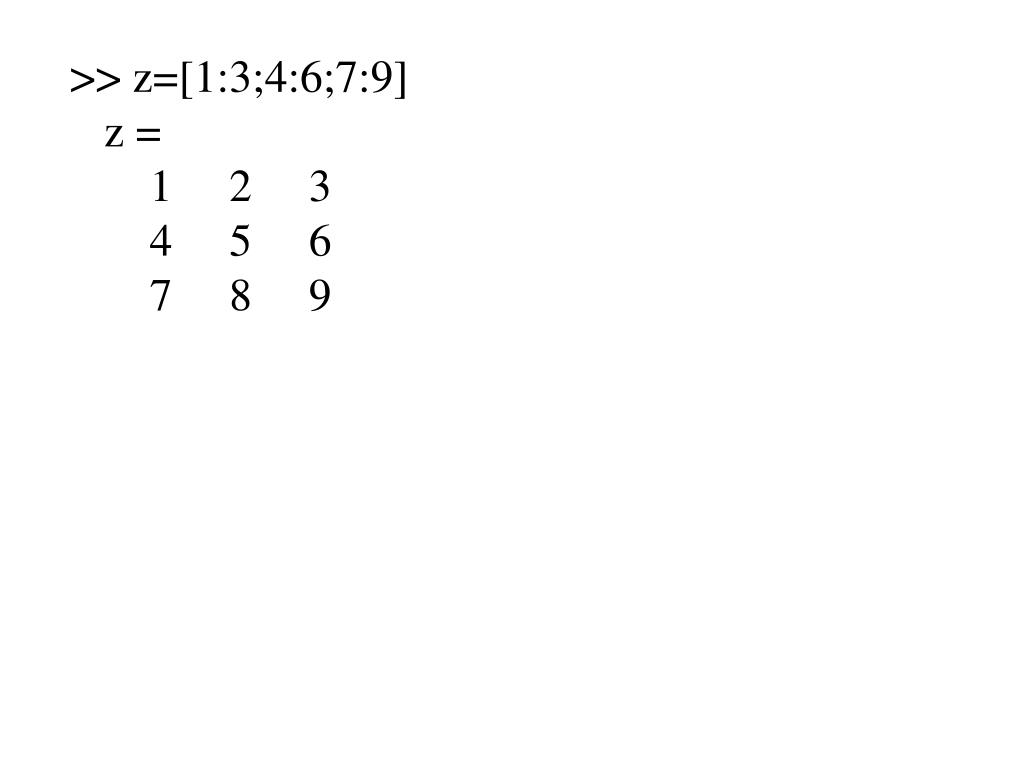

7. >> z=[1:3;4:6;7:9] z = 1 2 3 4 5 6 7 8 9

8. 2.To understand the variables in the MATLAB environment you can type whosto access their information. For example, >> whos Name Size Elements Bytes Density Complex x 1 by 1 1 8 Full No y 1 by 5 5 40 Full No z 1 by 9 9 72 Full No Grand total is 15 elements using 120 bytes

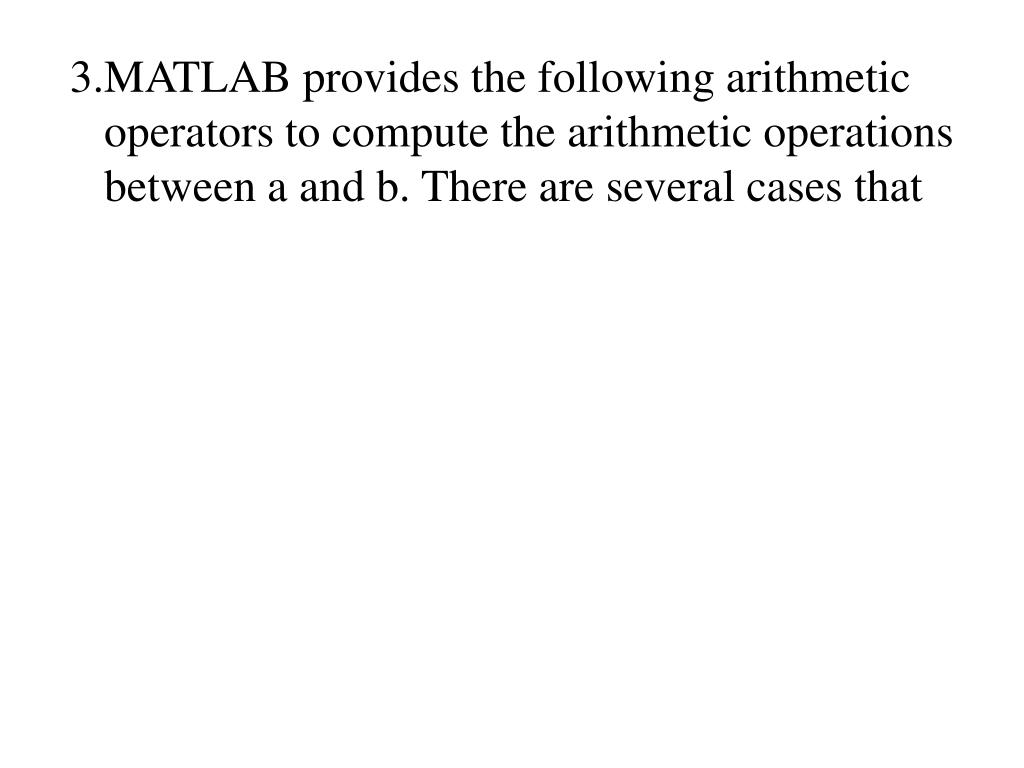

9. 3.MATLAB provides the following arithmetic operators to compute the arithmetic operations between a and b. There are several cases that

10. the following operations are valid: (a) both a and b are scalar. (b) a is a vector or a matrix and b is scalar. (c) both a and b are vectors or matrixes with the same dimension.

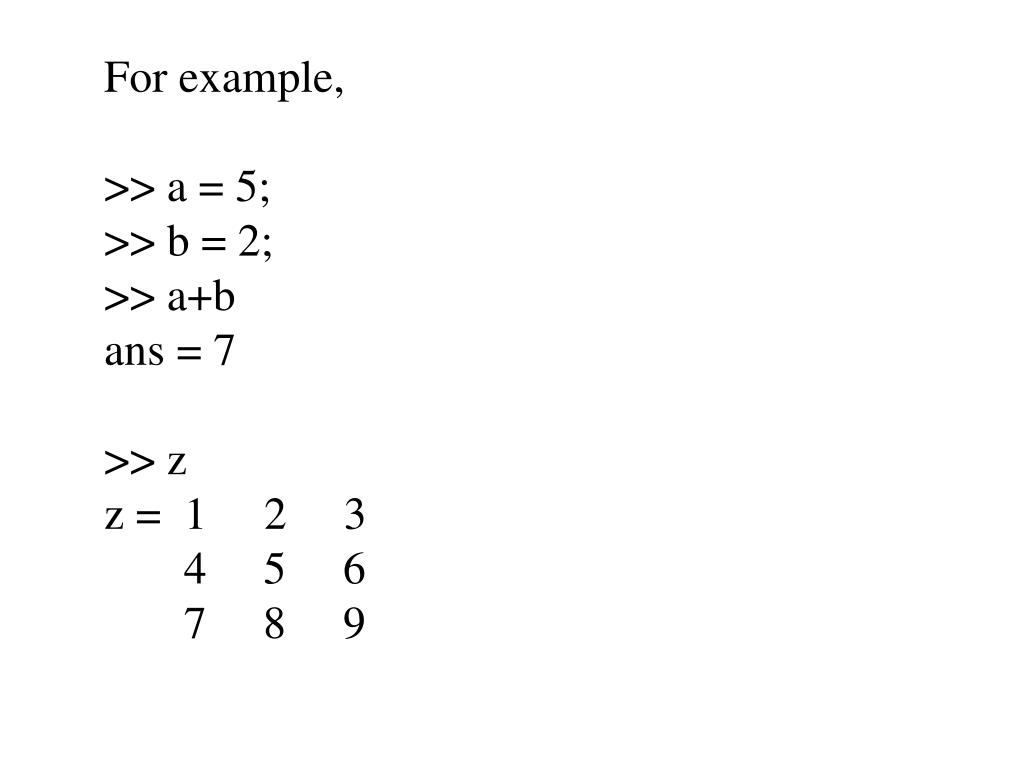

11. For example, >> a = 5; >> b = 2; >> a+b ans = 7 >> z z = 1 2 3 4 5 6 7 8 9

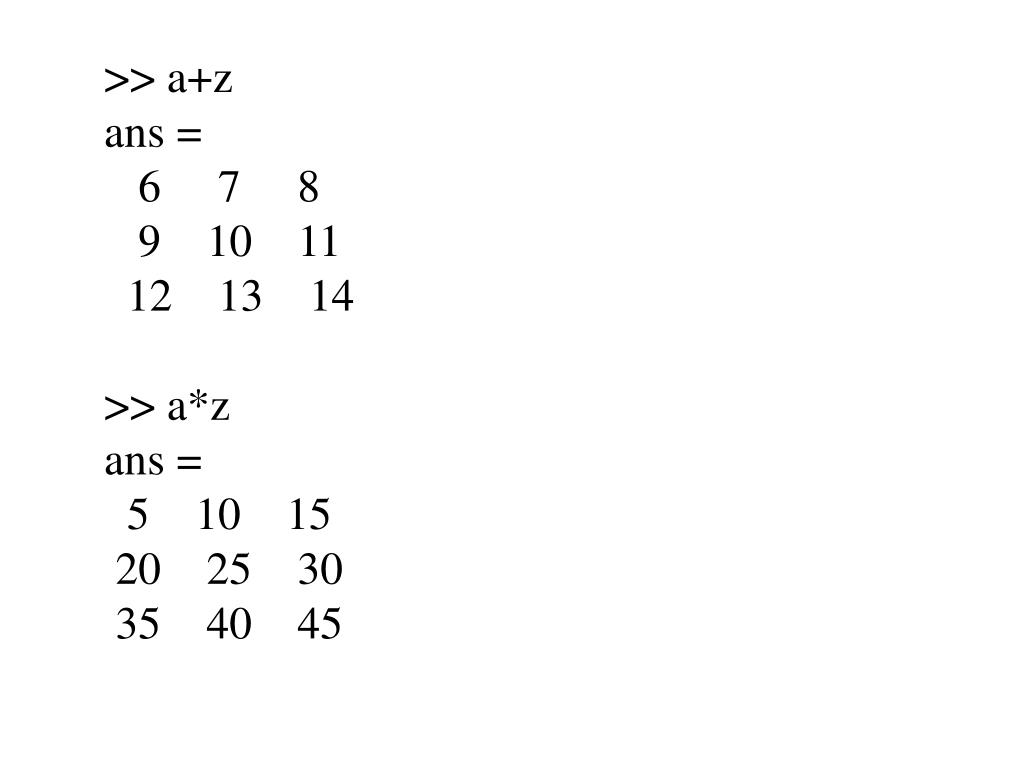

12. >> a+z ans = 6 7 8 9 10 11 12 13 14 >> a*z ans = 5 10 15 20 25 30 35 40 45

13. >> z*z ans = 30 36 42 66 81 96 102 126 150 >> z^2 ans = 30 36 42 66 81 96 102 126 150

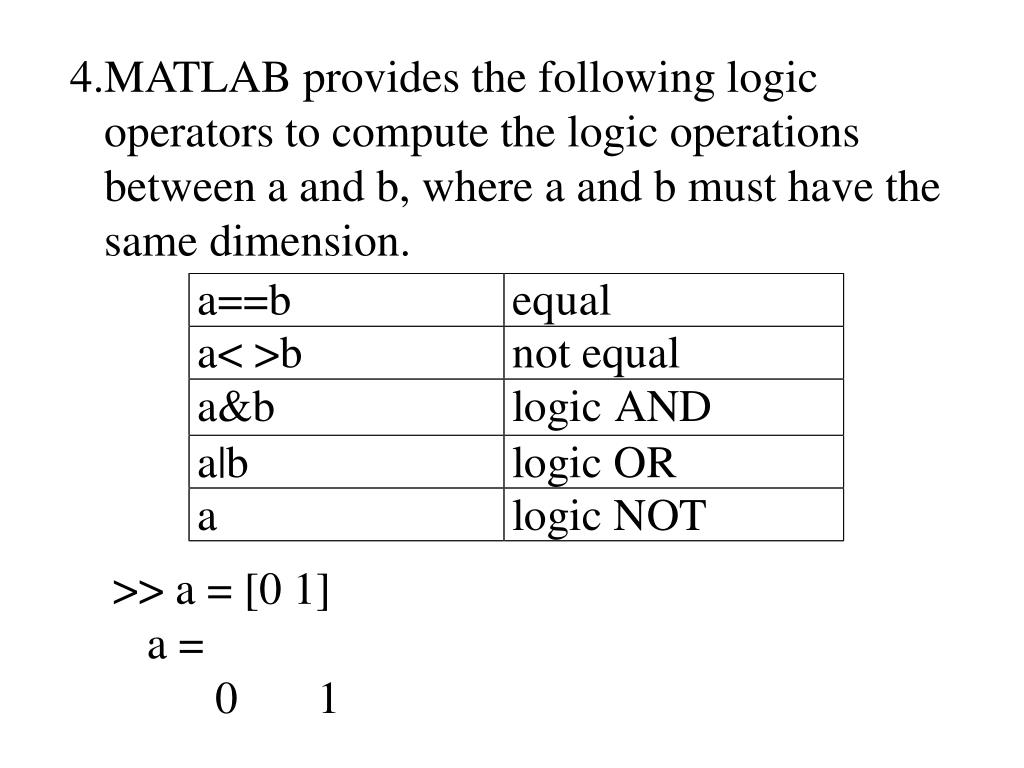

14. 4.MATLAB provides the following logic operators to compute the logic operations between a and b, where a and b must have the same dimension. >> a = [0 1] a = 0 1

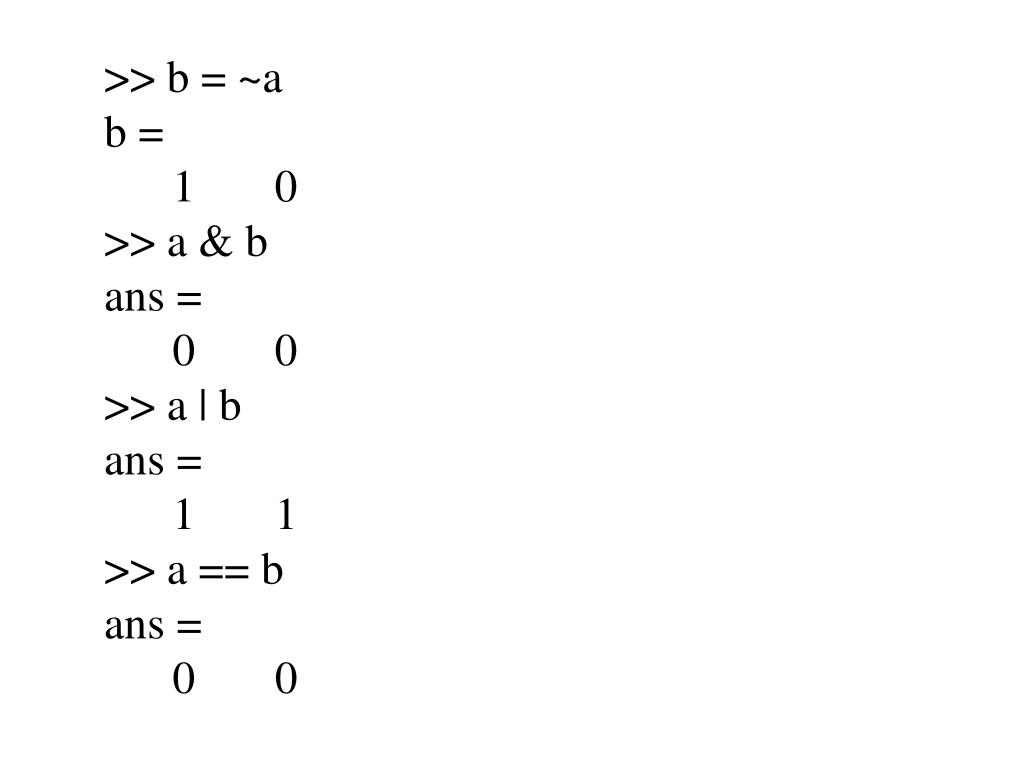

15. >> b = ~a b = 1 0 >> a & b ans = 0 0 >> a | b ans = 1 1 >> a == b ans = 0 0

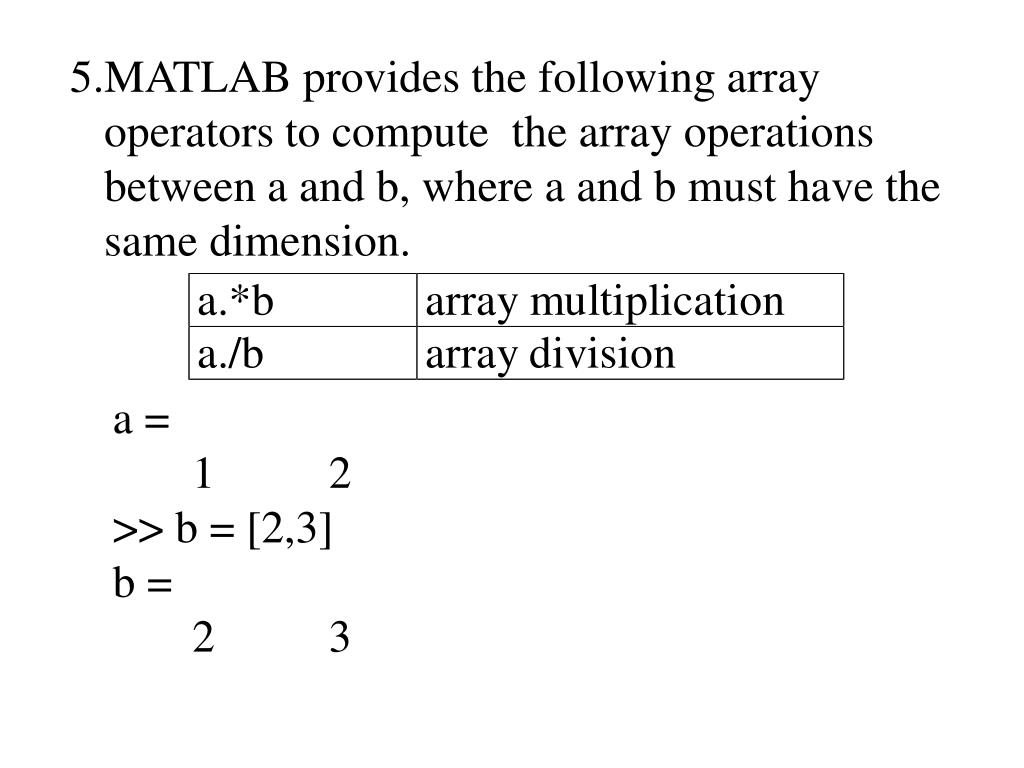

16. 5.MATLAB provides the following array operators to compute the array operations between a and b, where a and b must have the same dimension. a = 1 2 >> b = [2,3] b = 2 3

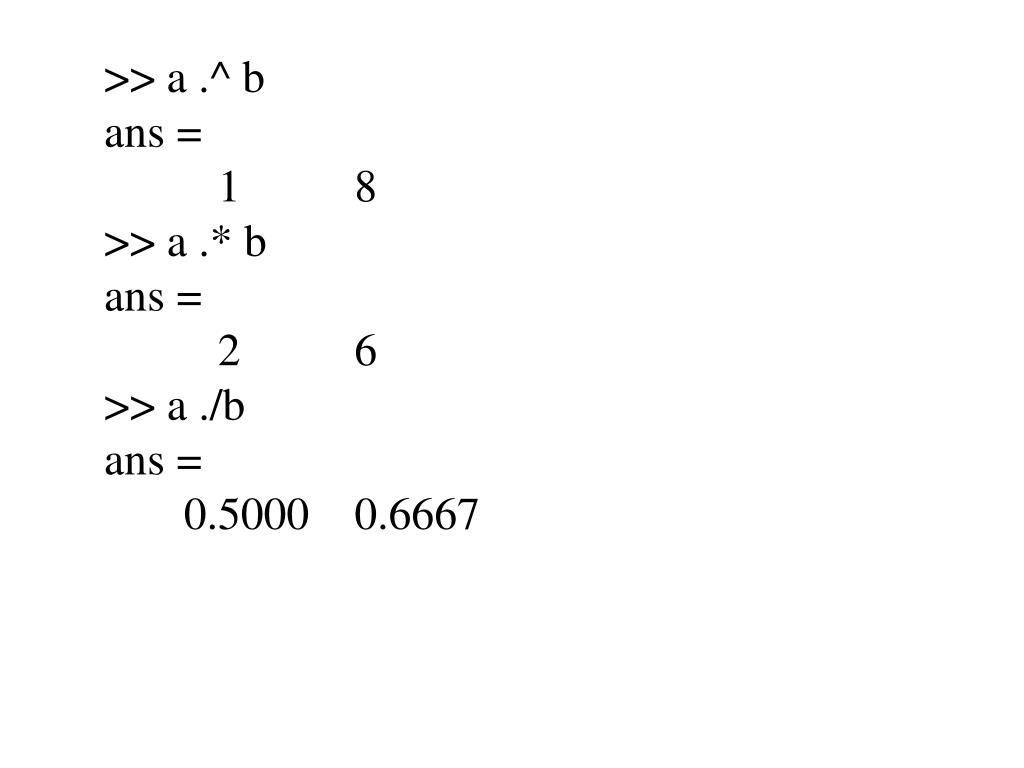

17. >> a .^ b ans = 1 8 >> a .* b ans = 2 6 >> a ./b ans = 0.5000 0.6667

18. The following program plots 1 Hz cosine signal cos(2t). Actually, it’s digital signal. However, we can look it as a real-value analog signal. t = －1:0.01:1; y = cos(2 * pi * t); fig; plot(t,y); xlabel(‘t’); ylabel(‘f(t)’); set(gca, ‘Ylim’,[－2,2]); print -deps cos1

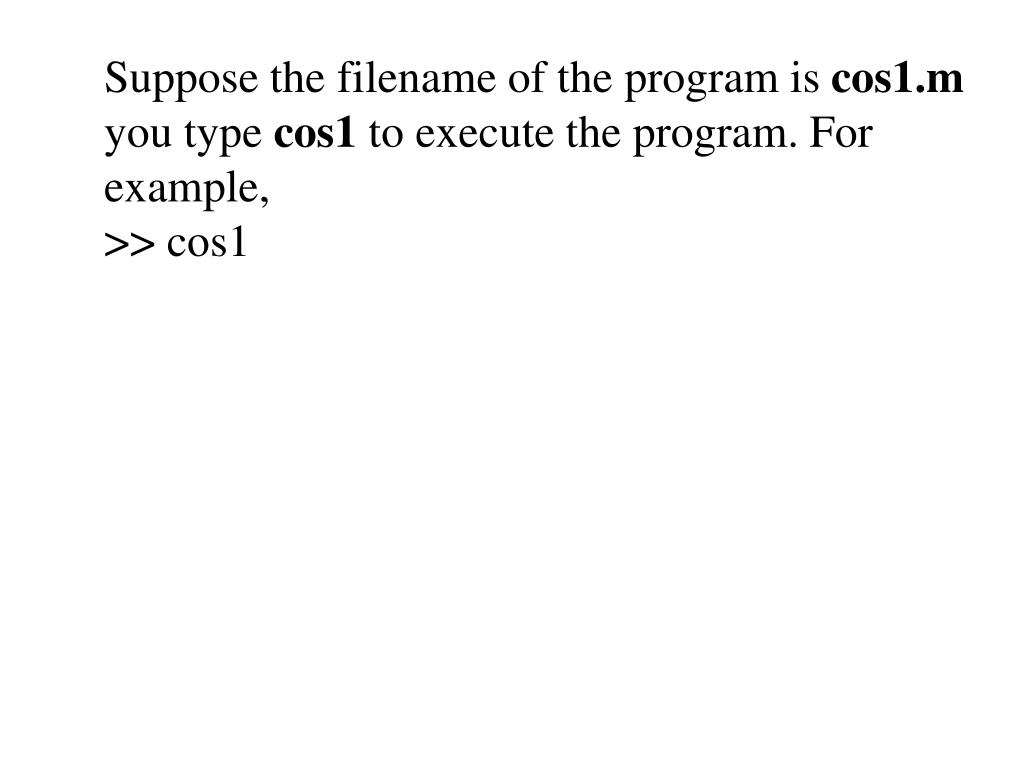

19. Suppose the filename of the program is cos1.m you type cos1 to execute the program. For example, >> cos1

20. 6.MATLAB provides the following instructions for triangular, hyperbolic, exponential and logarithmic functions,

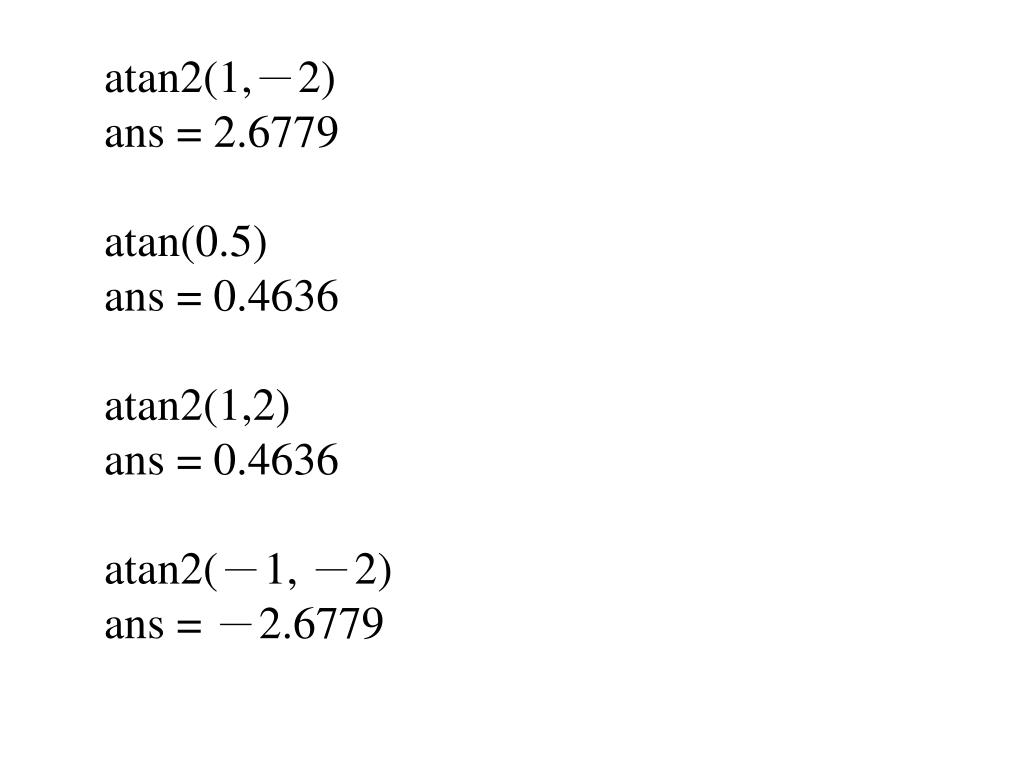

22. Note that the function atan2(b,a) requires two variables and returns a value in [－, ] and atan(t) just requires one variable returns a value in [－/2, /2]. atan(－0.5) ans = －0.4636 atan2(－1,2) ans = －0.4636

23. atan2(1,－2) ans = 2.6779 atan(0.5) ans = 0.4636 atan2(1,2) ans = 0.4636 atan2(－1, －2) ans = －2.6779

24. 7.MATLAB provides the following special operations to for a complex valued signal.

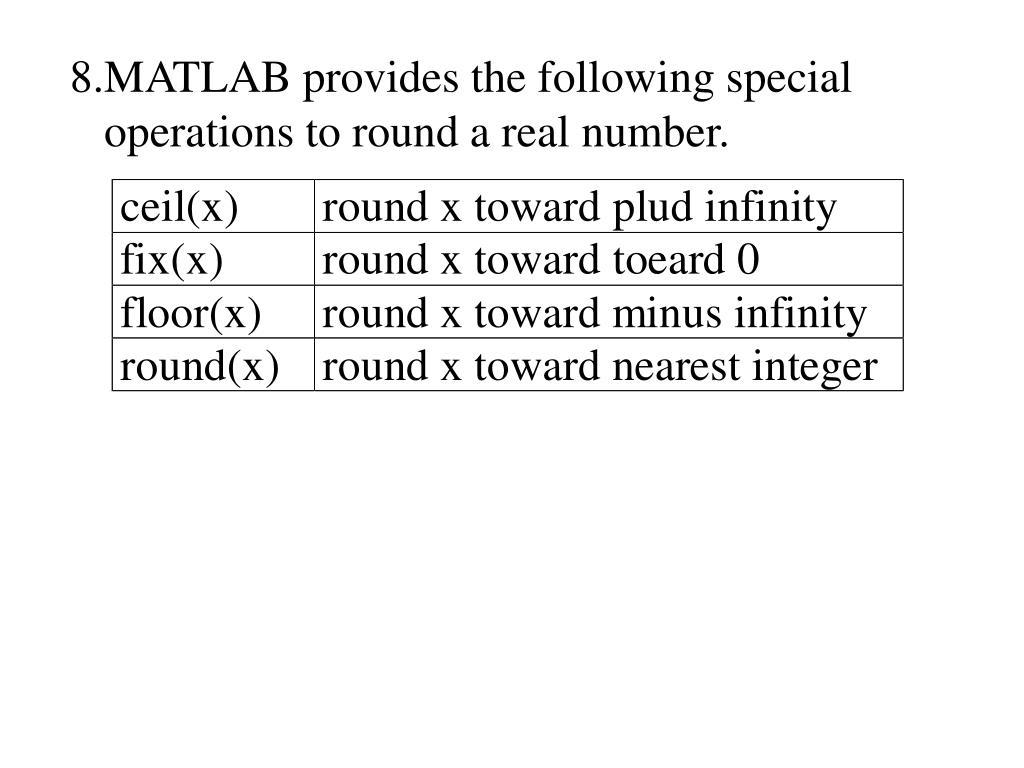

25. 8.MATLAB provides the following special operations to round a real number.

26. 9.If a complex can be computed in MATLAB. For example, a = sqrt(－1) a = 0 + 1.0000i exp(a) ans = 0.5403 + 0.8415i

27. 10.The instruction save test store all variables in the file called test.mat. The instruction load test retrieves all variable from test.mat x = 1 y = 2 z = 3 % Save all variable in test.mat save test % Clear the workspace clear

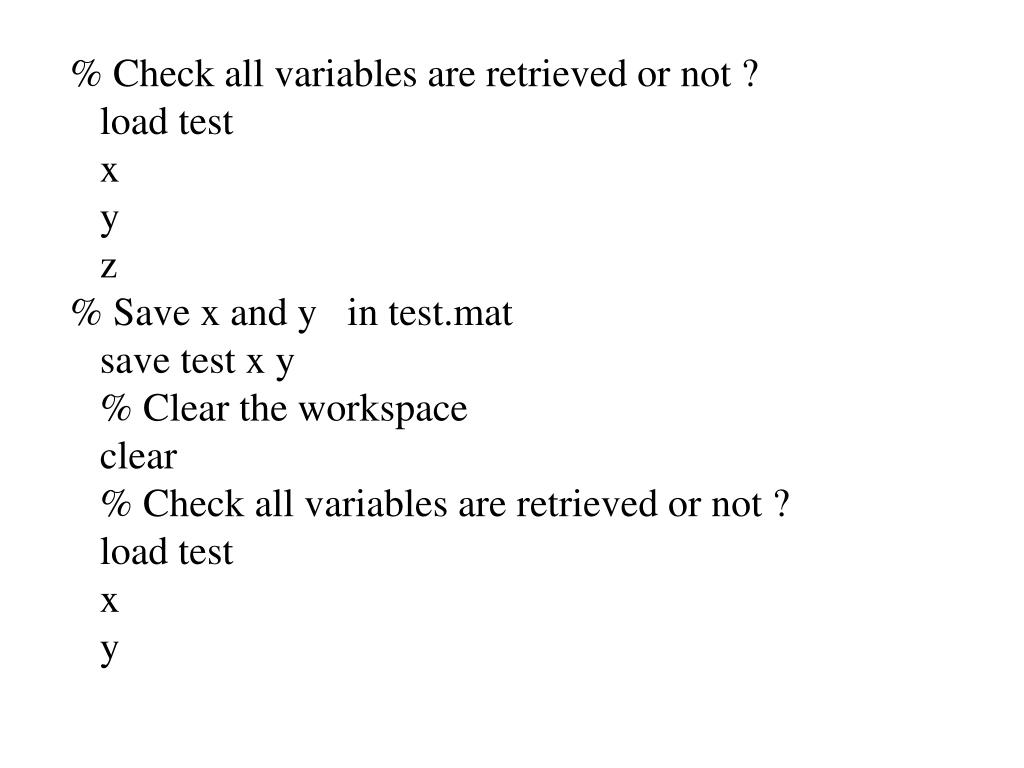

28. % Check all variables are retrieved or not ? load test x y z % Save x and y in test.mat save test x y % Clear the workspace clear % Check all variables are retrieved or not ? load test x y

29. 11.A sound file can be stored in the mat-file. Usually, it has two variables Fs and y, where Fs is the sampling rate and the variable y contains the sound signal. To load the sound file sound.mat and plot and play the sound in the following program can be used: load sound % The duration of the sound in second t = (1:length(y))/Fs; % Plot the sound Plot(t,y)

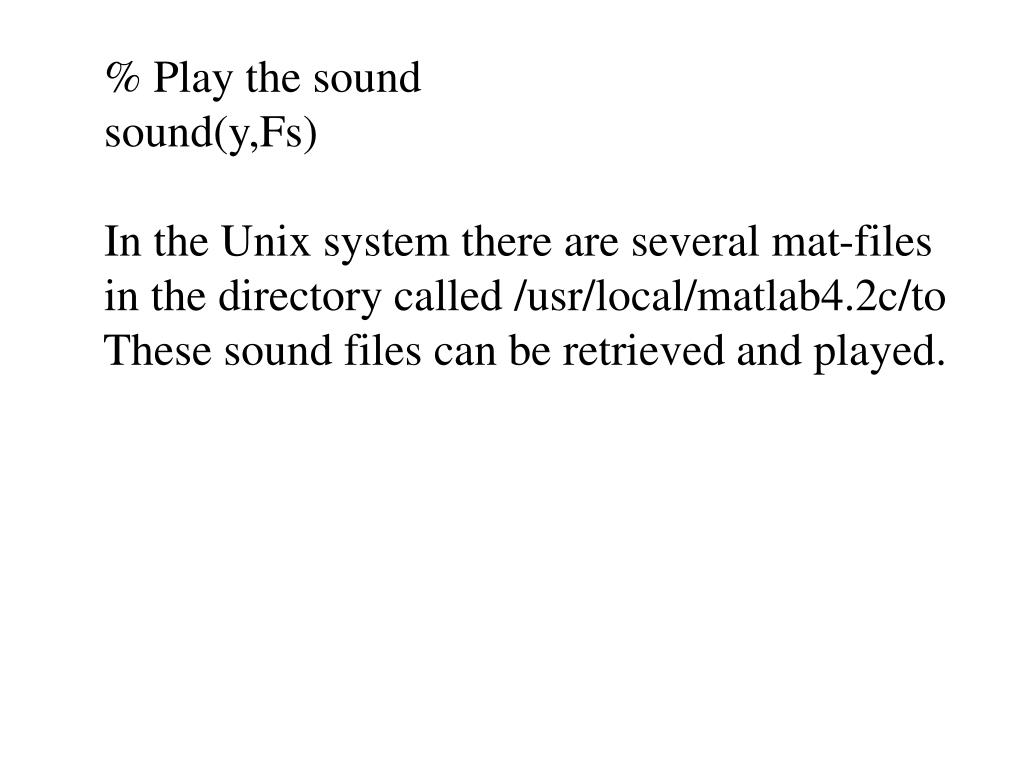

30. % Play the sound sound(y,Fs) In the Unix system there are several mat-files in the directory called /usr/local/matlab4.2c/to These sound files can be retrieved and played.

31. 12.The contents of the current figure can be saved as a file with the following instruction: (a) print -dps filename (b) print -dpsc filename (c) print -deps filename (d) print -depsc filename to save a black and white postscript file, a color postscript file, a block and white encapsulated postscript file and a color encapsulated postscript file.

32. 13.The instruction ezplot(f) plots the function f, where f is a symbolic expression with the variable t and t  [－2, 2]. The instruction ezplot(f,[t1,t2]) plots the function f(t), where t  [t1,t2]. The instruction ezplot(f, [t1,t2],fig) plots the function f(t), where t  [t1,t2], with the figure number fig. f = ‘x^3’ ezplot(f); ezplot(f,[0,1000])

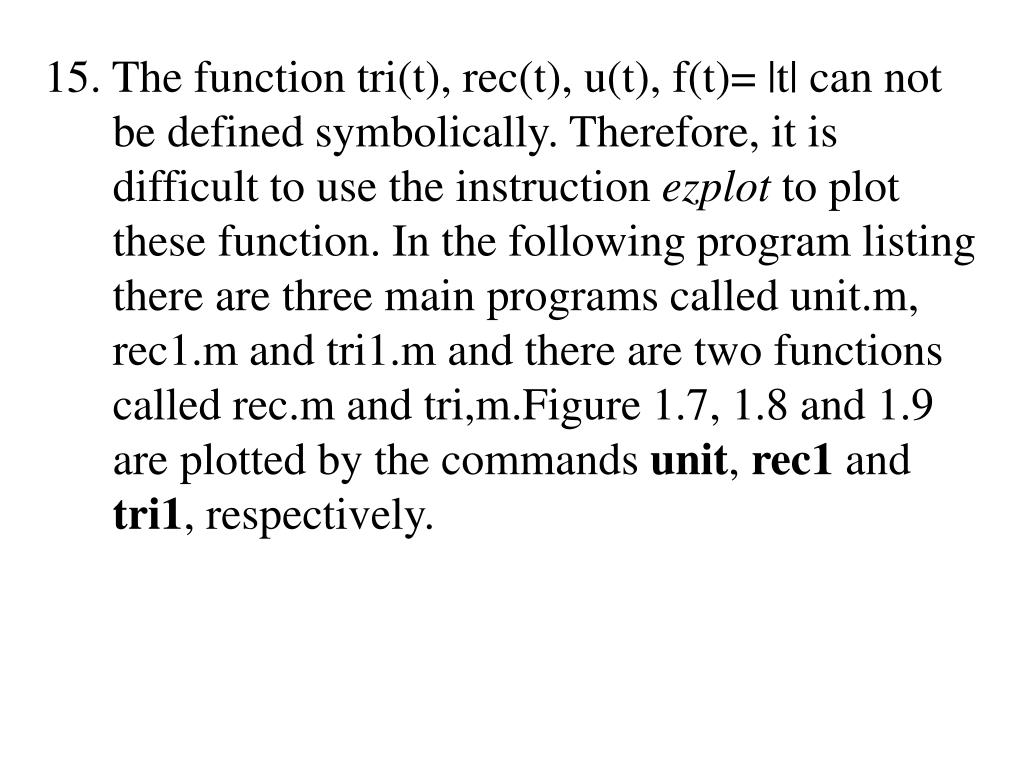

33. 14.The absolute value of x can be computed as y = ‘(x^2)^(1/2)’ ezplot(y)
