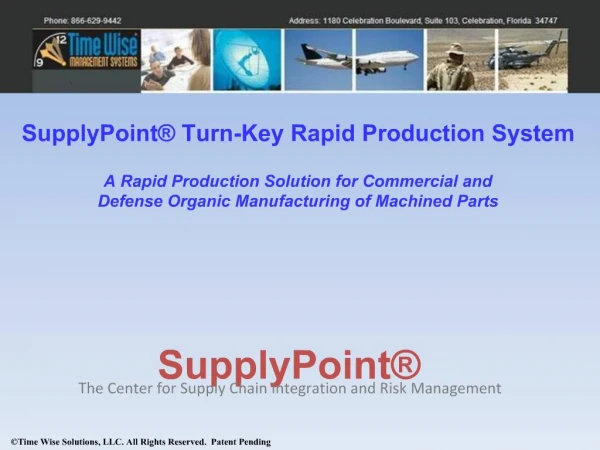

1. SupplyPoint® The Center for Supply Chain Integration and Risk Management
2. Significant reductions in
Cycle times
Lead times
Production costs
Inventory costs
Delivery delays
Revision Controls
Rapid response to surge demand using untapped capacity of CNC machines in the SupplyPoint® network
Risk mitigation of supply chain disruptions, obsolescence, and battlefield backorders for legacy and future weapon systems.
3. Key Challenges Confronting the Defense Industrial Base
Critical shortages of spare part and component production capacity for aging weapon systems.
Maintaining sufficient surge production capacity to meet unanticipated national defense needs.
Modernizing techniques and manufacturing systems.
Increasing the productivity of a shrinking supplier base.
Adapting commercial production practices and techniques in the defense base.
4. There are inefficiencies throughout the traditional design to production phases for machined parts, in both the commercial and DOD organic manufacturing facilities
These inefficiencies are contributing to:
Significant lead times
High production costs
High inventory costs
Delivery delays
5. The traditional design to finished product approach requires:
At least 20 steps
On the average, 2 to 12 months
The following is an illustration of these steps……
7. Identified Issues in Purchasing and Installation of CNC Machines Purchasing Issues
Lack of communication between purchasing agents and shop floor personnel on type of machine, axis, tooling, machine options needed, etc.
New machines may be purchased when existing machines are capable of producing the part but are underutilized and/or inefficient.
POST writing software may not be correct for proper configuration.
Installation Issues
Initial setup of machine conducted by manufacturer per installer’s schedule
Machine parameters especially Controller are factory pre-set, could be inaccurate, and are not checked by installers
Safety barriers on machine are not checked properly
Not all machine parts/options arrive on time
Electrical power and compressed air installation may be delayed
8. Identified issues from Design to Creating the Process Plan
10. Identified issues from Process Plan to Production
12. Impact of Inefficiencies in the Design to Production Process on Small Supplier Base 50 to 180 hours to prepare a competitive quote at an average cost of $10,000
This cost combined with the extremely low probability of award often discourages SMEs from considering defense business.
Attraction further decreases exponentially in the market for very low order spare parts, often a quantity of one, with a price at or below the cost of preparing the quote.
Little or no profitability for producing a low volume production run of spare parts.
A paradigm shift from original manufacturers into final assemblers.
50% of U.S. suppliers is projected to go out of business in the next 5-10 years.
Cannot predict which suppliers will go out of business
Outdated and complex federal acquisition process with limited incentives or resources to seek alternative sources of suppliers
13. Impact of Inefficiencies in the Design to Production Process on DOD Organic Manufacturing Lack of standards in design for manufacturability
Process Packages are not compatible with CNC configurations of organic shop floor machines
Too much time required to revise Process Packages to fit production shop floor CNC configurations
Revision controls from design to production difficult to manage
14. SupplyPoint® Turn-KeyRapid Production System
17. This breakthrough is accomplished by providing…..
18. CNC Engineering Services
19. SupplyPoint® Turn-Key Rapid Production
20. SupplyPoint® Turn-Key Rapid Production
21. SupplyPoint® Turn-Key Rapid Production Technical Packages Part-specific for production on multiple CNC platforms
Each package includes
First Article Inspection Certificate
Complete and proven out Process Plan
3D Solid Model
Setup and Process Instructions
Machine-specific G & M Codes with embedded advanced macro parametric scripts
Machine-specific work holding fixtures, adaptable to fit many similar machine configurations
Cutting Tools that produce the part
Revision Control
Electronically archived and continuously updated for future on-demand production
22. The following illustration describes the improvements in the design to production phases addressed by the SupplyPoint® Turn-Key Rapid Production System…..
26. Significant reductions in
Cycle times
Lead times
Production costs
Inventory costs
Delivery delays
Revision Controls
Rapid response to surge demand using untapped capacity of CNC machines in the SupplyPoint® network
Risk mitigation of supply chain disruptions, obsolescence, and battlefield backorders for legacy and future weapon systems.
27. Success Stories
28. Suspension Arms for M119 Howitzer Problem
Lead time for left and right suspension arms for M119 Howitzer was 6 months.
Each arm required 17 setup operations, 10 CNC machines, 65.5-hour setup time and 19-hour run time
29. Solution
Condensed 17 setup operations to 5 operations
Use only three fixtures designed by TWMS
Eliminated eight CNC machines
Reduced set-up time from 65.5 hrs to 4.5 hrs for the 5 operations
Reduce Spindle/Run Time from 19 hrs to 5 hours
Lead time reduced to 2 months
