Hybrid modelling of plantation crops

Hybrid modelling of plantation crops

Euan Mason

University of Canterbury


Outline

Outline

  • Hybrid models

  • Current hybrid modelling projects at the School of Forestry

  • Stand level hybrid growth and yield

  • Hybrid initial growth models


Potential for hybrid models

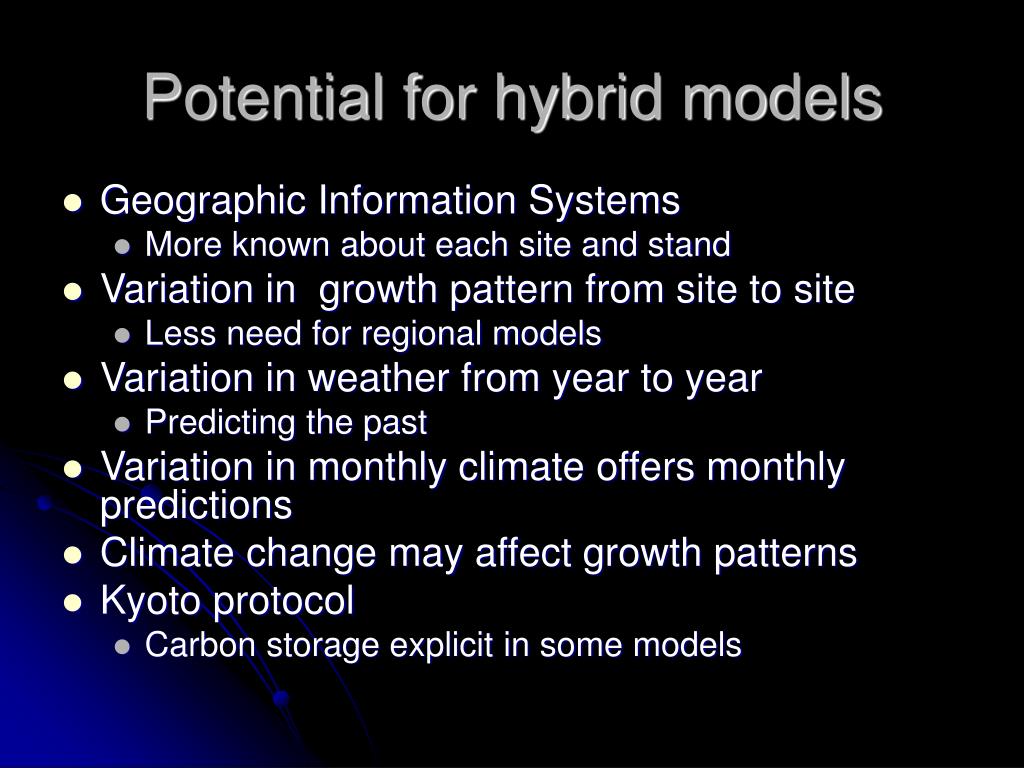

Potential for hybrid models

  • Geographic Information Systems

    • More known about each site and stand

  • Variation in growth pattern from site to site

    • Less need for regional models

  • Variation in weather from year to year

    • Predicting the past

  • Variation in monthly climate offers monthly predictions

  • Climate change may affect growth patterns

  • Kyoto protocol

    • Carbon storage explicit in some models


An example hybrid model

An example “hybrid” model

3-PG Model (Landsberg & Waring 1997)

Allocation varies with fertility


Application of 3 pg 25 year old experiment

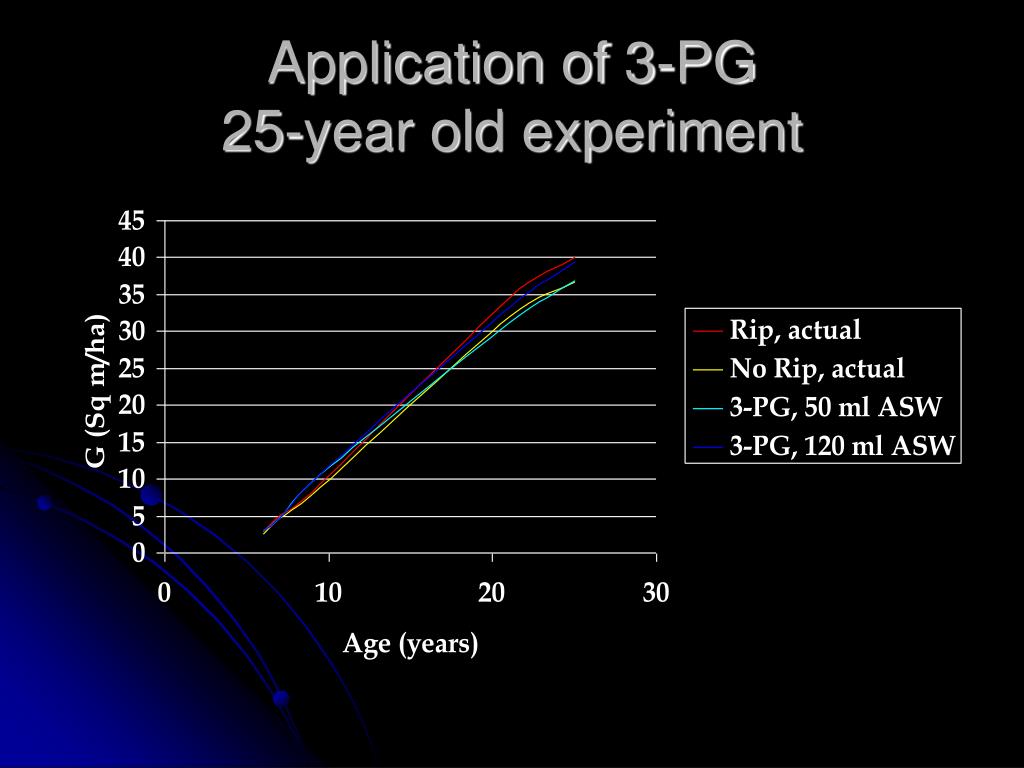

Application of 3-PG 25-year old experiment


Potential issues with 3 pg

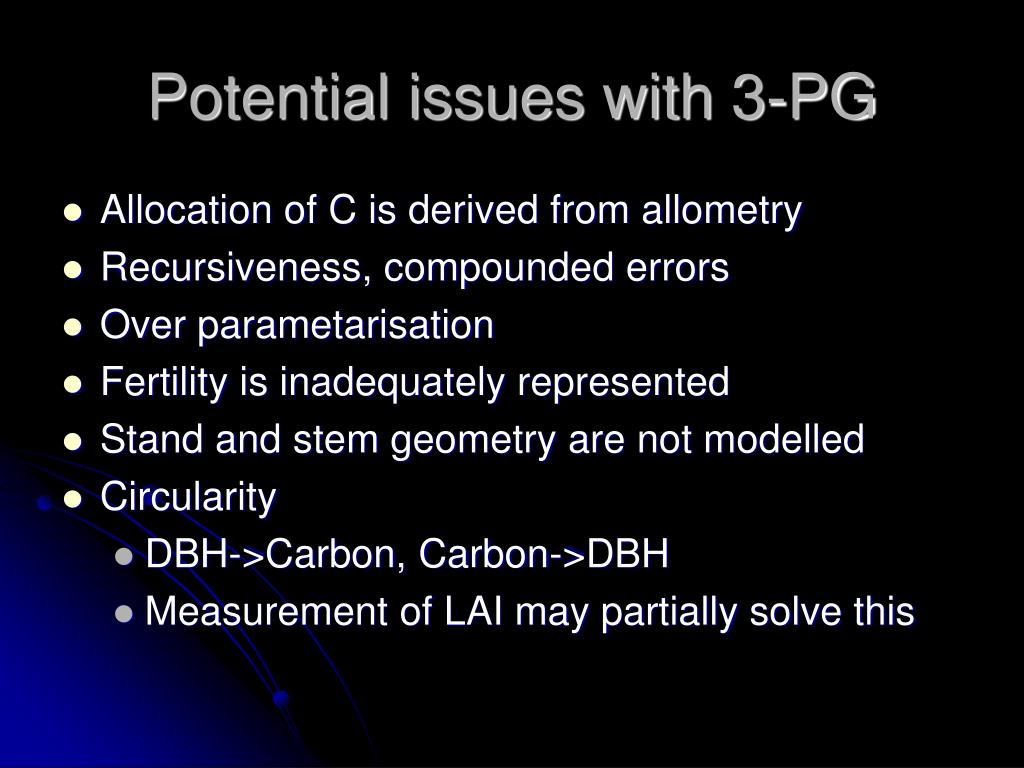

Potential issues with 3-PG

  • Allocation of C is derived from allometry

  • Recursiveness, compounded errors

  • Over parametarisation

  • Fertility is inadequately represented

  • Stand and stem geometry are not modelled

  • Circularity

    • DBH->Carbon, Carbon->DBH

    • Measurement of LAI may partially solve this


Current hm projects at sof

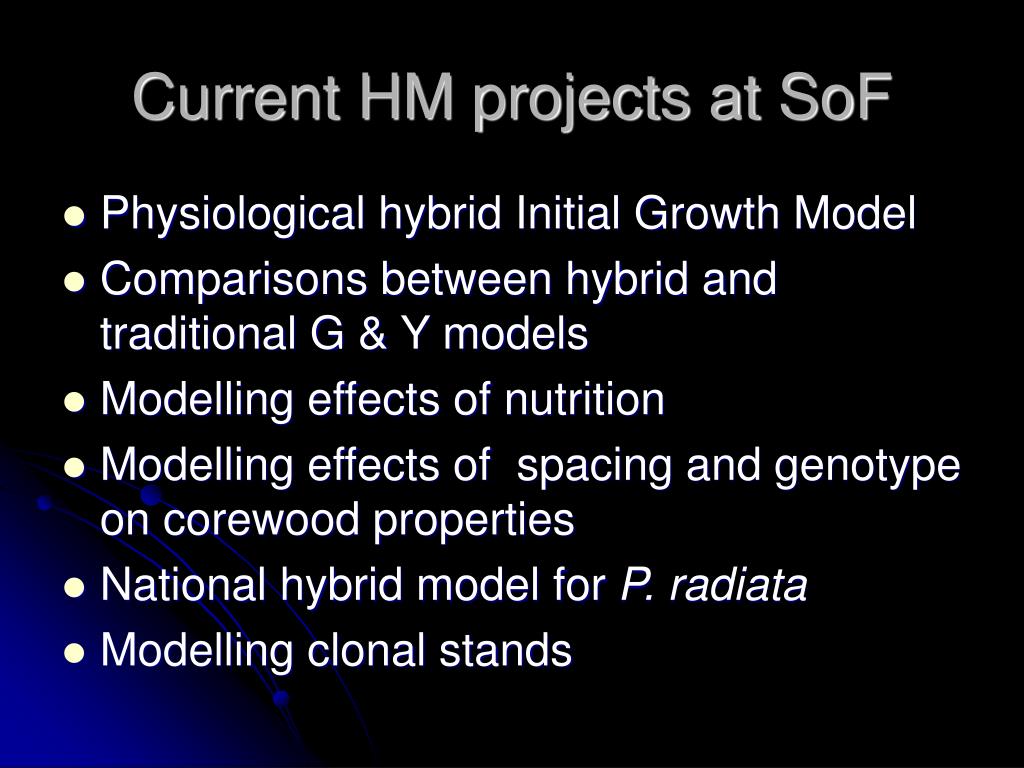

Current HM projects at SoF

  • Physiological hybrid Initial Growth Model

  • Comparisons between hybrid and traditional G & Y models

  • Modelling effects of nutrition

  • Modelling effects of spacing and genotype on corewood properties

  • National hybrid model for P. radiata

  • Modelling clonal stands


Physiological hybrid igm

Physiological hybrid IGM


Comparisons of hybrid models

Comparisons of hybrid models

  • Guy Pinjuv, PhD candidate

  • Canterbury estate, highly variable sites

  • Comparison of a range of hybrids

    • Traditional growth and yield

    • 3-PG

    • Several alternatives in between

  • Evaluate fit and utility

    • Two types of validation required


Modelling effects of nutrition

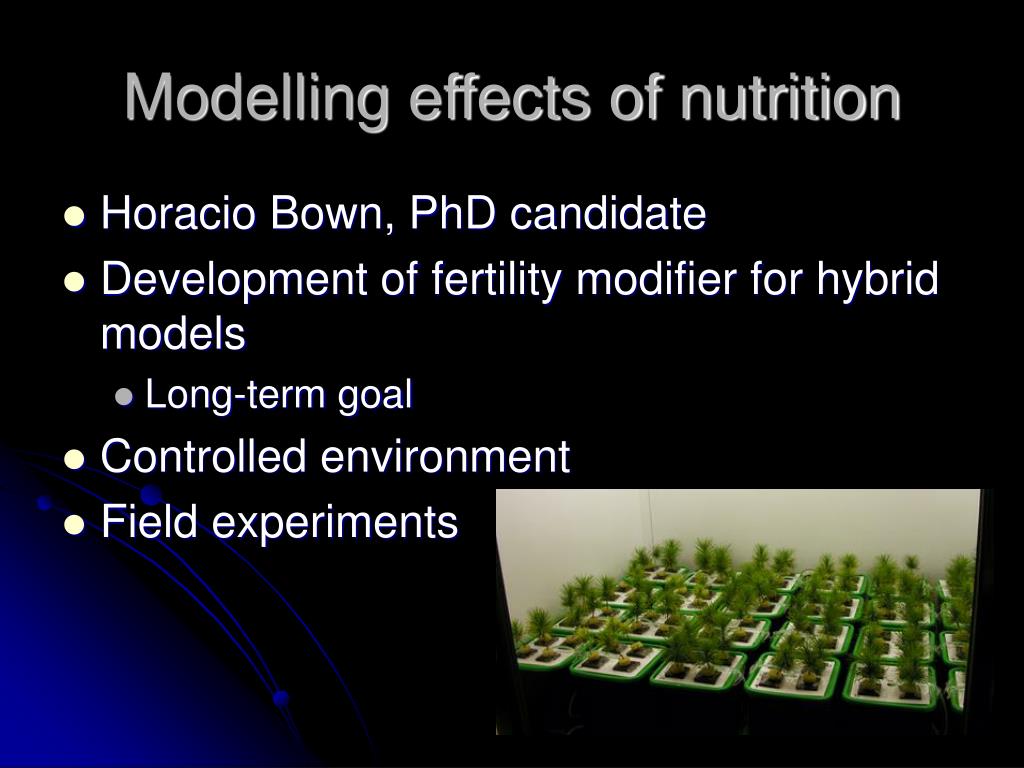

Modelling effects of nutrition

  • Horacio Bown, PhD candidate

  • Development of fertility modifier for hybrid models

    • Long-term goal

  • Controlled environment

  • Field experiments


Corewood stiffness vs actual stocking clone j p lasserre

Corewood stiffness vs actual stocking & clone – J.P. Lasserre


Modelling clonal stands

Modelling clonal stands

  • Rajesh Sharma

  • What changes are needed when modelling for clonal forest management?

  • Potential for hybrid modelling to provide genotype-specific models

  • Large plot clonal experiment - SPBL

    • 10 clones, pure and mixed clone blocks

    • Planted 1993

    • Variation in growth, form, wood quality

    • Interchange in dominance

    • Competition with self or other genotypes

    • Local genotype-dependent individual tree model

    • Risk


National hybrid model for radiata pine

National hybrid model for radiata pine

  • Postdoctoral Fellow

    • Dr Helge Dzierzon

  • Can hybrid modelling remove need for regions?

  • Are hybrids more effective that traditional methods within regions?

  • How much local sensitivity do we lose by adopting a national hybrid model?

  • PSP data from 13 companies

  • Monthly weather data from climate stations, with local offsets

  • Elevation and soils from GIS


Weather stations used

Weather stations used

  • Reasonable data coverage from 1960 to 2005

  • Stations over all New Zealand

  • Data availability for each station is heterogeneous


Landcare research soil layer

Landcare Research Soil Layer

  • Aim: Investigate growth patterns over New Zealand

  • Format:

    • ESRI polygon layer

  • 8 Soil Classes (NZSCORD)

  • 67 Subclasses (NZSC) covered by PSPs


Results for mth using lcr layer the ultimate regional approach

Results for MTH using LCR Layer – the ultimate regional approach

  • Regression for SC:

    • MSE=2.03

    • N: 3202

    • N classes: 26

  • Residuals for SC

    • From 20955 to 13182


Results for g using lcr layer

Results for G using LCR Layer

  • Regression of SC:

    • MSE=9.70

    • N: 3202

    • N classes: 26

      Residuals for SC

    • From 360825 to 302916

  • Residuals of Simulation run

    • Mean: 356021

    • Std: 9154


An idea among many

An idea among many

  • Time = accumulated light

  • Use 3-PG type quantum efficiency modifiers to accumulate potentiallyused light

  • Use sigmoidal difference equations as usual, fitted to PSP data

  • Avoids some of 3-PG’s problems

    • Compounded errors

    • Allocation of C

    • Overparametarisation

    • Lack of stand geometry


An idea among many1

An idea among many

  • Estimate genetic components of seasonal variations in primary and secondary growth

  • Different radiation sums for primary and secondary growth


Seasonal growth in dbh red height yellow and 3 pg predictions blue tennent 1986

Seasonal growth in dbh (red), height (yellow) and 3-PG predictions (blue). (Tennent 1986)


An idea among many2

An idea among many

  • Climatic variables as well as stocking and radiation sum estimates in mortality model

  • To what extent can temporal variation in climatic influences inform us about influences on crop growth and mortality of spatial variation in climate?


An idea among many3

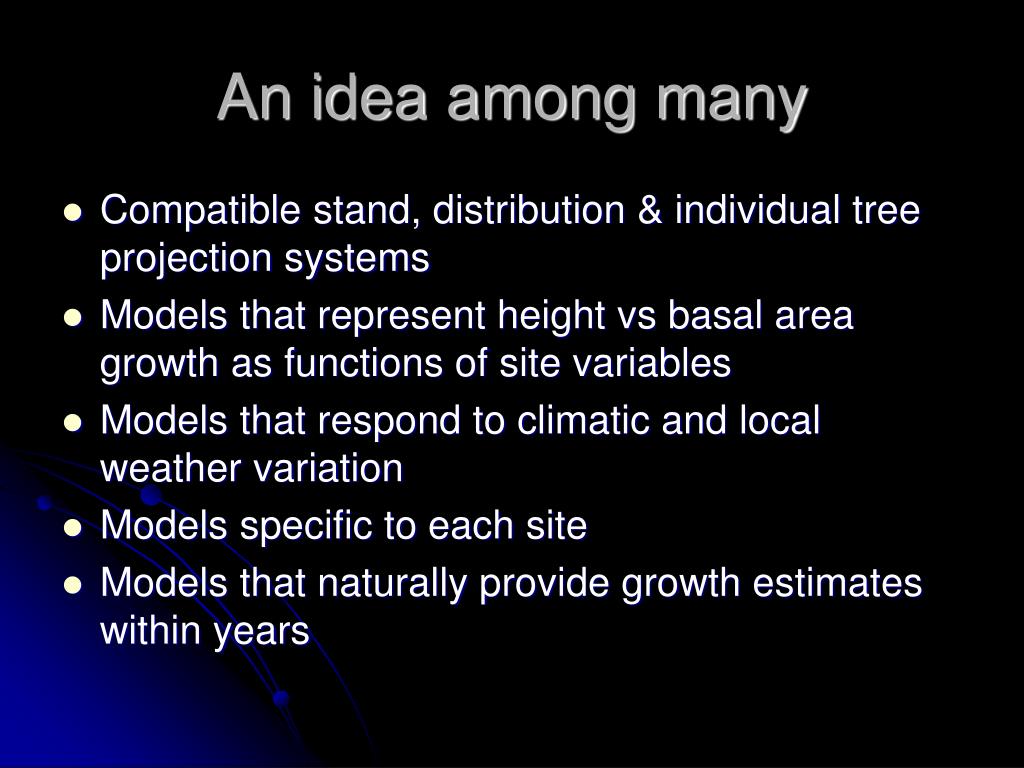

An idea among many

  • Compatible stand, distribution & individual tree projection systems

  • Models that represent height vs basal area growth as functions of site variables

  • Models that respond to climatic and local weather variation

  • Models specific to each site

  • Models that naturally provide growth estimates within years


Preliminary example p radiata in central north island

Preliminary Example – P. radiata in Central North Island

Von-Bertalanffy-Richards

Daytime temp, VPD modifiers

Schumacher, daytime

temperature modifier


Mth results using light sum models dzierzon

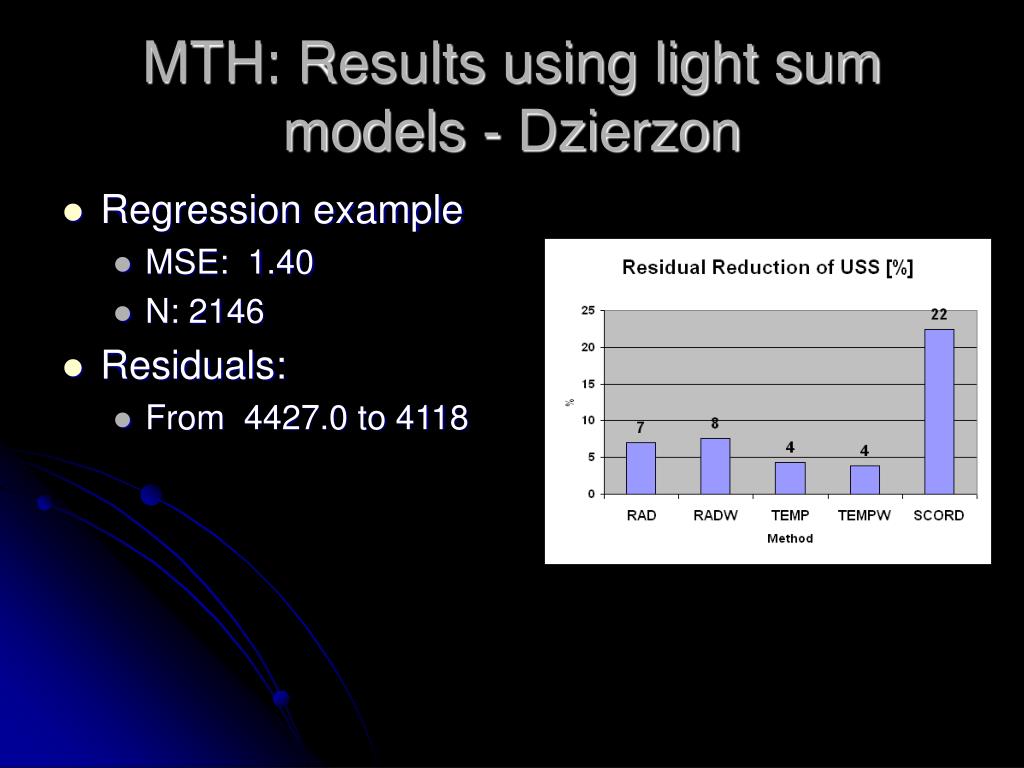

MTH: Results using light sum models - Dzierzon

  • Regression example

    • MSE: 1.40

    • N: 2146

  • Residuals:

    • From 4427.0 to 4118


G results using light sum models dzierzon

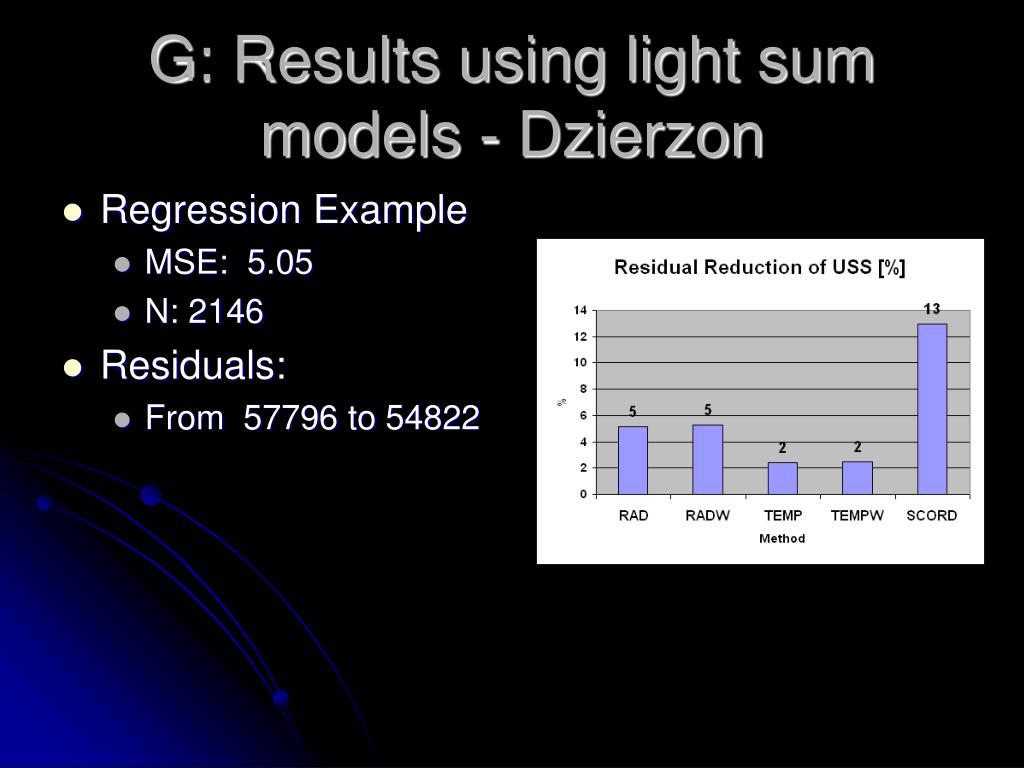

G: Results using light sum models - Dzierzon

  • Regression Example

    • MSE: 5.05

    • N: 2146

  • Residuals:

    • From 57796 to 54822


Light sum initial growth model competition for light in r1835 2

Light sum initial growth model: Competition for light in R1835/2


Future directions

Future directions

  • Two fertile strands for forest modelling research

    • Internal qualities of stems

    • Physiological hybrids

  • The University of Canterbury contributes to both

  • Challenge is to bring the two strands together


Future directions1

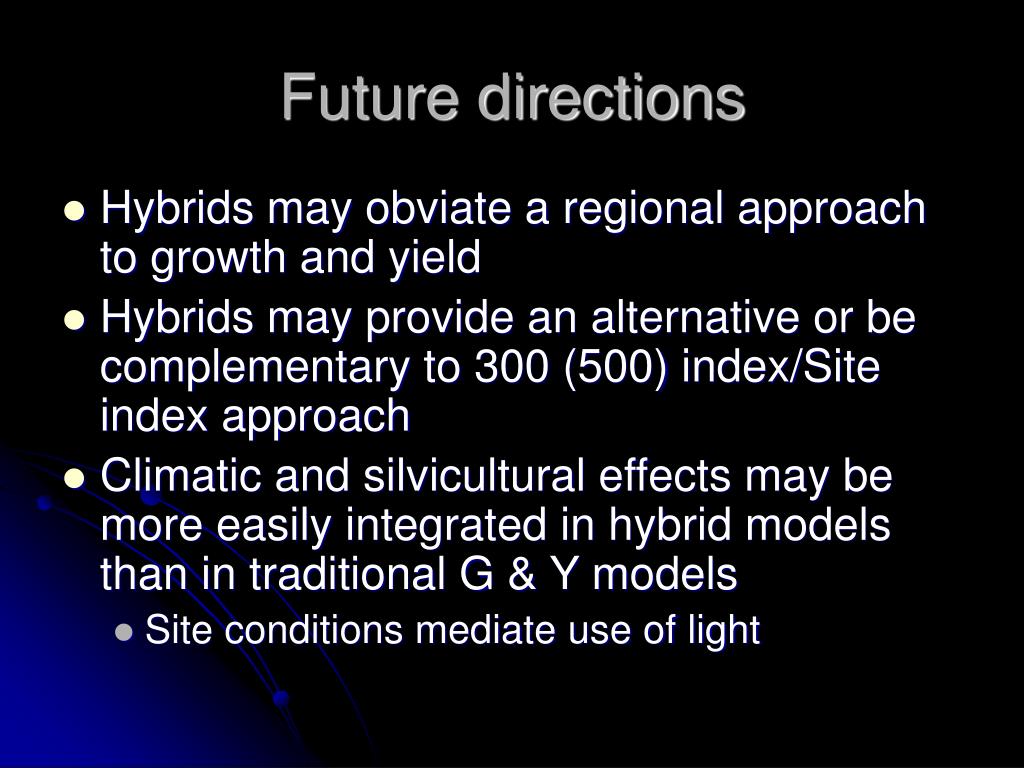

Future directions

  • Hybrids may obviate a regional approach to growth and yield

  • Hybrids may provide an alternative or be complementary to 300 (500) index/Site index approach

  • Climatic and silvicultural effects may be more easily integrated in hybrid models than in traditional G & Y models

    • Site conditions mediate use of light


Summary

Summary

  • Several key studies in hybrid modelling

  • Hybrid modelling

    • More sensitive to local site conditions

    • Seasonal (monthly) predictions

    • Reduced need for regions?

    • Better estimates of growth since last inventory?

    • Carbon sequestration explicit?

    • Linkages between mensuration, silviculture and physiology
