Presentation Transcript


Highway functional classification l.jpg

Highway FunctionalClassification

PEAR Workshop

September 2009

Spencer Stevens, Planning Office

Joe Hausman, Office of Highway Information

Ed Christopher, Resource Center


Highway functional classification2 l.jpg

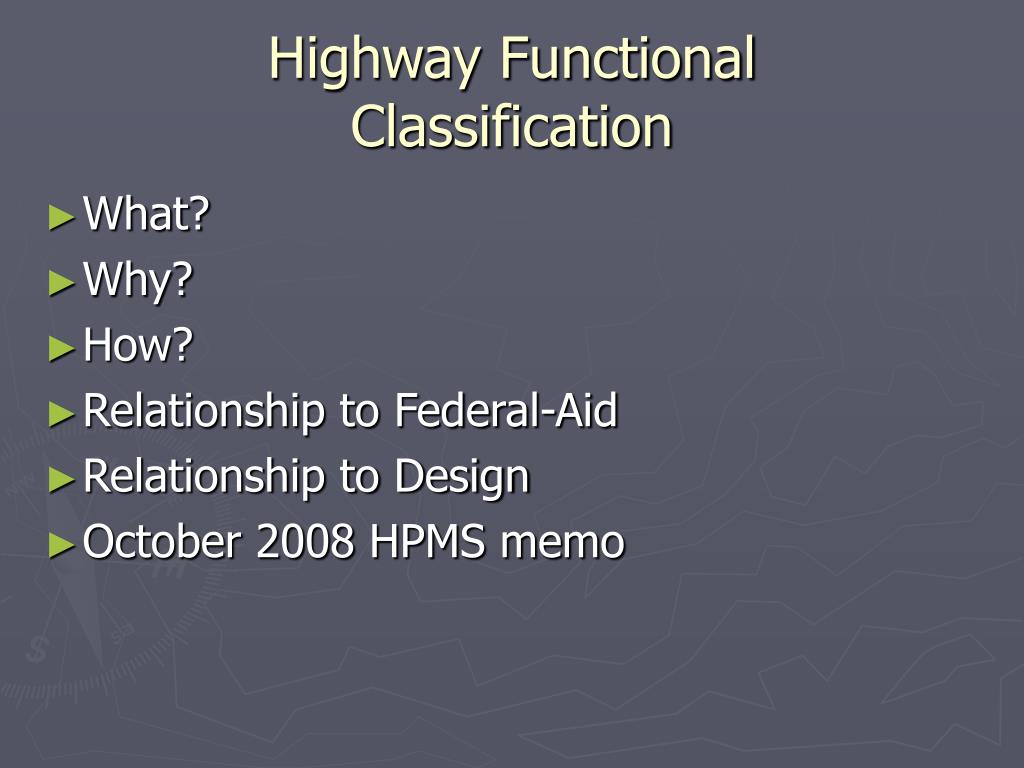

Highway FunctionalClassification

  • What?

  • Why?

  • How?

  • Relationship to Federal-Aid

  • Relationship to Design

  • October 2008 HPMS memo


What is the function of a road l.jpg

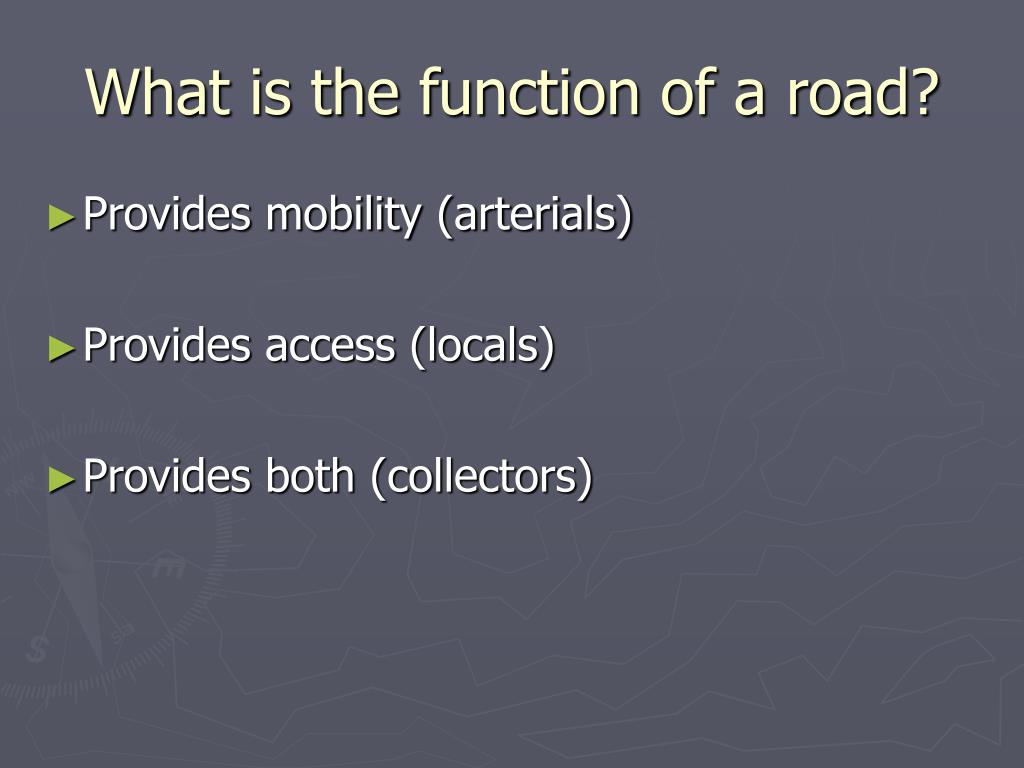

What is the function of a road?

  • Provides mobility (arterials)

  • Provides access (locals)

  • Provides both (collectors)


Relationship to service l.jpg

Relationship to service


Functional classification l.jpg

Functional Classification?


Functional classification6 l.jpg

Functional Classification?


Functional classification7 l.jpg

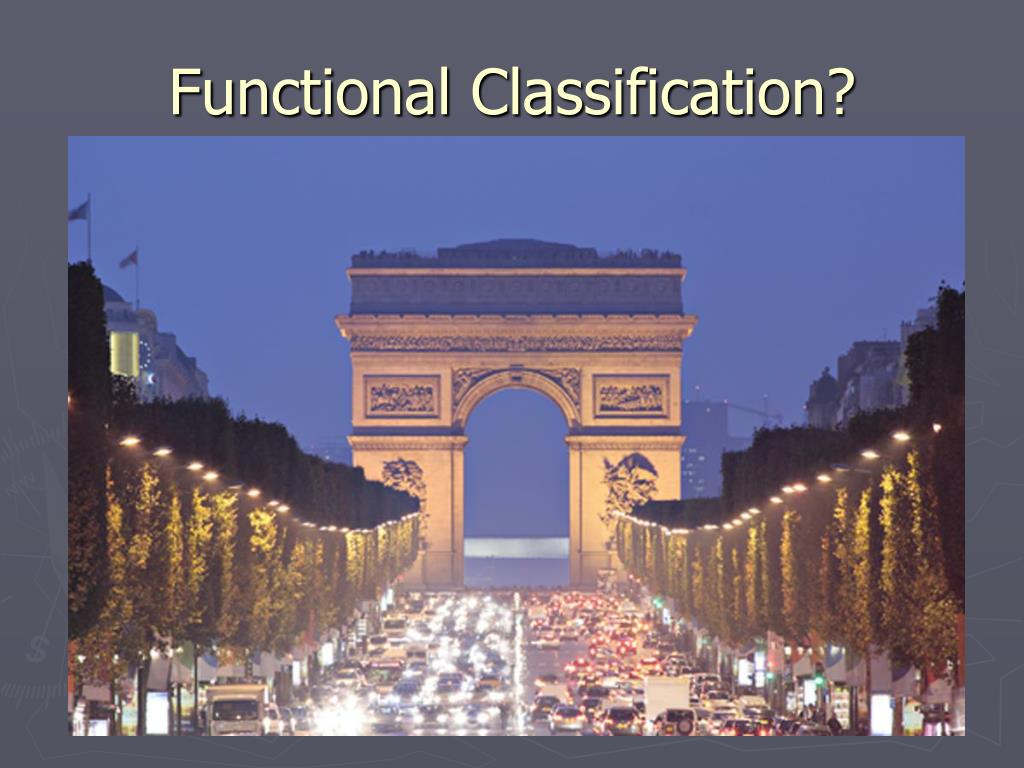

Functional Classification?


Why classify roads l.jpg

Why classify roads?

  • There are approximately 4,000,000 miles of roads in the U.S.

  • Some are more “important” than others


Why classify roads9 l.jpg

Why classify roads?

  • Helps determine which level of government has responsibility

  • Influences design

  • Affects how they are funded

  • Impacts Federal-Aid


Rural illustration l.jpg

Rural Illustration


Rural guides l.jpg

Rural Guides


Highway functional classes rural miles l.jpg

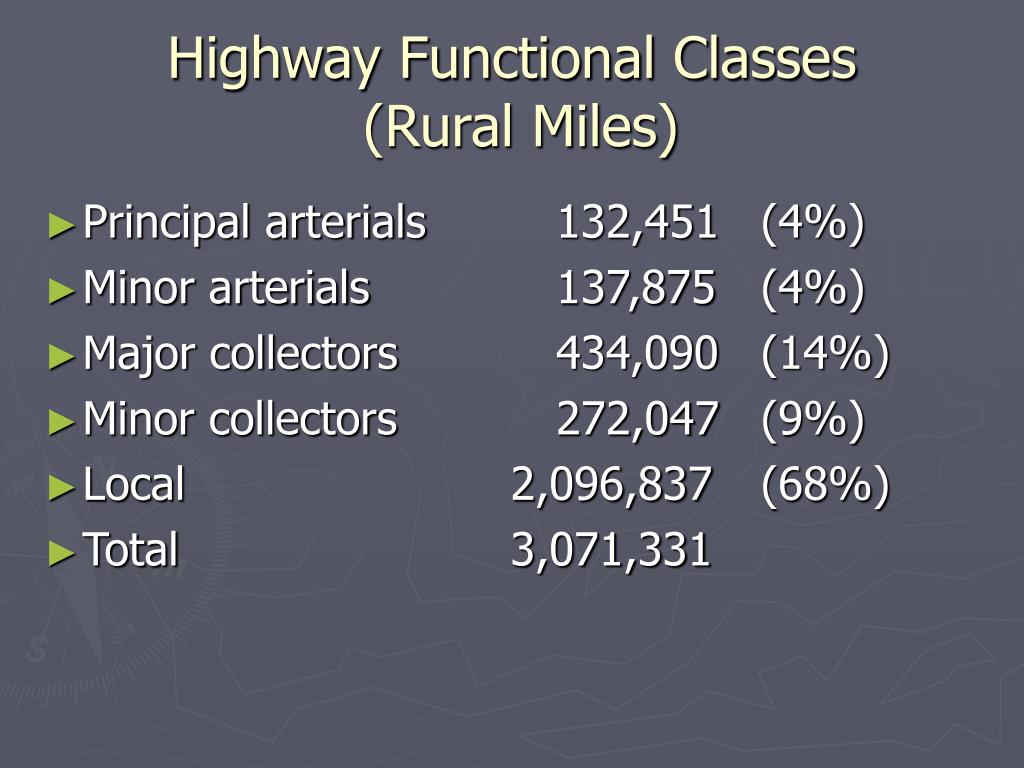

Highway Functional Classes (Rural Miles)

  • Principal arterials 132,451 (4%)

  • Minor arterials137,875 (4%)

  • Major collectors434,090(14%)

  • Minor collectors272,047(9%)

  • Local 2,096,837(68%)

  • Total 3,071,331


Urban illustration l.jpg

Urban Illustration


Urban guides l.jpg

Urban Guides


Highway functional classes urban miles l.jpg

Highway FunctionalClasses (Urban miles)

  • Principal arterials76,033(9%)

  • Minor arterials90,475(10%)

  • Collectors89,310(10%)

  • Local 628,369(71%)

  • Total 884,187


Federal aid l.jpg

Federal-Aid

  • National Highway System

    • Principal arterials

  • Surface Transportation Program

    • Arterials

    • Urban collectors

    • Rural major collectors


Slide17 l.jpg

How?

  • Group population centers and major travel generators

  • Identify neighboring centers

  • Connect the largest directly

  • Connect the next group to the major centers


Slide18 l.jpg

How?

  • Considerations:

    • Arterials integrated network

    • Spacing

    • Changes at urban boundaries

    • Trip length

    • Diminishing returns


Urban boundaries l.jpg

Urban Boundaries

  • Urban clusters

    • Census block population density

    • Secondary criteria

  • Urban Places

    • Political boundaries

  • Adjusted boundaries


Design considerations l.jpg

Design Considerations

  • AASHTO’s Policy on Geometric Design of Highways and Streets 2001 (Green book)

  • Arterials – promote mobility and restrict access

  • Locals – promote access and limit mobility


Design features l.jpg

Design Features

  • Speed

  • Levels of service

  • Alignment

  • Width

  • Clearances

  • Grades


Urban features l.jpg

Urban Features

  • Parking

  • Lighting

  • Curb & Gutter

  • Sidewalks

  • Utilities


Access control l.jpg

Access Control

  • Full control

    • Freeway

  • Partial control

    • Medians

    • Grade separation

    • Signal timing

    • Limit driveways and entrances


Access control methods l.jpg

Access Control Methods

  • Land use ordinances

  • Geometric design

    • Medians

    • Spacing median openings

    • Frontage roads

  • Direct vs. indirect access

  • Single vs. multiple access


Hpms reassessment l.jpg

HPMS Reassessment

  • October 14, 2008 memo

  • Recommends revisions to highway functional classification guidebook

    • Downplays the Urban/Rural distinction

  • New HPMS classification schema used for 2010 data reporting

  • Does NOT change any Highway Functional Classification Guidance or practice


Summary l.jpg

Summary

  • What is the function of roads?

  • Why classify the roads?

    • Example of impact on design

  • Which roads are eligible for Federal-Aid?


Highway functional classification concepts criteria and procedures l.jpg

Highway Functional Classification Concepts, Criteria and Procedures

  • It is just a guide

  • Varies in practice by state

  • Functional Class boundaries are not rigid

  • Some states develop supplemental criteria

  • www.fhwa.dot.gov/planning/fctoc.htm


Slide31 l.jpg

Main Street

State University

Campus Loop

I-95


Slide32 l.jpg

Census Urban Boundary

Industrial Blvd

Industrial Park


Slide33 l.jpg

The village of Mesa

Mesa View Road

Red Rock Heights

Route 36


Slide34 l.jpg

Resource Page

http://www.edthefed.com/fclass/


Yepper we can assist you l.jpg

Yepper – We Can Assist You?

SelectHere

http://www.dot.state.pa.us/Internet/Bureaus/pdPlanRes.nsf/PlanningAndResearchHomePage?OpenFrameset


Yunz please refer to l.jpg

Yunz Please Refer To…


Then submit per l.jpg

Then Submit per…


Fhwa appreciates the process l.jpg

FHWA Appreciates the Process!
