Basic network policy
This presentation is the property of its rightful owner.
Sponsored Links
1 / 13

Basic Network Policy PowerPoint PPT Presentation


  • 85 Views
  • Uploaded on
  • Presentation posted in: General

Basic Network Policy. Sue Hares (Huawei) Qin Wu (Huawei). Basic Network Policy. Sets of Policy used by Policy-Based Routing (PBR) IM I2RS Local Policy (LP) IM BGP IM Traffic Steering Model SFC Model No templates in netmod work Wish there were. Data Stores. BGP.

Download Presentation

Basic Network Policy

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Basic network policy

Basic Network Policy

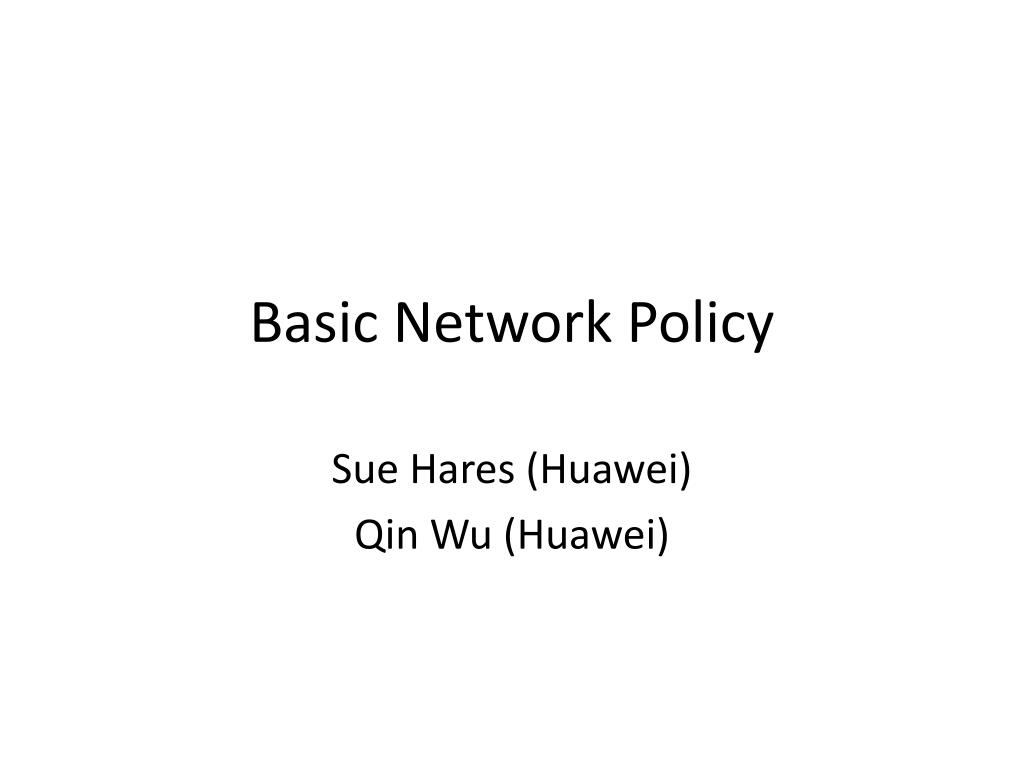

Sue Hares (Huawei)

Qin Wu (Huawei)


Basic network policy1

Basic Network Policy

  • Sets of Policy used by

    • Policy-Based Routing (PBR) IM

    • I2RS Local Policy (LP) IM

    • BGP IM

    • Traffic Steering Model

    • SFC Model

  • No templates in netmod work

    • Wish there were


Data stores

Data Stores

BGP

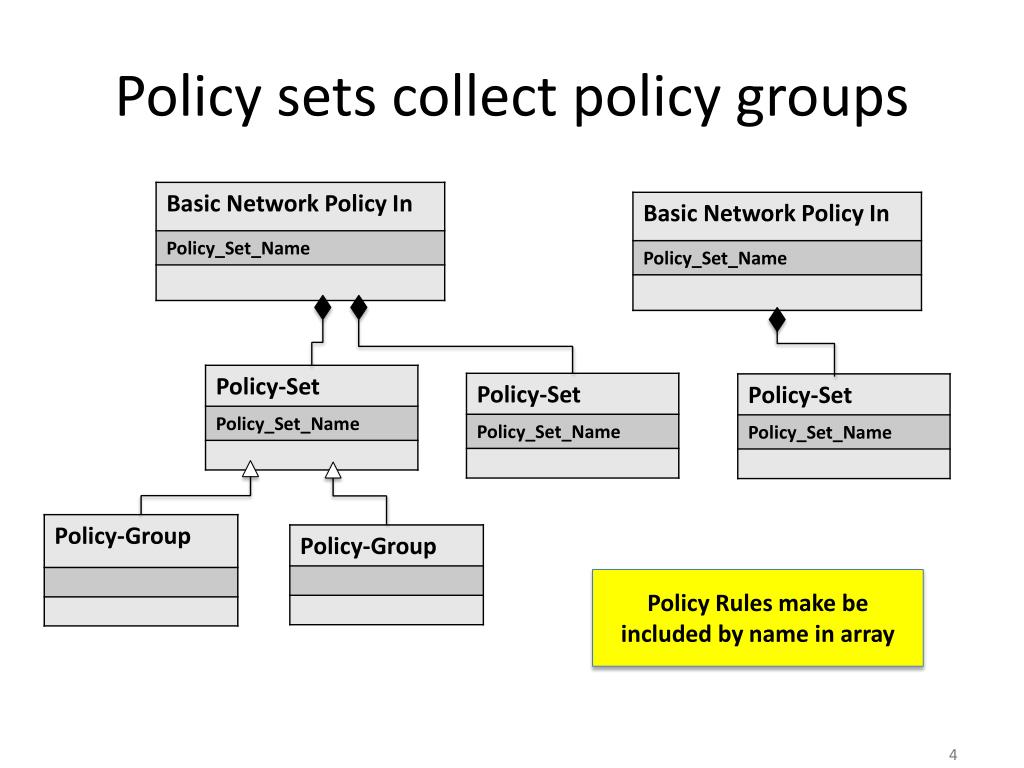

Policy sets collect policy groups

Policy sets collect policy groups

Policy Rules make be included by name in array


Basic network policy

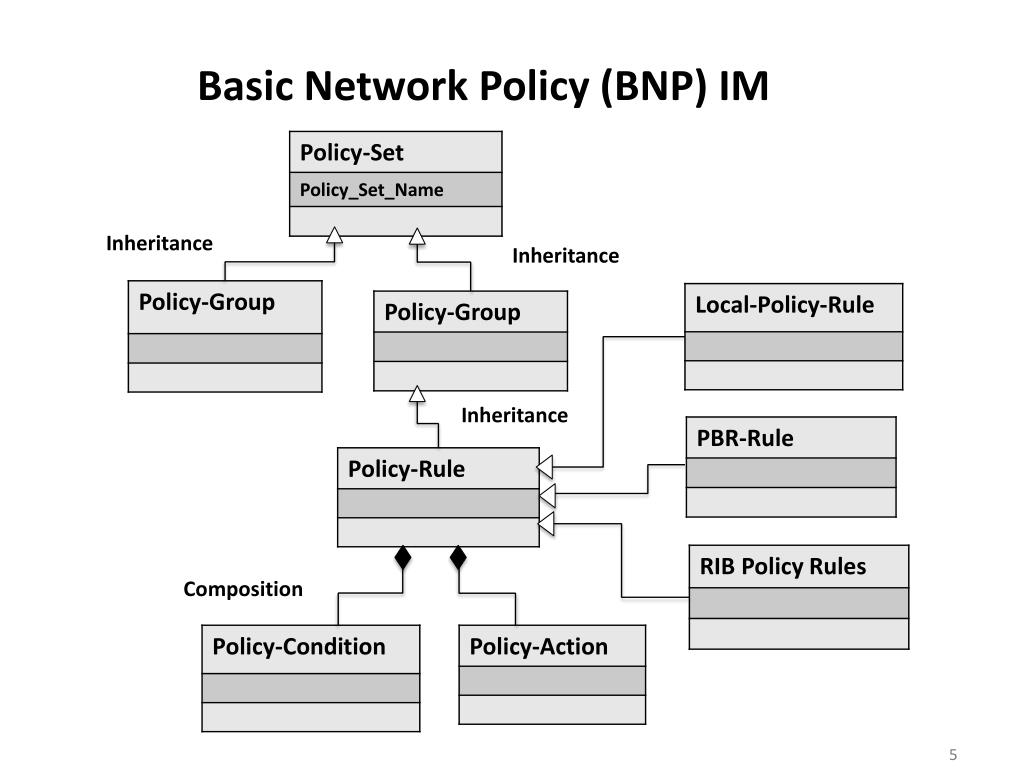

Basic Network Policy (BNP) IM

Inheritance

Inheritance

Inheritance

Composition


Basic network policy

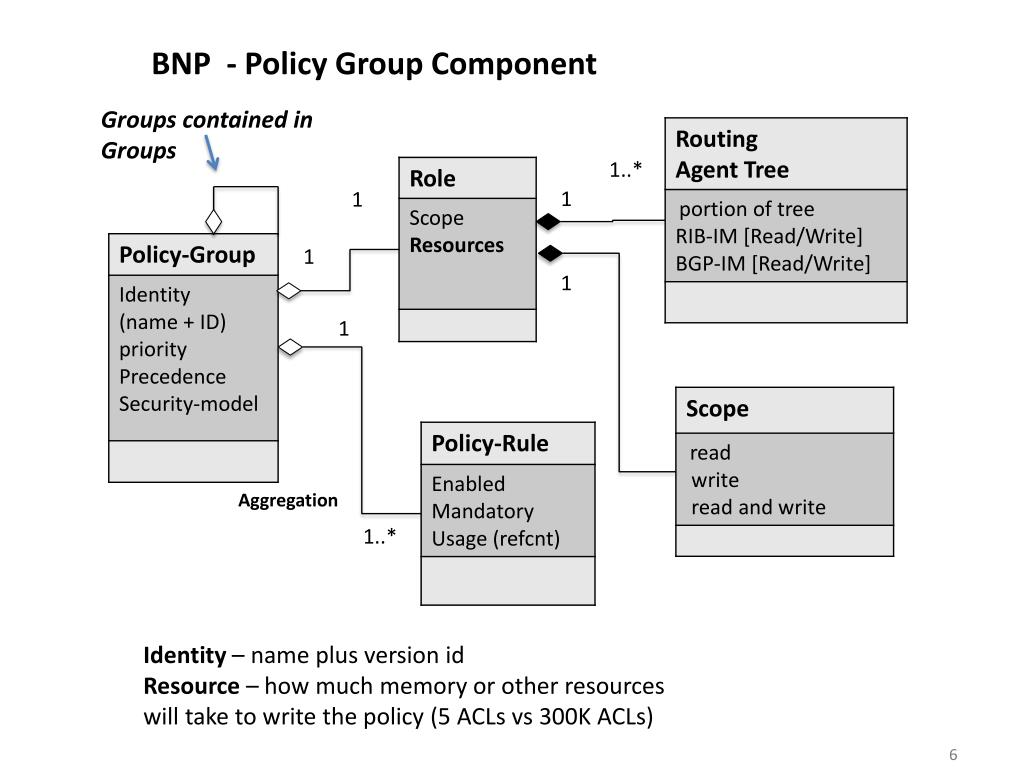

BNP - Policy Group Component

Groups contained in Groups

1..*

1

1

1

1

1

Aggregation

1..*

Identity – name plus version id

Resource – how much memory or other resources will take to write the policy (5 ACLs vs 300K ACLs)


Basic network policy

BNP Policy Rule

1..*

1

1

1

1..*

1..*

1

1..*

1


Basic network policy

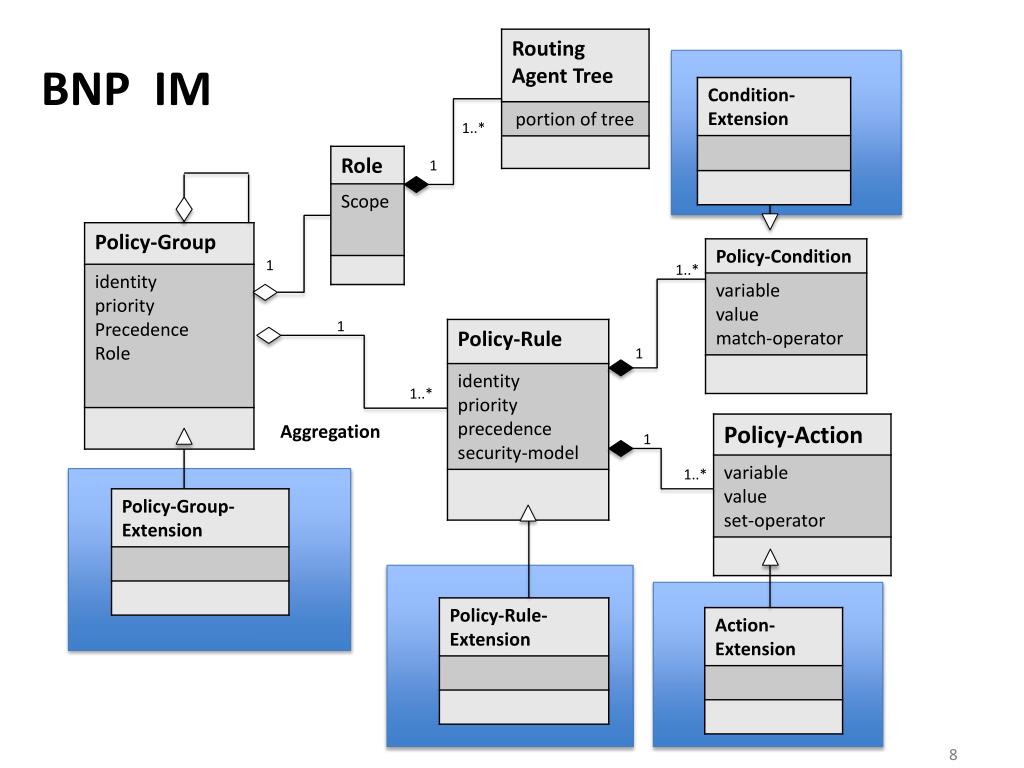

BNP IM

1..*

1

1

1..*

1

1

1..*

Aggregation

1

1..*

c

C

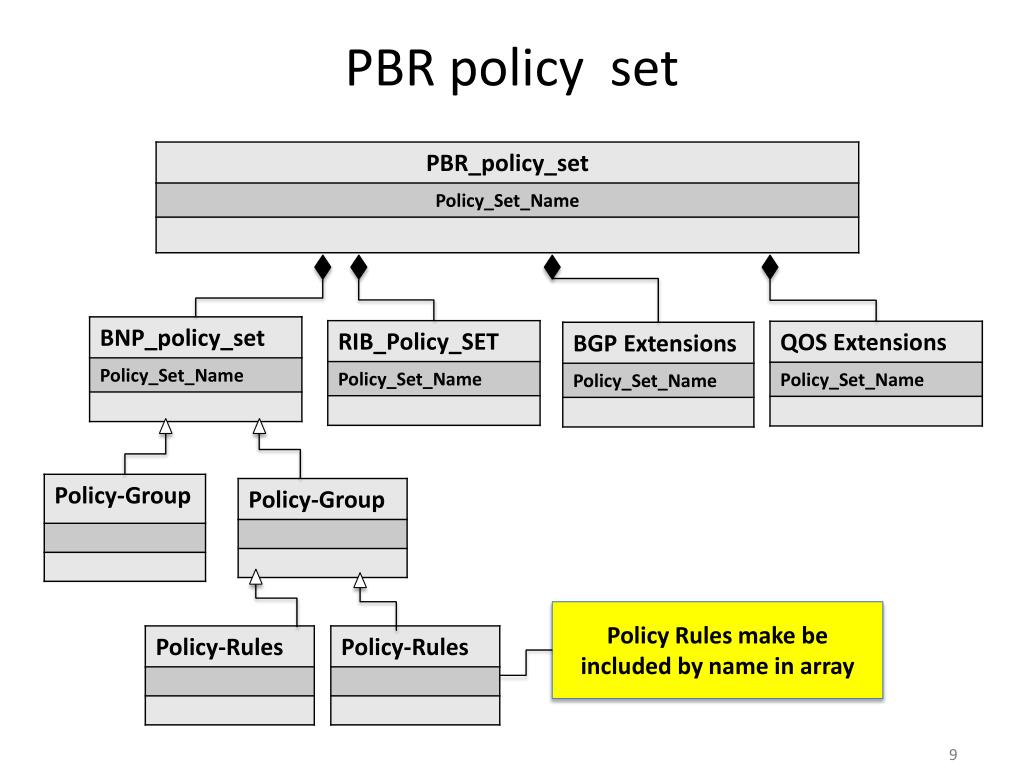

Pbr policy set

PBR policy set

Policy Rules make be included by name in array


Basic network policy

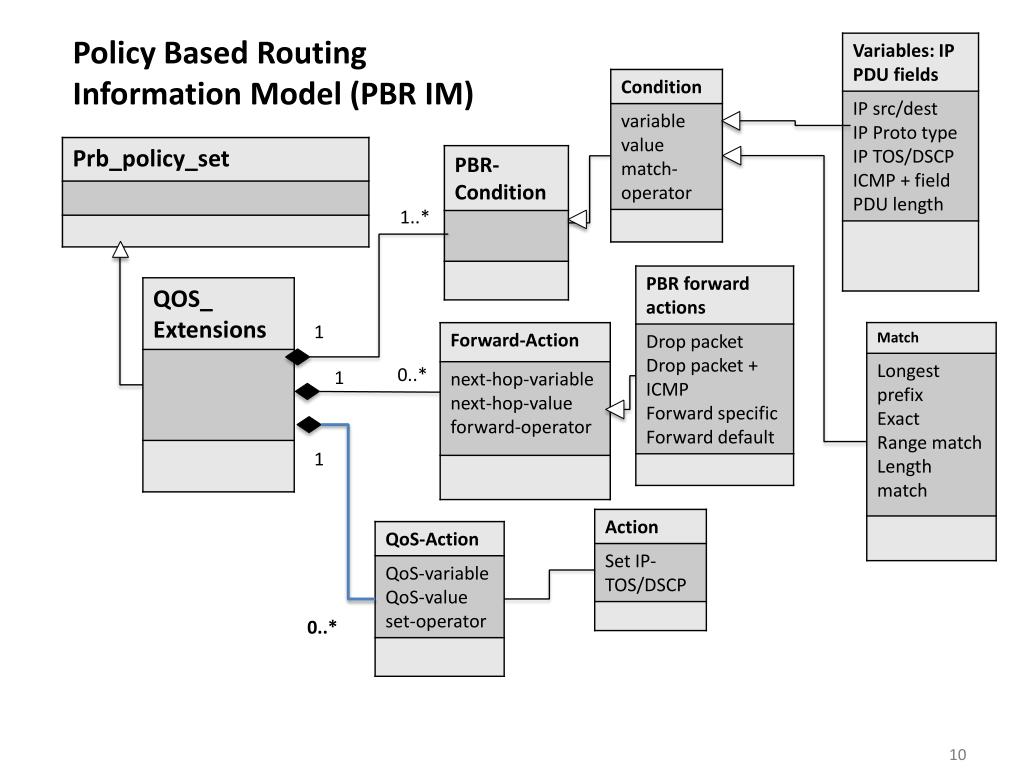

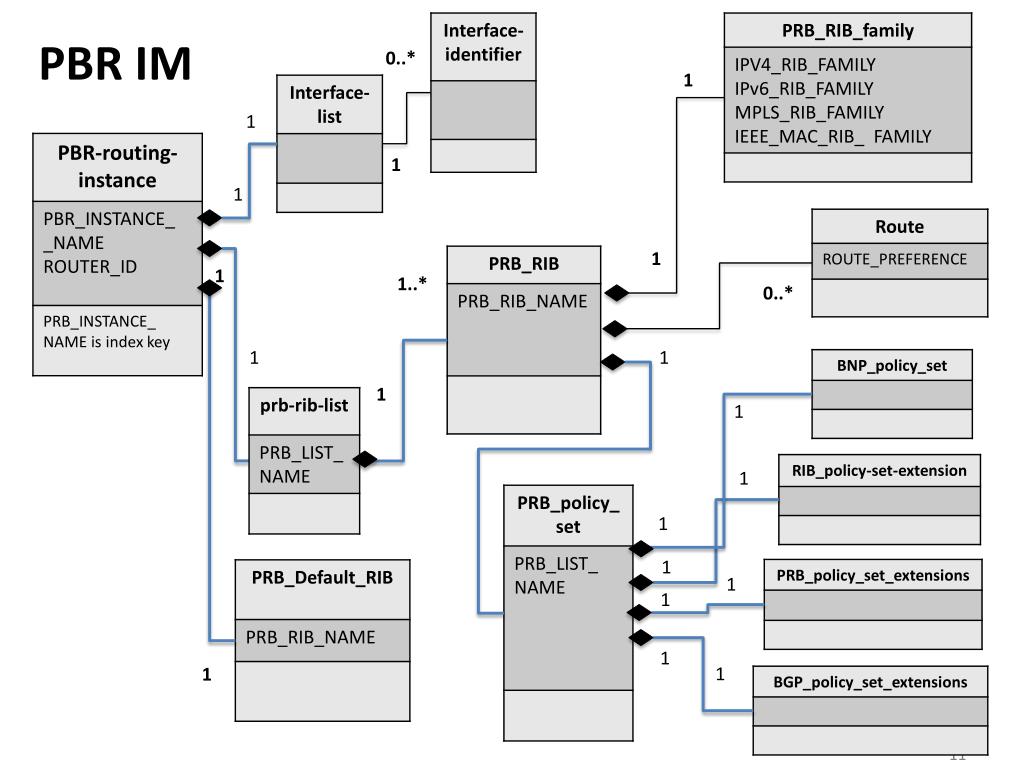

Policy Based Routing Information Model (PBR IM)

1..*

1

0..*

1

1

0..*


Basic network policy

PBR IM

0..*

1

1

1

1

1

1

1..*

0..*

1

1

1

1

1

1

1

1

1

1

1

1


Basic network policy

BGP model

0..*

1

1

1

1

BGP instance_ type enumerates flags found in configs

1

1

1

1

1


What s next

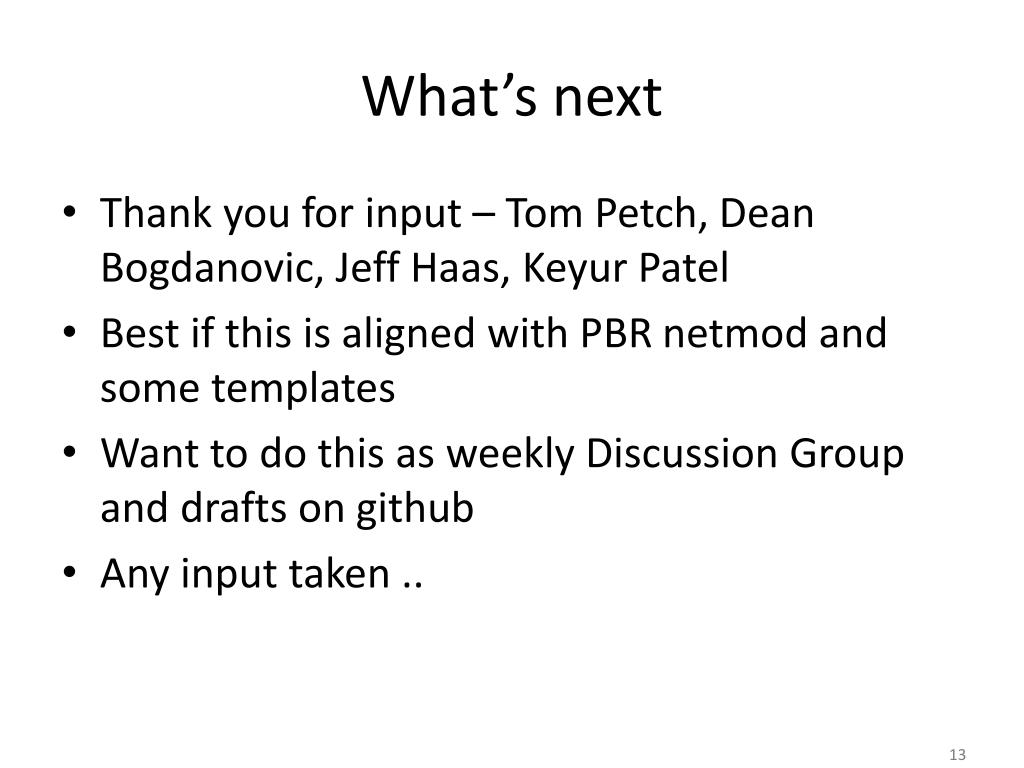

What’s next

  • Thank you for input – Tom Petch, Dean Bogdanovic, Jeff Haas, Keyur Patel

  • Best if this is aligned with PBR netmod and some templates

  • Want to do this as weekly Discussion Group and drafts on github

  • Any input taken ..


  • Login
