  1. PPE: Head Protection 29 CFR 1910.135, 29 CFR 1915.155, 29 CFR 1926.100

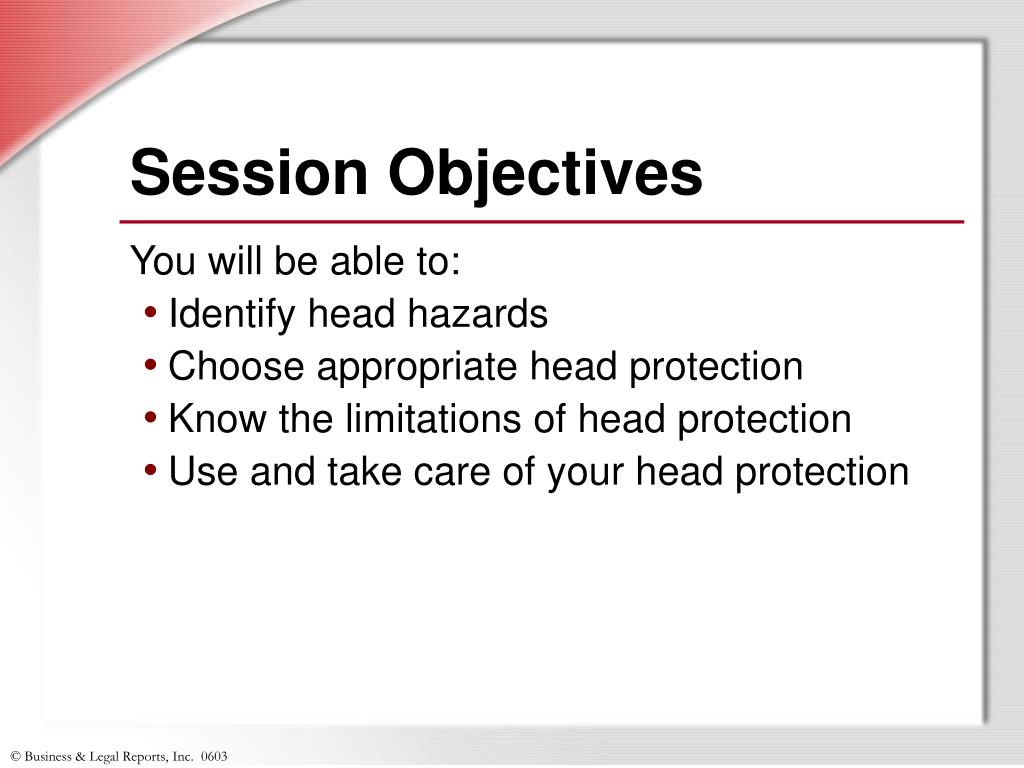

  2. Session Objectives • You will be able to: • Identify head hazards • Choose appropriate head protection • Know the limitations of head protection • Use and take care of your head protection

  3. Hazard Assessments • Assess the workplace • Evaluate every job • Determine appropriate PPE • Certify the completion of the hazard assessment in writing

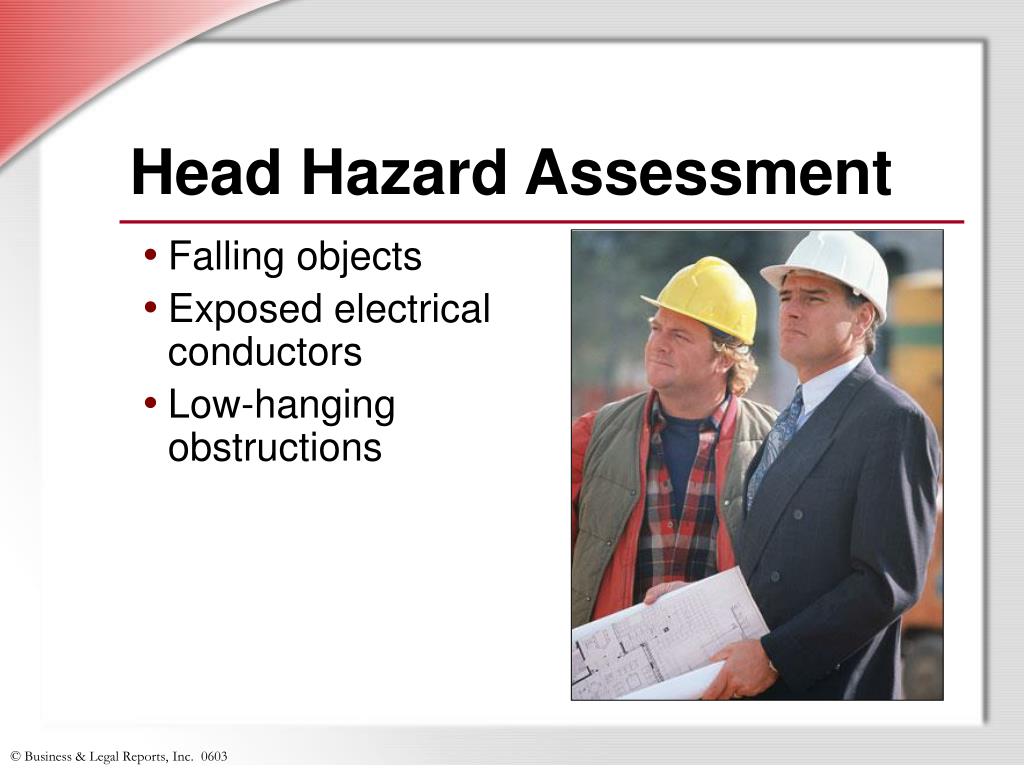

  4. Head Hazard Assessment • Falling objects • Exposed electrical conductors • Low-hanging obstructions

  5. Falling Objects • You are at risk when working below others • Incidents are difficult to anticipate • Most impact injuries occur to workers not wearing head protection • Most workers injured while doing normal jobs

  6. Exposed Electrical Conductors • Electrical shock or burns could occur • Head protection insulates and protects • Select right class of head protection

  7. Bump Hazards • Bumps, scrapes, bruises • Low-hanging pipes, steel structures, machinery components • Nonroutine cleaning or maintenance

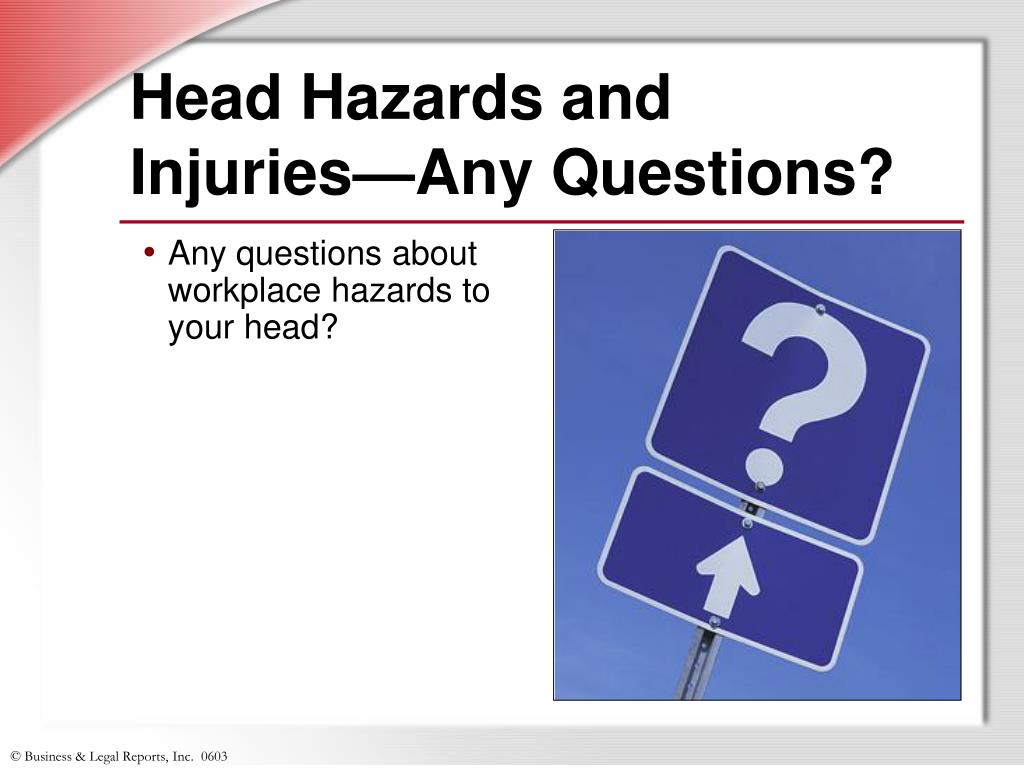

  8. Head Hazards and Injuries—Any Questions? • Any questions about workplace hazards to your head?

  9. Hard Hat Design • Resist penetration • Absorb shock • High-density, light-weight polyethylene • Stamped with ANSI Z89 specifications

  10. Hard Hat Types • Type I–Top impact and penetration protection • Type II–Top and side impact and penetration protection • ANSI Z89.1

  11. Hard Hat Classes • Class C – No electrical protection • Class G – Low voltage (tested at 2,200 volts) • Class E – High voltage (tested at 20,000 volts)

  12. Hard Hat Testing • Temperature extremes • Impact resistance • Penetration resistance • Electrical insulation

  13. Standard Head Protection • Wide profile and brim • Increased ventilation • Sun protection • Suspension system • Ratchet systems • Brow pads

  14. Highly Protective Helmet • Impact and penetration resistance from all directions • Chin strap • Air vents molded into helmet • Crown pad and brow pad • Accessories

  15. High Temperature Hats • Advanced thermoplastic materials • Utilities, welding, foundries, steel mills • Meet NFPA 1977-1998 Standard • Exposed to 350ºF for 5 minutes • Resistant to radiant heat and flame

  16. Bump Caps • Protect against bumps, scrapes, cuts • Used when helmet or hard hat unnecessary • Made of lightweight hard plastic • May accommodate faceshields or visors • Do not meet ANSI Z89 standards

  17. Hard Hat Selection—Any Questions? • Any questions about choosing appropriate head protection?

  18. Wearing Hard Hats Backward • Type I hard hats have been tested • Crown must be symmetrical • Suspension must be reversed • Type II helmets should not be worn backward

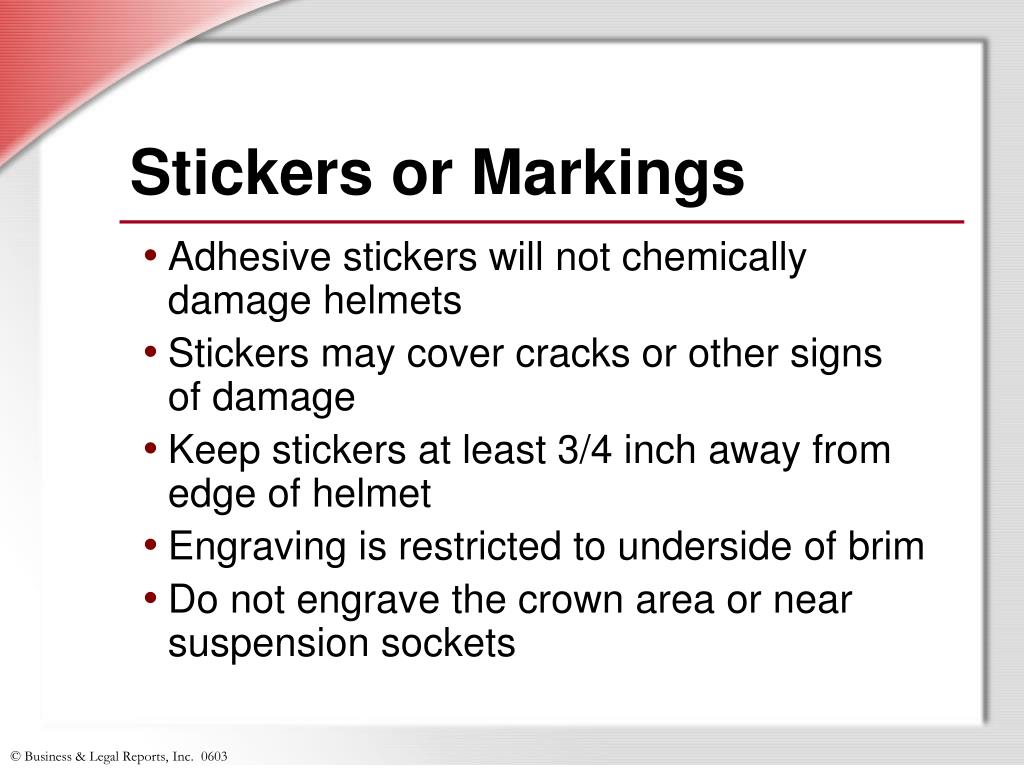

  19. Stickers or Markings • Adhesive stickers will not chemically damage helmets • Stickers may cover cracks or other signs of damage • Keep stickers at least 3/4 inch away from edge of helmet • Engraving is restricted to underside of brim • Do not engrave the crown area or near suspension sockets

  20. Visibility • Increase visibility to equipment operators and vehicles • High-visibility colors • Fluorescent striping • Reflective striping

  21. Objects Inside a Hard Hat • Maintain clearance between shell and head • Metal part may reduce electrical insulation properties • Do not place objects above or below crown straps • Fabric winter liners or sunshades are acceptable

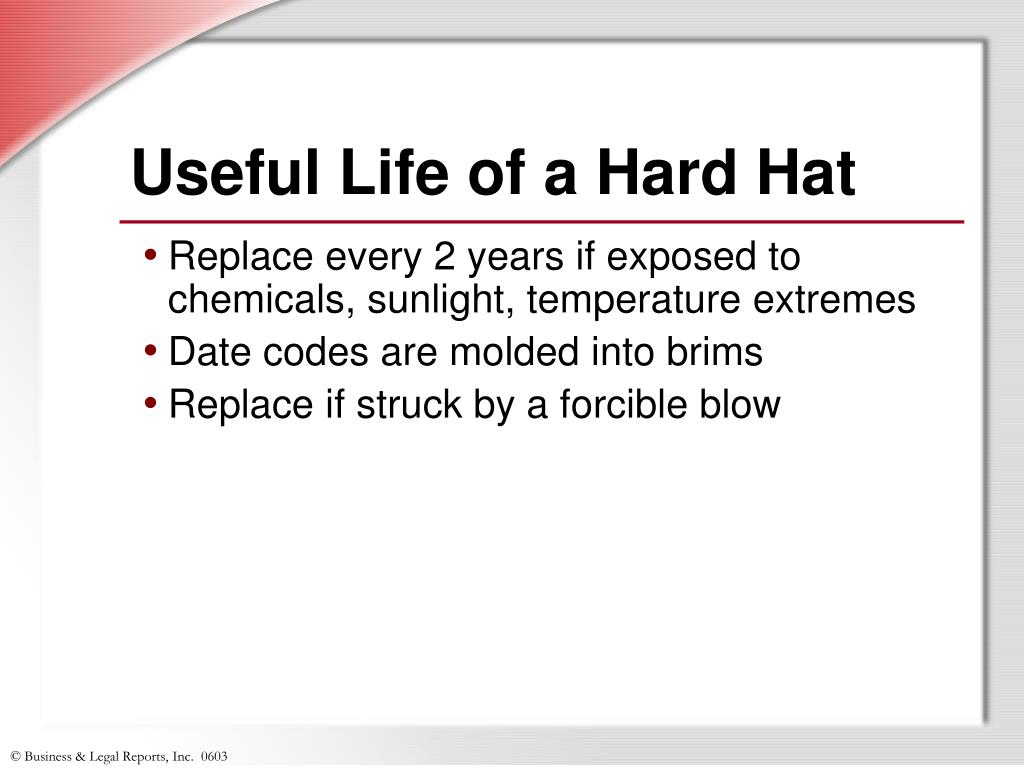

  22. Useful Life of a Hard Hat • Replace every 2 years if exposed to chemicals, sunlight, temperature extremes • Date codes are molded into brims • Replace if struck by a forcible blow

  23. Maintenance and Care • Clean with mild detergent and hot water • Inspect shell for damage or excess wear • Inspect suspension straps for cuts, frays, chemical damage • Never drill holes • Do not use paints or cleaning solvents

  24. Field Test Hard Hats • Compress shell sides inward 1 inch • Release pressure • Shell should return to original shape • Compare elasticity to new shell • Replace if not elastic or if it cracks

  25. Head Protection—Any Questions? • Any questions about the use and care of hard hats?

  26. Key Points to Remember • Follow recommendations in head hazard assessment • Wear the correct type and class of helmet for the hazards found • Inspect and clean hard hats daily • Limit stickers and other markings • Replace hard hats according to work conditions
