All pairs shortest paths 26 0 25

All-Pairs Shortest Paths (26.0/25)

  • HW: problem 26-1, p. 576/25-1, p. 641

  • Directed graph G = (V,E), weight E  

  • Goal: Create n  n matrix of s-p distances (u,v)

  • Running Bellman-Ford once from each vertex

    O( ) = O( ) on dense graphs

  • Adjacency-matrix representation of graph:

    • n  n matrix W = (wij) of edge weights

    • assume wii = 0 i,

      s-p to self has no edges in absence of negative cycles


Dynamic programming 26 1 25 1

Dynamic Programming (26.1/25.1)

  • dij(m) = weight of s-p from i to j with  m edges

    dij(0) = 0 if i = j and dij(0) =  if i  j

    dij(m) = mink{dik(m-1) + wkj}

  • Runtime = O( n4)

    because n-1 passes

    each computing n2 d’s in O(n) time

 m-1

j

i

 m-1


Matrix multiplication 26 1 25 1

Matrix Multiplication (26.1/25.1)

  • Similar: C = A  B, two n  n matrices

    cij = k aik  bkj O(n3) operations

  • replacing: ‘‘ + ’’  ‘‘ min ’’

    ‘‘  ’’  ‘‘ + ’’

    • gives cij= mink {aik + bkj}

    • D(m) = D(m-1) ‘‘ ’’ W

    • identity matrix is D(0)

    • Cannot use Strassen’s because no subtraction

  • Time is still O(n  n3 ) = O(n4 )

  • Repeated squaring: W2n = Wn Wn

    Compute W, W2 , W4 ,..., W2k , k= log n, O(n3 log n)


Floyd warshall algorithm 26 2 25 2

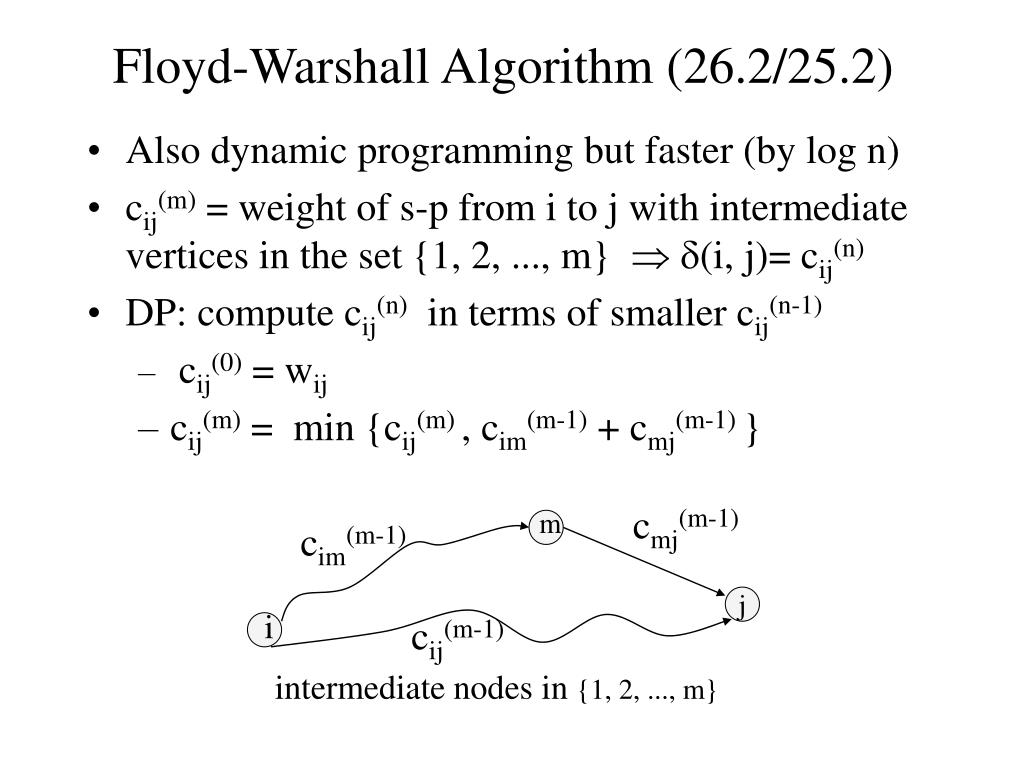

Floyd-Warshall Algorithm (26.2/25.2)

  • Also dynamic programming but faster (by log n)

  • cij(m) = weight of s-p from i to j with intermediate vertices in the set {1, 2, ..., m}  (i, j)= cij(n)

  • DP: compute cij(n) in terms of smaller cij(n-1)

    • cij(0) = wij

    • cij(m) = min {cij(m) , cim(m-1) + cmj(m-1) }

      intermediate nodes in {1, 2, ..., m}

cmj(m-1)

m

cim(m-1)

j

i

cij(m-1)


Floyd warshall algorithm 26 2 25 21

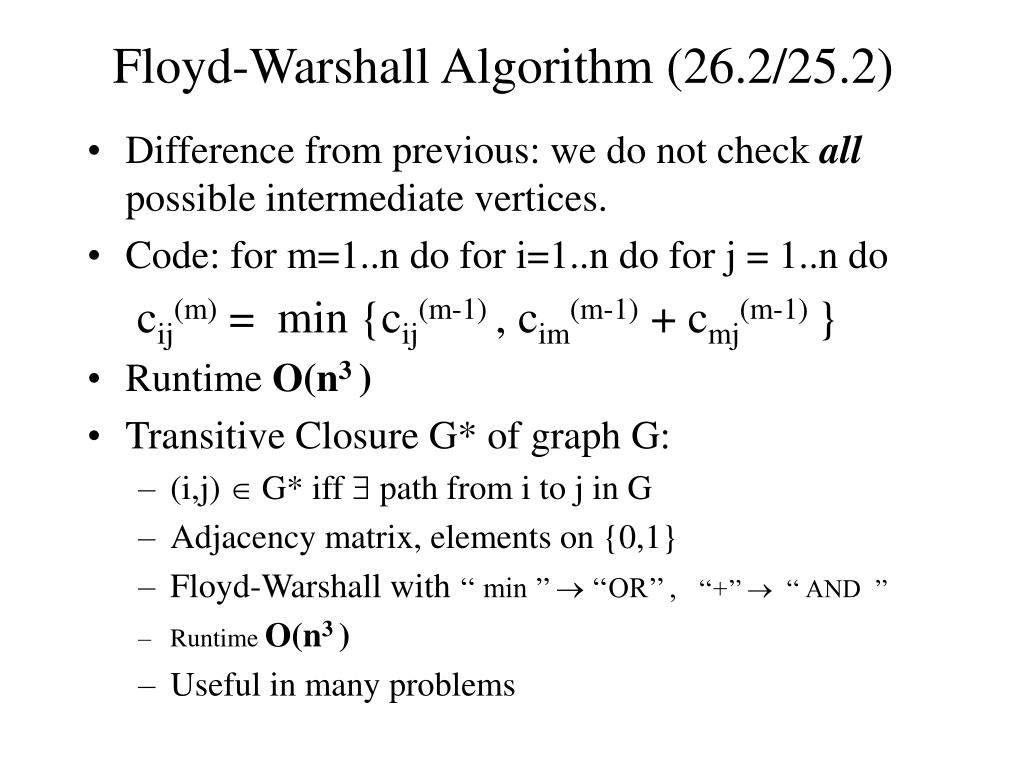

Floyd-Warshall Algorithm (26.2/25.2)

  • Difference from previous: we do not check all possible intermediate vertices.

  • Code: for m=1..n do for i=1..n do for j = 1..n do

    cij(m) = min {cij(m-1) , cim(m-1) + cmj(m-1) }

  • Runtime O(n3 )

  • Transitive Closure G* of graph G:

    • (i,j)  G* iff  path from i to j in G

    • Adjacency matrix, elements on {0,1}

    • Floyd-Warshall with ‘‘ min ’’  ‘‘OR’’ , ‘‘+’’  ‘‘ AND ’’

    • Runtime O(n3 )

    • Useful in many problems


Johnson s algorithm 26 3 25 3

Johnson’s Algorithm (26.3/25.3)

  • Johnson’s = Bellman-Ford + Dijkstra’s (or Thorup’s)

  • Re-weighting of the graph G=(V,E,w):

    • assign weights to all vertices h: V  

    • change weight of edges w’(u,v) = w(u,v) + h(u) - h(v)

    • then for any u,v: ’(u, v) = (u,v) + h(u) - h(v)

  • Addition of auxiliary vertex s:

    • V  V + s

    • E  V + {(s,v), v  V} , w(s,v) = 0

  • Run Bellman-Ford: find h(v) = (s,v) (or negat. cycle)

    • w’(u,v)  0 since h(v)  h(u) + w(u,v) and

      w’(u,v) = w(u,v) + h(u) - h(v)  0


Johnson s algorithm 26 3 25 31

Johnson’s Algorithm (26.3/25.3)

  • Since all weights are nonnegative,

    apply Dijkstra’s for each source and

    find all modified distances ’(u, v)

  • Restore actual distances from modified using

    (u, v) = ’(u,v) - h(u) + h(v)

  • Runtime:

    • O(VE) = V times O(E) - M.Thorup’s algorithm

    • O(V(E+V log V)) = V times Dijkstra’s with Fibonacci heaps

    • O(VE log V) = V times Dijkstra’s with binary heaps (faster for sparse graphs)

  • To find s-p for a single pair = s-p from single source = all pairs shortest paths.
