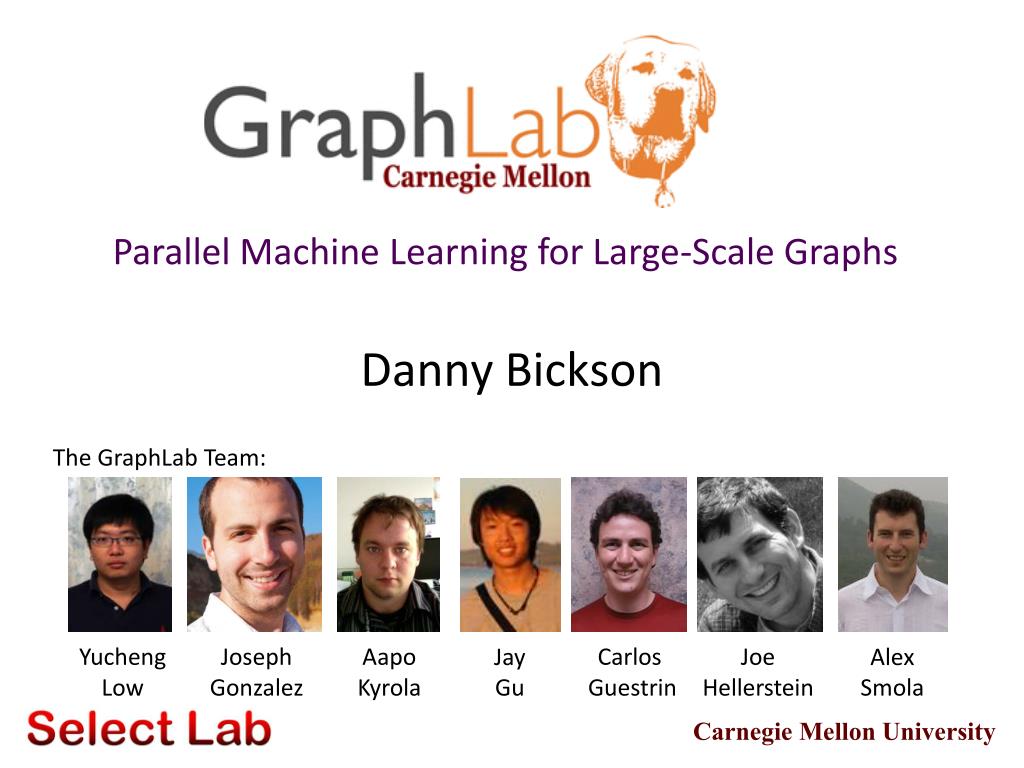

1. Parallel Machine Learning for Large-Scale Graphs Danny Bickson The GraphLab Team: Yucheng Low Joseph Gonzalez Aapo Kyrola Carlos Guestrin Joe Hellerstein Jay Gu Alex Smola

2. Parallelism is Difficult • Wide array of different parallel architectures: • Different challenges for each architecture GPUs Multicore Clusters Clouds Supercomputers High Level Abstractions to make things easier

3. How will wedesign and implementparallel learning systems?

4. ... a popular answer: Map-Reduce / Hadoop Build learning algorithms on-top of high-level parallel abstractions

5. Map-Reduce for Data-Parallel ML • Excellent for large data-parallel tasks! Data-Parallel Graph-Parallel Map Reduce Label Propagation Lasso Feature Extraction Cross Validation Belief Propagation Kernel Methods Computing Sufficient Statistics Tensor Factorization PageRank Neural Networks Deep Belief Networks

6. Example of Graph Parallelism

7. PageRank Example • Iterate: • Where: • αis the random reset probability • L[j] is the number of links on page j 1 2 3 4 5 6

8. Properties of Graph Parallel Algorithms Dependency Graph LocalUpdates Iterative Computation My Rank Friends Rank

9. Addressing Graph-Parallel ML • We need alternatives to Map-Reduce Data-Parallel Graph-Parallel Map Reduce Pregel (Giraph)? Map Reduce? SVM Lasso Feature Extraction Cross Validation Belief Propagation Kernel Methods Computing Sufficient Statistics Tensor Factorization PageRank Neural Networks Deep Belief Networks

10. Pregel (Giraph) • Bulk Synchronous Parallel Model: Compute Communicate Barrier

11. Problem: Bulk synchronous computation can be highly inefficient

12. BSP Systems Problem:Curse of the Slow Job Iterations Data Data Data Data CPU 1 CPU 1 CPU 1 Data Data Data Data Data Data Data Data CPU 2 CPU 2 CPU 2 Data Data Data Data Data Data Data Data CPU 3 CPU 3 CPU 3 Data Data Data Data Data Data Data Data Barrier Barrier Barrier

13. The Need for a New Abstraction • If not Pregel, then what? Data-Parallel Graph-Parallel Map Reduce Pregel (Giraph) Feature Extraction Cross Validation Belief Propagation Kernel Methods SVM Computing Sufficient Statistics Tensor Factorization PageRank Lasso Neural Networks Deep Belief Networks

14. The GraphLabSolution • Designed specifically for ML needs • Express data dependencies • Iterative • Simplifies the design of parallel programs: • Abstract away hardware issues • Automatic data synchronization • Addresses multiple hardware architectures • Multicore • Distributed • Cloud computing • GPU implementation in progress

15. What is GraphLab?

16. The GraphLab Framework Scheduler Graph Based Data Representation Update Functions User Computation Consistency Model

17. Data Graph A graph with arbitrary data (C++ Objects) associated with each vertex and edge. • Graph: • Social Network • Vertex Data: • User profile text • Current interests estimates • Edge Data: • Similarity weights

18. Update Functions An update function is a user defined program which when applied to a vertex transforms the data in the scopeof the vertex pagerank(i, scope){ // Get Neighborhood data (R[i], Wij, R[j]) scope; // Update the vertex data // Reschedule Neighbors if needed if R[i] changes then reschedule_neighbors_of(i); } Dynamic computation

19. The Scheduler The scheduler determines the order that vertices are updated b d a c CPU 1 c b e f g Scheduler e f b a i k h j i h i j CPU 2 The process repeats until the scheduler is empty

20. The GraphLab Framework Scheduler Graph Based Data Representation Update Functions User Computation Consistency Model

21. Ensuring Race-Free Code • How much can computation overlap?

22. Need for Consistency?

23. Inconsistent ALS Consistent Netflix data, 8 cores

24. Even Simple PageRank can be Dangerous GraphLab_pagerank(scope) { refsum = scope.center_value sum= 0 forall(neighbor in scope.in_neighbors ) sum = sum + neighbor.value / nbr.num_out_edges sum = ALPHA + (1-ALPHA) * sum …

25. Inconsistent PageRank

26. Even Simple PageRank can be Dangerous CPU 1 GraphLab_pagerank(scope) { refsum = scope.center_value sum= 0 forall(neighbor in scope.in_neighbors) sum = sum + neighbor.value / nbr.num_out_edges sum = ALPHA + (1-ALPHA) * sum … Read-write race  CPU 1 reads bad PageRank estimate, as CPU 2 computes value CPU 2 Read

27. Race Condition Can Be Very Subtle GraphLab_pagerank(scope) { refsum = scope.center_value sum= 0 forall(neighbor in scope.in_neighbors) sum = sum + neighbor.value / neighbor.num_out_edges sum = ALPHA + (1-ALPHA) * sum … Unstable GraphLab_pagerank(scope) { sum = 0 forall(neighbor in scope.in_neighbors) sum = sum + neighbor.value / nbr.num_out_edges sum = ALPHA + (1-ALPHA) * sum scope.center_value= sum … Stable This was actually encountered in user code.

28. GraphLab Ensures Sequential Consistency For each parallel execution, there exists a sequential execution of update functions which produces the same result. time CPU 1 Parallel CPU 2 Single CPU Sequential

29. Consistency Rules Full Consistency Data Guaranteed sequential consistency for all update functions

30. Full Consistency Full Consistency

31. Obtaining More Parallelism Full Consistency Edge Consistency

32. Edge Consistency Edge Consistency Safe Read CPU 1 CPU 2

33. The GraphLab Framework Scheduler Graph Based Data Representation Update Functions User Computation Consistency Model

34. What algorithms are implemented in GraphLab?

35. Alternating Least Squares SVD Splash Sampler CoEM Bayesian Tensor Factorization Lasso Belief Propagation PageRank LDA SVM Gibbs Sampling Dynamic Block Gibbs Sampling K-Means Matrix Factorization …Many others… Linear Solvers

36. GraphLab Libraries Matrix factorization SVD,PMF, BPTF, ALS, NMF, Sparse ALS, Weighted ALS, SVD++, time-SVD++, SGD Linear Solvers Jacobi, GaBP, Shotgun Lasso, Sparse logistic regression, CG Clustering K-means, Fuzzy K-means, LDA, K-core decomposition Inference Discrete BP, NBP, Kernel BP

37. Efficient MulticoreCollaborative FilteringLeBuSiShu team – 5th place in track1 Institute of Automation Chinese Academy of Sciences Yao Wu Qiang Yan Qing Yang Danny Bickson Yucheng Low Machine Learning Dept Carnegie Mellon University ACM KDD CUP Workshop 2011

39. ACM KDD CUP 2011 • Task: predict music score • Two main challenges: • Data magnitude – 260M ratings • Taxonomy of data

40. Data taxonomy

41. Our approach • Use ensemble method • Custom SGD algorithm for handling taxonomy

42. Ensemble method • Solutions are merged using linear regression

43. Performance results Blended Validation RMSE: 19.90

44. Classical Matrix Factorization Users Sparse Matrix d Item

45. MFITR Features of the Artist Features of the Album Item Specific Features “Effective Feature of an Item” Users d Sparse Matrix

46. Intuitively, features of an artist and features of his/her album should be “similar”. How do we express this? Artist • Penalty terms which ensure Artist/Album/Track features are “close” • Strength of penalty depends on “normalized rating similarity” (See neighborhood model) Album Track

47. Fine Tuning Challenge • Dataset has around 260M observed ratings • 12different algorithms, total 53 tunable parameters • How do we train and cross validate all these parameters? • USE GRAPHLAB!

48. 16 Cores Runtime

49. Speedup plots
