  1. DIRCI 04DigitalRegulatorwithCustomerInterface VIA ROMA, 20 - I-36051 CREAZZO (VI) ITALY PHONE ++39-0444-396111 - FAX ++39-0444- 390908 www.meccalte.com E-mail: mecc-alte-spa@meccalte.it

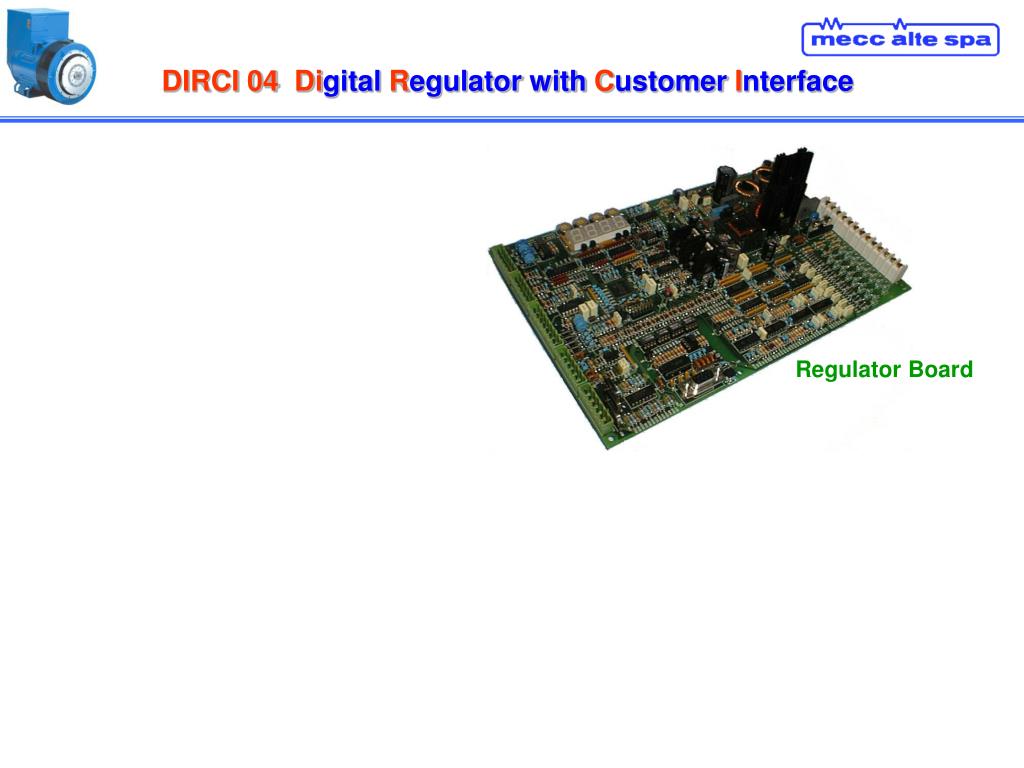

  2. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Board

  3. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Firmware Regulator Board

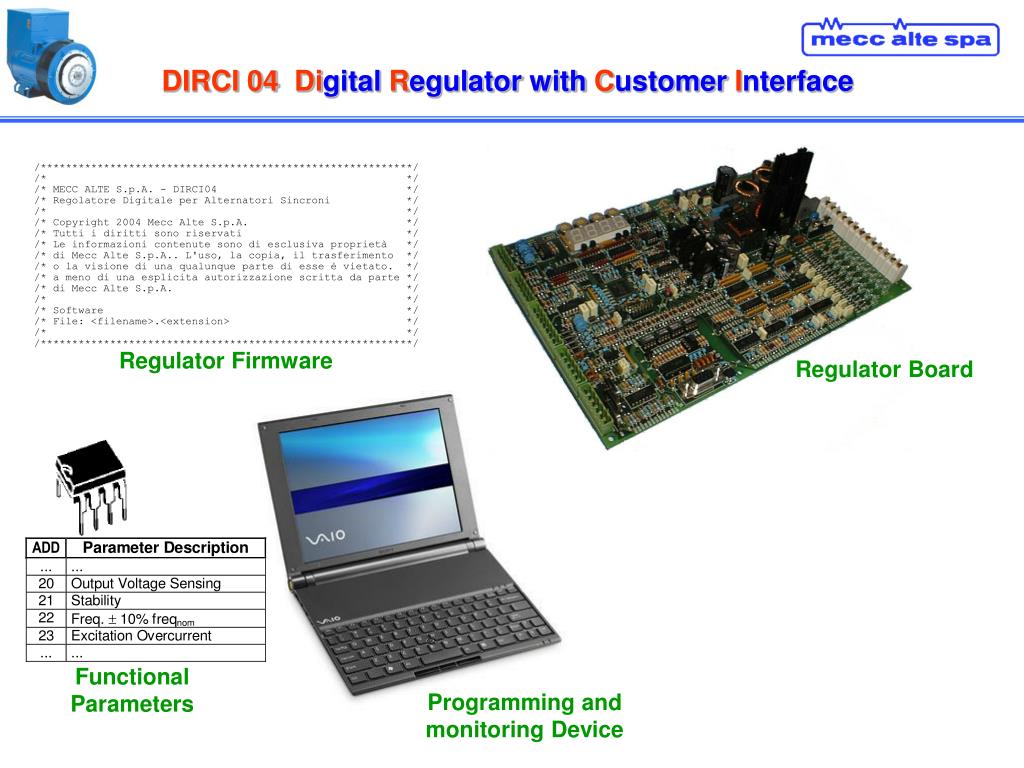

  4. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Firmware Regulator Board Functional Parameters

  5. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Firmware Regulator Board Functional Parameters Programming and monitoring Device

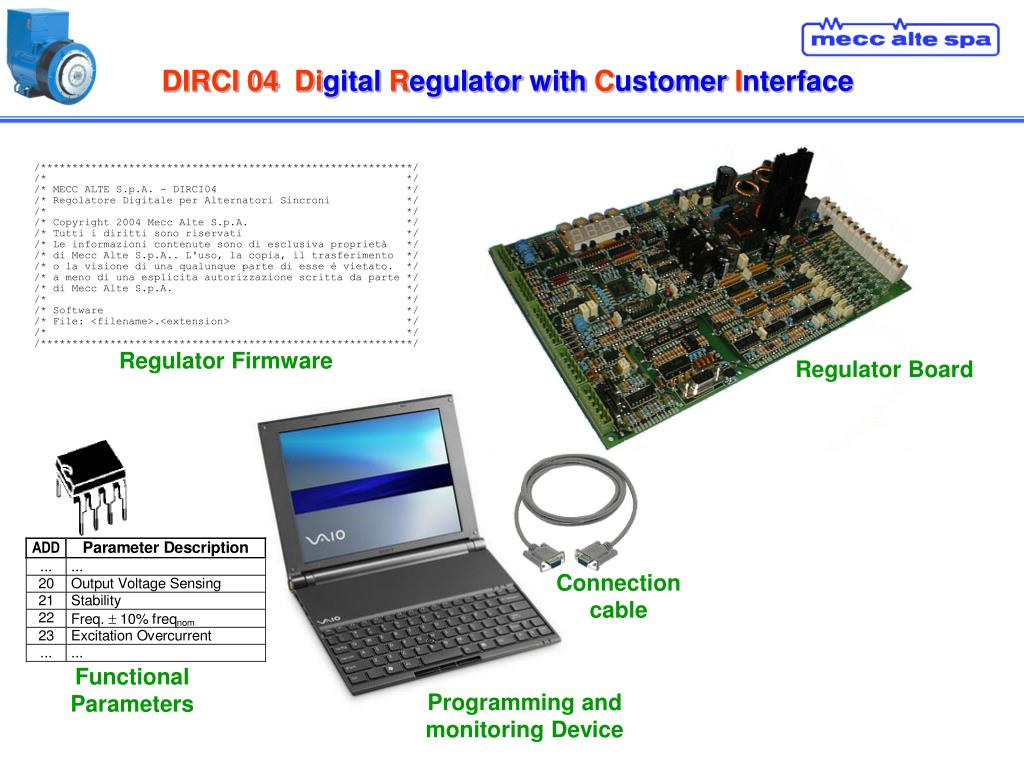

  6. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Firmware Regulator Board Connection cable Functional Parameters Programming and monitoring Device

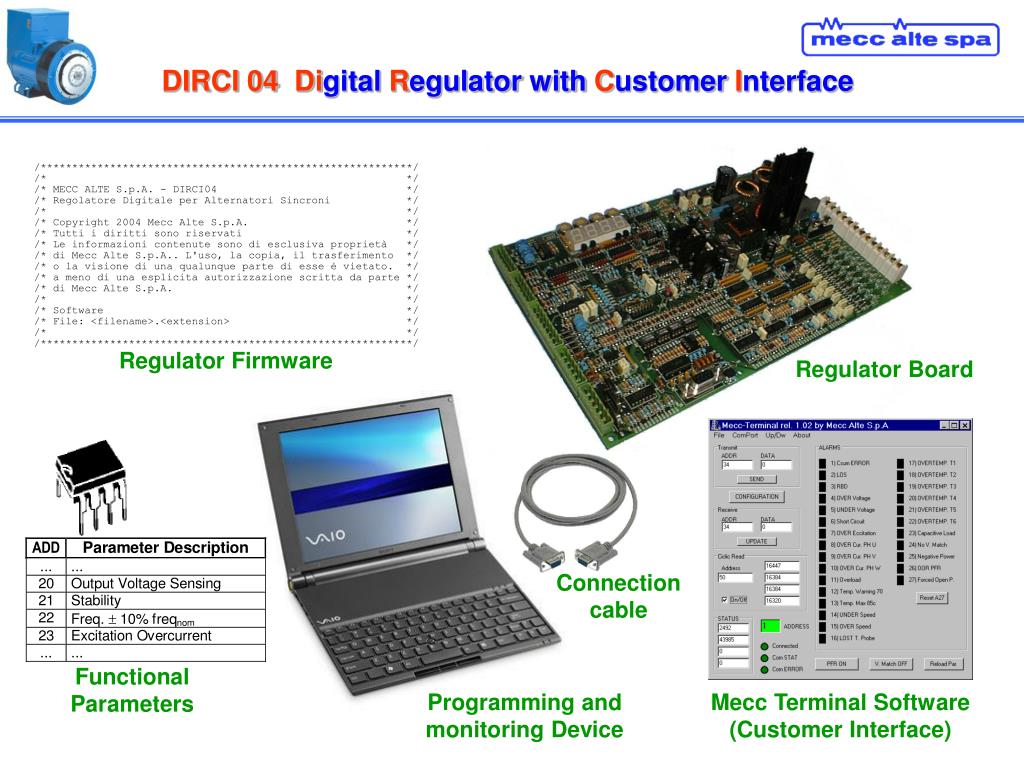

  7. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Firmware Regulator Board Connection cable Functional Parameters Programming and monitoring Device Mecc Terminal Software (Customer Interface)

  8. DIRCI 04DigitalRegulatorwithCustomerInterface Regulator Board

  9. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac

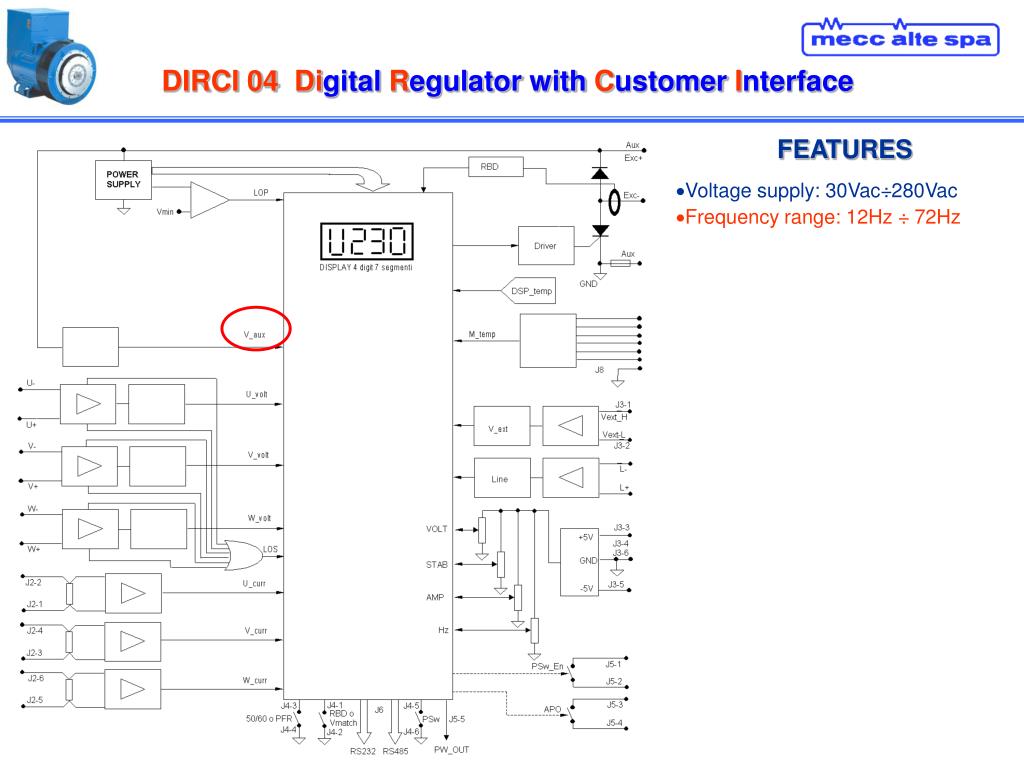

  10. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz

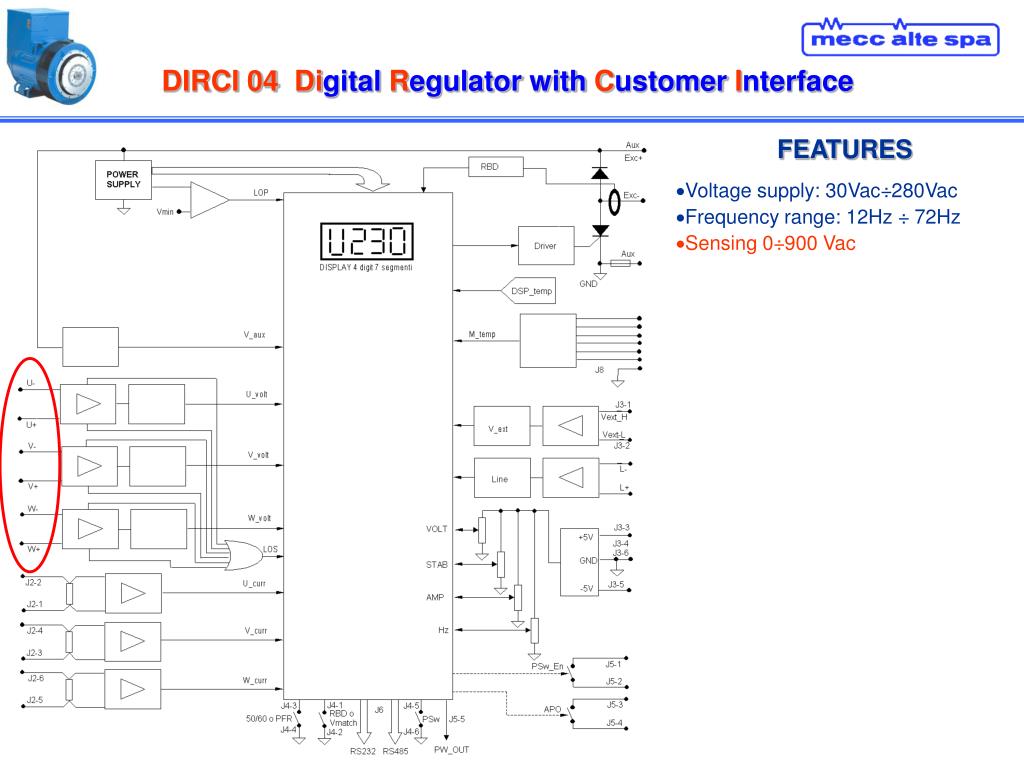

  11. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac

  12. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition

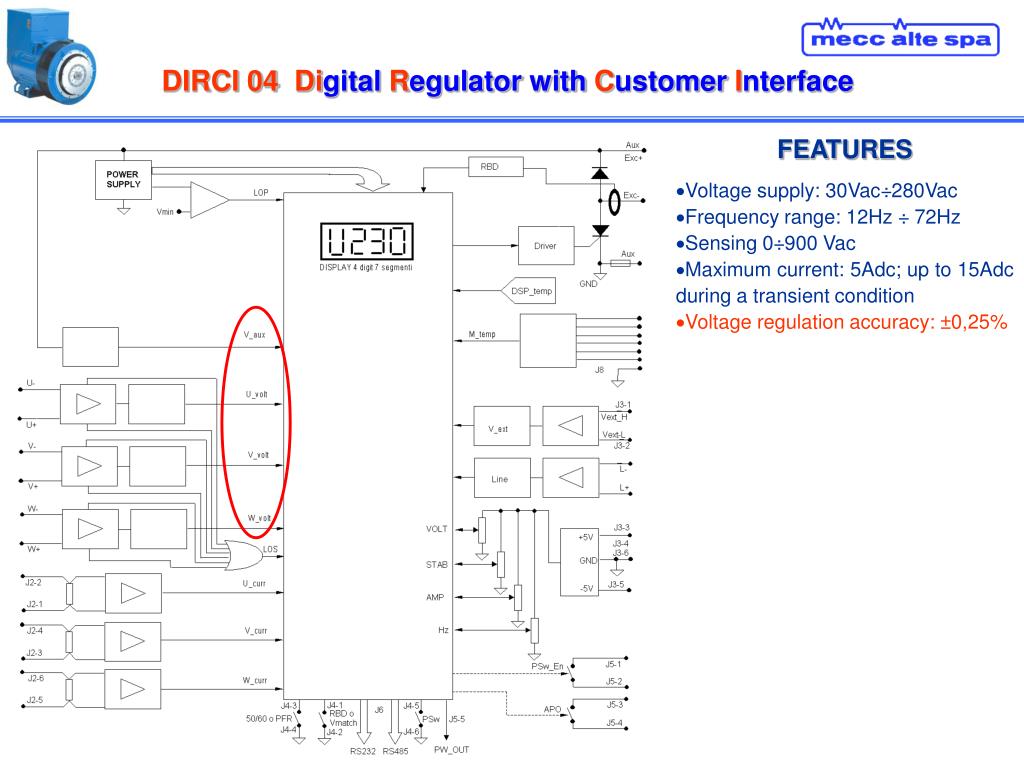

  13. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25%

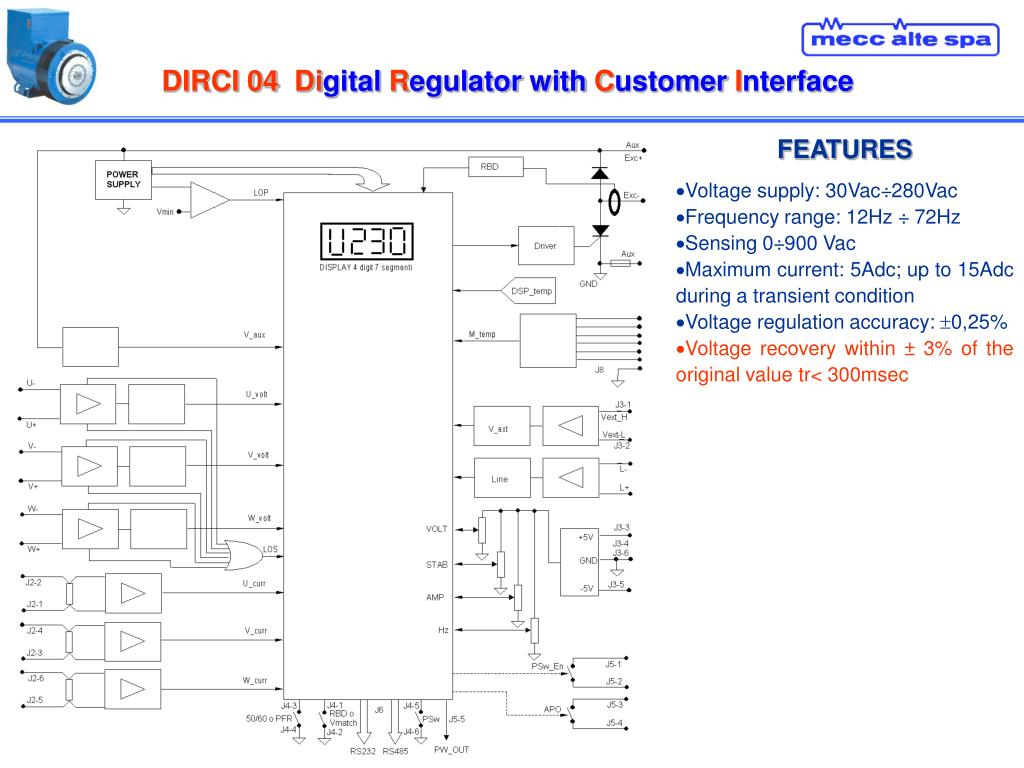

  14. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec

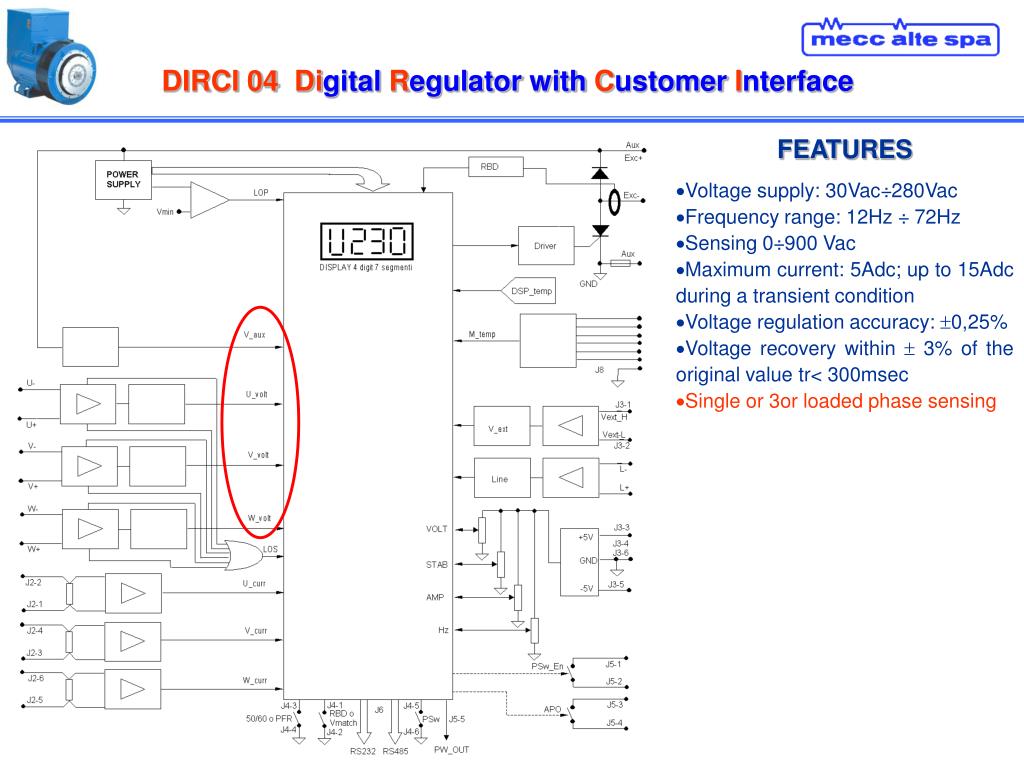

  15. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing

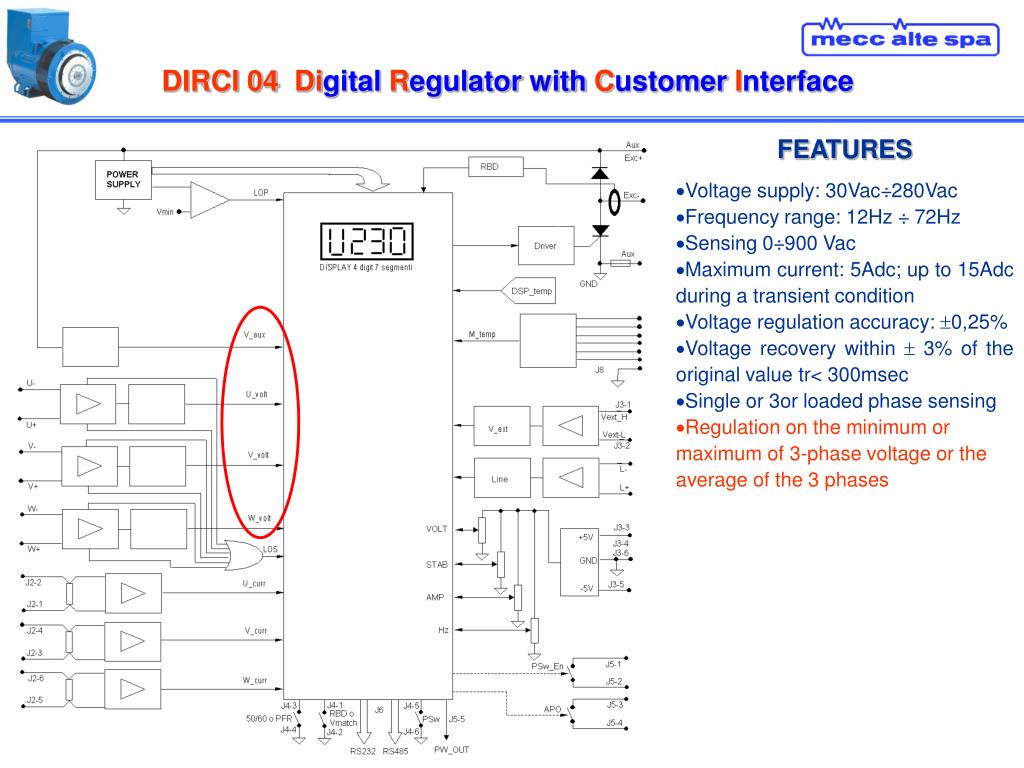

  16. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases

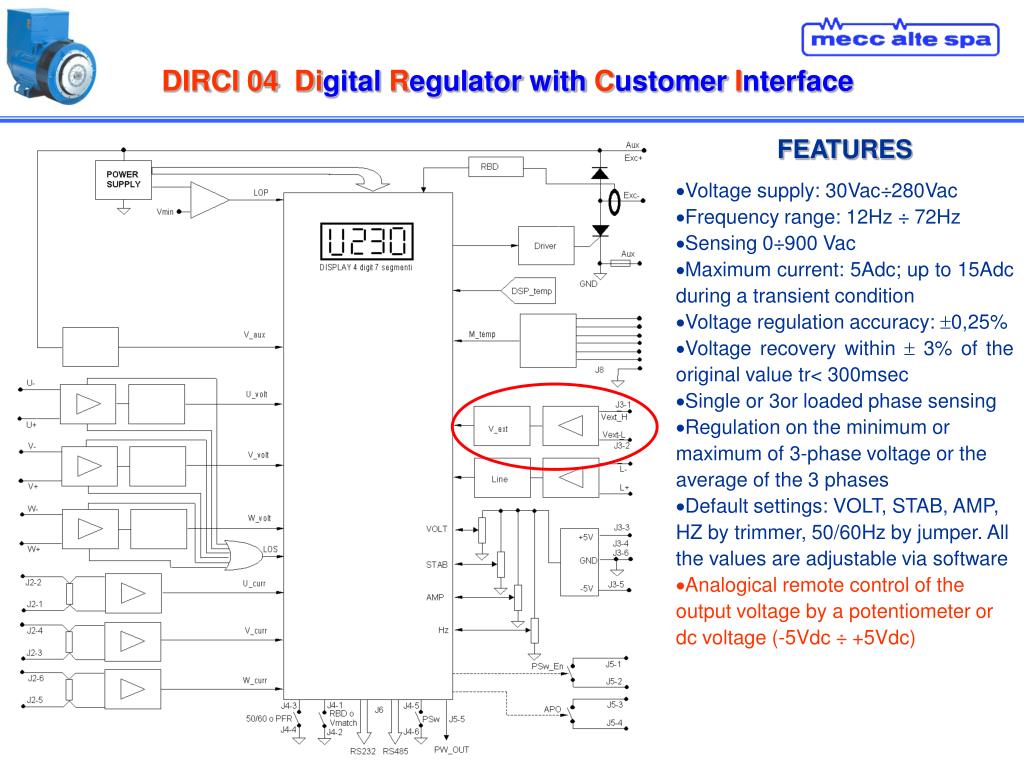

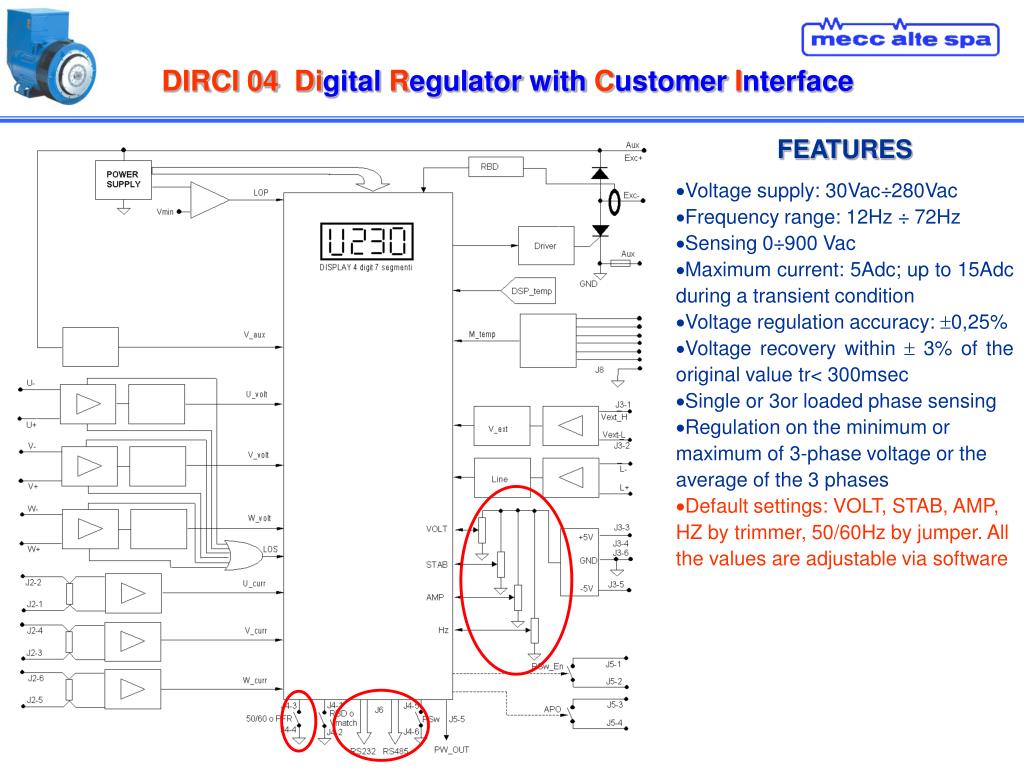

  17. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases • Default settings: VOLT, STAB, AMP, HZ by trimmer, 50/60Hz by jumper. All the values are adjustable via software

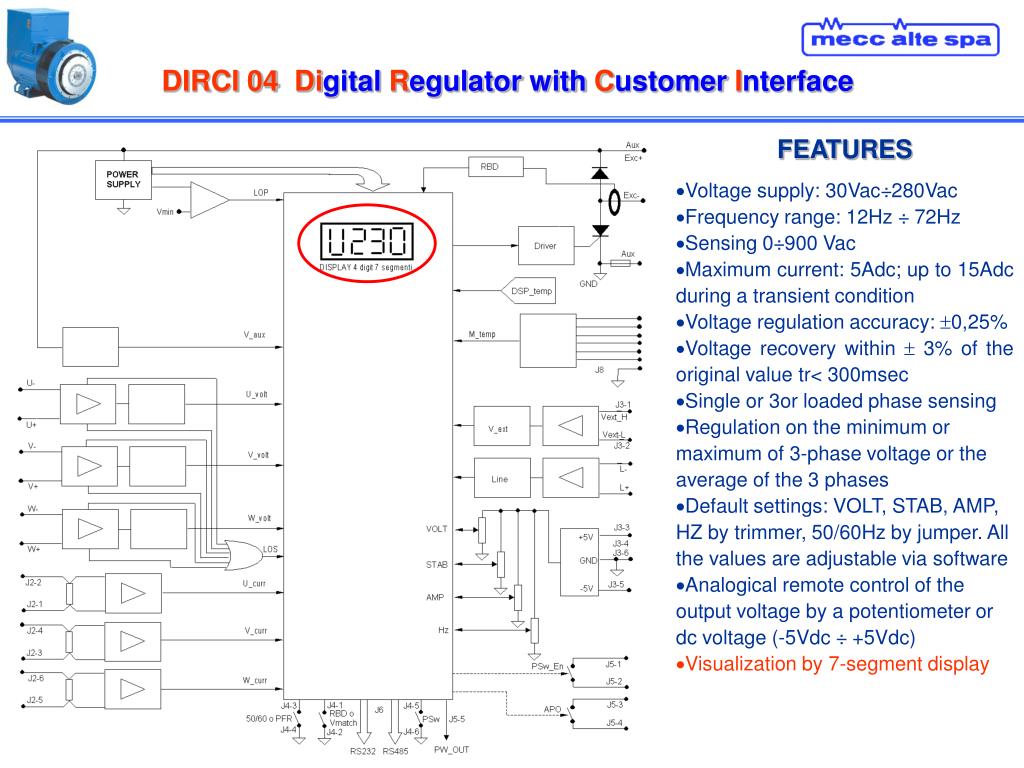

  18. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases • Default settings: VOLT, STAB, AMP, HZ by trimmer, 50/60Hz by jumper. All the values are adjustable via software • Analogical remote control of the output voltage by a potentiometer or dc voltage (-5Vdc ÷ +5Vdc)

  19. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases • Default settings: VOLT, STAB, AMP, HZ by trimmer, 50/60Hz by jumper. All the values are adjustable via software • Analogical remote control of the output voltage by a potentiometer or dc voltage (-5Vdc ÷ +5Vdc) • Visualization by 7-segment display

  20. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases • Default settings: VOLT, STAB, AMP, HZ by trimmer, 50/60Hz by jumper. All the values are adjustable via software • Analogical remote control of the output voltage by a potentiometer or dc voltage (-5Vdc ÷ +5Vdc) • Visualization by 7-segment display • RS232 and RS485

  21. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases • Default settings: VOLT, STAB, AMP, HZ by trimmer, 50/60Hz by jumper. All the values are adjustable via software • Analogical remote control of the output voltage by a potentiometer or dc voltage (-5Vdc ÷ +5Vdc) • Visualization by 7-segment display • RS232 and RS485 • Ambient temperature: -25°C +70°C

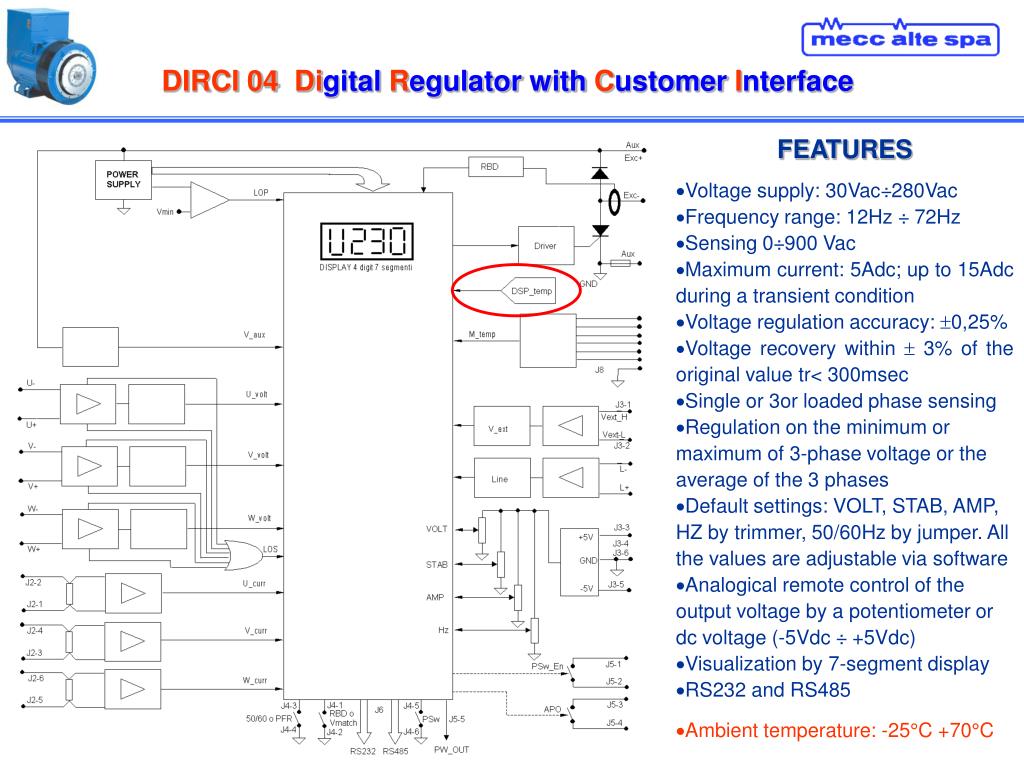

  22. DIRCI 04DigitalRegulatorwithCustomerInterface FEATURES • Voltage supply: 30Vac÷280Vac • Frequency range: 12Hz ÷ 72Hz • Sensing 0÷900 Vac • Maximum current: 5Adc; up to 15Adc during a transient condition • Voltage regulation accuracy: ±0,25% • Voltage recovery within ± 3% of the original value tr< 300msec • Single or 3or loaded phase sensing • Regulation on the minimum or maximum of 3-phase voltage or the average of the 3 phases • Default settings: VOLT, STAB, AMP, HZ by trimmer, 50/60Hz by jumper. All the values are adjustable via software • Analogical remote control of the output voltage by a potentiometer or dc voltage (-5Vdc ÷ +5Vdc) • Visualization by 7-segment display • RS232 and RS485 • Ambient temperature: -25°C +70°C • Embedded PD, VAR & PFR

  23. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Singlee phase sensing - Parallel with Mains Supply NOTE: Parallel connection with Mains Supply needs T.A.

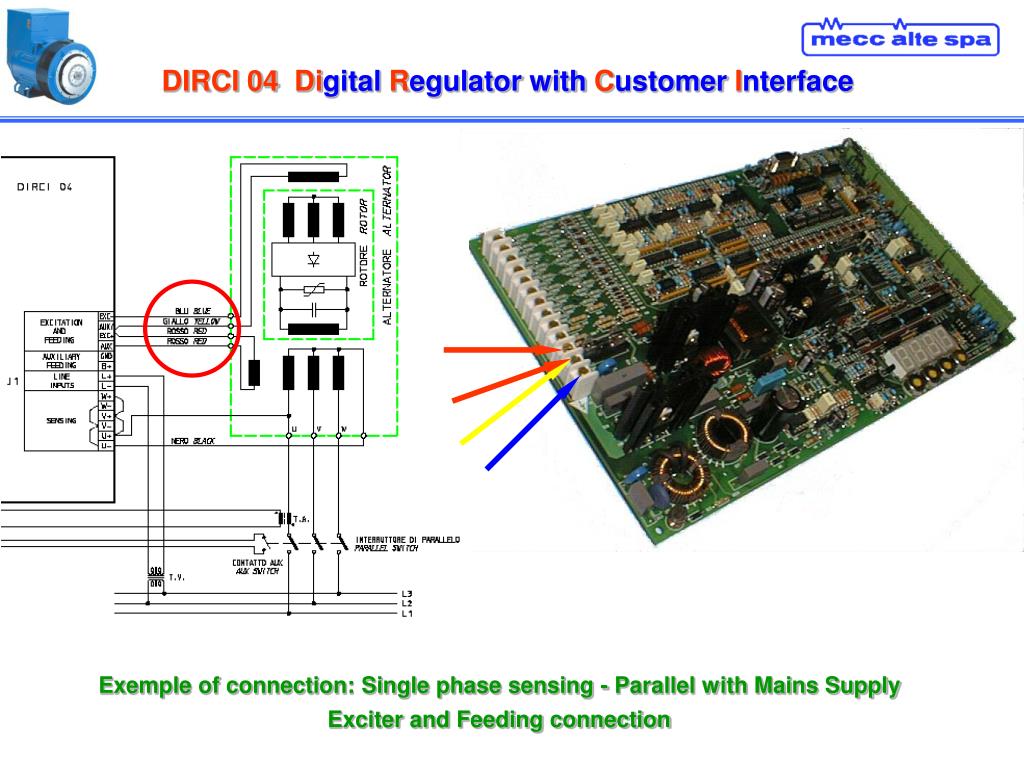

  24. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply Exciter and Feeding connection

  25. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply Line and Phase sensing connection

  26. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply T.A. Connection on J2 connector

  27. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply External Voltage Input or remote Potentiometer Input (J3 connector)

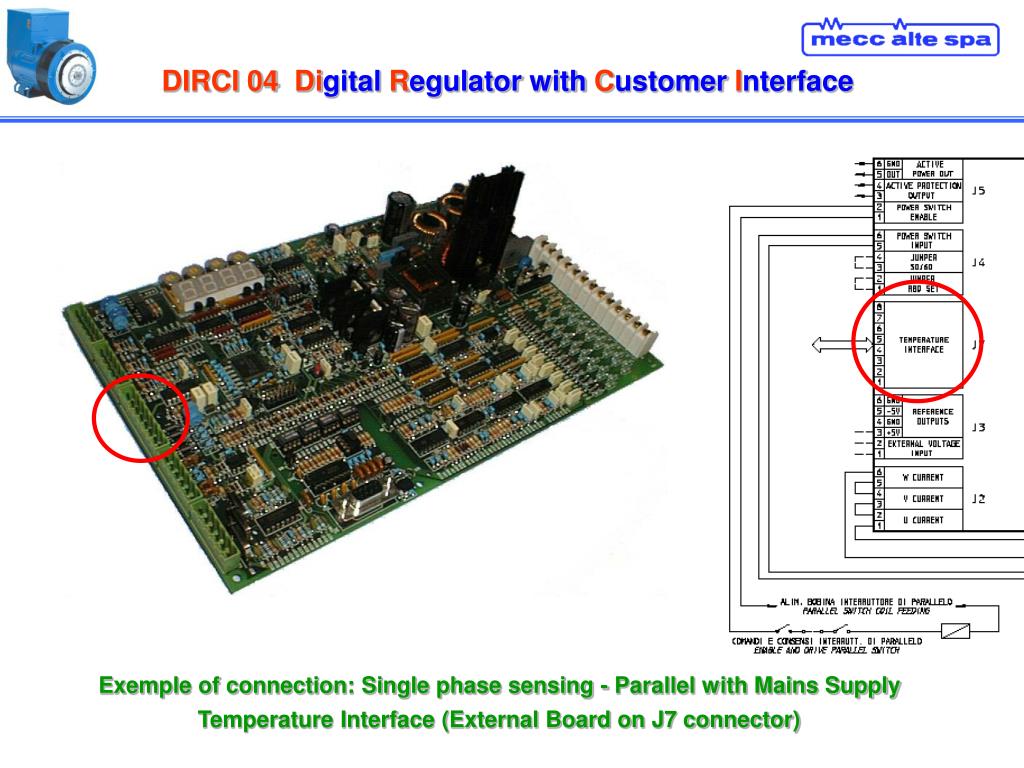

  28. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply Temperature Interface (External Board on J7 connector)

  29. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply Jumpers RBD Set and 50/60Hz or Switches Vmatch and PFR_on (J4 connector)

  30. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply Auxiliary Contact of Parallel Switch Enabling Embedded PD (J4 connector)

  31. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply Operating of Parallel Switch Enable (J5 connector)

  32. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection: Single phase sensing - Parallel with Mains Supply A.P.O. Contact and Active Power Out signal on J5 connector

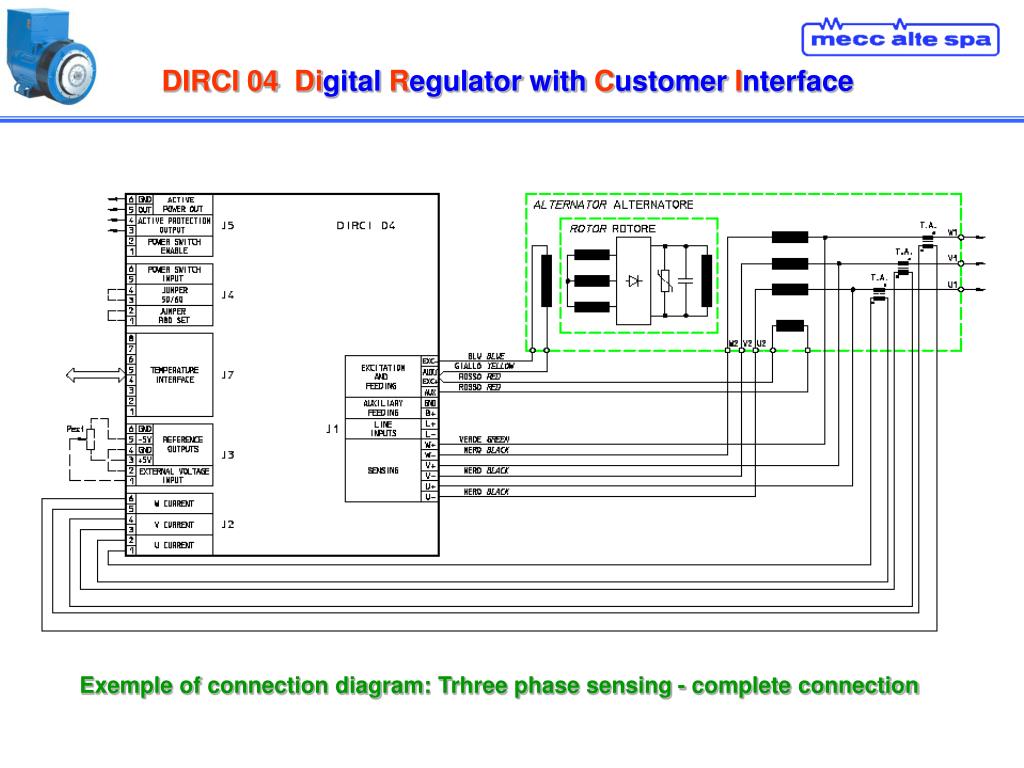

  33. DIRCI 04DigitalRegulatorwithCustomerInterface Exemple of connection diagram: Trhree phase sensing - complete connection

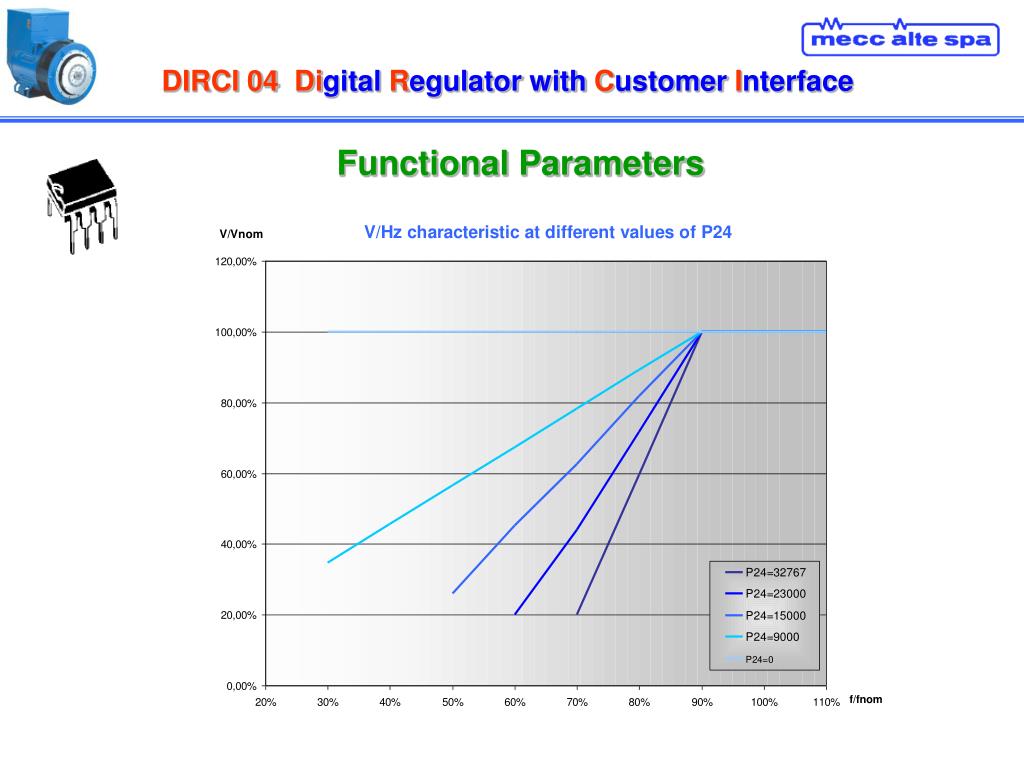

  34. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters

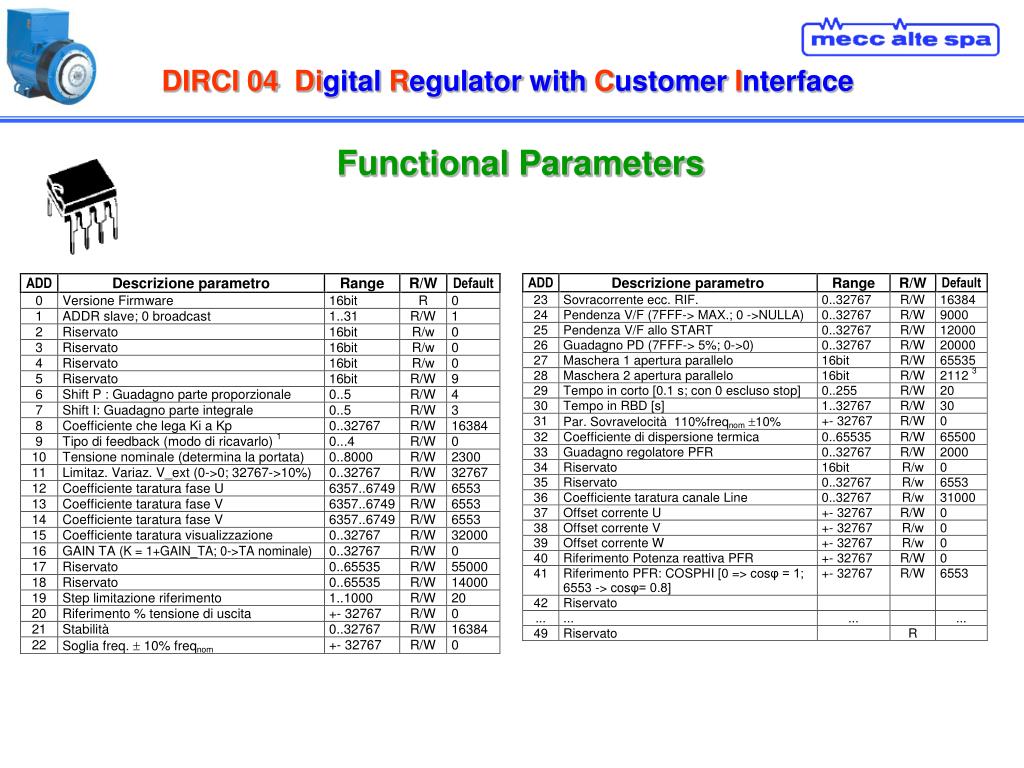

  35. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters

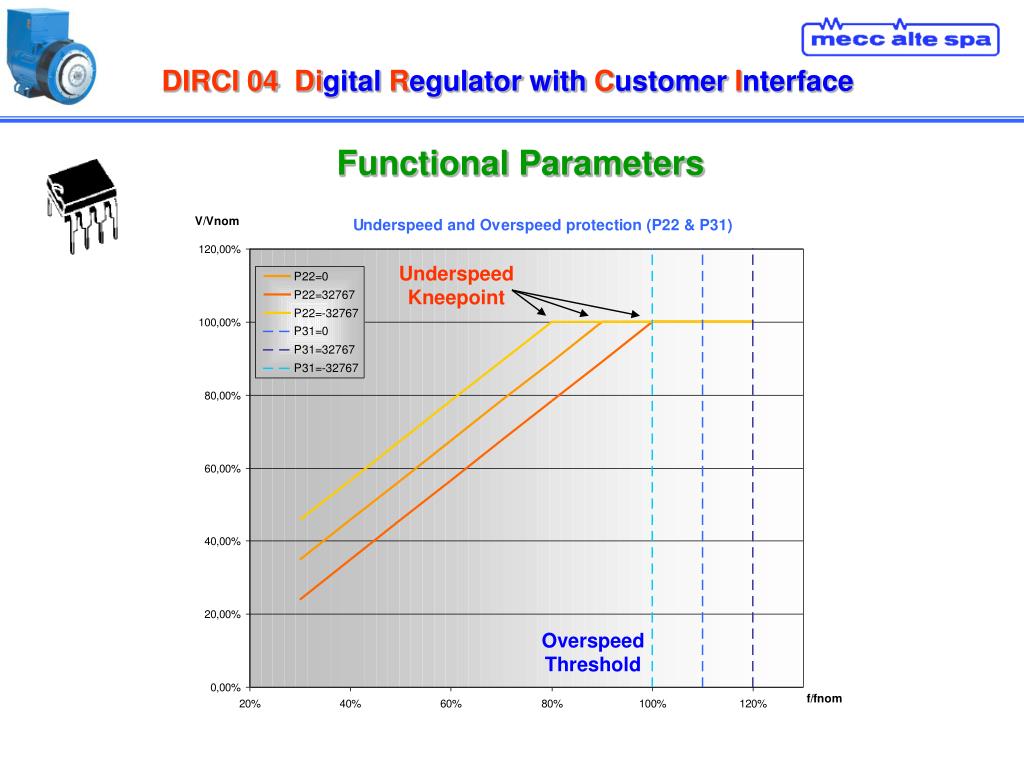

  36. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters Underspeed Kneepoint Overspeed Threshold

  37. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters

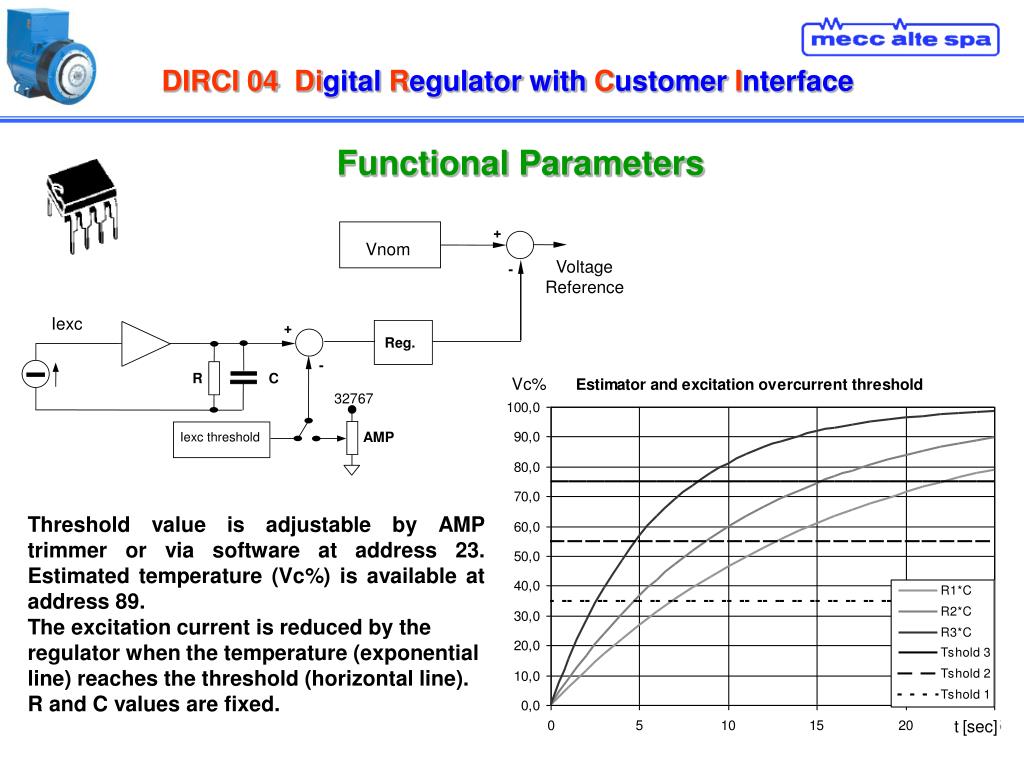

  38. + Vnom Voltage Reference - Iexc + Reg. - R C 32767 AMP Iexc threshold DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters Threshold value is adjustable by AMP trimmer or via software at address 23. Estimated temperature (Vc%) is available at address 89. The excitation current is reduced by the regulator when the temperature (exponential line) reaches the threshold (horizontal line). R and C values are fixed.

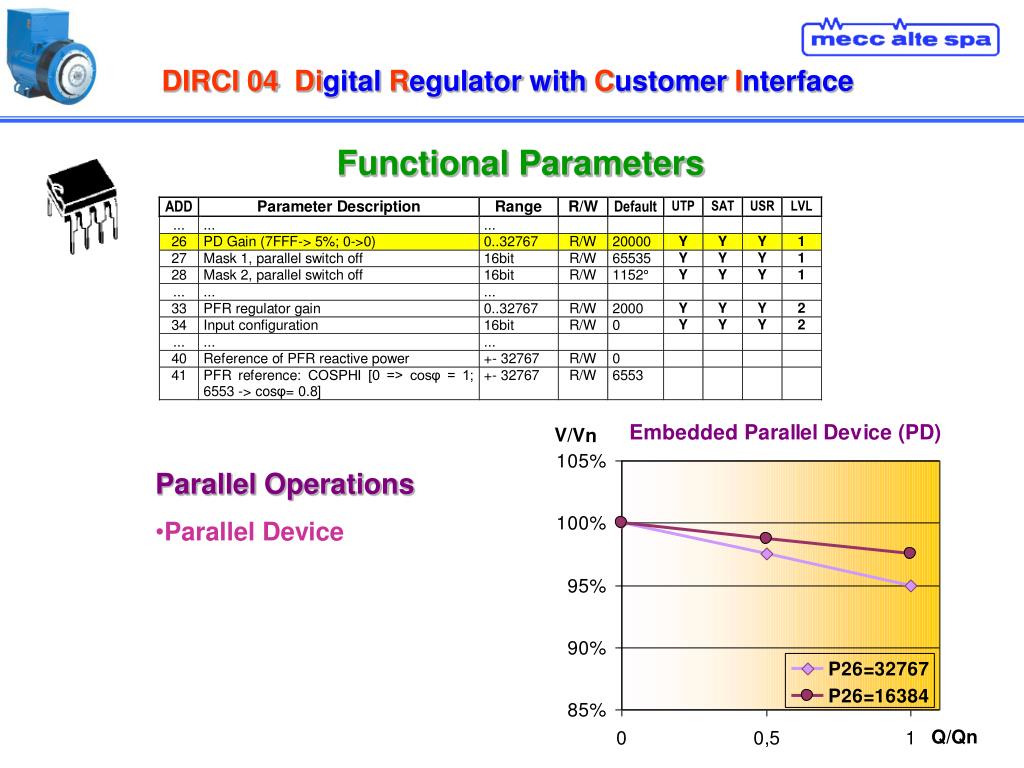

  39. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters • Parallel Operations • Parallel Device

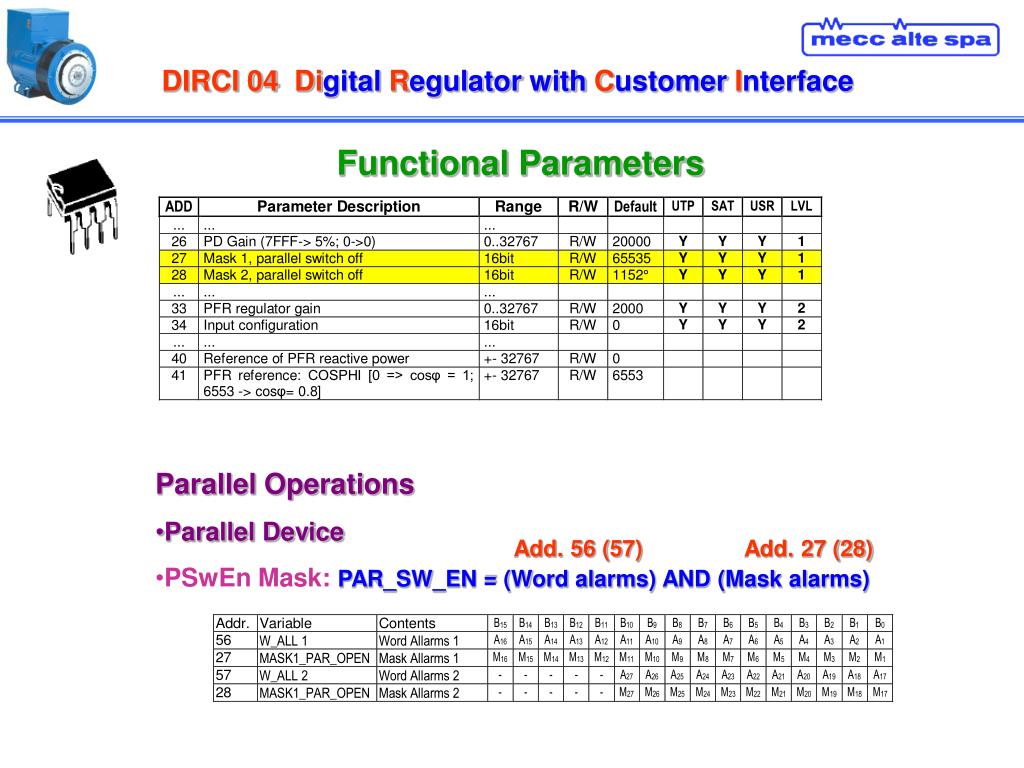

  40. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters • Parallel Operations • Parallel Device • PSwEn Mask: PAR_SW_EN = (Word alarms) AND (Mask alarms) Add. 56 (57) Add. 27 (28)

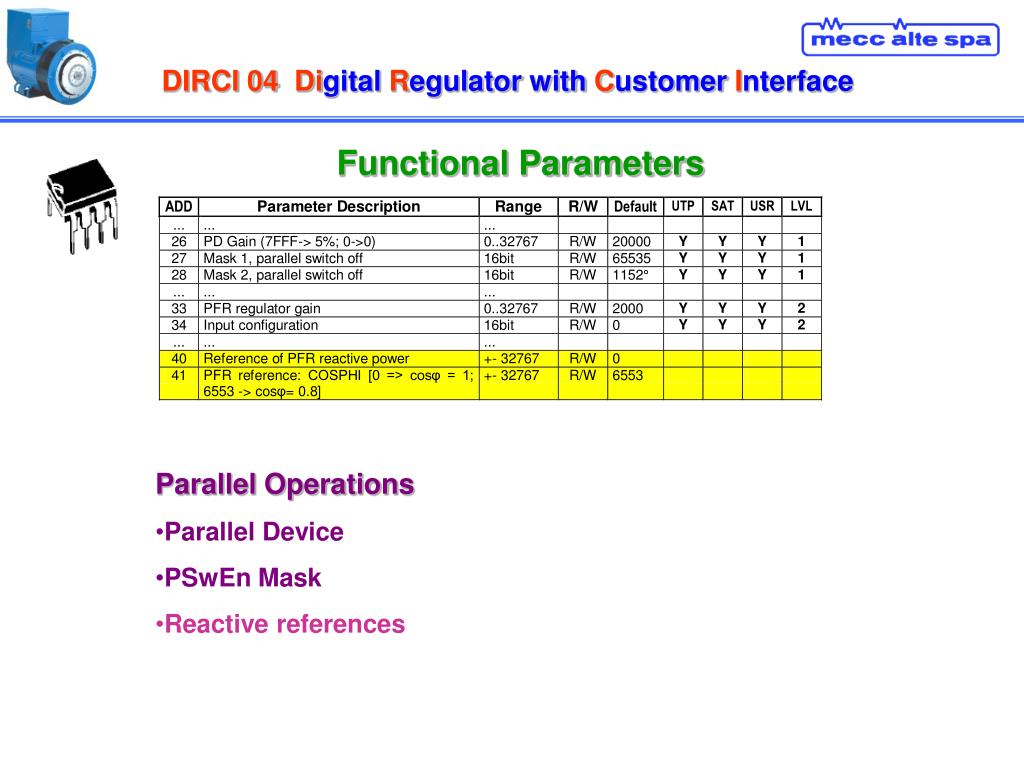

  41. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters • Parallel Operations • Parallel Device • PSwEn Mask • Reactive references

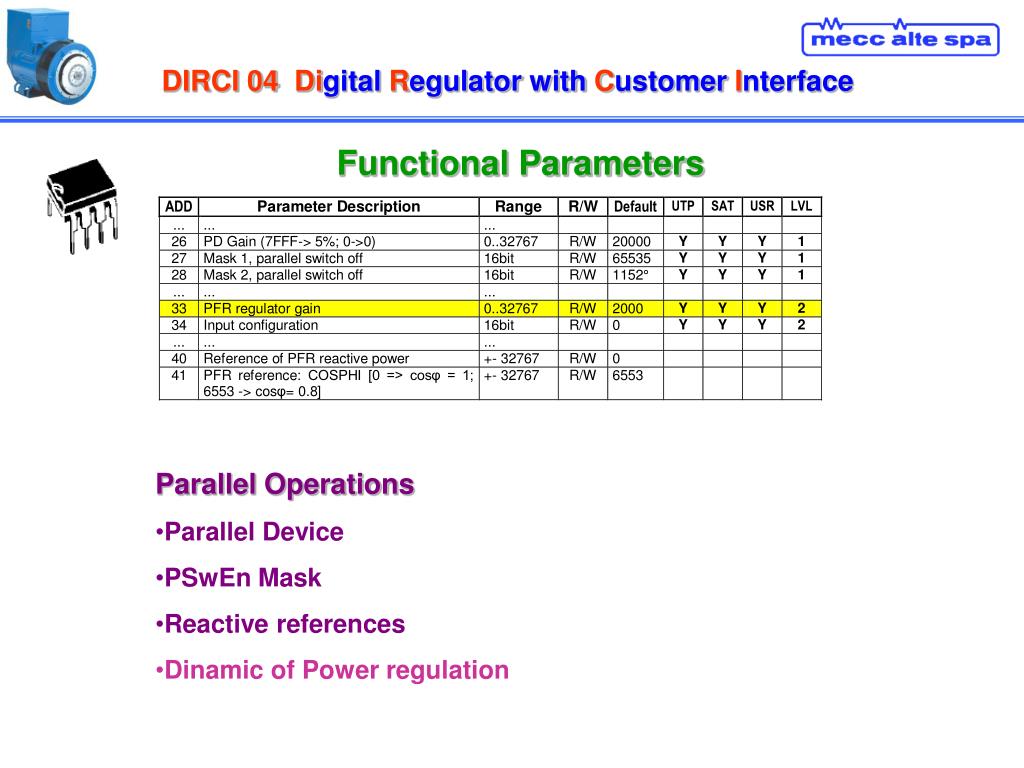

  42. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters • Parallel Operations • Parallel Device • PSwEn Mask • Reactive references • Dinamic of Power regulation

  43. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters • Parallel Operations • Parallel Device • PSwEn Mask • Reactive references • Dinamic of Power regulation • Inputs configuration

  44. DIRCI 04DigitalRegulatorwithCustomerInterface Functional Parameters Parallel Operations: Inputs configuration

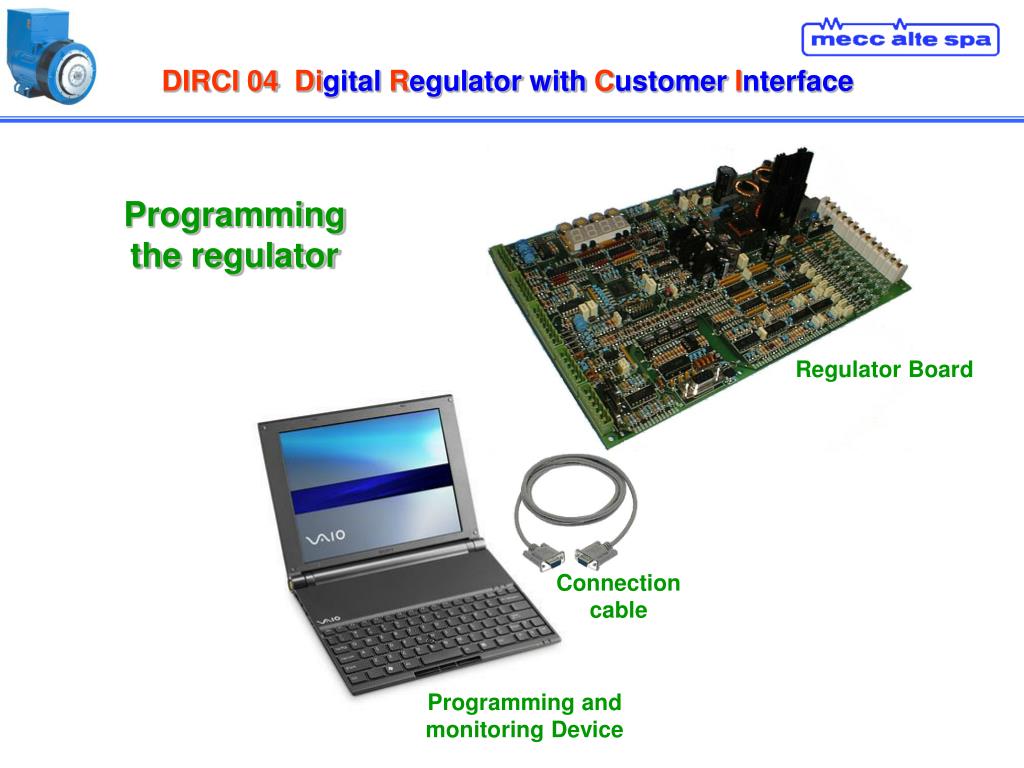

  45. DIRCI 04DigitalRegulatorwithCustomerInterface Programming the regulator Regulator Board Connection cable Programming and monitoring Device

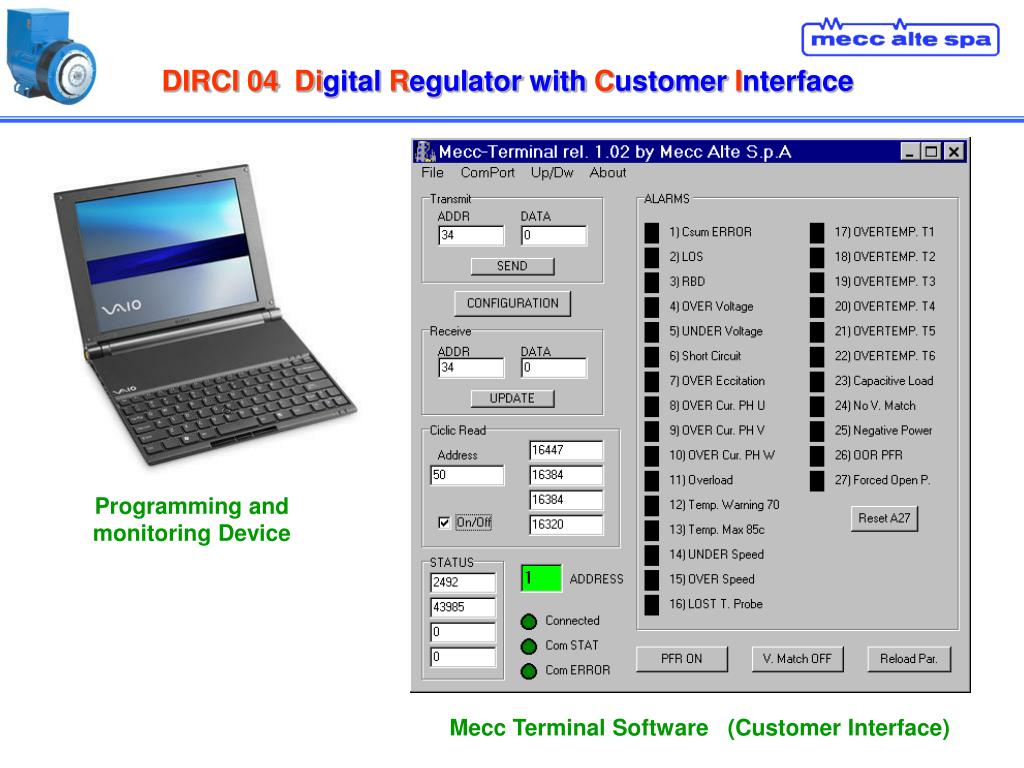

  46. DIRCI 04DigitalRegulatorwithCustomerInterface Programming and monitoring Device Mecc Terminal Software (Customer Interface)

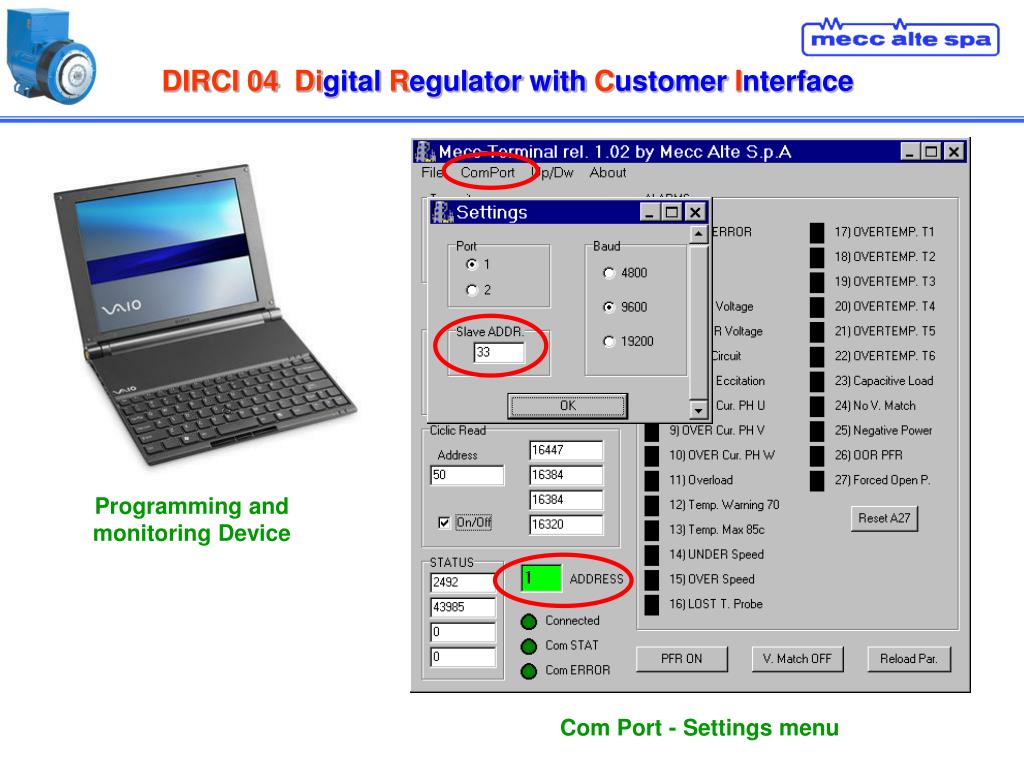

  47. DIRCI 04DigitalRegulatorwithCustomerInterface Programming and monitoring Device Com Port - Settings menu

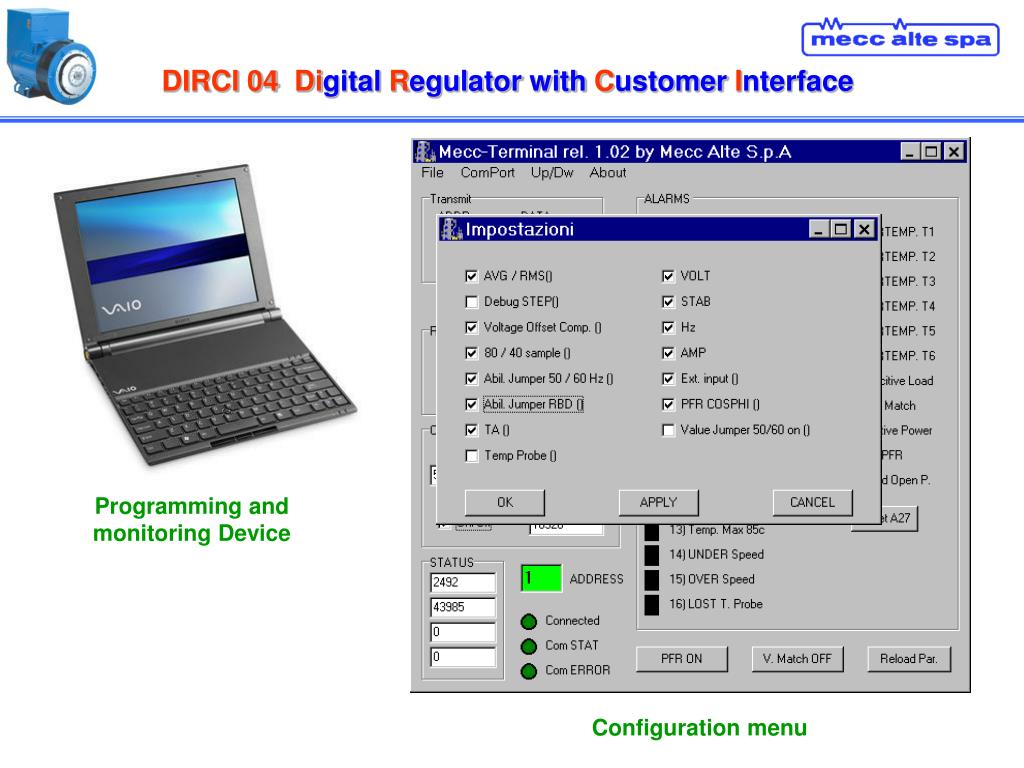

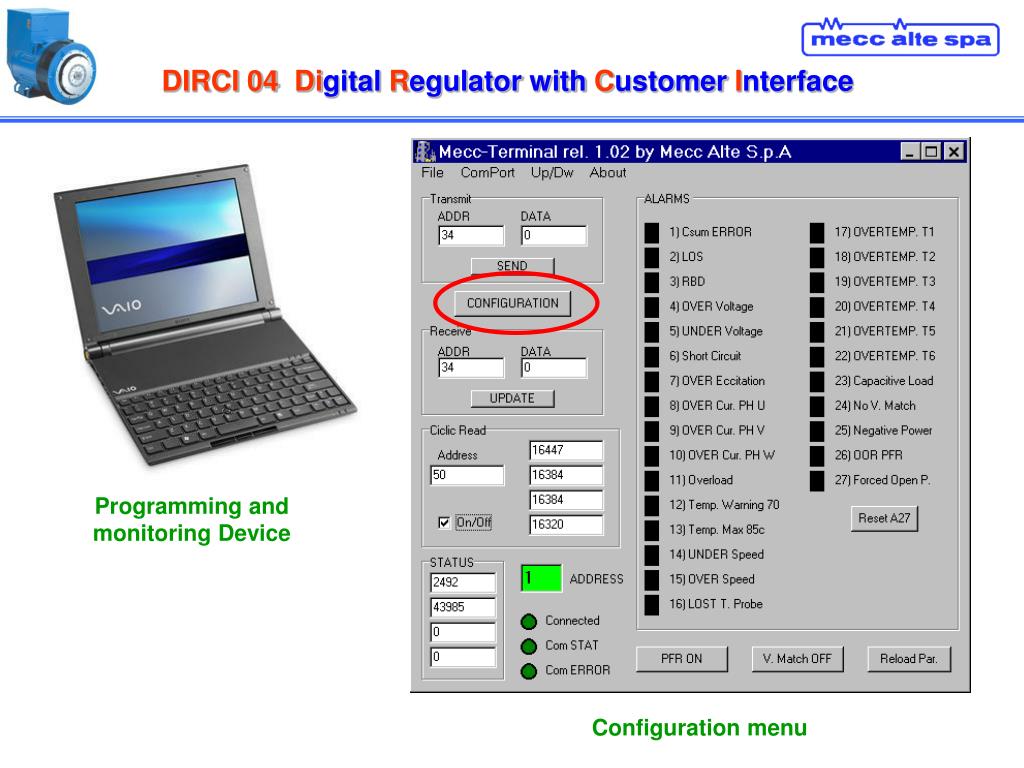

  48. DIRCI 04DigitalRegulatorwithCustomerInterface Programming and monitoring Device Configuration menu

  49. DIRCI 04DigitalRegulatorwithCustomerInterface Programming and monitoring Device Configuration menu

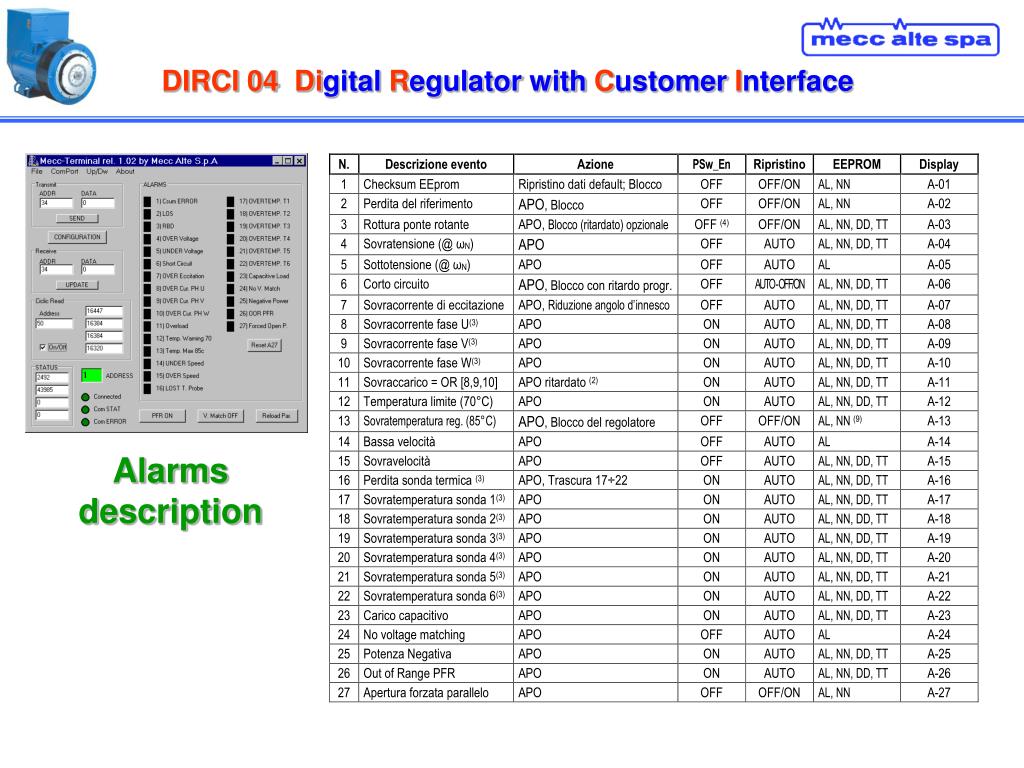

  50. DIRCI 04DigitalRegulatorwithCustomerInterface Alarms description
