Glass Preparation and Characterization

BSE image. Fe map. Fe 2 O 3 +FePO 4 …. P map. Fe 3 PO 7. Stability, Durability and Crystallization of Iron Phosphate Glasses Melodie Schmitt, Liying Zhang, Mark E. Schlesinger and Richard K. Brow University of Missouri–Rolla NSF DMR 0502463. Glass Preparation and Characterization.

astin
Download Presentation

Glass Preparation and Characterization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

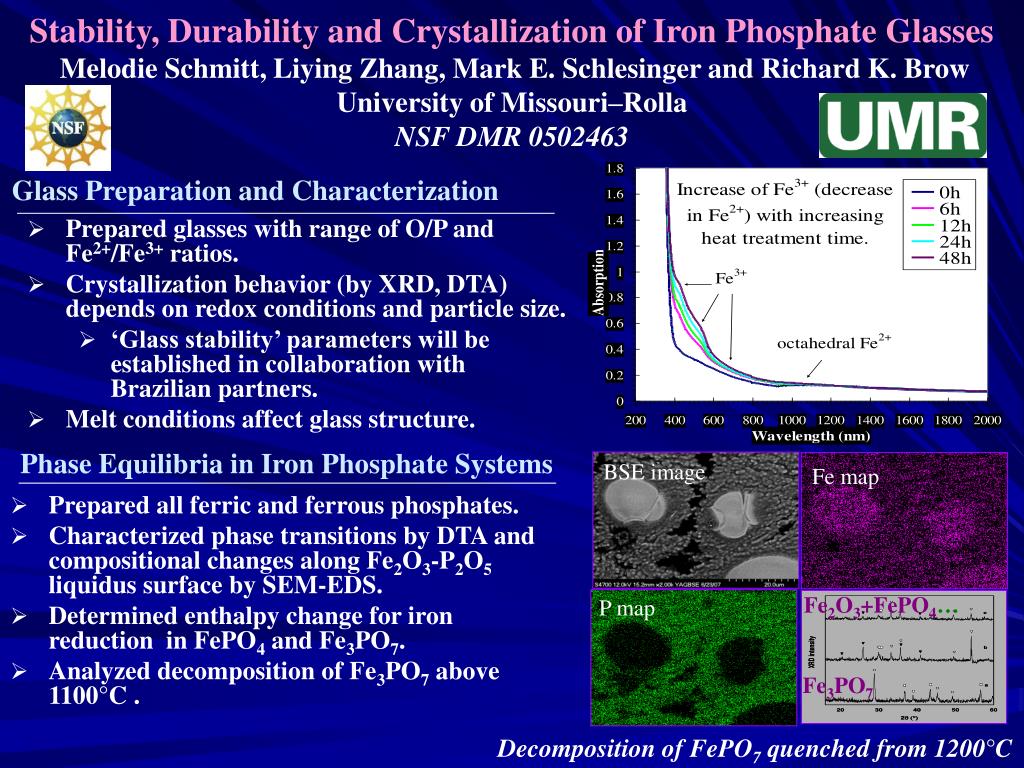

  1. BSE image Fe map Fe2O3+FePO4… P map Fe3PO7 Stability, Durability and Crystallization of Iron Phosphate GlassesMelodie Schmitt, Liying Zhang, Mark E. Schlesinger and Richard K. Brow University of Missouri–RollaNSF DMR 0502463 Glass Preparation and Characterization • Prepared glasses with range of O/P and Fe2+/Fe3+ ratios. • Crystallization behavior (by XRD, DTA) depends on redox conditions and particle size. • ‘Glass stability’ parameters will be established in collaboration with Brazilian partners. • Melt conditions affect glass structure. Phase Equilibria in Iron Phosphate Systems • Prepared all ferric and ferrous phosphates. • Characterized phase transitions by DTA and compositional changes along Fe2O3-P2O5 liquidus surface by SEM-EDS. • Determined enthalpy change for iron reduction in FePO4 and Fe3PO7. • Analyzed decomposition of Fe3PO7 above 1100°C . Decomposition of FePO7 quenched from 1200°C

  2. Stability, Durability and Crystallization of Iron Phosphate Glasses: A CIAM CollaborationNSF DMR 0502463 The principal investigators for this inter-national collaboration: Dr. Mark Schlesinger (UMR), Dr. Miguel Prado (Bariloche, Argentina), Dr. Edgar Zanotto (Univ. São Carlos, Brazil) and Dr. Richard Brow (UMR). Liying Zhang (left) and Melodie Schmitt (right) are two MSE PhD candidates involved in the UMR research projects. They mentor two undergraduate research assistants.
