Presentation Transcript


Validation of rapid microbiology systems l.jpg

Validation of Rapid Microbiology Systems

Based upon

PDA Technical Report No. 33

(c) 2002 Jeanne Moldenhauer

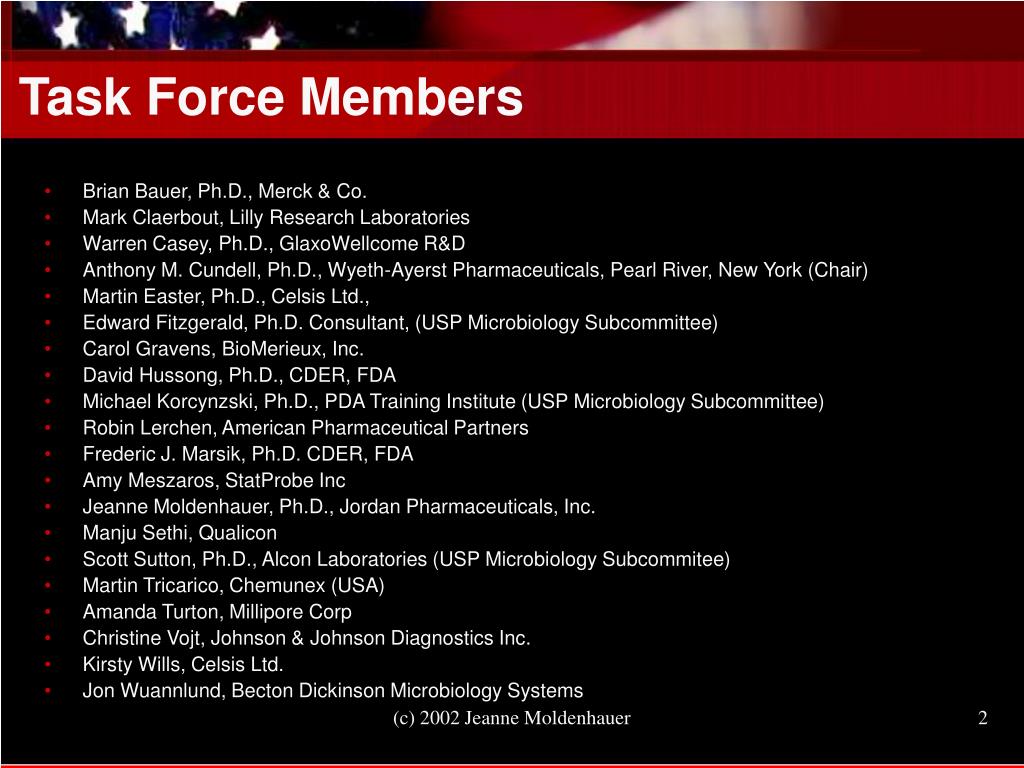

Task force members l.jpg

Task Force Members

  • Brian Bauer, Ph.D., Merck & Co.

  • Mark Claerbout, Lilly Research Laboratories

  • Warren Casey, Ph.D., GlaxoWellcome R&D

  • Anthony M. Cundell, Ph.D., Wyeth-Ayerst Pharmaceuticals, Pearl River, New York (Chair)

  • Martin Easter, Ph.D., Celsis Ltd.,

  • Edward Fitzgerald, Ph.D. Consultant, (USP Microbiology Subcommittee)

  • Carol Gravens, BioMerieux, Inc.

  • David Hussong, Ph.D., CDER, FDA

  • Michael Korcynzski, Ph.D., PDA Training Institute (USP Microbiology Subcommittee)

  • Robin Lerchen, American Pharmaceutical Partners

  • Frederic J. Marsik, Ph.D. CDER, FDA

  • Amy Meszaros, StatProbe Inc

  • Jeanne Moldenhauer, Ph.D., Jordan Pharmaceuticals, Inc.

  • Manju Sethi, Qualicon

  • Scott Sutton, Ph.D., Alcon Laboratories (USP Microbiology Subcommitee)

  • Martin Tricarico, Chemunex (USA)

  • Amanda Turton, Millipore Corp

  • Christine Vojt, Johnson & Johnson Diagnostics Inc.

  • Kirsty Wills, Celsis Ltd.

  • Jon Wuannlund, Becton Dickinson Microbiology Systems

(c) 2002 Jeanne Moldenhauer


Disclaimer l.jpg

Disclaimer

  • Presentation represents the views published in the PDA Technical Report

  • May not in all ways be consistent with my personal views regarding the validation methods

(c) 2002 Jeanne Moldenhauer

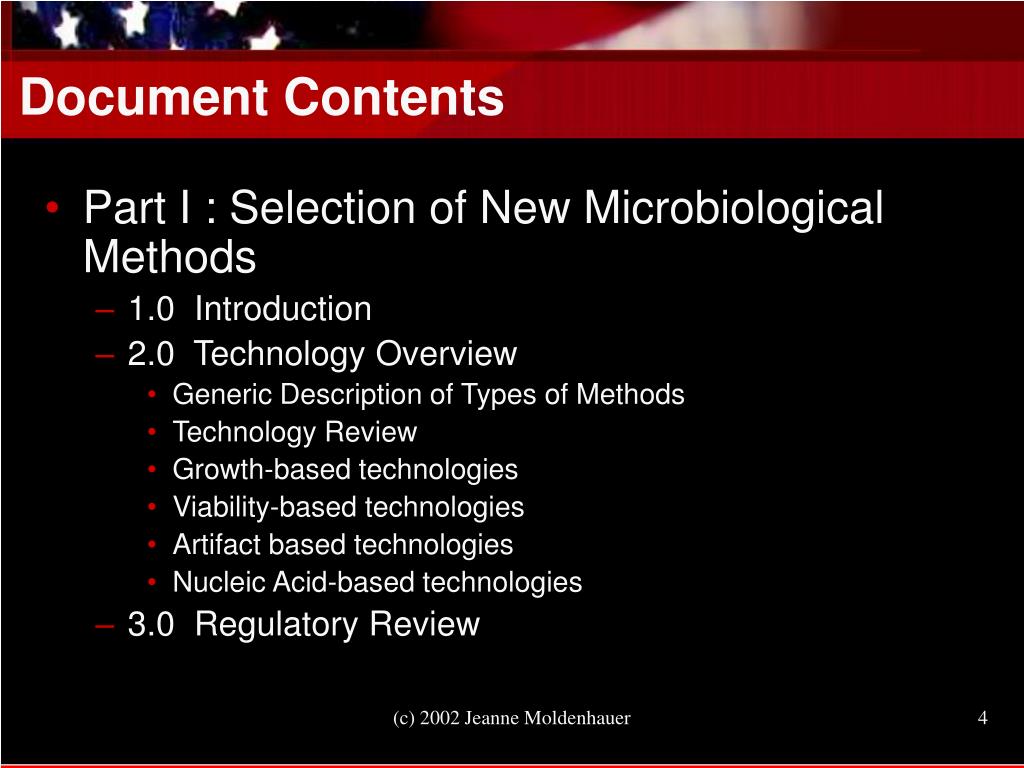

Document contents l.jpg

Document Contents

  • Part I : Selection of New Microbiological Methods

    • 1.0 Introduction

    • 2.0 Technology Overview

      • Generic Description of Types of Methods

      • Technology Review

      • Growth-based technologies

      • Viability-based technologies

      • Artifact based technologies

      • Nucleic Acid-based technologies

    • 3.0 Regulatory Review

(c) 2002 Jeanne Moldenhauer


Document contents5 l.jpg

Document Contents

  • Part II: How to Validate and Implement New Microbiological Methods

    • 4.0 The Validation Process

      • Equipment Model

      • Validation Criteria

      • Special Considerations for Microbiology

    • 5.0 Glossary

    • 6.0 References

(c) 2002 Jeanne Moldenhauer


Implementation requires validation l.jpg

Implementation Requires Validation

  • May require regulatory prior approval

  • Many are not equivalent to traditional methods

  • May be little or no guidance available for validation of microbial methods

  • Many have associated computer-related systems and 21 CFR Part 11 issues

  • New technology frequently requires new learning curves

  • Reluctance to change

(c) 2002 Jeanne Moldenhauer

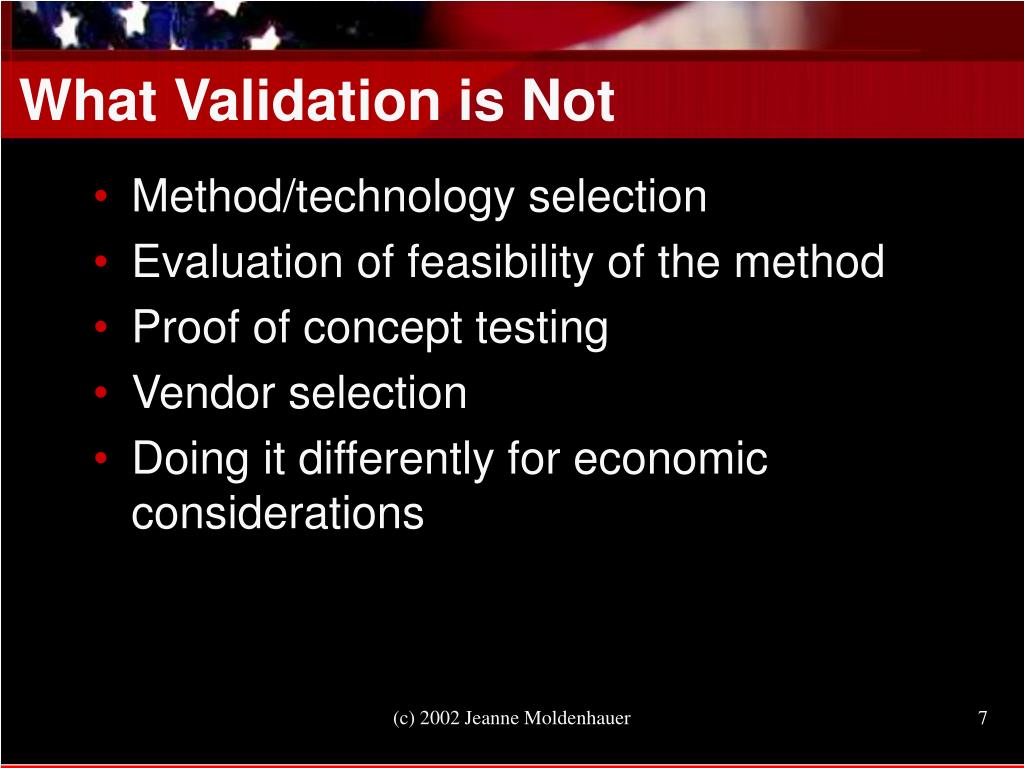

What validation is not l.jpg

What Validation is Not

  • Method/technology selection

  • Evaluation of feasibility of the method

  • Proof of concept testing

  • Vendor selection

  • Doing it differently for economic considerations

(c) 2002 Jeanne Moldenhauer


Typical flow for selection evaluation validation for a rapid method l.jpg

Typical Flow for Selection,Evaluation & Validation for a Rapid Method

Yes

Is current compendial or industry

standard method meeting

all of your company’s needs?

Continue using existing method

Evaluate other alternate methods,rejecting the unacceptable method

No

No

No

No

Determinewhat test

requirementsand specifications are (faster,less labor intensive, etc.)

Look atalternatemethods

and see if themethod can

meet thespecifiedrequirements

Performsufficient

feasibilityproof of

concepttesting

Does testing yield

acceptableresults?

Plan andexecute

validationprotocol.

Were results acceptable?

Yes

Yes

Implement test (after approval)

Submit regulatory

supplement if required

(c) 2002 Jeanne Moldenhauer


Validation definition l.jpg

Validation Definition

Established documented evidencewhich provides a high degree ofassurance that a specific process will consistently produce a product meeting pre-determined specificationsand quality attributes

(c) 2002 Jeanne Moldenhauer


The equipment validation model l.jpg

The Equipment Validation Model

  • Method/Vendor Requirements (Defined)

  • Validation Plan Design

  • Installation Qualification (IQ)

  • Operational Qualification (OQ)

  • Performance Qualification (PQ)

    • Verify and document the system performs as specified using selected compendial organisms and environmental isolates for routine testing of batches of product.

(c) 2002 Jeanne Moldenhauer


Intentions of validation l.jpg

Intentions of Validation

Demonstration data which shows:

  • Accuracy of method (appropriateness)

  • Reproducibility of method (continuity)

(c) 2002 Jeanne Moldenhauer


Unique concerns for developing validation requirements for rapid microbiological methods l.jpg

Unique Concerns for Developing ValidationRequirements for Rapid Microbiological Methods

  • What type of validation support does the vendor have? (e.g., DMF, sample protocols)

  • Is the new method “equivalent” to existing method

  • If side-by-side studies are used, what is the impact of the rapid method being “out-of-specification”, when the traditional method is within limits?

  • Is the new technology/method subject to different variabilities than traditional methods?

  • Can the method handle the expected laboratory throughput?

(c) 2002 Jeanne Moldenhauer

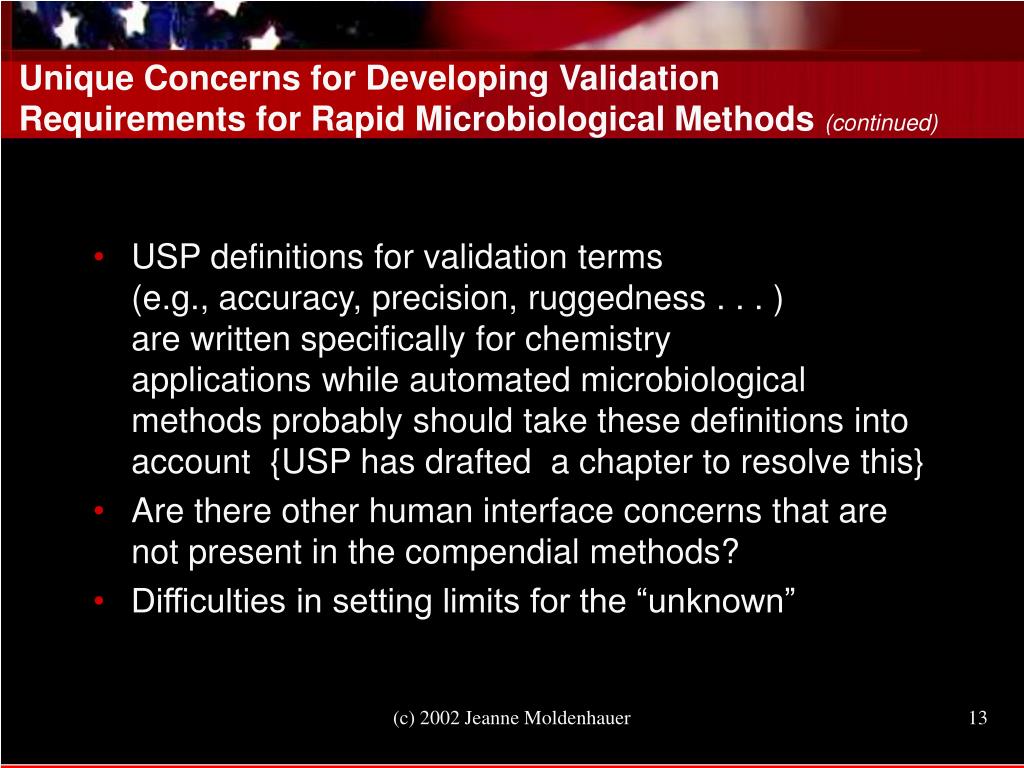

Unique concerns for developing validation requirements for rapid microbiological methods continued l.jpg

Unique Concerns for Developing ValidationRequirements for Rapid Microbiological Methods (continued)

  • USP definitions for validation terms(e.g., accuracy, precision, ruggedness . . . ) are written specifically for chemistry applications while automated microbiological methods probably should take these definitions into account {USP has drafted a chapter to resolve this}

  • Are there other human interface concerns that are not present in the compendial methods?

  • Difficulties in setting limits for the “unknown”

(c) 2002 Jeanne Moldenhauer


Establishing validation criteria l.jpg

Establishing Validation Criteria

  • USP Chapter <1225> Validation of Compendial Methods gives criteria, but definitions are in terms of chemical methods

  • Draft revision in Pharmacopeial Forum with criteria for Alternative Methods.

  • PDA Technical Report 33 has issued microbiological definitions of these same criteria

  • Since some tests are quantitative and others are qualitative (e.g., limits tests), not all criteria are applicable to each test type

(c) 2002 Jeanne Moldenhauer


Validation criteria l.jpg

Validation Criteria

(c) 2002 Jeanne Moldenhauer


Accuracy l.jpg

Accuracy

  • Definition: A measure of the exactness of the microbiological method that is true for all practical purposes

  • Determination: Analyze at least five suspensions across the range of test. Calculate each suspension as a percentage dilution of the original.

  • Acceptance criteria: Should be equivalent or better than existing methods (±30% are considered equivalent)

(c) 2002 Jeanne Moldenhauer


Precision l.jpg

Precision

  • Definition: Precision may be a measure of either the degree of reproducibility of the microbiological method under normal operating conditions

    Repeatability refers to use of the method within the same laboratory over a short period of time using the same analysts and same equipment

    Reproducibility uses different analysts with the same equipment

(c) 2002 Jeanne Moldenhauer


Precision continued l.jpg

Precision (continued)

  • Determination: at least five suspensions across the range of the test should be analyzed. Each suspension should be analyzed for at least ten replicates. Standard deviation or coefficient of variation should be calculated.

  • Acceptance criteria: generally, a coefficient of variation in the 15-30% range is acceptable

(c) 2002 Jeanne Moldenhauer


Precision continued19 l.jpg

Precision(continued)

  • For comparing precision of two methods,the F-test is recommended. If the critical value exceeds the statistical table, a significant difference exists between the methods.

(c) 2002 Jeanne Moldenhauer


Specificity l.jpg

Specificity

  • Definition: the ability of a method to detect a range of microorganisms which demonstrate that the method is fit for use

  • Determination: screen against representative range of microorganisms and sample types

  • Acceptance criteria: all selected organisms are isolated and enumerated from sample matrices

(c) 2002 Jeanne Moldenhauer


Limit of detection l.jpg

Limit of Detection

  • Definition: a parameter of a limit test which identifies the lowest number of microbes which can be detected, but not necessarily quantified in the test conditions

  • Determination: multiple replicates, greater than or equal to five, should be tested, since one cannot reliably obtain samples with a count of one

(c) 2002 Jeanne Moldenhauer

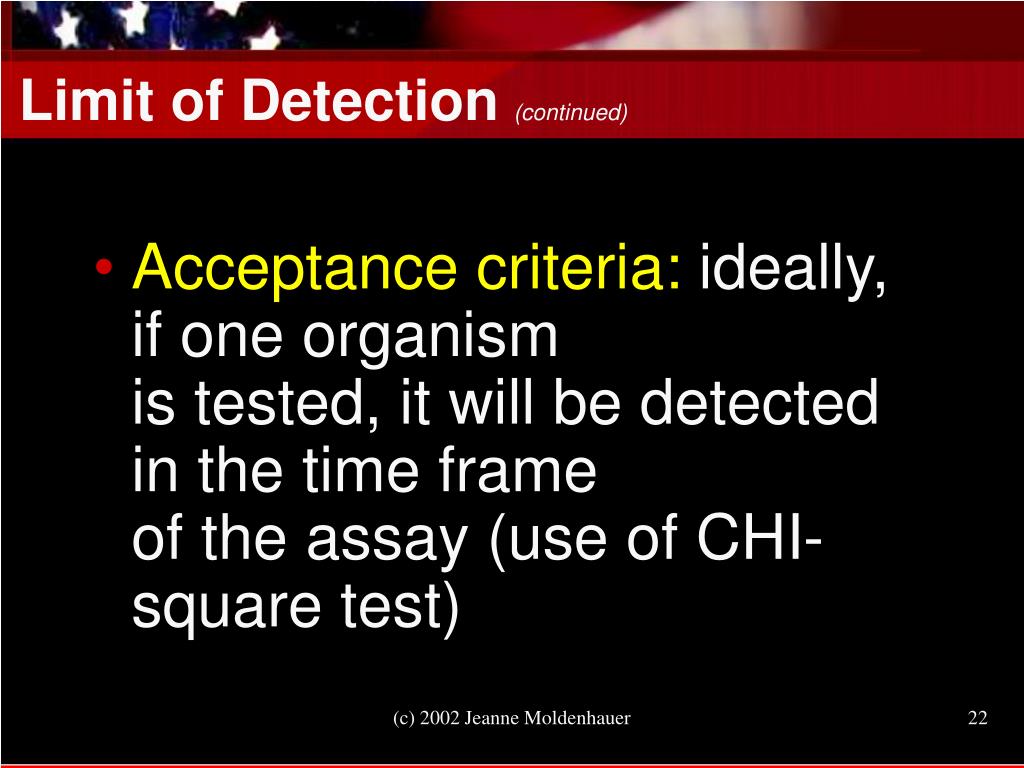

Limit of detection continued l.jpg

Limit of Detection(continued)

  • Acceptance criteria: ideally, if one organism is tested, it will be detected in the time frame of the assay (use of CHI-square test)

(c) 2002 Jeanne Moldenhauer


Limit of quantification l.jpg

Limit of Quantification

  • Definition: the lowest number of microbes which can be determined with acceptable precision and accuracy under the slated experimental conditions

  • Determination: since there are no reliable methods to get a sample count of one, greater than or equal to five replicates should be used

  • Acceptance criteria: if a single organism is present, it will be quantified in the time frame of the assay

(c) 2002 Jeanne Moldenhauer


Linearity l.jpg

Linearity

  • Definition: the ability to elicit results thatare proportional to the concentration of microbes present in the sample within a given range

  • Determination: at least five replicates across range of assay

  • Acceptance criteria: correlation coefficient r2 = 0.9, or better with a slope not diverging more than 20% from 1.0, i.e., r2 = 0.8 - 1.2

(c) 2002 Jeanne Moldenhauer


Range l.jpg

Range

  • Definition: the interval between the upper and lower levels of microbes that have demonstrated to be determined with precision, accuracy and linearity, using the method as written

  • Determination: the range of the method is validated by verifying that the analytical method provides acceptable precision, accuracy and linearity, when applied to samples at the extreme of the range and within the range

  • Acceptance criteria: depends upon performance characteristics of the method

(c) 2002 Jeanne Moldenhauer


Ruggedness l.jpg

Ruggedness

  • Definition: degree of reproducibility of test results obtained by samples under variety of normal test conditions, e.g., different analysts, instruments, lots of reagents

  • Determination: prepare a suspension of microbes and test at least ten replicates against each assay variable. Calculate standard deviation or coefficient of variation.

  • Acceptance criteria: generally, a coefficient of variation in the 10-15% range is acceptable

(c) 2002 Jeanne Moldenhauer


Robustness l.jpg

Robustness

  • Definition: a measure of its capacity to remain unaffected by small but deliberate variations in method parameters and provides an indication of its reliability during normal usage

  • Determination: the manufacturer investigates changes up to 20% on the critical reagent concentrations, instrument operation parameters and incubation temperatures

  • Acceptance criteria: review results needto be reviewed against the manufacturer’s quality requirements and instructions for use

(c) 2002 Jeanne Moldenhauer


Equivalence l.jpg

Equivalence

  • Definition: a measure of how similar the test results are to the method it is intended to replace

  • Determination: should first be demonstrated in pure culture work. Requires the two methods be run in parallel for comparison. It’s important to have randomized experimental design. A large number of replicates shouldbe used.

  • Acceptance criteria: generally, a statistical test is used

(c) 2002 Jeanne Moldenhauer


Microbiological reference standards l.jpg

Microbiological Reference Standards

  • Issues associated with identification and determination of material to be used as a reference standard for this type of testing.

  • TR33 highlights the need to show equivalence to existing methods, but the technology for many of these systems is superior to the old method and may not show equivalence.

  • Provides some guidance on preparing in-house standards.

(c) 2002 Jeanne Moldenhauer


Method validation l.jpg

Method Validation

  • Variability of Microbiological Methods

  • Sample Distribution Error

  • Cell Morphology

  • Metabolic Activity

(c) 2002 Jeanne Moldenhauer


Other issues in validation l.jpg

Other Issues in Validation

  • Use of multiple identical equipment within the laboratory and company

  • Whether or not you are the first or fiftieth company to submit this test method

  • Company’s regulatory compliance status

  • Unique issues with microbiology equipment

    • Regulatory requirements, e.g., LAL

    • Impact on other system, e.g., sterility testing

    • Etc.

(c) 2002 Jeanne Moldenhauer
