Mechanics & Thermodynamics. Physics 1210/1310. Lecture R1-7 Rotational Motion. Circular Motion. Angular Velocity & Acceleration. Constant Angular Acceleration. For rigid bodies (bodies which don’t change shape). Start from rest at h: K 1 =0, U 1 = Mgh , U 2 =0

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Physics 1210/1310' - ashton


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Mechanics thermodynamics

Mechanics

&

Thermodynamics

Physics 1210/1310

Lecture R1-7 Rotational Motion


Circular motion
Circular Motion





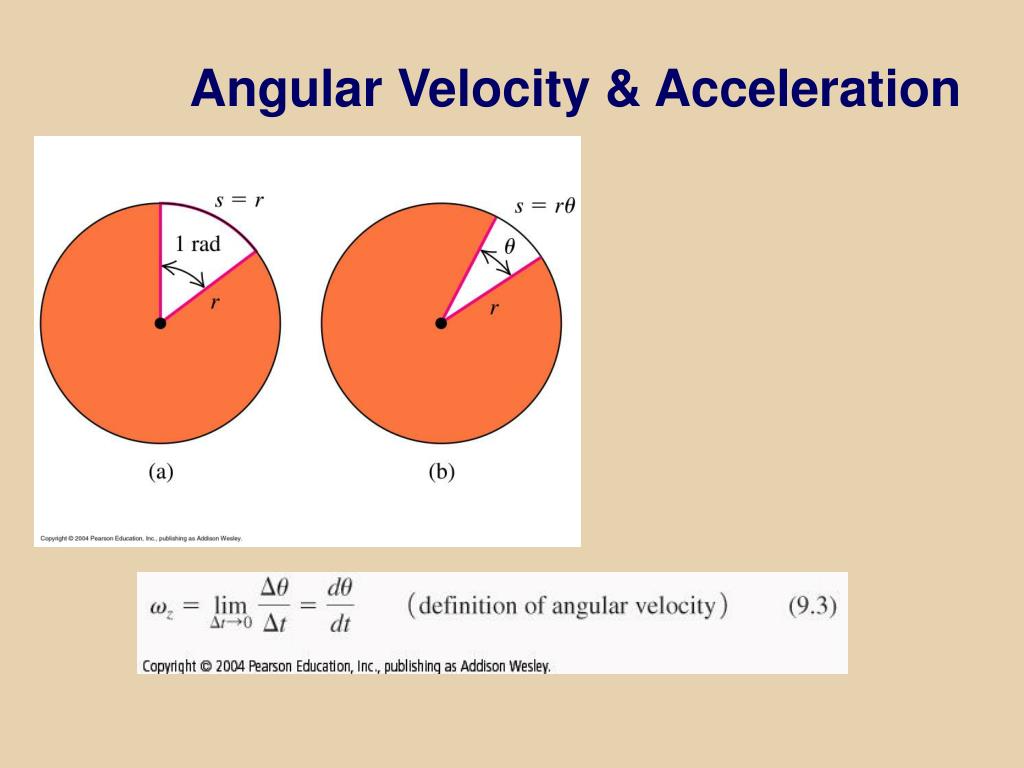

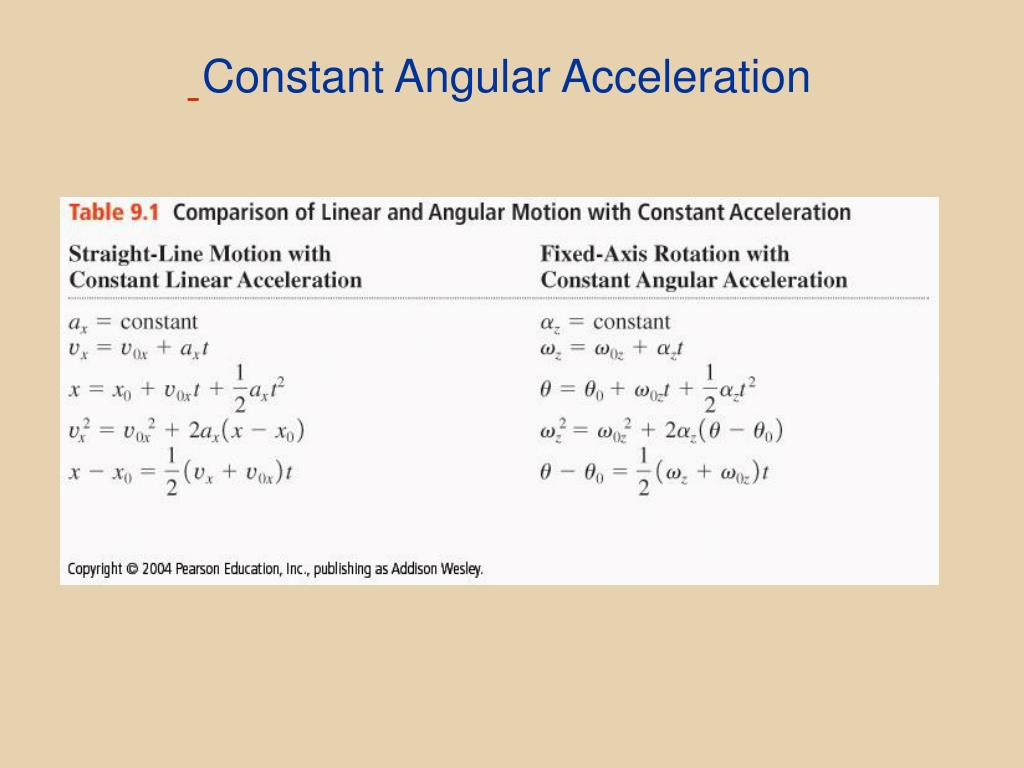

Start from rest at h: K1=0, U1= Mgh, U2=0

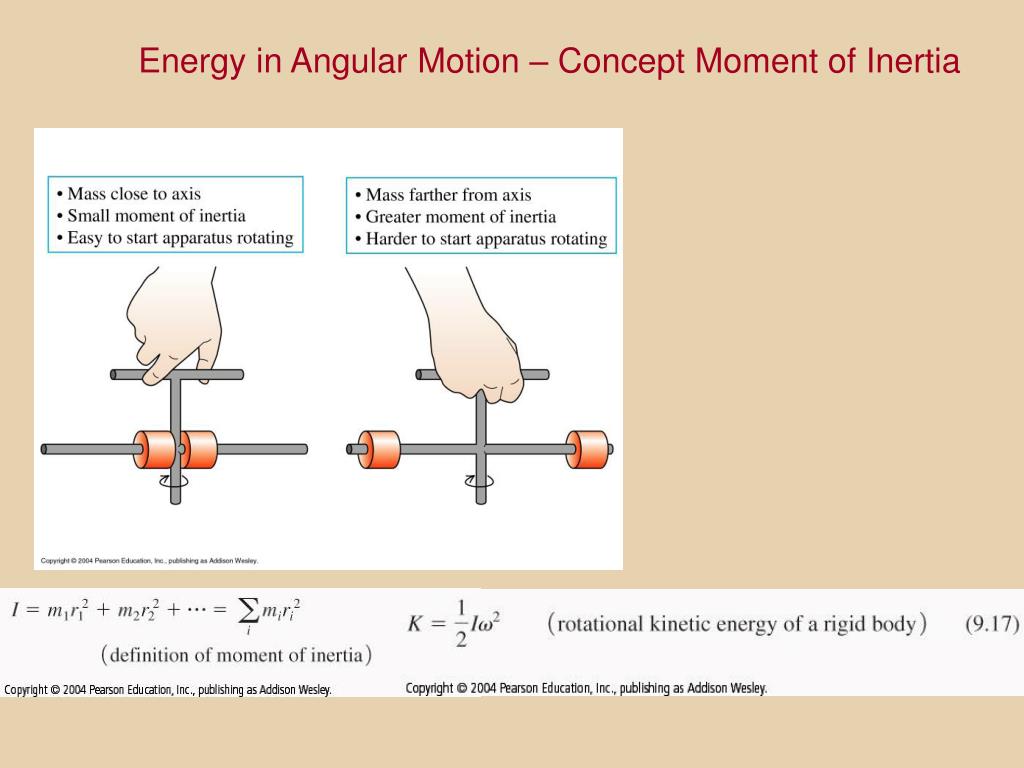

Kinetic energy at bottom given by K = ½ MvCM2 + ½ ICM w2

no slip means w=vCM/R

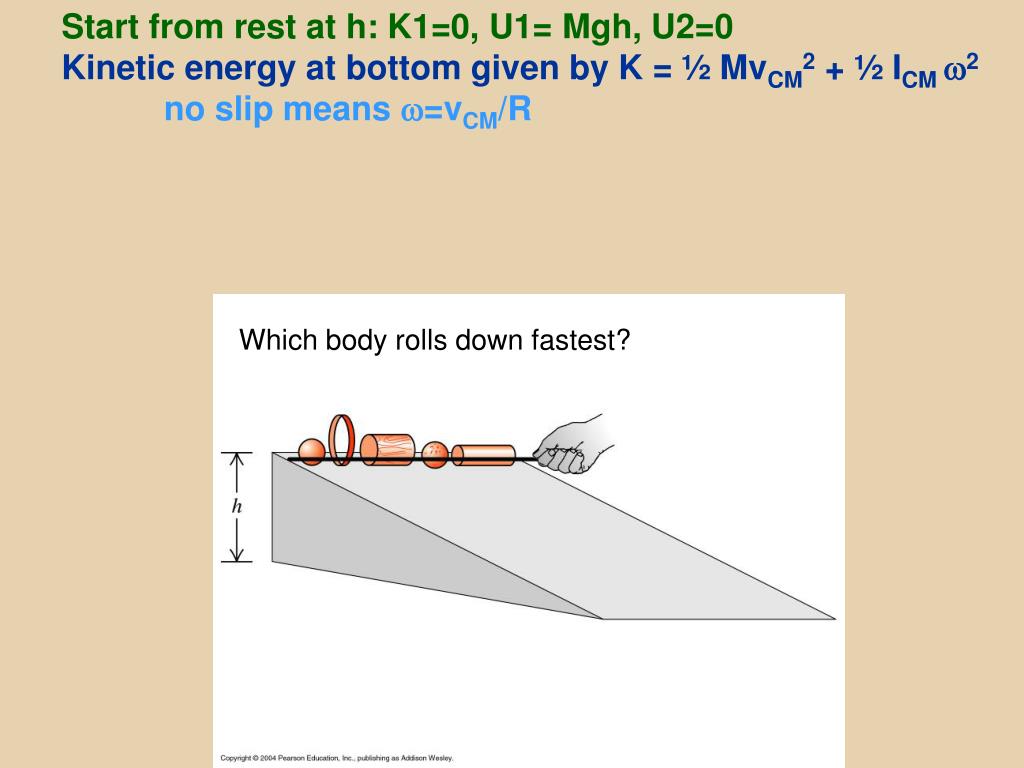

Which body rolls down fastest?




http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522


Wagon wheel moment of inertia using the lego system toolbox

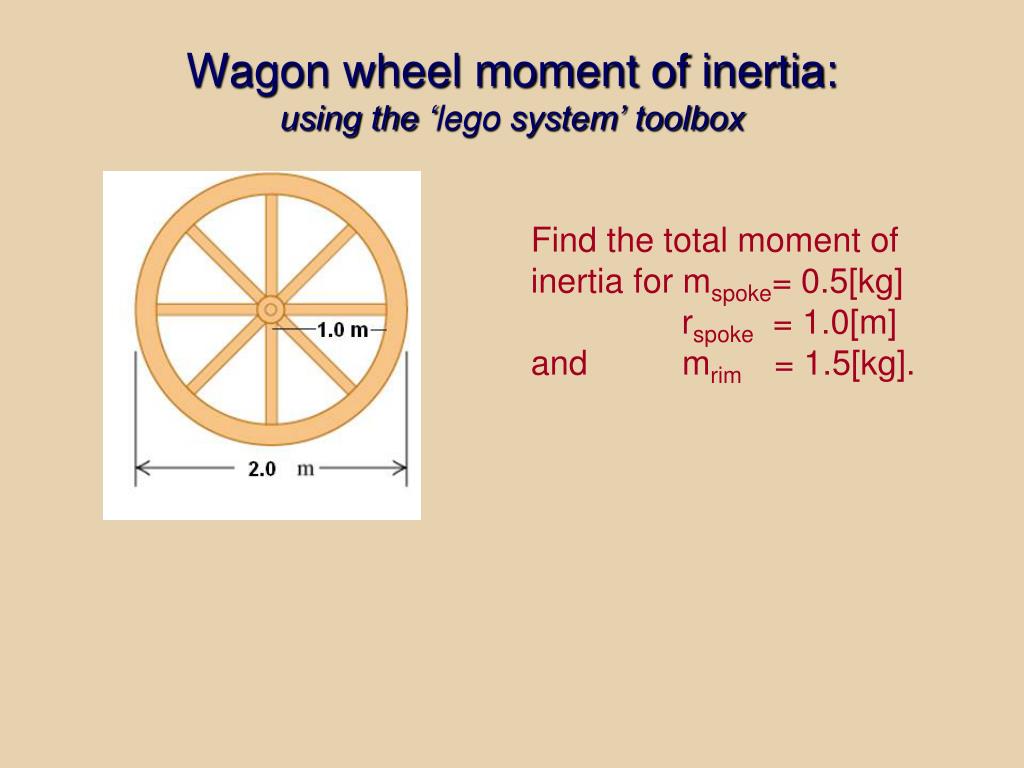

Wagon wheel moment of inertia:http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522using the ‘lego system’ toolbox

Find the total moment of

inertia for mspoke= 0.5[kg]

rspoke= 1.0[m]

and mrim= 1.5[kg].


Start from rest at h: K1=0, U1= http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522Mgh, U2=0

Kinetic energy at bottom given by K = ½ MvCM2 + ½ ICM w2

no slip means w=vCM/R

Which body rolls down fastest?


Torque:http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522


Utilizing torque for finding weight distributionshttp://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522

A lever is in balance if the total left side torque

equals the total right side torque:

A simple balance:

http://www.walter-fendt.de/ph11e/lever.htm

Quantifying torque, lever arms, and force components

http://www.usna.edu/MathDept/website/courses/calc_labs/wrench/TorqueWrench.html


Calculating Torquehttp://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522

Group task

Determine torque t for the following cases:

F= 10[N], L=4[m]


Torque and angular accelerationhttp://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522


Ex 10.4http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522

Glider and weight have

same magnitude of

acceleration.

Glider: T1= m1a1x

Weight: m2g –T2=m2a2y

Unknown n2 acts through

Pulley’s axis of rotation,

ie no torque


Translational an Rotational Energyhttp://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522

Special case:

Motion w/o slipping:

The motion of any body can

always be divided into

rotational and translational

motion about the center

of mass CM!

Both motions have related

energies.


Rolling Friction:http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522


Work and Power in Rotational Motionhttp://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522


Angular Momentum http://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522L

Note: Value

of L depends

on ‘O’


Ex 10.44 solid wood door, 1[m] wide and 2[m] highhttp://www.explorelearning.com/index.cfm?method=cResource.dspView&ResourceID=522

has M= 40[kg] and is initially open and at rest.

Door is struck at its center by a handful of sticky mud

m= 0.5[kg], traveling perpendicular at 12[m/s] before

impact.

Find wdoor and importance of mud for Idoor.

Use w = L/I

And Itotal= Idoor + Imud

Calculate for Itotal=Idoor and take difference

to evaluate importance of mud for I.
