Igss portal igss via the internet

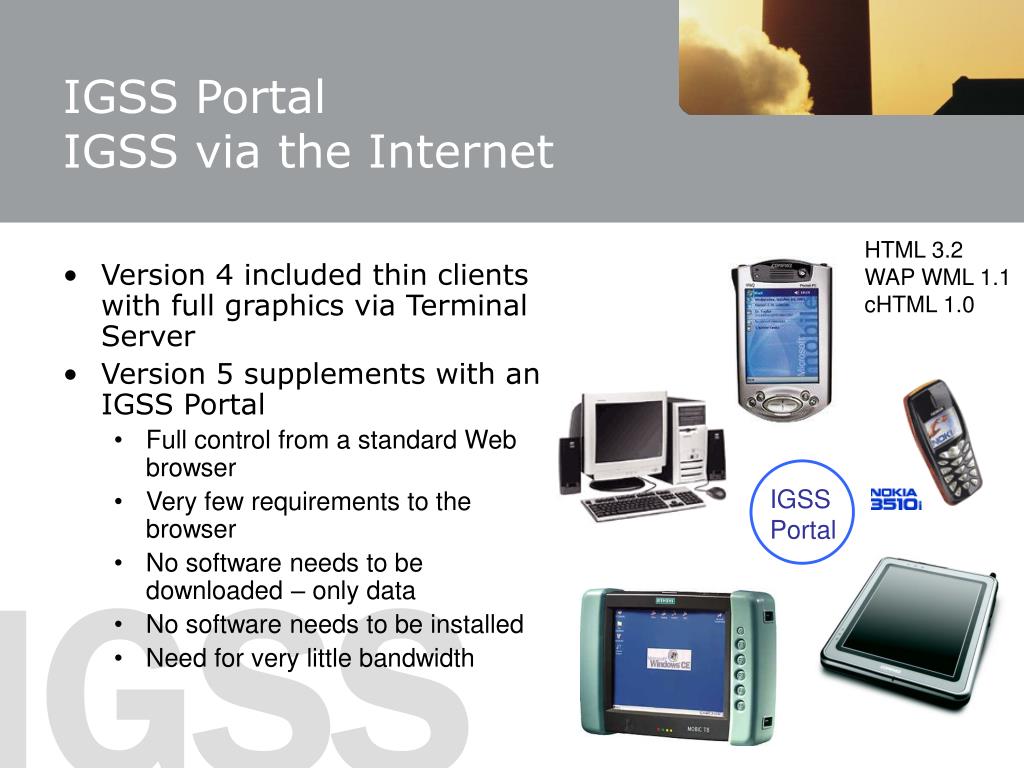

IGSS PortalIGSS via the Internet

HTML 3.2

WAP WML 1.1

cHTML 1.0

  • Version 4 included thin clients with full graphics via Terminal Server

  • Version 5 supplements with an IGSS Portal

    • Full control from a standard Web browser

    • Very few requirements to the browser

    • No software needs to be downloaded – only data

    • No software needs to be installed

    • Need for very little bandwidth

IGSS

Portal


Igss portal functions

IGSS Portal Functions

  • Objects

    • Show actual value/state

    • Send command / setpoint

    • Alarms

  • Online alarms

  • Historical Data

    • LOG, BCL, Alarm

  • Reports

  • Manual Report Editor

  • Configurable ”Quick buttons”

    • Operate with a minimum of ”clicks”

  • Protected by IGSS login


Login

Login

http://minPc/IgssPortal


Object values

Object Values


Quick buttons

Quick buttons


Alarms

Alarms


Historical data

Historical Data

  • ”Object Historian” in a browser


Reports

Reports

  • Output from IGSS standard reports


Mre manual report editor

MRE - Manual Report Editor


Security

Security

IGSS server

IGSS OP

IGSS OP

Terminal server

+ IGSS OP

IIS + IGSS Portal

+ IGSS OP

VPN and/or

FireWall

802.11

Access Point

Internet

Wireless

Encryption

Internet Browser

802.11

Clients

Terminal Client


  • Login
