CHAPTER 12: Multi-way Search Trees

1. CHAPTER 12: Multi-way Search Trees Java Software Structures: Designing and Using Data Structures Third Edition John Lewis & Joseph Chase

2. Chapter Objectives • Examine 2-3 and 2-4 trees • Introduce the generic concept of a B-tree • Examine some specialized implementations of B-trees

3. Multi-way Search Trees • In a multi-way search tree, • each node may have more than two child nodes • there is a specific ordering relationship among the nodes • In this chapter, we examine three forms of multi-way search trees • 2-3 trees • 2-4 trees • B-trees

4. 2-3 Trees • A 2-3 tree is a multi-way search tree in which each node has zero, two, or three children • A node with zero or two children is called a 2-node • A node with zero or three children is called a 3-node • A 2-node contains one element and either has no children or two children • Elements of the left sub-tree less than the element • Elements of the right sub-tree greater than or equal to the element

5. 2-3 Trees • A 3-node contains two elements, one designated as the smaller and one as the larger • A 3-node has either no children or three children • If a 3-node has children then • Elements of the left sub-tree are less than the smaller element • The smaller element is less than or equal to the elements of the middle sub-tree • Elements of the middle sub-tree are less then the larger element • The larger element is less than or equal to the elements of the right sub-tree

6. 2-3 Trees • All of the leaves of a 2-3 tree are on the same level • Thus a 2-3 tree maintains balance

7. A 2-3 tree

8. Inserting Elements into a 2-3 Tree • All insertions into a 2-3 tree occur at the leaves • The tree is searched to find the proper leaf for the new element • Insertion has three cases • Tree is empty (in which case the new element becomes the root of the tree) • Insertion point is a 2-node • Insertion point is a 3-node

9. Inserting Elements into a 2-3 Tree • The first of these cases is trivial with the element inserted into a new 2-node that becomes the root of the tree • The second case occurs when the new element is to be inserted into a 2-node • In this case, we simply add the element to the leaf and make it a 3-node

10. Inserting 27

11. Insertion into a 2-3 Tree • The third case occurs when the insertion point is a 3-node • In this case • the 3 elements (the two old ones and the new one) are ordered • the 3-node is split into two 2-nodes, one for the smaller element and one for the larger element • the middle element is promoted (or propagated) up a level

12. Insertion into a 2-3 Tree • The promotion of the middle element creates two additional cases: • The parent of the 3-node is a 2-node • The parent of the 3-node is a 3-node • If the parent of the 3-node being split is a 2-node then it becomes a 3-node by adding the promoted element and references to the two resulting two nodes

13. Inserting 32

14. Insertion into a 2-3 Tree • If the parent of the 3-node is itself a 3-node then it also splits into two 2-nodes and promotes the middle element again

15. Inserting 57

16. Inserting 25

17. Removing Elements from a 2-3 Tree • Removal of elements is also made up of three cases: • The element to be removed is in a leaf that is a 3-node • The element to be removed is in a leaf that is a 2-node • The element to be removed is in an internal node

18. Removing Elements from a 2-3 Tree • The simplest case is that the element to be removed is in a leaf that is a 3-node • In this case the element is simply removed and the node is converted to a 2-node

19. Removal from a 2-3 tree (case 1)

20. Removing Elements from a 2-3 Tree • The second case is that the element to be removed is in a leaf that is a 2-node • This creates a situation called underflow • We must rotate the tree and/or reduce the tree’s height in order to maintain the properties of the 2-3 tree

21. Removing Elements from a 2-3 Tree • This case can be broken down into four subordinate cases • The first of these subordinate cases (2.1) is that the parent of the 2-node has a right child that is a 3-node • In this case, we rotate the smaller element of the 3-node around the parent

22. Removal from a 2-3 tree (case 2.1)

23. Removing Elements from a 2-3 Tree • The second of these subordinate cases (2.2) occurs when the underflow cannot be fixed through a local rotation but there are 3-node leaves in the tree • In this case, we rotate prior to removal of the element until the right child of the parent is a 3-node • Then we follow the steps for our previous case (2.1)

24. Removal from a 2-3 tree (case 2.2)

25. Removal of Elements from a 2-3 Tree • The third of these subordinate cases (2.3) occurs when none of the leaves are 3-nodes but there are 3-node internal nodes • In this case, we can convert an internal 3-node to a 2-node and rotate the appropriate element from that node to rebalance the tree

26. Removal from a 2-3 tree (case 2.3)

27. Removing Elements from a 2-3 Tree • The fourth subordinate case (2.4) occurs when there not any 3-nodes in the tree • This case forces us to reduce the height of the tree • To accomplish this, we combine each the leaves with their parent and siblings in order • If any of these combinations produce more than two elements, we split into two 2-nodes and promote the middle element

28. Removal from a 2-3 tree (case 2.4)

29. Removing Elements from a 2-3 Tree • The third of our original cases is that the element to be removed is in an internal node • As we did with binary search trees, we can simply replace the element to be removed with its inorder successor

30. Removal from a 2-3 tree (case 3)

31. 2-4 Trees • 2-4 Trees are very similar to 2-3 Trees adding the characteristic that a node can contain three elements • A 4-node contains three elements and has either no children or 4 children • The same ordering property applies as 2-3 trees • The same cases apply to both insertion and removal of elements as illustrated on the following slides

32. Insertions into a 2-4 tree

33. Removals from a 2-4 tree

34. B-Trees • Both 2-3 trees and 2-4 trees are examples of a larger class of multi-way search trees called B-trees • We refer to the maximum number of children of each node as the order of a B-Tree • Thus 2-3 trees are 3 B-trees and 2-4 trees are 4 B-trees

35. B-Trees • B-trees of order m have the following properties:

36. A B-tree of order 6

37. Motivation for B-trees • B-trees were created to make the most efficient use possible of the relationship between main memory and secondary storage • For all of the collections we have studied thus far, our assumption has been that the entire collections exists in memory at once

38. Motivation for B-trees • Consider the case where the collection is too large to exist in primary memory at one time • Depending upon the collection, the overhead associated with reading and writing from files and/or swapping large segments of memory in and out could be devastating

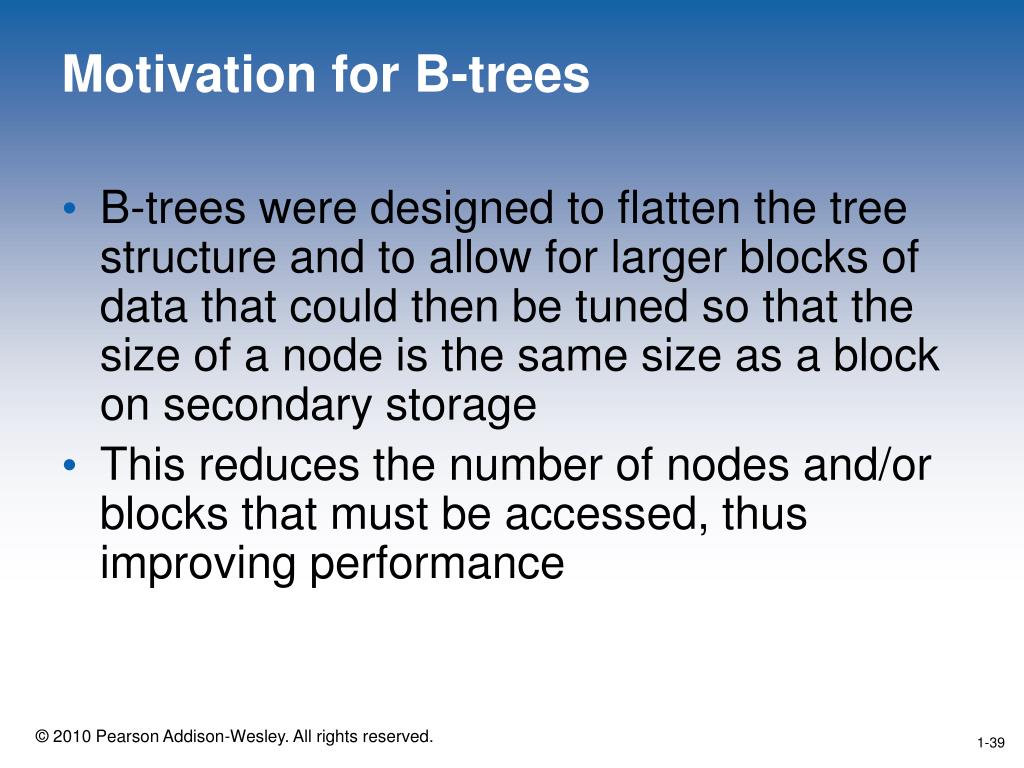

39. Motivation for B-trees • B-trees were designed to flatten the tree structure and to allow for larger blocks of data that could then be tuned so that the size of a node is the same size as a block on secondary storage • This reduces the number of nodes and/or blocks that must be accessed, thus improving performance

40. B*-trees • A variation of B-trees called B*-trees were created to solve the problem that the B-tree could be half empty at any given time • B*-trees have all of the same properties as B-trees except that, instead of each node having k children where m/2 ≤ k ≤ m, in a B*-tree, each node has k children where (2m–1)/3 ≤ k ≤ m • This means that each non-root node is at least two-thirds full

41. B+-trees • Another potential problem for B-trees is sequential access • B+-trees provide a solution to this problem by requiring that each element appear in a leaf regardless of whether it appears in an internal node • By requiring this and then linking the leaves together, B+-trees provide very efficient sequential access while maintaining many of the benefits of a tree structure

42. A B+-tree of order 6

43. Implementation Strategies for B-trees • A good implementation strategy for B-trees is to think of each node as a pair of arrays • An array of m-1 elements • An array of m children • Then, if we think of the tree itself as one large array of nodes, then the elements stored in the array of children would simply be integer indexes into the array of nodes
