Presentation Transcript
lingo

Lingo函數講解

作業研究概論作業八 曹飛廣 10214358

slide2
@BND函數
  • @BND(lower_bound,variable,upper_bound)
  • 原廠手冊介紹:Limits variable to being greater-than-or-equal-to lower_bound and less-than-or-equal-to upper_bound.
  • 作用:限制變量大於等於底界且小於等於上界
  • 例:@BND(0,X,9);
  • 限制0<=X<=9;
slide3
@BND()案例
  • 給定一個直角三角形,求包含該三角形的最小正方形
  • model:
  •  sets:
  •  object/1..3/: f;
  • endsets data:   a, b = 3, 4;
  • enddata
  •  f(1) = a * @sin(x);   f(2) = b * @cos(x);   f(3) = a * @cos(x) + b * @sin(x);
  •    min = @smax(f(1),f(2),f(3));
  • @bnd(0,x,1.57);
  • end
slide4
@IN函數
  • @IN(set_name,primitive_1_index[,primitive_2_index…]);
  • 原廠手冊:This returns TRUE if the set member referenced by the primitive set member index tuple (primitive_1_index, primitive_2_index, ...) is contained in the set_name set.
  • 作用:當一組成員是從原始集合引用並包含在set_name集合時,此函數返回真值
slide5
@IN()案例
  • SETS:
  • PLANTS /SEATTLE, DENVER, CHICAGO,ANTLANTA/:;
  • CLOSED(PLANTS) /DENVER/:;
  • OPEN(PLANTS)| #NOT# @IN (CLOSED,&1):;
  • ENDSETS
  • 解釋:OPEN集合源於PLANTS集合,用包含@IN函數的獅子允許不屬於CLOSED的PLANTS定義為OPEN集合
@index

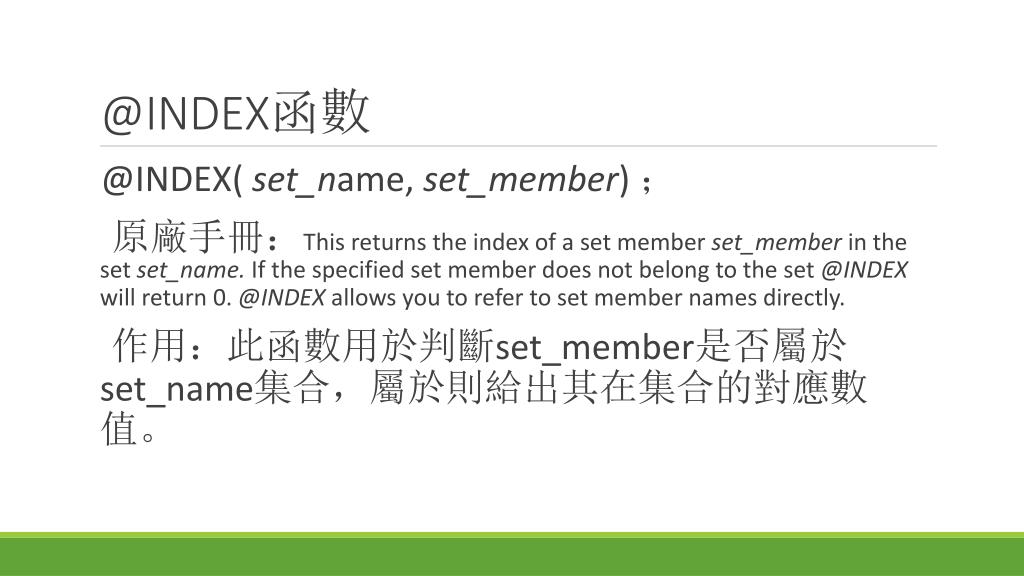

@INDEX函數
  • @INDEX( set_name, set_member) ;
  • 原廠手冊:This returns the index of a set member set_member in the set set_name. If the specified set member does not belong to the set @INDEX will return 0. @INDEX allows you to refer to set member names directly.
  • 作用:此函數用於判斷set_member是否屬於set_name集合,屬於則給出其在集合的對應數值。
@index1
@INDEX()案例
  • SETS:
  • ROWS /R1..R27/;
  • COLS /C1..C3/;
  • RXC( ROWS, COLS): XRNG;
  • ENDSETS
  • ! return the index of (r1,c3) in the rxc set;
  • NDX = @INDEX( RXC, R1, C3);
  • 在這個例子中, (r1,c3) 在派生集合RXC,@INDEX將成員名稱轉換為對應數值賦給NDX。
