Samsung Mini Splits. 2008 AQV, EH, DH and FJM Inverter Troubleshooting. Sept 11 2008. Troubleshooting. Units use either the operating lights on the Indoor (High Wall) or fault codes on the wired remote controller OR

Download Presentation

Samsung Mini Splits

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Samsung mini splits

Samsung Mini Splits

2008 AQV, EH, DH and FJM Inverter

Troubleshooting

Sept 11 2008


Troubleshooting

Troubleshooting

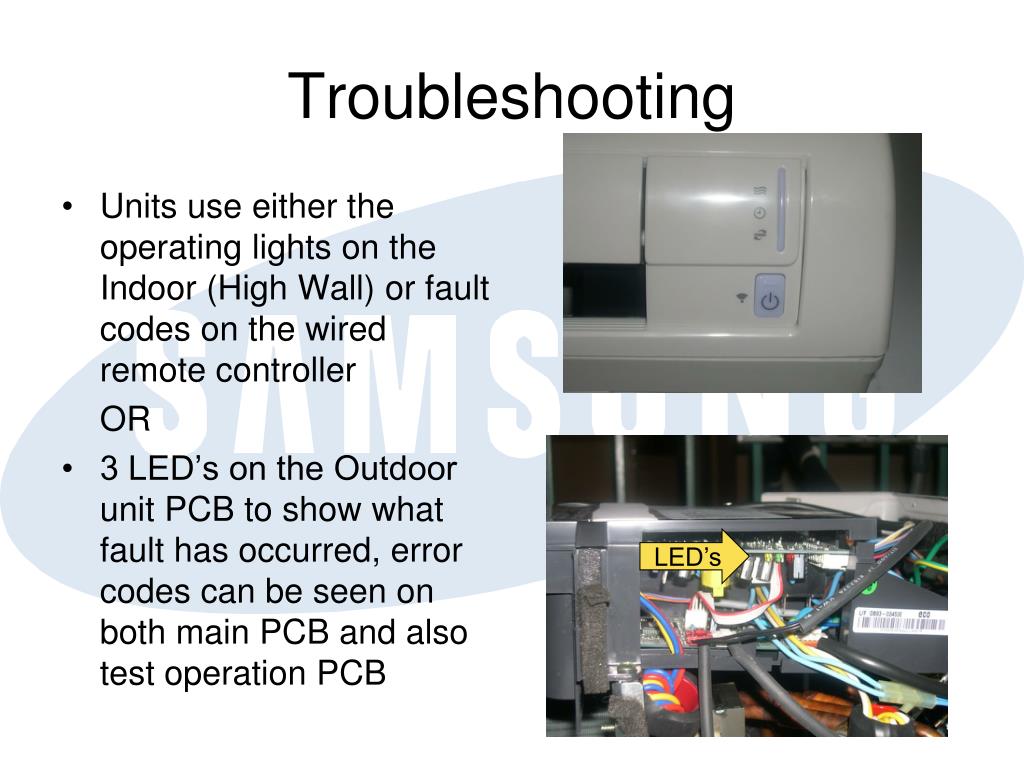

  • Units use either the operating lights on the Indoor (High Wall) or fault codes on the wired remote controller

    OR

  • 3 LED’s on the Outdoor unit PCB to show what fault has occurred, error codes can be seen on both main PCB and also test operation PCB

LED’s


High wall indoor error codes

High Wall Indoor Error Codes


Indoor error codes in detail

Indoor Error Codes in detail

  • Room Temp Sensor error – unit cannot read the resistance of the sensor, check with Multi meter

    60 DegF = 14,200Ω

    70 DegF = 11,700Ω

    80 DegF = 9,300Ω

  • Coil (Heat Exchanger) Temp Sensor error – unit cannot read the resistance of the sensor, check with Multi meter

    30 DegF = 28,500Ω

    40 DegF = 23,000Ω

    50 DegF = 18,000Ω

    The higher the resistance the colder the temperature that the sensor thinks it is seeing


Indoor error codes in detail1

Indoor Error Codes in detail

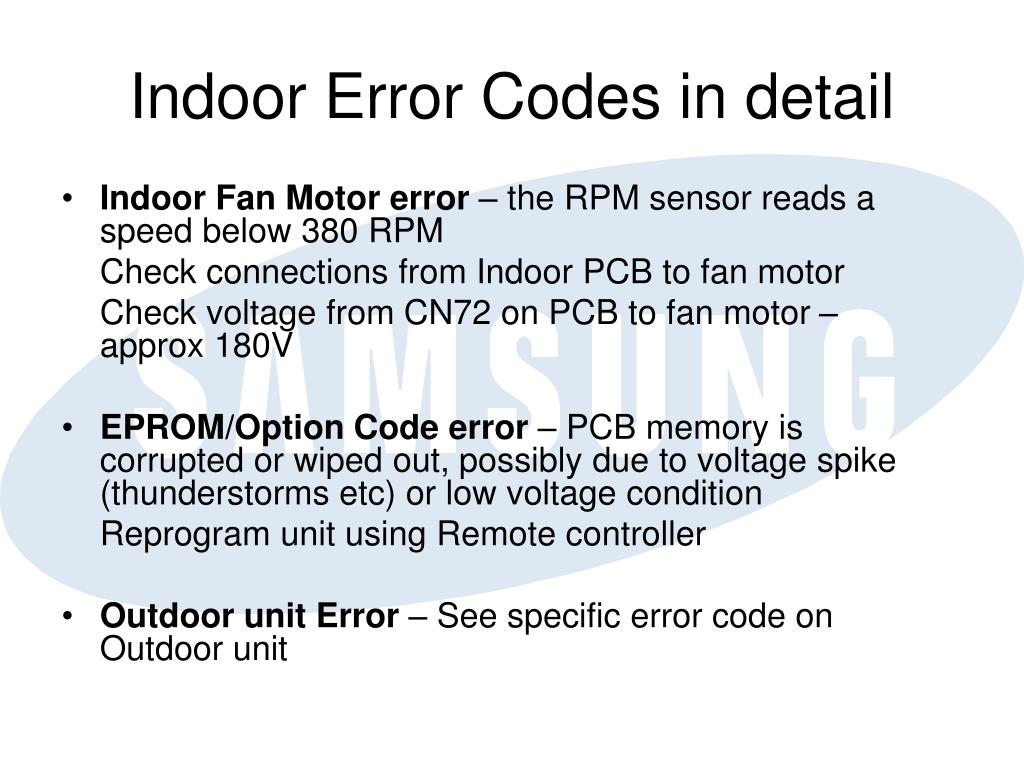

  • Indoor Fan Motor error – the RPM sensor reads a speed below 380 RPM

    Check connections from Indoor PCB to fan motor

    Check voltage from CN72 on PCB to fan motor – approx 180V

  • EPROM/Option Code error – PCB memory is corrupted or wiped out, possibly due to voltage spike (thunderstorms etc) or low voltage condition

    Reprogram unit using Remote controller

  • Outdoor unit Error – See specific error code on Outdoor unit


Outdoor unit error codes

Outdoor Unit Error Codes


Samsung mini splits

Outdoor Error Codes in detail

  • IPM Over Current– Also E464

  • Compressor is drawing excessive current, unit will restart 9 times before error code is seen

  • What are we protecting – Compressor Motor & IPM Semi Conductor

  • Causes –


Samsung mini splits

OC signal

OC Level

Motor Current

IPM OFF &

Motor Stop

Ed

Compressor Motor

+

+

U

W

+

V

DCV

U

S

N

V

S

N

-

-

U

V

-

W

W

OC Level

IPM ( IGBT module )

Outdoor Error Codes in detail

IPM Over Current Error / OC error (E464)

Causes

Indoor air flow blocked in heating mode by blade closing, covering air inlet with curtain, etc.

Compressor motor or wiring short circuit,

Compressor wires disconnecting from the compressor connector during rotation

Compressor lock, Compressor magnet demagnetizing

Compressor rotation error,

High compressor load in low speed operation

PCB short circuit, IPM breakdown,


Samsung mini splits

Outdoor Error Codes in detail

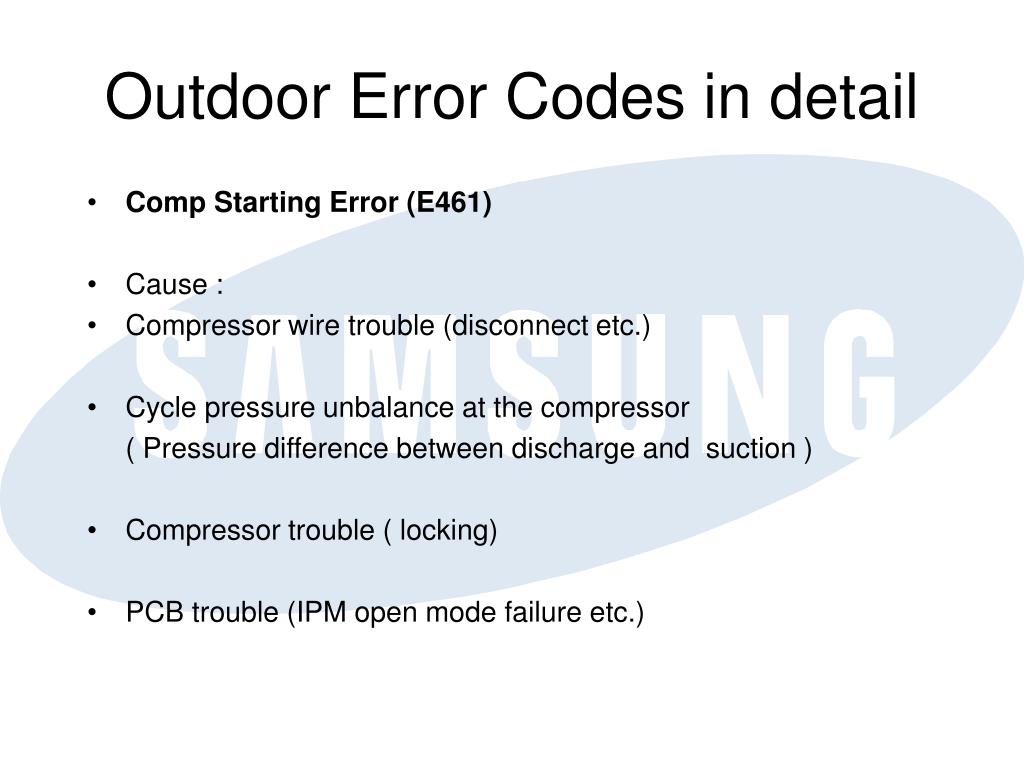

  • Comp Starting Error(E461)–

  • Compressor does not start, it has 15 seconds to start and will try 5 times to start


Samsung mini splits

Outdoor Error Codes in detail

  • Comp Starting Error(E461)

  • Cause :

  • Compressor wire trouble (disconnect etc.)

  • Cycle pressure unbalance at the compressor

  • ( Pressure difference between discharge and suction )

  • Compressor trouble ( locking)

  • PCB trouble (IPM open mode failure etc.)


Samsung mini splits

Outdoor Error Codes in detail

  • Compressor Lock Error

  • Compressor is not running despite being energized. The compressor has a rotational sensor that will tell the unit if it is running or not

  • Unit will try to restart 3 times before displayed error code (each restart will have a 3 minute time delay)

  • Causes – failed Compressor, liquid slugging


Samsung mini splits

Outdoor Error Codes in detail

  • DC Link Voltage Under/Over – Voltage across C101, 102 & 103 on the Outdoor PCB is out of range

  • Causes – Mains voltage spikes or brown outs, Compressor slugging liquid, bad Outdoor PCB

  • Outdoor Temp Sensor Error – unit cannot read the resistance of the sensor, check with Multi meter – same curve as Indoor Temp sensors

  • 40 DegF = 23,000Ω

  • 60 DegF = 16,200Ω

  • 80 DegF = 9,300Ω


Samsung mini splits

Outdoor Error Codes in detail

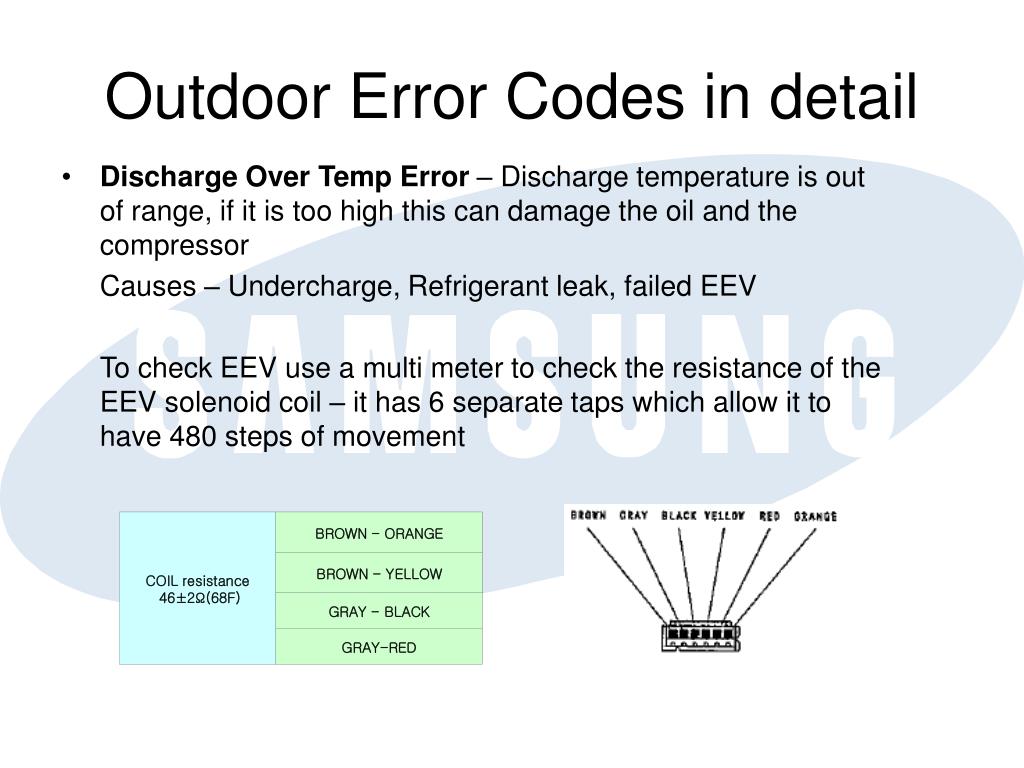

  • Discharge Over Temp Error – Discharge temperature is out of range, if it is too high this can damage the oil and the compressor

  • Causes – Undercharge, Refrigerant leak, failed EEV

  • To check EEV use a multi meter to check the resistance of the EEV solenoid coil – it has 6 separate taps which allow it to have 480 steps of movement


Samsung mini splits

Outdoor Error Codes in detail

  • Discharge Temp Sensor Error – unit cannot read the resistance of the sensor, check with Multi meter

  • 100 DegF = 124,000Ω

  • 120 DegF = 85,000Ω

  • 140 DegF = 59,000Ω

  • Current Sensor Error – Current draw of the unit is excessive, especially on initial start up

  • Causes – Mains Power problem, Outdoor Coil blocked or bad Outdoor fan motor, low refrigerant charge, locked Compressor


Samsung mini splits

Outdoor Error Codes in detail

  • Comp V Limit Error –

  • High capacity load on the system but compressor is running below 780RPM although controller is trying to speed up the compressor

  • Unit will restart 9 times to try and clear the fault before showing the error code, each restart will have a 3 minute time delay before the next start

  • Causes – High discharge pressure, possible overcharge


Samsung mini splits

Outdoor Error Codes in detail

  • Coil Temp Sensor Error – unit cannot read the resistance of the sensor, check with Multi meter – Same curve as Indoor coil temp sensor

  • 60 DegF = 16,200Ω

  • 80 DegF = 9,300Ω

  • 100 DegF = 6,300Ω

  • Outdoor Fan Error – Outdoor fan motor is not operating

  • Causes – Bad Outdoor fan motor, Obstruction, check for 220V AC Output to fan motor from Outdoor PCB (Blue & Red)


Samsung mini splits

Outdoor Error Codes in detail

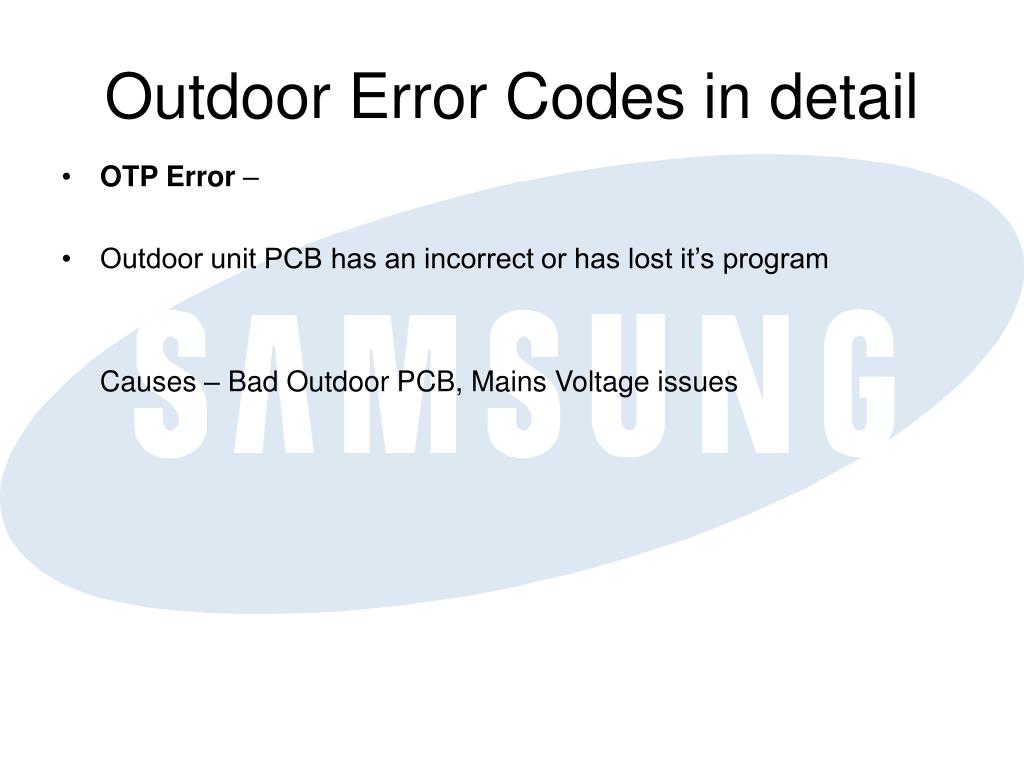

  • OTP Error –

  • Outdoor unit PCB has an incorrect or has lost it’s program

  • Causes – Bad Outdoor PCB, Mains Voltage issues


Samsung mini splits

Outdoor Error Codes in detail

  • Comp Rotation Error(E467)

  • Compressor is not running, will restart 3 times to clear the fault, each start will have a 3 minute time delay before displaying the error code

  • Failure of BLDC motor rotation control.

  • Over load condition and unable to make enough torque to rotate.

  • Or the sensorless position detection system cannot detect rotor position during rotation

  • Restart will be in 3 minutes but 3 times stop makes Error.


Samsung mini splits

Outdoor Error Codes in detail

  • Comp Rotation Error (E467)

  • Cause :

  • Cycle Overload (possible overcharge)

  • Mains Power voltage changes quickly

  • Cycle load changed quickly

  • Compressor is bringing liquid back

  • Compressor locked or motor magnet demagnetizing

  • PCB trouble


Samsung mini splits

Outdoor Error Codes in detail

  • Comp Rotation Error (E467)

Compressor Motor Torque calculated from Pressure of discharge and suction

Pd

Ps


Samsung mini splits

Outdoor Error Codes in detail

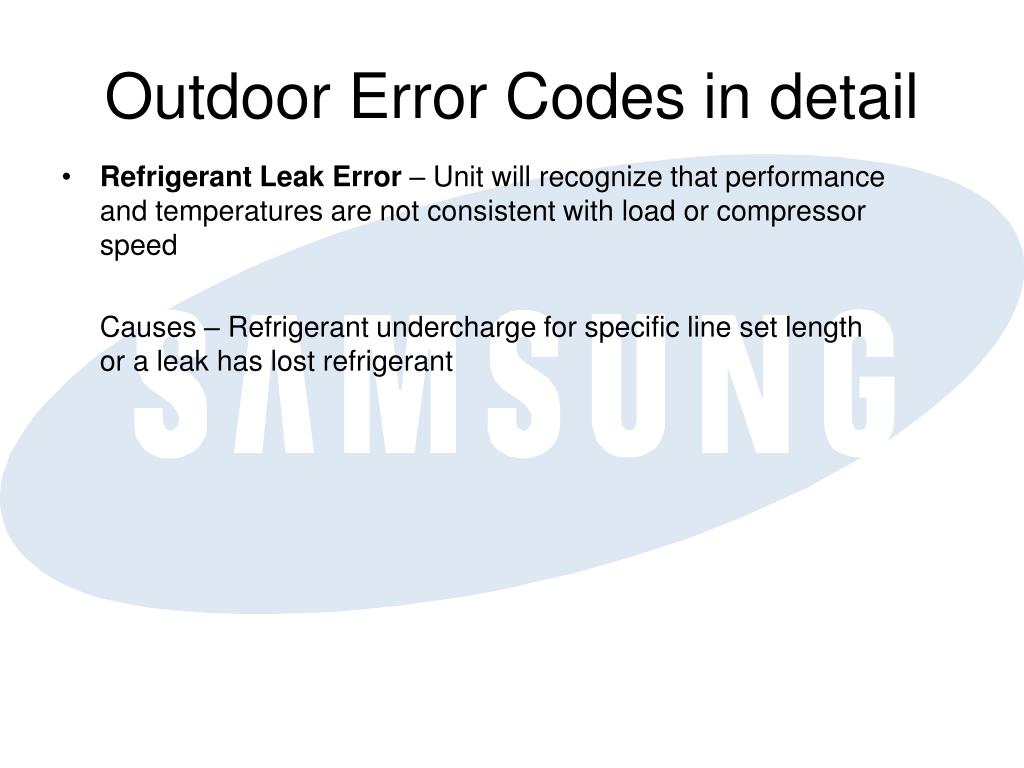

  • Refrigerant Leak Error – Unit will recognize that performance and temperatures are not consistent with load or compressor speed

  • Causes – Refrigerant undercharge for specific line set length or a leak has lost refrigerant


Samsung mini splits

Ed

Compressor Motor

+

+

U

W

+

V

DCV

U

S

N

V

S

N

-

-

U

V

-

W

W

IPM ( IGBT module )

Outdoor Error Codes in detail

DC-Link voltage under/over Error (E466)

Meaning :

DC-Link voltage drop or up with some reason during operation.

System stops the compressor immediately.

Restart will be in 3 minutes but no retry limit.

Error shown on outdoor unit only.

Protection purpose :

Rotation trouble

Cause :

Power line voltage changes quickly.

Power line disconnect during compressor running.

Lightning surge noise.

Compressor liquid back. Compressor trouble.

PCB trouble.


Samsung mini splits

Outdoor Error Codes in detail

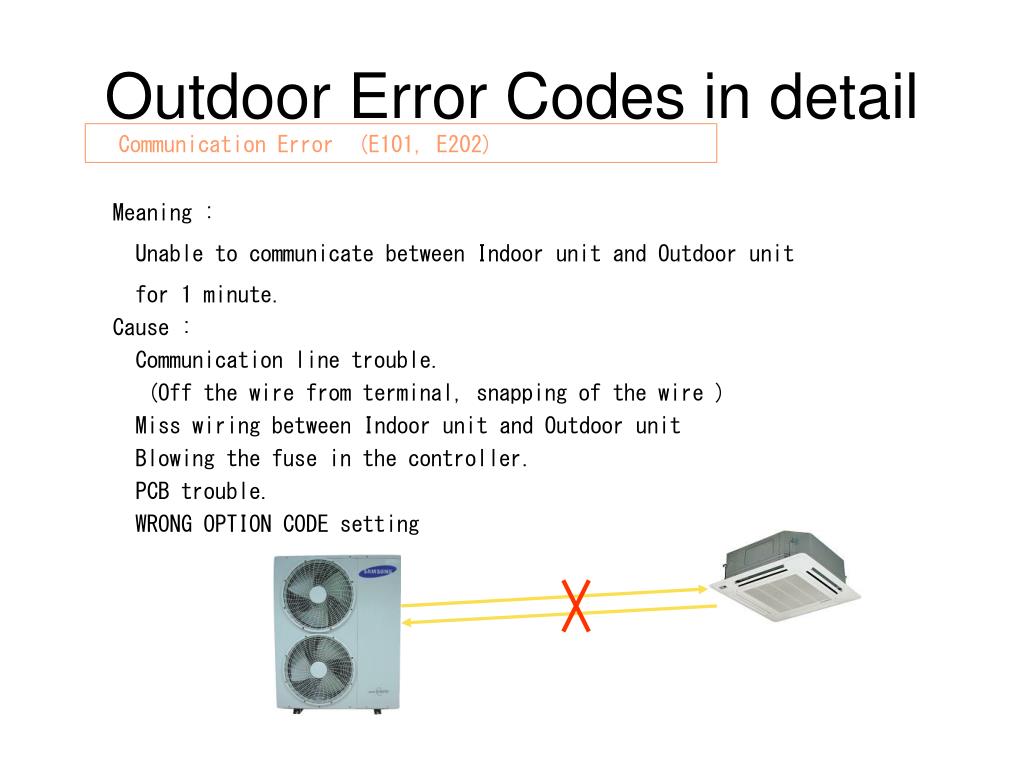

Communication Error (E101, E202)

Meaning :

Unable to communicate between Indoor unit and Outdoor unit

for 1 minute.

Cause :

Communication line trouble.

(Off the wire from terminal, snapping of the wire )

Miss wiring between Indoor unit and Outdoor unit

Blowing the fuse in the controller.

PCB trouble.

WRONG OPTION CODE setting


Samsung mini splits

Outdoor Error Codes in detail

  • I Trip Error – Unit current draw is too high, compressor will try to slow down to reduce current draw, unit will restart 3 times before displaying error code

  • Causes – Indoor/Outdoor temperature changes, Low mains Voltage, excessive capacity load on the unit


Samsung mini splits

Outdoor Error Codes in detail

  • AC Line Cross Signal Error – AC Line is checking incoming power frequency 50 or 60 Hz

  • Causes – Bad Outdoor PCB, unless unit has been resold to a Caribbean beach hut!

  • Capacity Mis-Match Error – Indoor and Outdoor unit do not communicate properly, possible mis-match of e.g. 18k Indoor Unit with a 24k Outdoor unit

  • Causes – Incorrect Option code flashed to the Indoor unit, reprogram the Option code at the Indoor unit, bad Indoor/Outdoor PCB


Samsung mini splits

FJM Error Codes in detail

  • E161 – Mixed Use error code : One Indoor unit is programmed for Heating, when other units on the system are operating in Cooling. System will not reset itself until unit with conflicting mode has been turned off

  • E190 – Failure of Pipe Check : Check wiring/piping and addressing of the Indoor units

  • E199 – Tracking is complete, ready for Pipe Check

  • E201 – Number of Indoor units set on the rotary dial (Outdoor unit) does not match number of Indoor units tracked on the system

  • After correcting these errors button K3 will reset the system


Samsung mini splits

Warranty

  • Since 2006 units have warranty coverage of

  • 5 Years Compressor

  • 3 Years on all other Parts

  • 120 Days Limited Labor Warranty

  • Parts are shipped out, usually on the same day using an ground service. This is dependant on a completed warranty claim form being received by Quietside

  • The failed part need not be returned to Quietside unless specifically asked for


Samsung mini splits

Literature Available

Sales brochure (Color)

Product Submittals

Basic Application and Technical Guide & Samsung 108,

teaching sizing, usage and basic installation techniques

Warranty Booklet – Everything about Warranty

Installation and Operation Manuals

Service Manuals – very important as these units are self

diagnostic


Samsung mini splits

Support Available

Sales Support

Local Representation

Quietside sales staff

Regionalized

Customer Support

Technical Support

East Coast

717 243 2535

Denis, Mike, Chris

West Coast

562 699 6066

John, Stu, Kevin

Website : www.Quietside.com


Samsung mini splits

Thanks for attendingAny Questions??????????
