Quaternions

Quaternions

Paul Taylor 2010


Swizzle

Swizzle

  • What is a swizzle?


Matrix rotations

Matrix Rotations

  • A simple 2D (xy) Rotation Matrix:

  • Rotates in the xy plane counterclockwise by Ɵ Degrees ( In a RH Space)

  • The Determinant is always 1

http://en.wikipedia.org/wiki/Rotation_matrix

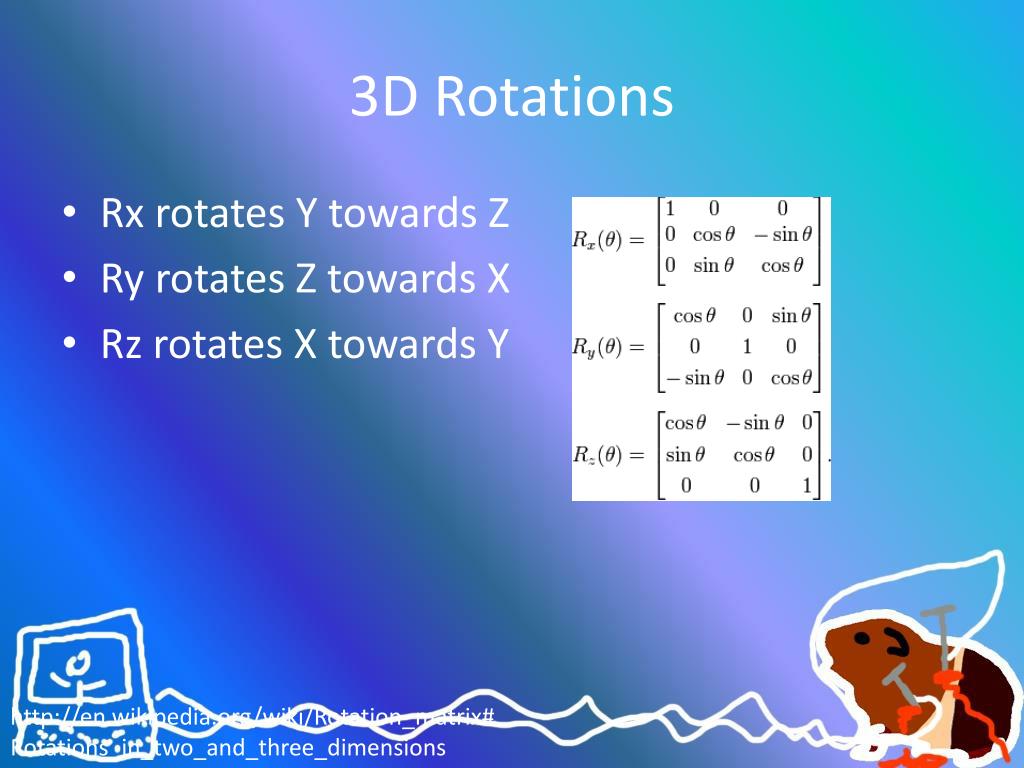

3d rotations

3D Rotations

  • Rx rotates Y towards Z

  • Ry rotates Z towards X

  • Rz rotates X towards Y

http://en.wikipedia.org/wiki/Rotation_matrix#Rotations_in_two_and_three_dimensions


Euler angles yaw pitch roll

Euler Angles (Yaw Pitch Roll)

Pros: Easy to visualise

Cons: Gimbal Lock

If any one axis is exactly 0 or PI or –PI

(Where Cos Ɵ = 1 and Sin Ɵ = 0)

The freedom of rotation is limited to a plane.


Rotation about an axis

Rotation about an Axis

  • U is a unit vector specifying the rotation plane

  • C = Cos Ɵ

  • S = Sin Ɵ

http://en.wikipedia.org/wiki/Rotation_matrix#Rotations_in_two_and_three_dimensions


The quaternion solution

The quaternion solution

Q Quaternion is a 4-tuple of numbers, typically called (s, x, y, z)

S acts as a scalar, and xyz act as a 3D vector

The vector xyz should satisfy

X2 + Y2 + Z2 = XYZ = -1

Where s2 + X2 + Y2 + Z2 = 1 the quaternion can be considered a rotation.


Quaternion addition

Quaternion Addition

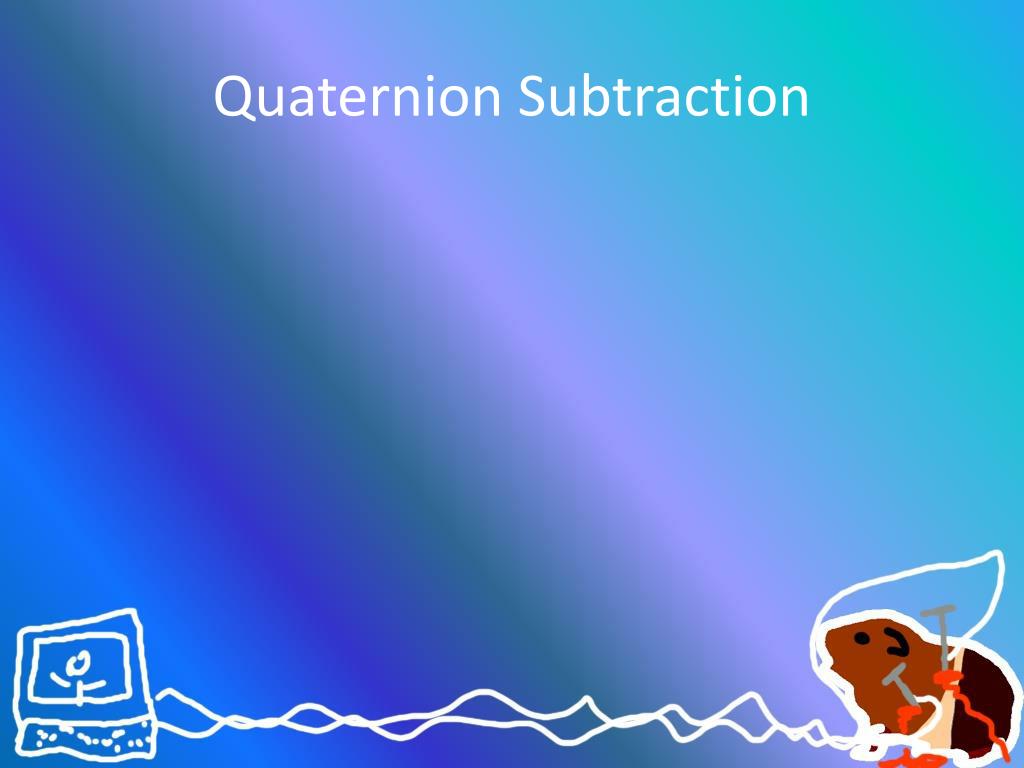

Quaternion subtraction

Quaternion Subtraction


Quaternion multiplication

Quaternion Multiplication

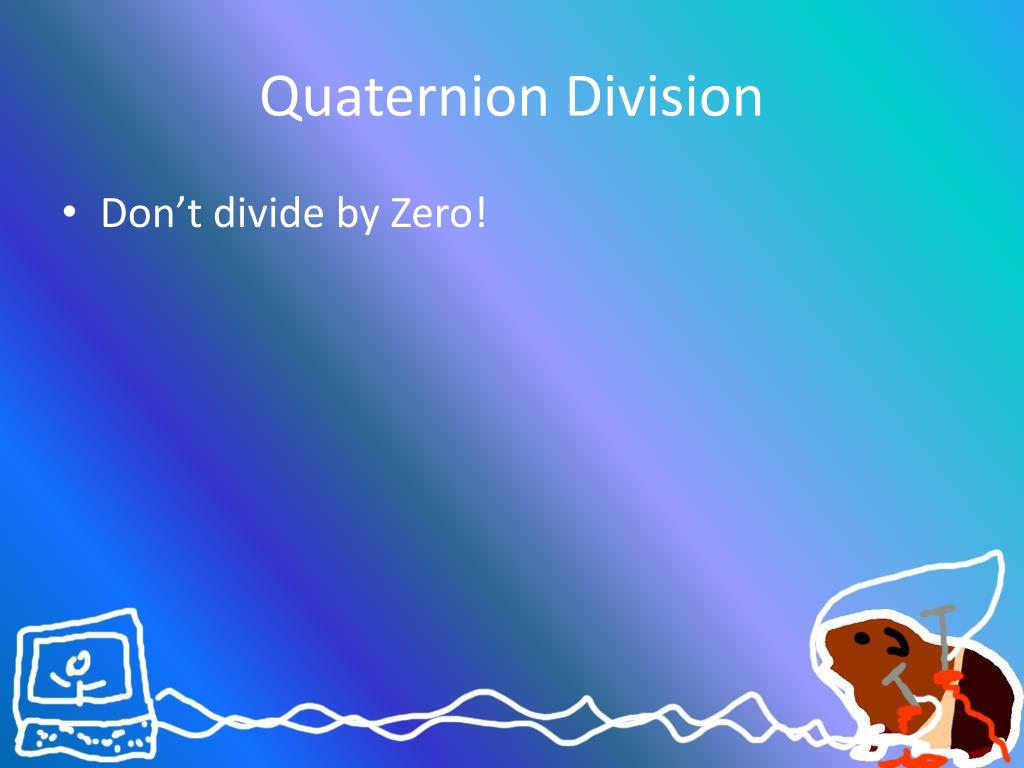

Quaternion division

Quaternion Division

  • Don’t divide by Zero!


Quaternion advantages

Quaternion Advantages

Storage

Matrix must be at minimum 3x3 typically stored as a 4x4.

A quaternion may be stored as 4 values.

Chaining (preparing) an xyz rotation:


Quaternions

  • Performing an xyz Rotation


Smooth rotation interpolation

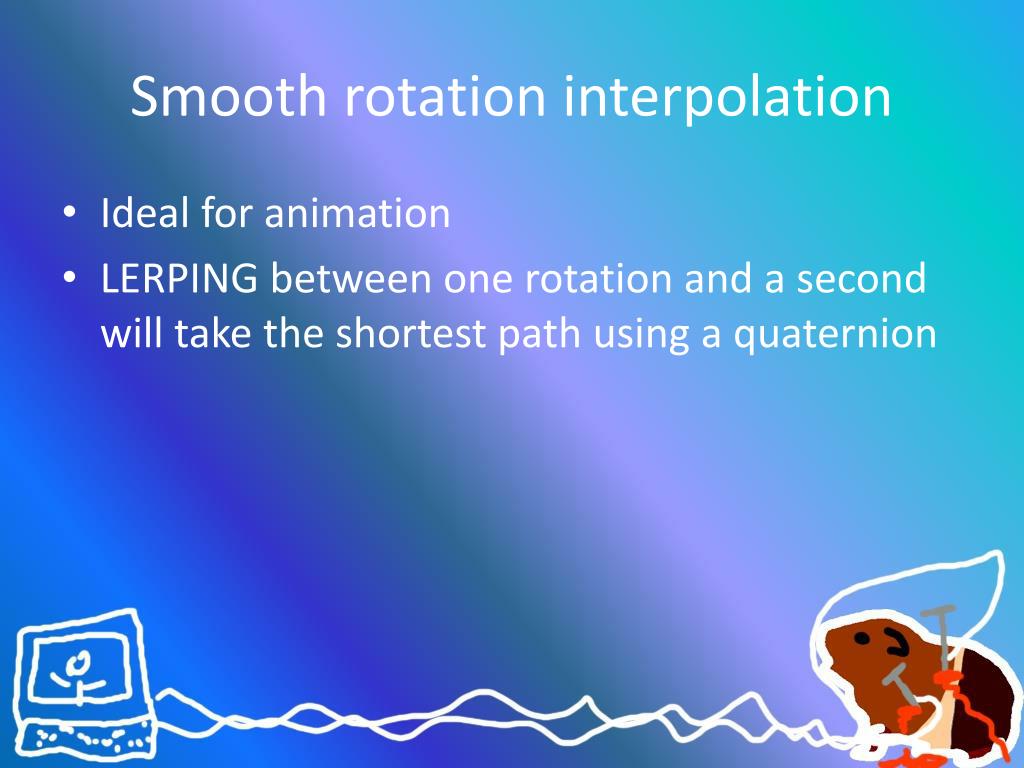

Smooth rotation interpolation

  • Ideal for animation

  • LERPING between one rotation and a second will take the shortest path using a quaternion


Collision detection

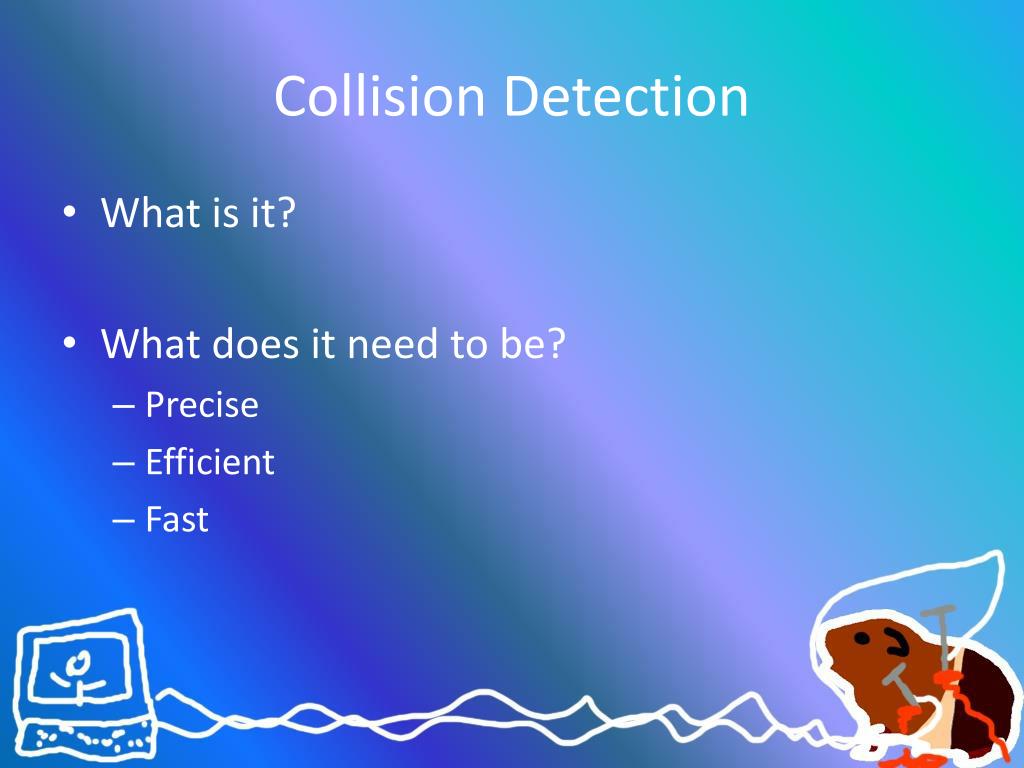

Collision Detection

  • What is it?

  • What does it need to be?

    • Precise

    • Efficient

    • Fast


What collides

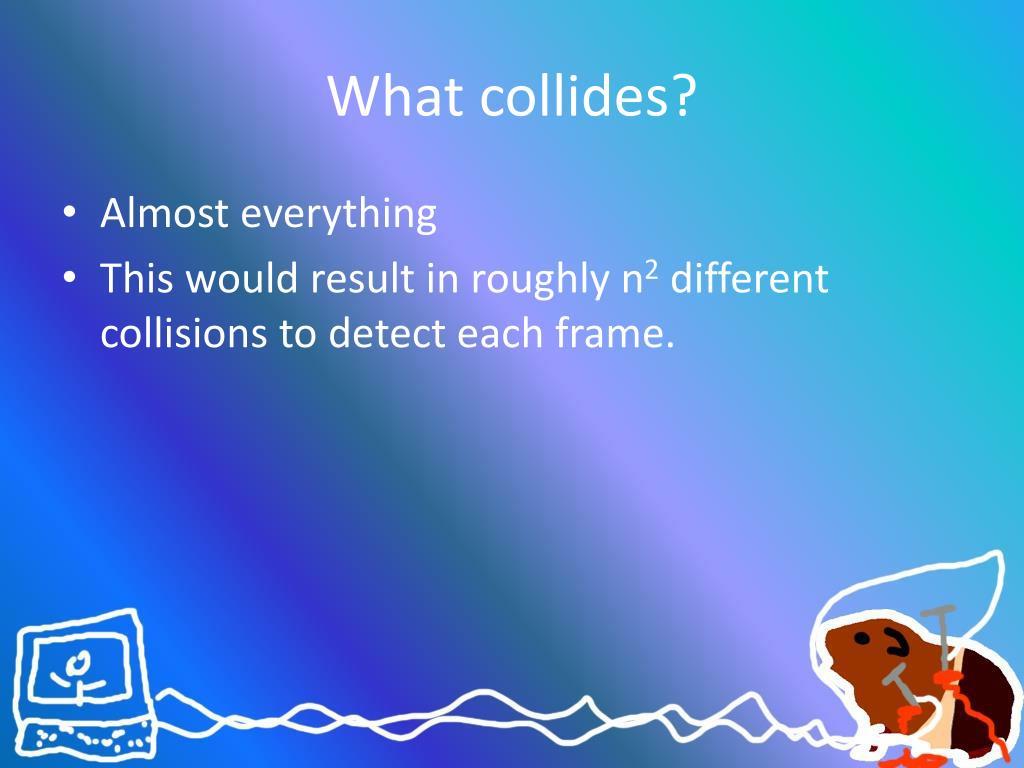

What collides?

  • Almost everything

  • This would result in roughly n2 different collisions to detect each frame.


Cheating the system

Cheating the system

  • We CAN mathematically check every single polygon against every other.

  • Just not in this lifetime!

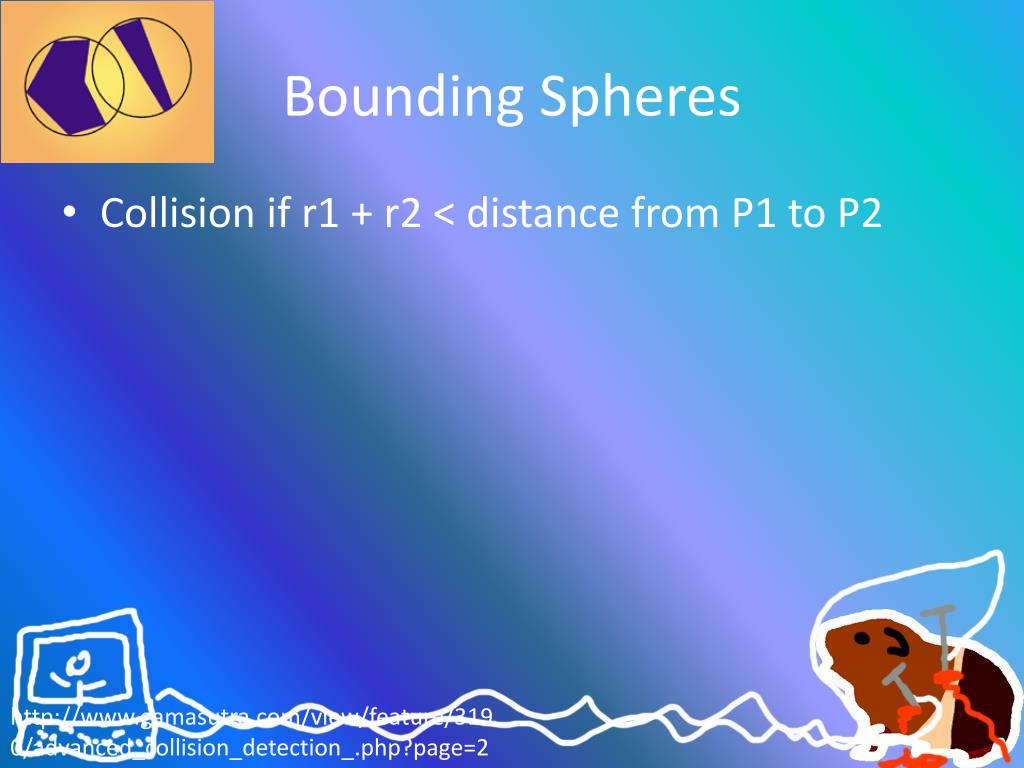

Bounding spheres

Bounding Spheres

  • Collision if r1 + r2 < distance from P1 to P2

http://www.gamasutra.com/view/feature/3190/advanced_collision_detection_.php?page=2

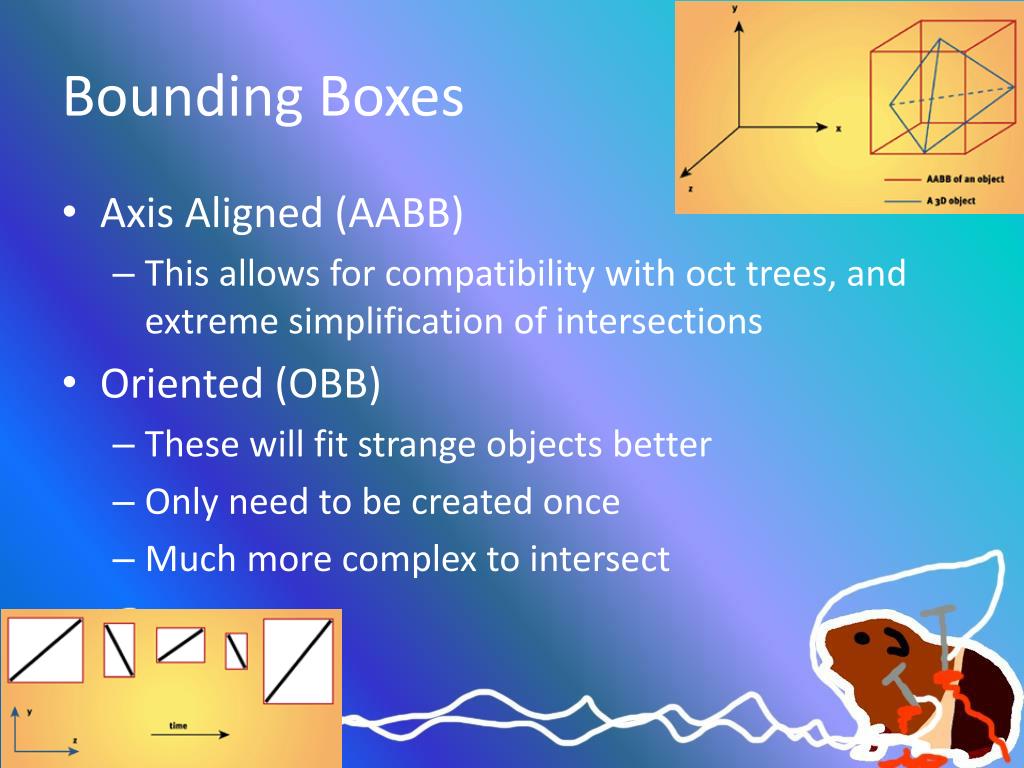

Bounding boxes

Bounding Boxes

  • Axis Aligned (AABB)

    • This allows for compatibility with oct trees, and extreme simplification of intersections

  • Oriented (OBB)

    • These will fit strange objects better

    • Only need to be created once

    • Much more complex to intersect


A strange object

A strange object


Bounding trees

Bounding Trees

  • We can create a small tree to bound a stupid object.

    • These must be built offline

    • Each vertex must be matrix multiplied into the world, so things will start to get expensive


The separating axis theorem

The Separating Axis Theorem

  • This theorem allows for collision detection utilising separating axis’ is 2D

  • It dumbs down to the ability to put a line between the two objects.

  • This extends to 3D using a

    separating plane

    Convex Only!!!


Stationary objects

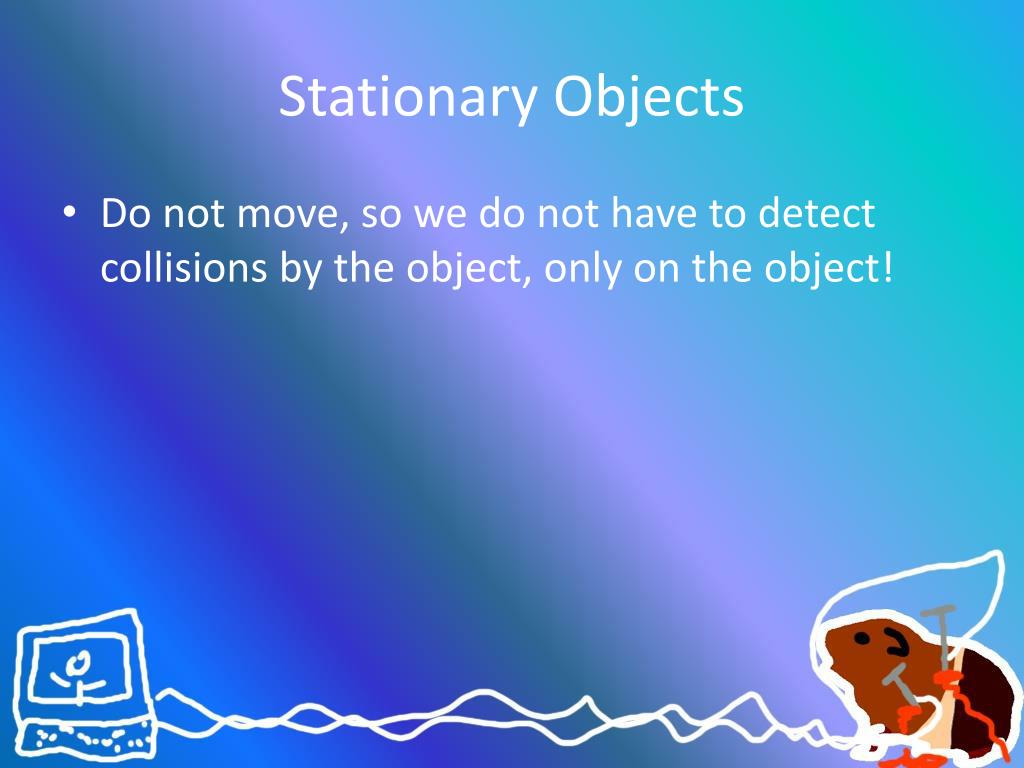

Stationary Objects

  • Do not move, so we do not have to detect collisions by the object, only on the object!

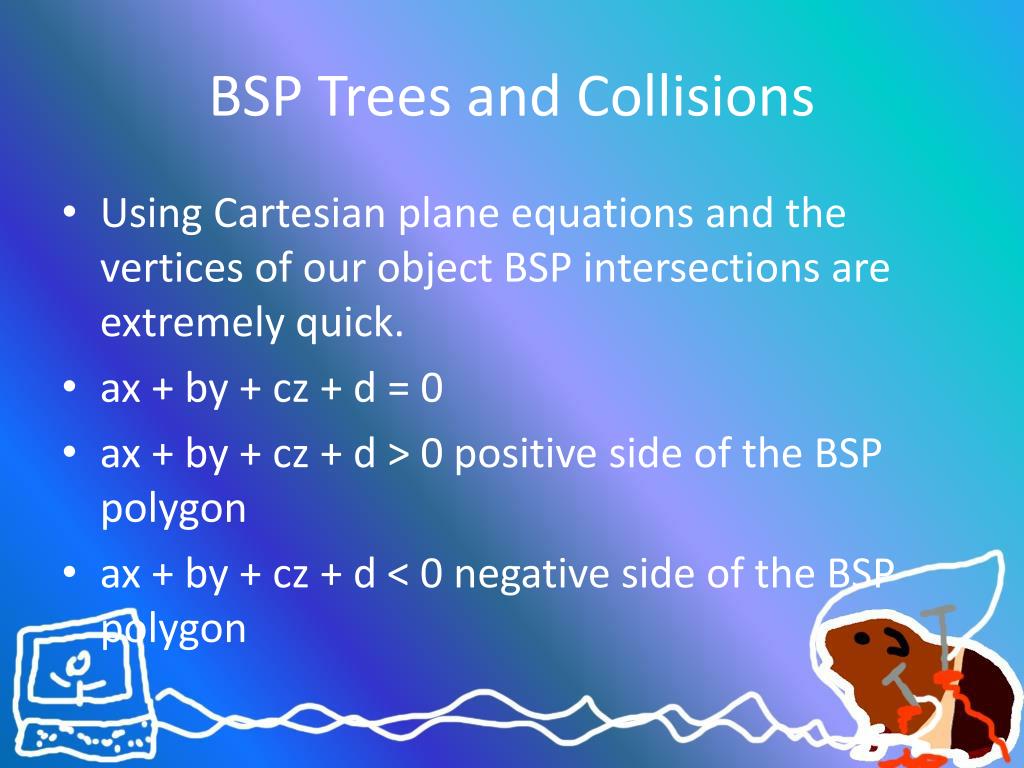

Bsp trees and collisions

BSP Trees and Collisions

  • Using Cartesian plane equations and the vertices of our object BSP intersections are extremely quick.

  • ax + by + cz + d = 0

  • ax + by + cz + d > 0 positive side of the BSP polygon

  • ax + by + cz + d < 0 negative side of the BSP polygon


Size time step

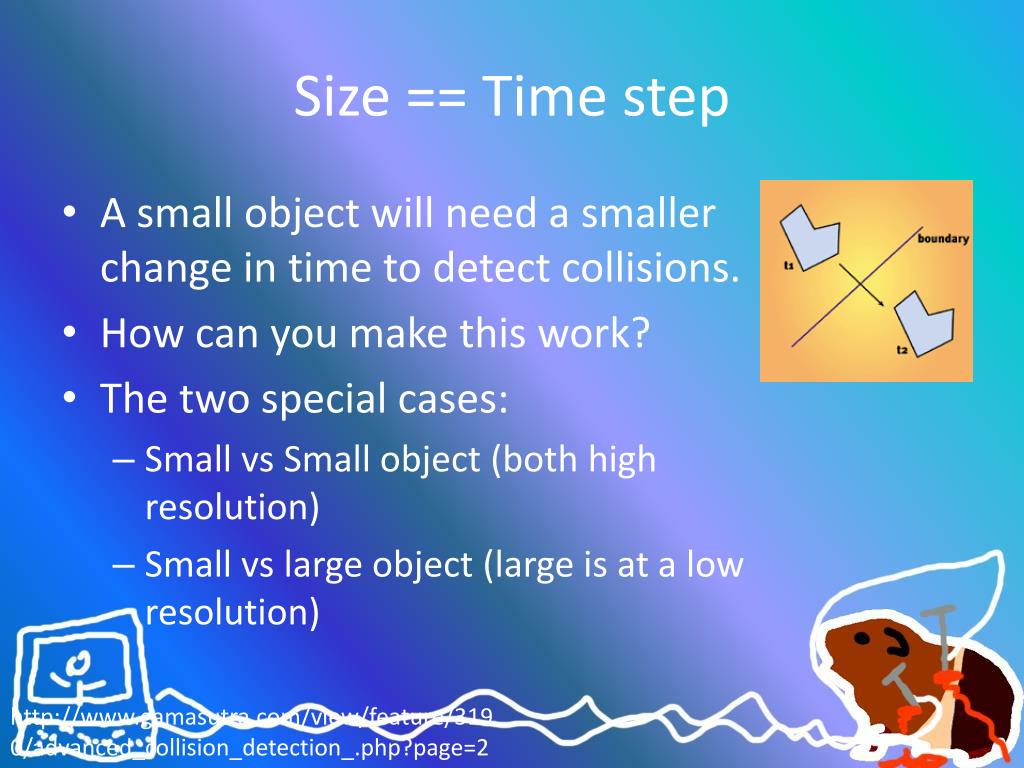

Size == Time step

  • A small object will need a smaller change in time to detect collisions.

  • How can you make this work?

  • The two special cases:

    • Small vs Small object (both high resolution)

    • Small vs large object (large is at a low resolution)

http://www.gamasutra.com/view/feature/3190/advanced_collision_detection_.php?page=2


Bezier curve collisions

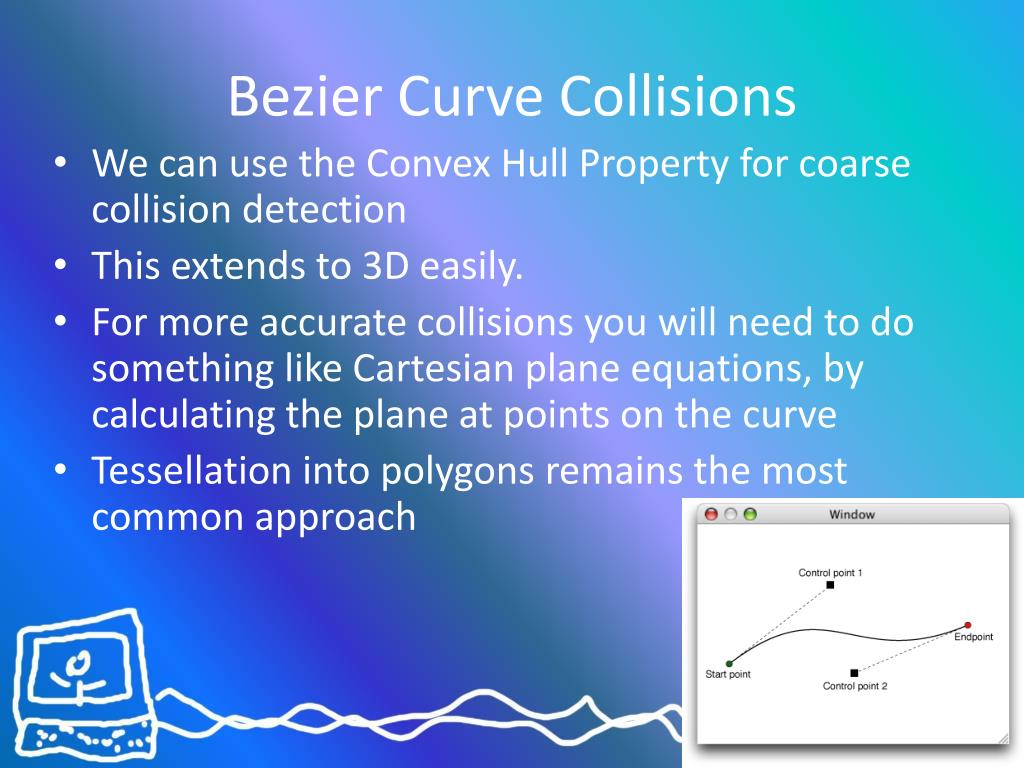

Bezier Curve Collisions

  • We can use the Convex Hull Property for coarse collision detection

  • This extends to 3D easily.

  • For more accurate collisions you will need to do something like Cartesian plane equations, by calculating the plane at points on the curve

  • Tessellation into polygons remains the most common approach


For only low detail bezier collisions

For only low detail Bezier collisions...

  • We can use a vastly simplified polygon surface

  • This is useless as a basis for a high accuracy collision detection algorithm, as it will reject some collisions

http://www.gamasutra.com/view/feature/3190/advanced_collision_detection_.php?page=3


Per pixel collision detection

Per-Pixel Collision Detection

  • The Atari had built-in collision detection in the video chip, this made collisions extremely simple

  • Can we do something similar today?

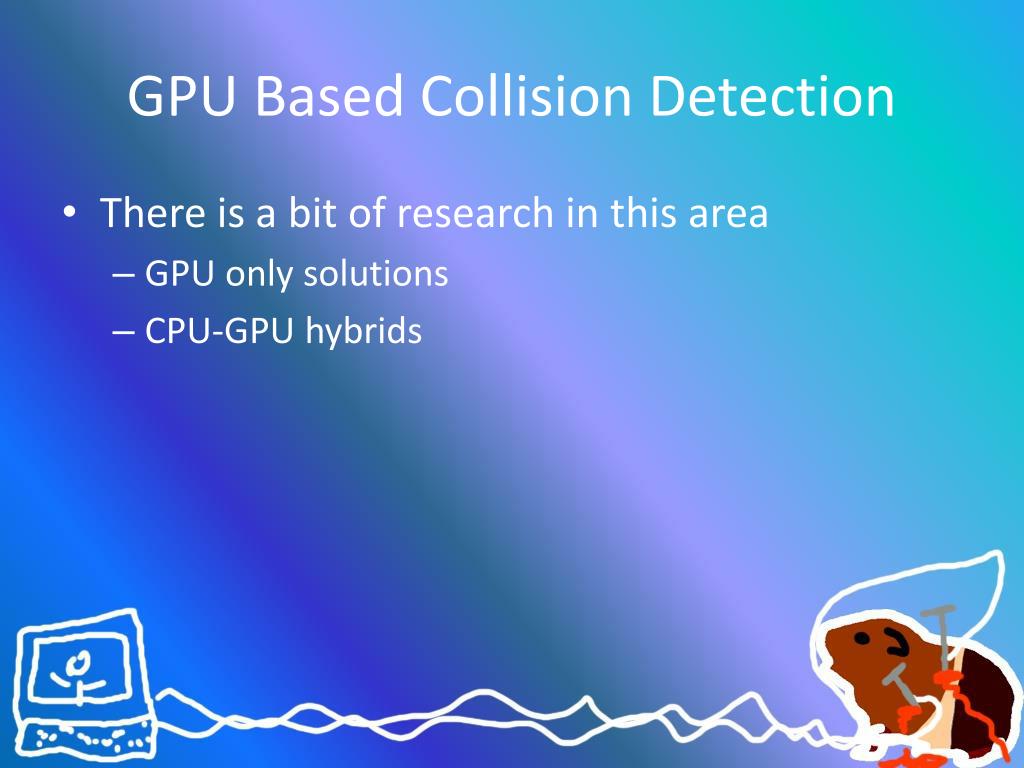

Gpu based collision detection

GPU Based Collision Detection

  • There is a bit of research in this area

    • GPU only solutions

    • CPU-GPU hybrids


Direction based collision trees

Direction Based Collision Trees

  • What if we only consider colliding with objects in the direction that the focus object is travelling?

  • Calculating the Normal Plane for the rear-most point would give us an instant cull of many objects


A solid bsp tree tutorial

A Solid BSP Tree Tutorial

  • http://www.gamedev.net/reference/articles/article657.asp


Advanced collision detection

Advanced Collision Detection

  • http://www.realtimerendering.com/intersections.html

  • This is a great table for finding algorithms


Specular lighting

http://prosjekt.ffi.no/unik-4660/lectures04/chapters/jpgfiles/specular.jpg

Specular Lighting

  • This is the light that an object reflects into the viewers eye

  • For this we will need to add a few more variables to our light system


Quaternions

http://www.baylee-online.net/Projects/Raytracing/Algorithms/Glossy-Reflection-Transmission


Creating a cone

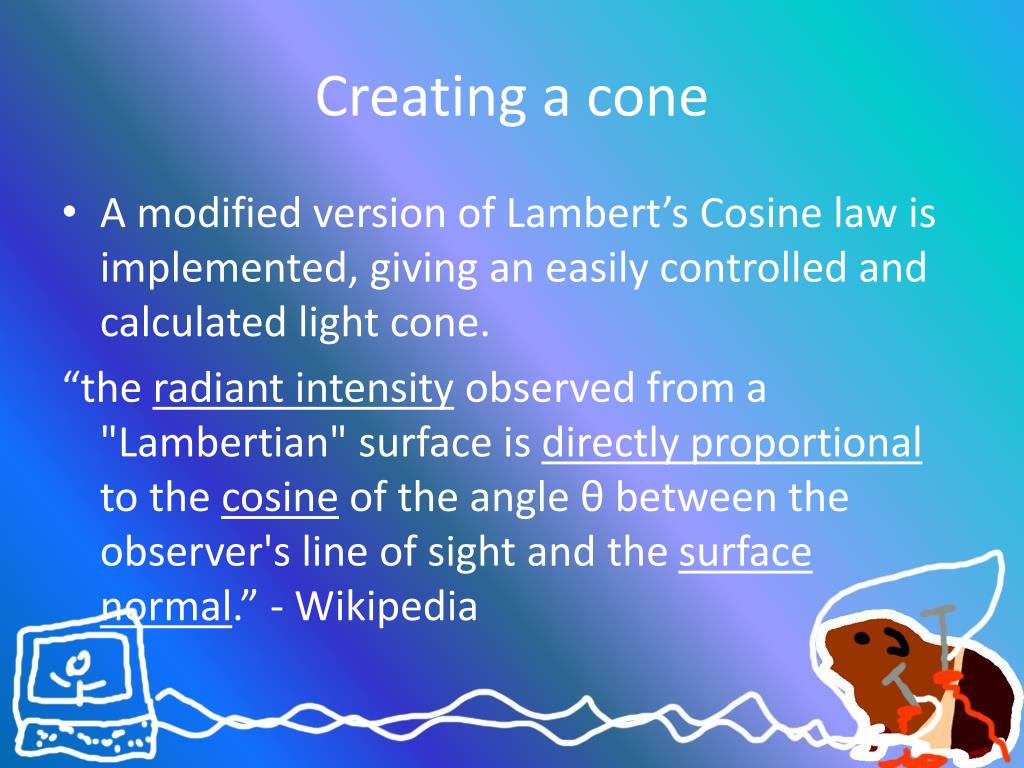

Creating a cone

  • A modified version of Lambert’s Cosine law is implemented, giving an easily controlled and calculated light cone.

    “the radiant intensity observed from a "Lambertian" surface is directly proportional to the cosine of the angle θ between the observer's line of sight and the surface normal.” - Wikipedia


So the intensity of the light drops off as the angle increases

So the intensity of the light drops off as the angle increases.

  • Light intensity = cos()n

  • n is an exponent which changes the speed of the falloff for a specular highlight.

  • A high n will create a very sharp reflection through a small cone

  • A low n (n is always >=1) will create a much broader cone of reflection.

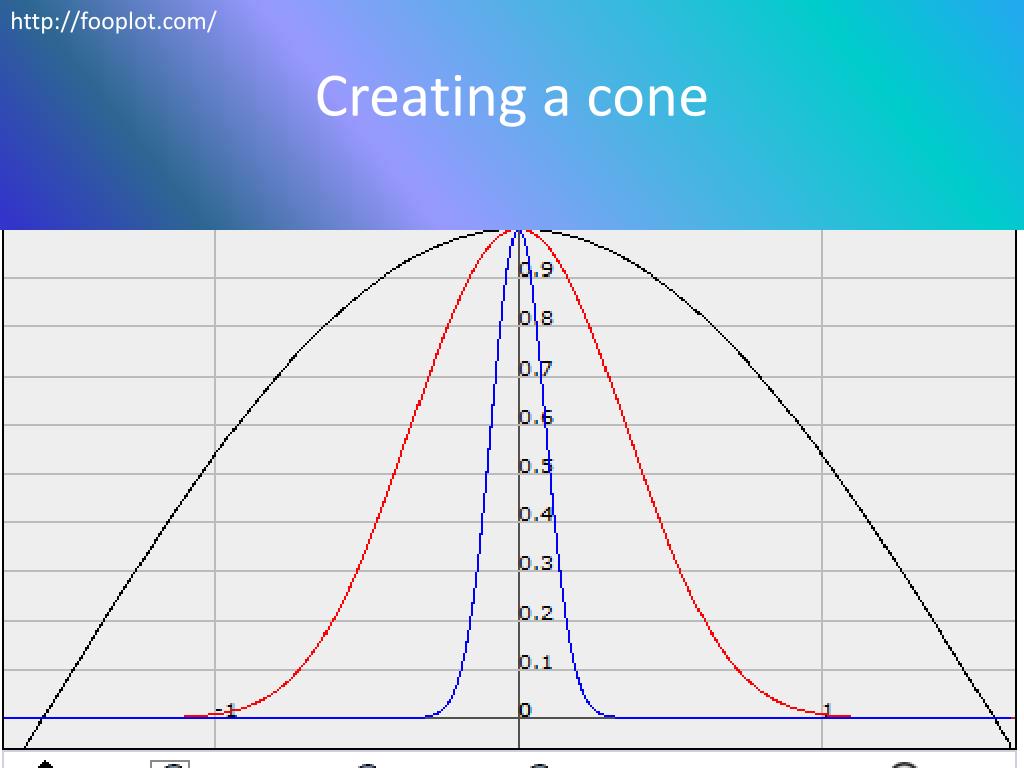

Creating a cone1

http://fooplot.com/

Creating a cone


The new variables

The new variables

  • View (eye) Position

    We generate a vector from the surface point to the eye:

    toEye = view – vertex.position;

    toEye = Normalize(toEye);


The new jobs

The new jobs:

specularPower = vertex.specular.a // a = power

// Minimum of 1.0f

specularPower = max(specularPower, 1.0f);

Float3 reflection = reflect(light.vector, vertex.normal);

specularFactor = dot(reflection, toEye);

// No specular if light is behind

specularFactor = max(specularFactor, 0.0f);

// Now we add the exponent

specularFactor = pow(specularFactor, specularPower);

light += specularFactor * vertex.specular* light.specular;

Return light;


Starcraft 2

Starcraft 2

http://www.gamasutra.com/view/news/28433/Blizzard_Reveals_StarCraft_II_Subscription_Option_For_Emerging_Markets.php
