Short ( and incomplete) characteristics of CVD diamond detectors

Diamond as a detector material low dielectric constant low capacity low noise good heat conductivity ( 5 x higher than Cu ) large band gap of 5.5 eV small signal (< half of a Si of similar size) high charge carrier velocity saturation fast pulse response time

ashely-mullins
Download Presentation

Short ( and incomplete) characteristics of CVD diamond detectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Diamond as a detector material low dielectric constant low capacity low noise good heat conductivity ( 5 x higher than Cu ) large band gap of 5.5 eV small signal (< half of a Si of similar size) high charge carrier velocity saturation fast pulse response time Diamond Crystal production chemical vapour deposition (CVD) commercial production polycrystaline diamonds (PCD) thickness 0.5-500mm max size ~ 5x5cm2 price ? (100 euro/det.) single crystal diamond (SCD) smaller ( 4x4 mm2) better performance (energy resolution) more expensive (5xPCD) Diamond detectors performance very fast timing pulse risetime: 200 ps width: 2ns (PCD) 5ns (SCD) operating voltage 1 V/mm radiation hardness -Tests with 2x1015 p/cm2 did not show any significant deterioration of a sig./noise -pumping effect (PCD) : improvement with increasing dose position resolution below 10mm can be achieved with strip detectors X and Y efficiency 70%PCD-100% PCD Diamonds as TOF detectors tests with 1GeV/u U beam resulted in TOF of s=20 ps Short ( and incomplete) characteristics of CVD diamond detectors Cr-Au foil ~0.1mm

  2. http://rd42.web.cern.ch/RD42/ http://www-norhdia.gsi.de INFN-MI, Milano, Italy Electronics, ToF-detectorsCEA-Saclay, France diamond growth, sensor modelling DESY-Zeuthen, Germany E-, ToF-detectors, modelling, electronics GSI, Darmstadt, Germany E-, ToF-dectors, irradiations, detector characterisation, micro-beam mappingIFIN-HH, Bucharest, Romania Electronics, ToF-detectors, modellingCERN, Geneva, Switzerland Detector characterisation Karlsruhe University, Germany Detector characterization, irradiations IJS, Ljubljana, Slovenia Irradiations VERA Laboratory, Vienna, Austria E-detectors Wits University, Johannesburg, South Africa Diamond substratesKurchatov Institute, Moscow, Russia ESRF Grenoble, France sample characterisationAIST, Tsukuba, Japan Industrial partners: Element six, Ascot, Berkshire, UK ideas Coordinator: E. Berdermann (GSI)

  3. News from I3HP & NoRHDia - Eleni Berdermann

  4. But for PCD much worst ! • News from I3HP & NoRHDia - Eleni Berdermann

  5. SC-Diamond for ToF measurements with relativistic particles: • First beam test with 27Al ions of 2 GeV/amu - Mladen Kis

  6. SC-Diamond for ToF measurements with relativistic particles: • First beam test with 27Al ions of 2 GeV/amu - Mladen Kis

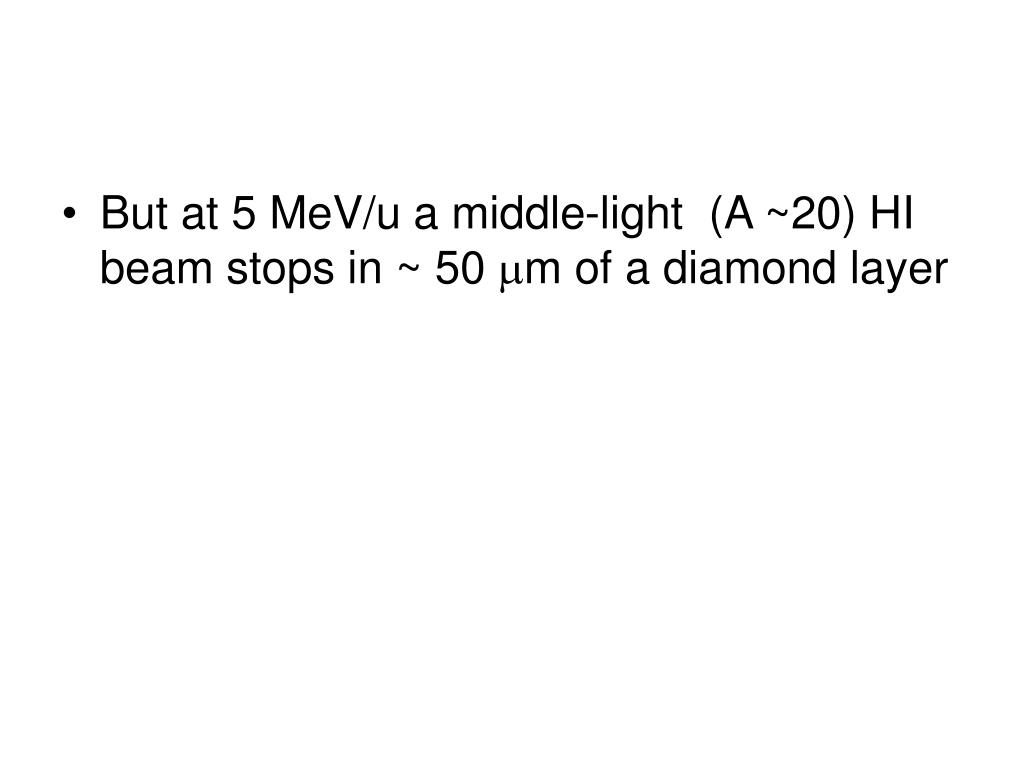

  7. But at 5 MeV/u a middle-light (A ~20) HI beam stops in ~ 50 mm of a diamond layer
