  1. Inquiry and Paging for Bluetooth Piconet and Scatternet Formation in NS Denis Perelyubskiy Vadim Olshansky Vitaliy Dykhne

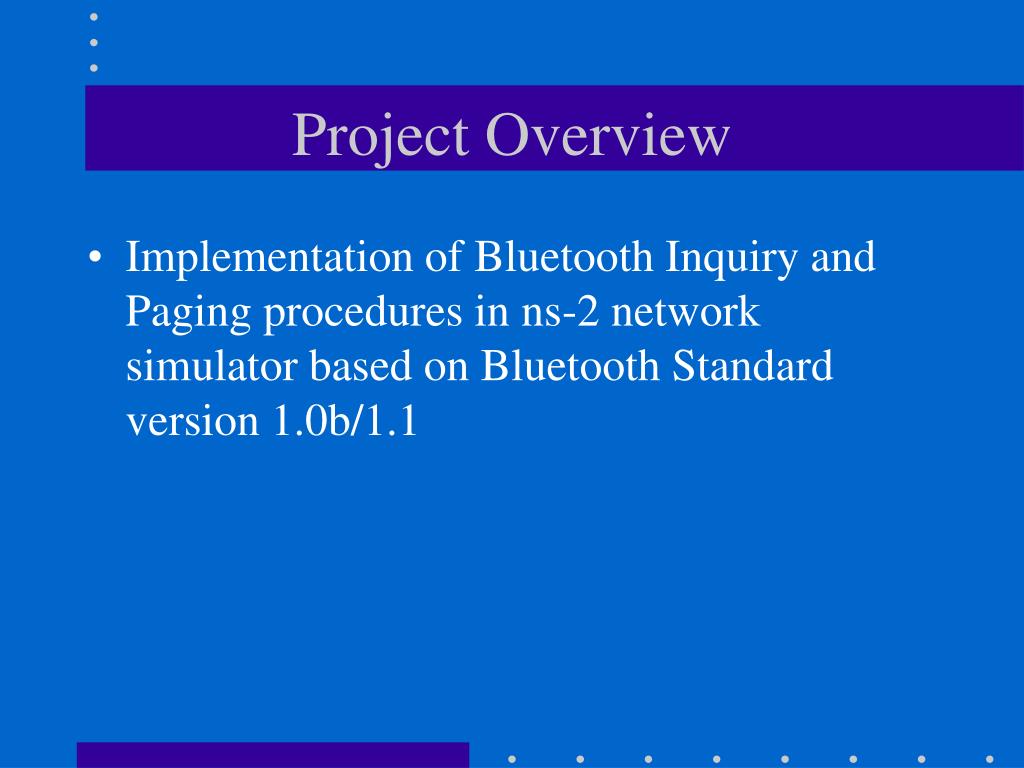

  2. Project Overview • Implementation of Bluetooth Inquiry and Paging procedures in ns-2 network simulator based on Bluetooth Standard version 1.0b/1.1

  3. Project Goals • Implement Link Controller state machine • Implement Frequency Hopping • Simulate node discovery and connection setup to evaluate performance of Bluetooth technology in various scenarios

  4. Link Controller State Machine

  5. Accomplishments • Done • Frequency Hopping • Inquiry Procedure • Paging Procedure (pending resolution of several serious issues) • Limited Performance Analysis of Inquiry Procedure • 3000 lines of code

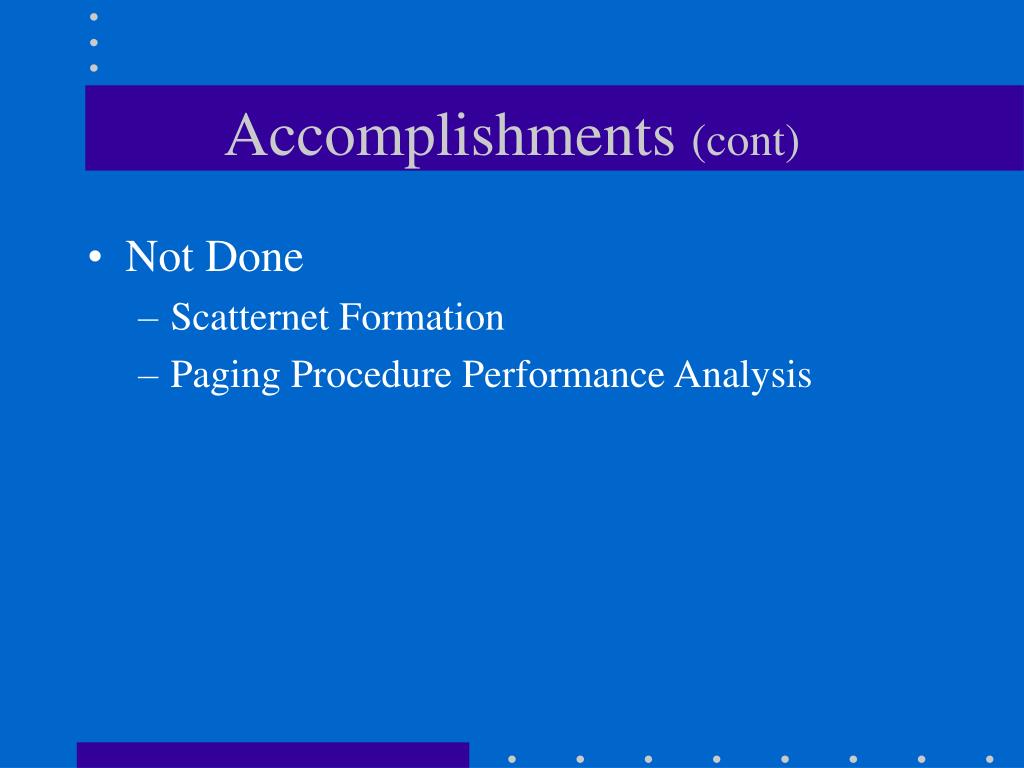

  6. Accomplishments (cont) • Not Done • Scatternet Formation • Paging Procedure Performance Analysis

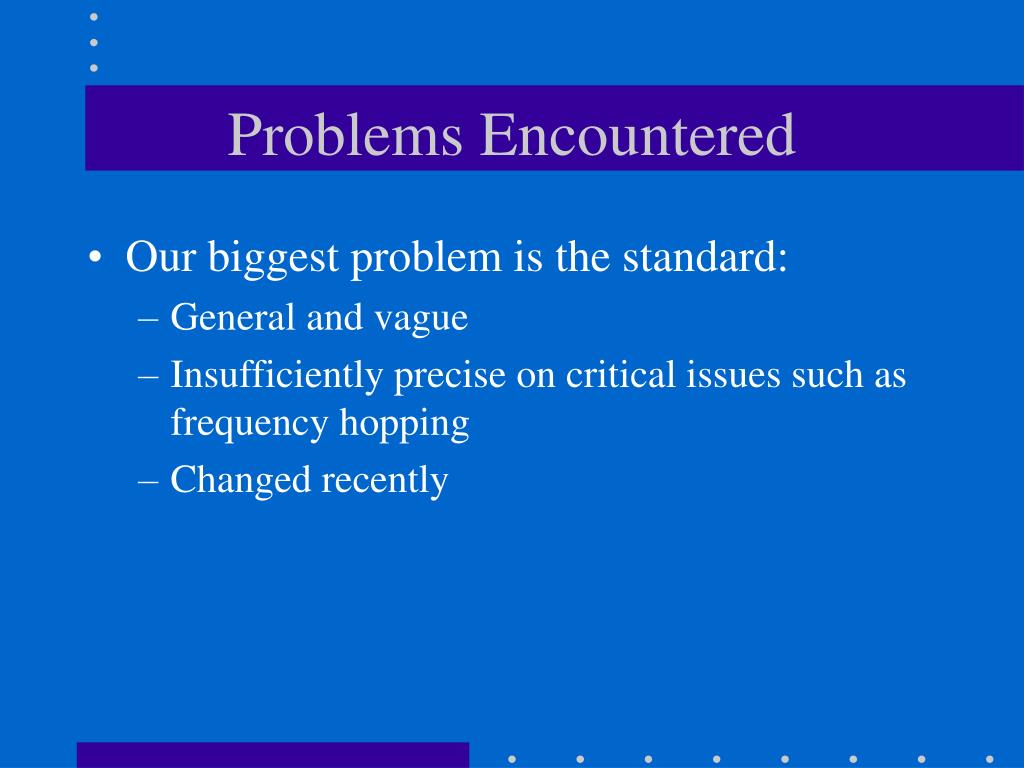

  7. Problems Encountered • Our biggest problem is the standard: • General and vague • Insufficiently precise on critical issues such as frequency hopping • Changed recently

  8. Example of a specific problem • Master needs to operate in both transmit and receive modes while waiting for an ID packet from the bluetooth slave • In page mode “the RX hops are selected according to the page_response hopping sequence” (BT 1.1, 3rd paragraph, page 98) • X control input to the frequency hopping computation is Xprm =[CLKE*16-12+ Koffset* + (CLKE*4-2,0-CLKE*16-12) mod 16 + N]mod32 • here, CLKE* is the “frozen” clock, and k-offset is a “frozen” offset. “The values are frozen when the slave ID packet is received” (section 11.3.3.2 of the BT 1.1 standard)

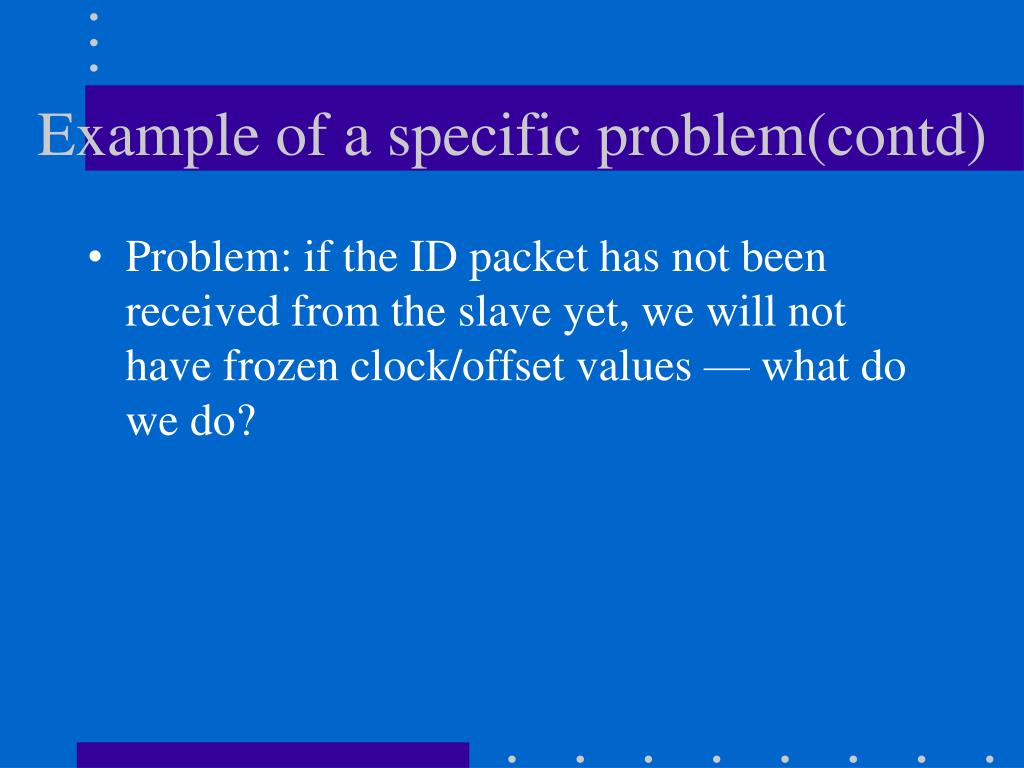

  9. Example of a specific problem(contd) • Problem: if the ID packet has not been received from the slave yet, we will not have frozen clock/offset values — what do we do?

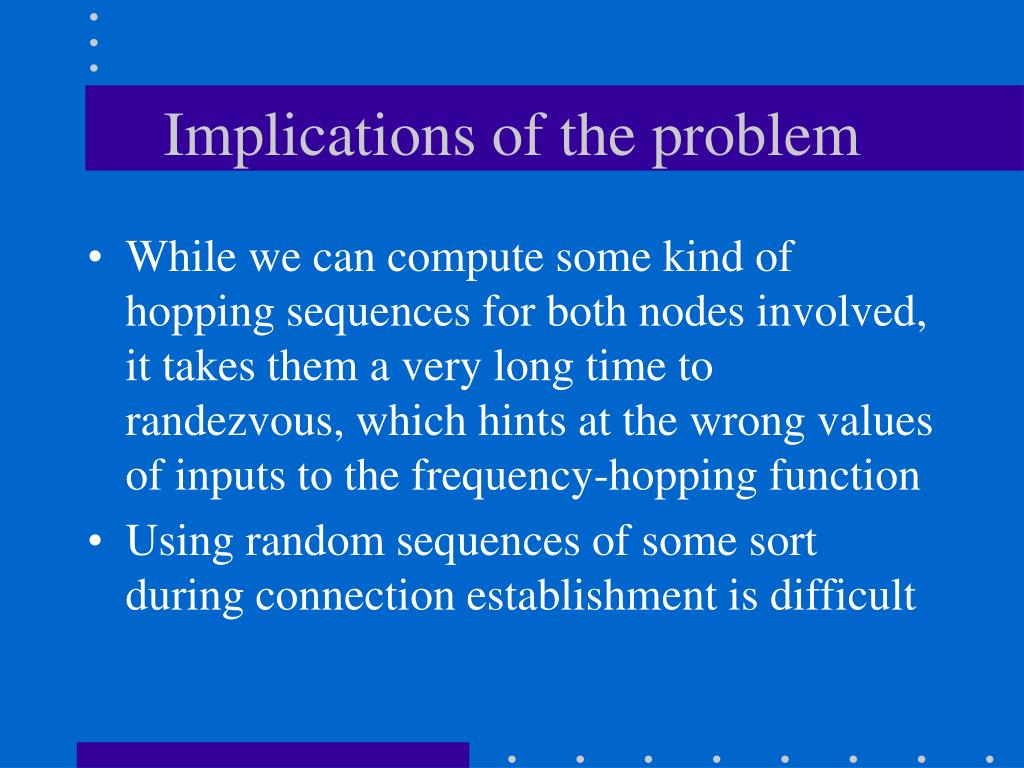

  10. Implications of the problem • While we can compute some kind of hopping sequences for both nodes involved, it takes them a very long time to randezvous, which hints at the wrong values of inputs to the frequency-hopping function • Using random sequences of some sort during connection establishment is difficult

  11. On a brighter side... • We did implement and test the frequency hop computation • validated using sample data at the end of the specification • this means that our function works utilizing “garbage-in-garbage-out” principle: given good inputs, it will produce proper output ; this means to fix 99% of our problems, we just need to clarify the inputs to the function at several controversial states.

  12. Some Simulation Results
