  1. Welcome to WinPond Workshop Demo #1

  2. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  3. Demonstration Problem #1 • Mr. Chan L. Cat wants a pond built on his property in Lamar County, TX for livestock water. Location is 0.7 miles SW of Chicota, TX. This will be a low hazard pond. • The Elevation-Surface Area data in acres: 89.9 – 0.0 96.0 – 1.21 97.0 – 1.60 98.0 – 1.90 99.0 – 3.80 100.0 – 3.90 101.0 – 4.0 102.0 – 4.1 CNTSC-WinPond Workshop DEMO1

  4. Demonstration Problem #1 • Now execute WinPond • Click > File > New • This will automatically pull up the default template that you created previously. CNTSC-WinPond Workshop DEMO1

  5. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  6. Demonstration Problem #1 Location-Lamar County, TX-0.7 miles SW of Chicota, TX Principal Spillway Design Storm-5 yr-24 hr=5.55 inches Freeboard Design Storm=25 yr-24 hr=7.8 inches Allowable Velocity=5.0 fps. "NOT STAKED YARDAGE" CNTSC-WinPond Workshop DEMO1

  7. Demonstration Problem #1 Saving your data • Select “File -> Save” or • “File -> Save As” • or press F10 • Save As-DEMO1.prj • Save frequently CNTSC-WinPond Workshop DEMO1

  8. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  9. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  10. Demonstration Problem #1 • The drainage area data: Land Use: Pasture-47.9 Acres HSG-B-28.9 Acres-Fair HSG-C-19.0 Acres-Good Average Watershed Slope-2% Flow Length-1940 Ft. • Auxiliary Spillway Design Storm-25 yr-24 hr-7.8 inches-Type III • Allowable velocity in the Auxiliary Spillway-5.0 FPS • Auxiliary Spillway velocity without a pipe is 5.6 FPS • The Principal Spillway Design Storm will be 5.55 inches for a 5 yr-24 hr storm. CNTSC-WinPond Workshop DEMO1

  11. Demonstration Problem #1 LAMAR COUNTY CNTSC-WinPond Workshop DEMO1

  12. Demonstration Problem #1 POND #1 CNTSC-WinPond Workshop DEMO1

  13. Demonstration Problem #1 LAMAR COUNTY CNTSC-WinPond Workshop DEMO1

  14. Demonstration Problem #1 LAMAR COUNTY CNTSC-WinPond Workshop DEMO1

  15. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  16. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  17. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  18. Demonstration Problem #1 • Sediment storage required will be: Above Inlet (aerated sediment)= 0.03 AF Below Inlet (submerged sediment) = 0.03 AF • The Principal Spillway Crest will be set at Elevation 96.0. • The landowner wants a pipe drop for his pond. Top width is 12.0 ft. Front and back slopes will be 4:1 No berms are needed Pool Bottom elevation is 89.9 Channel and Outlet elevation is 86.0 Tailwater elevation is 87.5 Outlet extension is 6.0 ft. C/L low point elevation is 87.1 Auxiliary Spillway Exit Slope is 7.4% Conduit Invert is 89.0 CNTSC-WinPond Workshop DEMO1

  19. Demonstration Problem #1 Estimated sediment : 0.06 AF 1/2-Above the inlet (aerated)=0.03AF 1/2-Below the inlet (submerged)=0.03AF. CNTSC-WinPond Workshop DEMO1

  20. Demonstration Problem #1 Reduces the amount of storage available when the floodrouting is done. Used to determine the minimum height for the inlet elevation. CNTSC-WinPond Workshop DEMO1

  21. Demonstration Problem #1 LAMAR COUNTY CNTSC-WinPond Workshop DEMO1

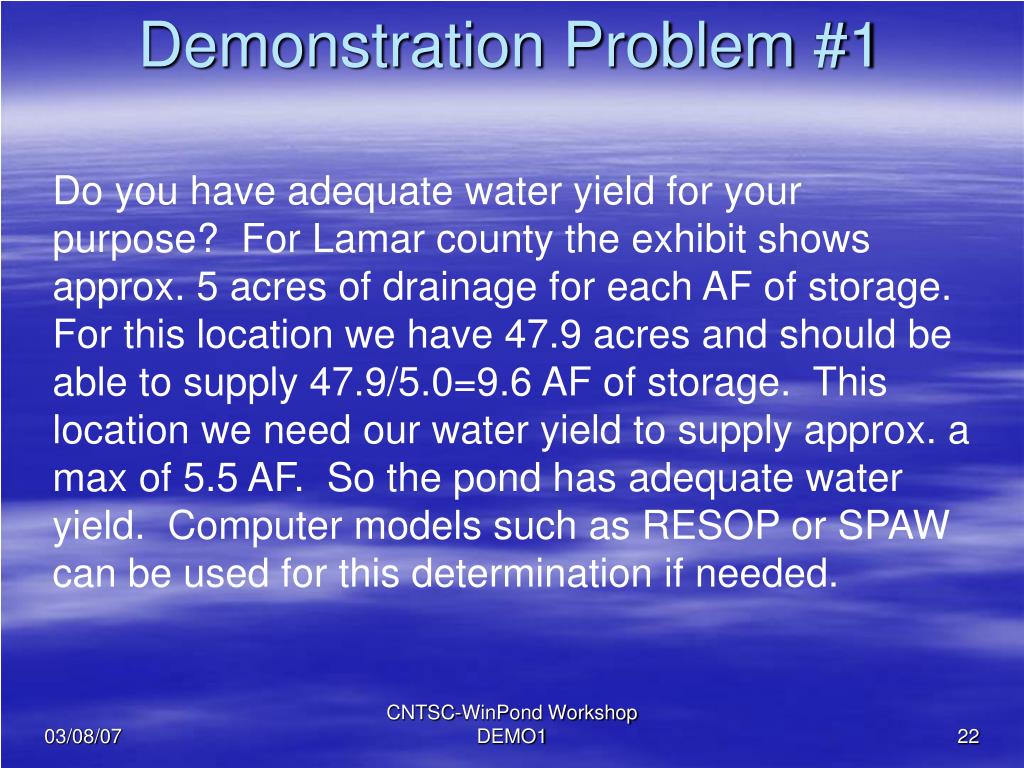

  22. Demonstration Problem #1 Do you have adequate water yield for your purpose? For Lamar county the exhibit shows approx. 5 acres of drainage for each AF of storage. For this location we have 47.9 acres and should be able to supply 47.9/5.0=9.6 AF of storage. This location we need our water yield to supply approx. a max of 5.5 AF. So the pond has adequate water yield. Computer models such as RESOP or SPAW can be used for this determination if needed. CNTSC-WinPond Workshop DEMO1

  23. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  24. Demonstration Problem #1 LAMAR COUNTY CNTSC-WinPond Workshop DEMO1

  25. Demonstration Problem #1 We want to be sure we have adequate depth for long time water storage. Based on this location we should have a minimum water depth of 8 ft. over 25% of the area. We are providing 6.1 ft. (96.0-89.9) of natural depth and will pick up additional depth from the borrow area in front of the pond. For this pond the constructed front bottom depth was El. 86.0 for a depth of 10.0 ft. (96.0-86.0). CNTSC-WinPond Workshop DEMO1

  26. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  27. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  28. Demonstration Problem #1 • We will use three pipe trials, all HCMP-Helical Corrugated Metal Pipe • 12”, 18”, & 24” barrel • Use 18”, 30”, & 40” for riser size. • The inlet extension horizontal distance is 5.0 ft • Use an entrance coefficient of 1.0 • A Manning's “n” value of .011, .013, & .015 will be used • Pipe length is computed based on constructed fill and slopes. CNTSC-WinPond Workshop DEMO1

  29. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  30. Demonstration Problem #1 This is for new pipe. You should add 10-20% to design for aged pipe condition. CNTSC-WinPond Workshop DEMO1

  31. Demonstration Problem #1 List of pipe sizes or direct entree. Accept default “n” or direct entree. CNTSC-WinPond Workshop DEMO1

  32. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  33. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  34. Demonstration Problem #1 • We will use the calculated method. • The auxiliary spillway width is 20 ft. with a C retardance. • The level section is 25 Ft. with 4:1 side slope. • The exit channel will be a C retardance. • The permissible velocity is 5.0 FPS • Length 1 is 65 ft-5%; Length 2 is 105 ft.-5% CNTSC-WinPond Workshop DEMO1

  35. Demonstration Problem #1 An auxiliary spillway will not be routed. Discharge will be calculated as in DAMS2 A file containing stage-discharge data will be read. Qe values will be read from the file ASFILE (same format as in DAMS2) CNTSC-WinPond Workshop DEMO1

  36. Demonstration Problem #1 Discharge will be calculated as in DAMS2 CNTSC-WinPond Workshop DEMO1

  37. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  38. Demonstration Problem #1 The top of fill elevation can be changed, but only to a larger value. CNTSC-WinPond Workshop DEMO1

  39. Demonstration Problem #1 “Use New Pipe Length” This will return you to T-7, Principal Routing screen to run through the calculations with the new pipe length. CNTSC-WinPond Workshop DEMO1

  40. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  41. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  42. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  43. Demonstration Problem #1 NOTE: To change H.I. or % ground slope, double click on Elev. Or Dist. Field. NOTE: Negative distance are upstream of centerline. CNTSC-WinPond Workshop DEMO1

  44. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  45. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  46. Demonstration Problem #1 Station----Upstream RR/Distance---CL---Downstream RR/Distance 0+00 8.5 / 6.0 8.5 8.5 / 6.0 0+25 9/0 / 8.0 9.0 9.0 / 8.0 0+75 10.7 / 10.0 10.7 10.7 / 10.0 0+95 12.5 / 21.2 12.5 12.5 / 21.2 1+15 14.2 / 27.6 14.4 14.0 / 27.2 1+35 15.1 / 31.6 15.3 15.0 / 31.2 2+05 18.8 / 46.4 21.6 22.3 / 60.4 2+56 16.7 / 38.0 17.2 17.7 / 42.0 3+13 8.7 / 8.0 8.7 8.7 / 8.0 3+50 6.0 / 6.0 6.0 6.0 / 6.0 CNTSC-WinPond Workshop DEMO1

  47. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  48. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  49. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1

  50. Demonstration Problem #1 CNTSC-WinPond Workshop DEMO1
