Setting up ixp1200 linux
Setting up IXP1200 Linux

Fei Chen

CAPSL

Electrical & Computer Engineering

University of Delaware



Hardware needed
Hardware Needed

  • IXP1200 Evaluation System

  • Linux PC running Red Hat 6.2+ for building the Linux Kernel

  • NT 4.0 SP5+ for developer workbench to develop microcode for IXP1200

  • Serial Cable, Ethernet hub etc.


Software needed
Software needed

  • Red Hat Linux 6.2

  • Cross Hosted Big Endian Arm toolchain for Linux

  • IXP12DE Software Development Tools


Linux boot up sequence on ixp1200
Linux Boot up Sequence on IXP1200

  • Load boot up image in flash;

  • Download "zImage" (Linux kernel image) & "ramdisk_img.gz" (Ramdisk for Linux) to DRAM from Linux PC via tftp;

  • Boot up Linux image in DRAM;

  • Login and reconfigure the IP address and NFS client

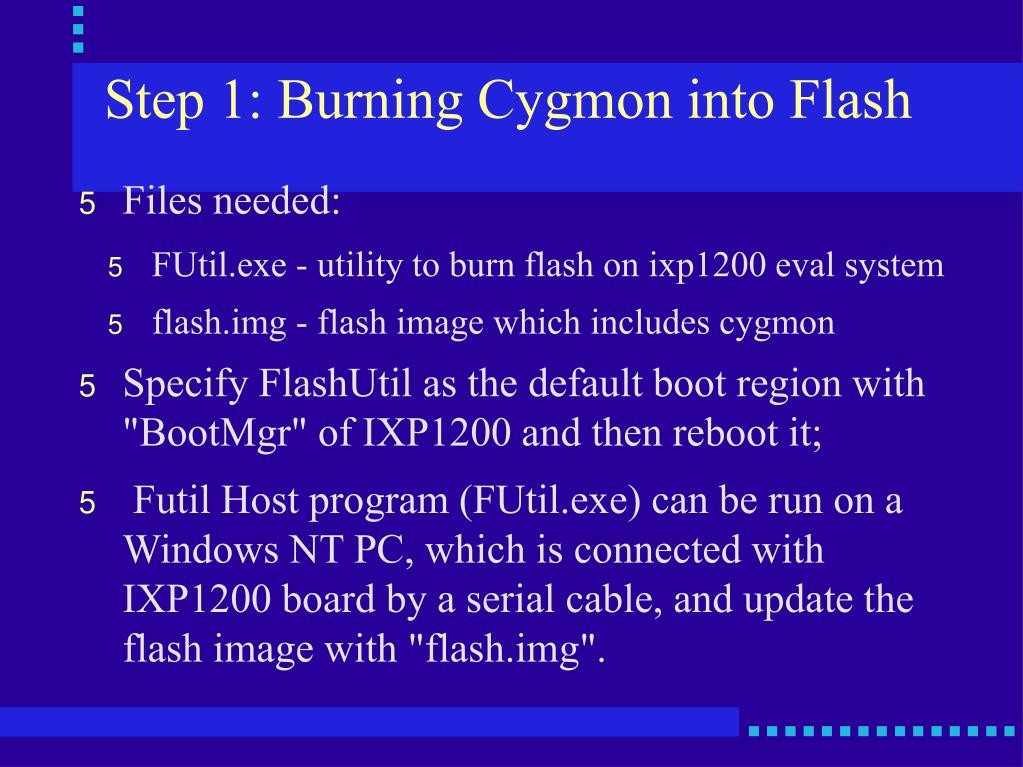

Step 1 burning cygmon into flash
Step 1: Burning Cygmon into Flash

  • Files needed:

    • FUtil.exe - utility to burn flash on ixp1200 eval system

    • flash.img - flash image which includes cygmon

  • Specify FlashUtil as the default boot region with "BootMgr" of IXP1200 and then reboot it;

  • Futil Host program (FUtil.exe) can be run on a Windows NT PC, which is connected with IXP1200 board by a serial cable, and update the flash image with "flash.img".


Step 2 configure cygmon
Step 2: Configure Cygmon

  • Specify Cygmon as the default boot region with "BootMgr" of IXP1200 and then reboot the eval system;

  • At the cygmon prompt, setup a static IP address for the eval system and also the IP address of the remote system (the Linux PC with tftp service);

  • After the tftp server on remote system is ready, type command "gl" to download the Linux kernel and ramdisk, and then boot linux


Step 3 using minicom as virtual terminal
Step 3: Using Minicom as Virtual Terminal

  • Delete the modem device with "rm -f /dev/modem"

  • Create a soft link between the modem device and ttyS0 with"ln -s /dev/ttyS0 /dev/modem

  • Run minicom and setup serial port for 9600 8N1 and no flow control

  • Using Minicom scripts can accelerate initialization procedures

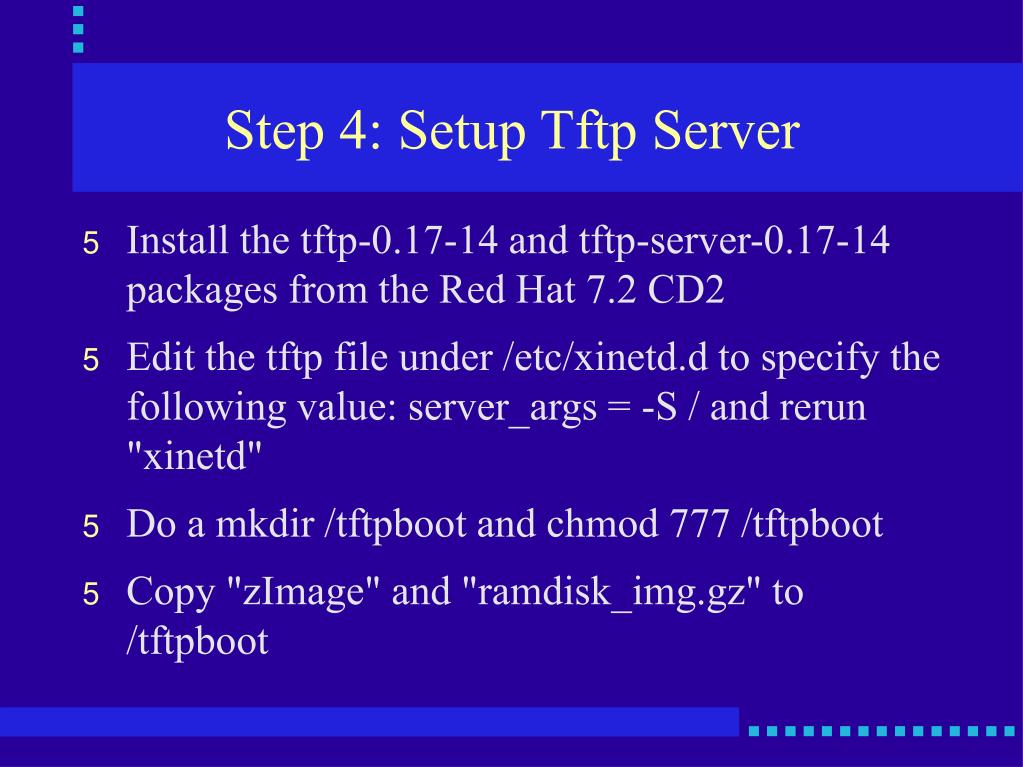

Step 4 setup tftp server
Step 4: Setup Tftp Server

  • Install the tftp-0.17-14 and tftp-server-0.17-14 packages from the Red Hat 7.2 CD2

  • Edit the tftp file under /etc/xinetd.d to specify the following value: server_args = -S / and rerun "xinetd"

  • Do a mkdir /tftpboot and chmod 777 /tftpboot

  • Copy "zImage" and "ramdisk_img.gz" to /tftpboot


Step 5 setting up nfs server
Step 5: Setting up NFS server

  • Check to see whether the nfs-utils-0.3.1-12 package is already installed on the workstation and install it if necessary.

  • In the file /etc/exports add one line:ip-addr: /nfsdir * (rw)

  • Run exportfs -a to make your changes take effect

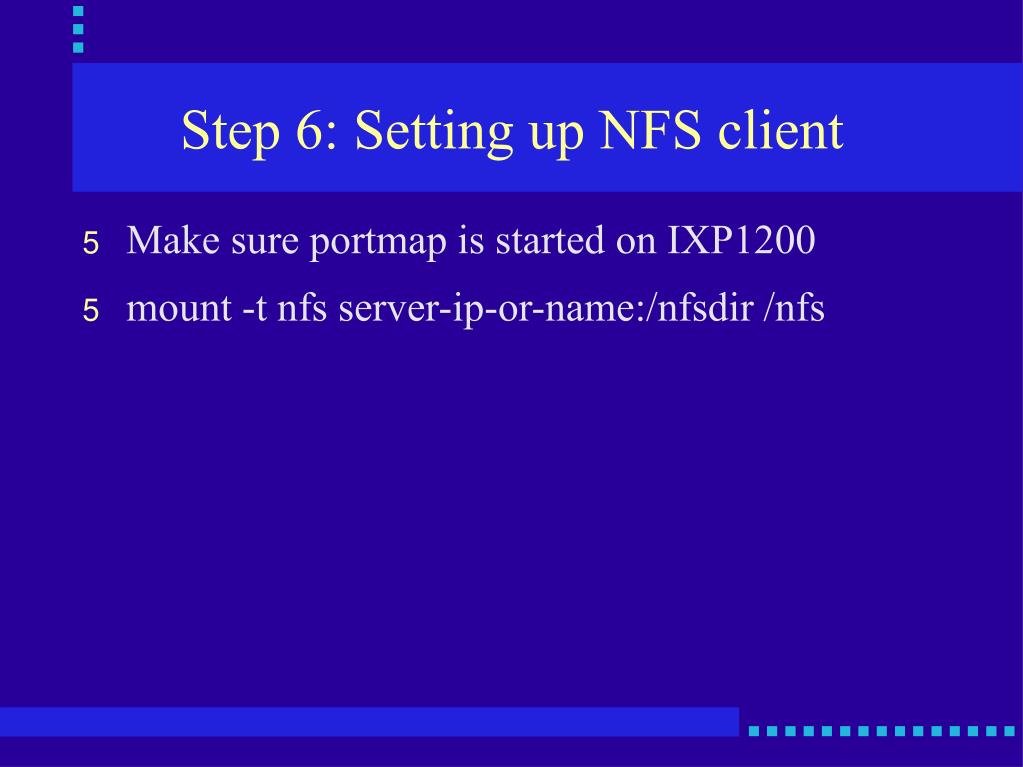

Step 6 setting up nfs client
Step 6: Setting up NFS client

  • Make sure portmap is started on IXP1200

  • mount -t nfs server-ip-or-name:/nfsdir /nfs


Step 7 using cross hosted toolchain
Step 7: Using Cross Hosted Toolchain

  • Add to your path /usr/local/armbe/bin

  • Use ixp1200_linux.tar.gz to compile and install armtoolchain

  • Compile your code likearmv4b-unknown-linux-gcc -mbig-endian hello.c -o hello

  • -EB should be passed to the linker likearmv4b-unknown-linux-ld -EB hello.o foo.o -o hello


Step 8 using gdb remotely
Step 8: Using GDB Remotely

  • Download gdb from ftp://ftp.netwinder.org/users/u/urnaik/gdband replace the /usr/bin/gdb with this one

  • Compile your code with -g option

  • Ftp (or nfs) the binary into the ramdisk of the IXP1200

  • On IXP1200 type: gdbserver <hostip>:<port number> <binary> <arguments>

  • On the host type: gdb <binary> and then on the gdb prompt type: target remote <ixp1200-ipaddr>:<port number>


Using the microcode workbench
Using the Microcode Workbench

  • On the IXP1200 running Linux, either run DNS or add the name of the NT host to the /etc/hosts file

  • Load ue.o (microengine module) and start rs_udebug daemon on IXP1200 cardinsmod /lib/modules/ue.ors_udebug &

  • Start the workbench on NT workstation and connect to Linux target by specifying its IP address.
