Specifying Soils for Complex Landscapespresentation outline

Soil Design Strategies

• Natural vs Blended

• Simple vs Complex

Specifying Blended Soils

•components

• mix ratios vs use

• specification controls

Teardrop Park

• horticultural strategy

• specifications

Robert Pine, PE, MLA, ASLA

Pine&Swallow

ENVIRONMENTAL

slide2

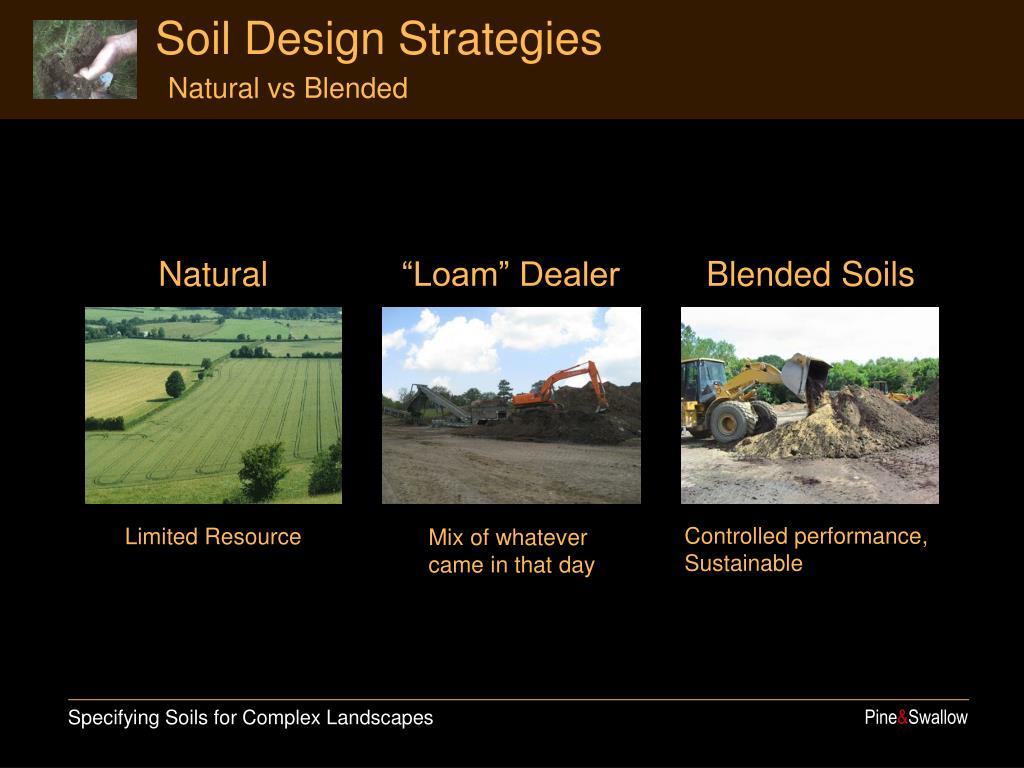

Soil Design StrategiesNatural vs Blended

Natural

“Loam” Dealer

Blended Soils

Controlled performance,

Sustainable

Limited Resource

Mix of whatever

came in that day

Pine&Swallow

Specifying Soils for Complex Landscapes

simple vs complex landscapes

Soil Design StrategiesNatural vs Blended

Simple vs Complex Landscapes

Tanglewood

Teardrop Park

Pine&Swallow

Specifying Soils for Complex Landscapes

slide4

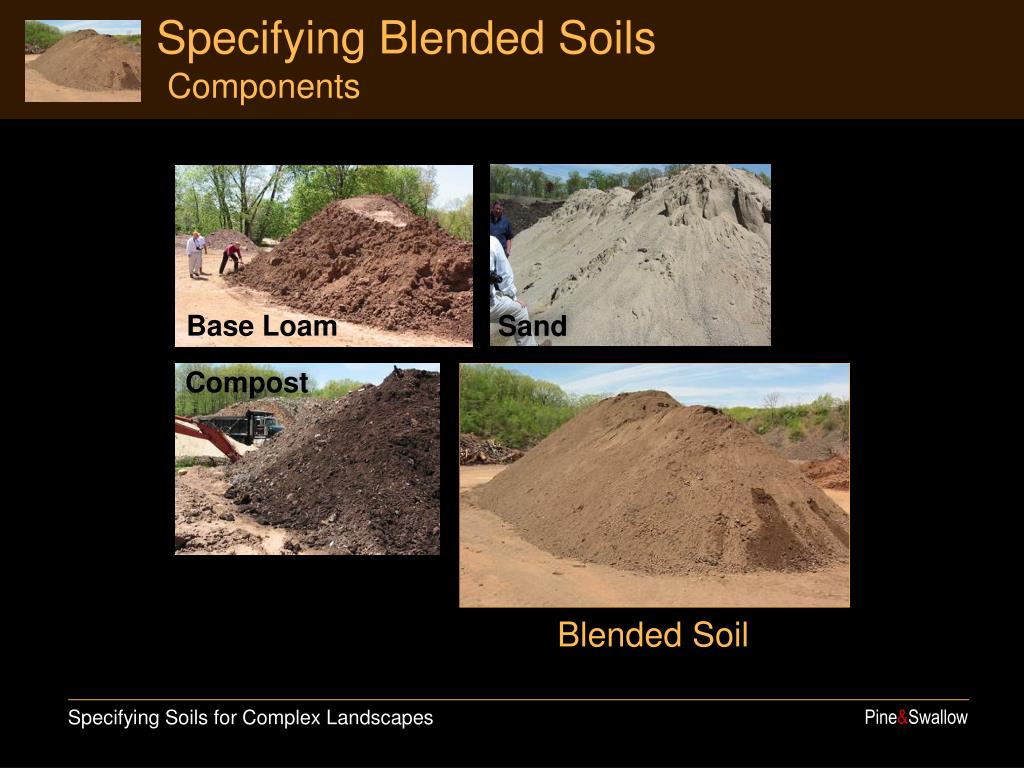

Specifying Blended Soils Components

Sand

Base Loam

Compost

Blended Soil

Pine&Swallow

Specifying Soils for Complex Landscapes

slide5

Specifying Blended Soils Components

Natural Topsoil

Provides

• silt and clay particles

• stable organics

• cation exchange capacity

• natural soil biology

As percentage in a blend increases

• nutrient and water holding capacities ↑

• infiltration rate and aeration ↓

• resistance to compaction ↓

Note:

Good quality topsoil is

required for appropriate

gradation, organics and soil biology.

Pine&Swallow

Specifying Soils for Complex Landscapes

slide6

Specifying Blended Soils Components

Uniform Coarse Sand

Provides

• structure

• macropore space

As percentage in a blend increases

• aeration ↑

• infiltration rate ↑

• resistance to compaction ↑

• water holding capacity ↓

• nutrient holding capacity ↓

Note:

Well graded sand reduces

aeration, infiltration and resistance

to compaction!

Pine&Swallow

Specifying Soils for Complex Landscapes

slide7

Specifying Blended Soils Components

Mature Compost

Provides

• organic content

• micro-organisms

As percentage in a blend increases

• water holding capacity ↑

• soil biology ↑

• resistance to compaction ↑

• resistance to anaerobic conditions ↓

Note:

Immature compost creates bad soil biology and increased vulnerability to anaerobic conditions.

Pine&Swallow

Specifying Soils for Complex Landscapes

slide8

Specifying Blended Soils Specification Controls

Primary Mix Design Specifications

Purpose

• define the soil blend

• control soil properties

• Estimated Mix Ratio for each soil

• Grain Size Distribution

• Coefficient of Uniformity

• Organic Content

• Horticultural Requirements (CEC, pH, nutrients, etc.)

• Compaction Range

• Saturated Hydraulic Conductivity at maximum compaction

Pine&Swallow

Specifying Soils for Complex Landscapes

slide9

Specifying Blended Soils Specification Controls

Primary Process Specifications

Purpose

• Testing and confirmation of base materials: sand, loam, compost

• Testing to confirm mix ratios

• Batch production and testing prior to delivery for quality control

• Handling and Placement procedures

• Control of wet soils

  • Ensure quality control
  • Protect soil quality

Pine&Swallow

Specifying Soils for Complex Landscapes

slide10

Teardrop Park Horticultural Strategy

Pine&Swallow

Specifying Soils for Complex Landscapes

slide11

Teardrop Park Specifications

High Use Turf

  • Soil Requirements
  • • Withstand heavy use
  • • High infiltration rate

Specifications

Mix Ratio * 3S : 1.5L : 1C

% passing 270 sieve 11 -14%

Uniformity ratio D70/D20 < 4.5

Organic content 4 - 5%

Compaction 86 - 88%

Hydraulic conductivity > 4 inches/hr

* S = Sand L = Base Loam C = Compost

Pine&Swallow

Specifying Soils for Complex Landscapes

slide12

Teardrop Park Specifications

Passive Use Lawn

(not used at Teardrop Park)

Specifications

Mix Ratio * 2S : 1.5L : 1C

% passing 270 sieve 15 - 18%

Uniformity ratio D70/D20 < 5.0

Organic content 4 - 6%

Compaction 84 - 86%

Hydraulic conductivity > 3 inches/hr

* S = Sand L = Base Loam C = Compost

  • Soil Requirements
  • • Withstand moderate use
  • • Moderate infiltration rate
  • • Reduced water requirements

Pine&Swallow

Specifying Soils for Complex Landscapes

slide13

Teardrop Park Specifications

Horticultural Subsoil

  • Soil Requirements:
  • • rooting zone for trees / shrubs
  • • free draining
  • • not vulnerable to anaerobics

Specifications

Mix Ratio * 2S : 1L

% passing 270 sieve 14 - 18%

Uniformity ratio D70/D20 < 6.0

Organic content 2 - 3%

Compaction 82 - 85%

Hydraulic conductivity > 2 inches/hr

* S = Sand L = Base Loam C = Compost

Pine&Swallow

Specifying Soils for Complex Landscapes

slide14

Teardrop Park Specifications

Trees with understory

no ground cover

Specifications

Mix Ratio * 2S : 1L : 3C

% passing 270 sieve 11 - 16%

Uniformity ratio D70/D20 < 6.0

Organic content 9 - 11%

Compaction 84 - 86%

Hydraulic conductivity > 3 inches/hr

* S = Sand L = Base Loam C = Compost

  • Soil Requirements:
  • • recreate natural forest soil profile
  • • encouraging shallow feeder roots
  • • deep rooting in horticultural subsoil

Pine&Swallow

Specifying Soils for Complex Landscapes

slide15

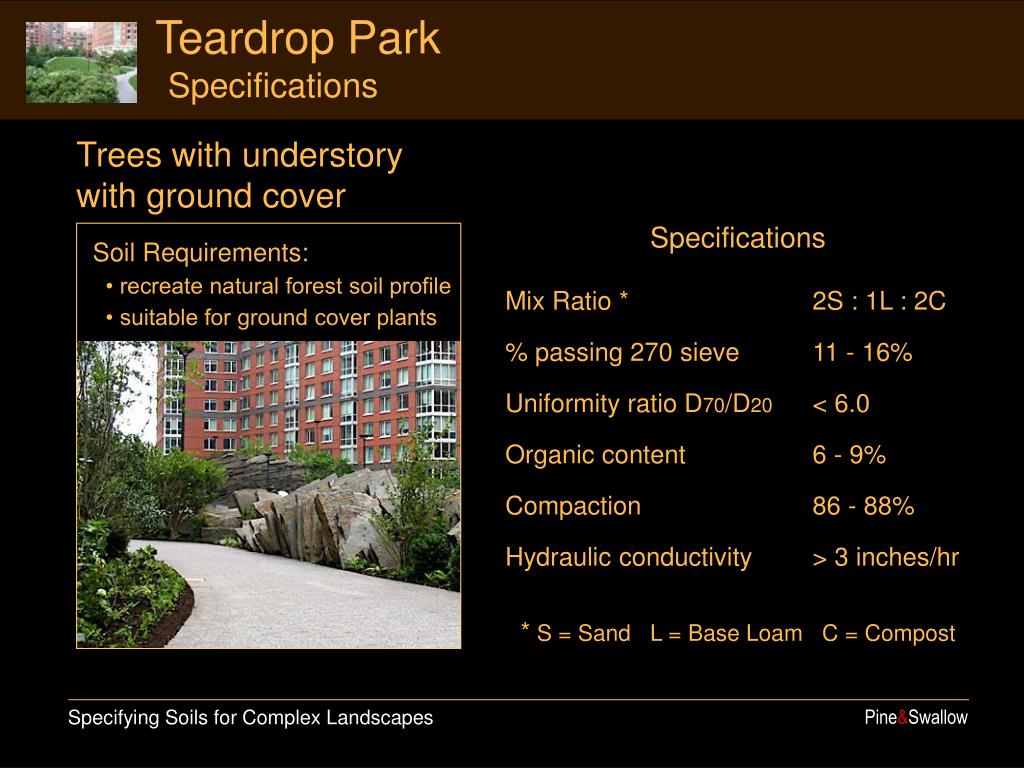

Teardrop Park Specifications

Trees with understory

with ground cover

  • Soil Requirements:
  • • recreate natural forest soil profile
  • • suitable for ground cover plants

Specifications

Mix Ratio * 2S : 1L : 2C

% passing 270 sieve 11 - 16%

Uniformity ratio D70/D20 < 6.0

Organic content 6 - 9%

Compaction 86 - 88%

Hydraulic conductivity > 3 inches/hr

* S = Sand L = Base Loam C = Compost

Pine&Swallow

Specifying Soils for Complex Landscapes

slide16

Teardrop Park Specifications

Marsh Planting Soil

Specifications

Mix Ratio * 1S : 2C

% passing 270 sieve 8 - 12%

Uniformity ratio D70/D20 < 4.5

Organic content 10 - 12%

Compaction 82 - 85%

Hydraulic conductivity > 4 inches/hr

Note: Medium Sand not Coarse

* S = Sand L = Base Loam C = Compost

  • Soil Requirements:
  • • saturated conditions
  • • support wetland plantings
  • • high water holding capacity

Pine&Swallow

Specifying Soils for Complex Landscapes

slide17

Teardrop Park Specifications

Boulder Base Mix

  • Soil Requirements:
  • • structural support for
  • heavy boulders
  • • horticultural support for plantings

Specifications

Mix Ratio:

1 part 1.5 to 2 inch crushed stone

1 part tree soil mix

Placed beneath heavy boulders

and compacted thoroughly

Pine&Swallow

Specifying Soils for Complex Landscapes

slide18

Teardrop Park Specifications

Steep slopes

  • Soil Requirements:
  • • provide long term stability
  • • protection from erosion
  • • tree horticultural support

Specifications

Mix Ratio:

2 to 4 oz fibers per cubic foot

thoroughly mixed with

planting soil

Placed and compacted to normal compaction range for specified planting medium

Pine&Swallow

Specifying Soils for Complex Landscapes

slide19

Teardrop Park Specifications

Trees in paved areas

  • Soil Requirements:
  • • provide tree rooting volume
  • • provide support for pavement
  • • prevent settlements

Specifications

Mix Ratio * 4S : 1L : 1C

% passing 270 sieve 7 - 9%

Uniformity ratio D70/D20 < 3

Organic content 2 - 3%

Compaction 92 - 94%

Hydraulic conductivity > 6 inches/hr

* S = Sand L = Base Loam C = Compost

Pine&Swallow

Specifying Soils for Complex Landscapes

specifying soils for complex landscapes recap

Specifying Soils for Complex Landscapesrecap

Soil Design Strategies

• Natural vs Blended

• Simple vs Complex

Specifying Blended Soils

•components

• mix ratios vs use

• specification controls

Teardrop Park

• horticultural strategy

• specifications

Robert Pine, PE, ASLA

Pine&Swallow

ENVIRONMENTAL
