The Origins and Ionization Mechanisms of Warm Filaments in Cool Core Clusters

The Origins and Ionization Mechanisms of Warm Filaments in Cool Core Clusters. Michael McDonald Postdoctoral Associate - MIT Kavli Institute. In collaboration with: S. Veilleux (UMd), R. Mushotzky (UMd), D. Rupke (Rhodes), C. Reynolds (UMd). Agenda. Introduction

artie
Download Presentation

The Origins and Ionization Mechanisms of Warm Filaments in Cool Core Clusters

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Origins and Ionization Mechanisms of Warm Filaments in Cool Core Clusters Michael McDonaldPostdoctoral Associate - MIT Kavli Institute In collaboration with:S. Veilleux (UMd), R. Mushotzky (UMd), D. Rupke (Rhodes), C. Reynolds (UMd)

  2. Agenda • Introduction • Multiphase gas, youngstars in cool core clusters • X-ray-Hα correlations • Evidence for ICM cooling • Global vs local influenceson Ha filaments • Hα filaments in the far-UV • Summary & Future Work Structure in Clusters and Groups of Galaxies in the Chandra Era

  3. Introduction • The presence of warm, ionized gas has been noted in the cores of several cooling flow clusters to date. • Typically radial filamentscentered on the BCG • Surface brightness istoo high by orders ofmagnitude to be ICMcooling through 104 K. • Unanswered questions: • Where did the gascome from? • What is the ionizationsource? Perseus A, Conselice et al. 2001 Structure in Clusters and Groups of Galaxies in the Chandra Era

  4. Motivation & Sample Selection • Potential sources of gas: • Starburst/AGN wind • Stripped from infalling, gas-rich galaxies • X-ray cooling flow • Buoyant radio bubbles • Potential sources of heat: • Cosmic ray ionization • AGN • Young stellar populations • Conduction from ICM • Ionization by ICM X-rays • In order to isolate the source of cool gas and the ionization mechanism, we assembled a sample of cool core and non-cool core clusters. • 33 systems (23 clusters, 10 groups) • Full sample has X-ray (CXO), Hα (MMTF), optical (Magellan), and radio (FIRST/SUMSS) data. Structure in Clusters and Groups of Galaxies in the Chandra Era

  5. A Multiwavelength Database Structure in Clusters and Groups of Galaxies in the Chandra Era

  6. A Multiwavelength Database • Matching spatialresolution at X-ray (fwhm ~ 0.9”), Hα (fwhm~ 0.8”) and FUV (fwhm~0.5”) • Allows a direct spatialcomparison betweenthe hot, warm, andstar-forming phases • Correlation betweenX-ray and Hα morphology • Can properly separatecontributions fromthe nucleus (AGN) andfilaments (Optical) (X-ray) (Ha) Structure in Clusters and Groups of Galaxies in the Chandra Era

  7. RESULTS: X-ray – Ha Correlations THE WARM, IONIZED GAS IS A BYPRODUCT OF THE COOLING ICM! • Only see Hα in cool cores • Hα flux correlated w/ X-ray cooling rate LHα • Hα emission is constrained to within the X-ray cooling radius • Hot ICM is cooling more rapidly inregions w/ Hα emission by an order of magnitude kT (<100kpc) dM/dtspec Rcool (kpc) kTin/kTout nin/nout Kin/Kout tc,in/tc,out RHα (kpc) Structure in Clusters and Groups of Galaxies in the Chandra Era

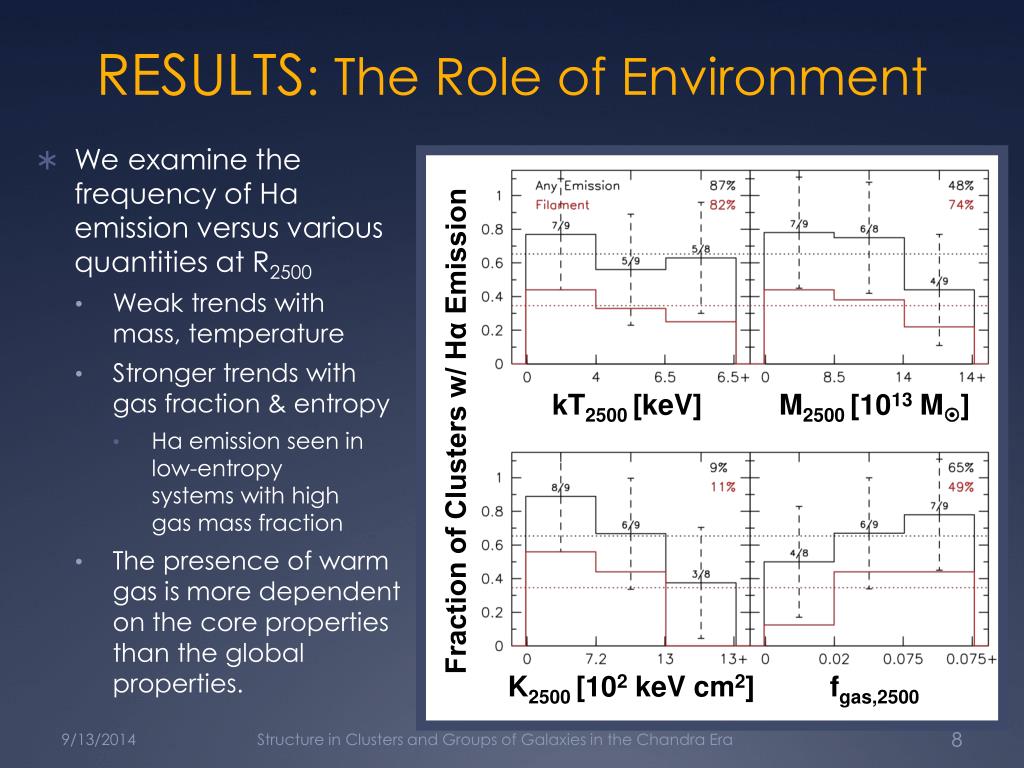

  8. RESULTS: The Role of Environment • We examine thefrequency of Hαemission versus variousquantities at R2500 • Weak trends withmass, temperature • Stronger trends withgas fraction & entropy • Hα emission seen inlow-entropysystems with highgas mass fraction • The presence of warmgas is more dependenton the core properties than the global properties. kT2500 [keV] M2500 [1013 M] Fraction of Clusters w/ Hα Emission K2500 [102 keV cm2] fgas,2500 Structure in Clusters and Groups of Galaxies in the Chandra Era

  9. RESULTS: Star-forming Filaments STARS ARE FORMING OUT OF THE COOLING ICM AND PHOTO-IONIZING THE COOLING GAS! • Ha emission is spatially correlated w/ clumpy FUV emission (HST) • Ha flux is correlated w/ FUV flux and is consistent w/ ongoing star formation • SFR is correlated w/ X-ray cooling rate* average efficiency of ~15% isconsistent w/ Universal baryon fraction LFUV [erg/s/Hz] LHα [erg/s] SFE = SFR/(dM/dt) Structure in Clusters and Groups of Galaxies in the Chandra Era

  10. Summary • Warm (104 K), Hα-emitting gas is a byproduct of the cooling intracluster medium • McDonald et al. (2010) • Hα mass is correlated with the X-ray cooling rate • Warm gas only seen in clusters with cool cores • Hα filaments live in regions cooling an order of magnitude faster than surrounding ICM • The presence of multiphase gas is only weakly dependent on the global mass/temperature of the cluster, and strongly dependent on entropy gas fraction • McDonald et al. (2011a) • In ~ 2/3 of cases, the Hα filaments are star-formation-heated • McDonald et al. (2011b) • Strong correlation between FUV and Hα flux and morphology • Mid-IR, UV and Hα-determined star formation rates are consistent with a conversion of 15% of the X-ray cooling flow into stars. Structure in Clusters and Groups of Galaxies in the Chandra Era

  11. A Sneak Peak… • McDonald et al. (2011; in prep) • Combining long-slit spectroscopy from Keck & Magellan w/ Hα imaging to produce pseudo-2D spectra • E.g., spatial distributionof velocity dispersion • Extended, thinfilaments havenarrow emissionlines • Nuclei and “disturbed”filaments havesignificantly broaderlines. σv Structure in Clusters and Groups of Galaxies in the Chandra Era

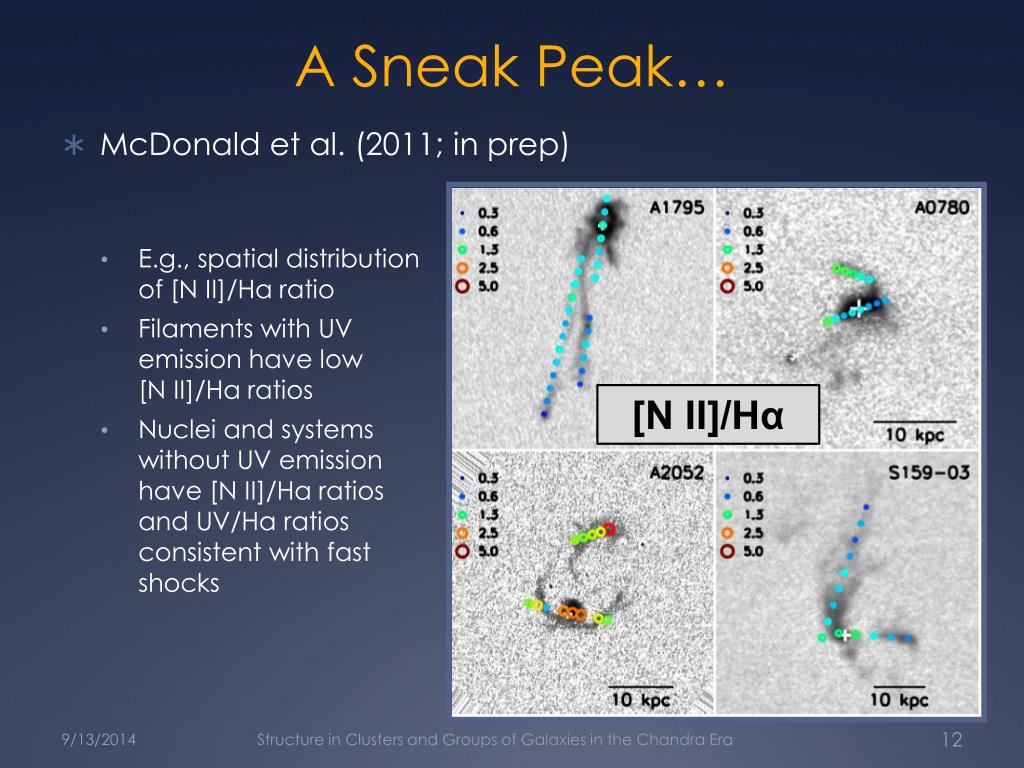

  12. A Sneak Peak… • McDonald et al. (2011; in prep) • E.g., spatial distributionof [N II]/Hα ratio • Filaments with UVemission have low[N II]/Hα ratios • Nuclei and systemswithout UV emissionhave [N II]/Hα ratiosand UV/Hα ratiosconsistent with fastshocks [N II]/Hα Structure in Clusters and Groups of Galaxies in the Chandra Era
