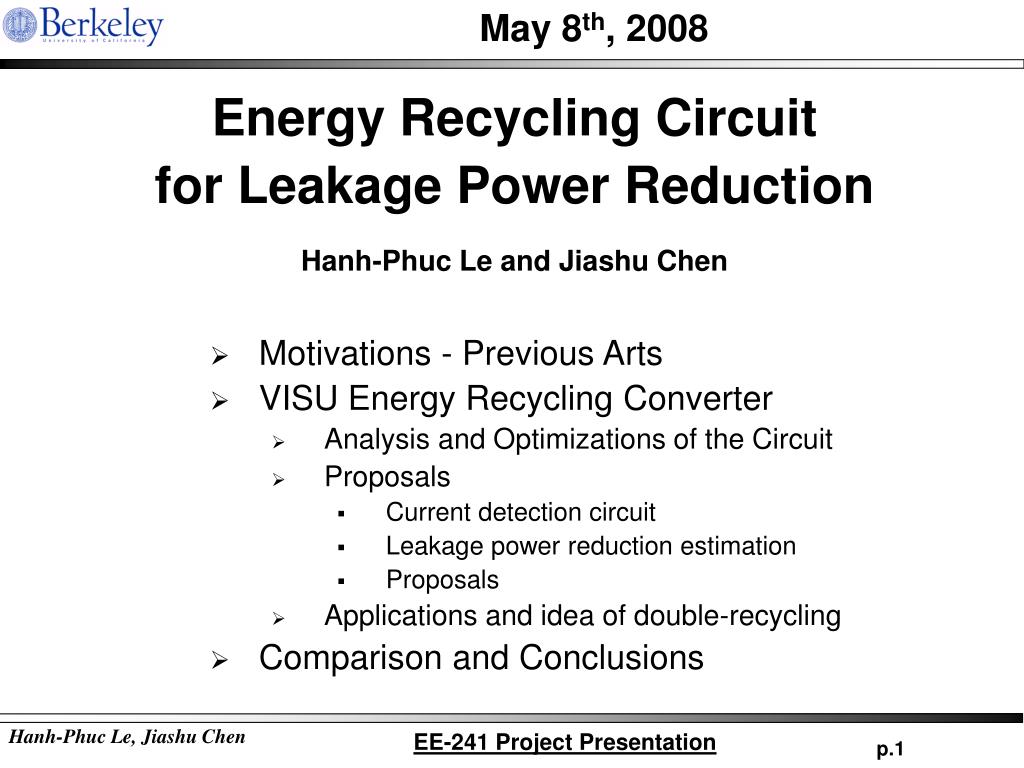

May 8 th 2008

Energy Recycling Circuit

for Leakage Power Reduction

Hanh-Phuc Le and Jiashu Chen

Motivations - Previous Arts

VISU Energy Recycling Converter

Analysis and Optimizations of the Circuit

Proposals

Current detection circuit

Leakage power reduction estimation

Proposals

Applications and idea of double-recycling

Comparison and Conclusions

May 8th, 2008


Motivations

Technology Scaling (α):

Vdd  Vdd / α

but Idd  Idd * α

and density increases α2

Motivations

Surging Power Density …

… leads to the need for Power reduction techniques

PLeakage : 30%-40% Ptotal

 Power increase α2


Leakage power reduction reported work

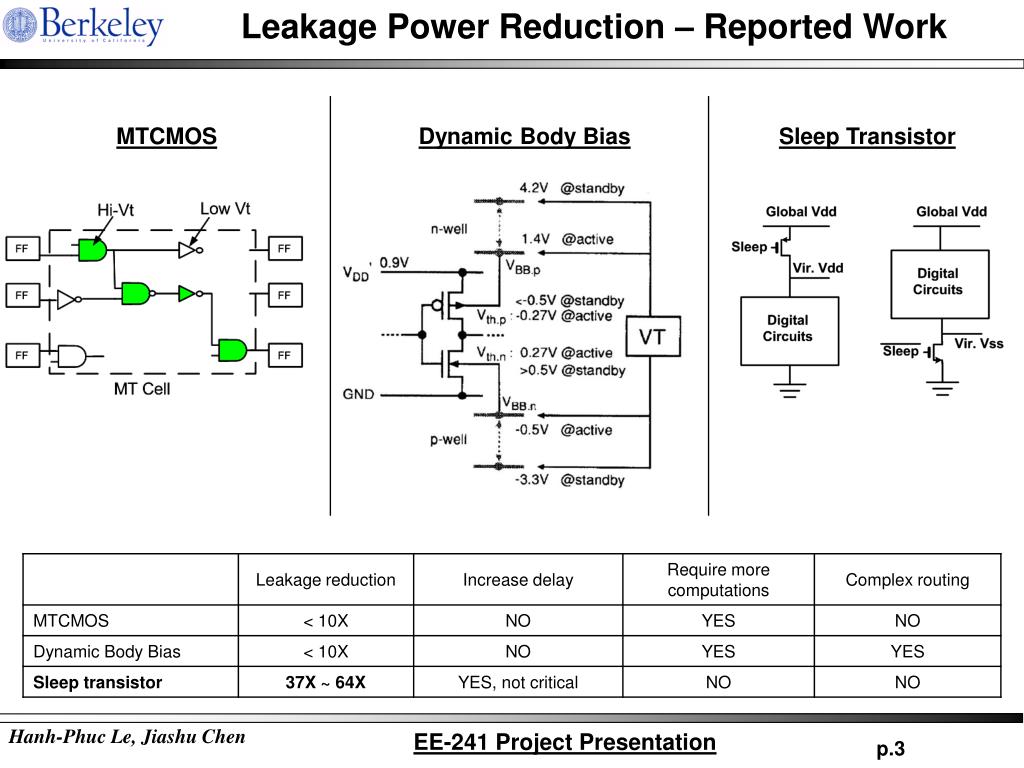

Leakage Power Reduction – Reported Work

MTCMOS

Dynamic Body Bias

Sleep Transistor


De coupling capacitor de cap

De-coupling Capacitor (de-cap)

Solutions for Leakage Reduction at De-cap

  • Zigzag [3-4]

    • Staking effect

    • Require more routings and computational efforts.

    • Savings of 80%-90%

K.S. Min (ISSCC 2003)

  • Charge Sharing [5]

    • Short 2 virtual rails

    • Require matched caps

    • Ideal savings of 50%

E. Pakbaznia (2006)


Outlines

Outlines

  • Motivations - Previous Arts

  • VISU Energy Recycling Converter

    • Analysis and Optimizations of the Circuit

    • Proposals

      • Current detection circuit

      • Energy savings optimization

      • Leakage power reduction estimation

    • Applications and idea of double-recycling

  • Comparison and Conclusions


Variable input step up visu converter

Variable-Input Step-up (VISU) Converter

  • Advantages:

    • Efficiently return energy of the de-cap to Global Vdd.

    • Suppress residual leakage to be minimum.

    • No effect on the operation and robustness of the main circuit.

    • Simple and flexible


Modified current detector

Modified Current Detector

Y.J. Woo (ISSCC 2008)

  • Characteristics:

    • Fast response, accurate

    • Replicable for PMOS current sense

    • Simple


Energy savings optimization

Energy Savings - Optimization

Saved Energy

Available Energy

Energy Loss

Energy Loss

  • Performance:

    • Recycle 59 nJ / 65 nJ available

      • Effi = 91 %

    • Fast convergence time: 800ns

  • Setup:

    • Decap = 130 nF

    • L = 2 nH, ESR = 0.2 Ω

    • 45nm Hi-K CMOS Tech.


Leakage power savings

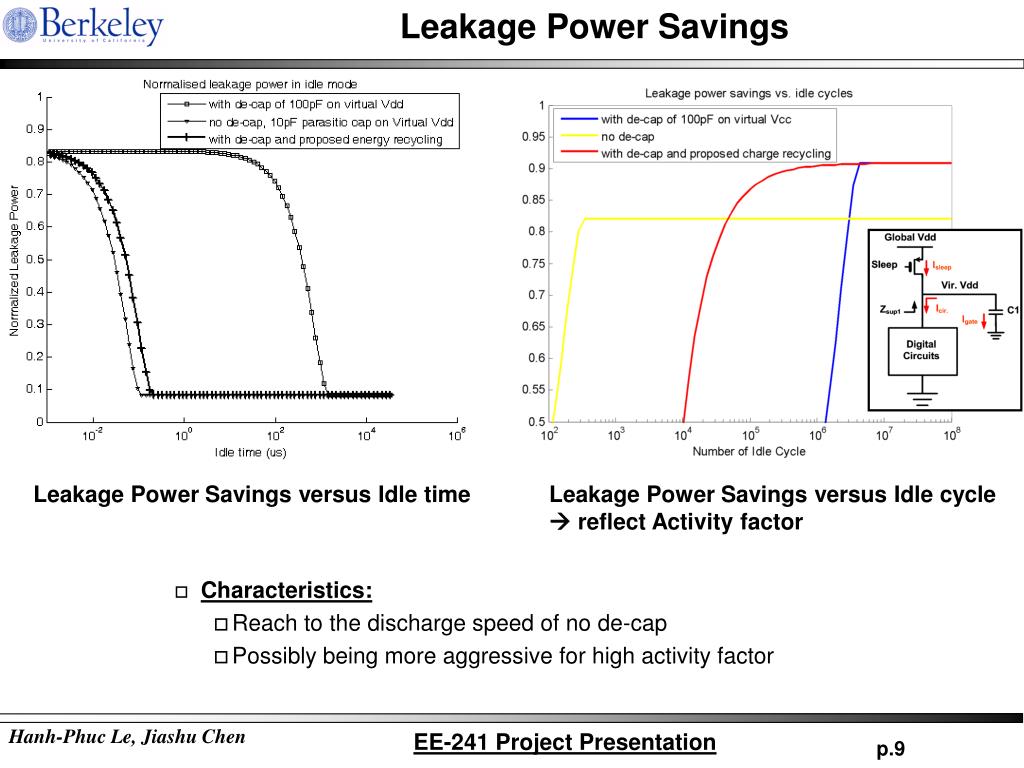

Leakage Power Savings

Leakage Power Savings versus Idle time

Leakage Power Savings versus Idle cycle

 reflect Activity factor

  • Characteristics:

    • Reach to the discharge speed of no de-cap

    • Possibly being more aggressive for high activity factor


Proposed to recycle visu converter conclusion

Proposed to Recycle VISU Converter - Conclusion

Idea to Recycle the Energy-Recycling VISU Converter

Sleep-mode Energy-Recycling VISU Converter


Acknowledgements

Professor Bora Nikolic

Professor Elad Alon

Kevin Mullally and Cory Helpdesk for help in simulation tools.
