  1. Pre-Keying Jesse Walker and Emily Qi Intel Corporation Jesse Walker and Emily Qi, Intel Corporation

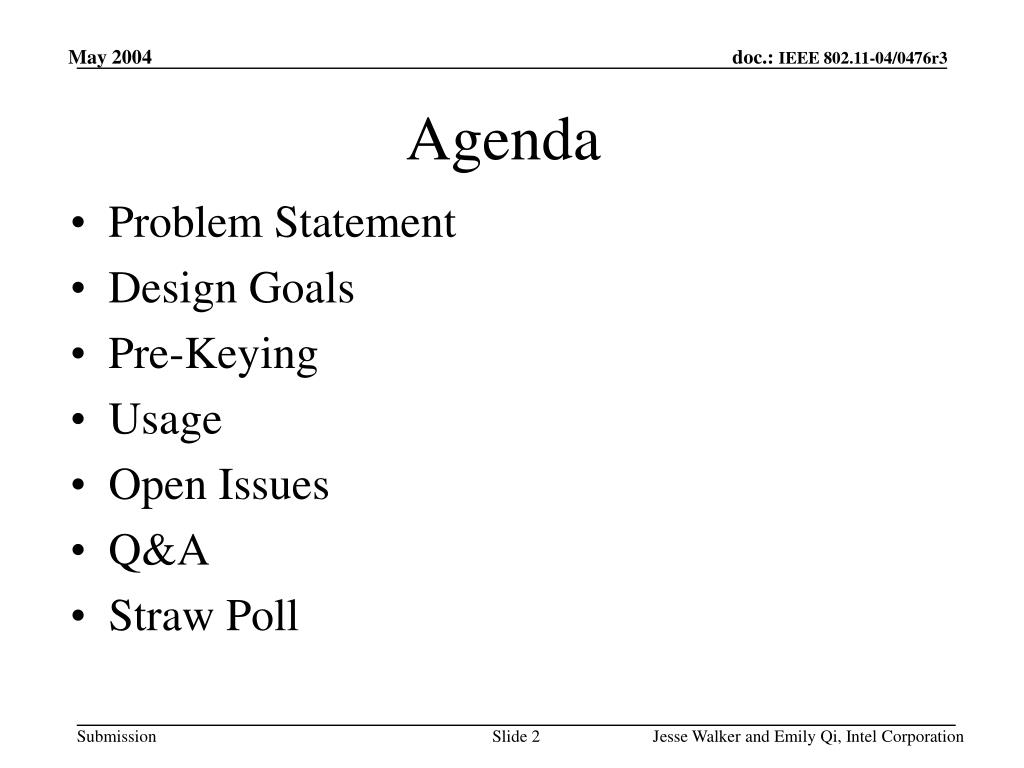

  2. Agenda • Problem Statement • Design Goals • Pre-Keying • Usage • Open Issues • Q&A • Straw Poll Jesse Walker and Emily Qi, Intel Corporation

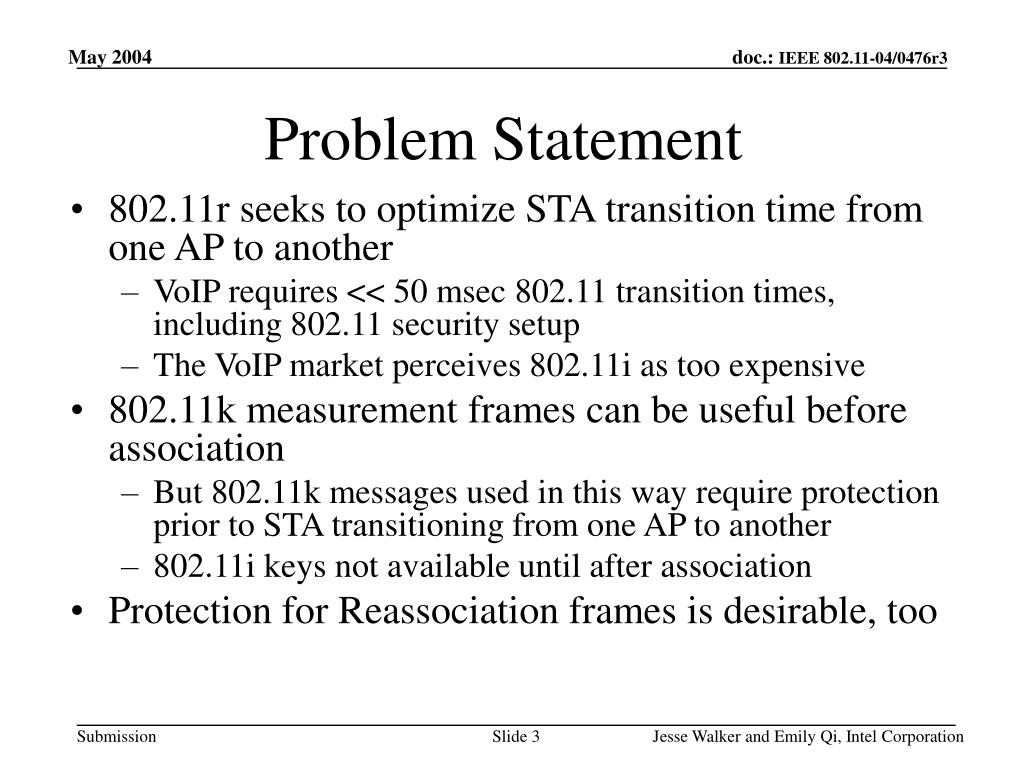

  3. Problem Statement • 802.11r seeks to optimize STA transition time from one AP to another • VoIP requires << 50 msec 802.11 transition times, including 802.11 security setup • The VoIP market perceives 802.11i as too expensive • 802.11k measurement frames can be useful before association • But 802.11k messages used in this way require protection prior to STA transitioning from one AP to another • 802.11i keys not available until after association • Protection for Reassociation frames is desirable, too Jesse Walker and Emily Qi, Intel Corporation

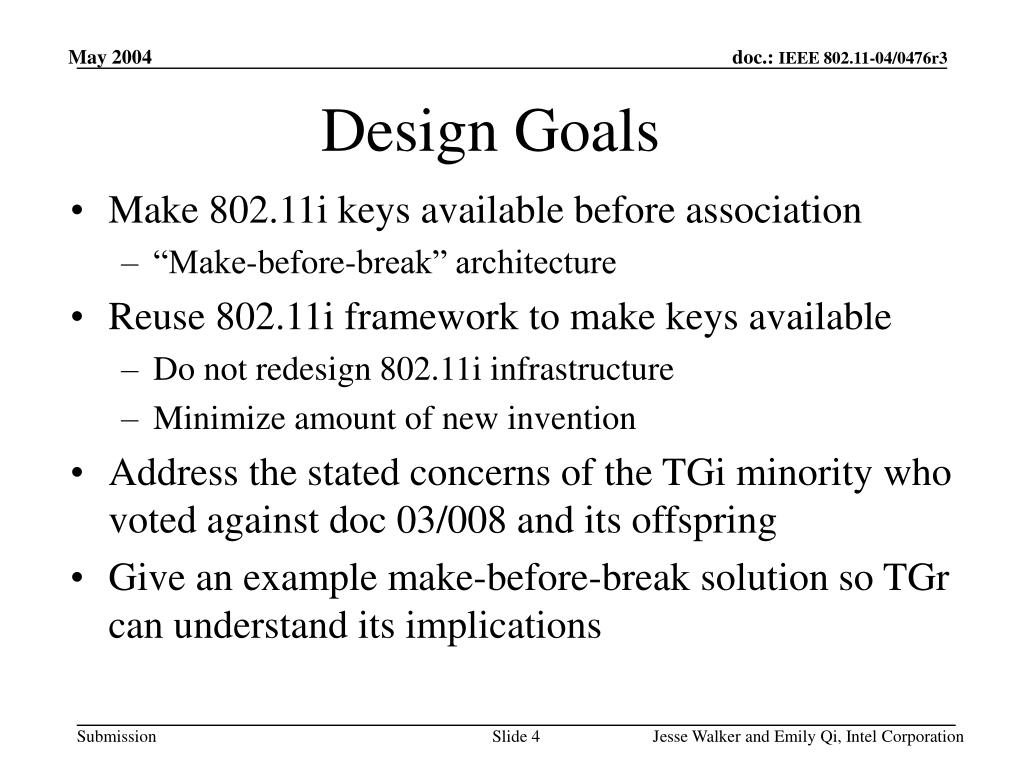

  4. Design Goals • Make 802.11i keys available before association • “Make-before-break” architecture • Reuse 802.11i framework to make keys available • Do not redesign 802.11i infrastructure • Minimize amount of new invention • Address the stated concerns of the TGi minority who voted against doc 03/008 and its offspring • Give an example make-before-break solution so TGr can understand its implications Jesse Walker and Emily Qi, Intel Corporation

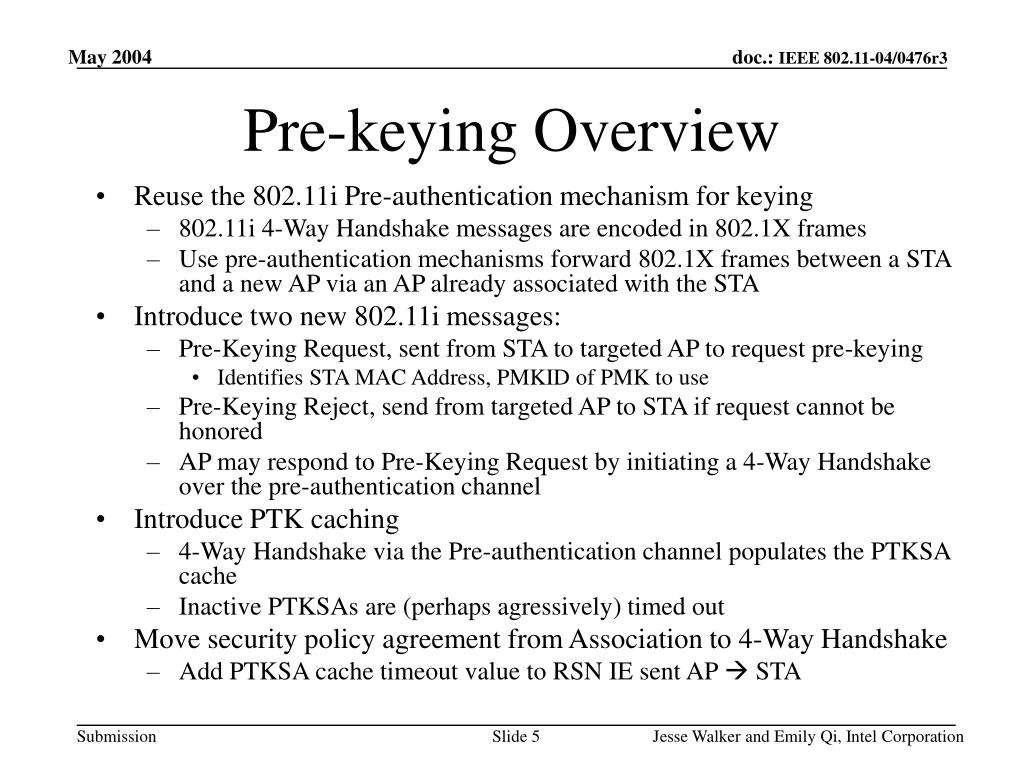

  5. Pre-keying Overview • Reuse the 802.11i Pre-authentication mechanism for keying • 802.11i 4-Way Handshake messages are encoded in 802.1X frames • Use pre-authentication mechanisms forward 802.1X frames between a STA and a new AP via an AP already associated with the STA • Introduce two new 802.11i messages: • Pre-Keying Request, sent from STA to targeted AP to request pre-keying • Identifies STA MAC Address, PMKID of PMK to use • Pre-Keying Reject, send from targeted AP to STA if request cannot be honored • AP may respond to Pre-Keying Request by initiating a 4-Way Handshake over the pre-authentication channel • Introduce PTK caching • 4-Way Handshake via the Pre-authentication channel populates the PTKSA cache • Inactive PTKSAs are (perhaps agressively) timed out • Move security policy agreement from Association to 4-Way Handshake • Add PTKSA cache timeout value to RSN IE sent AP  STA Jesse Walker and Emily Qi, Intel Corporation

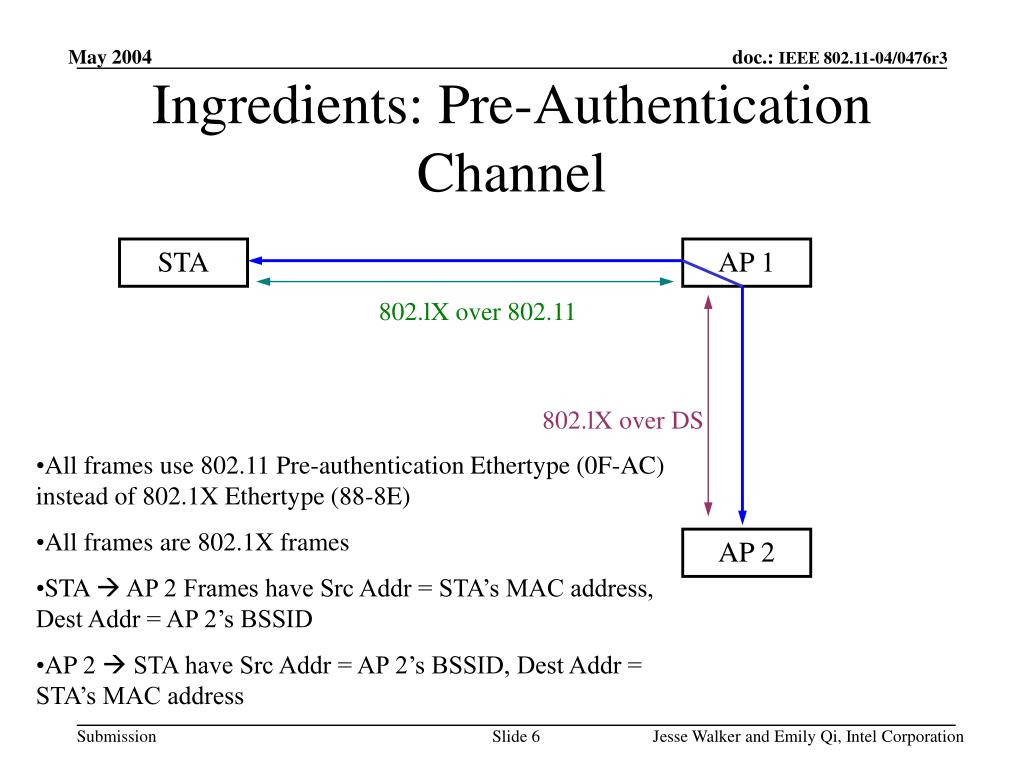

  6. 802.lX over 802.11 802.lX over DS Ingredients: Pre-Authentication Channel STA AP 1 • All frames use 802.11 Pre-authentication Ethertype (0F-AC) instead of 802.1X Ethertype (88-8E) • All frames are 802.1X frames • STA  AP 2 Frames have Src Addr = STA’s MAC address, Dest Addr = AP 2’s BSSID • AP 2  STA have Src Addr = AP 2’s BSSID, Dest Addr = STA’s MAC address AP 2 Jesse Walker and Emily Qi, Intel Corporation

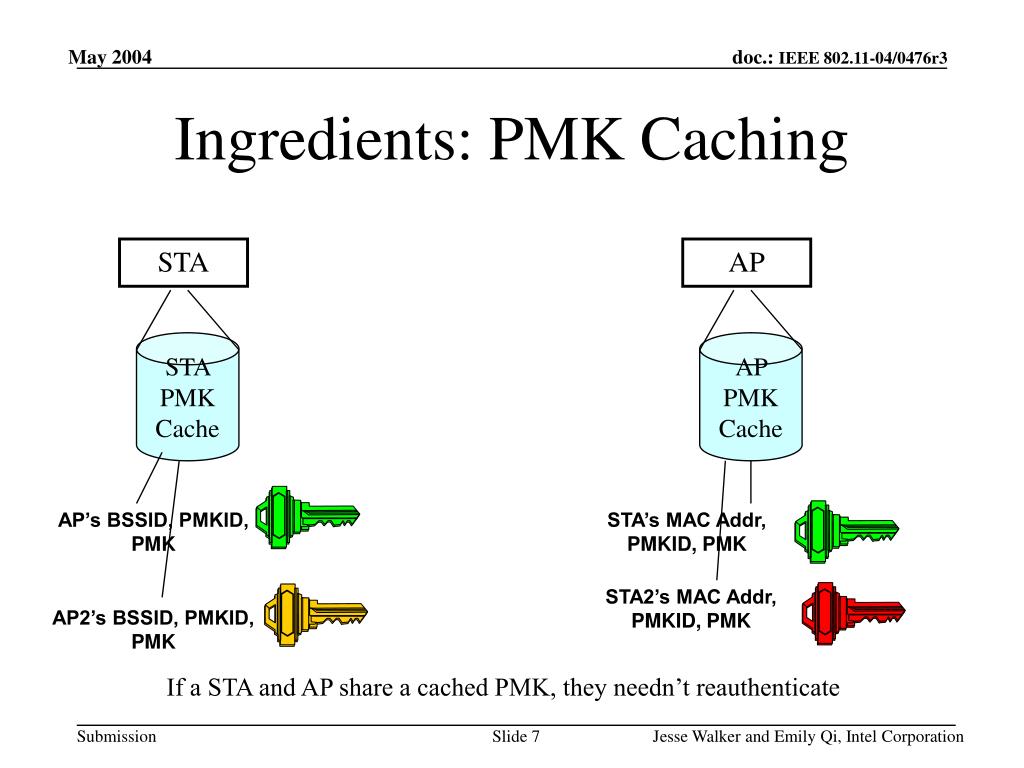

  7. AP’s BSSID, PMKID, PMK STA’s MAC Addr, PMKID, PMK AP2’s BSSID, PMKID, PMK STA PMK Cache AP PMK Cache STA2’s MAC Addr, PMKID, PMK Ingredients: PMK Caching STA AP If a STA and AP share a cached PMK, they needn’t reauthenticate Jesse Walker and Emily Qi, Intel Corporation

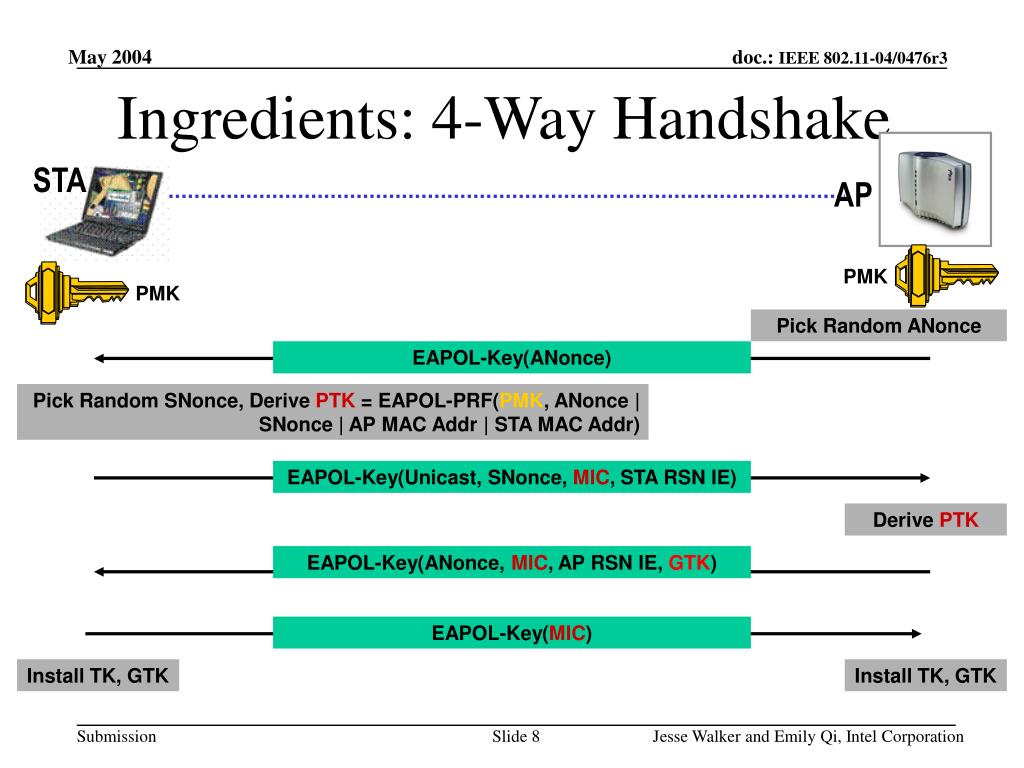

  8. STA PMK PMK EAPOL-Key(ANonce) EAPOL-Key(Unicast, SNonce,MIC, STA RSN IE) EAPOL-Key(ANonce,MIC, AP RSN IE, GTK) Install TK, GTK Install TK, GTK EAPOL-Key(MIC) Ingredients: 4-Way Handshake AP Pick Random ANonce Pick Random SNonce, Derive PTK = EAPOL-PRF(PMK, ANonce | SNonce | AP MAC Addr | STA MAC Addr) Derive PTK Jesse Walker and Emily Qi, Intel Corporation

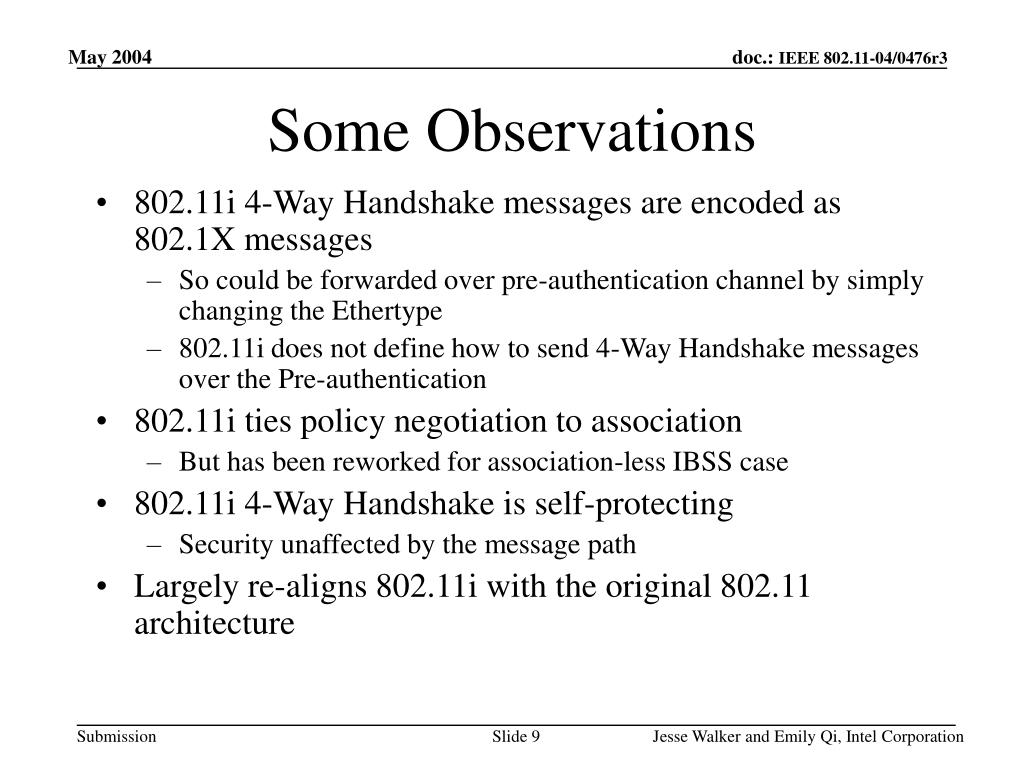

  9. Some Observations • 802.11i 4-Way Handshake messages are encoded as 802.1X messages • So could be forwarded over pre-authentication channel by simply changing the Ethertype • 802.11i does not define how to send 4-Way Handshake messages over the Pre-authentication • 802.11i ties policy negotiation to association • But has been reworked for association-less IBSS case • 802.11i 4-Way Handshake is self-protecting • Security unaffected by the message path • Largely re-aligns 802.11i with the original 802.11 architecture Jesse Walker and Emily Qi, Intel Corporation

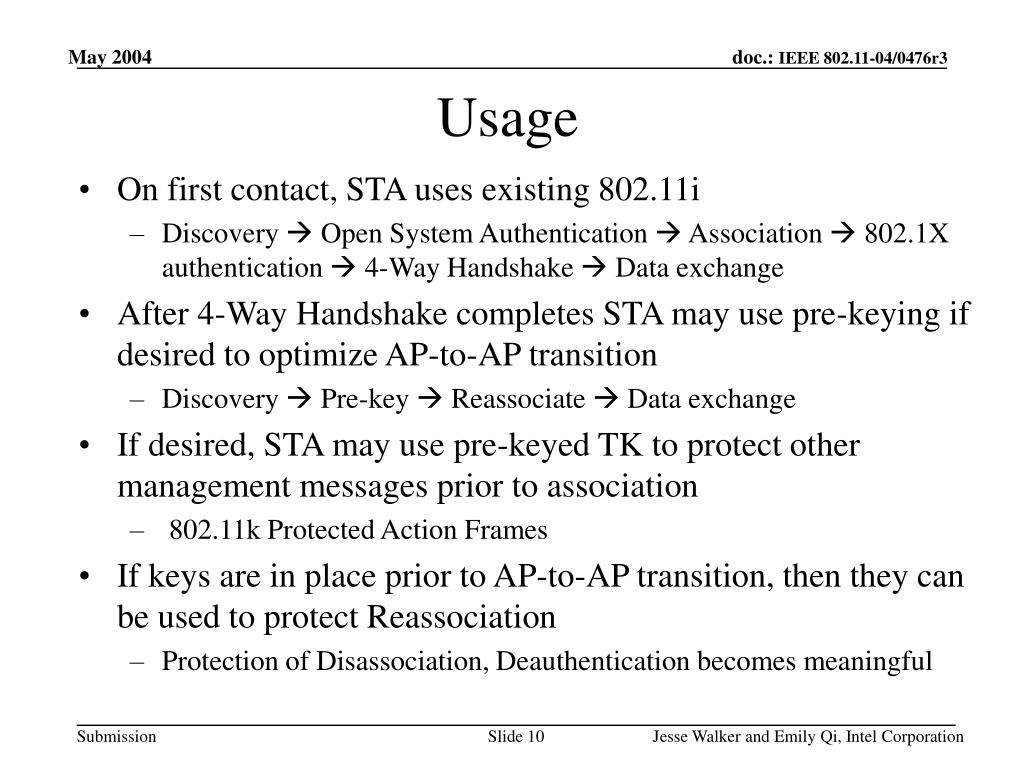

  10. Usage • On first contact, STA uses existing 802.11i • Discovery  Open System Authentication  Association  802.1X authentication  4-Way Handshake  Data exchange • After 4-Way Handshake completes STA may use pre-keying if desired to optimize AP-to-AP transition • Discovery  Pre-key  Reassociate  Data exchange • If desired, STA may use pre-keyed TK to protect other management messages prior to association • 802.11k Protected Action Frames • If keys are in place prior to AP-to-AP transition, then they can be used to protect Reassociation • Protection of Disassociation, Deauthentication becomes meaningful Jesse Walker and Emily Qi, Intel Corporation

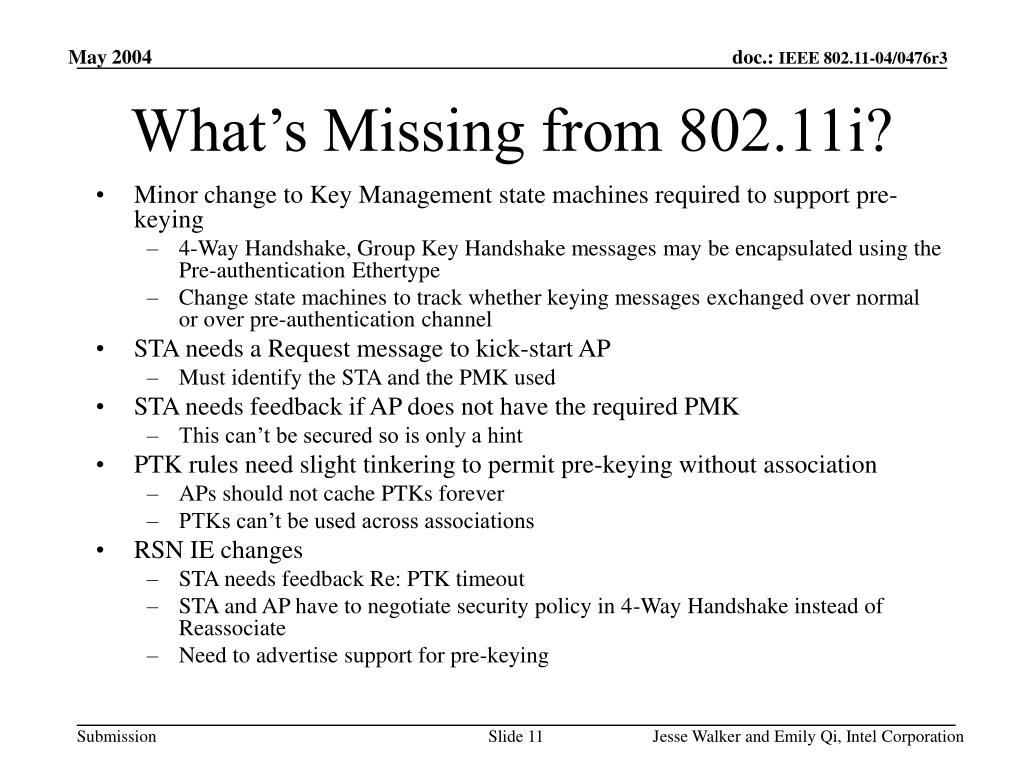

  11. What’s Missing from 802.11i? • Minor change to Key Management state machines required to support pre-keying • 4-Way Handshake, Group Key Handshake messages may be encapsulated using the Pre-authentication Ethertype • Change state machines to track whether keying messages exchanged over normal or over pre-authentication channel • STA needs a Request message to kick-start AP • Must identify the STA and the PMK used • STA needs feedback if AP does not have the required PMK • This can’t be secured so is only a hint • PTK rules need slight tinkering to permit pre-keying without association • APs should not cache PTKs forever • PTKs can’t be used across associations • RSN IE changes • STA needs feedback Re: PTK timeout • STA and AP have to negotiate security policy in 4-Way Handshake instead of Reassociate • Need to advertise support for pre-keying Jesse Walker and Emily Qi, Intel Corporation

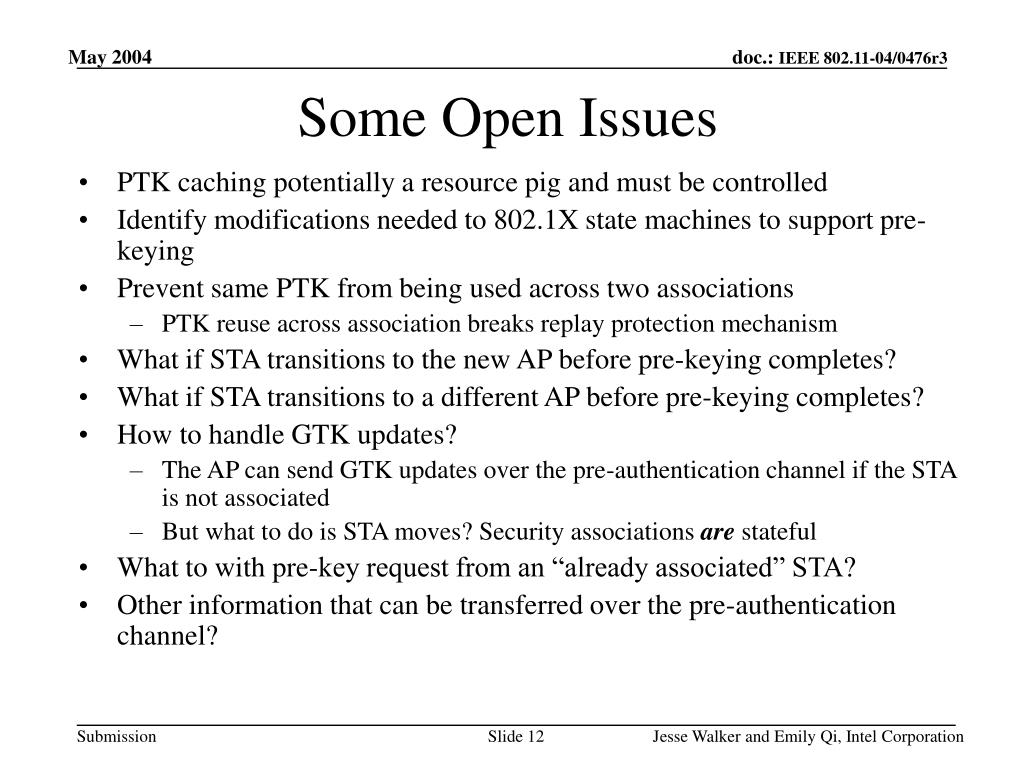

  12. Some Open Issues • PTK caching potentially a resource pig and must be controlled • Identify modifications needed to 802.1X state machines to support pre-keying • Prevent same PTK from being used across two associations • PTK reuse across association breaks replay protection mechanism • What if STA transitions to the new AP before pre-keying completes? • What if STA transitions to a different AP before pre-keying completes? • How to handle GTK updates? • The AP can send GTK updates over the pre-authentication channel if the STA is not associated • But what to do is STA moves? Security associations are stateful • What to with pre-key request from an “already associated” STA? • Other information that can be transferred over the pre-authentication channel? Jesse Walker and Emily Qi, Intel Corporation

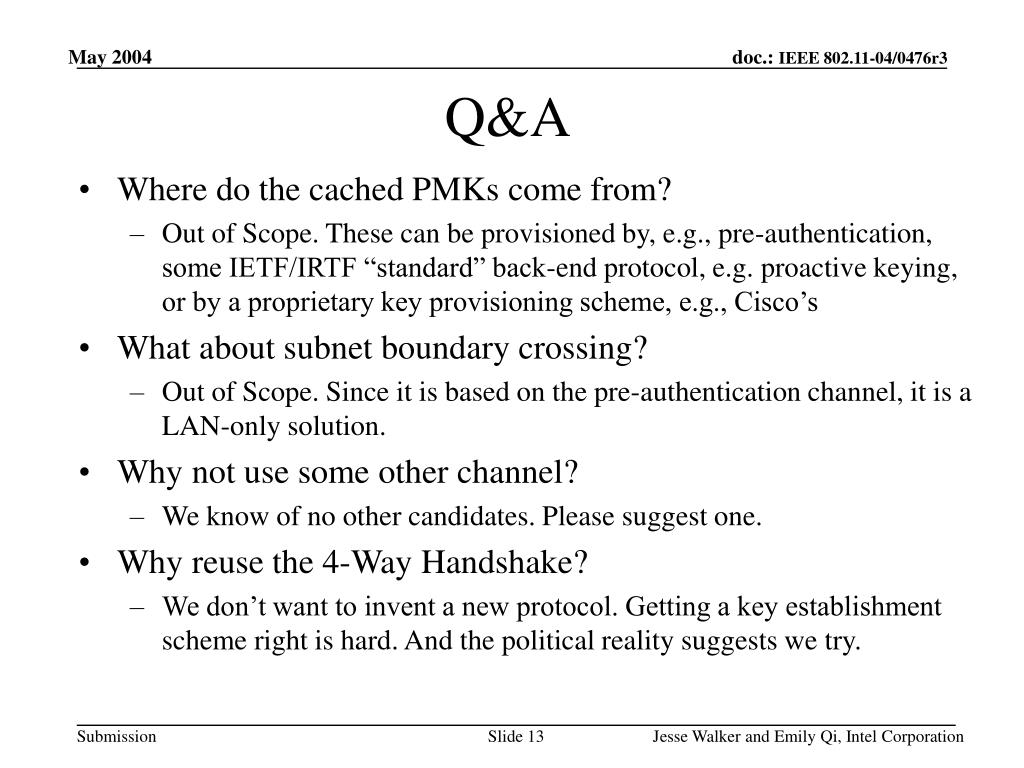

  13. Q&A • Where do the cached PMKs come from? • Out of Scope. These can be provisioned by, e.g., pre-authentication, some IETF/IRTF “standard” back-end protocol, e.g. proactive keying, or by a proprietary key provisioning scheme, e.g., Cisco’s • What about subnet boundary crossing? • Out of Scope. Since it is based on the pre-authentication channel, it is a LAN-only solution. • Why not use some other channel? • We know of no other candidates. Please suggest one. • Why reuse the 4-Way Handshake? • We don’t want to invent a new protocol. Getting a key establishment scheme right is hard. And the political reality suggests we try. Jesse Walker and Emily Qi, Intel Corporation

  14. Feedback? Jesse Walker and Emily Qi, Intel Corporation
