  1. Lucas Jellema (AMIS, The Netherlands) The very, very latest in oracle database development Oracle Open World 2012, San Francisco Public Expertezed Session – Thursday 29th November 2012

  2. The very veryvery latest… <Secret Code>

  3. Tom Kyte to the rescue…

  4. The database in modern architectures Oracle Open World 2012, San Francisco

  5. NO SQL

  6. The Top-3 Earning Employees • What can you say about the result of this query with respect to the question: “Who are our top three earning employees?” Correct Answer Sometimes correct Correct if there are never duplicate salaries Not Correct

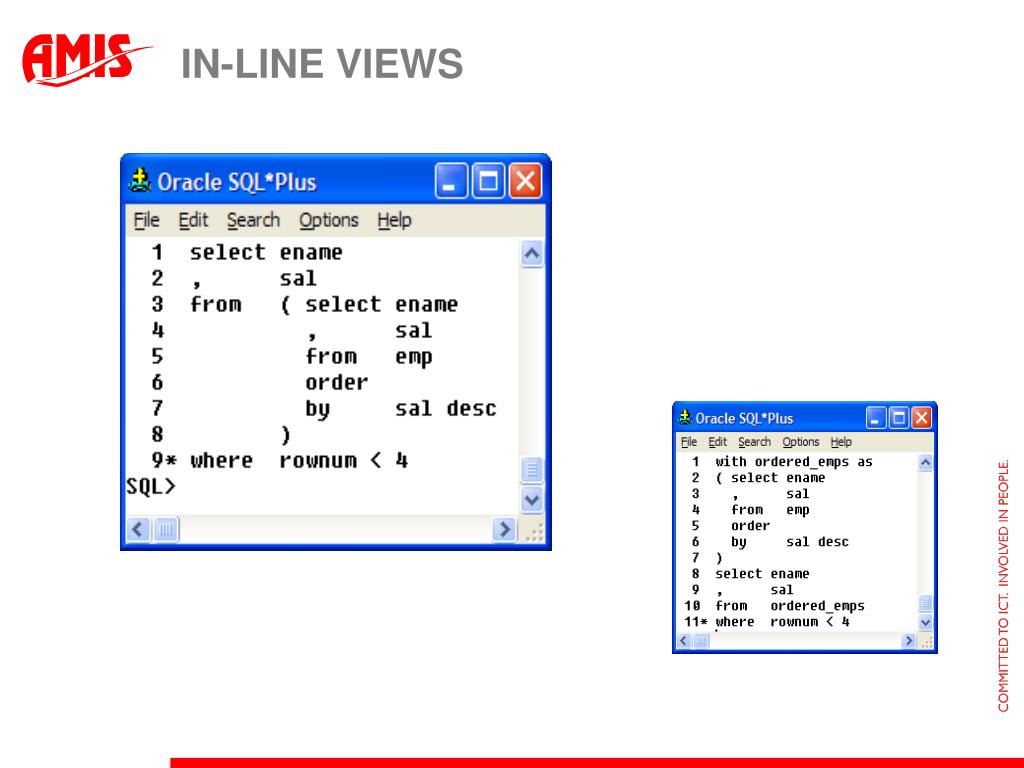

  7. In-Line Views

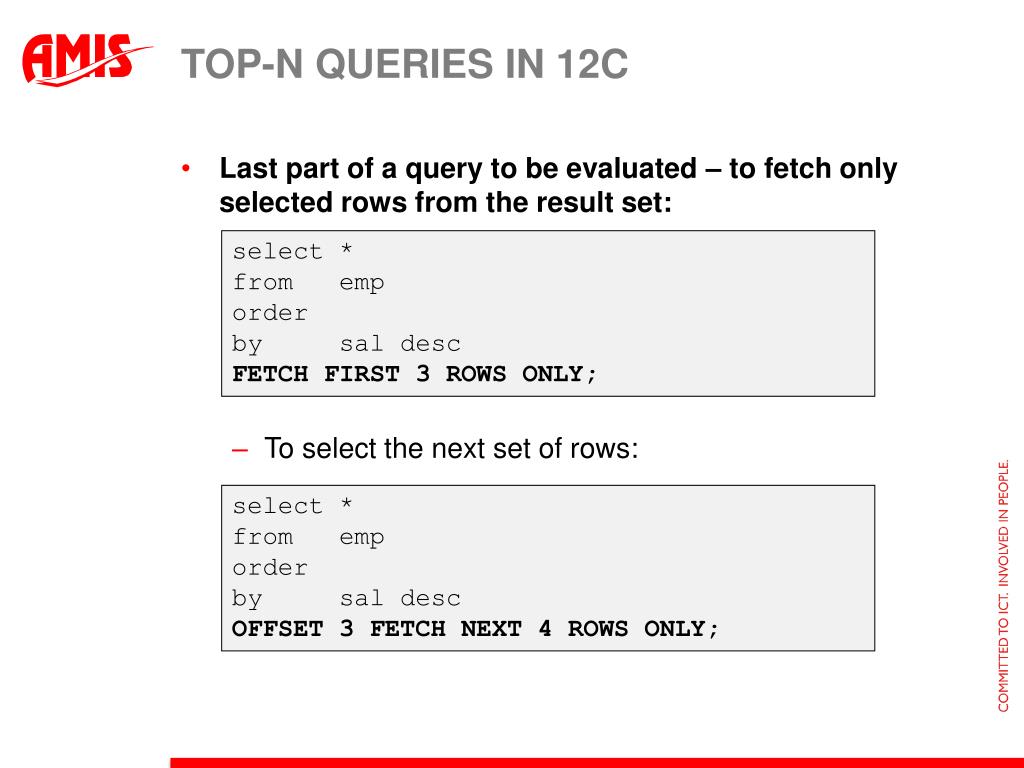

  8. TOP-N Queries in 12c • Last part of a query to be evaluated – to fetch only selected rows from the result set: • To select the next set of rows: select * from emp order by saldesc FETCH FIRST 3 ROWS ONLY; select * from emp order by saldesc OFFSET 3 FETCH NEXT 4 ROWS ONLY;

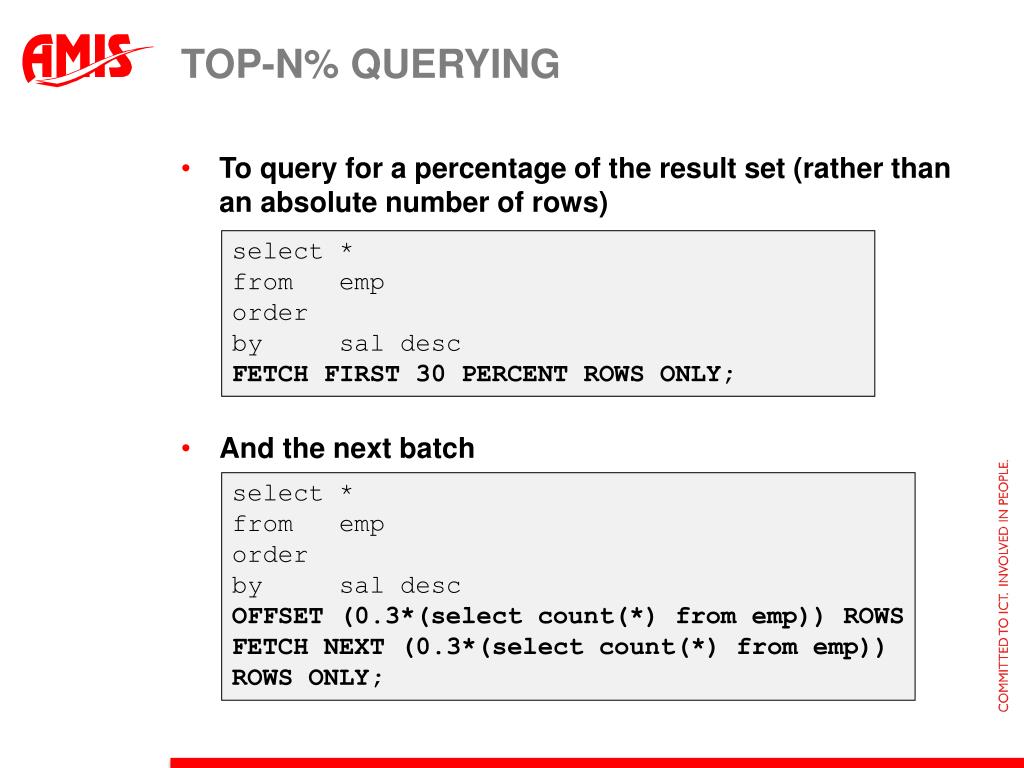

  9. TOP-n% querying • To query for a percentage of the result set (rather than an absolute number of rows) • And the next batch select * from emp order by saldesc FETCH FIRST 30 PERCENT ROWS ONLY; select * from emp order by saldesc OFFSET (0.3*(select count(*) from emp)) ROWS FETCH NEXT (0.3*(select count(*) from emp)) ROWS ONLY;

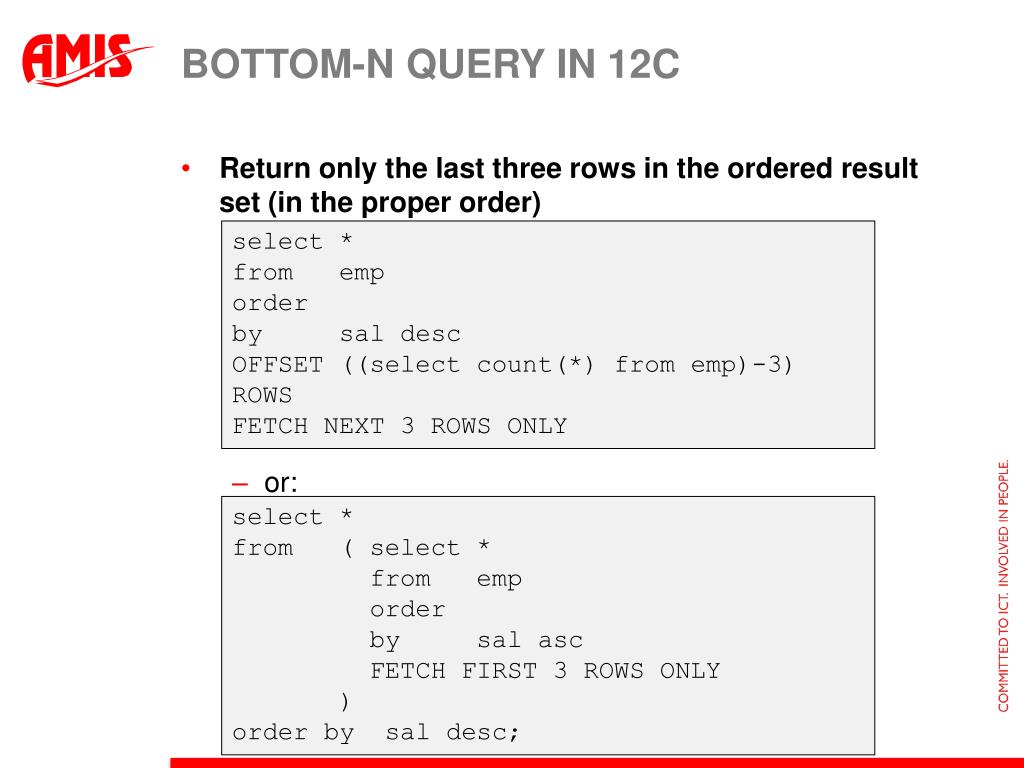

  10. BOTTOM-N QuerY in 12c • Return only the last three rows in the ordered result set (in the proper order) • or: select * from emp order by saldesc OFFSET ((select count(*) from emp)-3) ROWS FETCH NEXT 3 ROWS ONLY select * from ( select * from emp order by salasc FETCH FIRST 3 ROWS ONLY ) order by saldesc;

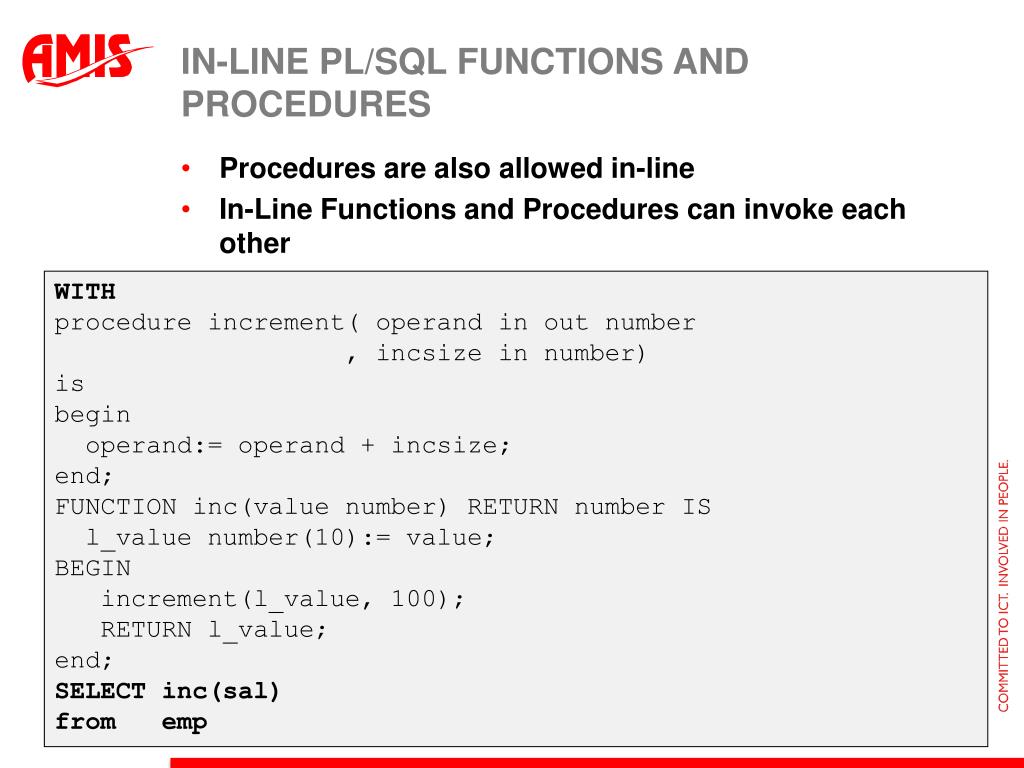

  11. In-line PL/SQL Functions and procedures • Procedures are also allowed in-line • In-Line Functions and Procedures can invoke each other WITH procedure increment( operand in out number , incsize in number) is begin operand:= operand + incsize; end; FUNCTION inc(value number) RETURN number ISl_value number(10):= value; BEGIN increment(l_value, 100); RETURN l_value; end; SELECT inc(sal) from emp

  12. Special ‘business rule’: Default Value • The default values is the value that should be inserted for a column when the client has ignored the column • not provided a value nor indicated NULL • The default value is applied prior to the execution of the Before Row trigger • So :new.<column_value> has the value that will be inserted • The Before Row trigger has no built in way to telling whether the value was provided by the client or supplied as default by the database • Default value is typically used for auditing purposes • Note: default values for columns exposed in UI should be set in the client

  13. Column Default • Columns can have default values • Static or literals • SQL expressions evaluating to a static • Pseudo-columns like USER and CURRENT_DATE • DO NOT USE SYSDATE! DO NOT USE USER! • References to Application Context parameters • sys_context(‘USERENV’, ‘IP_ADDRESS’).. • Some funny value to let the before row trigger know that the real (complex) default must be calculated create table citizens( name varchar2(100) default 'John Doe' , birthdate date default current_date- 1, city varchar2(50) default sys_context('KANE_CTX', 'DEFAULT_CITY' ), zipcode varchar2(8) default 'XYXYXYXYXQQ')

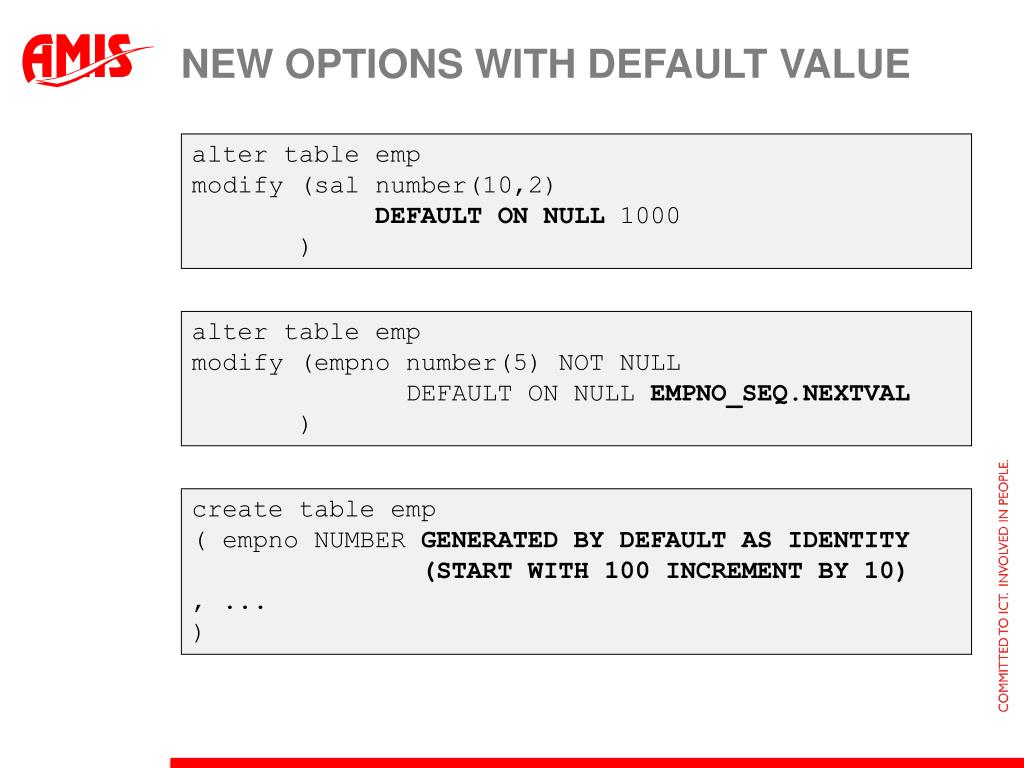

  14. New options with default value alter table emp modify (sal number(10,2) DEFAULT ON NULL 1000 ) alter table emp modify (empno number(5) NOT NULL DEFAULT ON NULL EMPNO_SEQ.NEXTVAL ) create table emp ( empno NUMBER GENERATED BY DEFAULT AS IDENTITY (START WITH 100 INCREMENT BY 10), ...)

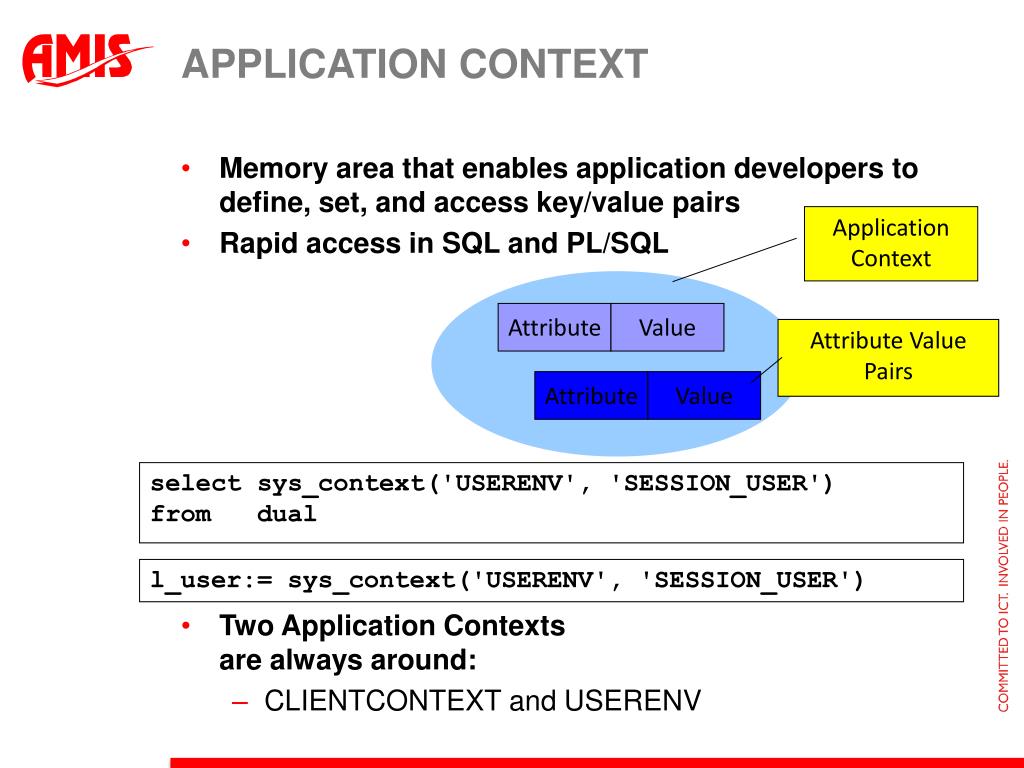

  15. Attribute Value Attribute Value Application Context • Memory area that enables application developers to define, set, and access key/value pairs • Rapid access in SQL and PL/SQL • Two Application Contexts are always around: • CLIENTCONTEXT and USERENV Application Context Attribute Value Pairs select sys_context('USERENV', 'SESSION_USER') from dual l_user:= sys_context('USERENV', 'SESSION_USER')

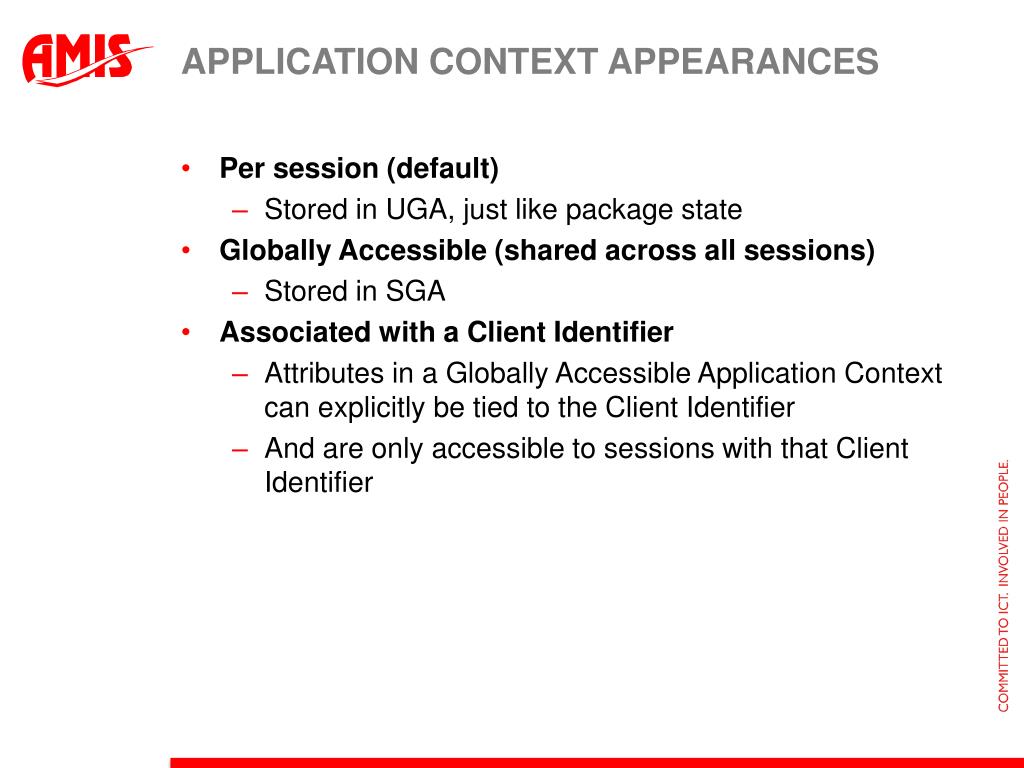

  16. Application Context appearances • Per session (default) • Stored in UGA, just like package state • Globally Accessible (shared across all sessions) • Stored in SGA • Associated with a Client Identifier • Attributes in a Globally Accessible Application Context can explicitly be tied to the Client Identifier • And are only accessible to sessions with that Client Identifier

  17. Typical web architecture using connection pool JDBC Connection Pool Session 1 Session 2 Session 3 Session 4 Package A globals Package B Package C

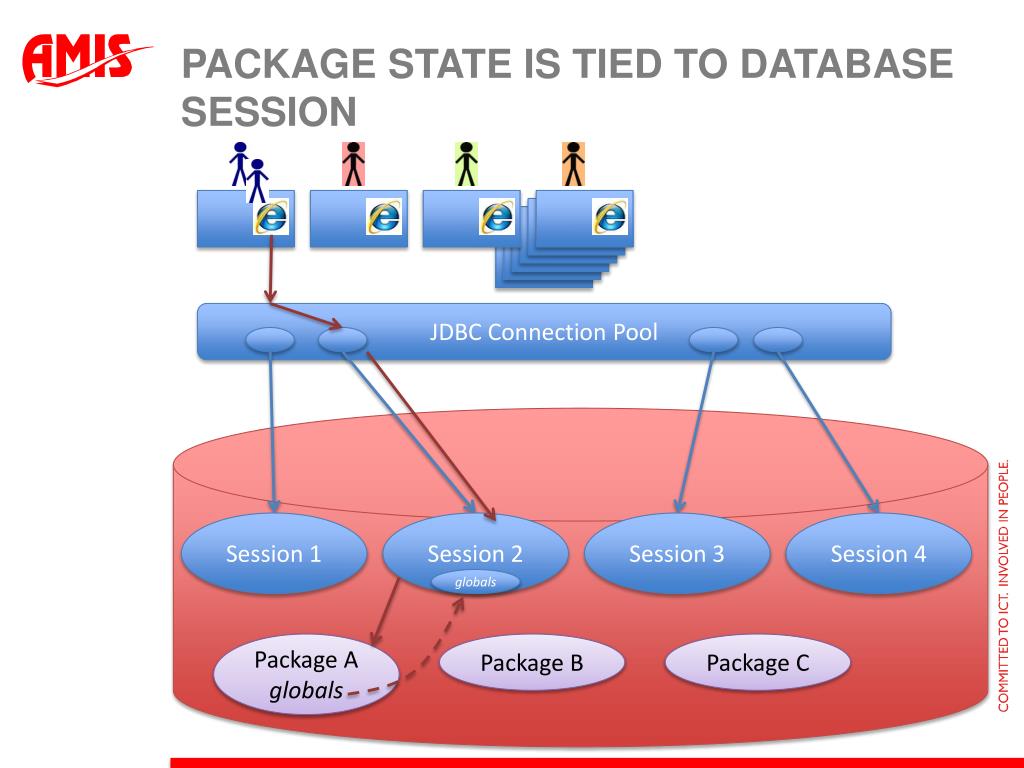

  18. Package state is tied to database session JDBC Connection Pool Session 1 Session 2 Session 3 Session 4 globals Package A globals Package B Package C

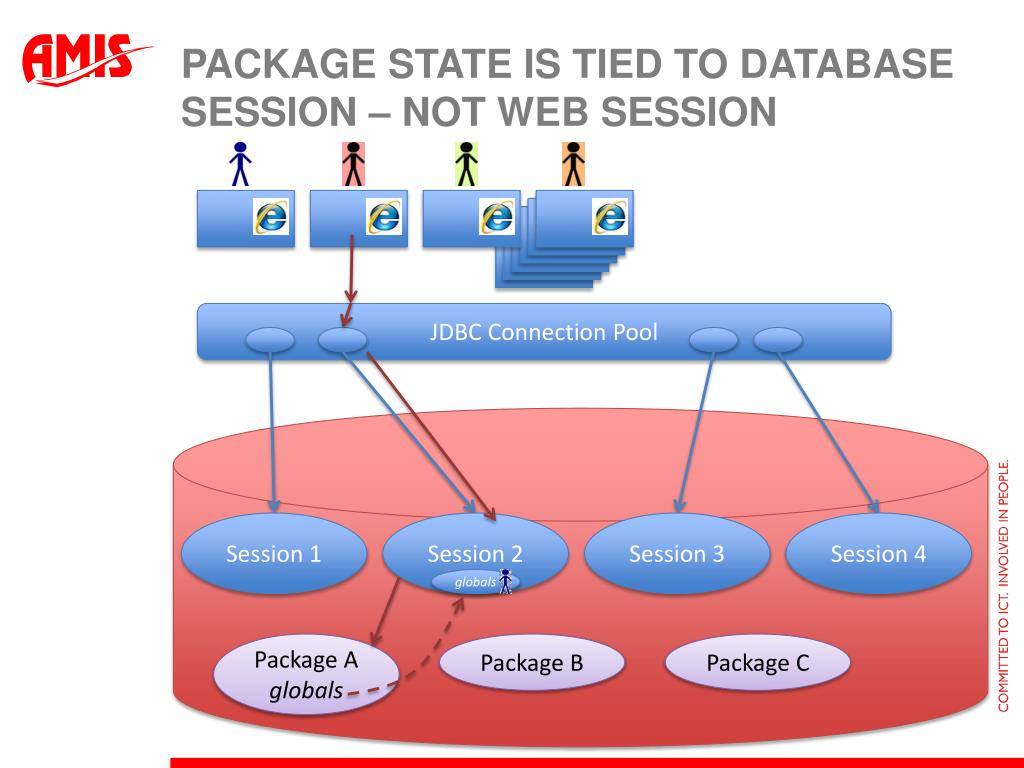

  19. Package state is tied to database session – not web session JDBC Connection Pool Session 1 Session 2 Session 3 Session 4 globals Package A globals Package B Package C

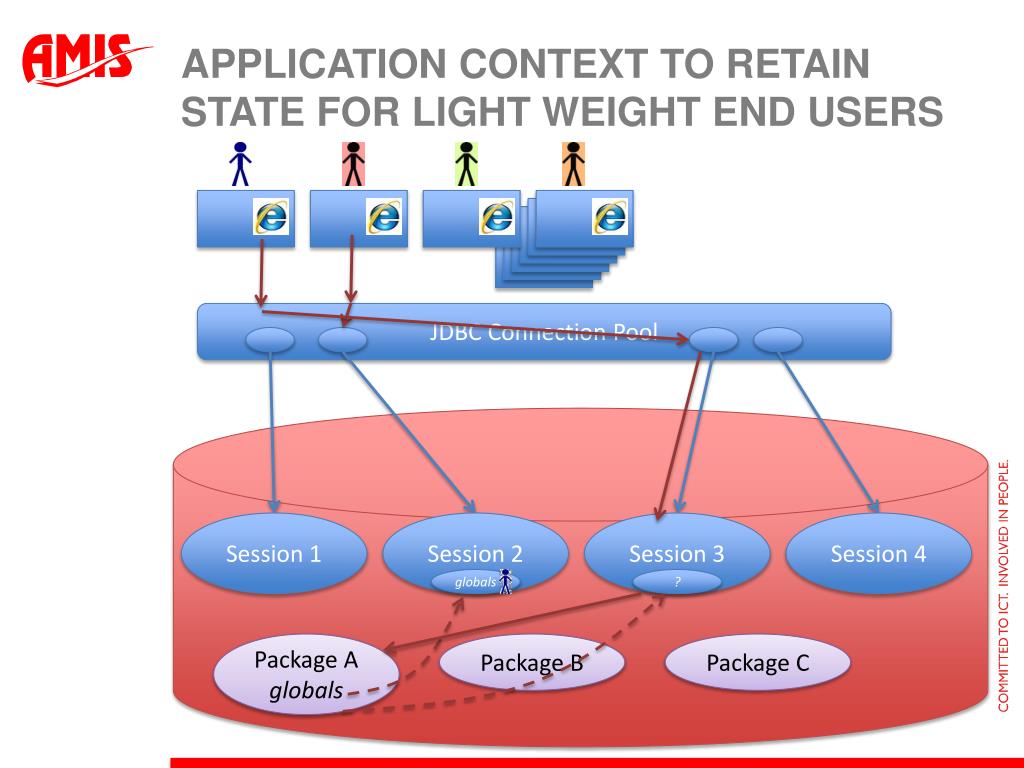

  20. Application Context to retain state for light weight end users JDBC Connection Pool Session 1 Session 2 Session 3 Session 4 globals ? Package A globals Package B Package C

  21. Application Context to retain state for light weight end users JDBC Connection Pool Session 1 Session 2 Session 3 Session 4 USERENV USERENV Package A globals Global Context Package C globals globals

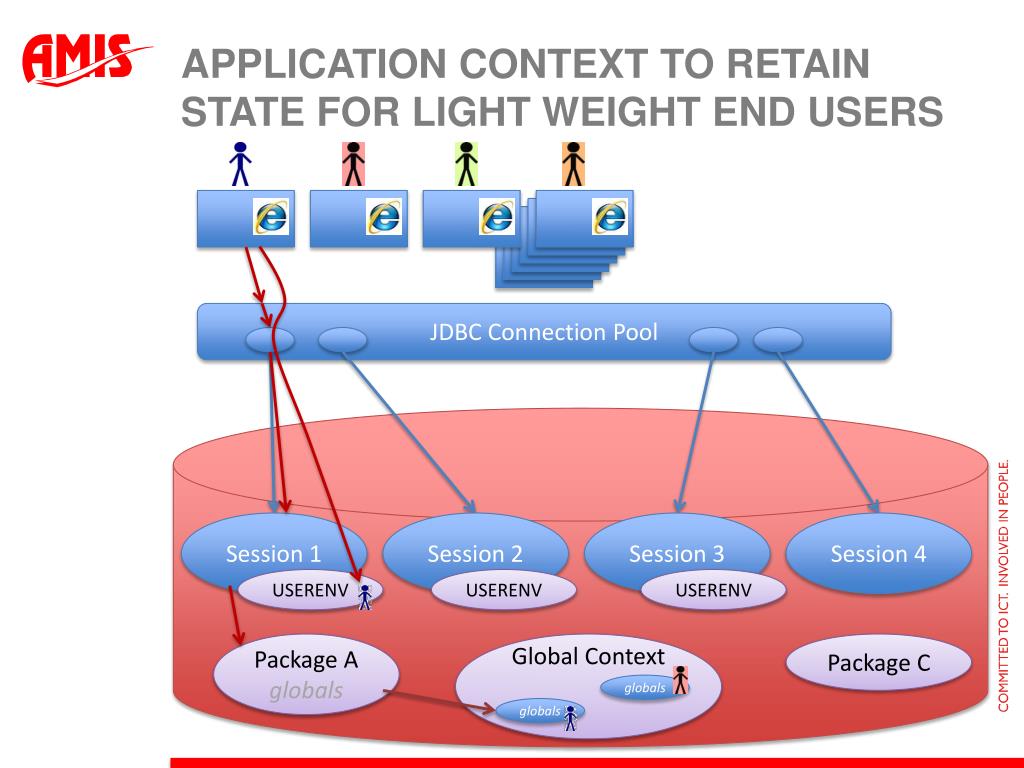

  22. Application Context to retain state for light weight end users JDBC Connection Pool Session 1 Session 2 Session 3 Session 4 USERENV USERENV USERENV Package A globals Global Context Package C globals globals

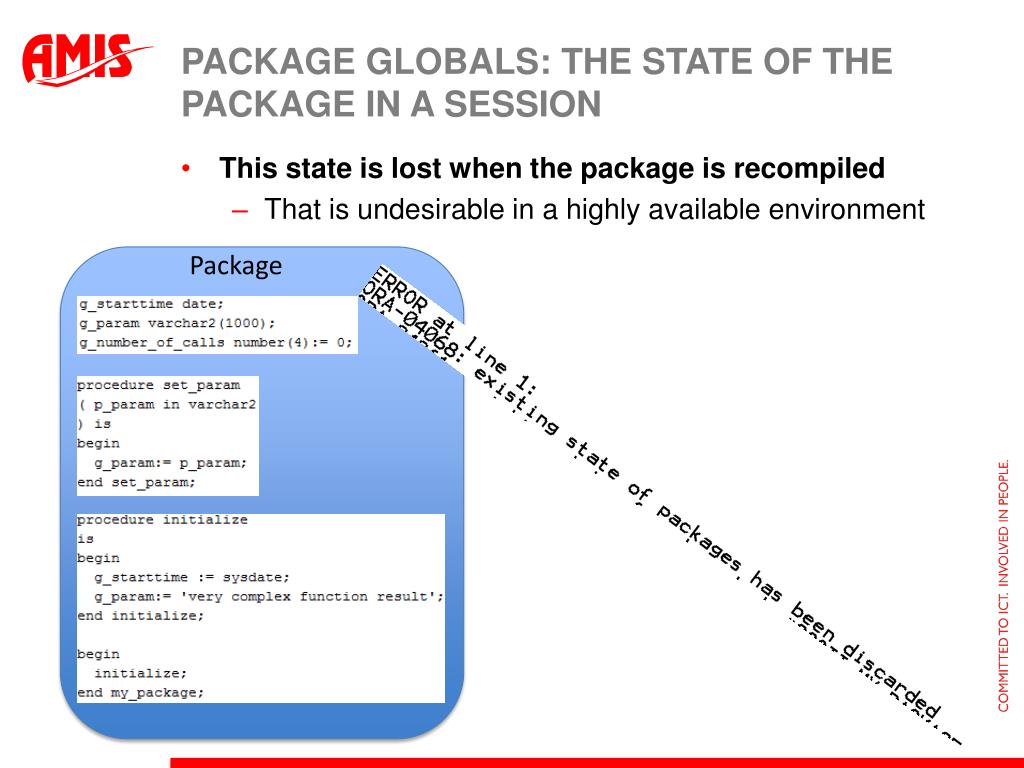

  23. package globals: the state of the package in a session • This state is lost when the package is recompiled • That is undesirable in a highly available environment Package

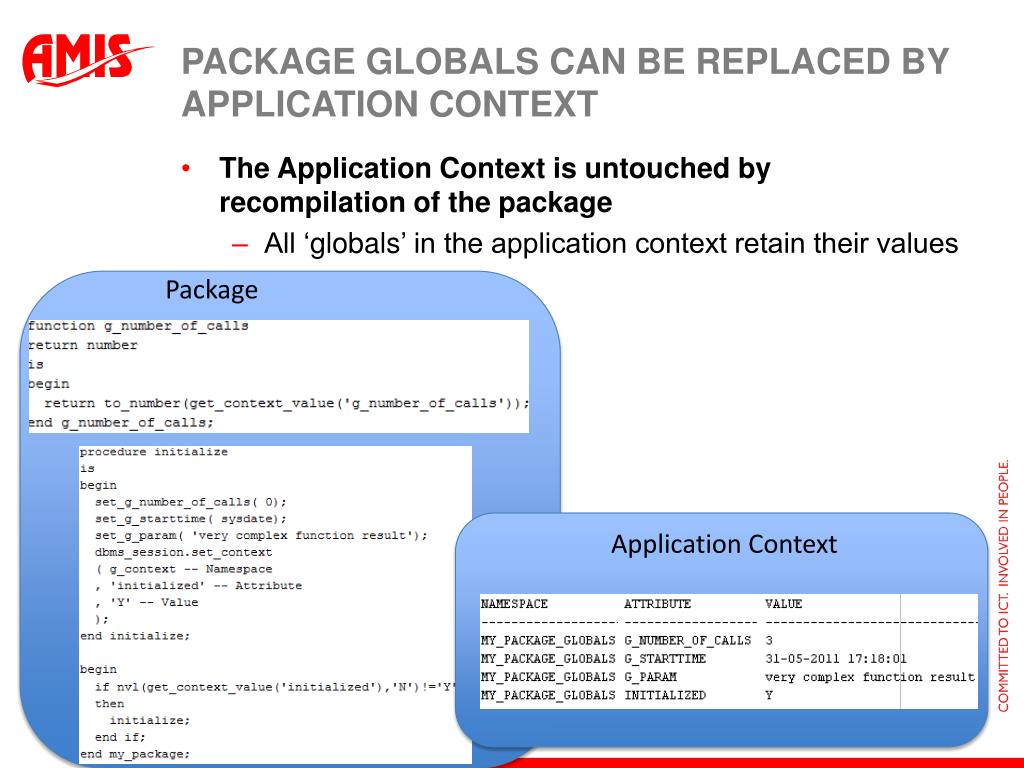

  24. package globals can be replaced by Application Context • The Application Context is untouched by recompilation of the package • All ‘globals’ in the application context retain their values Package Application Context

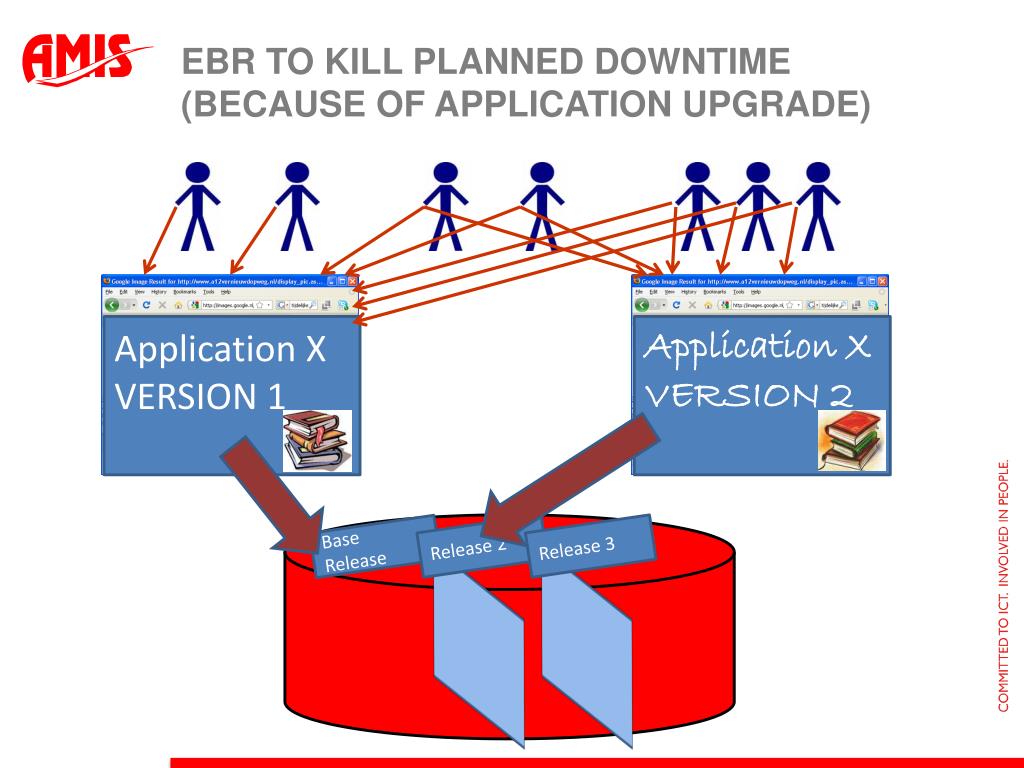

  25. EBR to kill planned downtime (because of application upgrade) Application X VERSION 1 Application X VERSION 2 Release 2 Release 3 Base Release

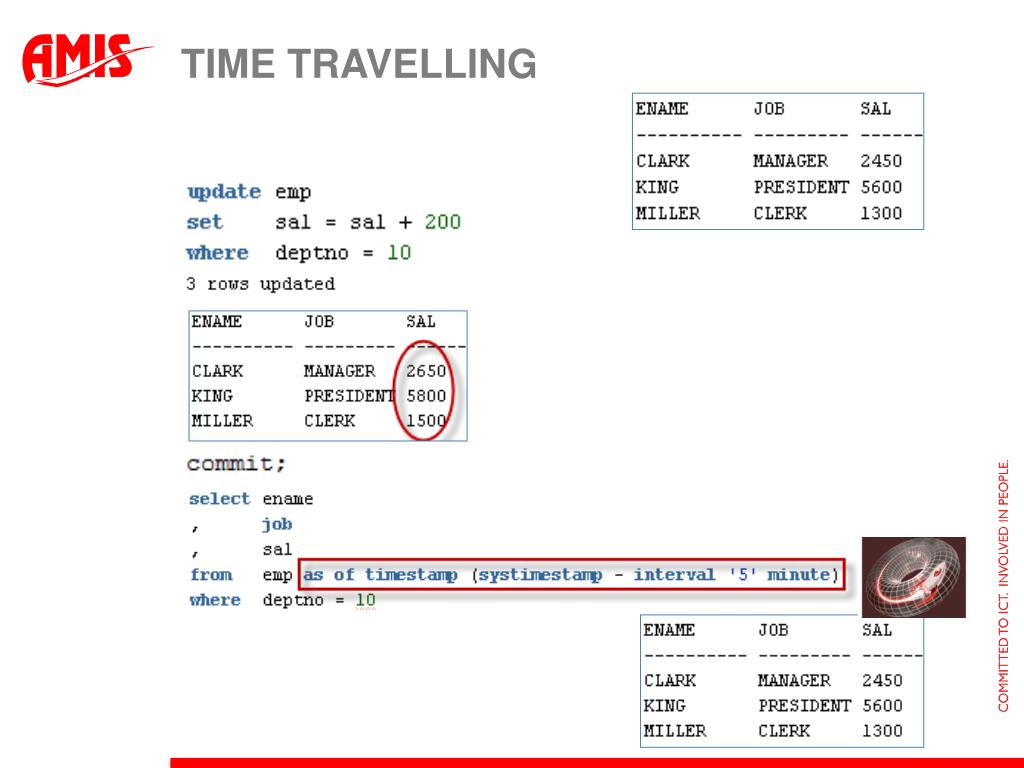

  26. Time travelling

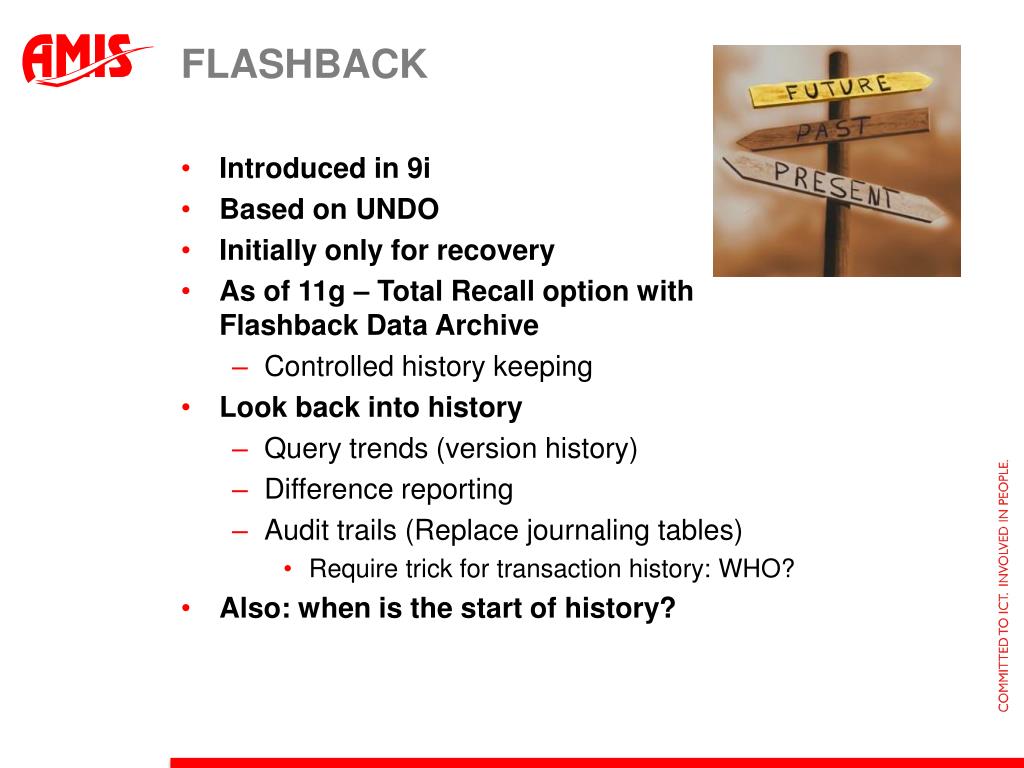

  27. Flashback • Introduced in 9i • Based on UNDO • Initially only for recovery • As of 11g – Total Recall option with Flashback Data Archive • Controlled history keeping • Look back into history • Query trends (version history) • Difference reporting • Audit trails (Replace journaling tables) • Require trick for transaction history: WHO? • Also: when is the start of history?

  28. OOW 2012 session comes to the rescue • CON8511 - Temporal Database Capabilities with the Latest Generation of Database Technology

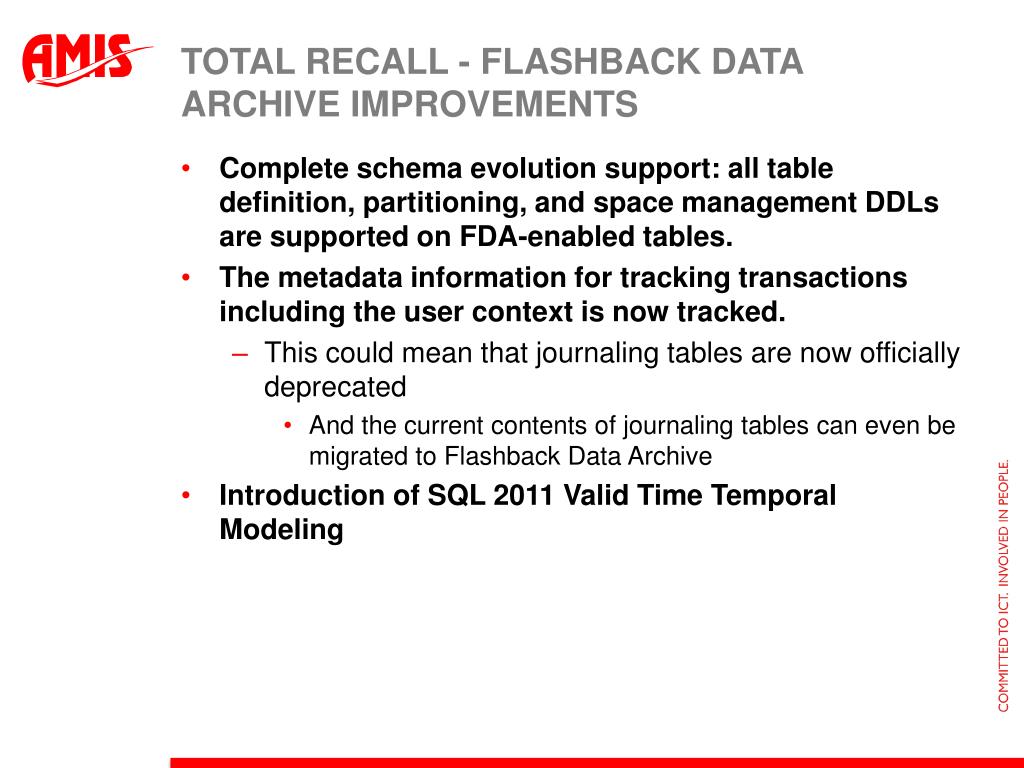

  29. Total Recall - Flashback Data Archive Improvements • Complete schema evolution support: all table definition, partitioning, and space management DDLs are supported on FDA-enabled tables. • The metadata information for tracking transactions including the user context is now tracked. • This could mean that journaling tables are now officially deprecated • And the current contents of journaling tables can even be migrated to Flashback Data Archive • Introduction of SQL 2011 Valid Time Temporal Modeling

  30. Total Recall • Import and export of history • Support for import and export using Data Pump for FDA-enabled tables. Data Pump can now be used to export and import an FDA-enabled base table along with its schema-evolution metadata and historical row versions. • Construct and manipulate the Flashback Data Archive • import user-generated history • Restore points: Support for the use of named restore points in AS OF and versions queries has been added. • Total Recall will (in all likelihood) be part of every edition of the database – including SE

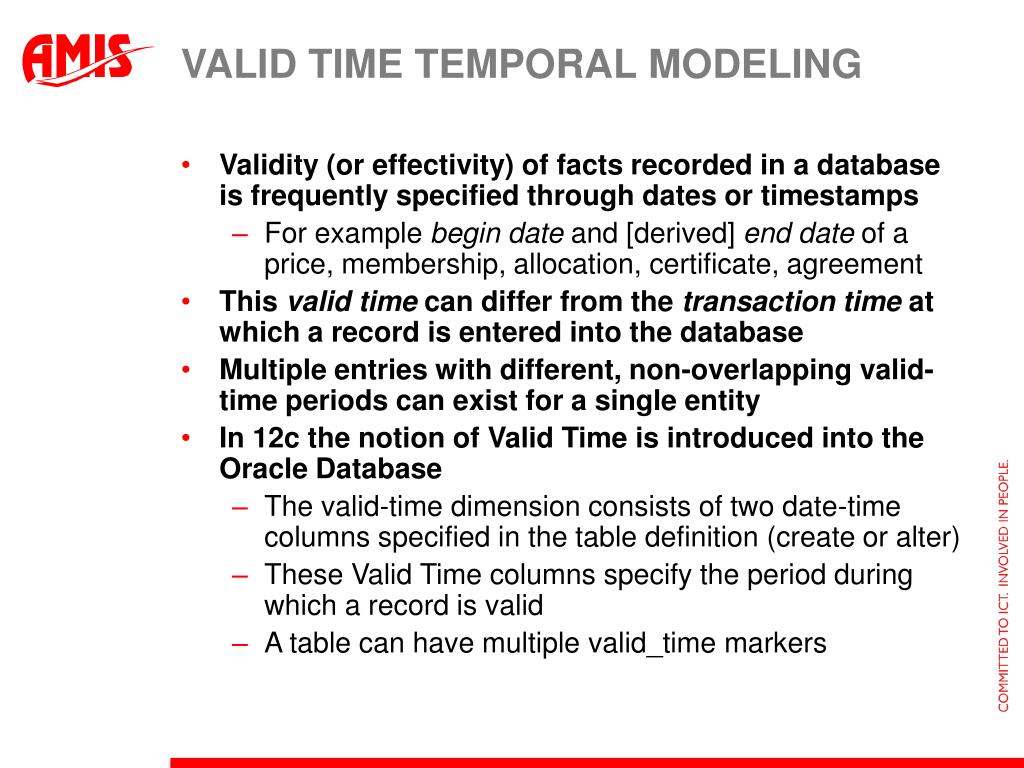

  31. Valid time temporal modeling • Validity (or effectivity) of facts recorded in a database is frequently specified through dates or timestamps • For example begin date and [derived] end date of a price, membership, allocation, certificate, agreement • This valid time can differ from the transaction time at which a record is entered into the database • Multiple entries with different, non-overlapping valid-time periods can exist for a single entity • In 12c the notion of Valid Time is introduced into the Oracle Database • The valid-time dimension consists of two date-time columns specified in the table definition (create or alter) • These Valid Time columns specify the period during which a record is valid • A table can have multiple valid_time markers

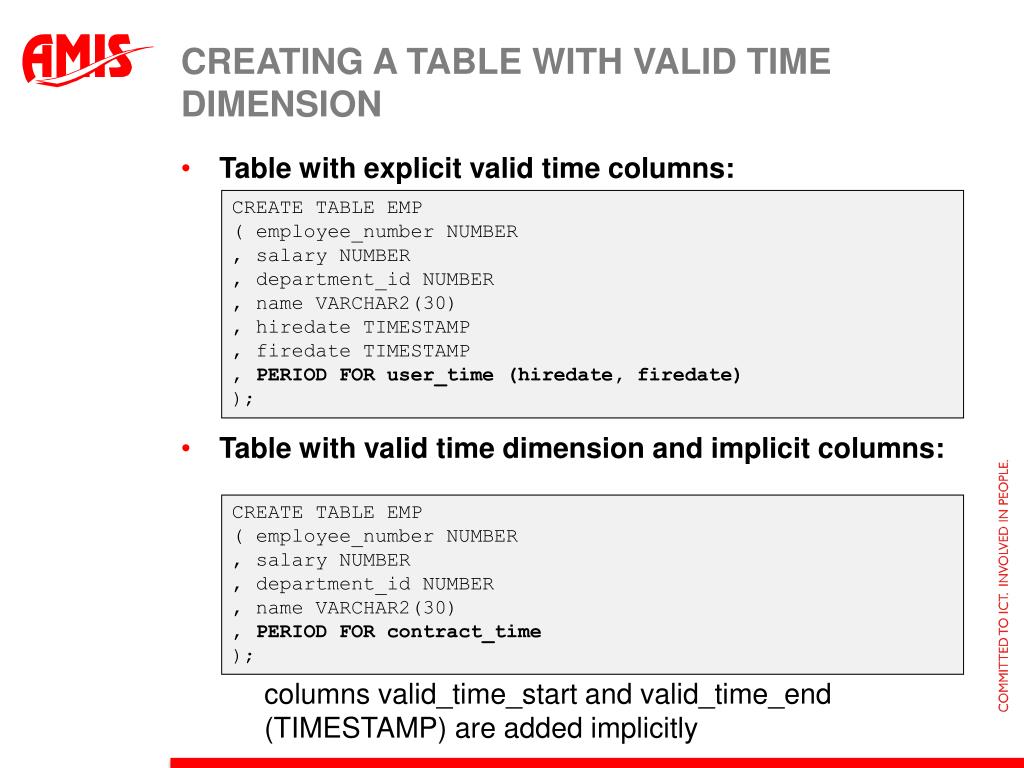

  32. Creating a table with valid time dimension • Table with explicit valid time columns: • Table with valid time dimension and implicit columns: columns valid_time_start and valid_time_end (TIMESTAMP) are added implicitly CREATE TABLE EMP ( employee_number NUMBER , salary NUMBER , department_id NUMBER , name VARCHAR2(30) , hiredate TIMESTAMP , firedate TIMESTAMP , PERIOD FOR user_time (hiredate, firedate) ); CREATE TABLE EMP ( employee_number NUMBER , salary NUMBER , department_id NUMBER , name VARCHAR2(30) , PERIOD FOR contract_time );

  33. Valid time aware flashback queries • Select all employees who were employed at a certain moment in time • Perform all queries for records that are valid at a certain point in time • Return all records currently (session time) valid • Return all records (default) SELECT * FROM EMP AS OF PERIOD FOR user_time TO_TIMESTAMP('01-JUN-2012 12.00.01 PM') EXECUTE DBMS_FLASHBACK_ARCHIVE.enable_at_valid_time ( 'ASOF' , TO_TIMESTAMP('29-JUL-12 12.00.01 PM') ); EXECUTE DBMS_FLASHBACK_ARCHIVE.enable_at_valid_time('CURRENT'); EXECUTE DBMS_FLASHBACK_ARCHIVE.enable_at_valid_time('ALL');

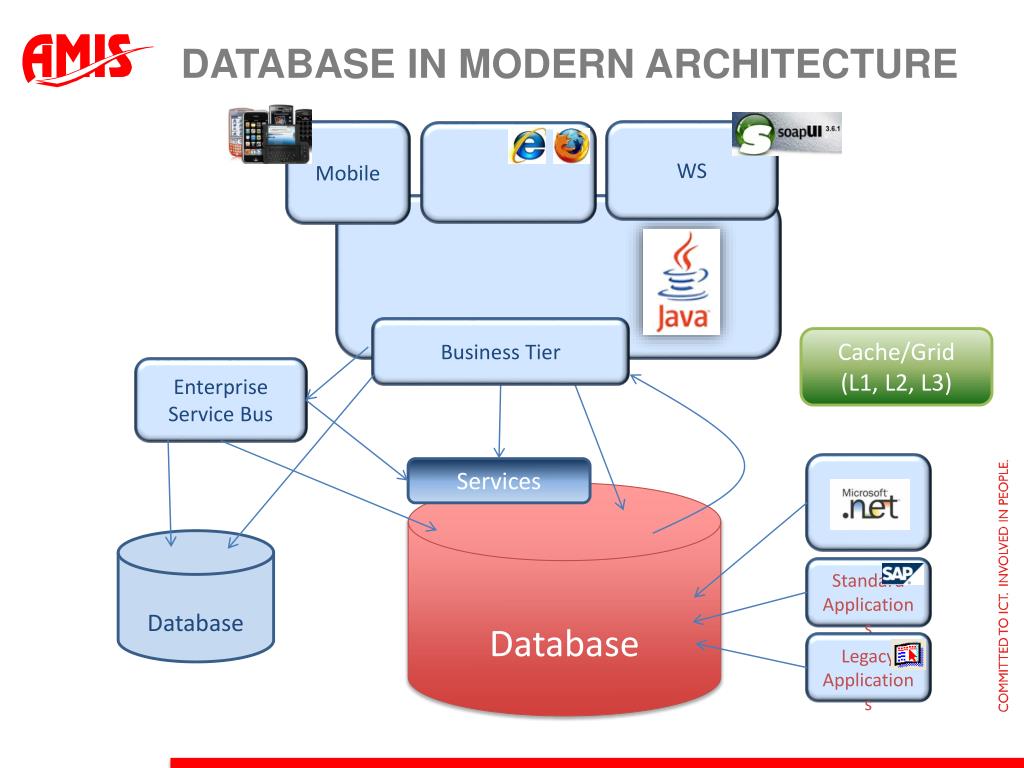

  34. Database in modern architecture Mobile WS Business Tier Cache/Grid (L1, L2, L3) Enterprise Service Bus Services Standard Applications Database Database LegacyApplications

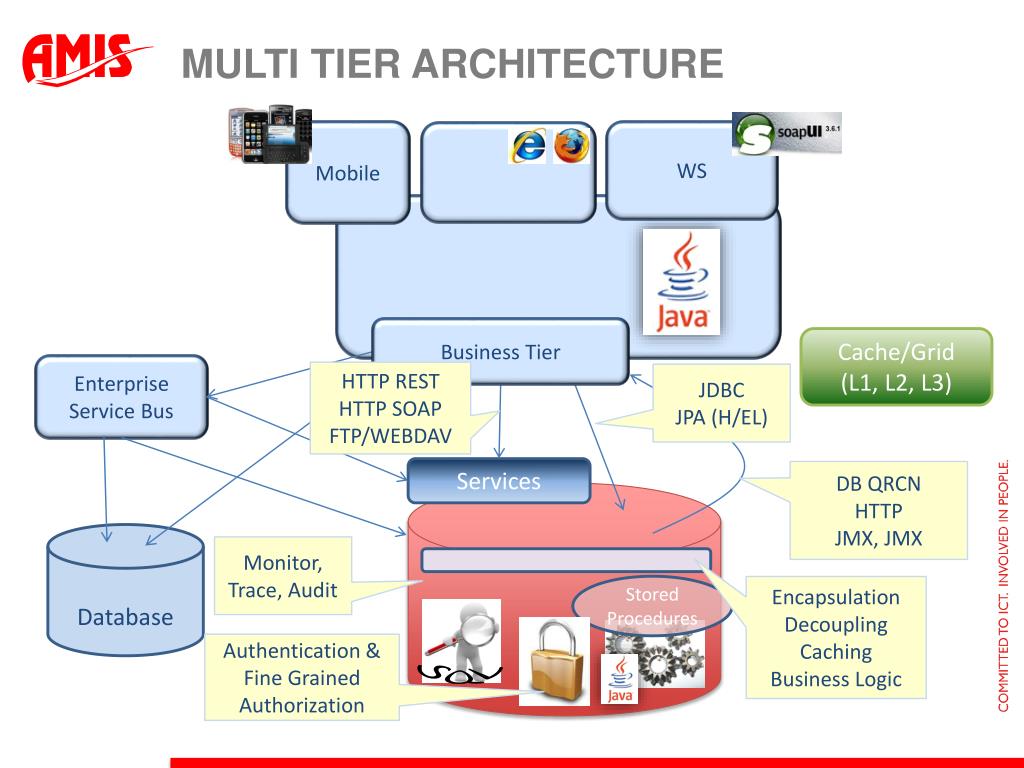

  35. Multi Tier Architecture Mobile WS Business Tier Cache/Grid (L1, L2, L3) Enterprise Service Bus HTTP REST HTTP SOAP FTP/WEBDAV JDBCJPA (H/EL) Services DB QRCN HTTP JMX, JMX Database Monitor, Trace, Audit Stored Procedures EncapsulationDecoupling Caching Business Logic Authentication & Fine Grained Authorization SQL

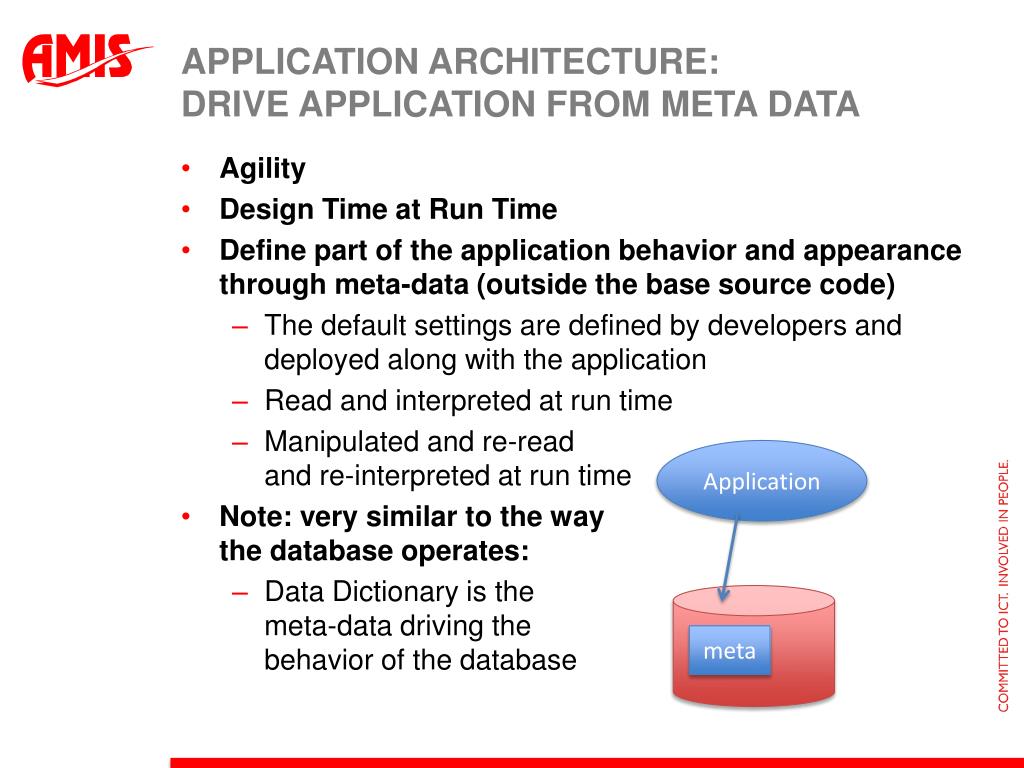

  36. Application architecture:Drive application from meta data • Agility • Design Time at Run Time • Define part of the application behavior and appearance through meta-data (outside the base source code) • The default settings are defined by developers and deployed along with the application • Read and interpreted at run time • Manipulated and re-read and re-interpreted at run time • Note: very similar to the waythe database operates: • Data Dictionary is the meta-data driving the behavior of the database Application meta

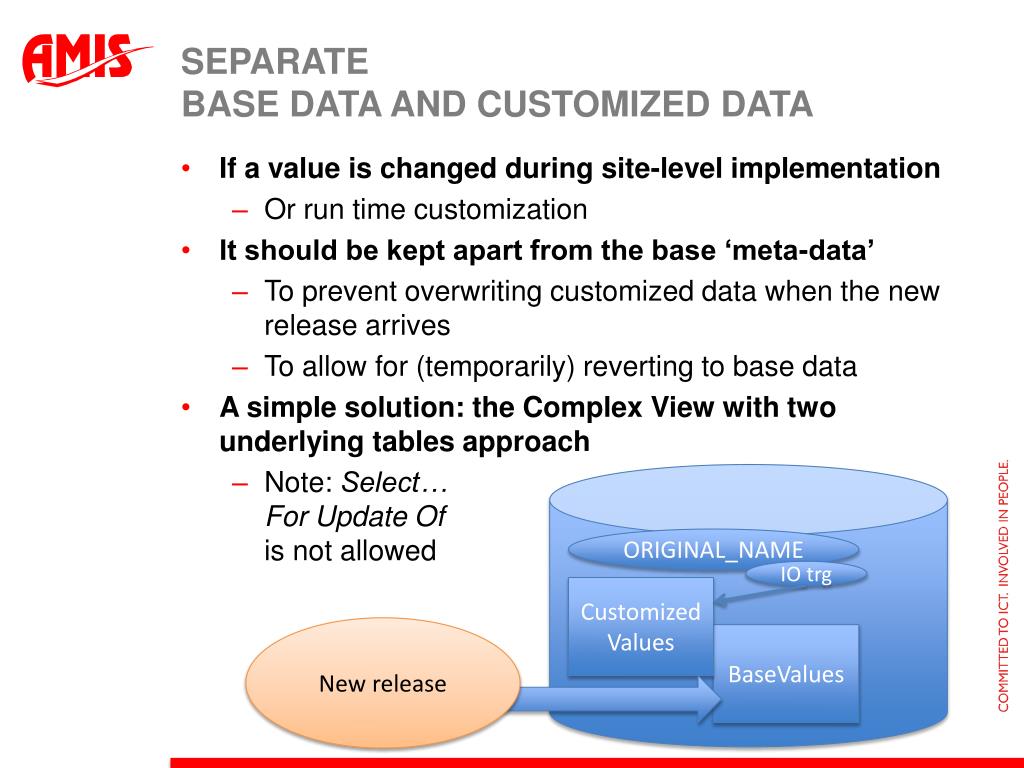

  37. Separate base data and customized data • If a value is changed during site-level implementation • Or run time customization • It should be kept apart from the base ‘meta-data’ • To prevent overwriting customized data when the new release arrives • To allow for (temporarily) reverting to base data • A simple solution: the Complex View with two underlying tables approach • Note: Select… For Update Ofis not allowed ORIGINAL_NAME IO trg Customized Values New release BaseValues

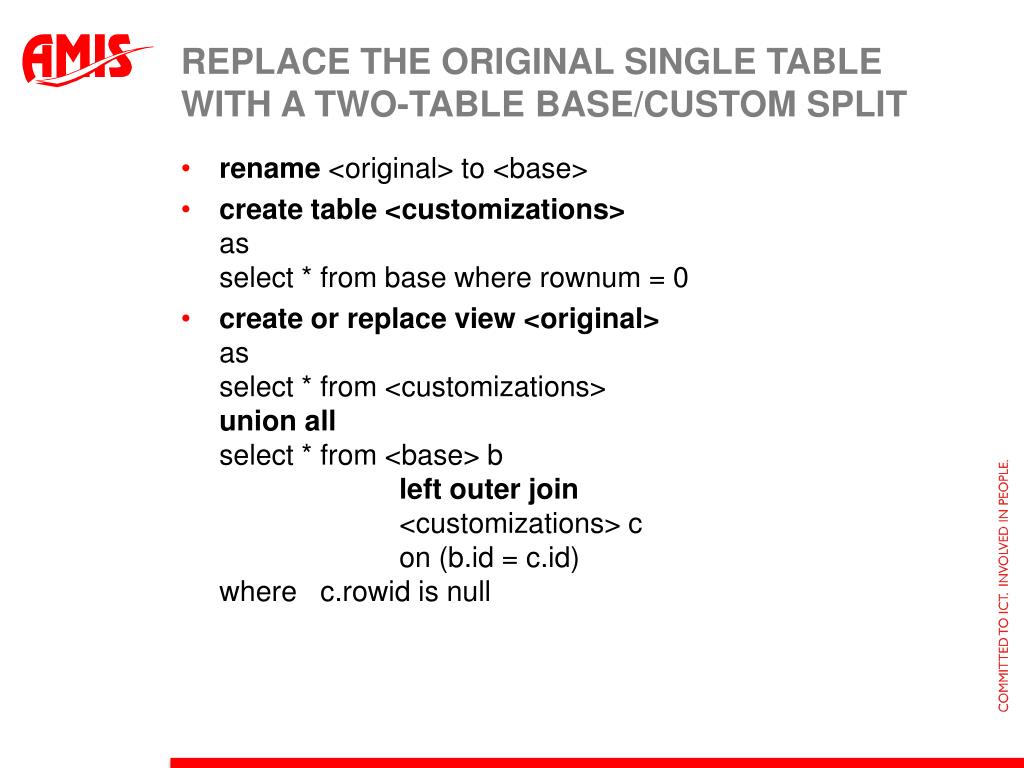

  38. Replace the original single table with a two-table base/custom split • rename <original> to <base> • create table <customizations>as select * from base where rownum = 0 • create or replace view <original>as select * from <customizations>union allselect * from <base> b left outer join <customizations> c on (b.id = c.id)where c.rowid is null

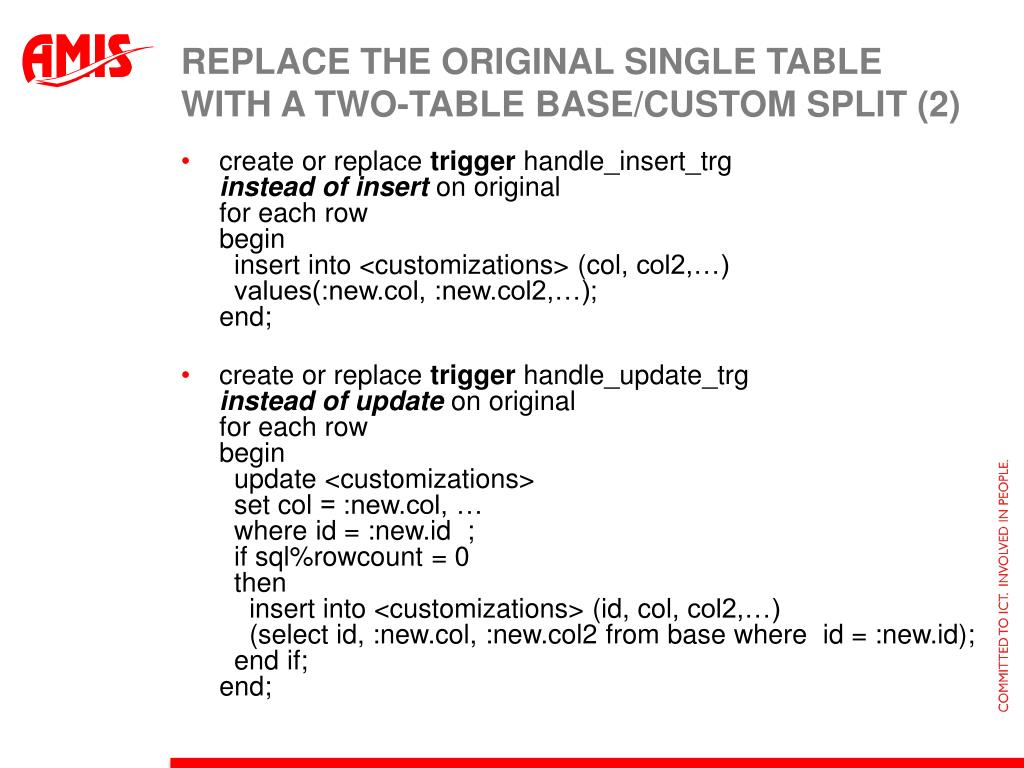

  39. Replace the original single table with a two-table base/custom split (2) • create or replace triggerhandle_insert_trginstead of inserton originalfor each row begin  insert into <customizations> (col, col2,…) values(:new.col, :new.col2,…);end; • create or replace triggerhandle_update_trginstead of update on originalfor each row begin  update <customizations>  set col = :new.col, …  where id = :new.id  ;  if sql%rowcount = 0   then    insert into <customizations> (id, col, col2,…)      (select id, :new.col, :new.col2 from base where  id = :new.id);  end if; end;

  40. Very similar to the architecture of Pluggable databases New release of Oracle Database ROOT PDB

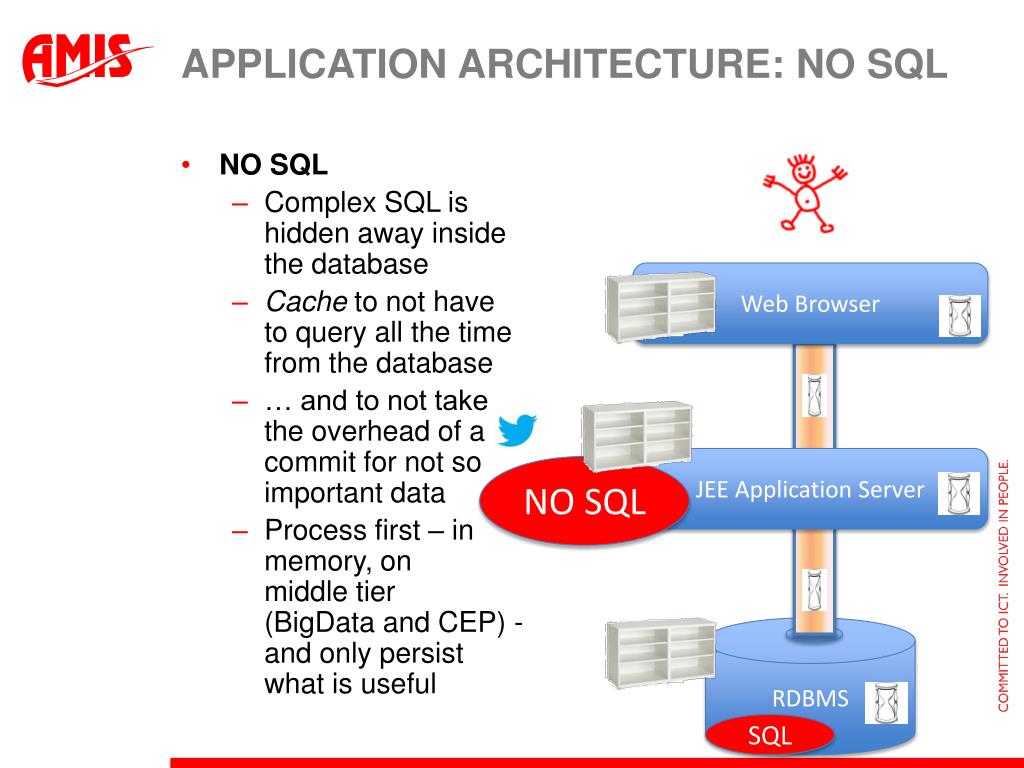

  41. Application architecture: NO SQL • NO SQL • Complex SQL is hidden away inside the database • Cache to not have to query all the time from the database • … and to not take the overhead of a commit for not so important data • Process first – in memory, on middle tier (BigData and CEP) - and only persist what is useful Web Browser JEE Application Server NO SQL RDBMS SQL

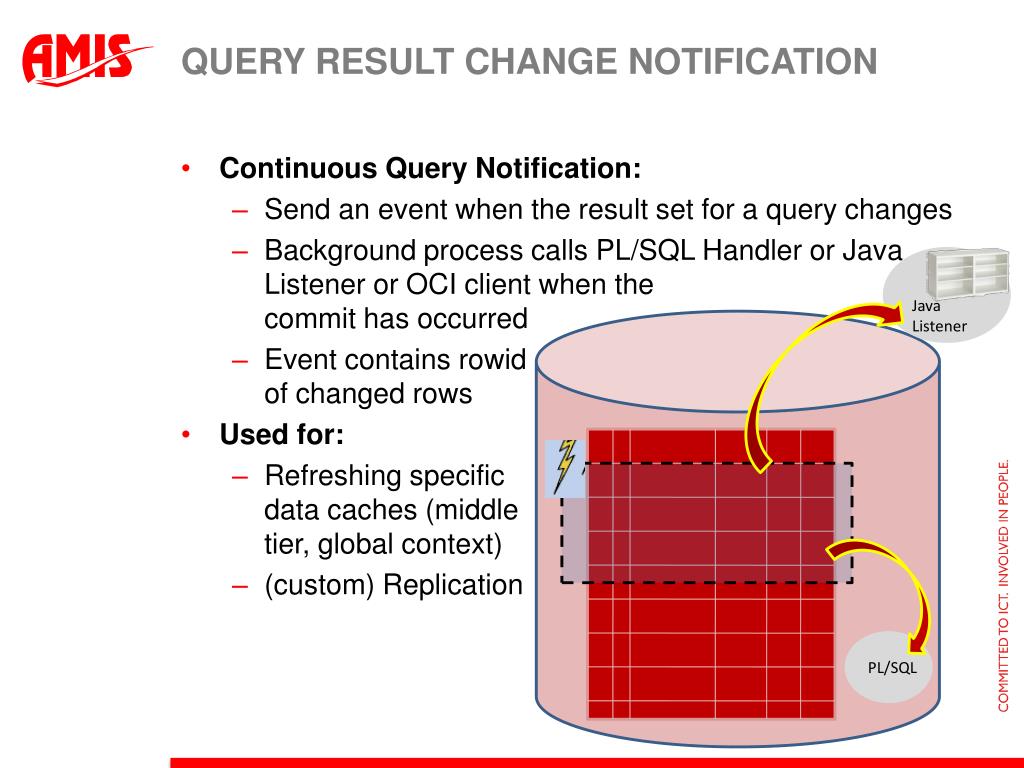

  42. Query Result Change Notification • Continuous Query Notification: • Send an event when the result set for a query changes • Background process calls PL/SQL Handler or Java Listener or OCI client when thecommit has occurred • Event contains rowidof changed rows • Used for: • Refreshing specificdata caches (middletier, global context) • (custom) Replication Java Listener PL/SQL

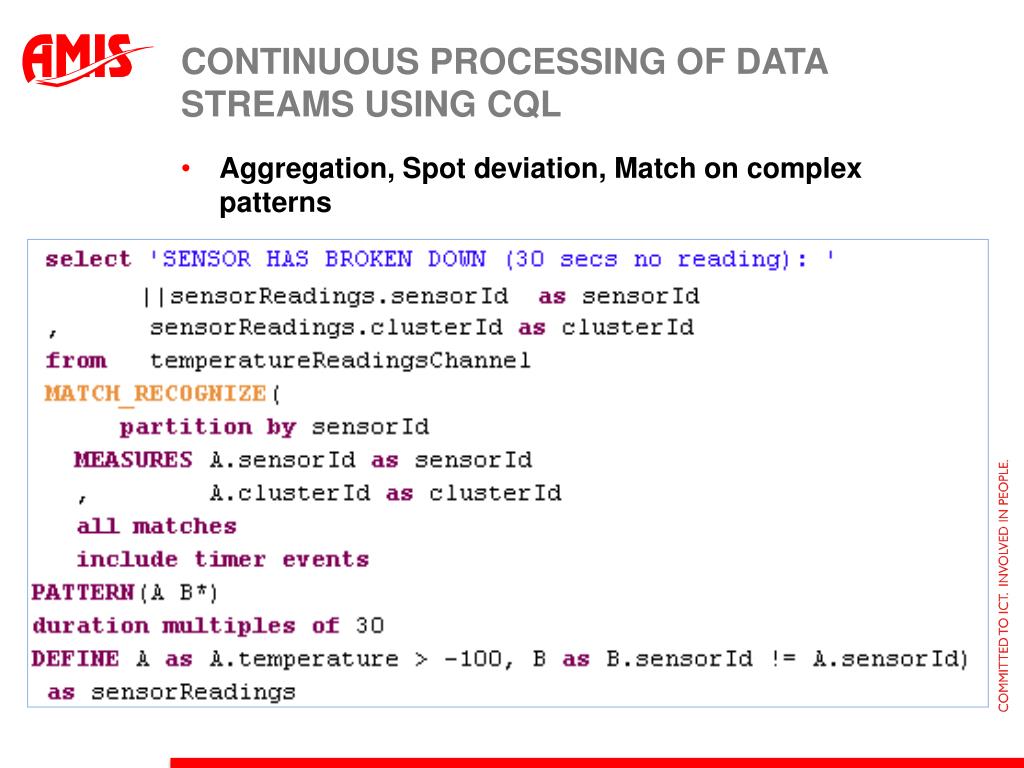

  43. Continuous processing of data streams using CQL • Aggregation, Spot deviation, Match on complex patterns

  44. Who is afraid of Red, Yellow and blue • Table Events • Column Seq number(5) • Column Payload varchar2(200)

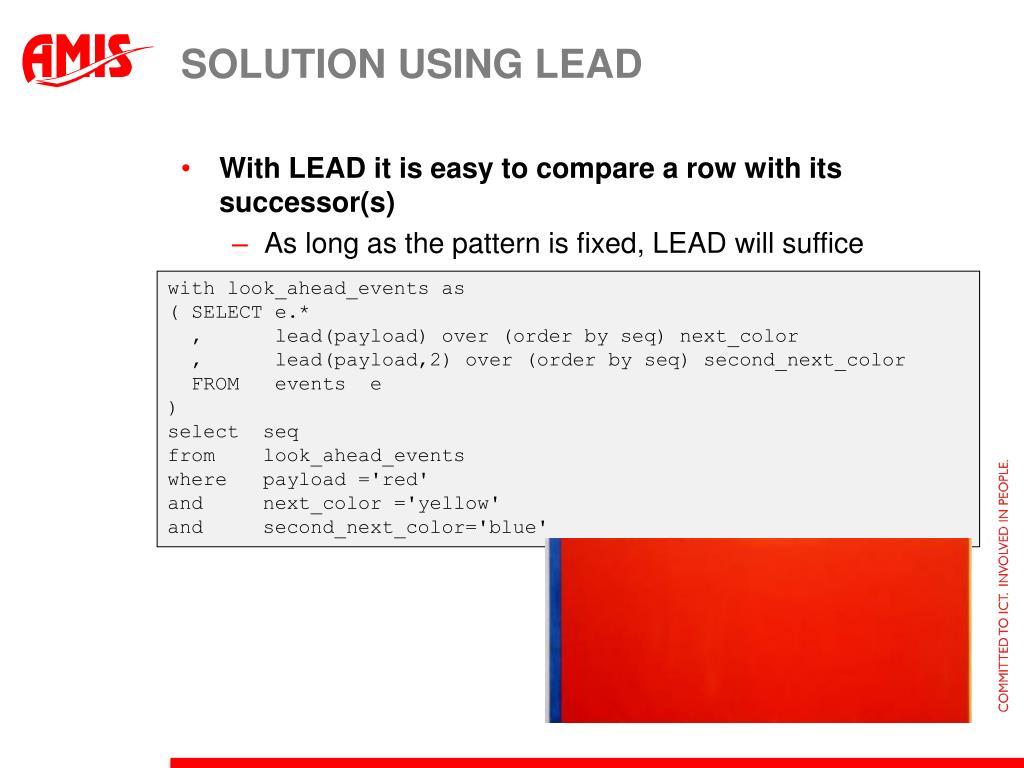

  45. Solution using Lead • With LEAD it is easy to compare a row with its successor(s) • As long as the pattern is fixed, LEAD will suffice with look_ahead_events as ( SELECT e.* , lead(payload) over (order by seq) next_color , lead(payload,2) over (order by seq) second_next_color FROM events e ) select seq from look_ahead_events where payload ='red' and next_color ='yellow' and second_next_color='blue'

  46. Find the pattern red, yellow and blue • Using the new 12c Match Recognize operator for finding patterns in relational data SELECT * FROM events MATCH_RECOGNIZE ( ORDER BY seq MEASURES RED.seq AS redseq , MATCH_NUMBER() AS match_num ALL ROWS PER MATCH PATTERN (RED YELLOW BLUE) DEFINE RED AS RED.payload ='red', YELLOW AS YELLOW.payload ='yellow', BLUE AS BLUE.payload ='blue' ) MR ORDER BY MR.redseq , MR.seq;

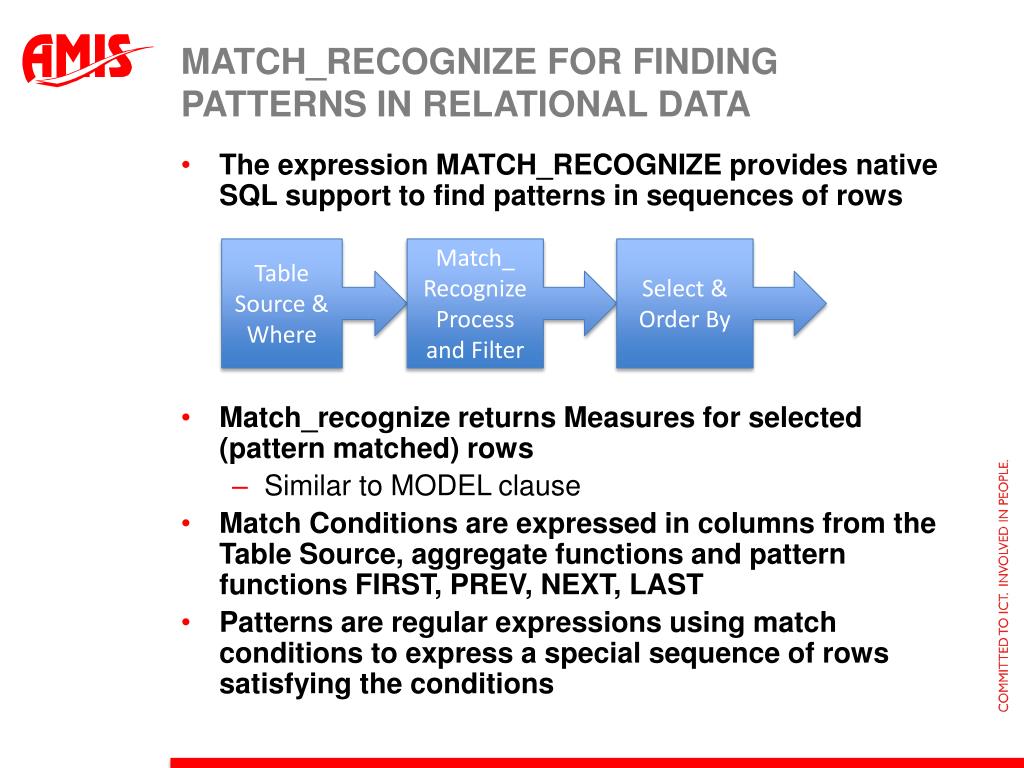

  47. Match_recognize for finding patterns in relational data • The expression MATCH_RECOGNIZE provides native SQL support to find patterns in sequences of rows • Match_recognize returns Measures for selected (pattern matched) rows • Similar to MODEL clause • Match Conditions are expressed in columns from the Table Source, aggregate functions and pattern functions FIRST, PREV, NEXT, LAST • Patterns are regular expressions using match conditions to express a special sequence of rows satisfying the conditions Table Source & Where Match_Recognize Process and Filter Select & Order By

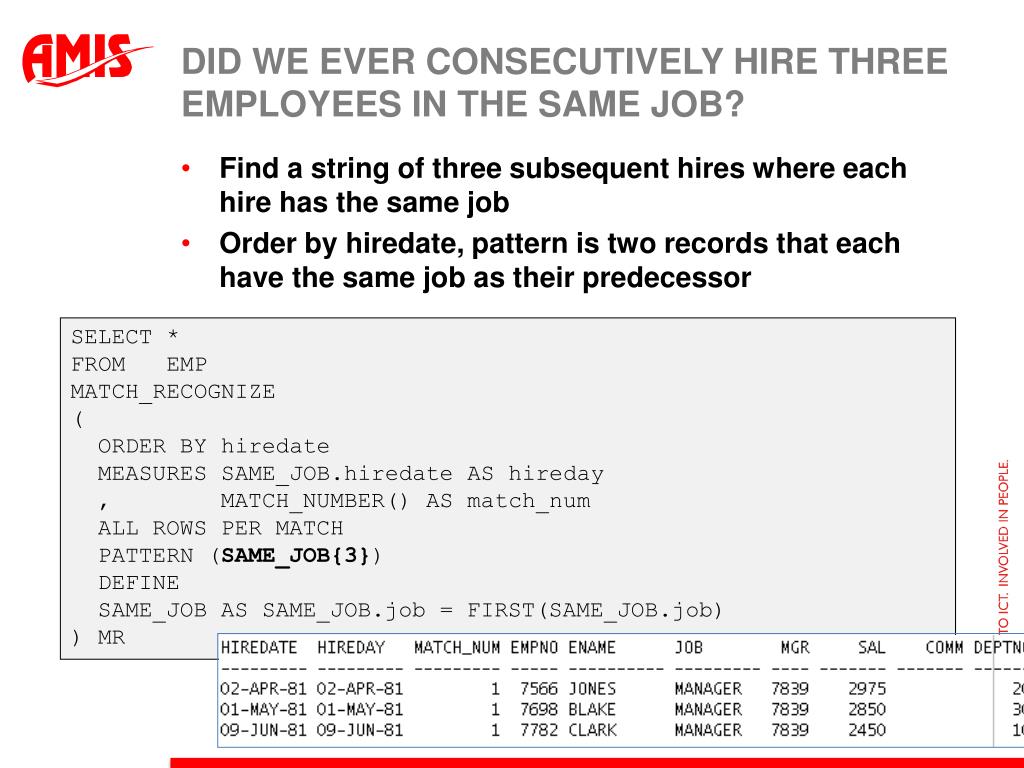

  48. Did we ever consecutively hire three employees in the same job? • Find a string of three subsequent hires where each hire has the same job • Order by hiredate, pattern is two records that each have the same job as their predecessor SELECT * FROM EMP MATCH_RECOGNIZE ( ORDER BY hiredate MEASURES SAME_JOB.hiredate AS hireday , MATCH_NUMBER() AS match_num ALL ROWS PER MATCH PATTERN (SAME_JOB{3}) DEFINE SAME_JOB AS SAME_JOB.job = FIRST(SAME_JOB.job) ) MR

  49. The shopping algorithm

  50. The Shopping algorithm • shopForItem Item ( String itemName) {driveToShop; Item item = buyItemAtShop ( itemName);driveHomeFromShop; return item;}
