Day 1b protein sequence analysis

Day 1b: Protein Sequence Analysis

  • Physico-chemical properties.

  • Cellular localization.

  • Signal peptides.

  • Transmembrane domains.

  • Post-translational modifications.

  • Motifs & domains.

  • Secondary structure.

  • Other resources.

Expasy expert protein analysis system

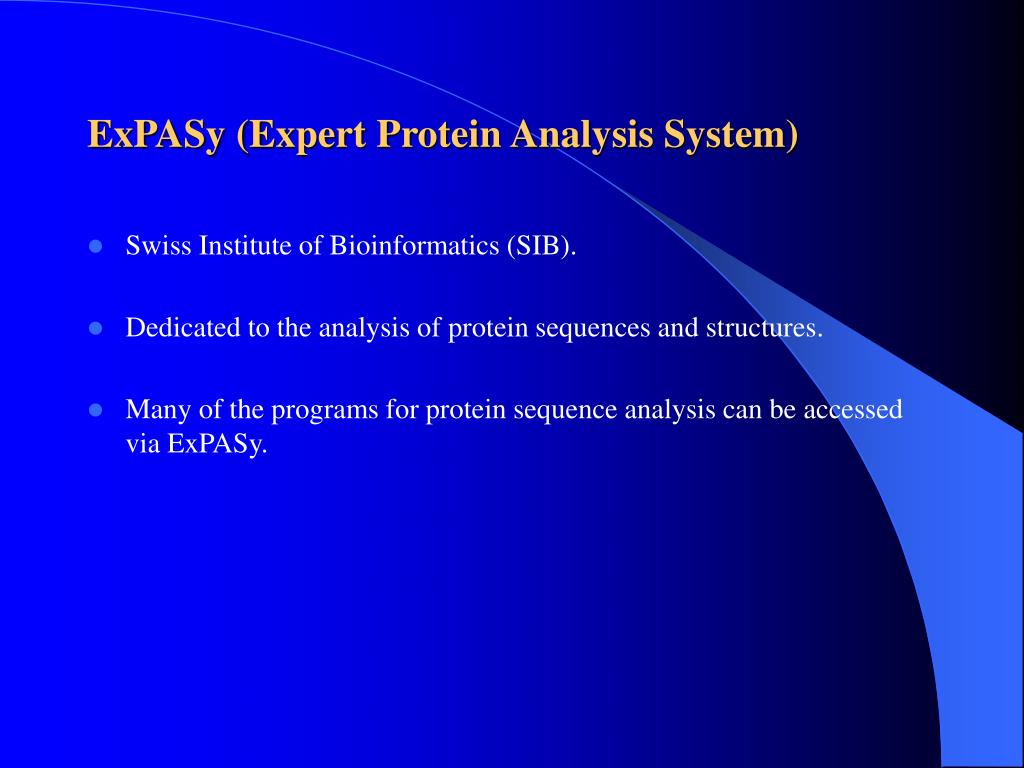

ExPASy (Expert Protein Analysis System)

  • Swiss Institute of Bioinformatics (SIB).

  • Dedicated to the analysis of protein sequences and structures.

  • Many of the programs for protein sequence analysis can be accessed via ExPASy.

1 physico chemical properties

1) Physico-chemical properties:

  • ProtParam tool

    • molecular weight

    • theoretical pI (pH no net electrical charge)

    • amino acid composition

    • atomic composition

    • extinction coefficient

    • estimated half-life

    • instability index

    • aliphatic index

    • grand average of hydropathicity (GRAVY)

2 cellular localization

2) Cellular localization:

  • Proteins destined for particular subcellular localizations have distinct amino acid properties particularly in their N-terminal regions.

  • Used to predict whether a protein is localized in the cytoplasm, nucleus, mitochondria, or is retained in the ER, or destined for lysosome (vacuolar) or the peroxisome.


  • End of the output the percentage likelihood of the subcellular localization.

3 signal peptides

3) Signal peptides:

  • Proteins destined for secretion, operation with the endoplasmic reticulum, lysosomes and many transmembrane proteins are synthesized with leading (N-terminal) 13 – 36 residue signal peptides.

  • SignalP WWW server can be used to predict the presence and location of signal peptide cleavage sites in your proteins.

  • Useful to know whether your protein has a signal peptide as it indicates that it may be secreted from the cell.

  • Proteins in their active form will have their signal peptides removed.

4 transmembrane domains

4) Transmembrane domains:

  • TMpred program makes a prediction of membrane-spanning regions and their orientation.

  • Algorithm is based on the statistical analysis of TMbase, a database of naturally occurring transmembrane proteins.

  • Presence of transmembrane domains is an indication that the protein is located on the cell surface.

5 post translational modifications

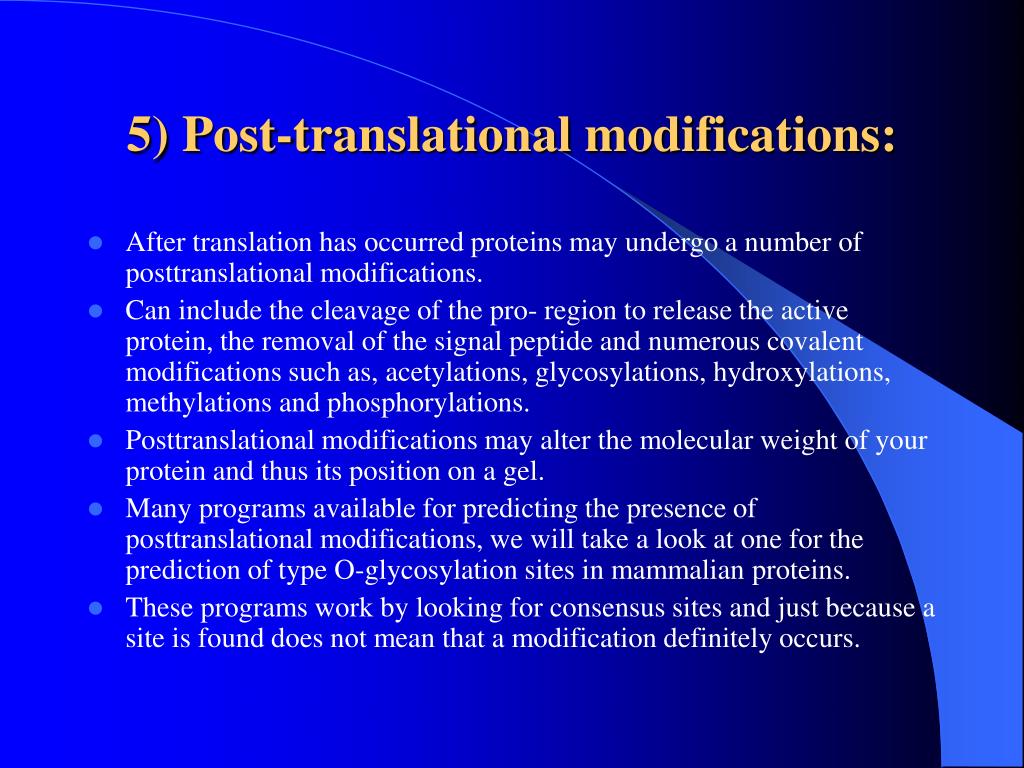

5) Post-translational modifications:

  • After translation has occurred proteins may undergo a number of posttranslational modifications.

  • Can include the cleavage of the pro- region to release the active protein, the removal of the signal peptide and numerous covalent modifications such as, acetylations, glycosylations, hydroxylations, methylations and phosphorylations.

  • Posttranslational modifications may alter the molecular weight of your protein and thus its position on a gel.

  • Many programs available for predicting the presence of posttranslational modifications, we will take a look at one for the prediction of type O-glycosylation sites in mammalian proteins.

  • These programs work by looking for consensus sites and just because a site is found does not mean that a modification definitely occurs.

6 motifs and domains

6) Motifs and Domains:

  • Motifs and domains give you information on the function of your protein.

  • Search the protein against one of the motif or profile databases.

  • ProfileScan, which allows you to search both the Prosite and Pfam databases simultaneously

7 secondary structure prediction

7) Secondary Structure Prediction:

  • WHY:

    • If protein structure, even secondary structure, can be accurately predicted from the now abundantly available gene and protein sequences, such sequences become immensely more valuable for the understanding of drug design, the genetic basis of disease, the role of protein structure in its enzymatic, structural, and signal transduction functions, and basic physiology from molecular to cellular, to fully systemic levels.

  • JPRED - works by combining a number of modern, high quality prediction methods to form a consensus.

Secondary structure prediction

Secondary Structure Prediction

  • Essentially protein secondary structure consists of 3 major conformations;

    • a Helix.

    • b pleated sheet.

    • coil conformation.

A helix

a Helix

B pleated sheet

b pleated sheet

  • Parallel

    • OR

  • Anti-parallel
