  1. BEE SME Program in Jamnagar Brass Cluster November 19, 2009

  2. Presentation Contents • Brief introduction of cluster • Energy utilization profile in Brass units • Energy conservation opportunities in Brass units • Possible technology modifications • Barriers/issues in Energy Efficiency Penetration

  3. Cluster Brief Overview • About cluster: • Around 2500 units: GIDC Shankartekri, Udyognagar & Dared • Type of units: Brassfoundry, Brass parts Manufacturing, Electroplating & Extrusion • Products: Cycle wall tubes, Battery terminals, Electrical parts, stove parts, Furniture products & Pen parts etc.. • Raw materials: Brass scrap, Copper, zinc, Lead & other metal alloys • Average production: 20-50 tons per month & 200-500 tons per month (Extrusion) • Energy cost is : 25-35% in Foundry, 3-7% in Manufacturing & 3-5% in Electroplating of production cost • Around 15-20% of energy efficiency potential existing in cluster

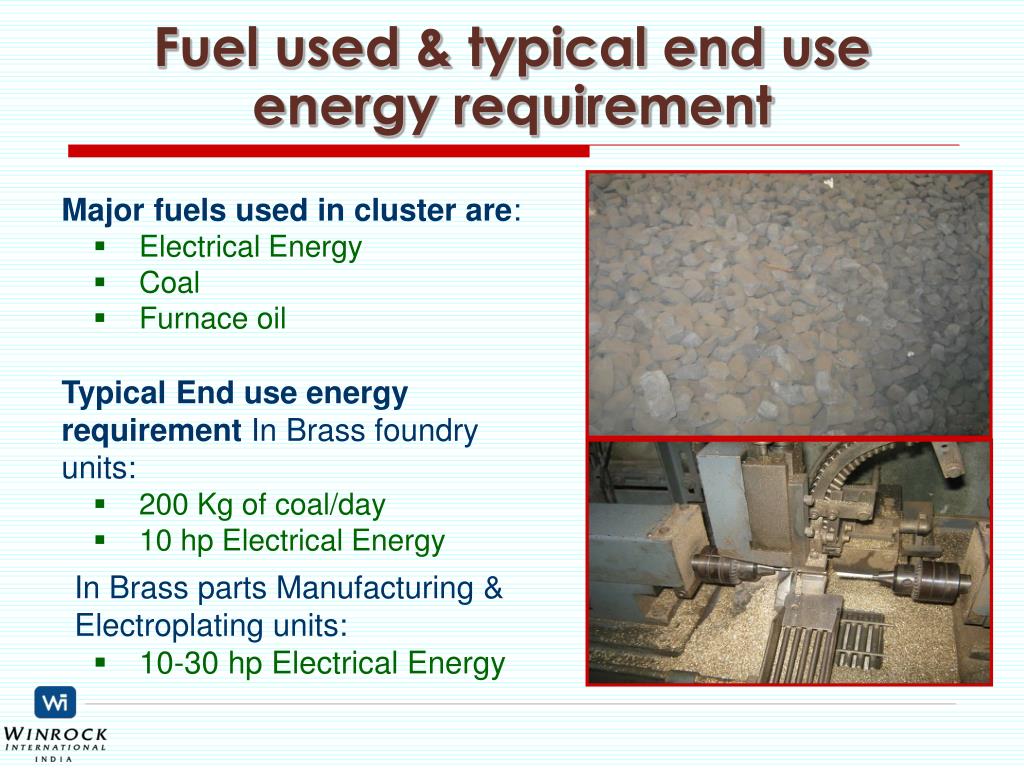

  4. Fuel used & typical end use energy requirement Major fuels used in cluster are: • Electrical Energy • Coal • Furnace oil Typical End use energy requirementIn Brass foundry units: • 200 Kg of coal/day • 10 hp Electrical Energy In Brass parts Manufacturing & Electroplating units: • 10-30 hp Electrical Energy

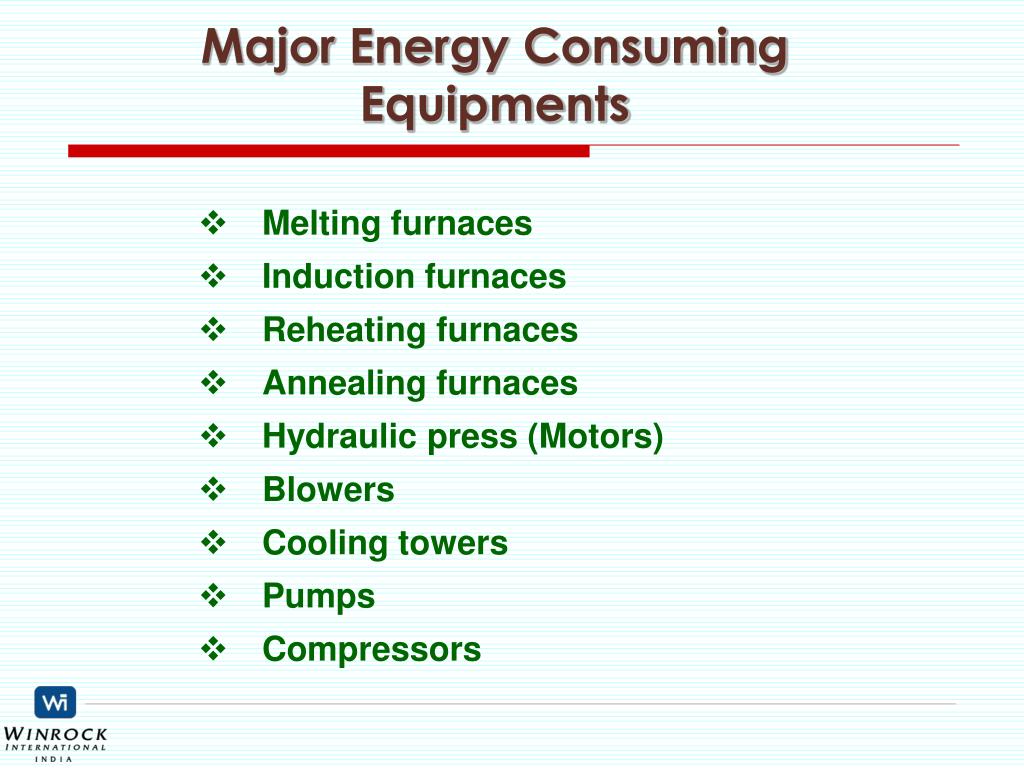

  5. Major Energy Consuming Equipments • Melting furnaces • Induction furnaces • Reheating furnaces • Annealing furnaces • Hydraulic press (Motors) • Blowers • Cooling towers • Pumps • Compressors

  6. Typical process flow chart Preparation of raw material & feeding into Crucible Energy consuming process Melting Thermal Energy Pouring into Moulds Cutting the edges Punching operation Drilling operation Smoothing and Threading Cleaning Electroplating Preparation of raw material & feeding into Crucible Preparation of raw material & feeding into Crucible Energy consuming process Melting Thermal Energy Electrical Energy Pouring into Moulds Electrical Energy Electrical Energy Electrical Energy Electrical Energy

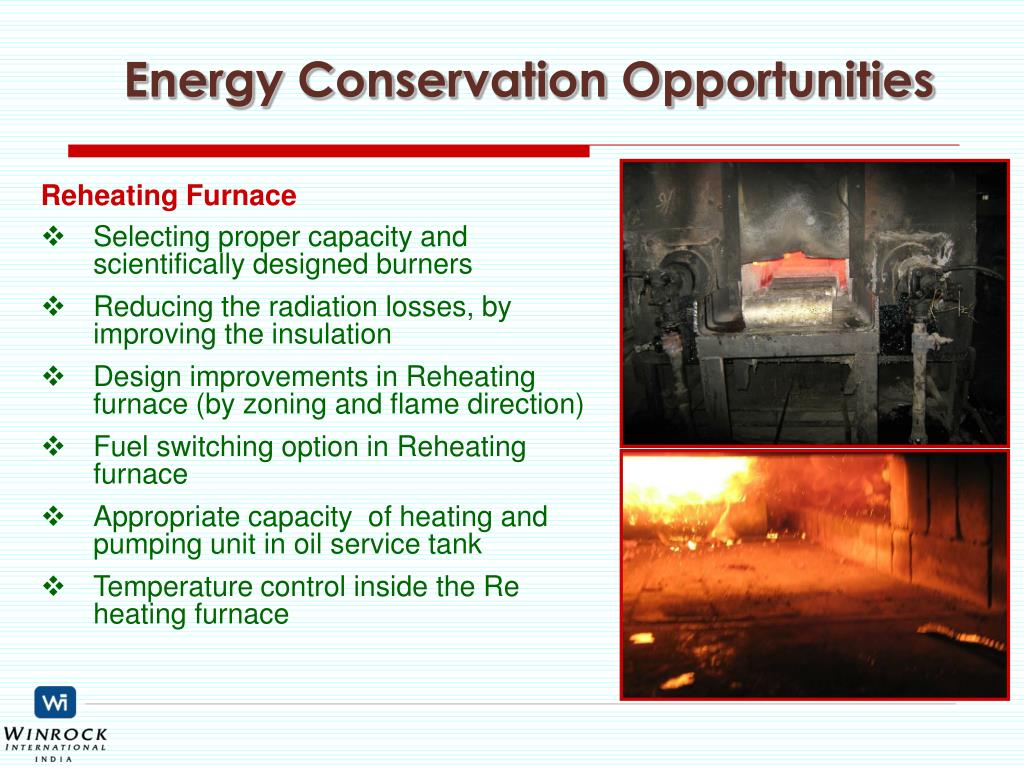

  7. Energy Conservation Opportunities Reheating Furnace • Selecting proper capacity and scientifically designed burners • Reducing the radiation losses, by improving the insulation • Design improvements in Reheating furnace (by zoning and flame direction) • Fuel switching option in Reheating furnace • Appropriate capacity of heating and pumping unit in oil service tank • Temperature control inside the Re heating furnace

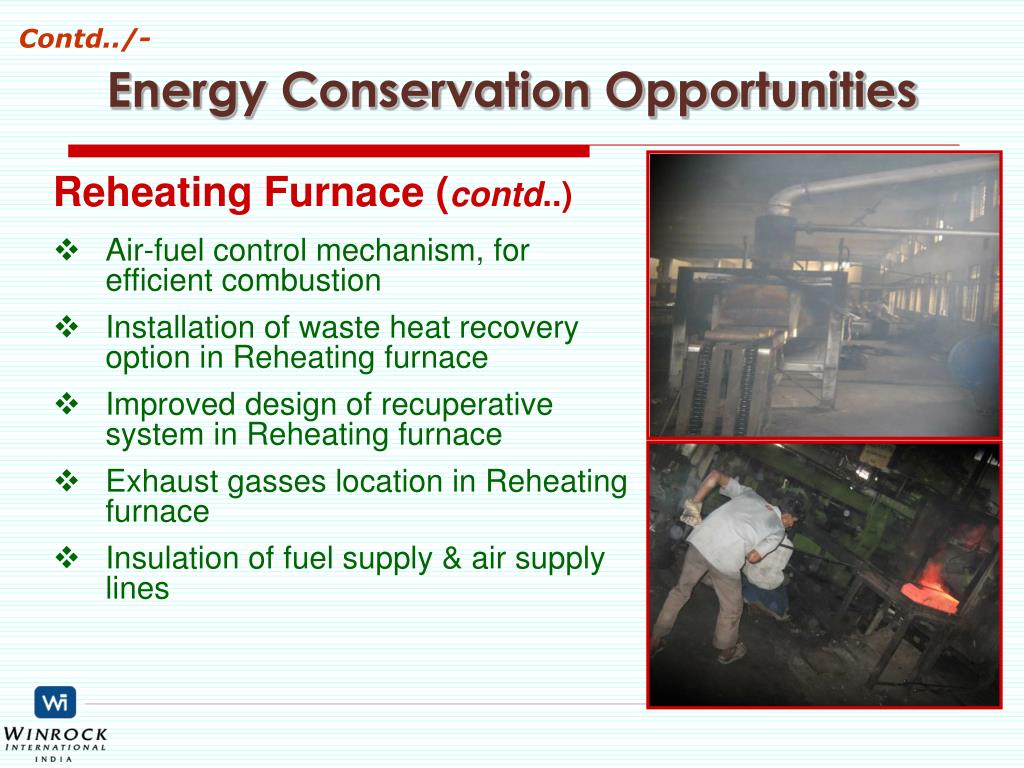

  8. Contd../- Energy Conservation Opportunities Reheating Furnace (contd..) • Air-fuel control mechanism, for efficient combustion • Installation of waste heat recovery option in Reheating furnace • Improved design of recuperative system in Reheating furnace • Exhaust gasses location in Reheating furnace • Insulation of fuel supply & air supply lines

  9. Contd../- Energy Conservation Opportunities Melting Furnace • Improving the melting furnace lining and insulation • Redesign of melting furnace • Temperature control of molten material • Fuel switching option in melting furnace • Selection and proper capacity and scientifically designed blower • Air-fuel control system

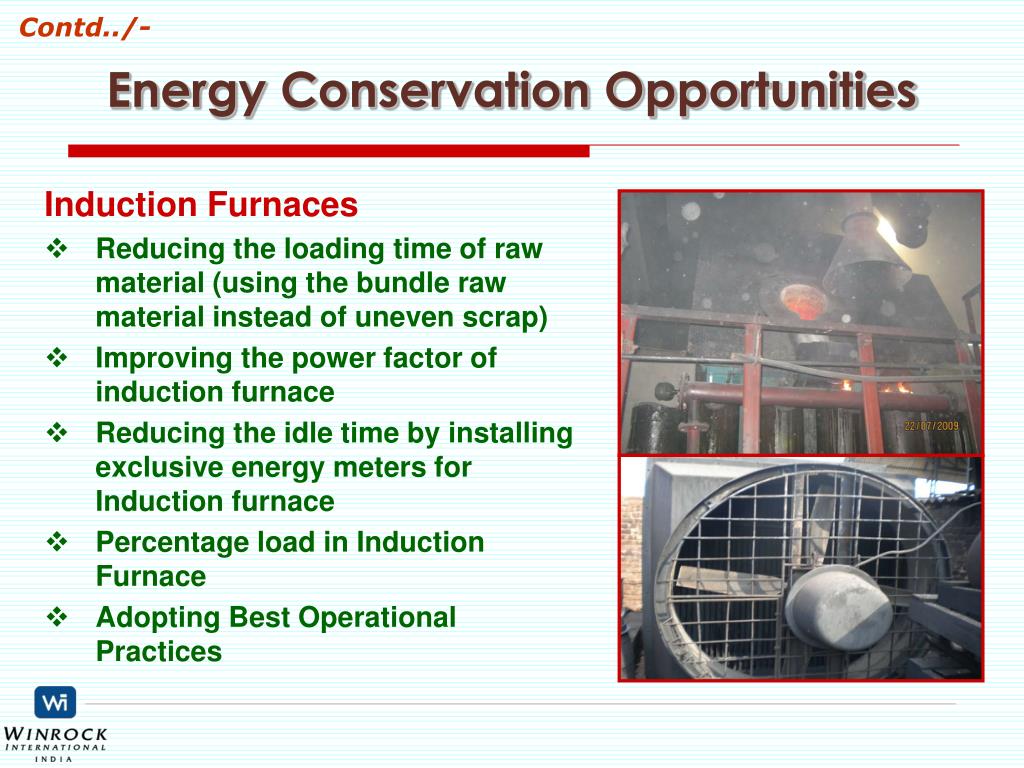

  10. Contd../- Energy Conservation Opportunities Induction Furnaces • Reducing the loading time of raw material (using the bundle raw material instead of uneven scrap) • Improving the power factor of induction furnace • Reducing the idle time by installing exclusive energy meters for Induction furnace • Percentage load in Induction Furnace • Adopting Best Operational Practices

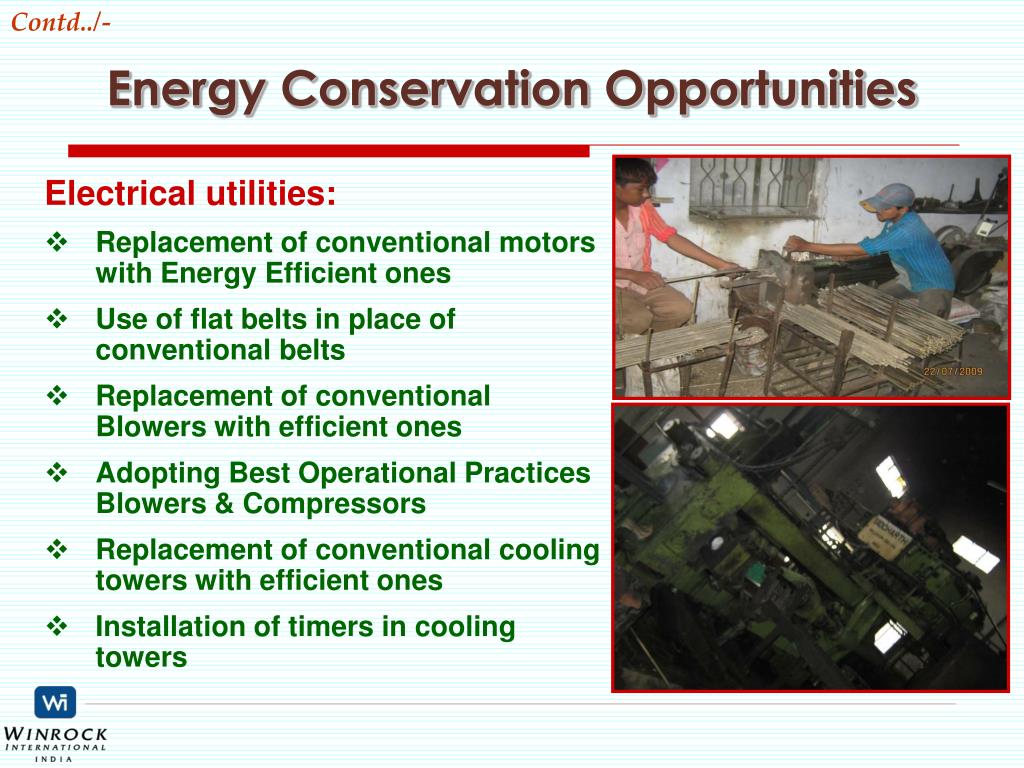

  11. … Contd../- Energy Conservation Opportunities Electrical utilities: • Replacement of conventional motors with Energy Efficient ones • Use of flat belts in place of conventional belts • Replacement of conventional Blowers with efficient ones • Adopting Best Operational Practices Blowers & Compressors • Replacement of conventional cooling towers with efficient ones • Installation of timers in cooling towers

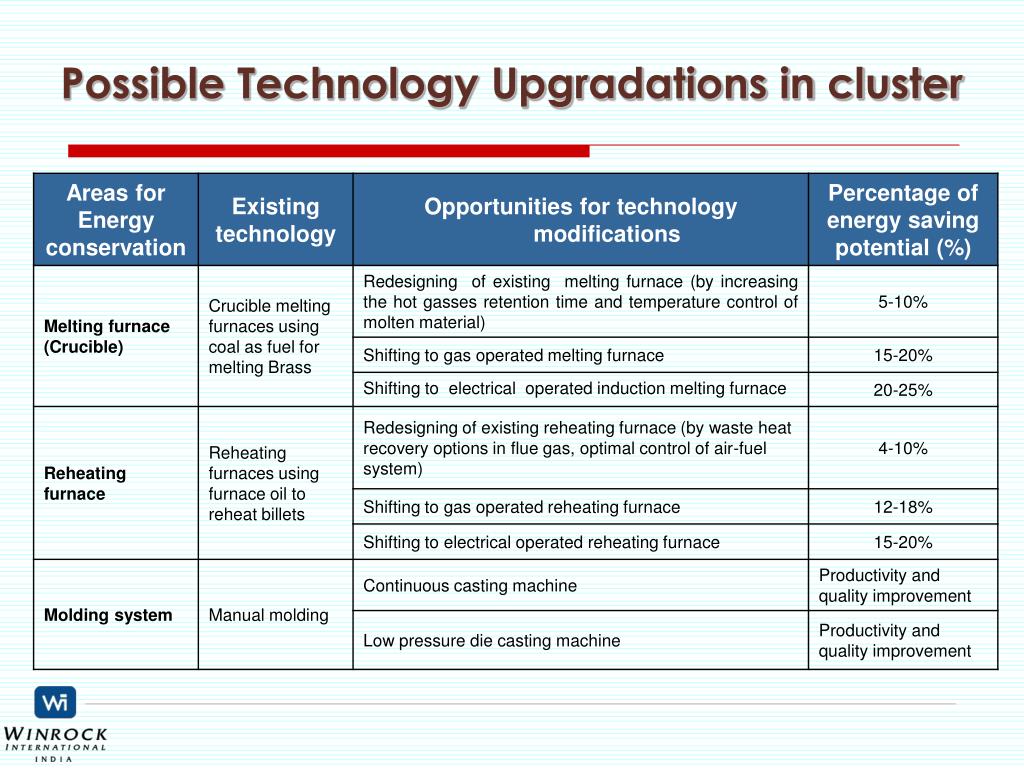

  12. Possible Technology Upgradations in cluster

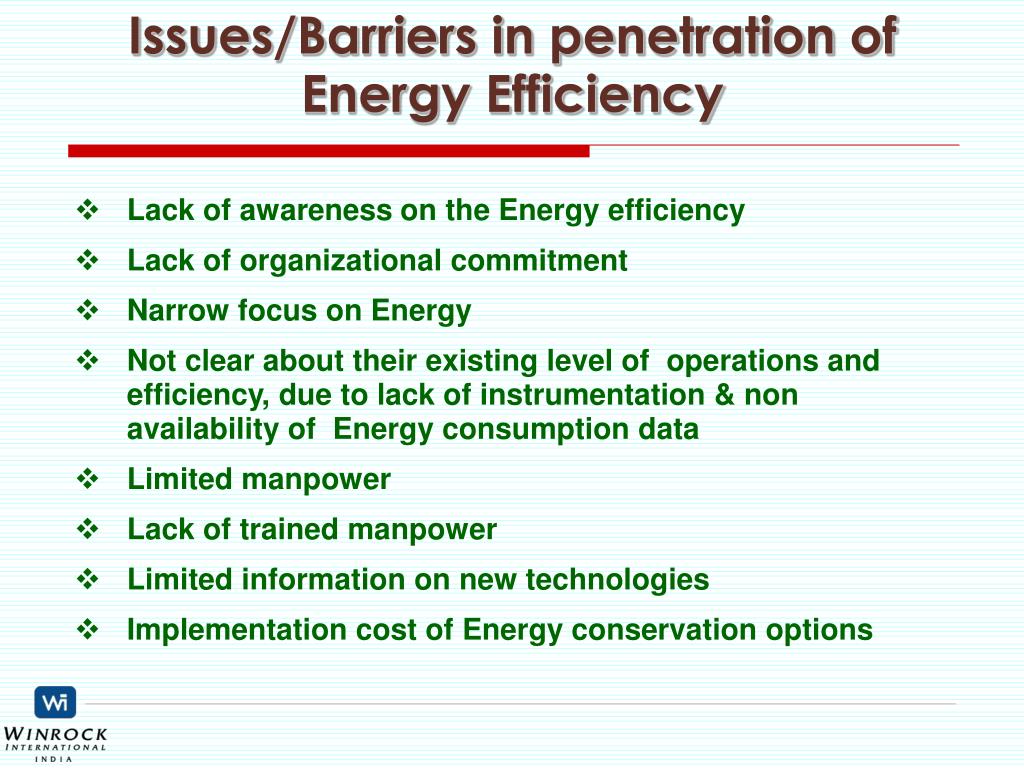

  13. Issues/Barriers in penetration of Energy Efficiency • Lack of awareness on the Energy efficiency • Lack of organizational commitment • Narrow focus on Energy • Not clear about their existing level of operations and efficiency, due to lack of instrumentation & non availability of Energy consumption data • Limited manpower • Lack of trained manpower • Limited information on new technologies • Implementation cost of Energy conservation options

  14. Thank You

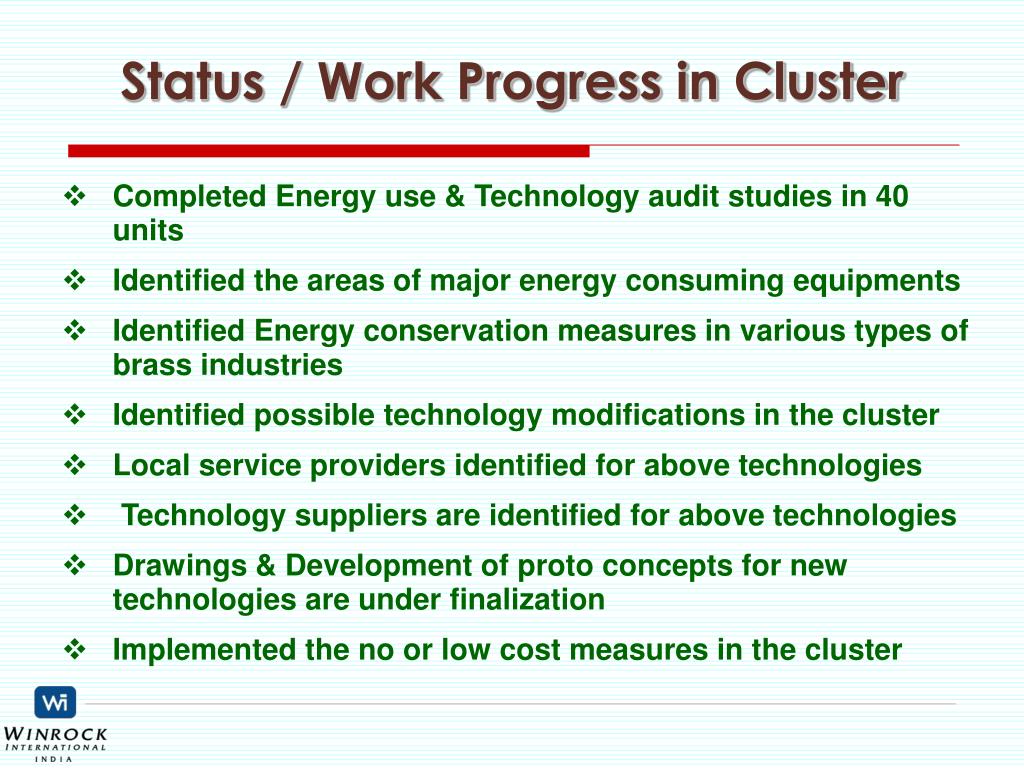

  15. Status / Work Progress in Cluster • Completed Energy use & Technology audit studies in 40 units • Identified the areas of major energy consuming equipments • Identified Energy conservation measures in various types of brass industries • Identified possible technology modifications in the cluster • Local service providers identified for above technologies • Technology suppliers are identified for above technologies • Drawings & Development of proto concepts for new technologies are under finalization • Implemented the no or low cost measures in the cluster
